2AKFED435Bluetooth Headset

1 ANC DEFUNC TRUE ANC ACTIVE NOISE CANCELLATION EARBUDS SUPPRESSION DU BRUIT AMBIANT CANCELACIÓN DE RUIDO AMBIENTAL AKTIVE GERÄUSCHUNTERDRÜCKUNG 5.3 English .................................................. 4 Français ................................................ 16 Español ................................................. 30 Deutsch ................................................ 43 ीद्निह ....................................................... 56 ...................................................... 68 Português ............................................... 80 Italiano ................................................... 93 ...................................................... 106 Hey you! Thanks for choosing Defunc TRUE ANC. It’ s equipped with active noise cancellation and soft silicone plugs so you can enjoy the only sound you want to hear. We hope this truly improves your wireless life. Copyright © The Art of Utility AB Defunc, c/o The Art of Utility AB, Holländargatan 22, 113 59 Stockholm, Sweden The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by The Art of Utility AB is under license. Other trademarks and trade names are those of their respective owners. Important: Use only with a charger capable of delivering 5V. MAX 5V 210-208529 FCC ID: 2AKFED435 45 DEFUNC TRUE ANC Thanks for choosing Defunc TRUE ANC. Read this manual to optimize your experience. Enjoy your new earbuds! WHAT’S INCLUDED • Defunc TRUE ANC earbuds • Extra earplugs (size S/M/L) • USB-C charging case and cable GENERAL TIPS FOR TRUE WIRELESS EARBUDS • Because of interference with other Bluetooth devices, the earbuds can get disconnected from each other. If you experience this problem, put the earbuds in the charging case and close the cap. After a few seconds, open the cap and start using the earbuds again. • Hold the earbud stem when putting or adjusting the earbuds in your ears. This way you avoid touching the sensitive touch area which controls different functions. • The volume affects the capacity of the battery. If you play your music with lower volume, the battery life will last longer. • Pause between each touch control command, e.g. wait 1 second between each volume control tap to further increase/decrease volume. TECHNICAL SPECIFICATIONS Bluetooth version: 5.3 Max. depth of ANC: 26±3dB Playtime: ≈ 5 h Playtime with active noise cancellation (ANC): ≈ 8 h Standby time: ≈ 50 h Earbud recharges in charging case: 4-5 times Charging time: ≈ 1.5 h Charging means: USB-C / Wireless charging Water resistance: IPX4 Codec: AAC/SBC Bluetooth transmission band: 2.4 GHz Speaker dimension: 10 mm 32 Ω ± 15% Speaker sensitivity: 102 ± 3 dB at 1 KHz 126 mV Power supply bin voltage: 5 V Driver transmission frequency: 20 Hz-20 kHz Earbud battery: 40 mAh Charging case battery: 400 mAh Rated earbud power: 29.6 mW Rated charging case power: 1.85 W Product operation freq. band: 2402~2480 MHz Max radio freq. power transmitted within above freq. band: 4 dBm Net weight: ≈ 4 5g 67 TURN ON ACTIVE NOISE CANCELLATION AND TRANSPARENCY MODE The earbuds have 4 sound modes: 1. Active noise cancellation (ANC) mode actively cancels surrounding noise. 2. Transparency Mode lets surrounding sounds into the earbuds. 3. Gaming Mode gives you a low latency of 55 ms. 4. Music mode for an enhanced music experience. It is the default when the earbuds are turned on. Download the Defunc app where you find your apps and follow the instruc- tions to register your account. You can also use your earbuds without the app (for our default audio settings that fits all music genres) Defunc app gives you the possibility to choose EQ settings or to create your own. You can also switch between different modes (ANC/Transparency/ GAMING/Music) and enjoy a number of other features to enhance your listening experience. DEFUNC APP 89 1. Make sure the earbuds are fully charged. Do this by charging the earbuds in the charging case until all 4 white lights on the charging case are lit for 5 seconds and then turn off. 2. Open the charging case. The earbuds will automatically power on and pair with each other. 3. T ake out the earbuds. When blue/red lights flash alternately, the earbuds are ready to pair with your device. 4. Turn on the Bluetooth function on your device. Select Defunc TRUE ANC in the Bluetooth list to pair the earbuds with the device. • The earbud lights turn off when the earbuds are paired. • The earbuds will automatically pair with a previously connected device when taken out of the charging case again. POWER ON There are two ways to turn the earbuds on: 1. Open the charging case for auto-power on after about 1 second. 2. Press each earbud for 3 seconds until you hear the on-sound or white lights flash 3 times. POWER OFF There are three ways to turn the earbuds off and one way they auto-power off: 1. Put the earbuds back in the charging case and close the cap. 2. Press either earbud for 5 seconds until you hear the off-sound or see r ed lights flash 3 times. 3. Auto-power off will be activated after 5-6 minutes without a connected device. 1011 TOUCH CONTROL FUNCTIONS Tap or press the earbud touch area to control different functions. Switch sound modes: Press the right earbud for 3 seconds to switch from normal mode to transparency mode. 3 seconds again to switch from transparency mode to active noise cancellation (ANC) and 3 seconds again to go back to normal mode. Press the left earbud for 3 seconds to switch from music mode to gaming mode, and 3 seconds again to go back to music mode. If the earbuds are turned off, the last setting will be the default when turned back on. Power on: Open the charging case for auto-power on or press each earbud for 3 seconds. Power off: Put the earbuds back in the charging case and close the cap. Or press either earbud for 5 seconds. Auto-power off will be activated after 5-6 minutes without a connected device. Play/pause: Double-tap either earbu…

Text truncated - open the document above for the full version.

The Art of Utility AB Covered Equipment Certification Attestation Letter 5/13/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AKFED435 The Art of Utility AB (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: Johan Wahlback Title: CEO Company Name: The Art of Utility AB Date: 5/13/2023

The Art of Utility AB * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 5/13/2023 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AKFED435 FRN of applicant: 0026055079 Per section 2.911(d)(7) of the FCC rules, The Art of Utility AB (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: DEFUNC USA FCC Registration Number (FRN): 0033751033 Physical U.S. Company Address: 315 N PUENTE ST. SUITE D, BREA, CA 92821 Contact Person: Eric Zi Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Johan Wahlback Printed name: Eric Zi Title: CEO Title: President Company Name: The Art of Utility AB Company Name: DEFUNC USA Date: 5/13/2023 Date: 5/13/2023

The Art of Utility AB Covered Equipment Certification Attestation Letter 5/13/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AKFED435 The Art of Utility AB (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Johan Wahlback Title: CEO Company Name: The Art of Utility AB Date: 5/13/2023

DATE : 7/13/2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with The Art of Utility AB Address: Upplandsgatan 7, 111 23, Stockholm, Sweden <Signature> Name：Johan Wahlback Title：CEO Applicant Company：The Art of Utility AB

DATE : 7/13/2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AKFED435 Product Name: Bluetooth Headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Johan Wahlback Title：CEO Company：The Art of Utility AB

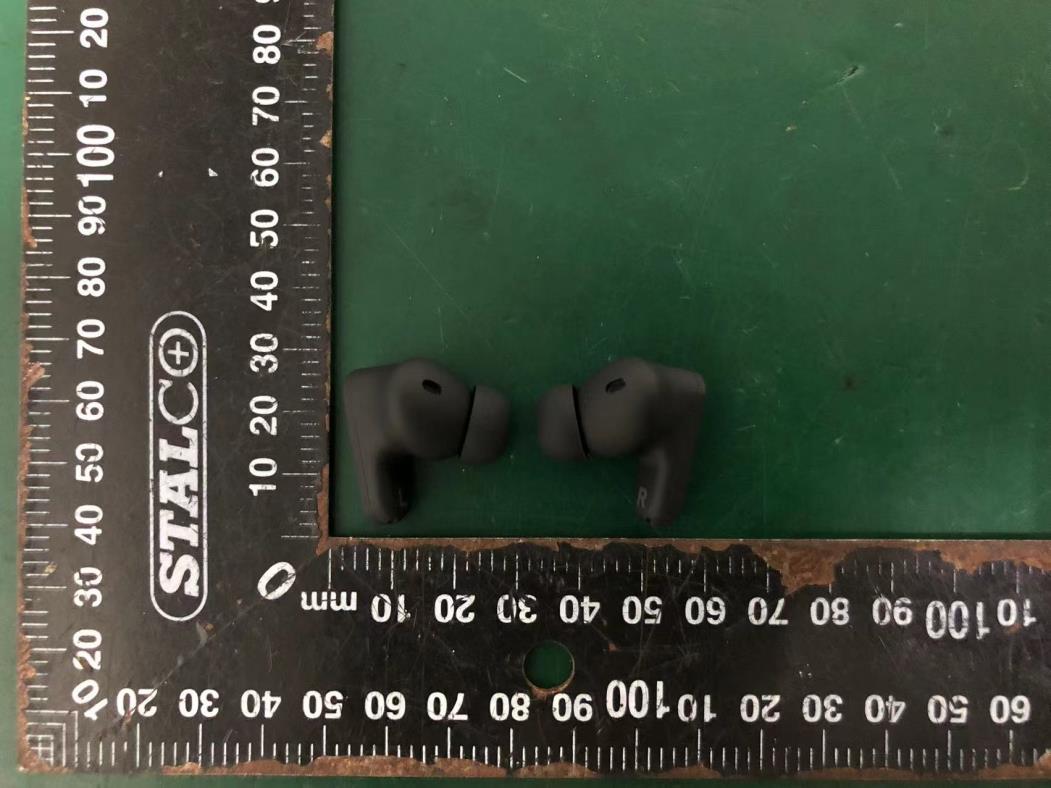

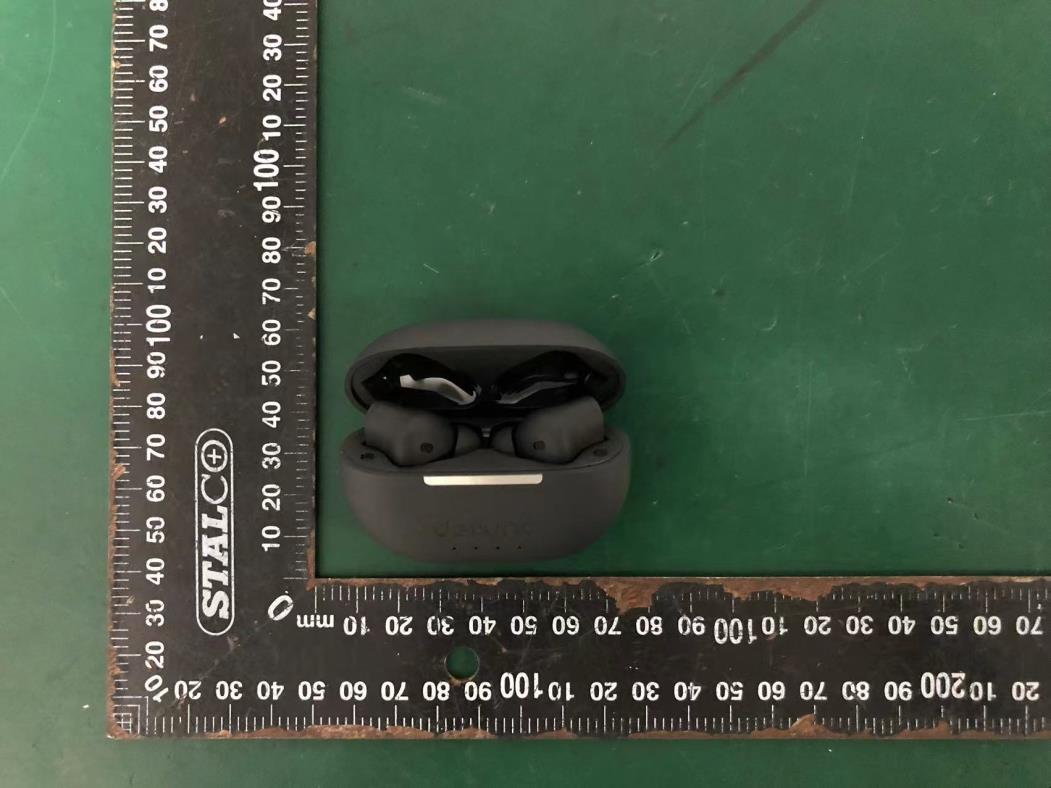

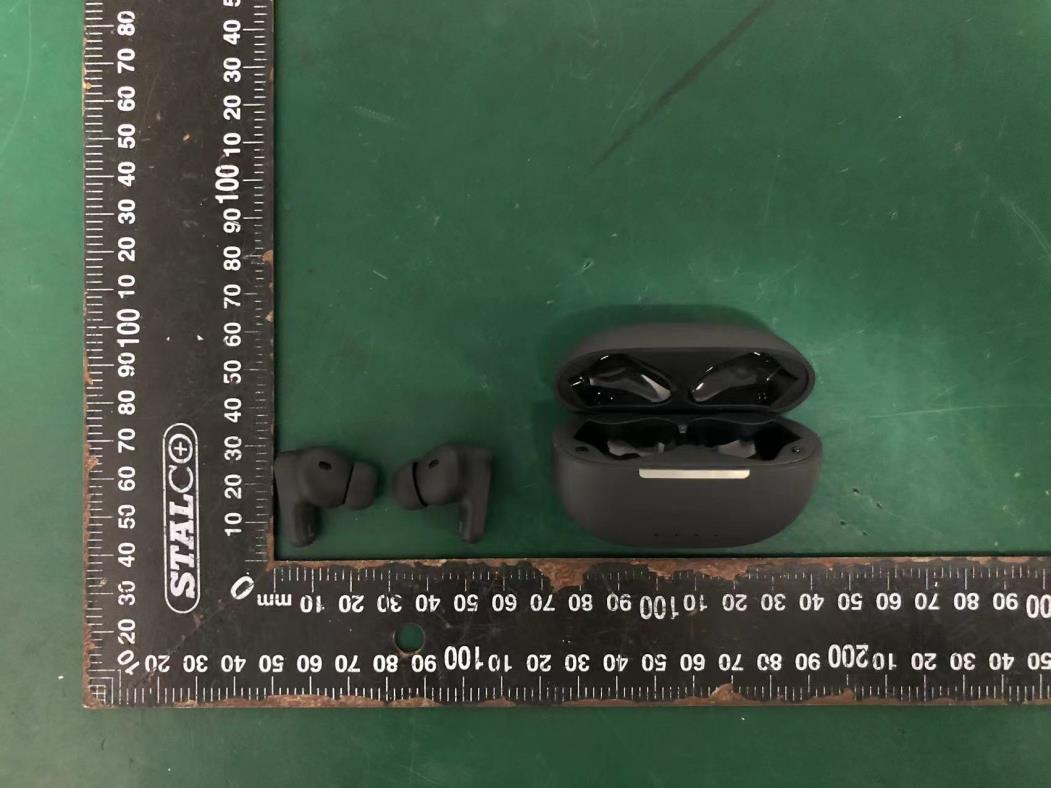

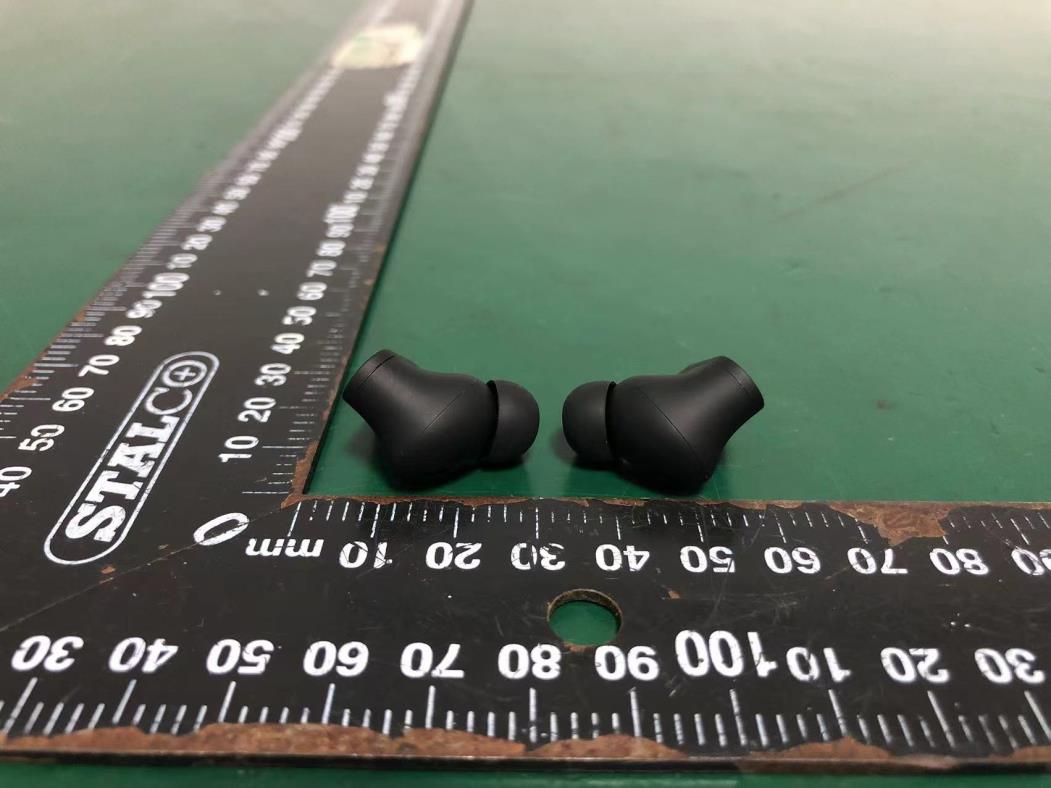

External Photos M/N: Defunc TRUE ANC External Photos M/N: Defunc TRUE ANC External Photos M/N: Defunc TRUE ANC External Photos M/N: Defunc TRUE ANC

English .................................................. 4 Français ................................................ 16 Español ................................................. 30 Deutsch ................................................ 43 ीद्निह ....................................................... 56 ...................................................... 68 Português ............................................... 80 Italiano ................................................... 93 ...................................................... 106 Hey you! Thanks for choosing Defunc TRUE ANC. It’ s equipped with active noise cancellation and soft silicone plugs so you can enjoy the only sound you want to hear. We hope this truly improves your wireless life. Copyright © The Art of Utility AB Defunc, c/o The Art of Utility AB, Holländargatan 22, 113 59 Stockholm, Sweden The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by The Art of Utility AB is under license. Other trademarks and trade names are those of their respective owners. Important: Use only with a charger capable of delivering 5V. MAX 5V 210-208529 FCC ID: 2AKFED435

Internal Photos M/N: Defunc TRUE ANC Internal Photos M/N: Defunc TRUE ANC Internal Photos M/N: Defunc TRUE ANC

FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305038 Page 1 of 3 FCC RF EXPOSURE REPORT The Art of Utility AB Bluetooth Headset Model Number: Defunc TRUE ANC FCC ID: 2AKFED435 Applicant: The Art of Utility AB Address: Upplandsgatan 7, 111 23, Stockholm, Sweden Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2305038 Date of Test: Mar. 30, ~May. 05, 2023 Date of Report: May. 08, 2023 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305038 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305038 Page 3 of 3 3. Evaluation Results Mode Frequency (MHz) Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 2.48 2 2.33 2±1 1.995 2.72 2441 1.71 2 1.56 1±1 1.585 2.72 2480 0.54 2 0.39 0±1 1.259 2.72 π/4- DQPSK 2402 1.61 2 1.46 1±1 1.585 2.72 2441 0.91 2 0.76 0±1 1.259 2.72 2480 -0.17 2 -0.32 0±1 1.259 2.72 BLE 1M 2402 2.20 2 2.05 2±1 1.995 2.72 2440 1.55 2 1.40 1±1 1.585 2.72 2480 0.35 2 0.20 0±1 1.259 2.72 BLE 2M 2402 2.35 2 2.20 2±1 1.995 2.72 2440 1.76 2 1.61 1±1 1.585 2.72 2480 0.43 2 0.28 0±1 1.259 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 1 of 71 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of The Art of Utility AB Bluetooth Headset Model Number: Defunc TRUE ANC FCC ID: 2AKFED435 Applicant : The Art of Utility AB Address: Upplandsgatan 7, 111 23, Stockholm, Sweden Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2305036 Date of Test: Mar. 30, ~May. 05, 2023 Date of Report: May. 08, 2023 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 2 of 71 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup ....................................................................................................................................... 1…

Text truncated - open the document above for the full version.

2.4GHz2012ChipAntenna:RANT2012F245C07 Dimension(mm) L2.05+-0.15 W1.20+-0.15 T0.85+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245C07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=06 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.0dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration RAINInternationalTechnologyCo.,Ltd.TEL:13530576606 2.4GHz2012ChipAntenna:RANT2012F245C07 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% PeakGain1.72dBi1.95dBi1.69dBi Directivity2.26dBi2.69dBi2.11dBi 2.4GHz2012ChipAntenna:RANT2012F245C07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 2.4GHz2012ChipAntenna:RANT2012F245C07 ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz2012ChipAntenna:RANT2012F245C06 2.4GHz2012ChipAntenna:RANT2012F245C07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12020/10/15NewDatasheet

FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 53 of 71 Appendix F: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.19 1.83 2441 2441.01 0.86 2480 2479.85 -0.11 2DH5 Ant1 2402 2401.93 -1.75 2441 2441.18 -2.05 2480 2480.18 -3.28 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 54 of 71 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 55 of 71 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 56 of 71 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch Name Freq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 1.83 -49.64 ≤-18.17 PASS High 2480 -0.11 -50.35 ≤-20.11 PASS Low Hop_2402 -1.52 -50.84 ≤-21.52 PASS High Hop_2480 -2.98 -49.94 ≤-22.98 PASS 2DH5 Ant1 Low 2402 -1.75 -49.93 ≤-21.75 PASS High 2480 -3.28 -50.55 ≤-23.28 PASS Low Hop_2402 -1.58 -50.27 ≤-21.58 PASS High Hop_2480 -3.21 -50.08 ≤-23.21 PASS FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 57 of 71 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 58 of 71 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 59 of 71 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 60 of 71 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 1.83 -32.91 ≤-18.17 PASS 2441 30~26500 0.86 -32.34 ≤-19.14 PASS 2480 30~26500 -0.11 -36.86 ≤-20.11 PASS 2DH5 Ant1 2402 30~26500 -1.75 -37.63 ≤-21.75 PASS 2441 30~26500 -2.05 -40.87 ≤-22.05 PASS 2480 30~26500 -3.28 -42.09 ≤-23.28 PASS FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 61 of 71 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 62 of 71 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 63 of 71 14. TEST SETUP PHOTO Conducted Test FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 64 of 71 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 65 of 71 15. EUT PHOTO External Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 66 of 71 External Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 67 of 71 External Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 68 of 71 External Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 69 of 71 Internal Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 70 of 71 Internal Photos M/N: Defunc TRUE ANC FCC ID: 2AKFED435 EST Technology Co., Ltd Report No. ESTE-R2305036 Page 71 of 71 Internal Photos M/N: Defunc TRUE ANC End of Test Report

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
