2AKFO-XF-X2camera

SHENZHEN SHARE VISION CO., LTD. 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Jul. 12, 26 [MIRAMONT SOLUTIONS LLC] ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. Ref: Attestation Statement –Part2.911(d)(7) filing FCC ID:2AKFO-XF-X2 [Shenzhen Share Vision Co., Ltd](“the applicant”) certifies that, as of the date of the filing of the a pplication, [MIRAMONT SOLUTIONS LLC](“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. address and email address. Designated U.S. Agent Company Name: MIRAMONT SOLUTIONS LLC FRN: 0036313369 Address:19 GEORGETOWN, IRVINE, CA92612 United States Signature: Contact Person: Wenyi Wang Tel: 951 401 3633 Email: [email protected] Signature: Email: Applicant Company Name: Shenzhen Share Vision Co., Ltd FRN: 0026055392 Address: 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Contact Person: Peijie Xu Tel: (86) 755-86315095 [email protected]

Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Contact Name: Peijie Xu Applicant Company name: Shenzhen Share Vision Co., Ltd Grantee code: 2AKFO FCC ID: 2AKFO-XF-X2 FRN: 0026055392 Address: 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Telephone No: (86) 755-86315095 Fax No: (86) 755-83615096 Email: [email protected] i. ii. [Shenzhen Share Vision Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. [Shenzhen Share Vision Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Applicant’s Name: SHENZHEN SHARE [6henzhen 6hare 9ision &o, /td (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2026/7/12 VISION CO., LTD. Title: Manager 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist Attestation Statement. Old Code: C5266091 24 New Code: 00015544 Ed.3 Change reason: FRN is added to the Applicant information section. 1/1 Signature

Code 00018768 Shenzhen Share Vision Co., Ltd Ed. 1 Item 1. The device is able to install software/program installation? ☐ Yes, go to Item 2. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky cybersecurity or anti-virus software. Device camera Company name Shenzhen Share Vision Co., Ltd Grantee code 2AKFO FCC ID 2AKFO-XF-X2 FRN 0026055392 Contact name Peijie Xu Address 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Telephone number (86) 755-86315095 E-mail [email protected] Chipset/module information AIC8800 Operating System (if applicable) N/A Storage Capacity (hard drive or other permanent memory storage, if applicable) N/A 2 Item 2. Technical Requirements for Kaspersky Cybersecurity Software: # General Requirements (For all Devices) Yes / No or N/A Comments 1 Internet connection for activation and updates (For all Operating Systems) N/A # General Requirements (For Windows Devices) Yes / No or N/A Comments 1 Storage: 1500 MB free space on the hard drive N/A 2 Operating System: Microsoft Windows 8, 8.1, 10 & 11 Home / Pro / Enterprise Microsoft Windows 7 Starter / Home Basic & Premium / Professional / Ultimate SP1 or higher N/A 3 Processor: 1 GHz or higher (x86 or x64) N/A 4 Memory (RAM)1 GB (32-bit) or 2 GB (64-bit) N/A 5 Screen Resolution: Minimum resolution of 1024 x 768 N/A # General Requirements (For macOS devices) Yes / No or N/A Comments 1 Operating System macOS® 13 – 14 N/A 2 Memory (RAM)4 GB N/A 3 Storage: 3455 MB free space on the hard drive N/A 3 # General Requirements (For Android Devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: Android™ 10 – 14 N/A 3 Screen Resolution: Minimum resolution of 320 x 480 N/A # General Requirements (for iOS devices) Yes / No or N/A Comments 1 Storage: 150 MB free space N/A 2 Operating System: iOS® 17 N/A # General Requirements (For Linux system) Yes / No or N/A Comments 1 Hard drive: 1 GB of free space N/A 2 CPU: Intel Pentium 1 GHz or higher 3 RAM: 1 GB 4 Minimum software requirements: AlmaLinux OS 8 or later; AlterOS 7.5 or later; Astra Linux Common Edition 2.12 or later; CentOS 6.7 or later; Debian GNU/Linux 10.0 or later; EulerOS 2.0 or later; Oracle Linux 7.3 or later ; Red Hat Enterprise Linux 6.7 or later ; Rocky Linux 8.5 or later ; SUSE Linux Enterprise Server 12.5 or later; Ubuntu 12.04 or later ; 4 Uncom OS Home / Business / Education / Enterprise 2.2 or later; ALT Linux Workstaton / Workstation K / Server / Education 8 or later; ROSA Linux Workstation / Server 12 or later ; RED OS 7.3 and later ; After reviewed the technical requirements, is the device capable of supporting the installation of Kaspersky software? ☐ Yes, go to Item 3. ☒ No. In this case, the rest of the items do not apply. The device cannot support installation of Kaspersky software Item 3. Connectivity Capabilities: # Physical Interface Purpose Justification 1 1 # Wireless Interface Purpose Justification 1 1 After the review of this items, the device: ☒ Cannot support installation of any cybersecurity or anti-virus software on the covered list. ☐ Potentially can operate with any cybersecurity or anti-virus software on the covered list – additional third- party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – “Proof of Compliance with Covered List Software Requirements” of this document applies Signature: Name: Peijie Xu Date:2026/7/12 1 The justification field is used to justify why the software cannot be received through that interface. Check the annex for more indications.

Shenzhen Share Vision Co., Ltd Model Difference Product description: camera Model name: 2AKFO-XF-X2, XF-F1, XF-F2, XF-F3, XF-F4, XF-F5, XF-F6, XF-F8, XF-F10, XF-F11, XF-F13, XF-F14, XF-F15, XF-F16, XF-F17, XF-F18, XF-F19, XF-F20, XF-F21, XF- F22, XF-F23, XF-F24, XF-F25, XF-F26, XF-F27, XF-F28, XF-F29, XF-F30, XF-F31, XF-F32, XF-F33, XF-F34, XF-F35, XF-F36, XF-F37, XF-F38, XF-F39, XF-F40, XF-X1, XF-X2, XF- X3 ,XF-X4, XF-X5, XF-X6, XF-X7, XF-X8, XF-X9, XF-X10, XF-X11, XF-X12, XF-X13, XF-X14, XF-X15, XF-X16, XF-X17, XF-X18, XF-X19, XF-X20, XF-X21, XF-X22, XF-X23, XF-X24, XF- X25, XF-X26, XF-X27, XF-X28, XF-X29, XF-X30, XF-X31, XF-X32, XF-X33, XF-X34, XF-X35, XF-X36, XF-X37, XF-X38, XF-X39, XF-X40, XF-P2, XF-P3, XF-P4, XF-P5, XF-P6 ,XF-P7, XF-P8, XF-P9, XF-P10, XF-P11, XF-P12, XF-P13, XF-P14, XF-P15, XF-P16, XF-P17, XF- P18, XF-P19, XF-P20, XF-P21, XF-P22, XF-P23, XF-P24, XF-P25, XF-P26, XF-P27, XF-P28, XF-P29, XF-P30, XF-P31, XF-P32, XF-P33, XF-P34, XF-X35, XF-P36, XF-P37, XF-P38, XF- P39, XF-P40 Trade Name: N/A FCC ID:2AKFO-XF-X2 We (Shenzhen Share Vision Co., Ltd) Hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance color. Regards Sincerely Client’s signature: Client’s name / title: Peijie Xu / Manager Contact information / 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000

TCBCALLpágina1 FileFCCID:2AKFO-XF-X2 PleaseuploadanexhibitthatexplainshowdoestheTCBverifythenewagentinformation: 1-IstheaddressoftheagentavalidphysicalUSmailingaddress(notaUSpostofficebox,notavirtualmailbox,notP.O.Boxes,notavacantlot,notapublicbuilding, etc.) ○Wehavecheckediftheaddressexistsinarealandpotentialbuilding(Googlemaps)+officialUSregister,afterthisverificationandtheevidencebelowwecan guaranteethefollowing: notaUSpostofficebox notavirtualmailbox notP.O.Boxes notavacantlot notapublicbuilding(note) ►WecheckedtheFCCFRNSearchbasedontheinformationprovidedbythegrantee. Ontheofficialregisterfrom:https://bizfileonline.sos.ca.gov/search/business TCBCALLpágina2 Ingoogle: TCBCALLpágina3 ►CONCLUSIONbyTCB:TheASOPdefinedandprovidedbygranteeisVALIDandconfirmed.Thereforetheexhibit"C5266091_X23_Ed1_US_Agent_Letter" includedinthefileisok. 2-IstheagentphysicallylocatedatthatvalidUSaddresssuchthattheagentcanbelegallyservedatthataddress? Yes,checkabove 3-Hasthelistedagentclearlyagreedinwritingtoserveastheagentforthegranteeatthataddress? Yes,itisincludedintheexhibit"C5266091_X23_Ed1_US_Agent_Letter" >

C5266091_X10_Ed.2 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road <Shenzhen Share Vision Co., Ltd> Columbia, MD 21046 Date: 2026.7.12 Subject: Request for Confidentiality FCC ID: 2AKFO-XF-X2 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of __45_ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:Peijie Xu Title: Manager

C5266091_X8_Ed.1 1/1 Letter of Authorization <Shenzhen Share Vision Co., Ltd> Name: Peijie Xu Date: 2026.7.1 Company:SShenzhen Share Vision Co., Ltd Address:4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Product Name:camera Model Number:2AKFO-XF-X2, XF-F1,XF-F2,XF-F3,XF-F4,XF-F5,XF-F6,XF-F8,XF-F10, XF-F11,XF-F13,XF-F14,XF-F15,XF-F16,XF-F17,XF-F18,XF-F19,XF-F20,XF-F21,XF-F22,XF- F23,XF-F24,XF-F25,XF-F26,XF-F27,XF-F28,XF-F29,XF-F30,XF-F31,XF-F32,XF-F33,XF-F34, XF-F35,XF-F36,XF-F37,XF-F38,XF-F39,XF-F40, XF-X1,XF-X2,XF-X3 ,XF-X4,XF-X5,XF-X6,XF- X7,XF-X8,XF-X9,XF-X10,XF-X11,XF-X12,XF-X13,XF-X14,XF-X15,XF-X16,XF-X17,XF-X18, XF-X19,XF-X20,XF-X21,XF-X22,XF-X23,XF-X24,XF-X25,XF-X26,XF-X27,XF-X28,XF-X29,XF- X30,XF-X31,XF-X32,XF-X33,XF-X34,XF-X35,XF-X36,XF-X37,XF-X38,XF-X39,XF-X40,XF-P2, XF-P3,XF-P4,XF-P5,XF-P6 ,XF-P7,XF-P8,XF-P9,XF-P10,XF-P11,XF-P12,XF-P13,XF-P14,XF- P15,XF-P16,XF-P17,XF-P18,XF-P19,XF-P20,XF-P21,XF-P22,XF-P23,XF-P24,XF-P25,XF-P26, XF-P27,XF-P28,XF-P29,XF-P30,XF-P31,XF-P32,XF-P33, XF-P34,XF-X35,XF-P36,XF-P37,XF- P38,XF-P39,XF-P40 FCC Identifier:2AKFO-XF-X2 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. 2 Title: Manager Signature of applicant:

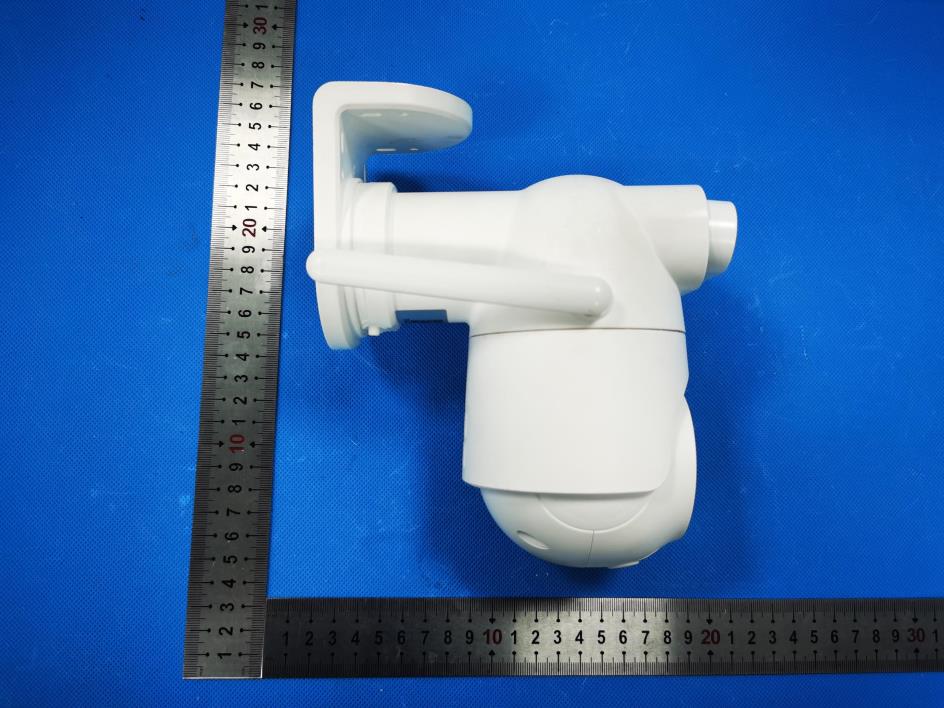

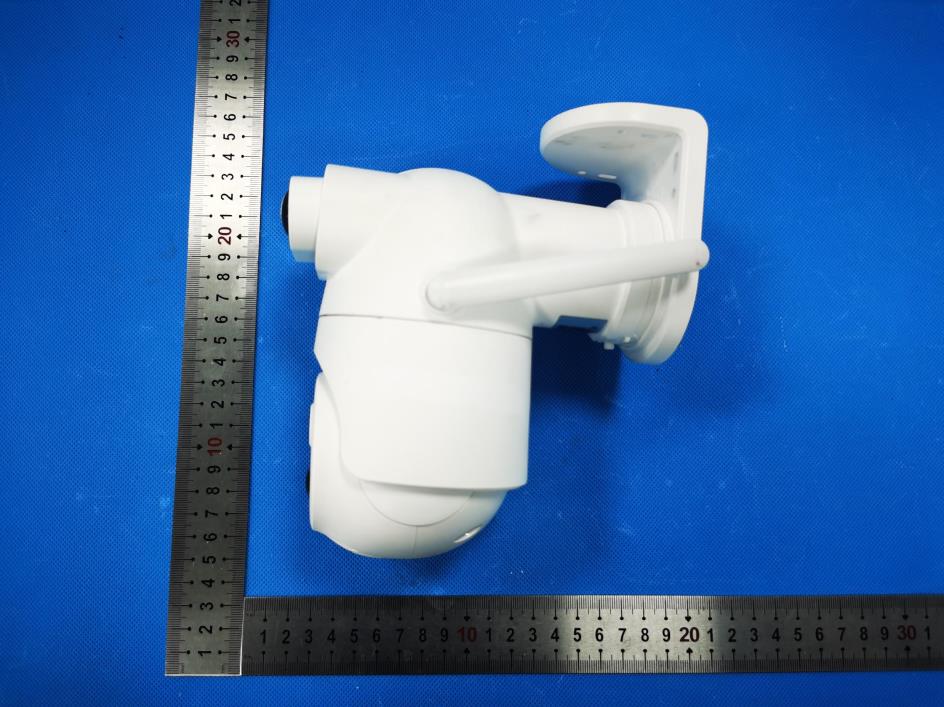

FCC ID:2AKFO-XF-X2 EUT PHOTO(External Photos) ANT FCC ID:2AKFO-XF-X2 FCC ID:2AKFO-XF-X2 FCC ID:2AKFO-XF-X2

Label & label location 20mm*10mm FCC ID:2AKFO-XF-X2 Label location

FCC ID:2AKFO-XF-X2 RF EXPOSURE EVALUATION Limits According KDB 447498 D01 General RF Exposure Guidance v06. The RF exposure evaluation requirements of §2.1091 for mobile device exposure conditions subject to MPE limits: Requirements of this section are a consequence of Commission responsibilities under the National Environmental Policy Act to evaluate the environmental significance of its actions. See subpart I of part 1 of this chapter, in particular § 1.1307(b). For purposes of this section, the definitions in § 1.1307(b)(2) of this chapter shall apply. A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the RF source's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location while transmitting. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal desktop computer, are considered to be mobile devices if they meet the 20-centimeter separation requirement. The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Test Result of RF Exposure Evaluation WIFI2.4G: Mode Output power to antenna (dBm) Tune UP tolerance (dBm) Max Tune UP power (dBm) Max Tune UP power (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 802.11b 17.92 17±1 18 63.10 0.02181 1.0 PASS 802.11g 15.59 15±1 16 39.81 0.01376 1.0 PASS 802.11n20 13.59 13±1 14 25.12 0.00868 1.0 PASS 802.11n40 12.31 12±1 13 19.95 0.00690 1.0 PASS Antenna gain: 2.40dBi WIFI5.1G: Mode Output power to antenna (dBm) Tune UP tolerance (dBm) Max Tune UP power (dBm) Max Tune UP power (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 802.11a 13.34 13±1 14 25.12 0.00716 1.0 PASS 802.11n20 12.20 12±1 13 19.95 0.00569 1.0 PASS 802.11n40 12.64 12±1 13 19.95 0.00569 1.0 PASS 802.11ac20 11.48 11±1 12 15.85 0.00452 1.0 PASS 802.11ac40 10.96 10±1 11 12.59 0.00359 1.0 PASS 802.11ac80 9.41 9±1 10 10.00 0.00285 1.0 PASS Antenna gain: 1.56dBi Remark: The same antenna cannot transmit at the same time.

Report No.: ZKT-260630L2295E-1 Page 1 of 57 FCC TEST REPORT FCC ID:2AKFO-XF-X2 Report Number. ................................ : ZKT-260630L2295E-1 Date of Test ................................................. : Jun. 02, 2026 to Jun. 22, 2026 Date of issue .................................... : Jun. 24, 2026 Total number of pages ....................... 57 Test Result ...................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name .......................... : Shenzhen Share Vision Co., Ltd Address .......................................... : 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Manufacturer's name ................... : Shenzhen Share Vision Co., Ltd Address .......................................... : 4F, No.8 Bldg, Fluent Industrial Park, Huaxing Rd., Longhua Dist., Shenzhen, Guangdong, China.518000 Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test procedure ................................. : / Non-standard test method .............. : N/A Test Report Form No. ..................... : TRF-EL-111_V0 Test Report Form(s) Originator ..... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : camera Trademark ...................................... : N/A Model/Type reference ...................... : 2AKFO-XF-X2 (Refer to Section 3.1 for serial model.) Ratings ............................................. : Input: 5V 1A From Adapter Battery: 3.7V 8000mAh, 29.6Wh Report No.: ZKT-260630L2295E-1 Page 2 of 57 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Report No.: ZKT-260630L2295E-1 Page 3 of 57 Table of Contents Page 1. VERSION ............................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................... 6 2.1 TEST FACILITY .............................................................................................................. 7 2.2 MEASUREMENT UNCERTAINTY .................................................................................. 7 3. GENERAL INFORMATION ................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................... 8 3.2 DESCRIPTION OF TEST MODES .................................................................................. 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ............. 10 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) ..................................... 10 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................. 11 4. EMC EMISSION TEST ........................................................................................ 13 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................ 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS ...................................................... 13 4.1.2 TEST PROCEDURE .................................................................................................. 13 4.1.3 DEVIATION FROM TEST STANDARD ...................................................................... 13 4.1.4 TEST SETUP ............................................................................................................. 14 4.1.5 EUT OPERATING CONDITIONS ............................................................................... 14 4.1.6 TEST RESULT ........................................................................................................... 15 4.2.1 RADIATED EMISSION LIMITS .................................................................................. 17 4.2.2 TEST PROCEDURE .................................................................................................. 17 4.2.3 DEVIATION FROM TEST STANDARD ...................................................................... 18 4.2.4 TEST SETUP ............................................................................................................. 18 4.2.5 EUT OPERATING CONDITIONS ............................................................................... 19 4.2.6 TEST RESULTS ........................................................................................................ 19 5.1 TEST REQUIREMENT: ................................................................................................. 30 5.2 TEST PROCEDURE ..................................................................................................... 30 5.3 DEVIATION FROM TEST STANDARD .............................…

Text truncated - open the document above for the full version.

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page1 SpecificationForApproval Date:2026.1.5 Version:1.2 客户名称 Customer：旭峰 客户料号 CustomerP/N：0.24.001.00158 腾祥料号 TXP/N：AN2450-5834BX-W 规格描述 Description:2.4G/5G白色天线,1.13mm黑色线L=250mm+IPEX TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 陈祖喜 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page2 Index: 1.Specification(规格) 2.CharacteristicsandReliabilityTest(产品特性和可靠性测试标准) 3.Antenna-SParameterTestData(样品测试数据) 4.Testenvironmentandequipment（测试环境以及设备） 5.Antenna-RadiationPatternTestData(辐射模式测试数据) 6.MechanicalandPackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02024.10.201.0 1.12025.10.101.1 按客户需求防水圈由红色换透明防水圈 1.2 2026.1.51.2 换胶圈颜色，透明改为红色 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page3 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz S.W.R.驻波比<=2.0/<=2.5（端口网分测试） AntennaGain增益2.40dBi/1.59dBi Polarization 极化方式Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics MaterialofPlastic塑胶材质ABS CableType线材规格OD1.13mm,BIack ConnectorType连接器规格I-PEX C.Environmental StorageTemperature 存储温度 -30 ̊C~+65 ̊C OperationTemperature 工作温度 -30 ̊C~+65 ̊C TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page4 2.CharacteristicsandReliabilityTest TestItems 测试 项目 TestConditionandProcedure 测试方法 Requirements 要求Result 结果 1V.S.W.R. 电压驻波比 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 2Antenna Gain 天线增益 SetDUTonAntennaChamber;makeindividual calibrationtotest设置天线暗室参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 3PullTest 拉力 Holdingwithindividualspecification;force appliedtoaxisofterminal.单独定义产品端子拉力 1.DirectiveDUTspecification 2.FrequencyTol.≤5% 符合待测物规范;频率偏移≤5% PASS 4Dimension 尺寸 Inspectionofdimension,color,material,package, surfaceprocess.检查尺寸,颜色,材料,包装,表面处理 DirectiveDUTspecification 符合待测物规范 PASS 5 SaltSpray盐 雾 GB/T2423.17-2008 Temp:35°C;RH:≥95%;NaClsolution:≥ 5%;Time:24H 温度35°C；湿度≥95%;盐水浓度≥5%；测试24H 1.NoVisualDamage 2.FrequencyTol.≤5% 无明显外观不良;频率偏移≤5% PASS 6Temperature and Humidity Chamber 恒温恒湿 GB/T2423.3-2006 Temp:65°C/12H;-30°C/12HRH:≥90%;Time: 24H 温度65°C测试12H转-30°C测试12H；湿度≥90%； 时间24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 恢复2H后，无明显外观不良;频 率偏移≤5% PASS 7Agingtest 老化 GB/T2423.2-2008 Temp:65°C;Time:24hours 温度65°C，测试24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 无明显外观不良;频率偏移≤5% PASS 8RoHSWithReferencetoIEC62321:2008withflowchart 参考IEC62321测试流程 DirectiveRoHS2011/65/EU 符合RoHS2015/863/EU标准 PASS TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page5 3.Antenna-SParameterTestData 测试仪器：VSWR是使用安捷伦E5071C连接到治具来测试，状态为自由空间。 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page6 4.Testenvironmentandequipment 暗室规格：6m*6m*6m/7m*3m*3m LTE-TDD/FDD-SCDMA测试设备:ROHDE&SCHWARZCMW500 无源效率测试设备:AgilentTechnologiesE5071B TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page7 5.Antenna-RadiationPatternTestData XZYZXY 2400MHz 2450MHz 2500MHz TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-5834BX-W ProductName:Antenna Page8 5150MHz 5550MHz 5850MHz 6.MechanicalDrawingSeeattachedfiles DWF 2026.01.05 ±0.5±0.2 ±1° 1/1 C SCALE: APP BY Tolerance X.XX X.X X° TITLE: PART NO.: DWG NAME: CHK BY DES BY RF BY UNITS: mm REVISION: Tengxiang Technology Inc. B C D APPROVER DATE SIGN DESCRIPTION WJ 2026.01.05 HC 2026.01.05 YCX 2026.01.05 2.4/5G Antenna AN2450-5834BX-W Note: 1. Dimension: Take * is the import ant dimension 2. Tolerance: Unmarked tolerance refer to the standard tolerance please HFREACHRoHS2.0 CONFIDENTIAL ABS Part Number Name Body 1 1 No. Q'ty 1 Material Finish 11 23 ABS Body 2 Silicone ring ORING-157040-R OD7.0*1.5mm ，红色 White White 硅胶 45 1 Coaxial Cable CB-113BS BLACK OD1.13mm 1 IPEX CR-113-ZP-A Au Plated CU ANT58-01WH35ANT58-02WH35 DWF 25.10.10 客户更新防水圈 ,Ø7.0*1.25mm 红色换透明防水圈 DWF 26.01.05 换防水圈颜色，透明的改为同款红色 Ø7.0*1.5mm 50pcs/ PE bag Revision : C Customer : ALL APPROVED BY ： CHECKED BY： DESIGNED BY： Name: Page: 1 of 1 Date: Part Number : 產品包裝規範 PACKING CRITERION 1000pcs/Carton 3. SEALING 。 2.PACKING。 1 . Enter PE bag。 DWF HC YCX AN2450-5834BX-W Antenna 2026.01.05
