2AKOLPZ0001Personal protective equipment for eyes with augmented reality

USER MANUAL VisionAR Sommario 1. Smart Glasses Overview ..................................................................................................................... 2 2. Smart Glasses Before Starting ............................................................................................................. 3 3. Smart Glasses - What’s in the Box ....................................................................................................... 4 4. FCC and ISED Compliance ................................................................................................................... 6 1. Smart Glasses Overview VisionAR offers the following: a) Capacitive Touch b) Haptic Feedback c) AR Optical Module d) Inertial Measurement Unit e) Expansion Interface a) Capacitive Touch A capacitive touch sensor which can be programmed to be interpreted as - Tap - Double Tap - Forward - Back b) Haptic feedback A haptic feedback can be programmed for signalling an alarm to VisionAR (i.e. vibration) c) AR Optical Module The optical module is composed of a transparent display which can be aligned with the field of vision d) Inertial Measurement Unit Triaxial accelerometer, gyroscope and magnetometer are on board to detect user's relative position and movement e) Expansion Interface The expansion interface allows to increase the functionalities of VisionAR by connecting compatible device (e.g Camera) through standard I2C protocol 2. Smart Glasses Before Starting Assembling your safety glasses 1. Take the glasses and cables out of the box 2. Fasten the elastic headband to the glasses temples using clips 3. Insert the USB cable into the USB slot on the optical module 4. Lock the USB cable to temples by clip Disassembling your safety glasses Make sure that the Control Unit is turned off 1. Un-plug the USB cable from the Control Unit 2. Unlock the USB cable from clip 3. Un-plug the USB cable from the optical module 4. Remove the elastic headband from glasses 5. Remove the lenses by pulling it from the opposite side respect to the Optical module 6. Remove the optical unit by: a. Lifting the two metal clips which are present on the top of the VisionAR. b. Gently pull the optical unit out of the protective lenses. 3. Smart Glasses - What’s in the Box Opening the VisionAR Smart Glasses box (Figure 1), the portable case is immediately visible; all the accessories will be displayed in this page. Figure 1: Panoramic of VisionAR Smart Glasses box Portable case Inside the box, the portable case has the following content: - Glasses with Gradient lens mounted - Spare Clear lens - Quick User Guide - Informative Note Figure 2: Portable case appearance Figure 3: Portable case content VisionAR design is illustrated in Figure 4, a gradient lens will be mounted as default (Figure 5). Spare clear lens is available in the package (Figure 6): Figure 4: VisionAR design, rear view Accessories All supplied accessories are shown in Figure 8, a dividing layer separates portable case compartment from accessories (Figure 7): Figure 7: Dividing layer Figure 8: All the supplied accessories All the accessories 1 Screwdriver 2 Clip 3 USB cable 4 Cleaning cloth and liquid 5 Elastic headband Figure 5: Fixed green LED when battery pack is fully charged 4. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Additional information about RF safety can be found on the links below: FCC website at https://www.fcc.gov/general/radio-frequency-safety-0

Via G.Prati, 87 - 25086 Rezzato ( BS ) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] VisionAR Terms and Conditions Via G.Prati, 87 - 25086 Rezzato ( BS ) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] WARRANTY This product is guaranteed to be free from defects in materials and workmanship according to European standards. This product does not contain user serviceable parts. Repairs must be carried out exclusively by an authorized Univet s.r.l Service Center. Unauthorized repairs or modifications could cause permanent damage and invalidate the warranty; furthermore, modifications to the PPE by anyone other than the manufacturer and/or replacement of parts that do not conform to the required standards, may reduce performance and invalidate its certification. Spare parts, if required, can be requested from Univet S.r.l. The replacement of structural components, if not specified in the packages or in a separate note, must be carried out only by Univet S.r.l. This warranty does not cover damage caused by normal wear and tear or as a result of opening or repairing the Product by an unauthorized Service Center and does not cover damage caused by: improper use, moisture, liquids, proximity or exposure to heat and accidents, abuse, non-compliance with the instructions supplied with the Product, negligence or incorrect application. This warranty does not cover physical damage to the PPE or to the device. The limited warranty does not cover the installation, removal or maintenance of the device or any related costs. In addition, this warranty does not cover any issues related to the use of our drivers, software or this device with systems, including Operating Systems and hardware, that do not meet the requirements indicated in the related documentation. We do not provide commercial or other warranties for our devices and accessories other than the warranty set out in these Terms and Conditions. This limited warranty is provided in place of any other warranties or similar obligations (if any) created by advertising, documentation, packaging, or similar. The provisions of this clause do not affect any of your legal rights under applicable mandatory national law, including but not limited to your legal guarantee of conformity for goods. Univet S.r.l. reserves the right to evaluate the complete replacement and/or restoration of the article. Items that have deteriorated due to wear, improper use or tampering with are excluded from maintenance and/or replacement operations. Via G.Prati, 87 - 25086 Rezzato ( BS ) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] GENERAL TERMS AND CONDITIONS You acknowledge, using this device, that its software and services are not intended or suitable for environments where they could cause inaccuracies or delays in the information provided by the device, injury, death or damage to the environment. Univet S.r.l, within the limits of the law, declines responsibility for damages that may occur if the device is used in unsuitable conditions. Before using the PPE (Personal Protective Equipment) it is necessary: - Verify that the item meets your requirements (by reading this disclaimer) - Verify that the frame, lenses and display are not damaged or defective in any way that could compromise visibility or their structural impact resistance. If they are damaged or defective, the glasses must not be used and must be replaced - If the PPE is not completely assembled or if it is necessary to replace one or more of its components, for example the visor and/or the nose pads, the components must be assembled following the instructions provided in the box or in separate dedicated documentation - Verify that all components are assembled according to the instructions provided in the dedicated documentation or box, if any, and make sure they have the required safety marks - Adjust the straps and fitting system so that the PPE cannot inadvertently move during use - The PPE must be worn from the first instance of exposure to risk if it is required by the regulations in force for the relative PPE marking Via G.Prati, 87 - 25086 Rezzato ( BS ) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] PRECAUTIONS AND RECOMMENDATIONS The following notes must be taken into account by all users, both for the user safety and for correct maintenance of the devices and all its components. These notes are divided into the following sections: - General Usage Notes - Third Party Accessories - Third Party Control Units GENERAL USAGE NOTES  PPEs must not be exchanged between multiple users as they are intended for personal use only.  If the PPE is damaged during use, for example: impact, heat and/or exposure to corrosives, it must be replaced.  Do not use cleaning products on PPE which have not been approved by Univet S.r.l. Contact - Univet S.r.l, for information on the products that can be used to clean and disinfect PPE.  PPEs must be kept in their original packaging, at a temperature between 5°C and 40°C, in a dry environment, free of organic vapors and abrasive powders.  To maintain the overall efficiency of the PPE it must not be exposed to direct heat or UV rays.  Keep these notes together with the PPE and the original packaging.  This item meets the requirements of the EU regulation 2016/425 and has been verified according to: o EN166 for European market o ANSI Z87.1+ for US market  The PPE identification code is shown on the box. The performance of this PPE is specified by conformity marks on both the product and its packaging.  Assemble the components and/or accessorizes following the user manuals supplied with each item. THIRD PARTY ACCESSORIES Third party accessories can be connected to the PPE to add additional functionalities, however the following must be taken into consideration: - The accessory must be designed in such a way as not to affect the mechanical o…

Text truncated - open the document above for the full version.

QUICK GUIDE ETL-PN0005.00 Rev.1.2 What’s in the box? 1 • Attach the headband 4 • Adjust the Headband to secure your VisionAR For more information scan here! 3 • Put your VisionAR on 6 • Connect the CU and VisionAR 2 • Plug in the USB C 5 • Connect the magnetic clip LEVEL 1: Elastic Headband Clip USB cable Notes Cleaning Cloth and liquid Screwdriver LEVEL 2: Glasses with lens Spare lens Case

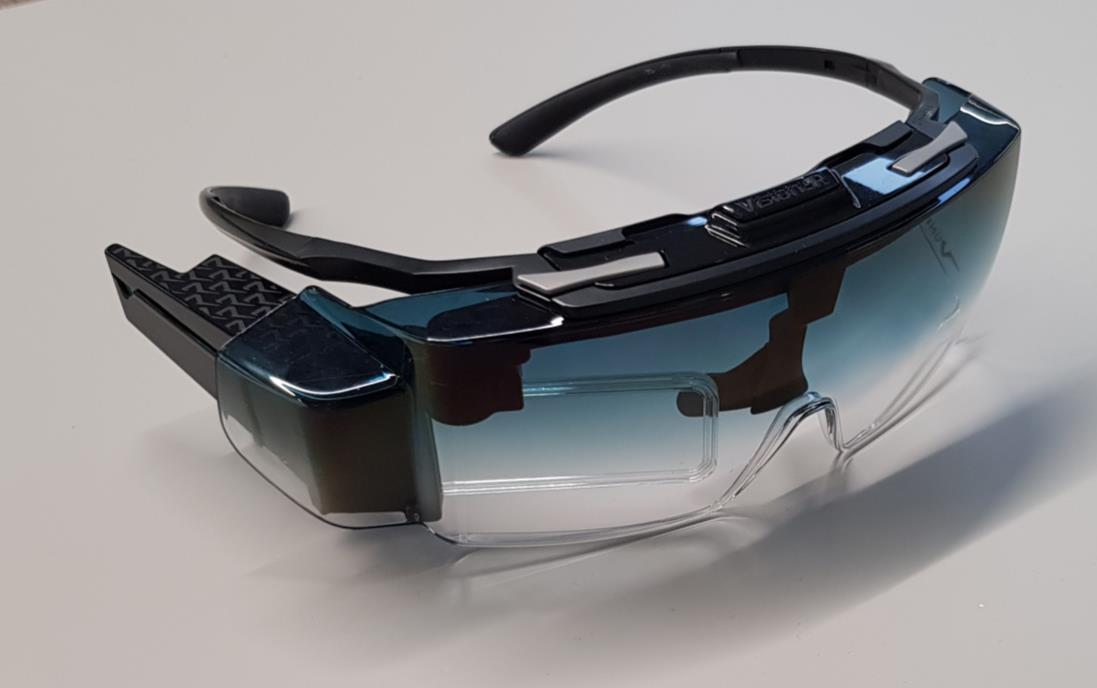

Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] EXTERNAL PHOTO EYEGLASSES Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected]

FCC ID: 2AKOLPZ0001

Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] INTERNAL PHOTO EYEGLASSES Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] Via G. Prati, 87 - 25086 Rezzato (BS) - Italy Tel. +39 030-2499411 Fax. +39 030-2499430 www.univet.it - [email protected] Display

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR19-0046097-01 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart B Section 15.107 and 15.109 PRODUCT Augmented reality safety glasses MODEL(s) TESTED VISIONAR TRADE MARK(s) UNIVET APPLICANT UNIVET S.r.l. ∼ Via G. Prati, 87 ∼ I-25086 Rezzato (BS) Assessed by Robertino Torri [Laboratory technician] Approved by Giovanni Di Turi [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2019-12-02 First edition Digital signed - AR19-0046097-01_TR_FCC Part B_UNIVET - Glasses Mod. TRF 3723/2 B.U. P RODUCTS C ONFORMIT Y A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 2 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2019-10-30 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 97592 Samples tested No. 1 Object under analysis recognition Not carried out Except where stated, characteristics of products were taken from client description and were not verified by the laboratory Date of acceptance of test item 2019-10-30 TEST LOCATION Testing dates 2019-10-30 Testing laboratory. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 Milano Testing site Via Quintiliano, 43 – I-20138 Milano ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 22.5 °C Relative Humidity 57 % Atmospheric Pressure 1004 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. Unless otherwise specified, warnings, installation instruction and/or user manual provided with the sample have been checked in Italian or English version only. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 3 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 2015 Radio Frequency Device ANSI C63.4 2014 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 4 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 3. EQUIPMENT UNDER TEST (EUT) DETAILS GENERAL DATA (according to manufacturer declaration) MODEL (basic) Description VISIONAR Augmented reality safety glasses VARIANTS (derived) Description / / MANUFACTURER UNIVET S.r.l. ∼ Via G. Prati, 87 ∼ I-25086 Rezzato (BS) ASSEMBLY PLANT(s) EUT IDENTIFICATION EUT composition Glasses EUT classification Fixed Vehicular Portable Other EUT standing / Supply voltage 5 V DC by USB port of notebook Temperature range / Dimensions / Mass of equipment / Integrated radio module data Radio module / Receiver category / Modulation / Number of channels / Channel bandwidth / Operating frequency / Antenna / / / / Type: Integral Dedicated External Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 5 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 4. TEST CONFGURATION OF UNIT UNDER TEST EUT PORTS Port Description Max length Enclosure Plastic AC power / / DC power 5 V DC by USB port of notebook / Earth / / Telecommunication / / Signal & Control / / Antenna / / STATE OF THE EUT DURING TESTS Ref. Mode Description #1 Operating Glasses in normal operating mode USB supplied SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model PC for supply / / EUT Antenna Port AC Power Port Earth Port Telecommunication Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 6 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufacturer Model Main Board 1 UNIVET RFI SUPPRESSION DEVICES Component No. Manufacturer Model / / / / EMI PROTECTION DEVICES Component No. Manufacturer Model / / / / EUT TECHNICAL DOCUMENTATION Document Reference / / Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 7 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 5. METHODS OF MEASUREMENT All compliance measurements have been carried out using the procedures described in the standard ANSI C63.4:2014 and Section 15.31 of CFR47 Part 15 – Subpart A (General). Additional test requirements have been adopted according to the reference Section indicated in the § 6 of this test report. FREQUENCY RANGE INVESTIGATED Conducted emission tests : from 150 kHz to 30 MHz. Radiated emission tests: from 30 MHz to 1 GHz Test Report No. AR19-0046097-01 Date: 2019-12-02 Page 8 of 15 Mod. TRF 3723 / 2 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QU IPMENT L ABORATORY 6. SUMMARY OF TEST RESULTS POSSIBLE TEST CASE VERDICTS: Test object meets the requirement PASS Test object does not meet the requirement FAIL Test case does not apply to the test object N.A. Test not performed N.P. CFR47 Part 15 TITLE RESULT § 15.107 C…

Text truncated - open the document above for the full version.

FCC ID: 2AKOLPZ0001 UNIVET Radiated Measurements Test Set-up Conduced Measurements Test Set-up
