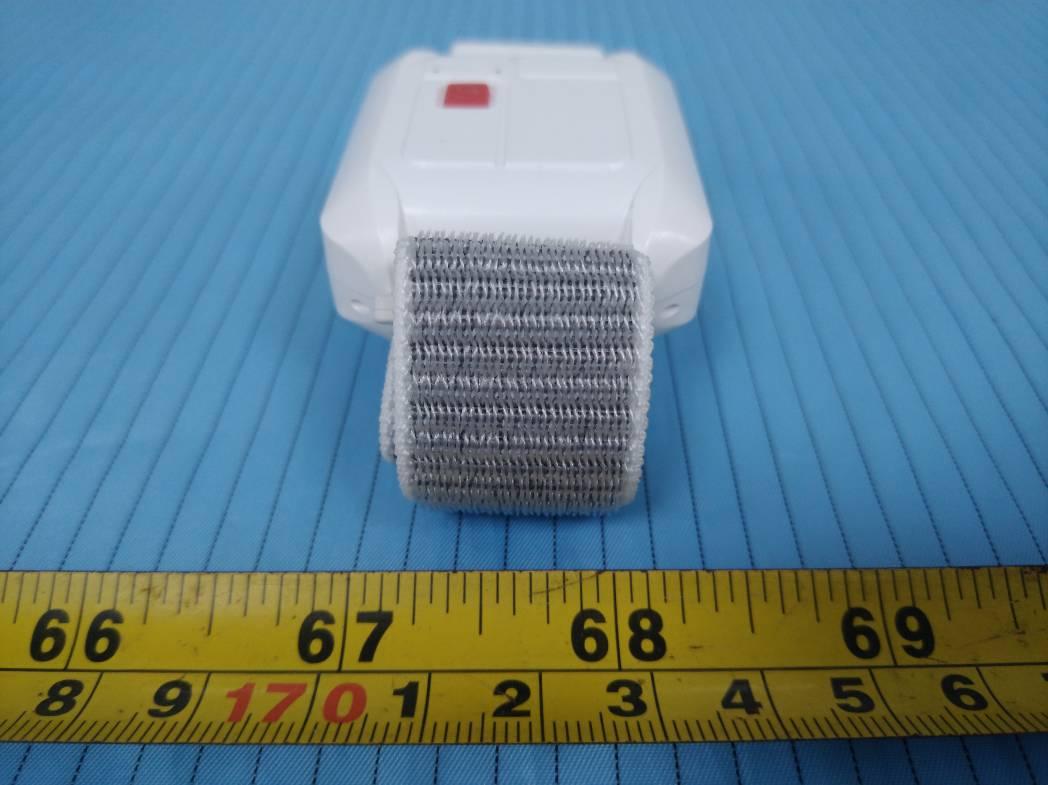

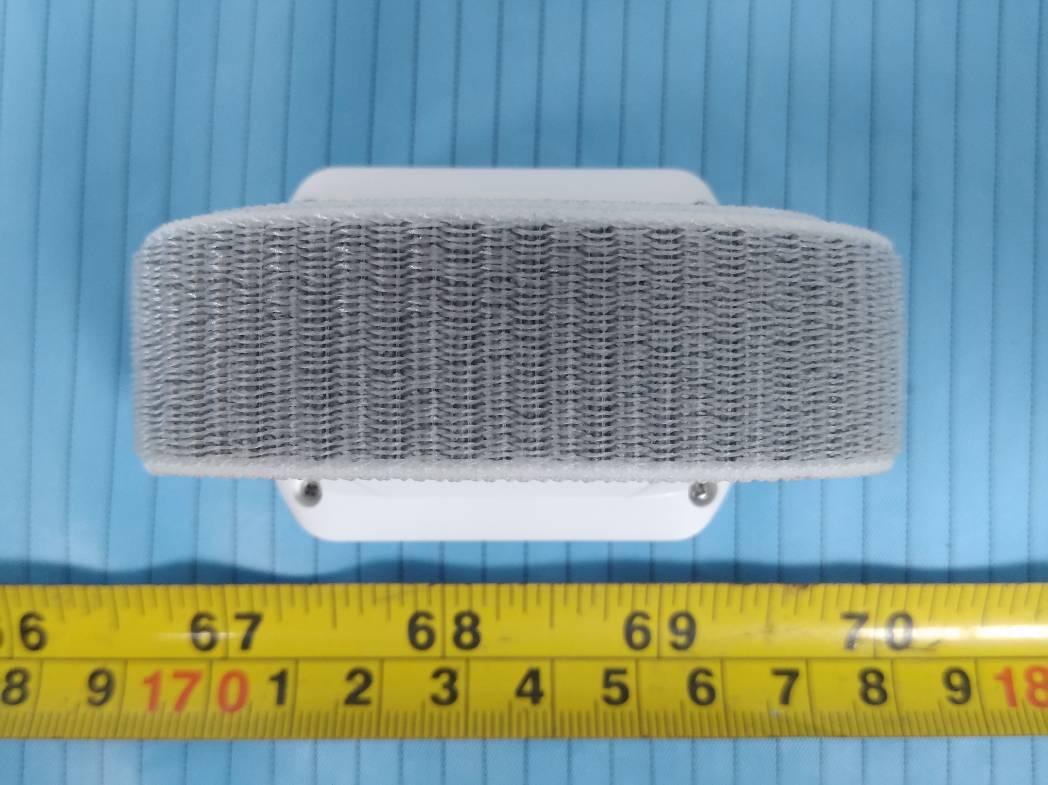

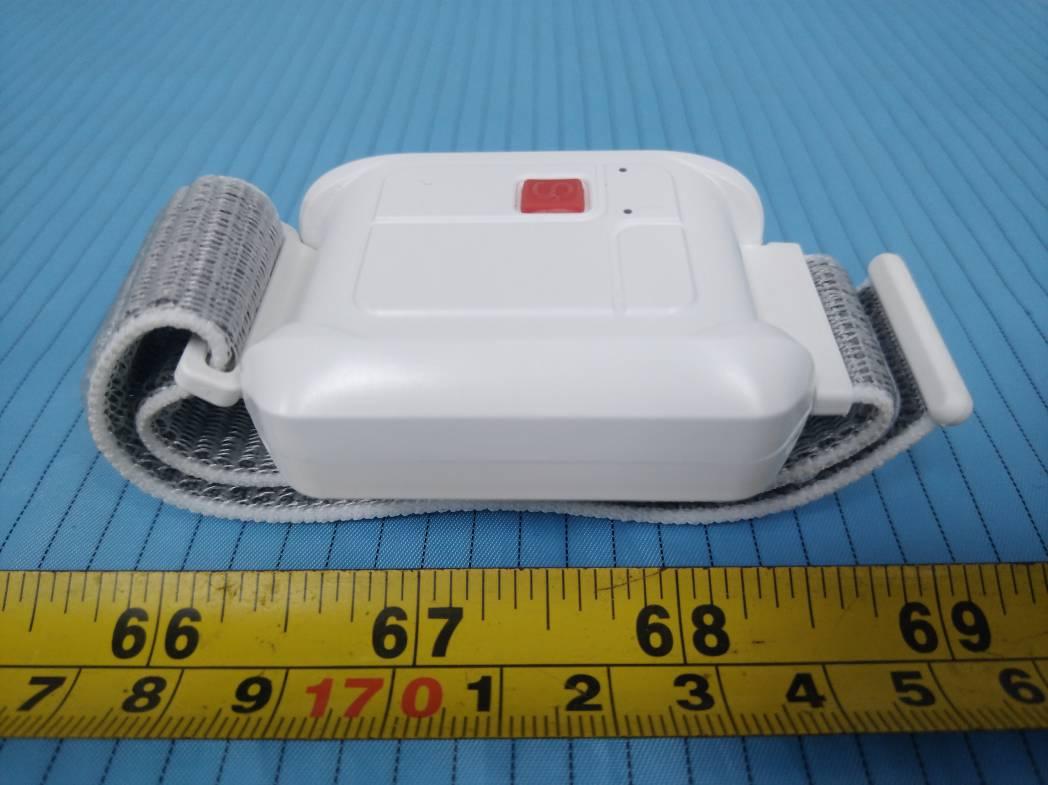

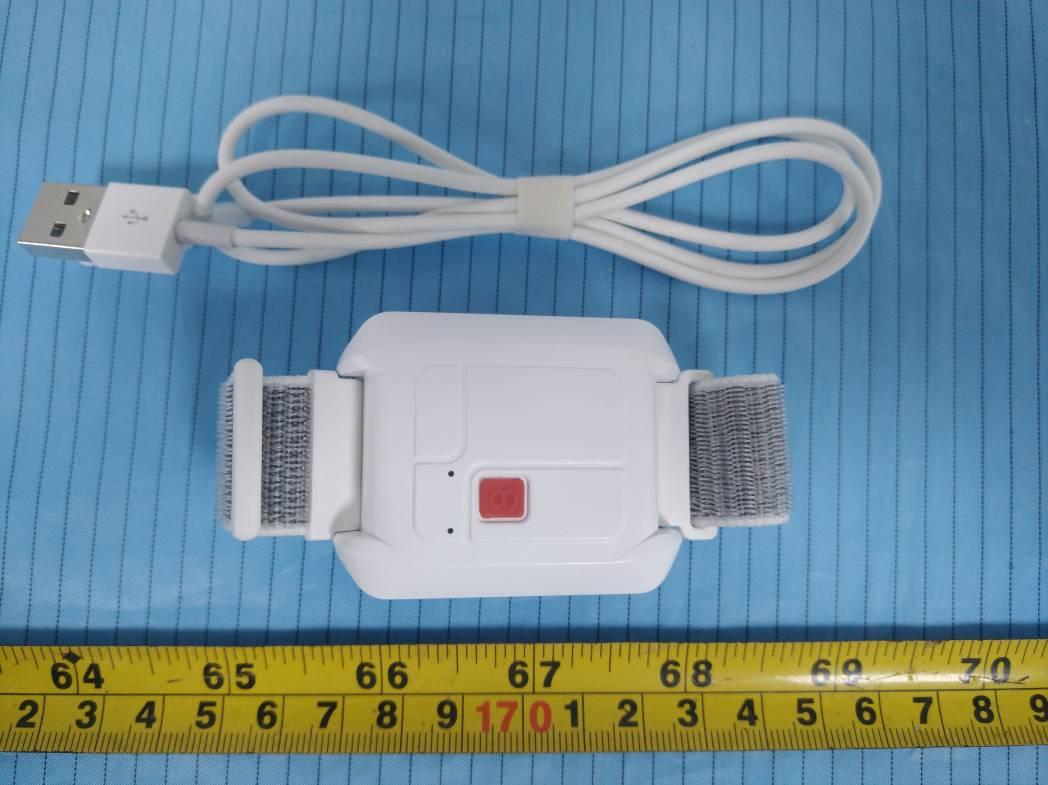

UT-206-Z User Manual Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 2 / 8 Content 2M-Ranger Quick UserGuide ..........................................................................................................................................................1 1 System Application structure .......................................................................................................................................................3 2 Bracelet ...............................................................................................................................................................................................3 2.1 Bracelet BasicInformation .................................................................................................................................................3 2.2 LED Description ...................................................................................................................................................................4 2.3 Strap ........................................................................................................................................................................................4 2.4 Enter Test Mode & Warning Mode ..............................................................................................................................5 2.5 Non-range Mode（Manager Access） ......................................................................................................................5 2.6 Whitelist ..................................................................................................................................................................................5 2.7 Low-power Alert .................................................................................................................................................................6 2.8 Bracelet Charging ...............................................................................................................................................................6 2.9 Submit Records ....................................................................................................................................................................7 3 Bracelet Daily operation ................................................................................................................................................................7 4 Contact information for after-sales technical support .......................................................................................................7 Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 3 / 8 1 System Application structure Description：Social distancing system is to measure distance between tags. When two or more tags come in within 2metres, tags will have vibration alerts and data will be recorded. Event data will be transfer to the server for analyze when the tag is within the gateway range. Wrist tag：To be worn by staffs Gateway：Event data collection & transfer to serve 2 Bracelet 2.1 Bracelet Basic Information Bracelet Specifications Description Mode; Battery Power for EU Working Time Warning Distance Social Distancing Bracelet UT-206-Z 520mA -2.4 dBm/50MHz 12h 100~500cm adjustable Default: 200cm External Interface Dimensions Weight (g) RF frequency Protection Rating Working Temperature Charging Voltage 4PINMagnetic Interface Charging 51*40*19.6mm 27.9 6.24~6.74GHz IP67 -20~65°C 5v Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 4 / 8 2.2 LED Description LED1Power indication，Red LED blink when battery is 30%, need charging. Blue LED when charging， Green LED when fully charged. As shown below： Off Mode Test Mode Low Battery Charging Fully charged No Light Green Blink Red blink Blue Green 2.3 Strap a) How to tighten the strap Lift and pull the strap until desired size. As shown below： Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 5 / 8 2.4 Enter Test Mode & Warning Mode LED2 Green Blink Press and Hold BUTTON for 3sec,LED2Green light turns ON. Recommended working hours≤10hr. LED indication：LED2 Green Blink. 2.5 Non-range Mode（Manager Access） LED2 Green Blink Not bright Unable to power off when bracelet in working mode. Can set to non-range mode to stop vibration alert or extended standby time. Instructions：Press Red BUTTONonce, interval 1sec, then press and hold for 3sec, till LED2 Green Light Blink slowly. Now bracelet ONLY collect and transfer data. No ranging. No vibration. LED indication：Transferring of data, LED2Green blink slowly. After data transferred completed, LED2 light will off. 2.6 Whitelist Press and Hold two or more bracelets for 3sec within the alert range to set whitelist. The bracelets will not have alert within 1hr after whitelisting. After 1hr, bracelets will resume back to working mode. Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 6 / 8 2.7 Low-power Alert Red blink LED indication when battery power ≤30%：LED1 RED blink. When Low Batt Alert, it is recommend to go into the gateway range to transfer the data within 30 mins.。 Please take note: Data may be lost due to NO BATT. 2.8 Bracelet Charging a) Charging: Connect the charging cable’s magnetic interface to the bracelet interface. Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 7 / 8 b) LED during Charging Bracelet full charge takes 2~3hrs. 2.9 Submit Records Event data will be transfer when bracelet and gateway is near. Gateway will transfer the data to server. Recommended distance between bracelet and gateway for data transfer ≤5m. 3 Bracelet Daily operation Bracelet Daily Operation： 4 Contact information for after-sales technical support 086-17337502198 [email protected] 0086-13851767329 [email protected] [email protected] Make the world safe&smart Version：V1.1 UT-206Z www.woxuwireless.com 8 / 8 Manufacturer： Woxu Wireless Co., Ltd. 2…

Text truncated - open the document above for the full version.
