2AL7V-2002AIP Camera

 Reolink Go PT Operational Instruction EN/DE/FR/IT/ES April, 2020 QSG1_A Technical SupportUĶǔŲƵŦĞĞėóŦǔƭĞĐľŦŃĐóśľĞśƖɏƖśĞóơĞǍŃơŃƭŲƵƙŲȆĐŃóśơƵƖƖŲƙƭ ơŃƭĞóŦėĐŲŦƭóĐƭŲƵƙơƵƖƖŲƙƭ team before returning the products, https://support.reolink.com. Technische UnterstützungWenn Sie Hilfe brauchen, kontaktieren Sie bitte Reolink Support Team zuerst, bevor Sie Ihre Bestellung zurücksenden.Meiste Fragen oder Probleme können von unserem Online Support Center beantwortet und gelöst werden: https://support.reolink.com.Support techniqueSi vous avez besoin d’aide, veuillez contacter Reolink avant de retourner votre produit. La plupart des questions peuvent être répondues via notre centre de support en ligne à l'adresse https://support.reolink.com.Supporto TecnicoSe avete bisogno di aiuto, le chiediamo gentilmente di contattare Reolink prima di restituire il prodotto.La maggior parte delle domande può essere risolta tramite il nostro centro di assistenza online all'indirizzo https://support.reolink.com.Soporte técnicoSi necesita ayuda, comuníquese con Reolink antes de devolver su producto. La mayoría de las preguntas se pueden responder a través de nuestro centro de soporte en línea en https://support.reolink.com.SHENZHEN BAICHUAN SECURITY TECHNOLOGY CO., LTD.2-4th Floor, Building 2, YuanLing Industrial Park, ShangWu, Shiyan Street, Bao'an District, Shenzhen, Chinahttps://reolink.comhttps://support.reolink.com [email protected]ße 18,10247,Berlin,Germany BellaCocool GmbH REP General IntroductionMicro USB Port Status LED LensIR LEDBuilt-in PIR SensorBuilt-in MicNano SIM Card SlotReset HolePress the reset button with a pin to restorethe device to factory settings.©ŲƭóƭĞƭľĞĐóŤĞƙóʀơśĞŦơƭŲȊŦėƭľĞƙĞơĞƭľŲśĞɏSIM card slot and SD card slot. Micro SD Card Slot Battery Status LED Daylight Sensor ContentsWhat’s in the Box What’s in the BoxCamera IntroductionInsert the SIM Card and SD card Register on Network (Camera Initial Setup)Set up Camera via Reolink App on SmartphoneNotes on Camera InstallationCharge the BatteryMounting the CameraAttach the Camera to a TreeTroubleshooting±ƖĞĐŃȊĐóƭŃŲŦơvŲƭŃȊĐóƭŃŲŦŲĶ!ŲŤƖśŃóŦĐĞ 1 2 3 4 7 8 11 13 14 15 1616 Reolink Go PT ×1Antenna x1Camera Bracket ×1Micro USB Cable ×1 Quick Start Guide ×1Surveillance Sign ×1Mounting Hole Template ×1Reset Needle/Screws (in pack) ×1 EN 2 English 1 English Power SwitchAntenna • Tips on How to Choose the Right SIM Card Register on Network (Camera Initial Setup) Insert the SIM Card and SD Card Ȑɔ©ŲƭóƭĞƭľĞĐóŤĞƙóśĞŦơɏóŦėƙĞŤŲǍĞƭľĞƙƵďďĞƙĐŲǍĞƙɔ2. Insert the SIM card. • ¾ľĞ±UtĐóƙėơśŲƭŃơóďŲǍĞƭľĞ±(ĐóƙėơśŲƭɔÞľĞŦŃŦơĞƙƭŃŦķŃƭ ŃŦɏƖśĞóơĞŦŲƭĞƭľóƭķŲśėĐŲŦƭóĐƭơ ŲŦƭľĞ±UtĐóƙėơľóśśĶóĐĞėŲǎŦɏóŦėƭľĞƭƙŃŤŤĞėĐŲƙŦĞƙơľóśśď ĞŃŦơŃėĞƭľĞĐóŤĞƙóɔ • ¾ľĞ±(ĐóƙėơśŲƭŃơďĞśŲǎƭľĞ±UtĐóƙėơśŲƭɔÞľĞŦŃŦơĞƙƭŃŦķŃƭ ŃŦɏƖśĞóơĞŦŲƭĞƭľóƭķŲśėĐŲŦƭóĐƭơŲŦ the SD card shall face up.ȒɔÞŃƭľƭľĞơĞėŲŦĞɏƖśĞóơĞƖƙĞơơƭľĞƙƵďďĞƙĐŲǍĞƙȊƙŤśǔĶŲƙďĞƭ ƭĞƙǎóƭĞƙƖƙŲŲĶƖĞƙĶŲƙŤóŦĐĞɔ Required size of a nano SIM card:• The SIM card shall support WCDMA and FDD LTE.• Some SIM cards have a PIN code. Please use your smartphone to ėŃơóďśĞƭľĞ¦UvȊƙơƭɔ• Activate the card on your smartphone or with your network carrier before inserting it into the camera.ɍUĶƭľĞ±UtĐóƙėŃơŦŲƭƖƵƙĐľóơĞėĶƙŲŤƭľĞơƵƖƖŲƙƭĞėĐóƙƙŃĞƙɏ ǔŲƵŤóǔ ŦĞĞėƭŲŤóŦƵóśśǔŃŤƖŲƙƭƭľĞ¦vơĞƭƭŃŦķơɔ¦śĞóơĞȊŦėŃŦơƭƙƵĐƭŃŲ Ŧơóƭ https://support.reolink.com or contact Reolink support. ȐɔĶƭĞƙŃŦơĞƙƭŃŦķƭľĞ±UtĐóƙėɏǔŲƵcan turn on the camera. NOTICE: Please make sure the SIM card can work for your smartphone. 4 English 3 English Nano-SIM /4FF R e • T• Sė Ń ơ • A b e f ɍU Ķ Ŧ Ğ Ğ h t t N ano-SIM / 4FF 0.48in/12.3mm 0.35in/8.8mm ƭ ľ óƭķŲ śė ĐŲŦƭóĐƭơ ĐŲƙŦĞƙ ơľóśś ďĞ ŃŦơŃėĞ ƭľĞ ĐóŤĞƙó Ğ ƙóśĞŦơ ɏ óŦėƙĞŤŲǍĞƭľĞƙƵďďĞƙ a r d . ƭ ŃơóďŲǍĞƭ ľ б(Đóƙ ė ơ ś ŲƭɔÞ ľ Ğ ľóśś ĶóĐĞ ėŲǎŦ óŦė ƭľĞ ƭƙŃŤŤĞė ĐŲǍĞƙ ɔ ŦŃŦơĞƙƭŃŦķŃƭŃŦɏƖ ś ĞóơĞŦŲƭĞ ĐŲƙŦĞƙ ơľóśś ďĞ ŃŦơŃėĞ ƭľĞ Đó 123 6 English 2. Wait a few seconds and a red light will be on and solid for a couple of seconds. Then it will go out. ȒɔďśƵĞj1(ǎŃśśȋóơľĶŲƙóĶĞǎơĞĐŲŦėơand then go solid before going out. You will hear a voice prompt "Network ĐŲŦŦĞĐƭŃŲŦơƵĐĐĞĞėĞėɾɏǎľŃĐľŤĞóŦơƭľĞcamera has been successfully connected to the network. 5 English 5 E li h NOTICE: You may also run into the following situations: Voice Prompt “SIM card cannot be recognized” “Not registered on network. Please activate your SIM card and check the signal strength” 3 4 Camera fails to register to the operator network. 1. Check whether your card is activated or not. If not, please call your operator to activate the SIM card. 2. The signal is weak at the current position. Please move the camera to a location with better signal. 3. Check if you are using the correct version of the camera. “Data call failed. Please ĐŲŦȊƙŤǔŲƵƙĐĞśśƵśóƙ data plan is available or import the APN settings” 5 The SIM card has run out of data or APN settings are not correct. 1. Please check whether the data plan for the SIM card is still available. 2. Import the correct APN settings to the camera. “Network connection failed” Camera fails to connect to the server. The camera will be in Standby mode and reconnect later. 1 2 Camera cannot recognize this SIM card. 1. Check if the SIM card is facing the reverse direction. 2. Check if the SIM card is not fully inserted and insert it again Put the SIM card into your mobile phone and disable the PIN. Your SIM card has a PIN. “The SIM card is locked with a PIN. Please disable it” Camera Status Solutions 8 English 7 English Add New Device Device SettingsMenu Access the Live View Battery Status Enable/Disable PIR Motion SensorɦUŦėĞĶóƵśƭɏƭľĞ¦U©ơĞŦơŲƙis enabled.) Download and install the Reolink App on App Store (for iOS) and Google Play (for Android). Available on the Get it on Set up Camera on Reolink App (For Smartphone) 1. Please click the “ ” button on the top right corner to add the camera. 2. Scan the QR code at …

Text truncated - open the document above for the full version.

Shenzhen Reo-link Digital Technology Co., Ltd Agent Authorization Company: Shenzhen Reo-link Digital Technology Co., Ltd Address: 11th Floor, Building C, Unisplendour Information Harbour, North High-Tech Zone, Nanshan District, Shenzhen, China, 518057 Product Name: IP Camera Model Number(s): Reolink Go PT Trademark: We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/06/05 Name: Wang Aijun Title: Manager Company: Shenzhen Reo-link Digital Technology Co., Ltd

Shenzhen Reo-link Digital Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/6/5 Subject; Request for Confidentiality FCC ID: 2AL7V-2002A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wang Aijun Title: Manager

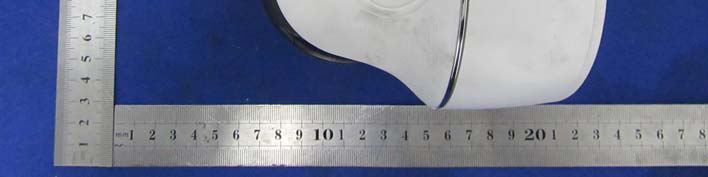

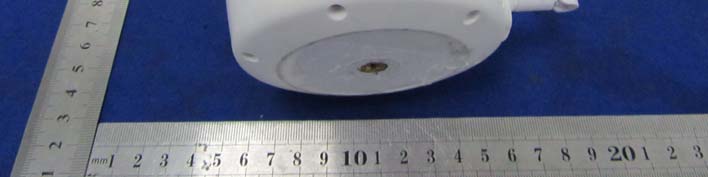

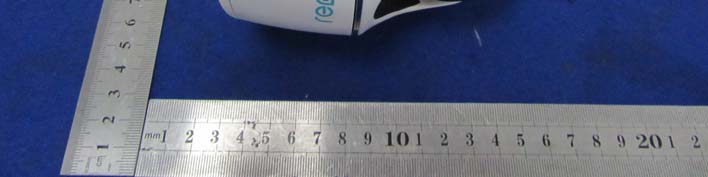

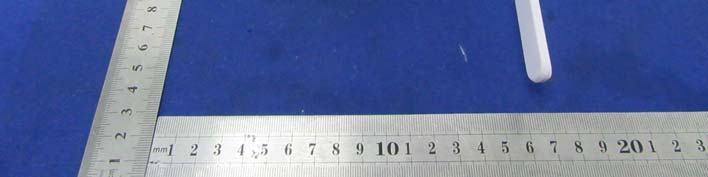

External Photos LTE /WCDMA Antenna

40*15mm IP Camera FCC ID: 2AL7V-2002A IC: 22869-2002A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde sired operation. Label Location

Internal Photos LTE RX Antenna

IC: 22869-2002A Applied procedures / limit Frequency EIRP EIRP LIMIT MHz dBm dBm WCDMA Band II 1880 23.24 33.00 WCDMA Band V 836.6 22.64 40.60 LTE Band 5 836.5 20.53 38.45 LTE Band 7 2535 20.49 33.00 The max possible output power of All (WCDMA Band II, WCDMA Band V, LTE Band 5, LTE Band 7 is WCDMA Band II, WCDMA Band V. Test Result of RF Exposure Evaluation Modulation Frequency (MHz) EIRP (dBm) EIRP (W) Limit (W) Result WCDMA Band II. 1880 23.24 0.21 2.26 Pass WCDMA Band V 836.6 22.64 0.18 1.30 Pass

Model: Reolink Go PT Report No.: WTX20X05026073W Page 1 of 78 LTE Band 5 Appendix for Band 5 Appendix A: Average Power Output Data Test Result Channel Bandwidth: 1.4 MHz Modulati on Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.29 PASS 1 3 22.29 PASS 1 5 22.33 PASS 3 0 22.27 PASS 3 2 22.34 PASS 3 3 22.32 PASS 6 0 21.29 PASS MCH 1 0 22.51 PASS 1 3 22.54 PASS 1 5 22.49 PASS 3 0 22.45 PASS 3 2 22.54 PASS 3 3 22.47 PASS 6 0 21.61 PASS HCH 1 0 22.65 PASS 1 3 22.74 PASS 1 5 22.69 PASS 3 0 22.75 PASS 3 2 22.85 PASS 3 3 22.77 PASS 6 0 21.76 PASS Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 21.40 PASS 1 7 22.45 PASS 1 14 22.34 PASS 8 0 21.37 PASS 8 4 21.45 PASS 8 7 21.41 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 2 of 78 LTE Band 5 15 0 21.44 PASS MCH 1 0 22.58 PASS 1 7 22.71 PASS 1 14 22.64 PASS 8 0 21.62 PASS 8 4 21.72 PASS 8 7 21.64 PASS 15 0 21.61 PASS HCH 1 0 22.77 PASS 1 7 22.83 PASS 1 14 22.77 PASS 8 0 21.71 PASS 8 4 21.79 PASS 8 7 21.74 PASS 15 0 21.80 PASS Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 21.46 PASS 1 12 22.49 PASS 1 24 22.44 PASS 12 0 21.45 PASS 12 6 21.44 PASS 12 13 21.45 PASS 25 0 21.45 PASS MCH 1 0 22.68 PASS 1 12 22.68 PASS 1 24 22.70 PASS 12 0 21.68 PASS 12 6 21.71 PASS 12 13 21.69 PASS 25 0 21.65 PASS HCH 1 0 22.79 PASS 1 12 22.77 PASS 1 24 22.81 PASS 12 0 21.76 PASS 12 6 21.80 PASS 12 13 21.85 PASS 25 0 21.81 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 3 of 78 LTE Band 5 Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 21.50 PASS 1 24 22.37 PASS 1 49 22.45 PASS 25 0 21.38 PASS 25 12 21.55 PASS 25 25 21.54 PASS 50 0 21.52 PASS MCH 1 0 22.49 PASS 1 24 22.87 PASS 1 49 22.55 PASS 25 0 21.64 PASS 25 12 21.65 PASS 25 25 21.66 PASS 50 0 21.60 PASS HCH 1 0 22.54 PASS 1 24 22.63 PASS 1 49 22.63 PASS 25 0 21.66 PASS 25 12 21.65 PASS 25 25 21.74 PASS 50 0 21.68 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 4 of 78 LTE Band 5 Appendix B: Peak-to-Average Ratio Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Modulation Channel RB Configuration Peak-to-Average Ratio (dB) Limit (dB) Verdict Size Offset QPSK LCH 1 0 3.95 <13 PASS 1 3 3.71 <13 PASS 1 5 3.99 <13 PASS 3 0 4.29 <13 PASS 3 2 4.18 <13 PASS 3 3 4.32 <13 PASS 6 0 4.99 <13 PASS MCH 1 0 3.64 <13 PASS 1 3 3.47 <13 PASS 1 5 3.67 <13 PASS 3 0 3.9 <13 PASS 3 2 3.79 <13 PASS 3 3 3.94 <13 PASS 6 0 4.64 <13 PASS HCH 1 0 3.78 <13 PASS 1 3 3.52 <13 PASS 1 5 3.79 <13 PASS 3 0 3.99 <13 PASS 3 2 3.86 <13 PASS 3 3 3.95 <13 PASS 6 0 4.55 <13 PASS Channel Bandwidth: 3 MHz Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Peak-to-Average Ratio [dB] Limit [dB] Verdict Size Offset QPSK LCH 1 0 4.92 <13 PASS 1 7 3.67 <13 PASS 1 14 3.81 <13 PASS 8 0 4.13 <13 PASS 8 4 3.98 <13 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 5 of 78 LTE Band 5 8 7 4.2 <13 PASS 15 0 4.91 <13 PASS MCH 1 0 3.43 <13 PASS 1 7 3.29 <13 PASS 1 14 3.46 <13 PASS 8 0 3.91 <13 PASS 8 4 3.73 <13 PASS 8 7 3.8 <13 PASS 15 0 4.48 <13 PASS HCH 1 0 3.63 <13 PASS 1 7 3.48 <13 PASS 1 14 3.58 <13 PASS 8 0 4.01 <13 PASS 8 4 3.75 <13 PASS 8 7 3.83 <13 PASS 15 0 4.42 <13 PASS Channel Bandwidth: 5 MHz Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Peak-to-Average Ratio [dB] Limit [dB] Verdict Size Offset QPSK LCH 1 0 5.18 <13 PASS 1 12 3.72 <13 PASS 1 24 3.75 <13 PASS 12 0 4.11 <13 PASS 12 6 3.96 <13 PASS 12 13 4.2 <13 PASS 25 0 5.22 <13 PASS MCH 1 0 3.55 <13 PASS 1 12 3.36 <13 PASS 1 24 3.53 <13 PASS 12 0 3.87 <13 PASS 12 6 3.71 <13 PASS 12 13 3.76 <13 PASS 25 0 4.74 <13 PASS HCH 1 0 3.76 <13 PASS 1 12 3.56 <13 PASS 1 24 3.5 <13 PASS 12 0 4.12 <13 PASS 12 6 3.84 <13 PASS 12 13 3.78 <13 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 6 of 78 LTE Band 5 25 0 4.75 <13 PASS Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Peak-to-Average Ratio [dB] Limit [dB] Verdict Size Offset QPSK LCH 1 0 5.08 <13 PASS 1 24 3.71 <13 PASS 1 49 3.54 <13 PASS 25 0 4.13 <13 PASS 25 12 4.05 <13 PASS 25 25 4.19 <13 PASS 50 0 5.08 <13 PASS MCH 1 0 3.56 <13 PASS 1 24 3.36 <13 PASS 1 49 3.62 <13 PASS 25 0 3.98 <13 PASS 25 12 3.8 <13 PASS 25 25 3.88 <13 PASS 50 0 4.8 <13 PASS HCH 1 0 3.52 <13 PASS 1 24 3.64 <13 PASS 1 49 3.46 <13 PASS 25 0 4.25 <13 PASS 25 12 4.12 <13 PASS 25 25 4.01 <13 PASS 50 0 4.99 <13 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 7 of 78 LTE Band 5 Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#5 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 8 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#2 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 9 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_1RB#3 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_1RB#5 Model: Reolink Go PT Report No.: WTX20X05026073W Page 10 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_3RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_3RB#2 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_3RB#3 Model: Reolink Go PT Report No.: WTX20X05026073W Page 11 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#3 Model: Reolink Go PT Report No.: WTX20X05026073W Page 12 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#5 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#2 Model: Reolink Go PT Report No.: WTX20X05026073W Page 13 of 78 LTE Band 5 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#3 (Channel Bandwidth:…

Text truncated - open the document above for the full version.

Model: Reolink Go PT Report No.: WTX20X05026073W Page 39 of 78 LTE Band 5 Band5_10MHz_QPSK_20600_50RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 40 of 78 LTE Band 5 Appendix D: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Verdict Band5 1.4MHz QPSK 20407 1RB#0 PASS Band5 1.4MHz QPSK 20407 6RB#0 PASS Band5 1.4MHz QPSK 20643 1RB#0 PASS Band5 1.4MHz QPSK 20643 6RB#0 PASS Band5 3MHz QPSK 20415 1RB#0 PASS Band5 3MHz QPSK 20415 15RB#0 PASS Band5 3MHz QPSK 20635 1RB#0 PASS Band5 3MHz QPSK 20635 15RB#0 PASS Band5 5MHz QPSK 20425 1RB#0 PASS Band5 5MHz QPSK 20425 25RB#0 PASS Band5 5MHz QPSK 20625 1RB#0 PASS Band5 5MHz QPSK 20625 25RB#0 PASS Band5 10MHz QPSK 20450 1RB#0 PASS Band5 10MHz QPSK 20450 50RB#0 PASS Band5 10MHz QPSK 20600 1RB#0 PASS Band5 10MHz QPSK 20600 50RB#0 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 41 of 78 LTE Band 5 Test Graphs Band5_1.4MHz_QPSK_20407_1RB#0 Band5_1.4MHz_QPSK_20407_6RB#0 Band5_1.4MHz_QPSK_20643_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 42 of 78 LTE Band 5 Band5_1.4MHz_QPSK_20643_6RB#0 Band5_3MHz_QPSK_20415_1RB#0 Band5_3MHz_QPSK_20415_15RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 43 of 78 LTE Band 5 Band5_3MHz_QPSK_20635_1RB#0 Band5_3MHz_QPSK_20635_15RB#0 Band5_5MHz_QPSK_20425_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 44 of 78 LTE Band 5 Band5_5MHz_QPSK_20425_25RB#0 Band5_5MHz_QPSK_20625_1RB#0 Band5_5MHz_QPSK_20625_25RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 45 of 78 LTE Band 5 Band5_10MHz_QPSK_20450_1RB#0 Band5_10MHz_QPSK_20450_50RB#0 Band5_10MHz_QPSK_20600_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 46 of 78 LTE Band 5 Band5_10MHz_QPSK_20600_50RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 47 of 78 LTE Band 5 Appendix E: Conducted Spurious Emission Test Result Band Bandwidth Modulation Channel RB Configuration Frequency Range Verdict Band5 1.4MHz QPSK 20407 1RB#0 Range1:0.009~0.15MHz PASS Band5 1.4MHz QPSK 20407 1RB#0 Range2:0.15~30MHz PASS Band5 1.4MHz QPSK 20407 1RB#0 Range3:30~1000MHz PASS Band5 1.4MHz QPSK 20407 1RB#0 Range4:1000~5000MHz PASS Band5 1.4MHz QPSK 20407 1RB#0 Range5:5000~12000MHz PASS Band5 1.4MHz QPSK 20407 1RB#0 Range6:12000~18000MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range1:0.009~0.15MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range2:0.15~30MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range3:30~1000MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range4:1000~5000MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range5:5000~12000MHz PASS Band5 1.4MHz QPSK 20525 1RB#0 Range6:12000~18000MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range1:0.009~0.15MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range2:0.15~30MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range3:30~1000MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range4:1000~5000MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range5:5000~12000MHz PASS Band5 1.4MHz QPSK 20643 1RB#0 Range6:12000~18000MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range1:0.009~0.15MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range2:0.15~30MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range3:30~1000MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range4:1000~5000MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range5:5000~12000MHz PASS Band5 3MHz QPSK 20415 1RB#0 Range6:12000~18000MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range1:0.009~0.15MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range2:0.15~30MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range3:30~1000MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range4:1000~5000MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range5:5000~12000MHz PASS Band5 3MHz QPSK 20525 1RB#0 Range6:12000~18000MHz PASS Band5 3MHz QPSK 20635 1RB#0 Range1:0.009~0.15MHz PASS Band5 3MHz QPSK 20635 1RB#0 Range2:0.15~30MHz PASS Band5 3MHz QPSK 20635 1RB#0 Range3:30~1000MHz PASS Band5 3MHz QPSK 20635 1RB#0 Range4:1000~5000MHz PASS Band5 3MHz QPSK 20635 1RB#0 Range5:5000~12000MHz PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 48 of 78 LTE Band 5 Band5 3MHz QPSK 20635 1RB#0 Range6:12000~18000MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range1:0.009~0.15MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range2:0.15~30MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range3:30~1000MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range4:1000~5000MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range5:5000~12000MHz PASS Band5 5MHz QPSK 20425 1RB#0 Range6:12000~18000MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range1:0.009~0.15MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range2:0.15~30MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range3:30~1000MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range4:1000~5000MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range5:5000~12000MHz PASS Band5 5MHz QPSK 20525 1RB#0 Range6:12000~18000MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range1:0.009~0.15MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range2:0.15~30MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range3:30~1000MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range4:1000~5000MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range5:5000~12000MHz PASS Band5 5MHz QPSK 20625 1RB#0 Range6:12000~18000MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range1:0.009~0.15MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range2:0.15~30MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range3:30~1000MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range4:1000~5000MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range5:5000~12000MHz PASS Band5 10MHz QPSK 20450 1RB#0 Range6:12000~18000MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range1:0.009~0.15MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range2:0.15~30MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range3:30~1000MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range4:1000~5000MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range5:5000~12000MHz PASS Band5 10MHz QPSK 20525 1RB#0 Range6:12000~18000MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range1:0.009~0.15MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range2:0.15~30MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range3:30~1000MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range4:1000~5000MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range5:5000~12000MHz PASS Band5 10MHz QPSK 20600 1RB#0 Range6:12000~18000MHz PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 49 of 78 LTE Band 5 Test Graphs Band5_1.4MHz_QPSK_20407_1RB#0 …

Text truncated - open the document above for the full version.

Model: Reolink Go PT Report No.: WTX20X05026073W Page 61 of 78 LTE Band 5 Band5_5MHz_QPSK_20425_1RB#0 Band5_5MHz_QPSK_20425_1RB#0 Band5_5MHz_QPSK_20425_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 62 of 78 LTE Band 5 Band5_5MHz_QPSK_20425_1RB#0 Band5_5MHz_QPSK_20425_1RB#0 Band5_5MHz_QPSK_20425_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 63 of 78 LTE Band 5 Band5_5MHz_QPSK_20525_1RB#0 Band5_5MHz_QPSK_20525_1RB#0 Band5_5MHz_QPSK_20525_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 64 of 78 LTE Band 5 Band5_5MHz_QPSK_20525_1RB#0 Band5_5MHz_QPSK_20525_1RB#0 Band5_5MHz_QPSK_20525_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 65 of 78 LTE Band 5 Band5_5MHz_QPSK_20625_1RB#0 Band5_5MHz_QPSK_20625_1RB#0 Band5_5MHz_QPSK_20625_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 66 of 78 LTE Band 5 Band5_5MHz_QPSK_20625_1RB#0 Band5_5MHz_QPSK_20625_1RB#0 Band5_5MHz_QPSK_20625_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 67 of 78 LTE Band 5 Band5_10MHz_QPSK_20450_1RB#0 Band5_10MHz_QPSK_20450_1RB#0 Band5_10MHz_QPSK_20450_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 68 of 78 LTE Band 5 Band5_10MHz_QPSK_20450_1RB#0 Band5_10MHz_QPSK_20450_1RB#0 Band5_10MHz_QPSK_20450_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 69 of 78 LTE Band 5 Band5_10MHz_QPSK_20525_1RB#0 Band5_10MHz_QPSK_20525_1RB#0 Band5_10MHz_QPSK_20525_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 70 of 78 LTE Band 5 Band5_10MHz_QPSK_20525_1RB#0 Band5_10MHz_QPSK_20525_1RB#0 Band5_10MHz_QPSK_20525_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 71 of 78 LTE Band 5 Band5_10MHz_QPSK_20600_1RB#0 Band5_10MHz_QPSK_20600_1RB#0 Band5_10MHz_QPSK_20600_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 72 of 78 LTE Band 5 Band5_10MHz_QPSK_20600_1RB#0 Band5_10MHz_QPSK_20600_1RB#0 Band5_10MHz_QPSK_20600_1RB#0 Model: Reolink Go PT Report No.: WTX20X05026073W Page 73 of 78 LTE Band 5 Model: Reolink Go PT Report No.: WTX20X05026073W Page 74 of 78 LTE Band 5 Appendix F: Frequency Stability Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Voltage Modulation Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VL TN 2.77 0.003359 ± 2.5 PASS VN TN 3.22 0.003904 ± 2.5 PASS VH TN 0.84 0.001019 ± 2.5 PASS MCH VL TN 0.53 0.000634 ± 2.5 PASS VN TN 0.97 0.001160 ± 2.5 PASS VH TN 4.34 0.005188 ± 2.5 PASS HCH VL TN 2.37 0.002794 ± 2.5 PASS VN TN -1.88 -0.002216 ± 2.5 PASS VH TN 4.27 0.005034 ± 2.5 PASS Temperature Modulation Channe l Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VN -30 0.004620 0.004620 ± 2.5 PASS VN -20 -0.001382 -0.001382 ± 2.5 PASS VN -10 0.001249 0.001249 ± 2.5 PASS VN 0 0.003941 0.003941 ± 2.5 PASS VN 10 0.004826 0.004826 ± 2.5 PASS VN 20 0.002571 0.002571 ± 2.5 PASS VN 30 0.003480 0.003480 ± 2.5 PASS VN 40 -0.000691 -0.000691 ± 2.5 PASS VN 50 0.002910 0.002910 ± 2.5 PASS MCH VN -30 0.002116 0.002116 ± 2.5 PASS VN -20 0.003861 0.003861 ± 2.5 PASS VN -10 0.002116 0.002116 ± 2.5 PASS VN 0 -0.002092 -0.002092 ± 2.5 PASS VN 10 0.004567 0.004567 ± 2.5 PASS VN 20 0.005081 0.005081 ± 2.5 PASS VN 30 0.003730 0.003730 ± 2.5 PASS VN 40 -0.001686 -0.001686 ± 2.5 PASS VN 50 0.004638 0.004638 ± 2.5 PASS HCH VN -30 -0.001615 -0.001615 ± 2.5 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 75 of 78 LTE Band 5 VN -20 0.002134 0.002134 ± 2.5 PASS VN -10 -0.001898 -0.001898 ± 2.5 PASS VN 0 0.000931 0.000931 ± 2.5 PASS VN 10 0.001026 0.001026 ± 2.5 PASS VN 20 0.000684 0.000684 ± 2.5 PASS VN 30 -0.000589 -0.000589 ± 2.5 PASS VN 40 -0.000530 -0.000530 ± 2.5 PASS VN 50 0.000047 0.000047 ± 2.5 PASS Channel Bandwidth: 3 MHz Channel Bandwidth: 3 MHz+ Voltage Modulation Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VL TN 2.77 0.003356 ± 2.5 PASS VN TN 1.2 0.001454 ± 2.5 PASS VH TN 4.57 0.005536 ± 2.5 PASS MCH VL TN 4.55 0.005439 ± 2.5 PASS VN TN 0.51 0.000610 ± 2.5 PASS VH TN 1.99 0.002379 ± 2.5 PASS HCH VL TN 0.16 0.000189 ± 2.5 PASS VN TN -0.45 -0.000531 ± 2.5 PASS VH TN 0.85 0.001003 ± 2.5 PASS Temperature Modulation Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VN -30 -1.77 -0.002144 ± 2.5 PASS VN -20 4.51 0.005463 ± 2.5 PASS VN -10 -0.55 -0.000666 ± 2.5 PASS VN 0 -1.73 -0.002096 ± 2.5 PASS VN 10 4.08 0.004942 ± 2.5 PASS VN 20 3.05 0.003695 ± 2.5 PASS VN 30 -0.53 -0.000642 ± 2.5 PASS VN 40 4.92 0.005960 ± 2.5 PASS VN 50 -0.31 -0.000376 ± 2.5 PASS MCH VN -30 4.41 0.005272 ± 2.5 PASS VN -20 2.22 0.002654 ± 2.5 PASS VN -10 2.42 0.002893 ± 2.5 PASS VN 0 0.97 0.001160 ± 2.5 PASS VN 10 -1.77 -0.002116 ± 2.5 PASS VN 20 0.53 0.000634 ± 2.5 PASS Model: Reolink Go PT Report No.: WTX20X05026073W Page 76 of 78 LTE Band 5 VN 30 0.4 0.000478 ± 2.5 PASS VN 40 1.88 0.002247 ± 2.5 PASS VN 50 -0.22 -0.000263 ± 2.5 PASS HCH VN -30 3.01 0.003552 ± 2.5 PASS VN -20 1.76 0.002077 ± 2.5 PASS VN -10 -1.88 -0.002218 ± 2.5 PASS VN 0 1.8 0.002124 ± 2.5 PASS VN 10 -1.73 -0.002041 ± 2.5 PASS VN 20 1.46 0.001723 ± 2.5 PASS VN 30 -0.73 -0.000861 ± 2.5 PASS VN 40 3.84 0.004531 ± 2.5 PASS VN 50 1.64 0.001935 ± 2.5 PASS Channel Bandwidth: 5 MHz Channel Bandwidth: 5 MHz Voltage Modulation Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VL TN 2.77 0.003351 ± 2.5 PASS VN TN 0.23 0.000278 ± 2.5 PASS VH TN 1.59 0.001924 ± 2.5 PASS MCH VL TN -1.41 -0.001686 ± 2.5 PASS VN TN 1.47 0.001757 ± 2.5 PASS VH TN 3.29 0.003933 ± 2.5 PASS HCH VL TN -1.97 -0.002327 ± 2.5 PASS VN TN 3.96 0.004678 ± 2.5 PASS VH TN 1.48 0.001748 ± 2.5 PASS Temperature Modulation Channel Voltage [Vdc] Temperature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict QPSK LCH VN -30 3.56 0.004307 ± 2.5 PASS VN -20 4.13 0.004997 ± 2.5 PASS VN -10 3.43 0.004150 ± 2.5 PASS VN 0 0.66 0.000799 ± 2.5 PASS VN 10 -1.74 -0.002105 ± 2.5 PASS…

Text truncated - open the document above for the full version.

Model: Reolink Go PT Report No.: WTX20X05026072W-2 Page 1 of 77 LTE Band 7 Appendix for Band 7 Appendix A: Average Power Output Data Test Result Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.14 PASS 1 12 22.61 PASS 1 24 22.28 PASS 12 0 21.23 PASS 12 6 21.35 PASS 12 13 21.31 PASS 25 0 21.26 PASS MCH 1 0 22.27 PASS 1 12 22.62 PASS 1 24 22.27 PASS 12 0 21.33 PASS 12 6 21.44 PASS 12 13 21.40 PASS 25 0 21.42 PASS HCH 1 0 21.53 PASS 1 12 21.62 PASS 1 24 21.75 PASS 12 0 21.42 PASS 12 6 21.51 PASS 12 13 21.40 PASS 25 0 21.36 PASS Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.25 PASS 1 24 22.51 PASS 1 49 22.44 PASS 25 0 21.36 PASS 25 12 21.40 PASS 25 25 21.43 PASS Model: Reolink Go PT Report No.: WTX20X05026072W-2 Page 2 of 77 LTE Band 7 50 0 21.31 PASS MCH 1 0 22.34 PASS 1 24 22.48 PASS 1 49 22.34 PASS 25 0 21.45 PASS 25 12 21.45 PASS 25 25 21.49 PASS 50 0 21.45 PASS HCH 1 0 21.60 PASS 1 24 21.32 PASS 1 49 21.61 PASS 25 0 21.52 PASS 25 12 21.51 PASS 25 25 21.63 PASS 50 0 21.42 PASS Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.20 PASS 1 37 22.60 PASS 1 74 22.37 PASS 37 0 21.62 PASS 37 18 21.69 PASS 37 38 21.68 PASS 75 0 21.63 PASS MCH 1 0 22.38 PASS 1 37 22.58 PASS 1 74 22.32 PASS 37 0 21.55 PASS 37 18 21.55 PASS 37 38 21.56 PASS 75 0 21.56 PASS HCH 1 0 22.50 PASS 1 37 21.33 PASS 1 74 21.60 PASS 37 0 21.89 PASS 37 18 21.48 PASS 37 38 21.57 PASS 75 0 21.64 PASS Model: Reolink Go PT Report No.: WTX20X05026072W-2 Page 3 of 77 LTE Band 7 Channel Bandwidth: 20 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.14 PASS 1 49 22.70 PASS 1 99 22.24 PASS 50 0 21.35 PASS 50 25 21.46 PASS 50 50 21.44 PASS 100 0 21.44 PASS MCH 1 0 22.28 PASS 1 49 22.58 PASS 1 99 22.26 PASS 50 0 21.40 PASS 50 25 21.43 PASS 50 50 21.45 PASS 100 0 21.45 PASS HCH 1 0 22.24 PASS 1 49 21.64 PASS 1 99 21.56 PASS 50 0 21.74 PASS 50 25 21.57 PASS 50 50 21.41 PASS 100 0 21.55 PASS Model: Reolink Go PT Report No.: WTX20X05026072W-2 Page 4 of 77 LTE Band 7 Appendix B: Peak-to-Average Ratio Test Result Channel Bandwidth: 5 MHz Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Peak-to-Average Ratio [dB] Limit [dB] Verdict Size Offset QPSK LCH 1 0 2.67 <13 PASS 1 12 2.41 <13 PASS 1 24 2.73 <13 PASS 12 0 3.61 <13 PASS 12 6 3.55 <13 PASS…

Text truncated - open the document above for the full version.
