2AL95-M7Smart phone

21 22 23 24 25 26 1 2 3 4 5 6 7 8 9 10 1211 13 14 15 16 17 18 19 20 COMPLIANCE FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. BODY-WORN OPERATION: This device was tested for typical body-worn operations with the back/front of the phone kept 0.5cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.5cm must be maintained between the user's body and the back/front of the phone, including the antenna. Third-party belt-clips, holsters and similar accessories containing metallic components shall not be used. Body-worn accessories that cannot maintain 0.5cm separation distance between the user’s body and the back/front of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand- held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: <ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICNIRP> (1999) Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The design of your phone complies with the FCC guidelines (and those standards). Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations. NORMAL POSITION: Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder. RF Exposure Information: This product is compliance to FCC RF Exposure requirements and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AL95-M7 to gain further information include SAR Values. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Do not use the device with the environment which below minimum -10°C or over maximum 50°C, the device may not work. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies.

AGM Group Limited Apr.27, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AL95-M7 Model Number: M7, M7 SE, M7 PRO To Whom It May Concern: We, The AGM Group Limited hereby declare that the model : M7 SE, M7 PRO is identical with the model : M7, except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: AGM Group Limited Contact person: Song Pan

AGM Group Limited Agent Authorization Company: AGM Group Limited Address: Level 5, Development Bank of Samoa Building. Beach Road, Apia, Samoa Product Name: Smart phone Model Number(s): M7, M7 SE, M7 PRO Product Description: Smart phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-28 Name: Song Pan Company: AGM Group Limited

AGM Group Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-26 Subject; Request for Confidentiality FCC ID: 2AL95-M7 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices Rev 2.1 In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely AGM Group Limited Contact person: Song Pan

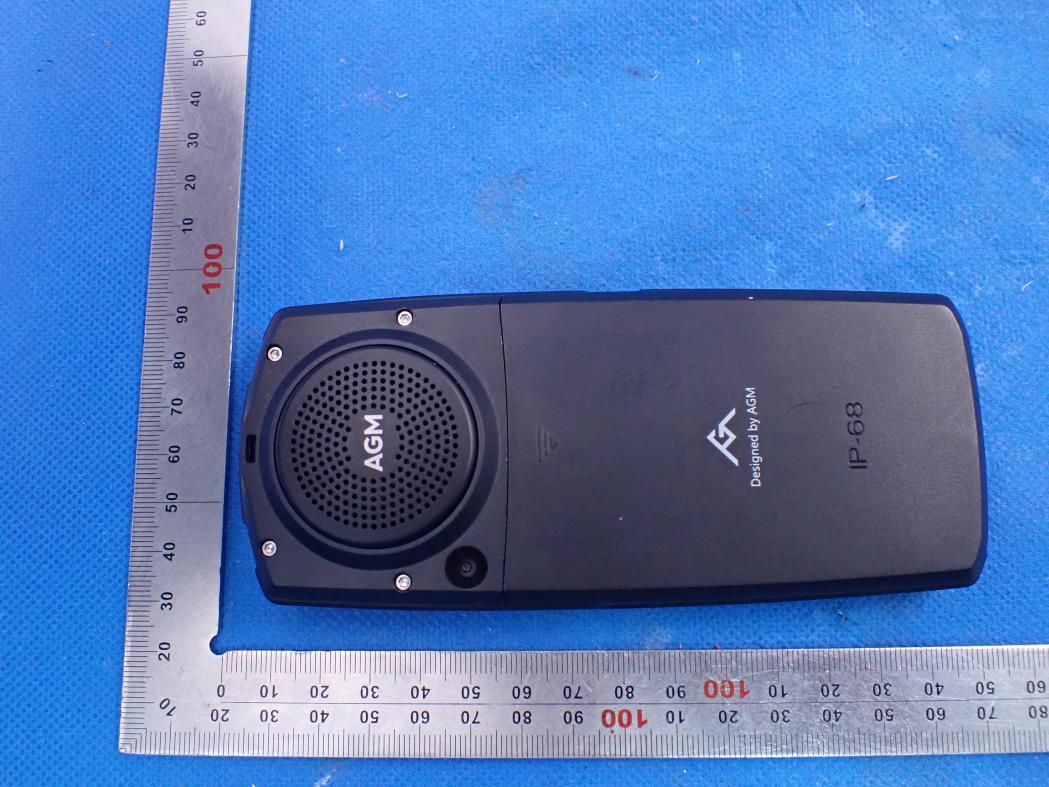

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT ADAPTER 1: TPA-97H050100UW01 ADAPTER 2: DCS10-0501000F ADAPTER 3: TPA-46B050100UU

FCC ID Label Location 5mm&20mm FCC ID: 2AL95-M7

Internal Photos OPEN VIEW OF EUT(FIGURE 1) OPEN VIEW OF EUT(FIGURE 2) GSM/WCDMA/LTE Antenna BT/WIFI/GPS Antenna Diversity Antenna OPEN VIEW OF EUT(FIGURE 3) GSM& WCDMA& LTE ANTENNA DIVERSITY ANTENNA GPS&WIFI&BT ANTENNA INTERNAL VIEW OF EUT(FIGURE 1) INTERNAL VIEW OF EUT(FIGURE 2) INTERNAL VIEW OF EUT(FIGURE 3) INTERNAL VIEW OF EUT(FIGURE 4) INTERNAL VIEW OF EUT(FIGURE 5) INTERNAL VIEW OF EUT(FIGURE 6) INTERNAL VIEW OF EUT(FIGURE 7) INTERNAL VIEW OF EUT(FIGURE 8) INTERNAL VIEW OF EUT(FIGURE 9) NFC ANTENNA

Page 1 of 142 SAR Test Report Report No.: AGC00408210203FH01 FCC ID : 2AL95-M7 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart phone BRAND NAME : AGM MODEL NAME : M7, M7 SE, M7 PRO APPLICANT : AGM Group Limited DATE OF ISSUE : Apr. 21, 2021 STANDARD(S) : IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. Report No.: AGC00408210203FH01 Page 2 of 142 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 21, 2021 Valid Initial Release Report No.: AGC00408210203FH01 Page 3 of 142 Test Report Applicant Name AGM Group Limited Applicant Address Level 5, Development Bank of Samoa Building. Beach Road, Apia, Samoa Manufacturer Name SHENZHEN AIJIEMO SCIENCE AND TECHNOLOGY CO.,LTD Manufacturer Address 1st Floor101 and Floor 201 Building A2,Huafeng Century Technology Park,Nanchang Community xixiang Baoan District,Shenzhen China Factory Name SHENZHEN AIJIEMO SCIENCE AND TECHNOLOGY CO.,LTD Factory Address 1st Floor101 and Floor 201 Building A2,Huafeng Century Technology Park,Nanchang Community xixiang Baoan District,Shenzhen China Product Designation Smart phone Brand Name AGM Model Name M7, M7 SE, M7 PRO Different Description All the models are the same, only different in model names. EUT Voltage DC3.7V by battery Applicable Standard IEEE Std. 1528:2013 FCC 47 CFR Part 2§2.1093:2013 IEEE Std C95.1 ™-2005 IEC 62209-1: 2016 Test Date Feb. 18,2021 to Feb. 27,2021 Report Template AGCRT-US-4G/SAR (2018-01-01) Note: The results of testing in this report apply to the product/system which was tested only. Prepared By Thea Huang (Project Engineer) Feb. 27,2021 Reviewed By Angela Li (Reviewer) Apr. 21, 2021 Approved By Forrest Lei (Authorized Officer) Apr. 21, 2021 Report No.: AGC00408210203FH01 Page 4 of 142 TABLE OF CONTENTS 1. SUMMARY OF MAXIMUM SAR VALUE ....................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. EUT DESCRIPTION ...................................................................................................................................... 6 3. SAR MEASUREMENT SYSTEM ..................................................................................................................... 8 3.1. THE DASY5 SYSTEM USED FOR PERFORMING COMPLIANCE TESTS CONSISTS OF FOLLOWING ITEMS.................... 8 3.2. DASY5 E-FIELD PROBE .............................................................................................................................. 9 3.3. DATA ACQUISITION ELECTRONICS DESCRIPTION ............................................................................................. 9 3.4. ROBOT ..................................................................................................................................................... 10 3.5. LIGHT BEAM UNIT ..................................................................................................................................... 10 3.6. DEVICE HOLDER ........................................................................................................................................ 11 3.7. MEASUREMENT SERVER ............................................................................................................................. 11 3.8. PHANTOM .............................................................................................................................................. 12 4. SAR MEASUREMENT PROCEDURE ........................................................................................................... 13 4.1. SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................... 13 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 14 4.3. RF EXPOSURE CONDITIONS ....................................................................................................................... 16 5. TISSUE SIMULATING LIQUID ...................................................................................................................... 18 5.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 18 5.2. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 19 5.3. TISSUE CALIBRATION RESULT ..................................................................................................................... 20 6. SAR SYSTEM CHECK PROCEDURE ......................................................................................................... 22 6.1. SAR SYSTEM CHECK PROCEDURES ........................................................................................................... 22 6.2. SAR SYSTEM CHECK ................................................................................................................................ 23 7. EUT TEST POSITION ................................................................................................................................... 25 7.2. CHEEK POSITION ...................................................................................................................................... 26 7.3. TILT POSITION ........................................................................................................................................... 26 7.4. BODY WORN POSITION .............................................................................................................................. 27 8. SAR EXPOSURE LIMITS ..............................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00408210203FH01 Page 48 of 142 Conducted Power of LTE Band 4(dBm) Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20025 20175 20325 15MHz QPSK 1 0 0 23.44 22.85 22.93 37 0 23.63 22.97 22.92 74 0 23.66 22.85 22.81 36 0 1 22.43 21.84 22.01 16 1 22.66 21.83 21.87 35 1 22.65 21.97 21.99 75 0 1 22.74 22.08 22.07 16QAM 1 0 1 22.60 22.00 21.98 37 1 22.45 21.85 21.89 74 1 22.66 21.81 22.00 36 0 2 22.61 21.98 21.87 16 2 22.44 21.83 21.99 35 2 22.69 21.86 21.99 75 0 2 21.67 21.08 21.06 Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20050 20175 20300 20MHz QPSK 1 0 0 22.89 23.24 22.26 49 0 23.23 22.22 22.64 99 0 23.00 22.50 22.31 50 0 1 22.06 21.46 21.34 25 1 22.11 21.43 21.32 49 1 22.08 21.48 21.49 100 0 1 22.07 21.42 21.47 16QAM 1 0 1 21.99 21.24 21.40 49 1 22.27 21.67 21.44 99 1 21.90 21.25 21.58 50 0 2 21.12 20.54 20.42 25 2 21.12 20.49 20.39 49 2 21.13 20.51 20.54 100 0 2 21.09 20.53 20.45 Report No.: AGC00408210203FH01 Page 49 of 142 Conducted Power of LTE Band 5(dBm) Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20407 20525 20643 1.4MHz QPSK 1 0 0 23.22 22.62 22.74 2 0 23.39 22.58 22.78 5 0 23.24 22.78 22.80 3 0 0 23.24 22.69 22.79 1 0 23.27 22.68 22.80 2 0 23.27 22.60 22.82 6 0 1 22.19 21.68 21.78 16QAM 1 0 1 21.97 21.44 21.78 2 1 22.16 21.66 21.49 5 1 21.94 21.45 21.56 3 0 1 22.07 21.48 21.62 1 1 22.08 21.51 21.60 2 1 22.08 21.51 21.62 6 0 2 21.08 20.61 20.58 Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20415 20525 20635 3MHz QPSK 1 0 0 23.18 22.61 22.86 7 0 23.12 22.63 22.77 14 0 23.21 22.65 22.76 8 0 1 22.18 21.72 21.75 4 1 22.22 21.60 21.66 7 1 22.13 21.63 21.76 15 0 1 22.16 21.62 21.67 16QAM 1 0 1 22.09 21.69 21.56 7 1 22.15 21.54 21.59 14 1 22.12 21.67 21.54 8 0 2 21.11 20.67 20.72 4 2 21.14 20.62 20.70 7 2 21.14 20.59 20.67 15 0 2 21.15 20.61 20.65 Report No.: AGC00408210203FH01 Page 50 of 142 Conducted Power of LTE Band 5(dBm) Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20425 20525 20625 5MHz QPSK 1 0 0 23.18 22.52 22.67 12 0 23.25 22.67 22.76 24 0 23.11 22.76 22.85 12 0 1 22.14 21.52 21.78 6 1 22.15 21.57 21.75 11 1 22.09 21.63 21.67 25 0 1 22.17 21.62 21.78 16QAM 1 0 1 22.09 21.41 21.79 12 1 22.07 21.61 21.73 24 1 21.97 21.53 21.68 12 0 2 21.14 20.67 20.80 6 2 21.16 20.59 20.82 11 2 21.14 20.59 20.72 25 0 2 21.15 20.63 20.70 Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20450 20525 20600 10MHz QPSK 1 0 0 22.44 23.36 22.91 24 0 22.49 22.68 22.66 49 0 22.39 22.68 22.71 25 0 1 21.40 21.67 21.79 12 1 21.41 21.49 21.69 25 1 21.42 21.53 21.77 50 0 1 21.35 21.54 21.68 16QAM 1 0 1 21.15 21.68 21.72 24 1 21.12 21.34 21.46 49 1 21.24 21.66 21.46 25 0 2 20.41 20.66 20.78 12 2 20.44 20.41 20.75 25 2 20.43 20.48 20.71 50 0 2 20.39 20.50 20.69 Report No.: AGC00408210203FH01 Page 51 of 142 Conducted Power of LTE Band 7 (dBm) Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20775 21100 21425 5MHz QPSK 1 0 0 21.46 22.75 21.96 12 0 21.37 23.32 22.04 24 0 21.48 23.19 21.90 12 0 1 20.29 22.17 20.95 6 1 20.33 22.17 20.96 13 1 21.38 22.15 20.94 25 0 1 21.38 22.20 20.98 16QAM 1 0 1 20.40 22.13 20.91 12 1 20.39 22.25 20.76 24 1 20.31 22.20 20.81 12 0 2 19.27 21.20 19.88 6 2 20.41 21.21 19.90 13 2 19.30 21.20 19.89 25 0 2 20.39 21.14 19.94 Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20800 21100 21400 10MHz QPSK 1 0 0 22.89 22.01 21.64 24 0 22.88 22.08 21.82 49 0 22.89 22.10 21.81 25 0 1 21.83 21.24 20.50 12 1 21.79 21.25 20.85 25 1 21.91 21.25 20.73 50 0 1 21.80 21.25 20.78 16QAM 1 0 1 21.82 22.27 21.85 24 1 21.79 22.20 21.50 49 1 21.93 22.31 20.69 25 0 2 20.87 22.21 20.60 12 2 20.81 22.28 20.94 25 2 20.79 22.29 20.53 50 0 2 20.82 22.22 21.90 Report No.: AGC00408210203FH01 Page 52 of 142 Conducted Power of LTE Band 7 (dBm) Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20825 21100 21375 15MHz QPSK 1 0 0 22.70 23.10 21.37 37 0 22.74 22.77 21.77 74 0 22.75 23.14 21.46 37 0 1 21.65 22.08 20.30 16 1 21.74 22.26 20.29 35 1 21.74 22.09 20.31 75 0 1 21.88 22.32 20.45 16QAM 1 0 1 21.65 22.10 20.43 37 1 21.69 22.26 20.40 74 1 21.73 22.00 20.29 37 0 2 21.73 22.06 20.42 16 2 21.64 22.16 20.33 35 2 21.73 22.23 20.33 75 0 2 20.78 21.29 19.58 Bandwidth Modulation RB size RB offset Target MPR Channel Channel Channel 20850 21100 21350 20MHz QPSK 1 0 0 23.06 23.03 23.05 49 0 22.96 22.93 21.70 99 0 22.66 23.41 21.81 50 0 1 21.68 22.20 20.89 25 1 21.66 22.26 20.79 49 1 21.86 22.25 20.93 100 0 1 21.76 22.15 20.66 16QAM 1 0 1 21.76 21.98 20.83 49 1 21.48 22.00 20.49 99 1 21.85 22.40 20.64 50 0 2 20.85 21.14 19.90 25 2 20.69 21.21 19.86 49 2 20.74 21.20 19.68 100 0 2 20.78 21.16 19.79 Report No.: AGC00408210203FH01 Page 53 of 142 The following tests were conducted according to the test requirements outlined in section 6.2 of the 3GPP TS36.101 specification. UE Power Class: 3 (23 +/- 2dBm). The allowed Maximum Power Reduction (MPR) for the maximum output power due to higher order modulation and transmit bandwidth configuration (resource blocks) is specified in Table 6.2.3.3-1 of the 3GPP TS36.101. Table 6.2.3.3-1 Maximum Power Reduction (MPR) for Power class3 Modulation Maximum Power Reduction (MPR) for Power[RB] MPR(dB) 1.4MHz 3MHz 5MHz 10MHz 15MHz 20MHz QPSK ＞5 ＞4 ＞8 ＞12 ＞16 ＞18 ≤1 16QAM ≤5 ≤4 ≤8 ≤12 ≤16 ≤18 ≤1 16QAM ＞5 ＞4 ＞8 ＞12 ＞16 ＞18 ≤2 The allowed A-MPR values specified below in Table 6.2.4.3-1 of 3GPP TS36.101 are in addition to the allowed MPR requirements. All the measurements below were performed with A-MPR disabled, by using Network Signaling Value of “NS_01”.3 Report No.: AGC00408210203FH01 Page 54 of 142 Table 6.2.4.3-1: Additional Maximum Power Reduction (A-MPR) / Spectrum Emission requirements Network Signaling value Requirements (sub-clause) E-UTRA Band Channel bandwidth (MHz) Resources Blocks (N RB ) A-MPR (dB) NS_01 6.6.2.1.1 Table 5.2-1 1.4,3,5,10,…

Text truncated - open the document above for the full version.

Report No.: AGC00408210203FH01 Page 132 of 142 Test Laboratory: AGC Lab Date: Feb. 20,2021 5.8GHz -802.11ac(40) CH151- Body-Front DUT: Smart phone; Type: M7 Communication System: Wi-Fi; Communication System Band: 802.11ac(40); Duty Cycle: 1:1 Frequency: 5755 MHz; Medium parameters used: f = 5750 MHz; σ=5.35 mho/m; εr =37.12; ρ= 1000 kg/m³ ; Phantom section: Flat Section Ambient temperature (°C): 21.2, Liquid temperature (°C): 21.0 DASY Configuration: • Probe: EX3DV4 – SN3953; ConvF(4.99, 4.99, 4.99); Calibrated: Jul. 29,2020; • Sensor-Surface: 1.4mm (Mechanical Surface Detection), z = 1.0, 31.0 • Electronics: DAE4 SN1398; Calibrated: Apr. 23,2020 • Phantom: SAM (20deg probe tilt) with CRP v5.0; Type: QD000P40CD; • DASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) BODY/FRONT/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.393 W/kg BODY/FRONT/Zoom Scan (9x9x16)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 4.415 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 2.19 W/kg SAR(1 g) = 0.459 W/kg; SAR(10 g) = 0.208 W/kg Maximum value of SAR (measured) = 0.854 W/kg Report No.: AGC00408210203FH01 Page 133 of 142 Report No.: AGC00408210203FH01 Page 134 of 142 APPENDIX C. TEST SETUP PHOTOGRAPHS LEFT- CHEEK TOUCH LEFT-TILT 15 0 Report No.: AGC00408210203FH01 Page 135 of 142 RIGHT- CHEEK TOUCH RIGHT-TILT 15 0 Report No.: AGC00408210203FH01 Page 136 of 142 Body Back 5mm Body Front 5mm 5mm Report No.: AGC00408210203FH01 Page 137 of 142 Edge 1(Top) 5mm Edge 2(Right) 5mm Report No.: AGC00408210203FH01 Page 138 of 142 Edge 3(Bottom) 5mm Edge 4(Left) 5mm Report No.: AGC00408210203FH01 Page 139 of 142 Edge 3(Bottom) with earphone 5mm Report No.: AGC00408210203FH01 Page 140 of 142 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2013 835MHz head 835MHz body 1800MHz head 1800MHz body 1900MHz head 1900MHz body Report No.: AGC00408210203FH01 Page 141 of 142 2450MHz head 2450MHz body 2600MHz head 2600MHz body 5000MHz head 5000MHz body Report No.: AGC00408210203FH01 Page 142 of 142 APPENDIX D. CALIBRATION DATA Refer to Attached files. Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

CALIBRATION DATA PROBE CALIBRATION DATA DAE CALIBRATION DATA DIPOLE CALIBRATION DATA

Page 1 of 91 FCC Test Report Report No.: AGC00408210203FE05 FCC ID : 2AL95-M7 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart phone BRAND NAME : AGM MODEL NAME : M7, M7 SE, M7 PRO APPLICANT : AGM Group Limited DATE OF ISSUE : Apr. 25, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00408210203FE05 Page 2 of 91 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Apr. 25, 2021 Valid Initial Release Report No.: AGC00408210203FE05 Page 3 of 91 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................. 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 7 2.5. TEST METHODOLOGY .......................................................................................................................... 7 2.6. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.8. ANTENNA REQUIREMENT .................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM .................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. OUTPUT POWER ........................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE .......................…
