2AL9B-HP401905Wireless Headphone

Removable 1. learning mic 1 2 3 4 5 6 7 1.Press once to decrease volume / Press and hold to go back to the last track 3.Press once to increase volume / Press and hold to go to the next track 4.While in Bluetooth mode, you can plug the included learning MIC into the AUX port to enhance the call clarity. Note: When using the learning MIC, the built-in microphone in the headphone will be temporarily disabled. 2.Press once to play/pause a track, or to answer/end a call Double press to redial Fast press three times to activate voice assistant Press and hold to power ON/OFF or reject a call Important Safety Precautions When using your Bluetooth Headphones, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR HEADPHONES. 2. Do not use your headphones near water. Clean using a dry or slightly moist cloth. 3. Do not place your headphones on any wet surfaces. 4. Do not allow children or the infirm to play with your headphones without adult supervision. 5. Do not expose your headphones to excessive heat, flames or fire. 6. Always press all buttons or switches carefully. Do not manhandle your headphones. 7. Do not use in extremely dry environments, as this can lead to static discharge during usage. 8. Do not expose your headphones to temperatures above 40°C. Keep out of direct sunlight. 9. Do not attempt to repair this product yourself. Contact a qualified service center if your headphones are in need of service 10. Do not drop, puncture or expose your headphones to excessive trauma. 11. Your headphones are not intended for commercial use. 12. Unplug this device when not in use for long periods of time or during lightning storms. 13. Do not place near objects that generate a strong magnetic field. BATTERY WARNING: -The device is equipped with an integrated lithium ion battery. The battery cannot be replaced. Do not attempt to remove the battery from the device. -Do not dispose of in fire or expose to excessive heat. -Do not crush, puncture, incinerate, or short circuit external contacts. -Please recycle or dispose of the battery properly. Contact your local recycling facilities and/or the manufacturer for further information. CAUTION Maintenance and Care -Before using your headphones, inspect the ports to make sure that they are clear of dust and debris before charging. -Use a soft cloth to clean your headphones. Never use any harsh chemicals or detergents. Make sure your headphones are dry before using. -When your headphones are not in use, they should be stored in a cool, dry place. -Never tug or yank on the charging cable while it is connected to your headphones. Connect and disconnect this cable as carefully as possible. -Never expose your headphones to high temperatures, extreme cold, high humidity or excessive moisture or water. -Please recycle or dispose of your headphones properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your headphones for further information. One Year Warranty This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunc- tions from other than normal use, including but limited to, repair by unauthorized parties, tampering, To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 in the U.S. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connec…

Text truncated - open the document above for the full version.

[She nzhen She ng lai Techn ol og y Co., Ltd] [Roo m 31 10 , Block C, Xintian Century Busine ss Cen tre, Fuming Roa d, Futian, She nzhen ] [Chi na] Date: [2024.8.09] Fede ral Commun ications Commission Authorization and Evalua tion Divisi on 7435 Oaklan d Mills Roa d Col umbia, MD 21 04 6 FCC ID: [2AL9 B-HP401905 ] FRN: [0026557025] US Agen t – Attestation Statement / Part 2.911 (d)(7) [She nzhen She ng lai Techn ol og y Co., Ltd] certifies, that as of [2024.8.09], we have designa ted Sakar International , Inc to accept service of process on our behalf for FCC ID: [2AL9B-HP401905 ] [She nzhen She ng lai Techn ol og y Co., Ltd], accepts to maintain an agent of service of process in the United States for no less than one year afte r her the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proei tceeding involvi ng the equipment, whichever is later. Sakar International , Inc, accepts as of the date of the filing of th is application , the obligation of being the designa ted agent for the purpose of accepting service of process on behalf of [She nzhen She ng lai Techn ol og y Co., Ltd] for FCC ID:[ 2AL9B-HP401905 ] . Designated Agent Information: Company Name: Sakar Interna�onal , Inc FRN: 0028102671 Address: 195 Carte r Dri ve Edison, Edis on,NJ 8 817 Unite d States Contact Person: DAWN L EITAO Phone: （800）637-1090 Email: dleitao@saka r.com Sincerel y, Company: [She nzhen Shen gl ai Technol og y Co., Ltd] Designa ted Agent: [Sakar Interna�onal , I nc] Company Representative: [Leo Guo ] Designa ted Agent Repres entative: [DAWN L EI TAO] Signature: Signature:

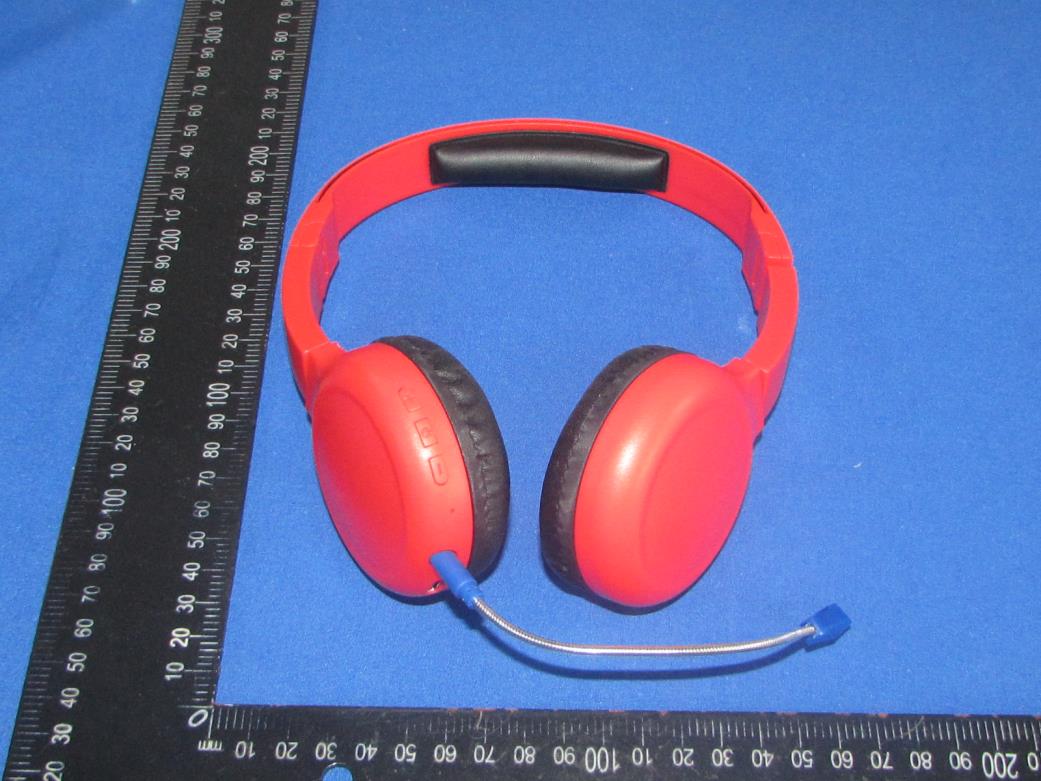

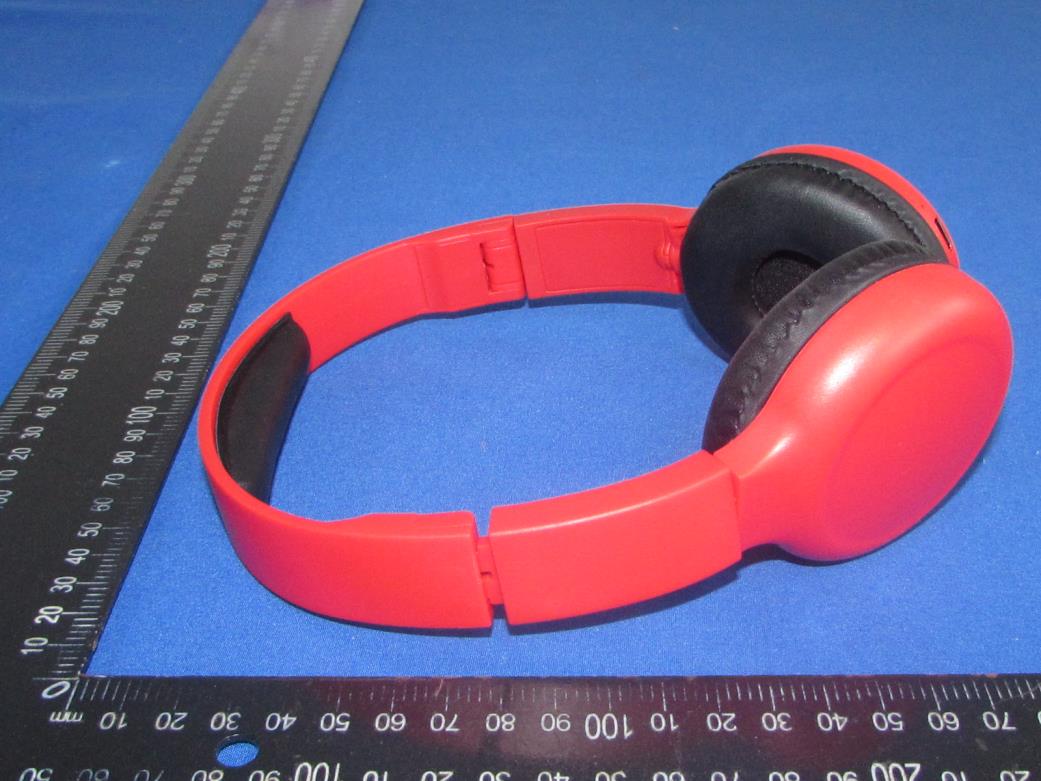

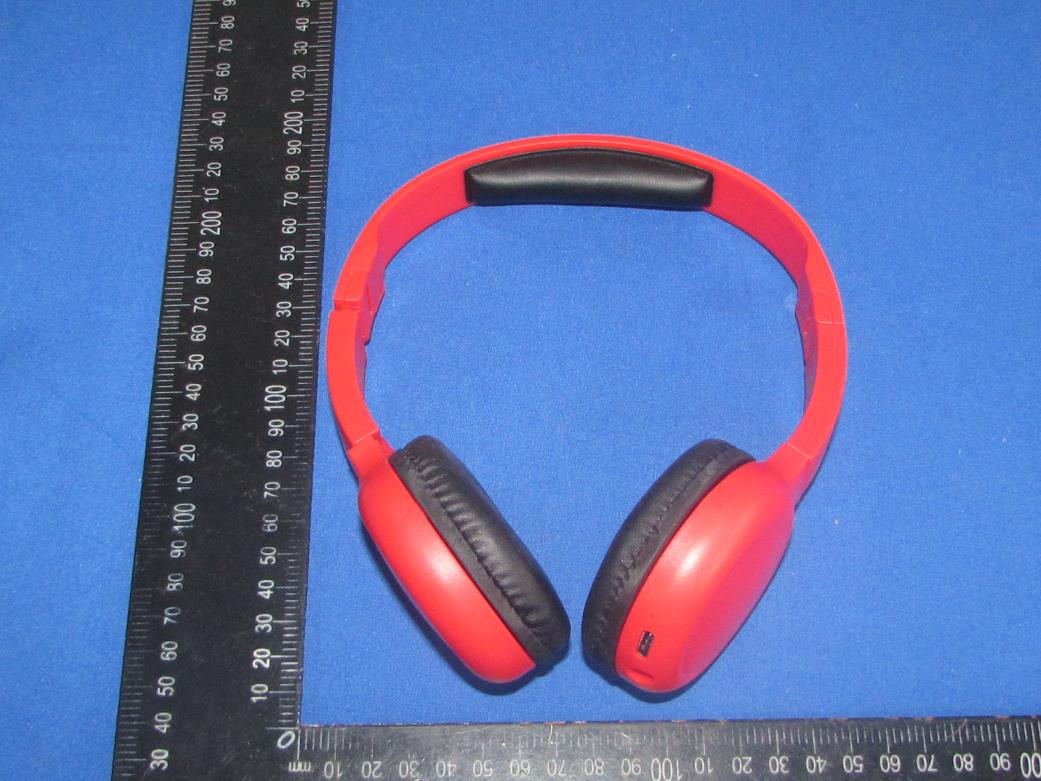

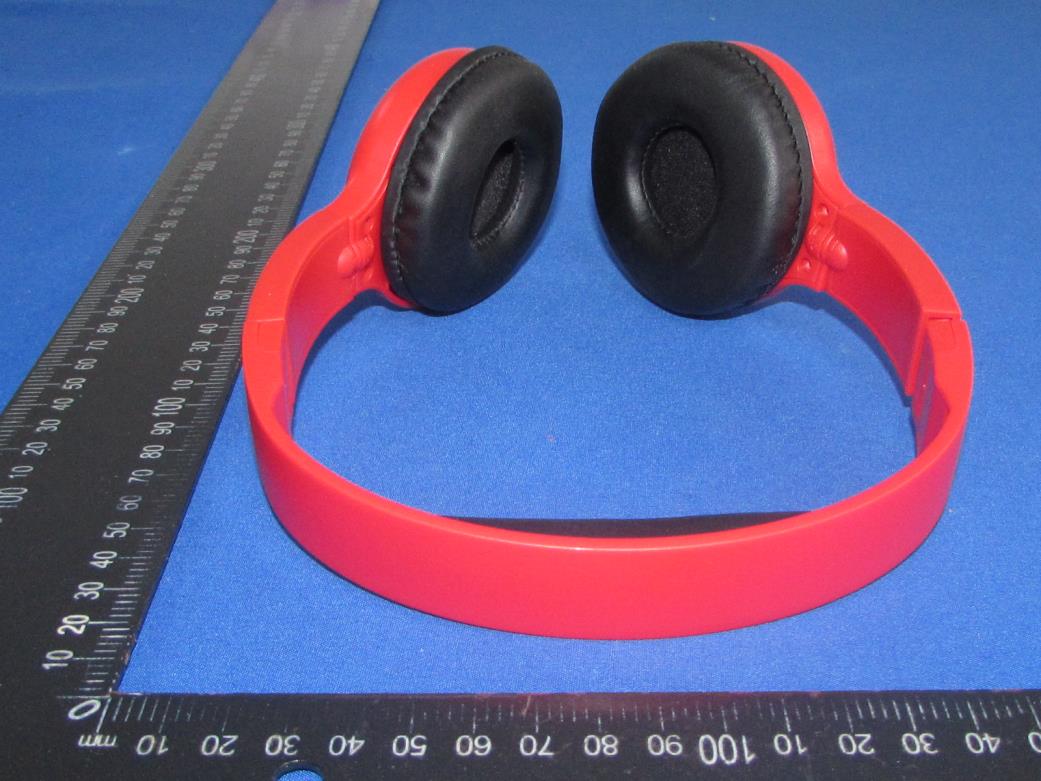

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location FCC ID: 2AL9B-HP401905

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.14 DH5 Ant1 2441 -2.43 DH5 Ant1 2480 -3.44 2DH5 Ant1 2402 -1.62 2DH5 Ant1 2441 -1.96 2DH5 Ant1 2480 -2.98 3DH5 Ant1 2402 -1.35 3DH5 Ant1 2441 -1.44 3DH5 Ant1 2480 -2.61 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -3.0 -4.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2 -2.5 -3.5 Tolerance ±(dB) 1 1 1 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2 -2 -3 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -1.5 -1.5 0.71 3 π/4-DQPSK -1 -1.0 0.79 3 8DPSK -1 -1.0 0.79 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 0dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

An tenna Describe 1： Antenna Describe Antenna PCB Antenna Gain 0dBi Frequency Range 2.4Ghz‐2.483Ghz Connector Type Direct Location of mearement(company name) SHENZHENSHIXINZHONGXIN TECHNOLOGY.CO.,LTD 2：External View Drawing Picture of antenna Top Floor Bottom Floor 3：Measurement Result 3.1 Return Loss (S11 ) 3.2 Smith Chart 3.3 Gain

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 1 of 46 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Wireless Headphone Trade Mark: Vivitar, Sonic, Paw Patrol Test Model: HP401905 FCC ID: 2AL9B-HP401905 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.505 2402.456 --- --- DH5 Ant1 2441 0.957 2440.505 2441.462 --- --- DH5 Ant1 2480 0.927 2479.511 2480.438 --- --- 2DH5 Ant1 2402 1.233 2401.361 2402.594 --- --- 2DH5 Ant1 2441 1.260 2440.340 2441.600 --- --- 2DH5 Ant1 2480 1.350 2479.289 2480.639 --- --- 3DH5 Ant1 2402 1.272 2401.328 2402.600 --- --- 3DH5 Ant1 2441 1.260 2440.325 2441.585 --- --- 3DH5 Ant1 2480 1.251 2479.331 2480.582 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 2 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 3 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 4 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 5 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 6 of 46 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.83973 2401.5513 2402.3910 --- --- DH5 Ant1 2441 0.84618 2440.5409 2441.3871 --- --- DH5 Ant1 2480 0.85300 2479.5353 2480.3883 --- --- 2DH5 Ant1 2402 1.1684 2401.3850 2402.5534 --- --- 2DH5 Ant1 2441 1.1838 2440.3763 2441.5601 --- --- 2DH5 Ant1 2480 1.1689 2479.3816 2480.5505 --- --- 3DH5 Ant1 2402 1.1683 2401.3886 2402.5569 --- --- 3DH5 Ant1 2441 1.1921 2440.3715 2441.5636 --- --- 3DH5 Ant1 2480 1.1695 2479.3817 2480.5512 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 7 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 8 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 9 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 10 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 11 of 46 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.14 ≤20.97 PASS DH5 Ant1 2441 -2.43 ≤20.97 PASS DH5 Ant1 2480 -3.44 ≤20.97 PASS 2DH5 Ant1 2402 -1.62 ≤20.97 PASS 2DH5 Ant1 2441 -1.96 ≤20.97 PASS 2DH5 Ant1 2480 -2.98 ≤20.97 PASS 3DH5 Ant1 2402 -1.35 ≤20.97 PASS 3DH5 Ant1 2441 -1.44 ≤20.97 PASS 3DH5 Ant1 2480 -2.61 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 12 of 46 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 13 of 46 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 14 of 46 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 15 of 46 3DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 16 of 46 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.694 ≥0.638 PASS 2DH5 Ant1 Hop 1.172 ≥0.900 PASS 3DH5 Ant1 Hop 1.13 ≥0.848 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 17 of 46 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 18 of 46 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 19 of 46 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.911 70 0.204 ≤0.4 PASS 2DH5 Ant1 Hop 2.917 120 0.35 ≤0.4 PASS 3DH5 Ant1 Hop 2.921 130 0.38 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 20 of 46 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 21 of 46 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 22 of 46 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 23 of 46 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 24 of 46 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-HP401905 Report No.: TZ240706211-BT Page 25 of 46 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -2.93 -50.54 ≤-22.93 PASS DH5 Ant1 High 2480 -4.05 -48.98 ≤-24.05 PASS DH5 Ant1 Low Hop_2402 -3.46 -50.15 ≤-23.46 PASS DH5 Ant1 High Hop_2480 -3.95 -49.58 ≤-23.95 PASS 2DH5 Ant1 Low…
