2AL9B-NECKRBluetooth Neckband

NECK-R-FD I USER’S MANUAL Specifications Charging Bluetooth Pairing Using Your Neckbuds A Quick Look Bluetooth Range: Up to 33 feet (10 meters) Battery Type: Lithium Ion Battery Power Supply: DC 5V Charge Time: Approximately 1-2 Hours Play Time: Approximately 4 hours* *Applicable at 50% of maximum volume for Android devices. Results may vary when volume is different or when using iOS devices. Microphone LED Indicator Light 1. The included USB charging cable has a Micro USB plug and a standard USB plug. 2. Insert the USB charging cable’s Micro USB plug into the charging port on your neckbuds. 3. Insert the charging cable’s USB plug into the USB port of a computer or suitable USB charging adapter. 4. The LED indicator light turns red while the neckbuds are charging then turns blue once charging is complete. 1. Press and hold the power button to power on your neckbuds. 1. Press and hold the power button to power on or power off your neckbuds. 2.Press the PLAY/PAUSE button to play or pause a track. 3. Press the ANSWER button to answer or end a phone call. 4. Press and hold the ANSWER button to reject a phone call. NECK-R-FD Paired BlueSlowly Flashing LED The Bluetooth® word mark and logos areregistered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sakar International is under license. Other trademarks and trade names are those oftheir respective owners. 2. The LED indicator lights will alternately flash red and blue to indicate that your neckbuds are in pairing mode. 3. Go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as “NECK-R-FD.” 4. The LED indicator light will slowly flash blue to indicate that your neckbuds are paired with your phone. X Power/Play/Pause/Answer Charging Port Next Track/Volume - Last Track/Volume + Micro USB Plug USB Plug (red) = Charging (blue) = Charging Complete Pairing Mode Red & BlueFlashing LED FCCID:2AL9B-NECKR 1A When using your Vivitar Bluetooth Neckbuds, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR NECKBUDS. 2. Do not use your neckbuds near water. Clean using a dry or slightly moist cloth. 3. Do not place your neckbuds on any wet surfaces. 4. Do not allow children or the infirm to play with your neckbuds without adult supervision. 5. Do not expose your neckbuds to excessive heat, flames or fire. 6. Always press all buttons carefully. Do not manhandle your neckbuds. 7. Do not use in extremely dry environments, as this can lead to static discharge during usage. 8. Do not expose your neckbuds to temperatures above 40°C. Keep out of direct sunlight. 9. Do not attempt to repair this product yourself. Contact a qualified service center if your neckbuds are in need of service. 10. Do not drop, puncture or expose your neckbuds to excessive trauma. 11. Your neckbuds are not intended for commercial use. 12. Do not place near objects that generate a strong magnetic field. 13. Use only the supplied charging cables. Unplug this device when not in use for long periods of time or during lightning storms. 14. Please recycle or dispose of your neckbuds properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your neckbuds for further information. This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 in the U.S. or visit our website at www.vivitar.com. © 2020 Sakar International 195 Carter Drive Edison, NJ 08817 To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can b…

Text truncated - open the document above for the full version.

SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Agent Authorization Company: SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address: ROOM 709,BLOCK B,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Product Name: Bluetooth Neckband Model Number(s): NECK-R-FD, NECK-R-BLK, NECK-R-WHT, NECK-R Product Description: Bluetooth Neckband We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 10, 2020 Name: LEO GUO Title: Manager Company: SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED

SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 10, 2020 Subject; Request for Confidentiality FCC ID: 2AL9B-NECKR To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: LEO GUO Title: Manager

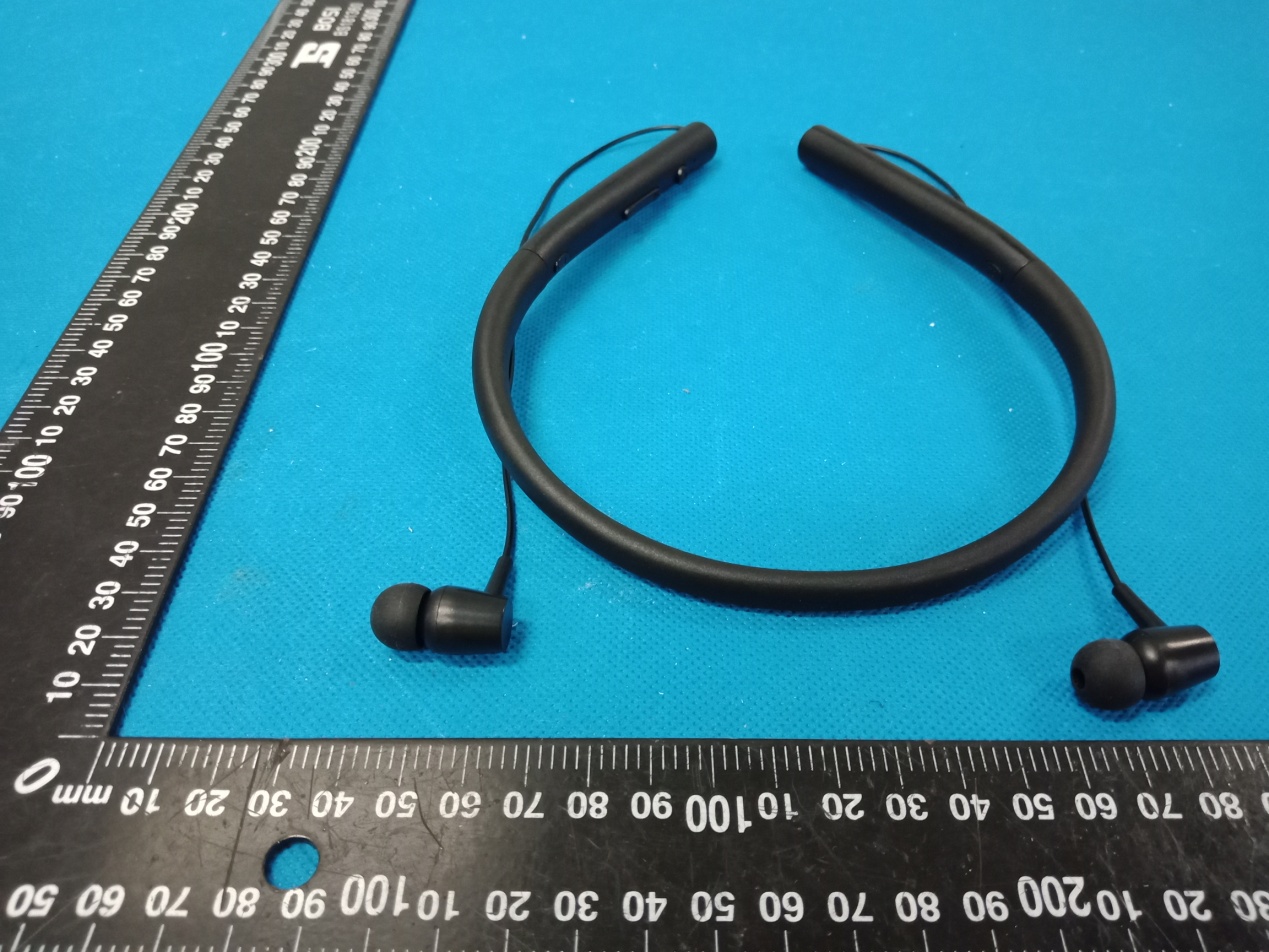

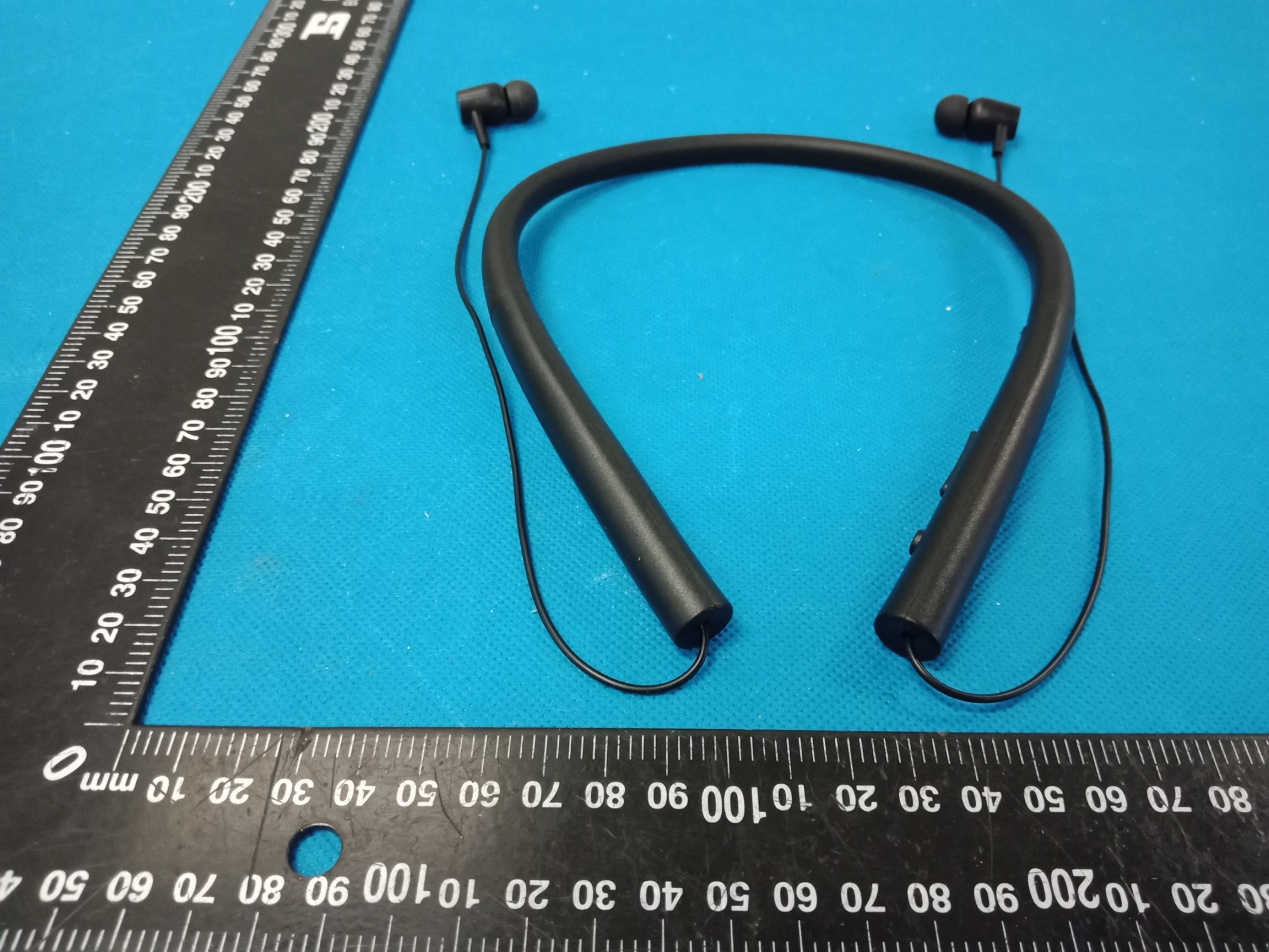

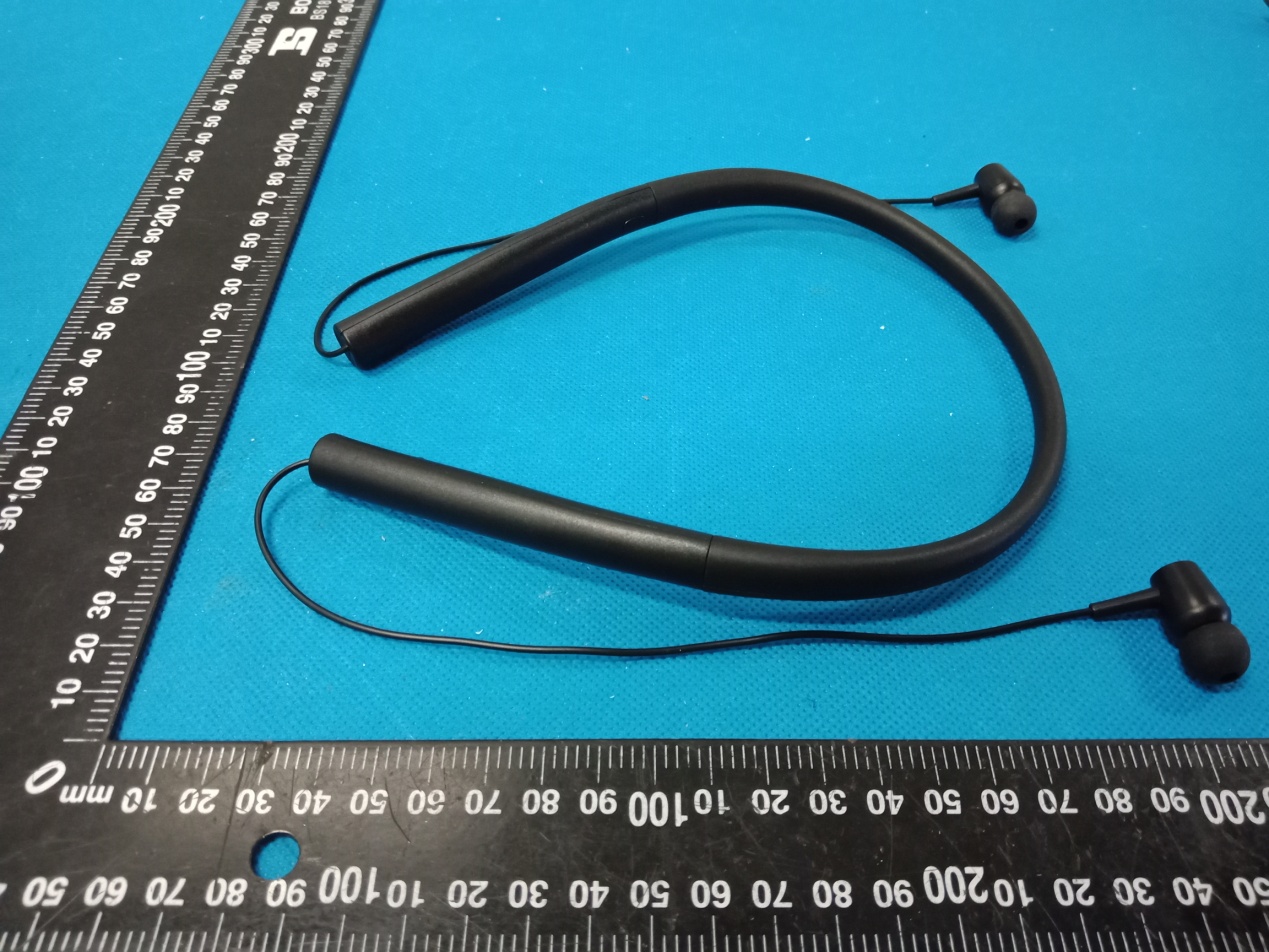

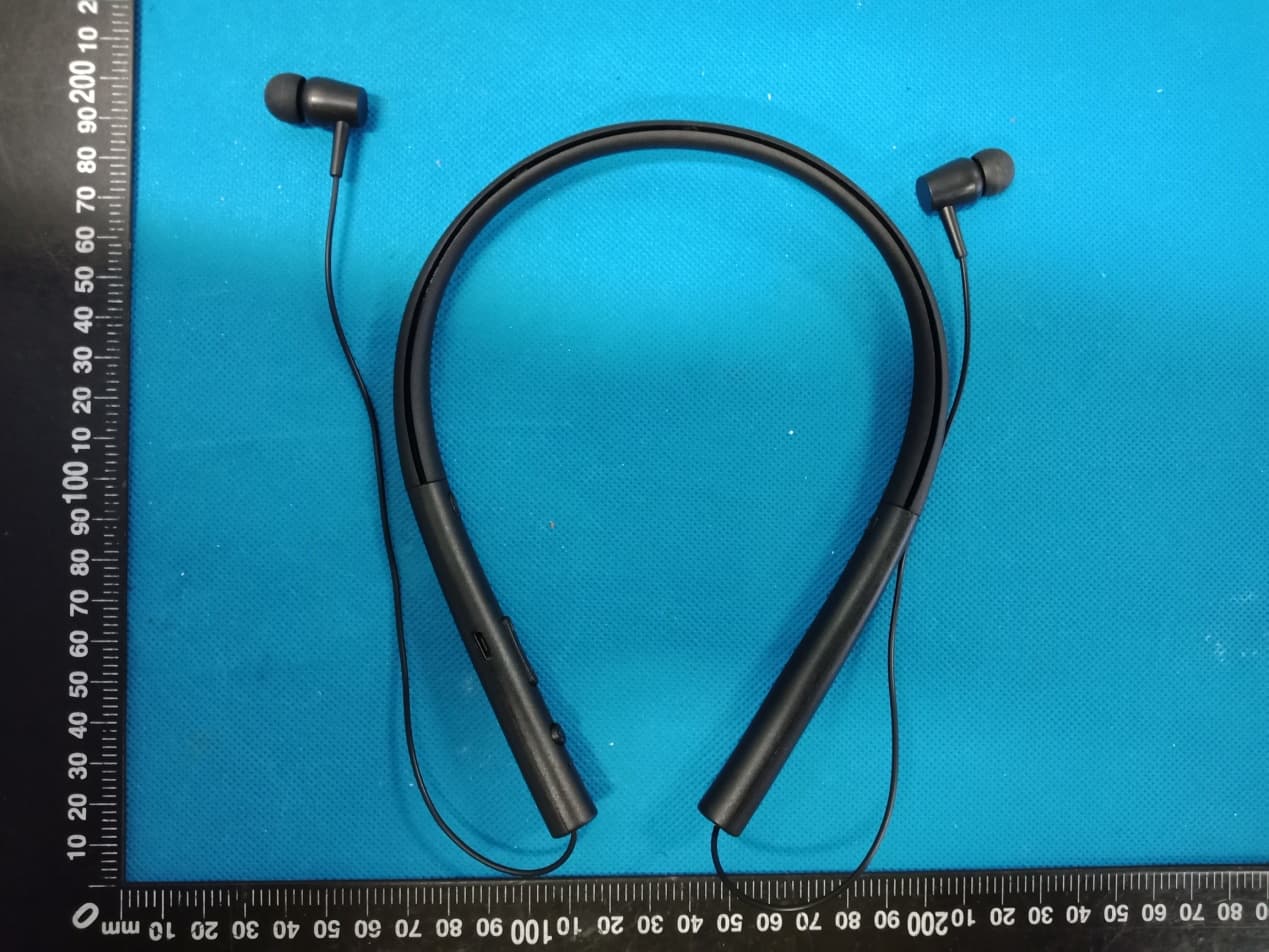

Annex A External Photos Report No.: HK2005291193‐E Page 1 of 3 Report No.: HK2005291193‐E Page 2 of 3 Report No.: HK2005291193‐E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AL9B-NECKR

Annex B Internal Photo Report No.:HK2005291193-E Page 1 of 2 Antenna Report No.:HK2005291193-E Page 2 of 2

FCC RF Exposure EUT Description: Bluetooth Neckband Model No.: NECK-R-FD FCC ID: 2AL9B-NECKR 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -8.79 -8±1(-7)0.2 5 0.0620 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2005291193-E antenna gain=-0.58dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.0620 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 1 Report No.: HK2005291193-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED For Bluetooth Neckband Model No.: NECK-R-FD, NECK-R-BLK, NECK-R-WHT, NECK-R FCC ID: 2AL9B-NECKR Prepared for : SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED ROOM 709,BLOCK B,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Jun. 01, 2020 ~ Jun. 08, 2020 Date of Report: Jun. 08, 2020 Report Number: HK2005291193-E Page 2 of 2 Report No.: HK2005291193-E TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address ................................. : ROOM 709,BLOCK B,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Manufacture's Name ............ : SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address ................................. : ROOM 709,BLOCK B,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Product description Trade Mark: Vivitar Product name ........................... : Bluetooth Neckband Model and/or type reference : NECK-R-FD, NECK-R-BLK, NECK-R-WHT, NECK-R Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Jun. 01, 2020 ~ Jun. 08, 2020 Date of Issue ........................................... : Jun. 08, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 3 Report No.: HK2005291193-E Table of Contents Page 1.1. TEST STANDARDS .....................................................................................................................................................5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 2.8. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 2.9. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 2.10. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 2.11. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5 FREQUENCY SEPARATION ..................................................................................................................................................... 29 2.12. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 31 2.13. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 33 2.14. OUT‐OF‐BAND EMISSIONS ........................................................................................................................................... 36 2.15. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 41 2.16. ANTENNA REQUIREMENT...................................................................................................................................... 42 3. TEST SETUP PHOTOS OF THE EUT ............…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
