2AL9B-VWC105Bluetooth Headphone

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 in the U.S. or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. Package Contents When using your headphones, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR HEADPHONES. 2. Do not use your headphones near water. Clean using a dry or slightly moist cloth. 3. Do not place your headphones on any wet surfaces. 4. Do not allow children or the infirm to play with your headphones without adult supervision. 5. Do not expose your headphones to excessive heat, flames or fire. 6. Always press all buttons carefully. Do not manhandle your headphones. 7. Do not use in extremely dry environments, as this can lead to static discharge during usage. 8. Do not expose your headphones to temperatures above 40°C. Keep out of direct sunlight. 9. Do not attempt to repair this product yourself. Contact a qualified service center if your headphones are in need of service. 10. Do not drop, puncture or expose your headphones to excessive trauma. 11. Your headphones are not intended for commercial use. 12. Do not place near objects that generate a strong magnetic field. 13. Use only the supplied charging cables. Unplug this device when not in use for long periods of time or during lightning storms. 14. Use a soft cloth to clean your headphones Never use any harsh chemicals or detergents. Make sure your earphones are dry before charging. 15. Please recycle or dispose of your earphones properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your earphones for further information. - Wireless Headphones - USB Charging Cable -User’s Manual with Warranty Information FCC Statement USER’S MANUAL ITEM VWC105 Vivitar One Year Warranty Safety Precautions -Rechargeable Battery Provides Up to 10 Hours Playtime Per Charge -Compact and Flexible -Compatible with Bluetooth Enabled Devices -Play/Pause/Answer Calls -Comfortable Headband and Earcups -Light Weight Reduces Headset Fatigue Features Bluetooth Version: 5.0 Bluetooth Range: Up to 33 feet (10 meters) Battery Type: 160mAh lithium ion battery Charge Time: 1~2 hours Play Time: Up to 10 hours* *Applicable at 50% of maximum volume. Results will be lower when volume is higher. Specifications The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sakar International is under license. Other trademarks and trade names are those of their respective owners. Thank you for purchasing the Vivitar Wireless Headphone with Flexible Mic, item VWC105. Use your headphone when working at home or staying in touch with family and friends. Please read this manual carefully FIRST in order to get the most out of your headphone. USER’S MANUAL ITEM V FCCID: 2AL9B-VWC105 WC105 A Quick LookCharging Bluetooth Pairing Next Track/ Volume + Previous Track/ …

Text truncated - open the document above for the full version.

SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED RROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING OAD,FUTIAN DISTRICT, SHENZHEN, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/7/8 To whom it may concern: We, SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AL9B-VWC105 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： LEO GUO / Manager Company: SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address: ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Phone: +86-755-82324457 Fax: +86-755-82324457 E-Mail: [email protected]

SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Date: 2021/7/8 FCC ID: 2AL9B-VWC105 Dear Sir/Madam, We, SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED, Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Bluetooth Headphone Model no.: VWC-105, VWC105-BLK Sincerely, Name/Title： LEO GUO / Manager Company: SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address: ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, China Phone: +86-755-82324457 Fax: +86-755-82324457 E-Mail: [email protected]

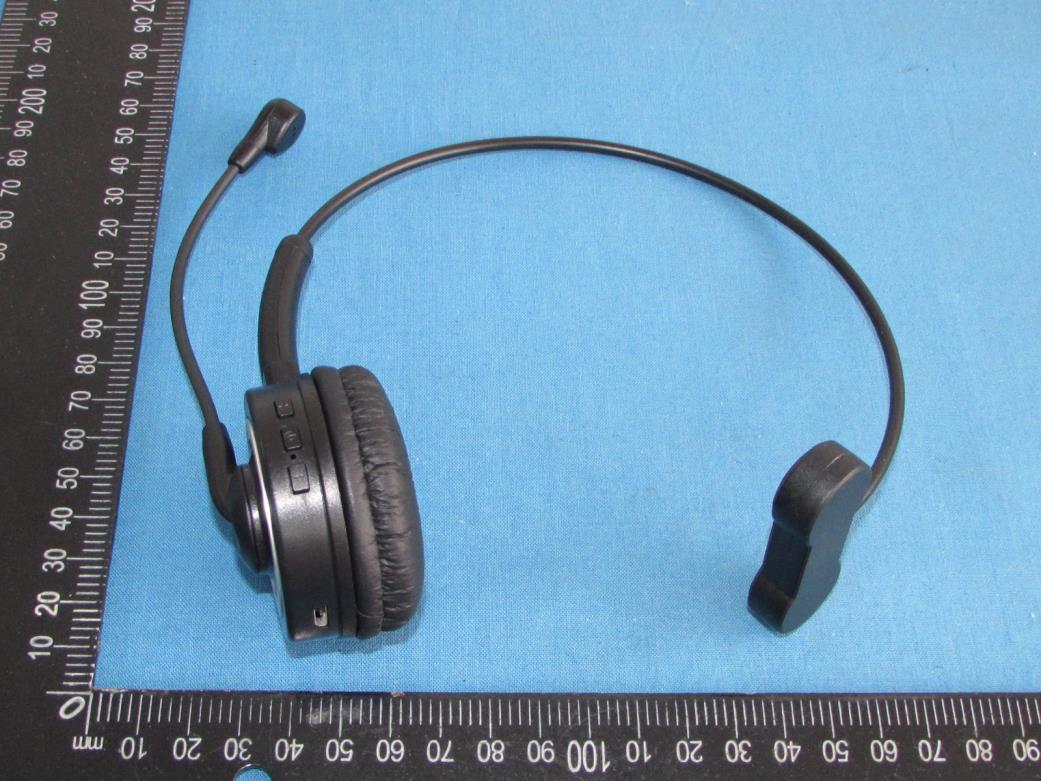

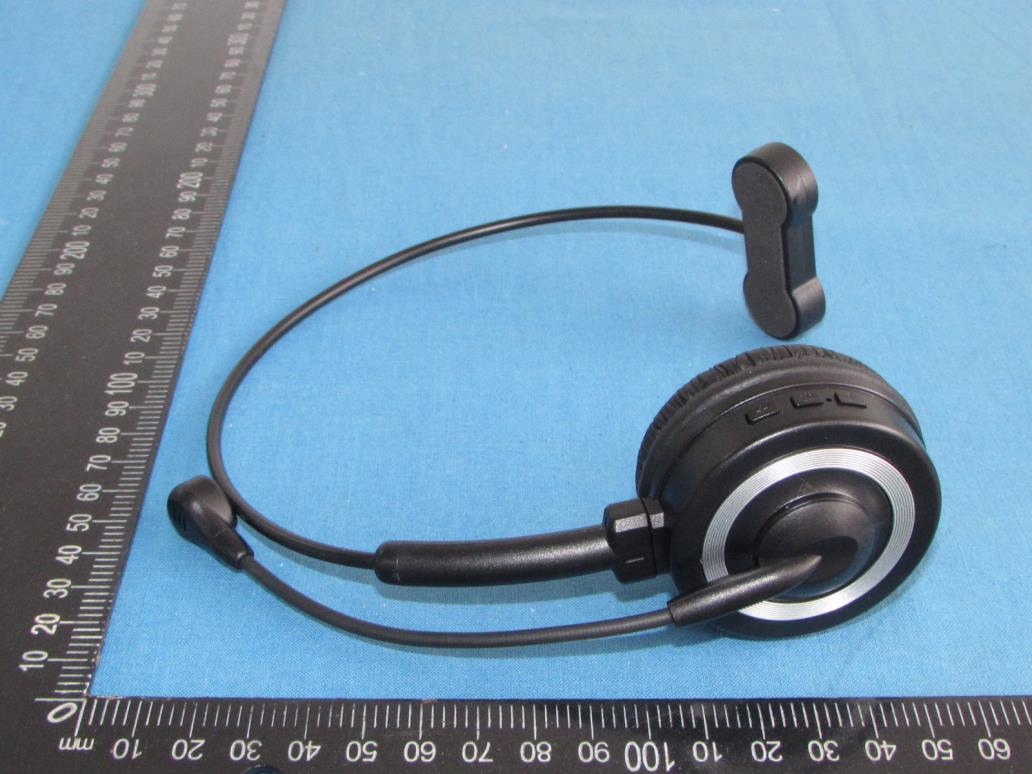

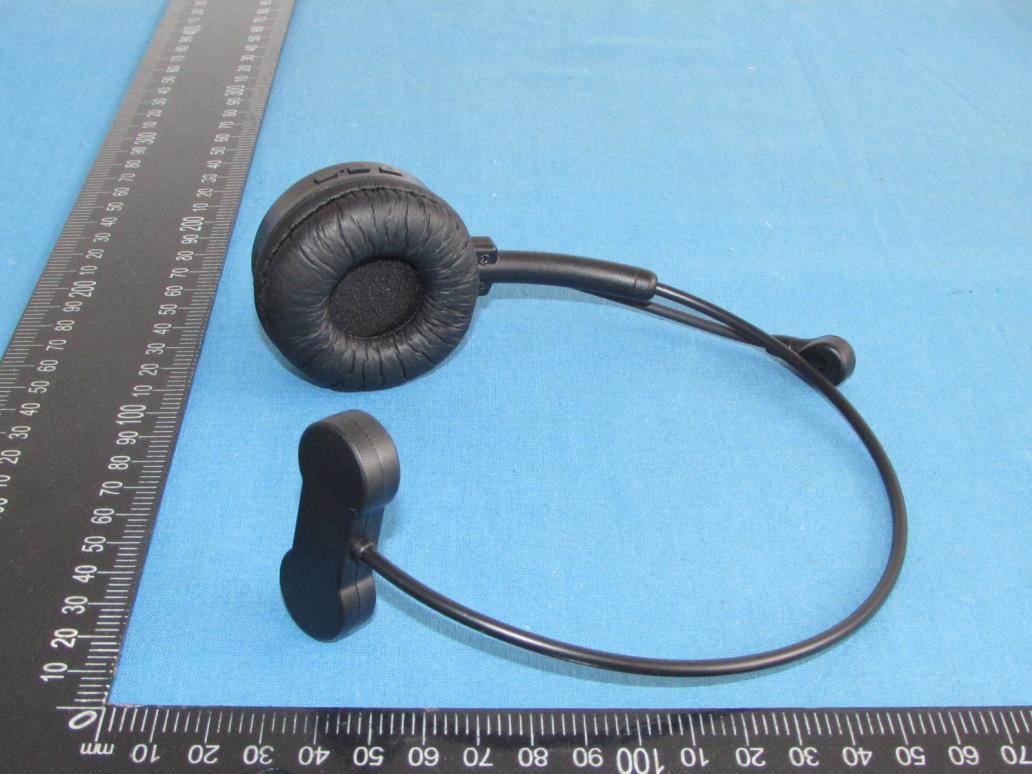

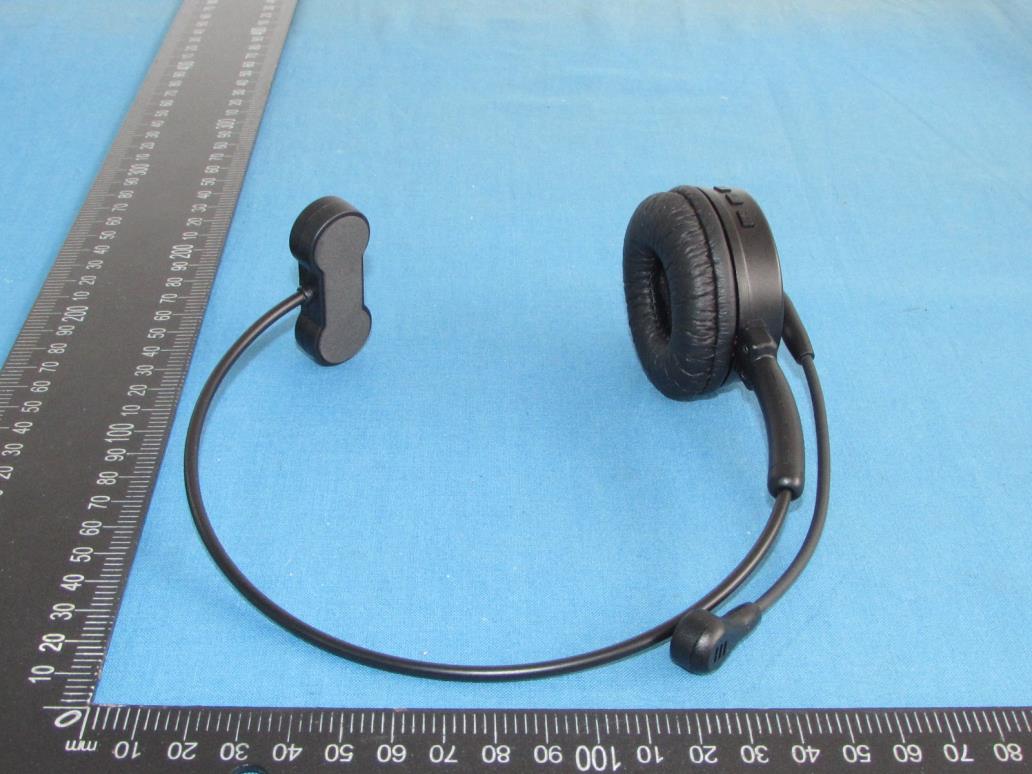

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Size: 30mm(L)*25mm(W) Label Location: FCC ID: 2AL9B-VWC105

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 0dBi(Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 2.52 39 2441 3.08 78 2480 1.57 π/4-DQPSK 00 2402 0.97 39 2441 1.50 78 2480 2.32 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.5 3.0 1.5 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.5 1.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 3.5 3.5 2.24 10 2441 4.0 4.0 2.51 10 2480 2.5 2.5 1.78 10 π/4-DQPSK 2402 1.5 1.5 1.41 10 2441 2.0 2.0 1.58 10 2480 3.0 3.0 2.00 10 The antenna gain of the EUT for BT is 0dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 1 of 26 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Headphone Trade Mark: Vivitar Test Model: VWC-105 FCC ID: 2AL9B-VWC105 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen A.1 20 dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.891 2401.559 2402.450 --- PASS 2441 0.939 2440.556 2441.495 --- PASS 2480 0.933 2479.556 2480.489 --- PASS 2DH5 Ant1 2402 1.260 2401.385 2402.645 --- PASS 2441 1.257 2440.385 2441.642 --- PASS 2480 1.257 2479.385 2480.642 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 2 of 26 Test Graph DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 3 of 26 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 4 of 26 A.2 Dwell Time TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.89 110 0.318 <=0.4 PASS 2DH5 Ant1 Hop 2.89 110 0.318 <=0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 5 of 26 Test Graph DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 6 of 26 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 7 of 26 A.3 Carrier Frequency Separation TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.994 >=0.939 PASS 2DH5 Ant1 Hop 1.000 >=0.840 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 8 of 26 Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 9 of 26 A.4 Hopping Channel Number TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 >=15 PASS 2DH5 Ant1 Hop 79 >=15 PASS Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 10 of 26 A.5 Conducted Peak Output Power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 2.52 <=20.97 PASS 2441 3.08 <=20.97 PASS 2480 1.57 <=20.97 PASS 2DH5 Ant1 2402 0.97 <=20.97 PASS 2441 1.50 <=20.97 PASS 2480 2.32 <=20.97 PASS Test Graph DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 11 of 26 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 12 of 26 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 13 of 26 A.6 Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 2.39 -36.61 <=-17.61 PASS High 2480 3.49 -38.8 <=-16.51 PASS Low Hop_2402 -0.58 -48.84 <=-20.58 PASS High Hop_2480 1.83 -46.93 <=-18.17 PASS 2DH5 Ant1 Low 2402 -0.33 -40.16 <=-20.33 PASS High 2480 1.35 -46.48 <=-18.65 PASS Low Hop_2402 -4.43 -48.9 <=-24.43 PASS High Hop_2480 0.17 -47.38 <=-19.83 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 14 of 26 Test Graph DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 15 of 26 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 16 of 26 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 17 of 26 A.7 RF Conducted Spurious Emissions Test Graph DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 18 of 26 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 19 of 26 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 20 of 26 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 21 of 26 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 22 of 26 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 Report No.: TZ210602339-E Page 23 of 26 A.8 Restrict-band band-edge measurements TestMode Antenna ChName Channel Detector Freq （MHz） Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -48.13 <=-41.20 PASS AV 2378.960 -46.28 <=-41.20 PASS AV 2390.000 -47.04 <=-41.20 PASS Peak 2310.000 -41.2 <=-21.20 PASS Peak 2386.100 -37.75 <=-21.20 PASS Peak 2390.000 -41.68 <=-21.20 PASS High 2480 AV 2483.500 -44.96 <=-41.20 PASS AV 2500.000 -45.39 <=-41.20 PASS Peak 2483.500 -41.47 <=-21.20 PASS Peak 2488.880 -36.34 <=-21.20 PASS Peak 2500.000 -38.72 <=-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -48.3 <=-41.20 PASS AV 2379.065 -47.04 <=-41.20 PASS AV 2390.000 -47.52 <=-41.20 PASS Peak 2310.000 -43.79 <=-21.20 PASS Peak 2337.380 -37.9 <=-21.20 PASS Peak 2390.000 -42.73 <=-21.20 PASS High 2480 AV 2483.500 -45.01 <=-41.20 PASS AV 2499.440 -44.49 <=-41.20 PASS AV 2500.000 -44.61 <=-41.20 PASS Peak 2483.500 -39.16 <=-21.20 PASS Peak 2499.040 -35.74 <=-21.20 PASS Peak 2500.000 -38.71 <=-21.20 PASS Note: 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain whic…

Text truncated - open the document above for the full version.

Report No.: TZ210602339-E Page 1 of 36 FCC TEST REPORT Test report On Behalf of SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED For Bluetooth Headphone Model No: VWC-105, VWC105-BLK FCC ID: 2AL9B-VWC105 Prepared for : SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2021/6/28 – 2021/7/6 Date of Report: 2021/7/7 Report Number: TZ210602339-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ210602339-E Page 2 of 36 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Address .................................. : ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN China Manufacture's Name ............ : Guangdong Shenglai Technology Co., Ltd Address .................................. : Zhongtai Industrial Zone, Hengshan Village, Gurao Town, Chaoyang Area, Shantou City, Guangdong Province, China Product description Trade Mark ............................. : Vivitar Product name ........................... : Bluetooth Headphone Model No ................................ : VWC-105, VWC105-BLK Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2021/6/28- 2021/7/6 Date of Issue ......................................... : 2021/7/7 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ210602339-E Page 3 of 36 Revision History Revision Issue Date Revisions Revised By 00 2021/7/7 Initial Issue Andy Zhang Report No.: TZ210602339-E Page 4 of 36 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 EUT configuration ......................................................................................................................................... 5 The following peripheral devices and interface cables were connected during the measurement: ....... 5 1.4 External I/O Cable ........................................................................................................................................ 5 1.5 Description of Test Facility .......................................................................................................................... 6 1.6 Statement of the Measurement Uncertainty ............................................................................................. 7 1.7 Measurement Uncertainty ........................................................................................................................... 7 1.8 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY ...................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ..................................................................................................................................................... 9 4. SUMMARY OF TEST RESULTS ...............................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AL9B-VWC105 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 1 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
