2ALB6-NTSSBLE01Remote Control

NOTUS S4 remote control Take Off Guide 1. Notus S4 Remote Control 2. Turn On Notus S4 Notus S4 remote control arrives with a 2 AAA batteries blister inside a polybag. To turn on your Notus S4 remote control, please follow the instructions below. 1. Turn ON your TV and your Set Top Box. 2. Remove your Notus S4 remote control and its batteries from the plastic bag. 3. Remove the remote’s battery lid. 4. Place the batteries on the Notus S4 remote control as indicated in the image above and replace the battery lid. 5. After inserting the batteries, wait a few seconds and the Notus S4 remote will be ready to operate the Set-Top-Box. FCC Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televison reception, which can be determinated by turning the equipment off an on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. .Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation expuser limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3. Notus S4 - Contr ol Your TV The Notus S4 remote control can control your TV. By default, it is configured to control a Samsung TV, but via the STB User Interface the remote can be setup to control other brands and models. 1. Once you have selected to configure your remote to contr ol your TV in the STB user interface, the STB will guide you through the necessary steps to configure the Notus remote to contr ol your TV.

T. +351 256 001 930 www.tech4home.pt NIF. 509 195 830 [email protected] Centro Empresarial e Tecnológico de S. João da Madeira Rua de Fundões, nº 151 3700-121 S. João da Madeira Portugal S. João da Madeira, March 16, 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Tech4Home, Lda FCC ID: 2ALB6-NTSSBLE01 To Whom It May Concern: We, Tech4Home, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2ALB6-NTSSBLE01 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is March 11, 2020. The Limited Agency Agreement expires on March 31, 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Miguel Valente Total Quality Manager

FCC ID: 2ALB6-NTSSBLE01 Sincerely, _________________ Miguel Valente Total Quality Manager March 16, 2020

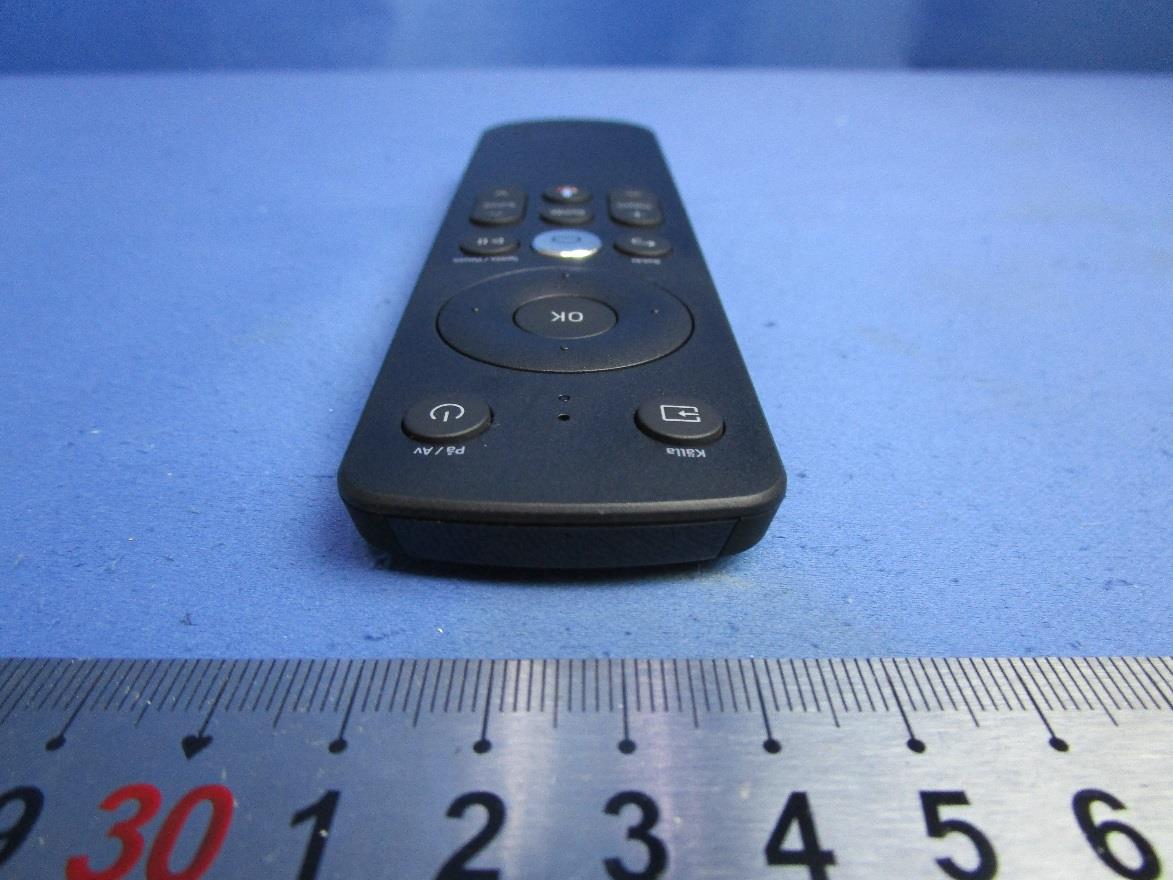

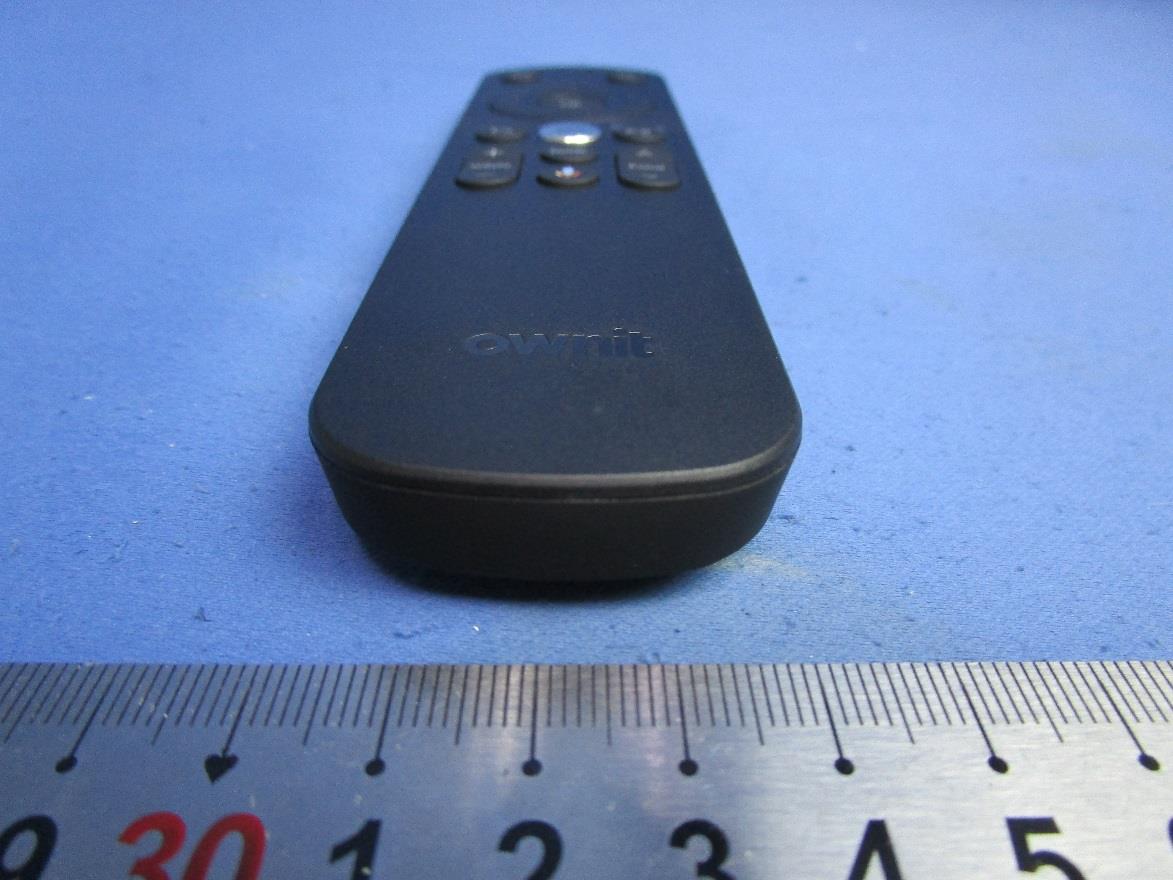

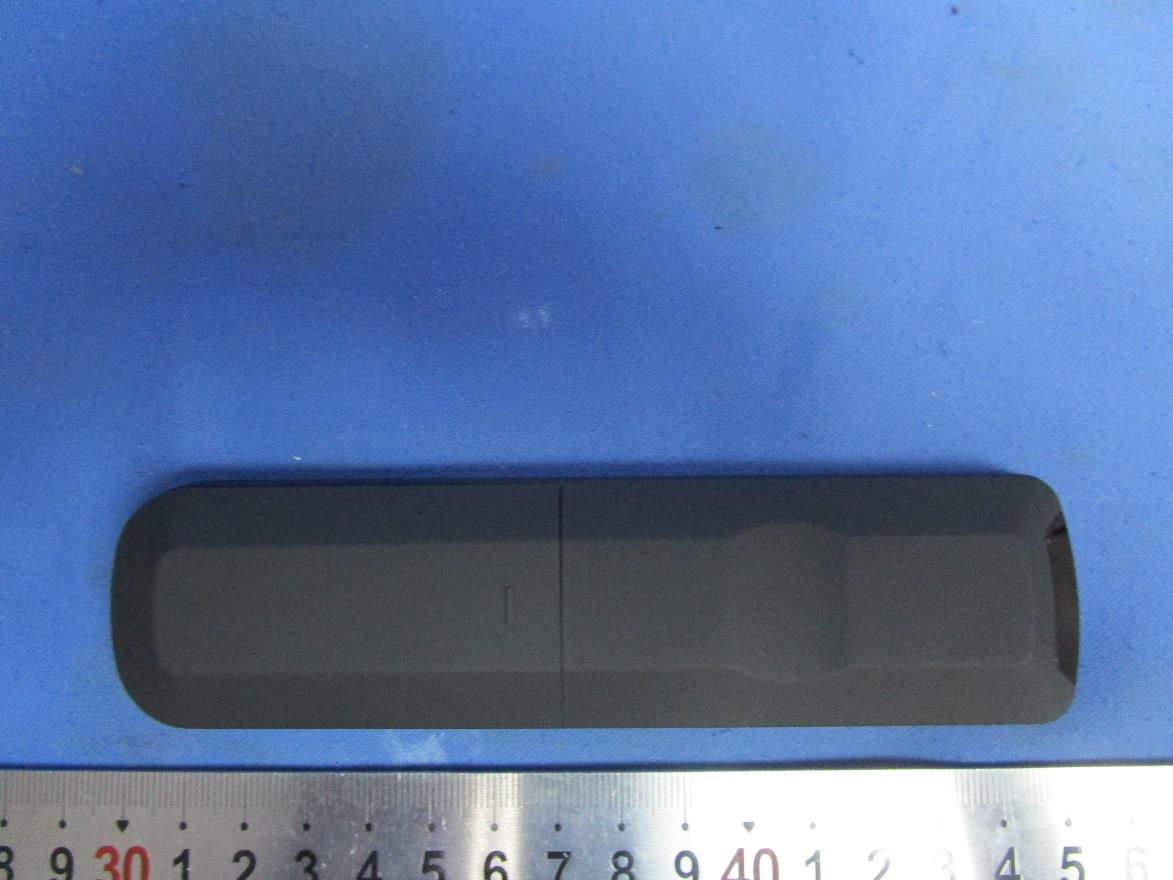

External photos

- . FCC ID: 2ALB6-NTSSBLE01

Internal photos Antenna

FCC ID: 2ALB6-NTSSBLE01 1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Remote Control with Bluetooth function operating in 2402-2480MHz. The EUT is powered by DC 3.0V(2*1.5V AAA batteries), For more detail information pls. refer to the user manual. Bluetooth Version: 4.2 Single Mode (BLE) Modulation Type: GFSK Antenna Type: Integral antenna (Gain: 0 dBi) The nominal conducted output power specified: -8.0dBm (Tolerance: +/-3dB) According to the KDB 447498: The Maximum peak radiated emission for the EUT is 85.3 dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -9.93dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 84.4 dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -10.83dBm which is within the production variation. The maximun conducted output power specified is -5.0dBm = 0.32mW The source- based time-averaging conducted output power = 0.32 * Duty cycle mW <= 0.32 mW (Duty Cycle<=100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt (freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

Tech4home, Lda TEST REPORT SCOPE OF WORK FCC TESTING–T4HU1911 16K NOTUS S4 REPORT NUMBER 200310048SZN-001 ISSUE DATE [REVISED DATE] March 24, 2020 [---------------------] PAGES 23 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200310048SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 23 FCC ID 249_C Test Report Tech4home, Lda Application For Certification FCC ID: 2ALB6-NTSSBLE01 Remote Control Model: T4HU1911 16K Notus S4, T4HU1912 16K Notus S4 Brand Name: TECH4HOME 2.4GHz Transceiver Report No.: 200310048SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Judy Xu Assistant Engineer Kidd Yang Technical Supervisor Date: March 24, 2020 Intertek Report No.: 200310048SZN-001 Version: 01-November-2017 Page: 2 of 23 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-18 Edition] provision. Report prepared by: Judy Xu Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0743/86-755-8601 6661 Intertek Report No.: 200310048SZN-001 Version: 01-November-2017 Page: 3 of 23 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 5.0 Equipment Photographs .............................................................................................. 16 6.0 Product Labelling ........................................................................................................ 16 7.0 Technical Specifications ............................................................................................... 16 8.0 Instruction Manual ..................................................................................................... 16 9.0 Miscellaneous Information ...................................................................…

Text truncated - open the document above for the full version.

Radiated photos Below 1GHz (The EUT was placed at the center of turntable) Above 1GHz (The EUT was placed at the center of turntable)
