2ALE7-S3Smart Body Fat Scale

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: -Reorient the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Product Name: Smart Body Fat Scale Model No.：S3 V2.0, Big Plus 2, Big Pro V2.0 FCC ID：2ALE7-S3 All models are electrically <Signature> Name:Dan Li Title:Manager Applicant:PICOOC Technology Co.,Ltd Product Name: Smart Body Fat Scale S3 V2.0, Big Plus 2, Big Pro V2.0 S3 electrically identical，only model no Applicant:PICOOC Technology Co.,Ltd no is different.

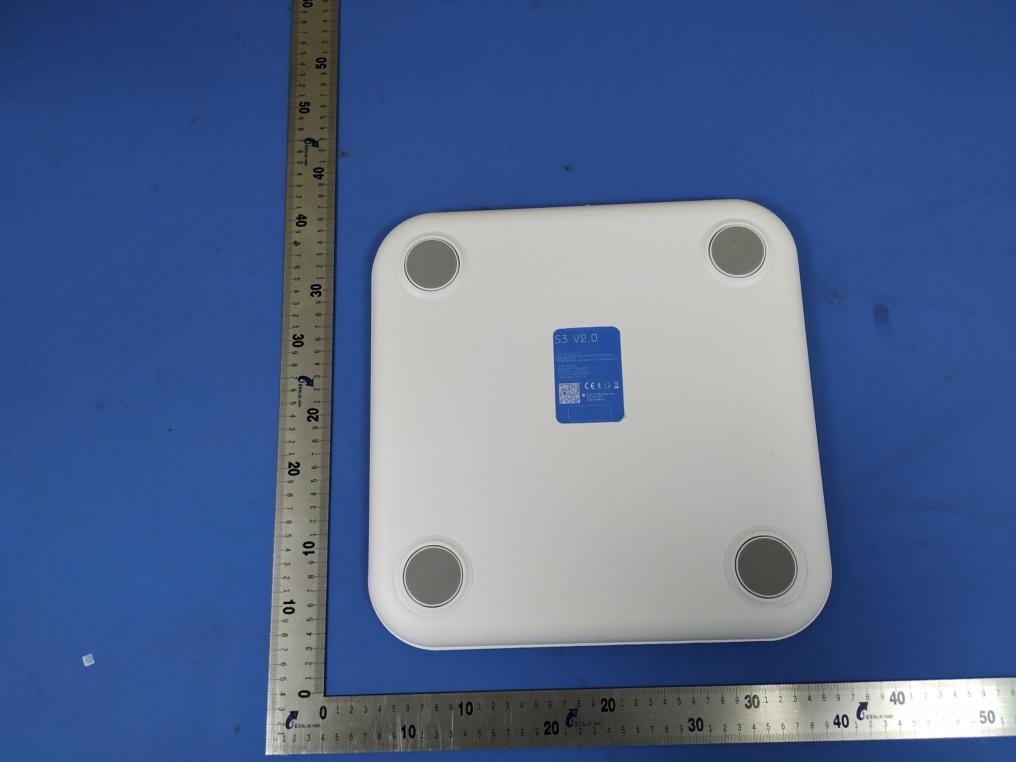

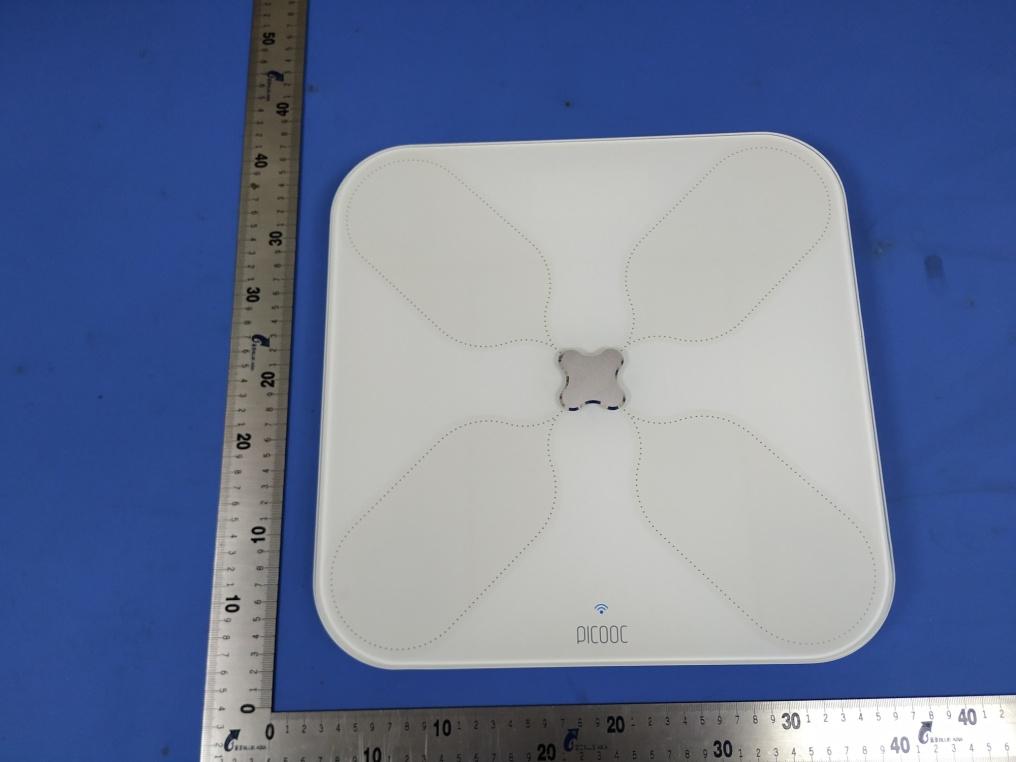

Model No.: S3 V2.0

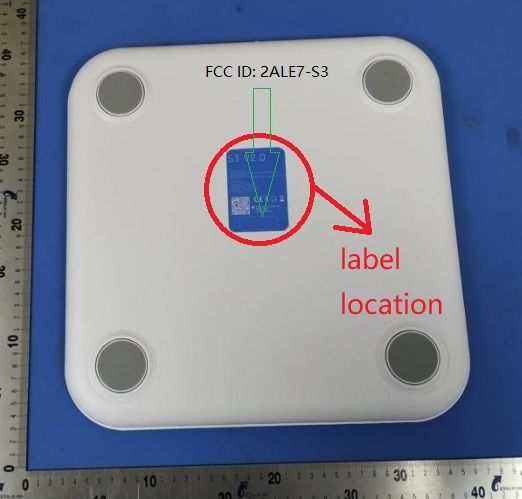

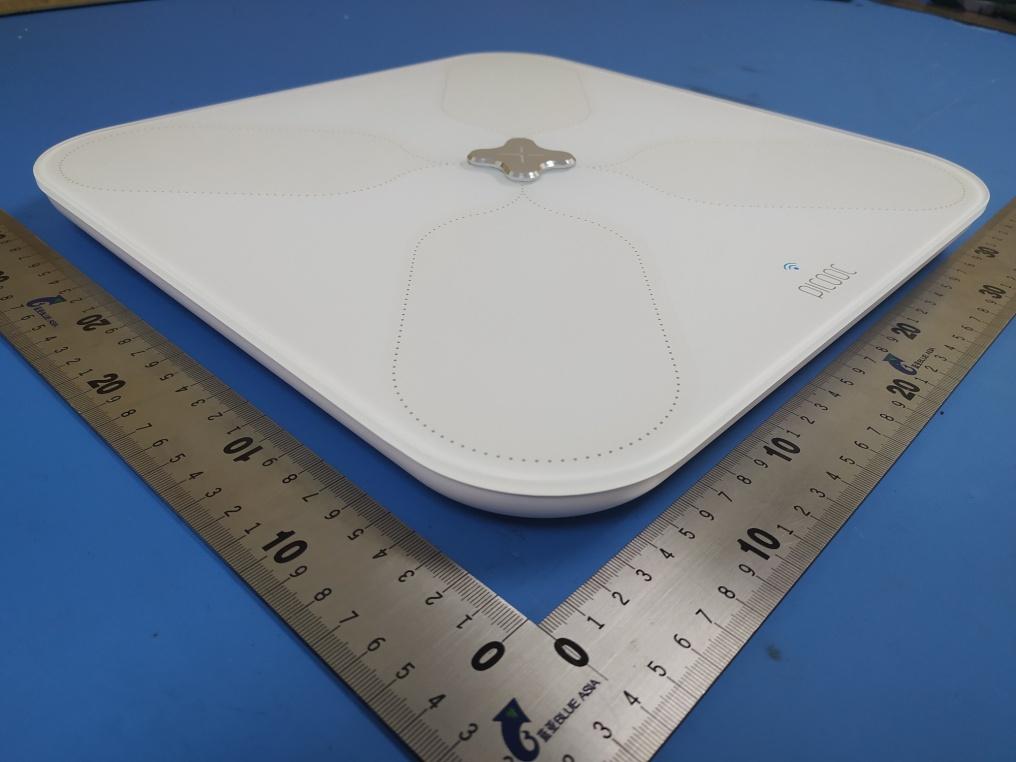

Model No.: S3 V2.0

RF Exposure Evaluation Statement Product Name: Smart Body Fat Scale Model No.：S3 V2.0, Big Plus 2, Big Pro V2.0 FCC ID：2ALE7-S3 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402 -3.08 ±1 -2.08 0.62 0.19 7.5 2442 -2.97 ±1 -1.97 0.64 0.20 2480 -3.51 ±1 -2.51 0.56 0.18 Operational Mode: 802.11b（worst case） 7.5 2412 9.65 ±1 10.65 11.61 3.61 2437 9.69 ±1 10.69 11.72 3.66 2462 9.48 ±1 10.48 11.17 3.53 Conclusion: the calculated value ≤7.5, SAR is exempted.

Page 1 of 75 TEST REPORT Product Name : Smart Body Fat Scale Brand Mark : PICOOC Model No. : S3 V2.0, Big Plus 2, Big Pro V2.0 FCC ID : 2ALE7-S3 Report Number : BLA-EMC-202006-A8301 Date of Sample Receipt : 2020/6/30 Date of Test : 2020/6/30 to 2020/7/20 Date of Issue : 2020/7/20 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: PICOOC Technology Co.,Ltd Room 507, F/5, Wanwei Building,No.5 Industrial Road, NanShan District Shenzhen,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/7/20 Report No.: BLA-EMC-202006-A8301 Page 2 of75 REPORT REVISE RECORD Version No. Date Description 00 2020/7/20 Original Report No.: BLA-EMC-202006-A8301 Page 3 of75 TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 14 LIMITS ............................................................................................................................................................................. 14 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 PROCEDURE ................................................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 17 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 25 LIMITS ............................................................................................................................................................................. 25 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 26 PROCEDURE ................................................................................................................................................................... 26 TEST DATA ........................................................................................................................................................................ 28 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ) ............................................................. 36 LIMITS ............................................................................................................................................................................. 36 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 36 PROCEDURE ................................................................................................................................................................... 36 TEST DATA ........................................................................................................................................................................ 38 ANTENNA REQUIREMENT .............................................................................................................................. 40 CONCLUSION ...................................................................................................................................................................... 40 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 41 LIMITS ............................................................................................................................................................................. 41 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 41 Report No.: BLA-EMC-202006-A8301 Page 4 of75 TEST DATA ........................................................................................................................................................................ 42 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 43 LIMITS ..................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TEST REPORT Product Name : Smart Body Fat Scale Brand Mark : PICOOC Model No. : S3 V2.0, Big Plus 2, Big Pro V2.0 FCC ID : 2ALE7-S3 Report Number : BLA-EMC-202006-A8302 Date of Sample Receipt : 2020/6/30 Date of Test : 2020/6/30 to 2020/7/27 Date of Issue : 2020/7/27 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: PICOOC Technology Co.,Ltd Room 507, F/5, Wanwei Building,No.5 Industrial Road, NanShan District Shenzhen, China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: 2020/7/27 Report No.: BLA-EMC-202006-A8302 Page 2 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/7/27 Original Report No.: BLA-EMC-202006-A8302 Page 3 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 14 LIMITS ............................................................................................................................................................................. 14 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 14 TEST DATA ........................................................................................................................................................................ 15 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 16 LIMITS ............................................................................................................................................................................. 16 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 16 TEST DATA ........................................................................................................................................................................ 17 POWER SPECTRUM DENSITY ....................................................................................................................... 18 LIMITS ............................................................................................................................................................................. 18 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 18 TEST DATA ........................................................................................................................................................................ 18 CONDUCTED PEAK OUTPUT POWER .......................................................................................................... 19 LIMITS ............................................................................................................................................................................. 19 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 19 TEST DATA ........................................................................................................................................................................ 20 MINIMUM 6DB BANDWIDTH ........................................................................................................................... 21 LIMITS ............................................................................................................................................................................. 21 BLOCK DIAGRAM OF TEST SETUP ..................................…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202006-A8302 Page 51 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 802.11n20:Highest channel Peak value Report No.: BLA-EMC-202006-A8302 Page 52 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] AVG value Report No.: BLA-EMC-202006-A8302 Page 53 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 802.11n40: Lowest channel Peak value Report No.: BLA-EMC-202006-A8302 Page 54 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] AVG value Report No.: BLA-EMC-202006-A8302 Page 55 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 802.11n40: Highest channel Peak value Report No.: BLA-EMC-202006-A8302 Page 56 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] AVG value Report No.: BLA-EMC-202006-A8302 Page 57 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10 APPENDIX Appendix1 10.1 APPENDIXA: DTS BANDWIDTH Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.200 2407.440 2416.640 >=0.5 PASS 2437 9.120 2432.440 2441.560 >=0.5 PASS 2462 8.680 2457.920 2466.600 >=0.5 PASS 11G Ant1 2412 13.520 2405.120 2418.640 >=0.5 PASS 2437 16.040 2428.840 2444.880 >=0.5 PASS 2462 15.200 2454.440 2469.640 >=0.5 PASS 11N20SISO Ant1 2412 17.200 2403.600 2420.800 >=0.5 PASS 2437 16.400 2428.240 2444.640 >=0.5 PASS 2462 15.720 2454.120 2469.840 >=0.5 PASS 11N40SISO Ant1 2422 35.920 2404.320 2440.240 >=0.5 PASS 2437 35.760 2419.160 2454.920 >=0.5 PASS 2452 35.680 2434.320 2470.000 >=0.5 PASS Report No.: BLA-EMC-202006-A8302 Page 58 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Report No.: BLA-EMC-202006-A8302 Page 59 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: BLA-EMC-202006-A8302 Page 60 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Report No.: BLA-EMC-202006-A8302 Page 61 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202006-A8302 Page 62 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.2 APPENDIXB: OCCUPIED CHANNEL BANDWIDTH Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.856 2404.622 2419.478 --- PASS 2437 14.854 2429.602 2444.456 --- PASS 2462 14.758 2454.679 2469.437 --- PASS 11G Ant1 2412 16.979 2403.587 2420.566 --- PASS 2437 17.447 2428.340 2445.787 --- PASS 2462 17.227 2453.436 2470.663 --- PASS 11N20SISO Ant1 2412 18.079 2403.004 2421.083 --- PASS 2437 18.103 2427.953 2446.056 --- PASS 2462 18.136 2452.946 2471.082 --- PASS 11N40SISO Ant1 2422 36.587 2403.829 2440.416 --- PASS 2437 36.401 2418.861 2455.262 --- PASS 2452 36.515 2433.907 2470.422 --- PASS Report No.: BLA-EMC-202006-A8302 Page 63 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Report No.: BLA-EMC-202006-A8302 Page 64 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Report No.: BLA-EMC-202006-A8302 Page 65 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:marke…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202006-A8302 Page 75 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: BLA-EMC-202006-A8302 Page 76 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: BLA-EMC-202006-A8302 Page 77 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: BLA-EMC-202006-A8302 Page 78 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Report No.: BLA-EMC-202006-A8302 Page 79 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.5 APPENDIXE:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 0.60 -53.41 <=-29.4 PASS High 2462 1.39 -50.38 <=-28.61 PASS 11G Ant1 Low 2412 2.22 -41.43 <=-27.78 PASS High 2462 4.27 -50.07 <=-25.73 PASS 11N20SISO Ant1 Low 2412 -1.65 -41.1 <=-31.65 PASS High 2462 -2.02 -52.02 <=-32.02 PASS 11N40SISO Ant1 Low 2422 -6.39 -44.98 <=-36.39 PASS High 2452 -6.21 -51.74 <=-36.21 PASS Report No.: BLA-EMC-202006-A8302 Page 80 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Report No.: BLA-EMC-202006-A8302 Page 81 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Report No.: BLA-EMC-202006-A8302 Page 82 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11N40SISO_Ant1_High_2452 Report No.: BLA-EMC-202006-A8302 Page 83 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 10.6 APPENDIXF:CONDUCTED SPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.43 0.43 --- PASS 30~1000 30~1000 -50.297 <=-19.568 PASS 1000~26500 1000~26500 -45.807 <=-19.568 PASS 2437 Reference 0.68 0.68 --- PASS 30~1000 30~1000 -50.551 <=-19.321 PASS 1000~26500 1000~26500 -53.234 <=-19.321 PASS 2462 Reference 0.52 0.52 --- PASS 30~1000 30~1000 -50.917 <=-19.478 PASS 1000~26500 1000~26500 -53.275 <=-19.478 PASS 11G Ant1 2412 Reference -4.31 -4.31 --- PASS 30~1000 30~1000 -50.633 <=-24.312 PASS 1000~26500 1000~26500 -53.608 <=-24.312 PASS 2437 Reference -1.34 -1.34 --- PASS 30~1000 30~1000 -50.555 <=-21.336 PASS 1000~26500 1000~26500 -53.711 <=-21.336 PASS 2462 Reference -3.82 -3.82 --- PASS 30~1000 30~1000 -50.307 <=-23.815 PASS 1000~26500 1000~26500 -53.715 <=-23.815 PASS 11N20SISO Ant1 2412 Reference 0.79 0.79 --- PASS 30~1000 30~1000 -50.943 <=-19.215 PASS 1000~26500 1000~26500 -53.481 <=-19.215 PASS 2437 Reference -4.14 -4.14 --- PASS 30~1000 30~1000 -51.052 <=-24.143 PASS 1000~26500 1000~26500 -52.886 <=-24.143 PASS 2462 Reference -4.51 -4.51 --- PASS 30~1000 30~1000 -50.706 <=-24.506 PASS 1000~26500 1000~26500 -53.568 <=-24.506 PASS 11N40SISO Ant1 2422 Reference -6.61 -6.61 --- PASS 30~1000 30~1000 -41.388 <=-26.608 PASS 1000~26500 1000~26500 -51.064 <=-26.608 PASS 2437 Reference -6.43 -6.43 --- PASS 30~1000 30~1000 -41.035 <=-26.431 PASS 1000~26500 1000~26500 -50.462 <=-26.431 PASS 2452 Reference -5.92 -5.92 --- PASS 30~1000 30~1000 -40.353 <=-25.924 PASS 1000~26500 1000~26500 -50.746 <=-25.924 PASS Report No.: BLA-EMC-202006-A8302 Page 84 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference Report No.: BLA-EMC-202006-A8302 Page 85 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: BLA-EMC-202006-A8302 Page 86 of98 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia,No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 Email:[email protected] 11…

Text truncated - open the document above for the full version.

Model NO.: S3 V2.0
