2ALN9-T25SBody Waterproof Action Camera

User manual 4K Body Waterproof Action Camera Model: T25S SAFETY& WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. ⚫ This camera is a high-precision product. Do not drop or hit the camera. ⚫ Do not place the camera near objects with strong magnetic fields (for example,magnets and motors). Strong magnetic fields may cause camera failure or damage images and sounds. ⚫ Avoid placing the camera near objects that emit strong radio waves. ⚫ Ensure the micro memory card (not supplied) used is equal or above U3 speed with 16GB to 256GB storage . Micro memory cards that are not Class 10 may not be compatible with this camera. ⚫ Do not store micro memory cards in or near a strong magnet to avoid losing the stored data. ⚫ If there is overheating, smoke, or odour when charging, unplug the magnetic charging cable immediately and stop charging to avoid fires. ⚫ Keep the camera out of reach of children when charging. This is because the magnetic charging cable may cause accidental suffocation and electric shock. Storage Place the camera in a cool, dry, dust-free area. OVERVIEW Front view Back view Left view Right view Top view Bottom view 1 1.3” screen 7 Microphone 2 Lens 8 Down button 3 2.0” screen 9 OK button 4 Speaker 10 Mode button 5 Magnetic charging pins 11 Battery cove 6 Up button 12 Mount support BEFORE FIRST USE Micro memory card A micro memory card (not supplied) is required to record or take videos/photos.Ensure the micro memory card used is between 16-128GB and at least class 10. The micro memory card must also be formatted. To install the micro memory card: 1. Slide then open the battery cover. 2. Insert the micro memory card with the chip side facing down as shown. 3. Close the battery cover. Battery Insert the battery into the battery slot next to the micro memory card.if the battery needs to be taken out, pull on the tab of the battery. lt is recommended to remove the battery if the camera will not be used for an extended period. Configurations Using the accessories included, the camera can be customized to your recording needs. Below are examples of possible configurations. OPERATION Powering Press and hold the mode button for 2-3 seconds to turn the camera on, The 2” screen will then switch on and a green light indicator will appear to confirm the camera is turned on (the indicator light of1.3"screen will appear blue color). Press and hold the mode button for 2-3seconds again to turn the camera off. Modes This camera features three modes (Photo, Video, Menu). To switch between the modes, press the mode button. Photo Tap on the centre bottom of the screen to view the photo modes menu, then tap on the desired mode to confirm your selection. The relevant photo mode icon will then be displayed in the top left corner of the screen. Name Description Single ⚫ Takes a single photo. Photo resolution can be adjusted in the menu settings to either 2, 5, 8, 10,14, 16 or 20 megapixels. ⚫ Press the OK button to take a photo. Burst Takes a continuous burst of photos when the OK button is pressed.This can be set to either 3, 7, 15, or 30 images. A green light will also be flashing when taking burst photos. Note: The camera needs a longer period of time to store photos when using this mode and it cannot take other photos until they are stored. P-Timelapse ⚫ Takes a photo after every interval a user has selected. This may be useful when you wish to take photos of an area over longer periods. ⚫ The interval can be set to either 3, 5,10, 30, or 60 seconds. ⚫ Once this mode is activated, press the OK button to begin the timelapse. The camera will then begin taking photos at the set interval. Press the OK button again to stop the timelapse. Self-Time ⚫ Takes a photo after a user- specified period. ⚫ The timer can be set to either 2, 5, or 10 seconds ⚫ Once this mode is activated, press the OK button to begin the timer. The photo will then be taken after the timer lapses. LongExp ⚫ Takes a photo using a long exposure time. This can create a blurred effect on moving objects. ⚫ The exposure time can be set to either 1, 2, 5, 8, 30, or 60 seconds. ⚫ Once this mode is activated, press the OK button to take a photo Wi-Fi Tap this icon to turn the Wi-Fi function on Video Tap on the centre bottom of the screen to view the video modes menu, then tap on the desired mode to confirm your selection. The relevant video mode icon will then be displayed in the top left corner of the screen. Note: This camera uses a fixed focus wide-angle lens. The shortest effective shooting distance of a fixed focal length lens is 30cm, if the subject is less than this distance, the footage will be out of focus. Name Description Normal When selected, press the OK button to start and stop recording. Loop Record ⚫ This allows continuous recording of footage which is broken into 1, 3.or 5 minute files as chosen by the user. ⚫ When the micro memory card is full, the camera will continue recording by overwriting the oldest file. ⚫ When this mode is activated, press the OK button to start loop recording. V-Timelapse ⚫ This allows users to record a video timelapse at 30 frames per second (fps). ⚫ The recording duration of the timelapse can be set to either 5, 10, 15.20, 30, 60 minutes, or be set to unlimited (recording until the micro memory card is full or stopped). ⚫ The timelapse parameter can be set to either 1, 3, 5, 10, 30 seconds, or 1 minute. ⚫ Press the OK button to start the timelapse. Slow Motion ⚫ This allows users to record slow- motion footage. ⚫ When this mode is activated, press the OK button to start recording. Fast Motion ⚫ This allows users to record fast- motion footage. ⚫ In the fast motion video menu, you can set the factor of how much the footage is sped up by (x2, x4, x6,x10, x15). Wi-Fi Tap this icon to turn the Wi-Fi function on. Photo and video mode shortcuts ⚫ When in either photo or video mode, press the down button to turn Wi-Fi…

Text truncated - open the document above for the full version.

TRANSTYLE TECHNOLOGY CO., LIMITED 2024.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2ALN9-T25S [TRANSTYLE TECHNOLOGY CO., LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name):Scott Zhang TRANSTYLE TECHNOLOGY CO., LIMITED 2024.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2ALN9-T25S [TRANSTYLE TECHNOLOGY CO., LIMITED (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name):Scott Zhang

TRANSTYLE TECHNOLOGY CO., LIMITED 2024.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Body Waterproof Action Camera Trademark: N/A MODEL: T25S BD-101, BD-102, BD-103, BD-104, BD-105, DOLPHIN 1.0, DOLPHIN 1.0 PRO MAX, DOLPHIN 2.0, DOLPHIN 2.0 PRO MAX, DOLPHIN 3.0, DOLPHIN 3.0 PRO MAX, T30S, T48S, T49S, T50S, T51A, T52S FCC ID: 2ALN9-T25S To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title :Scott Zhang / Manager Contact information / address: Room 404, Gainian Kongjian Factory, Building B, No.32 Huimin 1st Road, Guihua community, Guanlan Street, Longhua District, Shenzhen City, China.

TRANSTYLE TECHNOLOGY CO., LIMITED 2024.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Scott Zhang / Manager Contact information / address: Room 404, Gainian Kongjian Factory, Building B, No.32 Huimin 1st Road, Guihua community, Guanlan Street, Longhua District, Shenzhen City, China.

TRANSTYLE TECHNOLOGY CO., LIMITED Model Difference 2024/7/04 EUT NAME: BODY WATERPROOF ACTION CAMERA FCC ID: 2ALN9-T25S MODEL : T25S BD-101, BD-102, BD-103, BD-104, BD-105, DOLPHIN 1.0, DOLPHIN 1.0 PRO MAX, DOLPHIN 2.0, DOLPHIN 2.0 PRO MAX, DOLPHIN 3.0, DOLPHIN 3.0 PRO MAX, T30S, T48S, T49S, T50S, T51A, T52S All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : Scott Zhang / Manager Contact information / address: Room 404, Gainian Kongjian Factory, Building B, No.32 Huimin 1st Road, Guihua community, Guanlan Street, Longhua District, Shenzhen City, China.

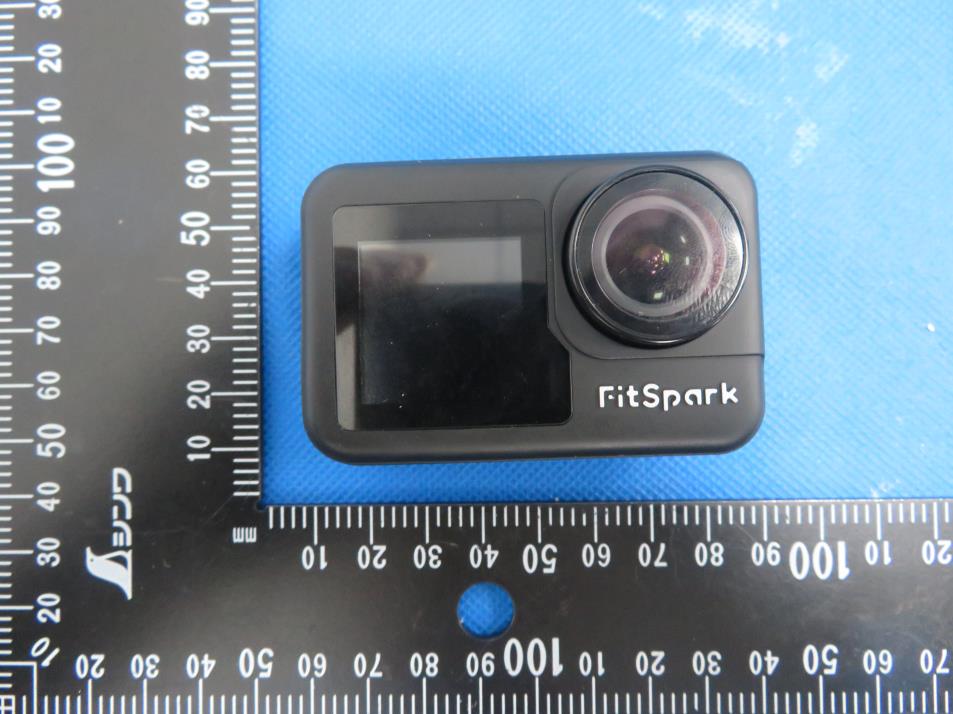

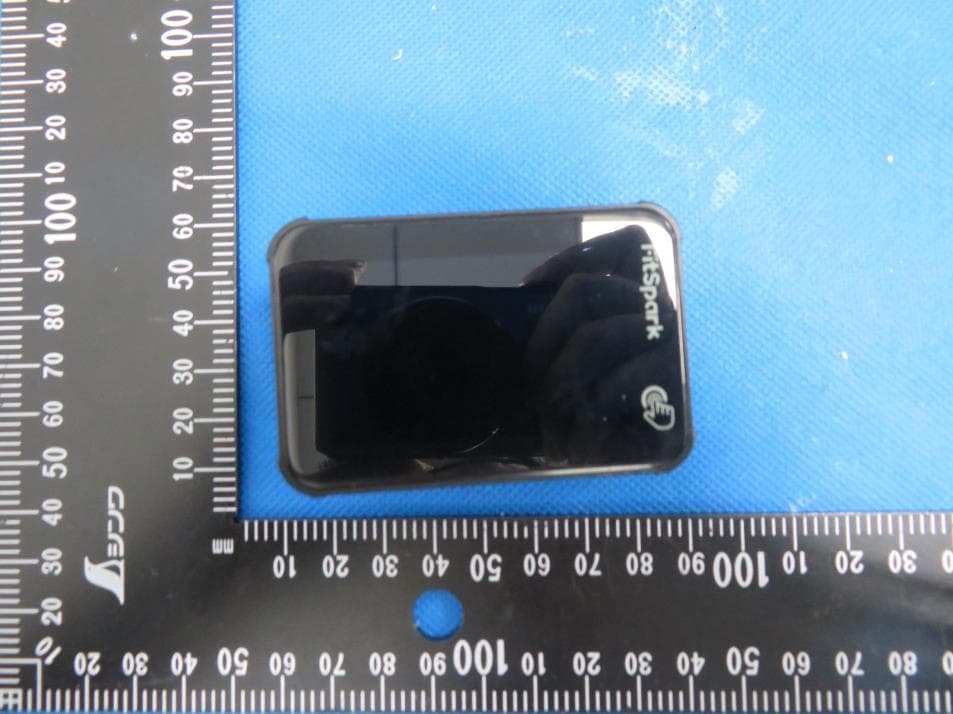

External Photos

Size:20*10mm FCC ID:2ALN9-T25S Label location

Internal Photos Remark： RF Receiving Antenna WIFI Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2ALN9-T25S Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. WIFI 802.11b 2412 6.77 30 802.11b 2437 7.05 30 802.11b 2462 7.88 30 802.11g 2412 6.6 30 802.11g 2437 6.88 30 802.11g 2462 7.04 30 802.n20 2412 6.09 30 802.n20 2437 6.57 30 802.n20 2462 6.78 30 802.n40 2422 3.94 30 802.n40 2437 4.22 30 802.n40 2452 4.27 30 max possible output power (PK,conducted)：8±1dBm -0.42dBi logarithmic terms convert to numeric result is nearly 0.91 9dBm=7.94mW 2412MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=7.94/5*√2.412=2.47≤3.0 2437MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.437=2.48≤3.0 2462MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 7.94/5*√2.462=2.49≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.
