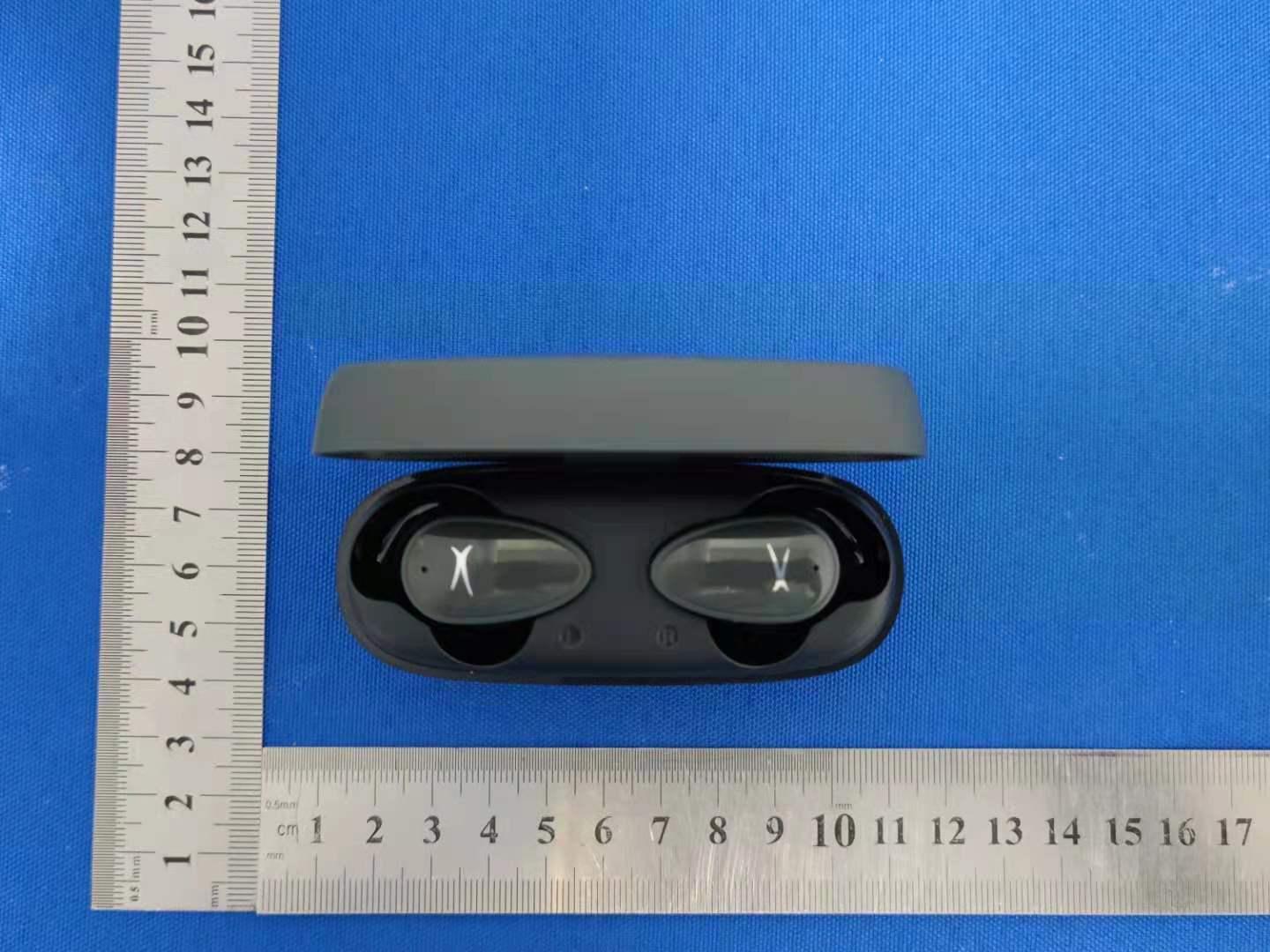

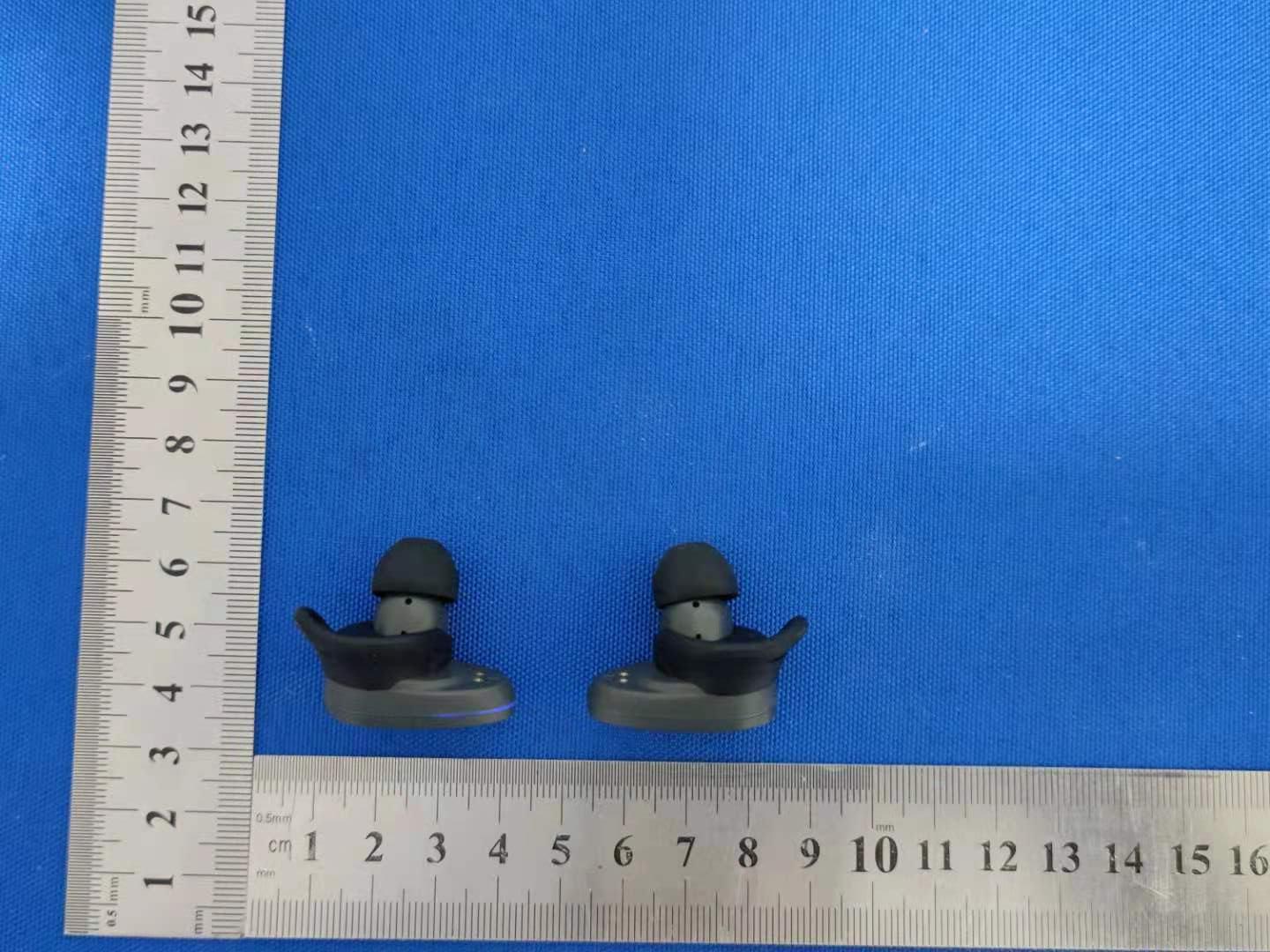

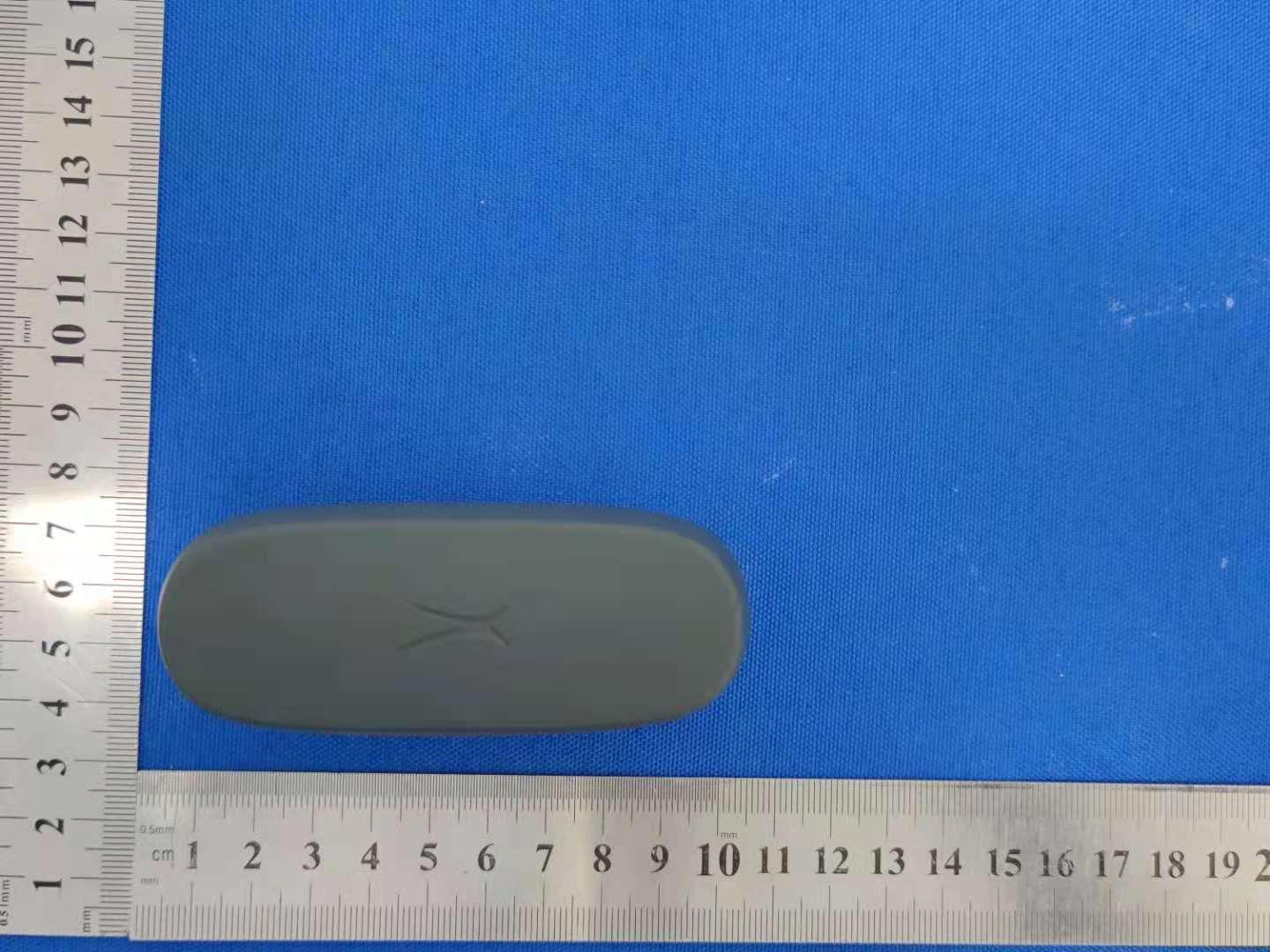

ExternalPhotos

Label&labellocation Thepermanentlabelisonthemanual,andthetemporarylabelisasshownin thefigure. TrulyWirelessEarphones FCCID:2ALN9-TN11

InternalPhotos Antenna

RFEXPOSUREEVALUATIONMETHOD FCCID:2ALN9-TN11 Applicablestandard： InaccordancewithFCC47CFRpart2(2.1093)thisdevicehasbeendefinedasaportable devicewhichisdefinedasatransmittingdevicedesignedtobeusedsothattheradiating structure(s)ofthedeviceis/arewithin20centimetersofthebodyoftheuser. PortabledevicesmustbeevaluatedusingthespecifiedinFCC47CFRpart2(2.1093)and ANSI/IEEEC95.1-1992.andhadbeentestedinaccordancewiththemeasurementmethods andproceduresspecifiedinIEEE1528-2003. PerFCCKDB447498D01v06,the1-gand10-gSARtestexclusionthresholdsfor100MHz to6GHzattestseparationdistancess50mmaredeterminedby: SARTestExclusionThresholdsfor100MHz – 6GHzand ≤ 50mm ApproximateSARTestExclusionPowerThresholdsatSelectedFrequenciesandTestSeparation DistancesareillustratedinthefollowingTable. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances ≤ 50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)] · [ √ f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtest exclusion. BT maxpossibleoutputpower(PK,conducted)tuneup：7dBm 0dBilogarithmictermsconverttonumericresultisnearly1 7dBm=5.01mW 2402MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=5.01/5*√2.402=1.55≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Modulation Frequency (MHz) OutputPower (dBm) MaxAntenna Gain(dBi) GFSK24024.260 0 GFSK 24414.891 0 GFSK 24804.997 0 Pi/4DQPSK 24024.866 0 Pi/4DQPSK 24415.529 0 Pi/4DQPSK 24805.631 0 8DPSK 24024.765 0 8DPSK 24415.466 0 8DPSK24805.565 0 2441MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=5.01/5*√2.441=1.57≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. 2480MHz [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]·[√f(GHz)]=5.01/5*√2.48=1.58≤3.0 ThresholdatwhichnoSARrequiredis10mwand≤3.0for1-gSAR,Separation distanceis5mm. Conclusion:NoSARisrequired.

No.：BCTC/RF-EMC-005Page 1 of 70 Edition：A.3 TESTREPORT ShenzhenBCTCTestingCo.,Ltd. ReportNo.:BCTC2105064364E Applicant:TRANSTYLETECHNOLOGYCO.,LIMITED ProductName:TrulyWirelessEarphones Model/TypeRef.:TN11 TestedDate:2021-05-07to2021-05-08 IssuedDate:2021-07-06 ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 2 of 70 Edition：A.3 FCCID:2ALN9-TN11 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp.Thisresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofShenzhenBCTCTestingCo.,Ltd,this reportcan’tbereproducedexceptinfull.Thetestedsample(s)andthesampleinformationareprovidedby theclient. ProductName: TrulyWirelessEarphones Trademark: N/A Model/TypeRef.: TN11 MoremodelsRef.4.1 PreparedFor: TRANSTYLETECHNOLOGYCO.,LIMITED Address: 1#Building,DabuxiangIndustrialArea,GuanlanTown, LonghuaNewdistrict,Shenzhen,China,518110 Manufacturer: TRANSTYLETECHNOLOGYCO.,LIMITED Address: 1#Building,DabuxiangIndustrialArea,GuanlanTown, LonghuaNewdistrict,Shenzhen,China,518110 PreparedBy: ShenzhenBCTCTestingCo.,Ltd. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1st Road,Tangwei,FuhaiSubdistrict,Bao'anDistrict,Shenzhen, Guangdong,China SampleReceivedDate: 2021-05-07 SampletestedDate: 2021-05-07to2021-05-08 IssueDate: 2021-07-06 ReportNo.: BCTC2105064364E TestStandards: FCCPart15.247 ANSIC63.10-2013 TestResults: PASS Remark:ThisisBluetoothClassicradiotestreport. Testedby:Approvedby: KelseyTan/ProjectHandlerZeroZhou/Reviewer ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 3 of 70 Edition：A.3 TABLEOFCONTENT TestReportDeclarationPage 1.VERSION ........................................................................................................................ 5 2.TESTSUMMARY .......................................................................................................... 6 3.MEASUREMENTUNCERTAINTY ............................................................................. 7 4.PRODUCTINFORMATIONANDTESTSETUP ..................................................... 8 4.1ProductInformation .................................................................................................. 8 4.2TestSetupConfiguration ......................................................................................... 9 4.3SupportEquipment ................................................................................................... 9 4.4ChannelList ............................................................................................................. 10 4.5TestMode ................................................................................................................ 10 4.6tableofparametersoftextsoftwaresetting ....................................................... 11 5.TESTFACILITYANDTESTINSTRUMENTUSED .............................................. 12 5.1TestFacility .............................................................................................................. 12 5.2TestInstrumentUsed ............................................................................................. 12 6.CONDUCTEDEMISSIONS ....................................................................................... 14 6.1BlockDiagramOfTestSetup ............................................................................... 14 6.2Limit ........................................................................................................................... 14 6.3Testprocedure ........................................................................................................ 14 6.4EUToperatingConditions ..................................................................................... 15 6.5TestResult ............................................................................................................... 16 7.RADIATEDEMISSIONS ............................................................................................ 18 7.1BlockDiagramOfTestSetup ............................................................................... 18 7.2Limit ........................................................................................................................... 19 7.3Testprocedure ........................................................................................................ 20 7.4EUToperatingConditions ..................................................................................... 21 7.5TestResult ............................................................................................................... 22 8.RADIATEDBANDEMISSIONMEASUREMENTANDRESTRICTEDBANDS OFOPERATION .............................................................................................................. 26 8.1BlockDiagramOfTestSetup ............................................................................... 26 8.2Limit ........................................................................................................................... 26 8.3Testprocedure ........................................................................................................ 27 8.4EUToperatingConditions ..................................................................................... 27 8.5TestResult ............................................................................................................... 28 9.CONDUCTEDEMISSION .......................................................................................... 29 9.1BlockDiagramOfTestSetup ............................................................................... 29 9.2Limit ........................................................................................................................... 29 9.3Testprocedure ........................................................................................................ 29 9.4TestResult ............................................................................................................... 30 10.20DBBANDWIDTH .........................…

Text truncated - open the document above for the full version.

ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 35 of 70 Edition：A.3 Pi/4DQPSKTransmittingBandedge-leftside Pi/4DQPSKHoppingBandedge-leftside ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 36 of 70 Edition：A.3 Pi/4DQPSKTransmittingBandedge-rightside Pi/4DQPSKHoppingBandedge-rightside ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 37 of 70 Edition：A.3 8DPSKTransmittingBandedge-leftside 8DPSKHoppingBandedge-leftside ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 38 of 70 Edition：A.3 8DPSKTransmittingBandedge-rightside 8DPSKHoppingBandedge-rightside ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 39 of 70 Edition：A.3 10.20DBBANDWIDTH 10.1BlockDiagramOfTestSetup 10.2Limit N/A 10.3Testprocedure 1.SetRBW=30kHz. 2.Setthevideobandwidth(VBW)≥3xRBW. 3.Detector=Peak. 4.Tracemode=maxhold. 5.Sweep=autocouple. 6.Allowthetracetostabilize. 7.Measurethemaximumwidthoftheemissionthatisconstrainedbythefrequencies associatedwiththetwooutermostamplitudepoints(upperandlowerfrequencies)that areattenuatedby6dBrelativetothemaximumlevelmeasuredinthefundamental emission.. ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 40 of 70 Edition：A.3 10.4TestResult Temperature： 26 °C Relative Humidity： 54% TestVoltage： DC3.7VRemarkN/A ModulationTestChannelBandwidth(MHz) GFSKLow0.929 GFSKMiddle0.941 GFSKHigh0.933 Pi/4DQPSKLow1.257 Pi/4DQPSKMiddle1.246 Pi/4DQPSKHigh1.250 8DPSKLow1.220 8DPSKMiddle1.213 8DPSKHigh1.223 Testplots GFSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 41 of 70 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 42 of 70 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 43 of 70 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 44 of 70 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 45 of 70 Edition：A.3 11.MAXIMUMPEAKOUTPUTPOWER 11.1BlockDiagramOfTestSetup 11.2Limit FCCPart15(15.247),SubpartC SectionTestItemLimit FrequencyRange (MHz) Result 15.247(b)(1) PeakOutput Power 0.125wattor 21dBm 2400-2483.5PASS 11.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna porttothespectrum. 2.Setthespectrumanalyzer:RBW=3MHz.VBW=3MHz.Sweep=auto;Detector Function=Peak. 3.KeeptheEUTintransmittingatlowest,mediumandhighestchannelindividually. Recordthemaxvalue. ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 46 of 70 Edition：A.3 11.4TestResult Temperature： 26 °C Relative Humidity： 54% TestVoltage： DC3.7VRemark:N/A ModulationTestChannelOutputPower(dBm)Limit(dBm) GFSKLow4.26021 GFSK Middle4.89121 GFSK High4.99721 Pi/4DQPSK Low4.86621 Pi/4DQPSK Middle5.52921 Pi/4DQPSK High5.63121 8DPSKLow4.76521 8DPSKMiddle5.46621 8DPSKHigh5.56521 Testplots GFSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 47 of 70 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 48 of 70 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 49 of 70 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 50 of 70 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 51 of 70 Edition：A.3 12.HOPPINGCHANNELSEPARATION 12.1BlockDiagramOfTestSetup 12.2Limit Frequencyhoppingsystemsshallhavehoppingchannelcarrierfrequenciesseparated byaminimumof25kHzorthe20dBbandwidthofthehoppingchannel,whicheveris greater.Alternatively,frequencyhoppingsystemsoperatinginthe2400-2483.5MHz bandmayhavehoppingchannelcarrierfrequenciesthatareseparatedby25kHzor two-thirdsofthe20dBbandwidthofthehoppingchannel,whicheverisgreater,provided thesystemsoperatewithanoutputpowernogreaterthan0.125W. 12.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna port tothespectrum. 2.Setthespectrumanalyzer:RBW=30kHz.VBW=100kHz,Span=2.0MHz.Sweep= auto;DetectorFunction=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Usethemarker-deltafunctiontodeterminetheseparation betweenthepeaksoftheadjacentchannels.Thelimitisspecifiedinoneofthe subparagraphsofthisSectionSubmitthisplot. ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 52 of 70 Edition：A.3 12.4TestResult ModulationTestChannel Separation (MHz) Limit(MHz)Result GFSKLow1.000 0.619 PASS GFSKMiddle1.002 0.627 PASS GFSKHigh1.000 0.622 PASS Pi/4DQPSKLow1.000 0.838 PASS Pi/4DQPSKMiddle1.002 0.831 PASS Pi/4DQPSKHigh1.006 0.833 PASS 8DPSKLow1.004 0.813 PASS 8DPSKMiddle1.000 0.809 PASS 8DPSKHigh1.004 0.815 PASS Testplots GFSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 53 of 70 Edition：A.3 GFSKMiddleChannel GFSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 54 of 70 Edition：A.3 Pi/4DQPSKLowChannel Pi/4DQPSKMiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 55 of 70 Edition：A.3 Pi/4DQPSKHighChannel 8DPSKLowChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 56 of 70 Edition：A.3 8DPSKMiddleChannel 8DPSKHighChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 57 of 70 Edition：A.3 13.NUMBEROFHOPPINGFREQUENCY 13.1BlockDiagramOfTestSetup 13.2Limit Frequencyhoppingsystemsinthe2400-2483.5MHzbandshalluseatleast15 channels. 13.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna porttothespectrum. 2.Setthespectrumanalyzer:RBW=100kHz.VBW=300kHz.Sweep=auto;Detector Function=Peak.Trace=Maxhold. 3.Allowthetracetostabilize.Itmayprovenecessarytobreakthespanuptosections.in ordertoclearlyshowallofthehoppingfrequencies.Thelimitisspecifiedinoneofthe subparagraphsofthisSection. 4.Setthespectrumanalyzer:StartFrequency=2.4GHz,StopFrequency=2.4835GHz. Sweep=auto;

ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 58 of 70 Edition：A.3 13.4TestResult TestPlots: 79Channelsintotal GFSK Pi/4DQPSK ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 59 of 70 Edition：A.3 8DPSK ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 60 of 70 Edition：A.3 14.DWELLTIME 14.1BlockDiagramOfTestSetup 14.2Limit Frequencyhoppingsystemsinthe2400-2483.5MHzbandshalluseatleast15channels. Theaveragetimeofoccupancyonanychannelshallnotbegreaterthan0.4seconds withinaperiodof0.4secondsmultipliedbythenumberofhoppingchannelsemployed. Frequencyhoppingsystemsmayavoidorsuppresstransmissionsonaparticular hoppingfrequencyprovidedthataminimumof15channelsareused. 14.3Testprocedure 1.RemovetheantennafromtheEUTandthenconnectalowRFcablefromtheantenna porttothespectrum. 2.Setspectrumanalyzerspan=0.Centredonahoppingchannel; 3.SetRBW=1MHzandVBW=3MHz.Sweep=asnecessarytocapturetheentiredwell timeperhoppingchannel.SettheEUTforDH5,DH3andDH1packettransmitting. 4.Usethemarker-deltafunctiontodeterminethedwelltime.Ifthisvaluevarieswith differentmodesofoperation(e.g..datarate.modulationformat.etc.).repeatthistestfor eachvariation.ThelimitisspecifiedinoneofthesubparagraphsofthisSection.Submit thisplot(s). ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 61 of 70 Edition：A.3 14.4TestResult DH5Packetpermitmaximum1600/79/6hopspersecondineachchannel (5timeslotsRX,1timeslotTX). DH3Packetpermitmaximum1600/79/4hopspersecondineachchannel (3timeslotsRX,1timeslotTX). DH1Packetpermitmaximum1600/79/2hopspersecondineachchannel (1timeslotRX,1timeslotTX).So,theDwellTimecanbecalculatedasfollows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark:MkrDeltaisoncepulsetime. Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSKMiddle DH10.4040.1290.4 DH31.6680.2670.4 DH52.9200.3110.4 Pi/4DQPSKMiddle 2DH10.4160.1330.4 2DH31.6740.2680.4 2DH52.9300.3130.4 8DPSKMiddle 3DH10.4180.1340.4 3DH31.6740.2680.4 3DH52.9300.3130.4 TestPlots GFSKDH1MiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 62 of 70 Edition：A.3 GFSKDH3MiddleChannel GFSKDH5HighMiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 63 of 70 Edition：A.3 Pi/4DQPSKDH1MiddleChannel Pi/4DQPSKDH3MiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 64 of 70 Edition：A.3 Pi/4DQPSKDH5MiddleChannel 8DPSKDH1MiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 65 of 70 Edition：A.3 8DPSKDH3MiddleChannel 8DPSKDH5MiddleChannel ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 66 of 70 Edition：A.3 15.ANTENNAREQUIREMENT 15.1Limit 15.203requirement:Forintentionaldevice,accordingto15.203:anintentionalradiator shall bedesignedtoensurethatnoantennaotherthanthatfurnishedbytheresponsibleparty shallbeusedwiththedevice. 15.2TestResult TheEUTantennaisFPCBantenna,fulfilltherequirementofthissection. ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 67 of 70 Edition：A.3 16.EUTPHOTOGRAPHS EUTPhoto1 EUTPhoto2 ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 68 of 70 Edition：A.3 17.EUTTESTSETUPPHOTOGRAPHS Conductedemissions RadiatedMeasurementPhotos ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 69 of 70 Edition：A.3 ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 70 of 70 Edition：A.3 STATEMENT 1.Theequipmentlistsaretraceabletothenationalreferencestandards. 2.Thetestreportcannotbepartiallycopiedunlesspriorwrittenapprovalisissuedfromour lab. 3.Thetestreportisinvalidwithoutstampoflaboratory. 4.Thetestreportisinvalidwithoutsignatureofperson(s)testingandauthorizing. 5.ThetestprocessandtestresultisonlyrelatedtotheUnitUnderTest. 6.ThequalitysystemofourlaboratoryisinaccordancewithISO/IEC17025. 7.Ifthereisanyobjectiontoreport,theclientshouldinformissuinglaboratorywithin15 daysfromthedateofreceivingtestreport. Address: 1-2/F.,BuildingB,PengzhouIndustrialPark,No.158,Fuyuan1stRoad,Tangwei,Fuhai Subdistrict,Bao'anDistrict,Shenzhen,Guangdong,China TEL：400-788-9558 P.C.:518103 FAX：0755-33229357 Internet：http://www.bctc-lab.com E-Mail：[email protected] ※※※※※END※※※※※

ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 68 of 70 Edition：A.3 17.EUTTESTSETUPPHOTOGRAPHS Conductedemissions RadiatedMeasurementPhotos ReportNo.:BCTC2105064364E No.：BCTC/RF-EMC-005Page 69 of 70 Edition：A.3
