2ALNA-BTS37Portable Wireless Speaker

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

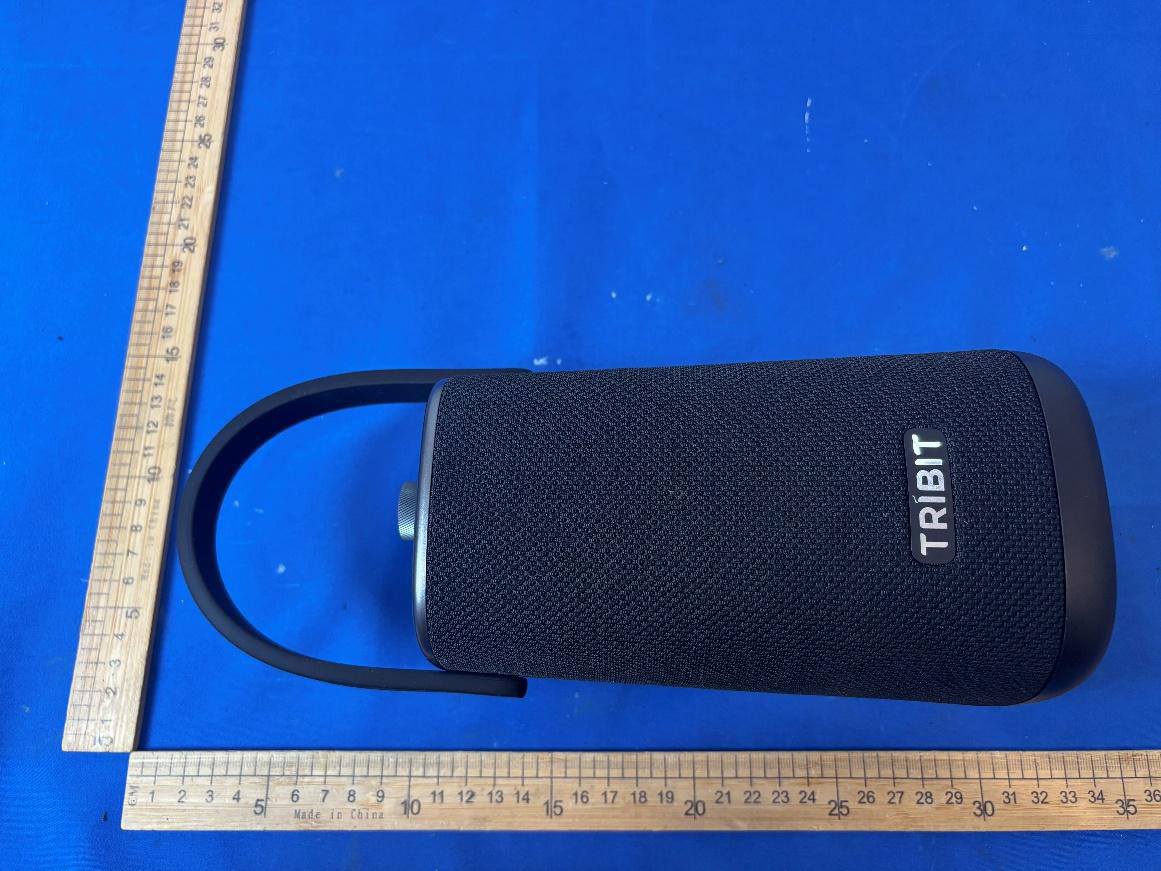

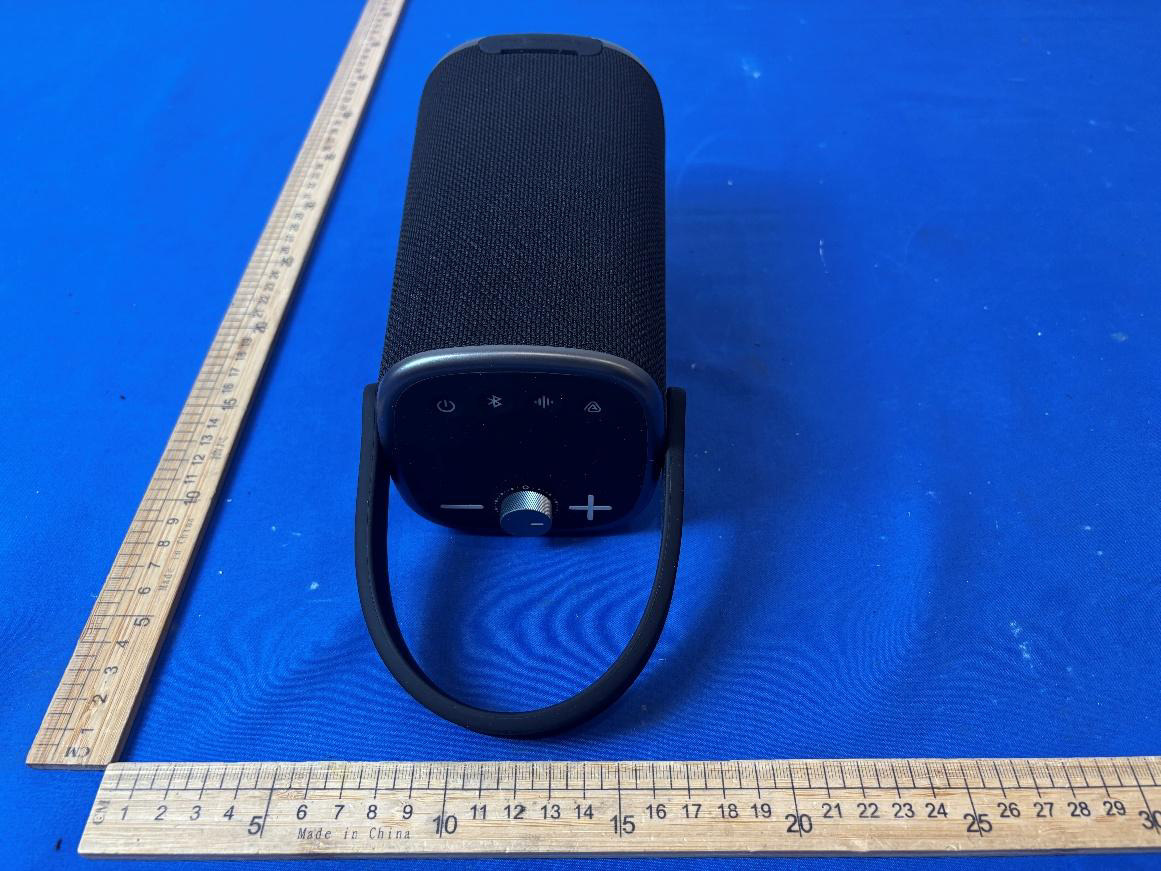

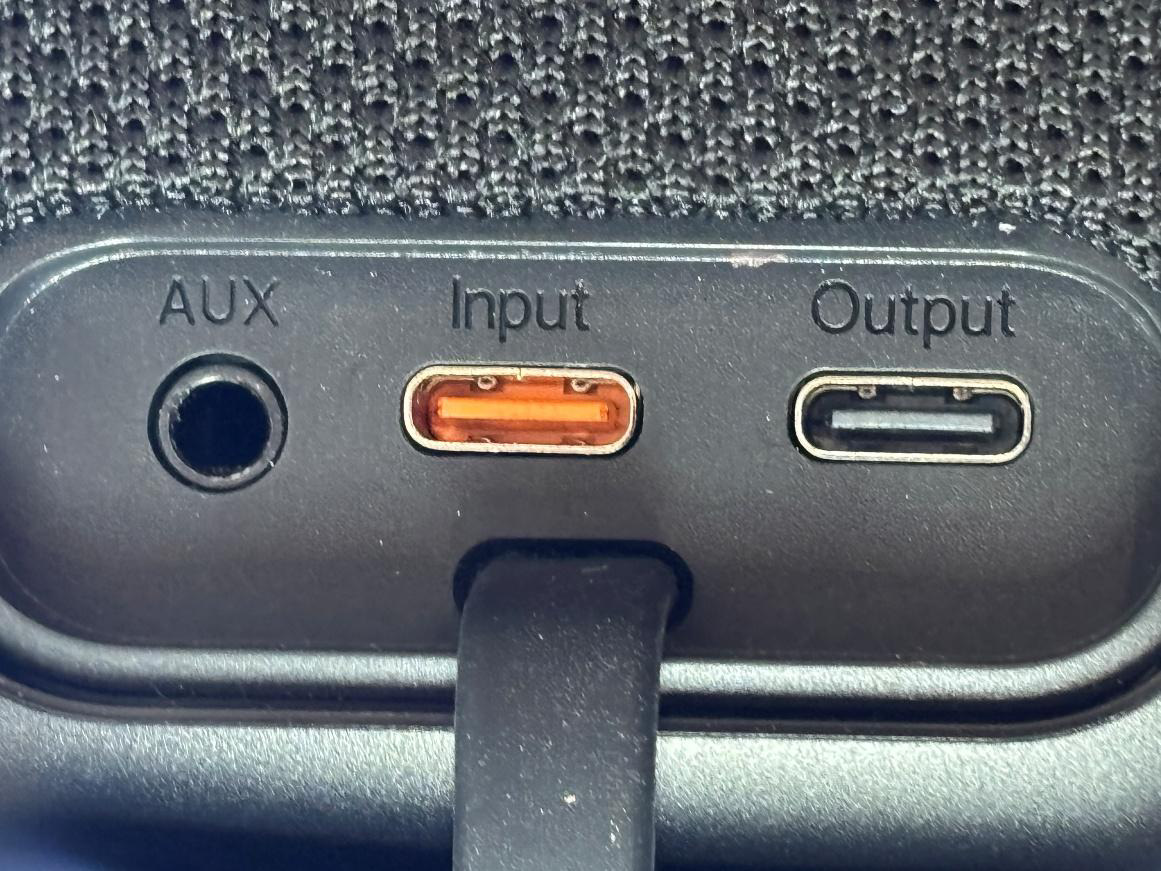

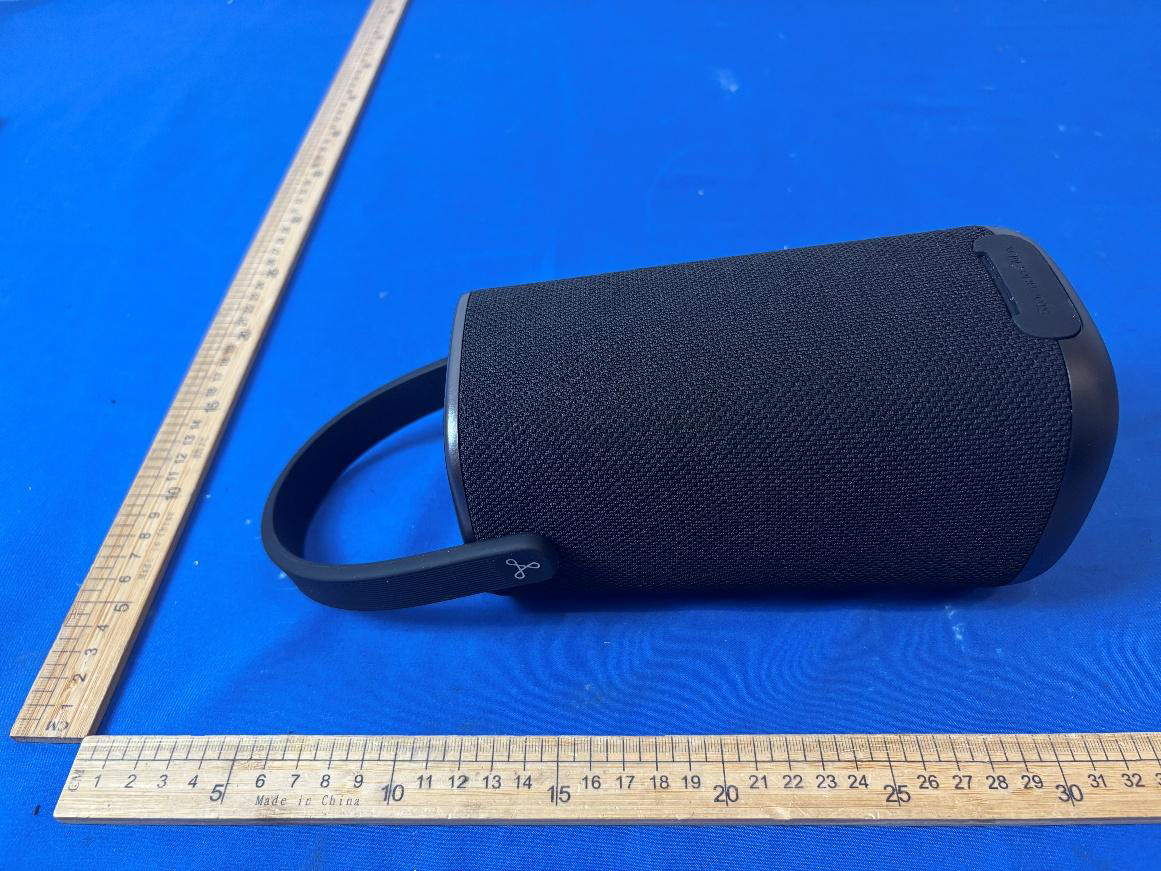

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7 View of EUT-8

53.88

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 6 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 6 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 6 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 6 Internal View of EUT-9 Internal View of EUT-10 Antenna Page 6 of 6 Internal View of EUT-11 Internal View of EUT-12

RF EXPOSURE EVALUATION EUT Specification EUT Portable Wireless Speaker Model Number BTS37 Series Model / Model Difference / FCC ID 2ALNA-BTS37 Antenna gain (Max) 2.72 dBi Operation Frequency 2402 MHz to 2480 MHz Power Supply AC 120V/60Hz DC 5V Battery 7.3V Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation BT: GFSK, π/4-DQPSK, 8DPSK BLE: GFSK Max. output power -0.06d Bm (0.00 10W) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Page 2 of 2 Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Measurement Result BT: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power (dBm) Calculation Result 1-g SAR 2441 2- DH5 -0.24 0±1 1 0.39 3 BLE: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power (dBm) Calculation Result 1-g SAR 2402 BLE 1M -0.06 0±1 1 0.39 3 Signature: Alan He Date: 2026-5-15

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For Portable Wireless Speaker MODEL NUMBER: BTS37 REPORT NUMBER: E04A26040653F00201 ISSUE DATE: May 15, 2026 FCC ID: 2ALNA-BTS37 Prepared for Shenzhen Thousandshores Technology Co., Ltd. Room 1101, Building B, Lotus Plaza, No. 3186 Nanshan Avenue, Majialong Community, Nantou Street, Nanshan District, Shenzhen,China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-2 10, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26040653F00201 Page 2 of 44 TRF No.: 04-E 001- 0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 May 15, 2026 Initial Issue REPORT NO.: E04A26040653F00201 Page 3 of 44 TRF No.: 04-E 001- 0B Global Testing , Great Quality. Summary of Test Results Test Item Limit/Requirement Result Antenna Requirement FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission FCC Part 15.207 Pass Conducted Output Power FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission FCC Part 15.205/15.209 Pass Note: 1. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26040653F00201 Page 4 of 44 TRF No.: 04-E 001- 0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM PEAK OUTPUT POWER ........................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.8. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth and 99% Occupied Bandwidth..................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 8. RADIATED TEST RESULTS ............................................................................................... 23 8.1. Radiated Band edge and Spurious Emission .......................................................... 29 9. ANTENNA REQUIREMENT ................................................................................................ 41 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 42 REPORT NO.: E04A26040653F00201 Page 5 of 44 TRF No.: 04-E 001- 0B Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Shenzhen Thousandshores Technology Co., Ltd. Address: Room 1101, Building B, Lotus Plaza, No. 3186 Nanshan Avenue, Majialong Community, Nantou Street, Nanshan District, Shenzhen,China Manufacturer Information Company Name: Shenzhen Thousandshores Technology Co., Ltd. Address: Room 1101, Building B, Lotus Plaza, No. 3186 Nanshan Avenue, Majialong Community, Nantou Street, Nanshan District, Shenzhen,China EUT Information Product Description: Portable Wireless Speaker Model: BTS37 Series Model: / Brand: Tribit Sam…

Text truncated - open the document above for the full version.

Antenna Measurement Report for BT259 20260307 Antenna Type：PCB Antenna Antenna model:BT259 PCB manufacturer： Address: A n t e n n a M e a s u r e m e n t R e p o r t Project name： BT259 Type of antenna： BT Frequency range： 2.4-2.5GHz Redact： 蒋代铭 Approver： Version number： V1.0 Date： 2020307 2026/5/18 2026/5/18 Contents Test Items and Equipment.....................................Page4 Product Information & Solution............................Page5 Antenna size..........................................................Page6 Product Specifications..........................................Page7 Return loss or VSWR ............................................Page8 Antenna gain or Efficiency....................................Page9 TRP&TIS OTA Data Test........................................Page10 3D Radiation Pattern Results（unit：dBi）........Page11 2D Radiation Pattern Results（unit：dB）.........Page12 Antenna Matching.................................................Page13 Conclusion.............................................................Page14 2026/5/18 Test Items and Equipment QUIPMENTBRANDMODULE TYPE Network Analyzer KEYSIGHTE5071C 9k~8.5G Signal Generator R&SCMW 500 Microwave anechoic chamber XH-IOEATS-300 2026/5/18 Product Information &Solution 产品名称：BT259 测试频段：2.4-2.5GHz 2026/5/18 Antenna size 2026/5/18 Product Specifications Rough descriptionBT ANT Dimensions 20.50mm*6.46mm Impedance50ΩTest environmentNone Freq. Range2.4-2.5GHzVSWR1.92:1 Antenna typeBluetoothPolarizationlinear Polar / HNonePolar / VNone Maximum Gain2.72Maximum Efficiency56.1% Connector typeNoneCable typeNone IsolationNoneSpecial requestNone 2026/5/18 Return loss or VSWR 2026/5/18 Antenna gain or Efficiency Frequency/MhzEfficiency / dBEfficiency / %MaxGain/dBiAvgGain/dBi 2400-2.8851.522.33-2.88 2410-2.9350.932.35-2.93 2420-2.5855.212.21-2.58 2430-2.6853.952.48-2.68 2440-2.5156.12.4-2.51 2450-2.6255.62.57-2.62 2460-2.6754.082.42-2.67 2470-2.6554.332.72-2.65 2480-2.7353.332.39-2.73 2490-2.7652.972.49-2.76 2500-2.7153.582.11-2.71 YoZXoZXoY 2400 2450 2500 2026/5/18 3D Radiation Pattern Results（unit：dBi） 2026/5/18 2D Radiation Pattern Results（unit：dB） 2026/5/18 Antenna Matching AntennaRF Module E1 E2 ElementValue E14.7nH E20Ω E3NC E3 2026/5/18 ●Average efficiency 53.50%，Meet preset standards。 Conclusion（结论） Item Max gain2.72dBi PolarizationLinear—Polarized Antenna Impedance50Ω Antenna Size20.50mm*6.46mm Antenna TypePCB Antenna 2026/5/18 Thank you!

1 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit Conducted(dBm) Verdict NVNT 1-DH5 2402 Ant1 -0.5 30 Pass NVNT 1-DH5 2441 Ant1 -0.31 30 Pass NVNT 1-DH5 2480 Ant1 -0.69 30 Pass NVNT 2-DH5 2402 Ant1 -0.39 30 Pass NVNT 2-DH5 2441 Ant1 -0.24 30 Pass NVNT 2-DH5 2480 Ant1 -0.62 30 Pass NVNT 3-DH5 2402 Ant1 -0.41 30 Pass NVNT 3-DH5 2441 Ant1 -0.25 30 Pass NVNT 3-DH5 2480 Ant1 -0.62 30 Pass 2 Peak Power NVNT 1-DH5 2402MHz Ant1 Peak Power NVNT 1-DH5 2441MHz Ant1 3 Peak Power NVNT 1-DH5 2480MHz Ant1 Peak Power NVNT 2-DH5 2402MHz Ant1 4 Peak Power NVNT 2-DH5 2441MHz Ant1 Peak Power NVNT 2-DH5 2480MHz Ant1 5 Peak Power NVNT 3-DH5 2402MHz Ant1 Peak Power NVNT 3-DH5 2441MHz Ant1 6 Peak Power NVNT 3-DH5 2480MHz Ant1 7 -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant1 0.9313 0 Pass NVNT 1-DH5 2441 Ant1 0.9262 0 Pass NVNT 1-DH5 2480 Ant1 0.9385 0 Pass NVNT 2-DH5 2402 Ant1 1.273 0 Pass NVNT 2-DH5 2441 Ant1 1.226 0 Pass NVNT 2-DH5 2480 Ant1 1.28 0 Pass NVNT 3-DH5 2402 Ant1 1.194 0 Pass NVNT 3-DH5 2441 Ant1 1.188 0 Pass NVNT 3-DH5 2480 Ant1 1.196 0 Pass 8 -20dB Bandwidth NVNT 1-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 1-DH5 2441MHz Ant1 9 -20dB Bandwidth NVNT 1-DH5 2480MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2402MHz Ant1 10 -20dB Bandwidth NVNT 2-DH5 2441MHz Ant1 -20dB Bandwidth NVNT 2-DH5 2480MHz Ant1 11 -20dB Bandwidth NVNT 3-DH5 2402MHz Ant1 -20dB Bandwidth NVNT 3-DH5 2441MHz Ant1 12 -20dB Bandwidth NVNT 3-DH5 2480MHz Ant1 13 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH5 2402 Ant1 0.84166 NVNT 1-DH5 2441 Ant1 0.84533 NVNT 1-DH5 2480 Ant1 0.84545 NVNT 2-DH5 2402 Ant1 1.1572 NVNT 2-DH5 2441 Ant1 1.1567 NVNT 2-DH5 2480 Ant1 1.1531 NVNT 3-DH5 2402 Ant1 1.1587 NVNT 3-DH5 2441 Ant1 1.1579 NVNT 3-DH5 2480 Ant1 1.1799 14 OBW NVNT 1-DH5 2402MHz Ant1 OBW NVNT 1-DH5 2441MHz Ant1 15 OBW NVNT 1-DH5 2480MHz Ant1 OBW NVNT 2-DH5 2402MHz Ant1 16 OBW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 17 OBW NVNT 3-DH5 2402MHz Ant1 OBW NVNT 3-DH5 2441MHz Ant1 18 OBW NVNT 3-DH5 2480MHz Ant1 19 Carrier Frequencies Separation Condition Mode Antenna Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 Ant1 2402.022 2402.954 0.932 0.621 Pass NVNT 1-DH5 Ant1 2440.934 2441.926 0.992 0.617 Pass NVNT 1-DH5 Ant1 2478.978 2479.926 0.948 0.626 Pass NVNT 2-DH5 Ant1 2402.04 2403.136 1.096 0.849 Pass NVNT 2-DH5 Ant1 2440.94 2441.974 1.034 0.817 Pass NVNT 2-DH5 Ant1 2478.962 2479.982 1.02 0.853 Pass NVNT 3-DH5 Ant1 2401.966 2402.93 0.964 0.796 Pass NVNT 3-DH5 Ant1 2440.782 2441.8 1.018 0.792 Pass NVNT 3-DH5 Ant1 2478.984 2479.902 0.918 0.797 Pass 20 CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 21 CFS NVNT 1-DH5 2480MHz Ant1 CFS NVNT 2-DH5 2402MHz Ant1 22 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 23 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 24 CFS NVNT 3-DH5 2480MHz Ant1 25 Number of Hopping Channel Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass 26 Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 27 Hopping No. NVNT 3-DH5 2402MHz Ant1 28 Dwell Time Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2402 Ant1 2.87 132.02 46 31600 400 Pass NVNT 1-DH5 2441 Ant1 2.868 129.06 45 31600 400 Pass NVNT 1-DH5 2480 Ant1 2.869 131.974 46 31600 400 Pass NVNT 2-DH5 2402 Ant1 2.88 132.48 46 31600 400 Pass NVNT 2-DH5 2441 Ant1 2.879 132.434 46 31600 400 Pass NVNT 2-DH5 2480 Ant1 2.88 132.48 46 31600 400 Pass NVNT 3-DH5 2402 Ant1 2.881 132.526 46 31600 400 Pass NVNT 3-DH5 2441 Ant1 2.855 131.33 46 31600 400 Pass NVNT 3-DH5 2480 Ant1 2.88 132.48 46 31600 400 Pass 29 Dwell NVNT 1-DH5 2402MHz Ant1 One Burst Dwell NVNT 1-DH5 2402MHz Ant1 Accumulated 30 Dwell NVNT 1-DH5 2441MHz Ant1 One Burst Dwell NVNT 1-DH5 2441MHz Ant1 Accumulated 31 Dwell NVNT 1-DH5 2480MHz Ant1 One Burst Dwell NVNT 1-DH5 2480MHz Ant1 Accumulated 32 Dwell NVNT 2-DH5 2402MHz Ant1 One Burst Dwell NVNT 2-DH5 2402MHz Ant1 Accumulated 33 Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated 34 Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated 35 Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated 36 Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated 37 Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated 38 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -50.08 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -50.32 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -50.45 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -49.85 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -50.14 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -50.49 -20 Pass 39 Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission 40 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission 41 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission 42 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission 43 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission 44 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission 45 Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -50.42 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -49.24 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -49.78 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -45.73 -20 Pass NVNT 3-DH5 2402 Ant1 …

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 2
