2ALNA-KF012BNWireless Keyboard

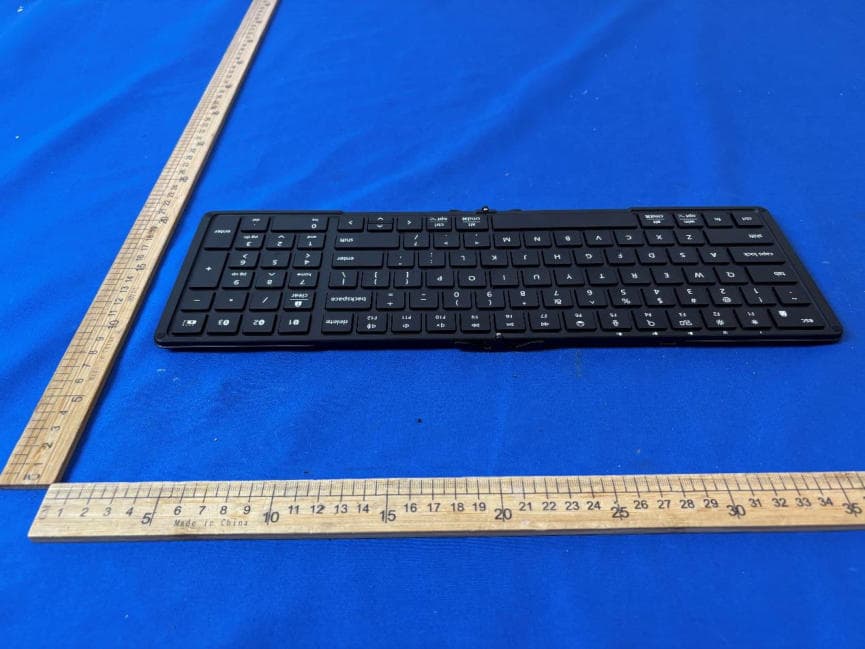

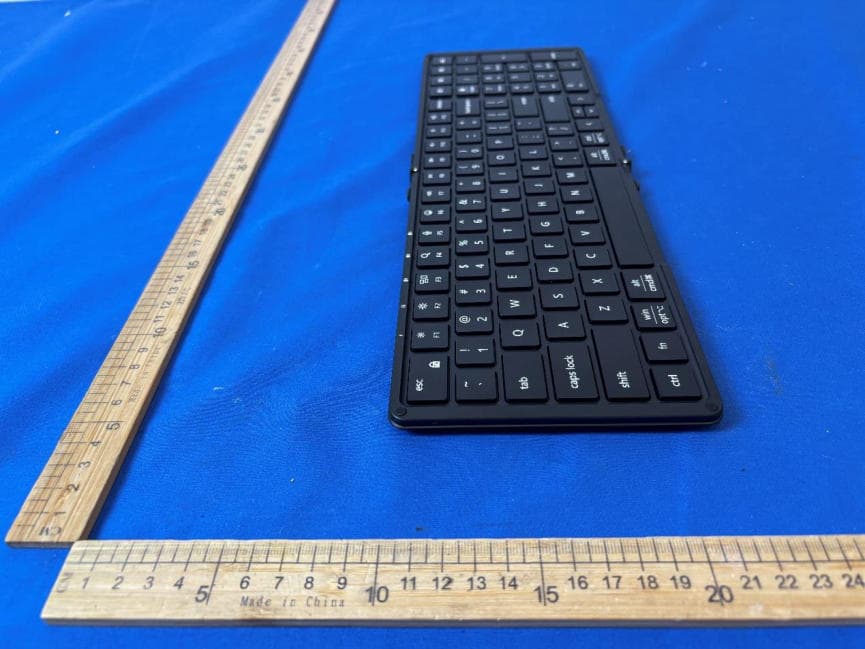

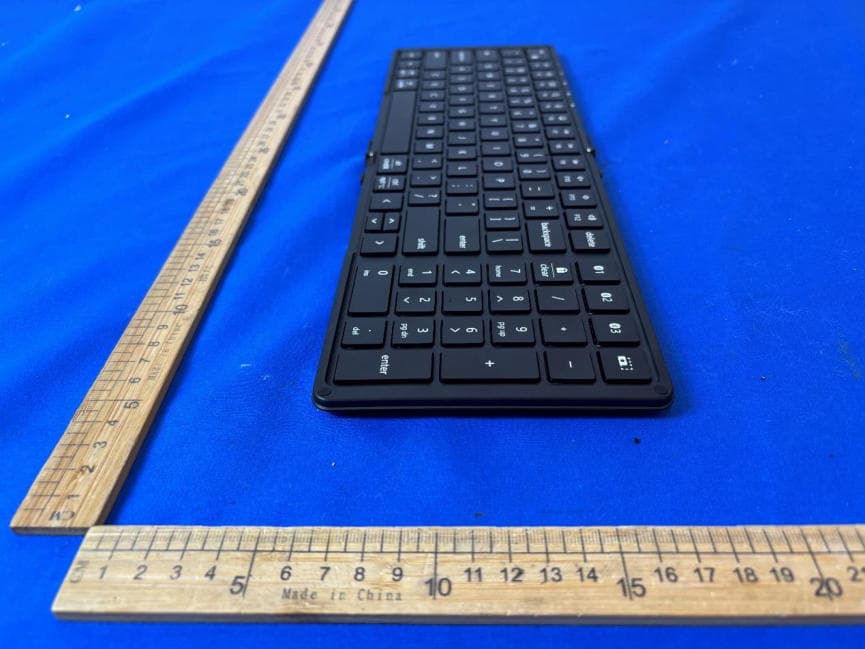

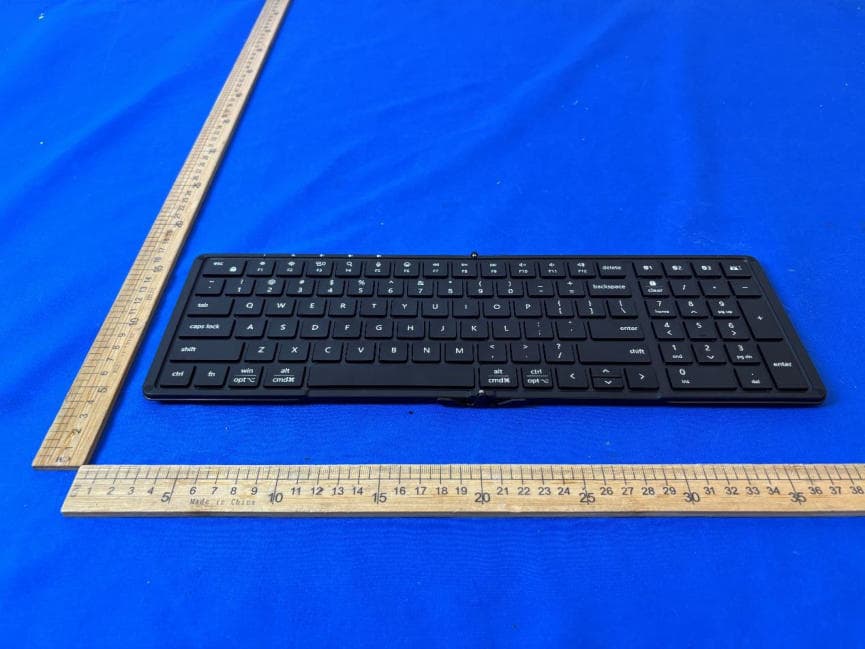

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 3 Internal View of EUT-3 Internal View of EUT-4 Antenna Page 3 of 3 Internal View of EUT-5 Internal View of EUT-6

RF EXPOSURE EVALUATION EUT Specification EUT Wireless Keyboard Model Number KF01-2BN FCC ID 2ALNA-KF012BN Antenna gain (Max) -1.61dBi Operation Frequency 2400 ~ 2483.5MHz Power Supply Input: 5V500mA Built-in Battery: 3.7V 300mAh 1.11Wh Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK Max. output power BLE:3.12dBm (2.0512 mW) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Page 2 of 2 Measurement Result BLE: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power (dBm) Calculation Result 1-g SAR 2402 BLE 1M 3.12 3±1 4 0.791145 3 According to KDB 447498, no simultaneous SAR measurement is required. Signature: Alan He Date: 2026-7-27

Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 45.36 3.43 3.53 NVNT BLE 1M 2440 Ant1 45.28 3.44 3.53 NVNT BLE 1M 2480 Ant1 45.28 3.44 3.53 2 / 22 Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 3 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1 4 / 22 Maximum Peak Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Conducted Power (W) FCC Limit Conducted(dBm) Antenna Gain (dBi) E.I.R.P. (dBm) IC Limit (dBm) Verdict NVNT BLE 1M 2402 Ant1 3.12 0.00205 21 -1.61 1.51 36.02 Pass NVNT BLE 1M 2440 Ant1 3.07 0.00203 21 -1.61 1.46 36.02 Pass NVNT BLE 1M 2480 Ant1 2.91 0.00195 21 -1.61 1.3 36.02 Pass 5 / 22 Peak Power NVNT BLE 1M 2402MHz Ant1 Peak Power NVNT BLE 1M 2440MHz Ant1 6 / 22 Peak Power NVNT BLE 1M 2480MHz Ant1 7 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.685 0.5 Pass NVNT BLE 1M 2440 Ant1 0.681 0.5 Pass NVNT BLE 1M 2480 Ant1 0.686 0.5 Pass 8 / 22 -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 9 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 10 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.207 NVNT BLE 1M 2440 Ant1 1.251 NVNT BLE 1M 2480 Ant1 1.287 11 / 22 OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 12 / 22 OBW NVNT BLE 1M 2480MHz Ant1 13 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -11.66 3.43 -8.23 8 Pass NVNT BLE 1M 2440 Ant1 -11.5 3.44 -8.06 8 Pass NVNT BLE 1M 2480 Ant1 -11.63 3.44 -8.19 8 Pass 14 / 22 PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 15 / 22 PSD NVNT BLE 1M 2480MHz Ant1 16 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -58.72 -20 Pass NVNT BLE 1M 2480 Ant1 -57.15 -20 Pass 17 / 22 Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission 18 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission 19 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -57.92 -20 Pass NVNT BLE 1M 2440 Ant1 -58.12 -20 Pass NVNT BLE 1M 2480 Ant1 -58.16 -20 Pass 20 / 22 Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission 21 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission 22 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission

ANTENNASPECIFICATION Specifications Summary AntennaPhoto&Length(mm) ITEMSPEC. ModelName IC426 Center Frequency HorizontalVertical 2402MHz2441MHz2480MHz2402MHz2441MHz2480MHz -1.66-1.84-1.61-2.16 -3.65-2.21 MAX.Gain-1.61dbi PolarizationHorizontalandVertical AzimuthBeam Pattern Omni-directional Impedance 50Ohm AntennaLength 15.5mm Manufacture ShenzhenHangshiEelectronicTechnologyCo.,Ltd. Horizontal: 2402MHz2441MHz2480MHz Frequency (MHz) Gain(dBi) Max.Min.Avg. 2402 -1.66179-30.2813-8.78713 2441 -1.84781 -38.7595-7.87812 2480 -1.61559-23.6329-6.99139 Vertical: 2402MHz2441MHz2480MHz Frequency (MHz) Gain(dBi) Max.Min.Avg. 2402 -2.1623 -23.1425-11.5295 2441 -3.6534 -26.2866-10.6699 2480 -2.2110 -29.4381-9.58526

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 FCC 47 CFR PART 15 SUBPART C RSS-247 Issue 4 TEST REPORT For Wireless Keyboard MODEL NUMBER: KF01-2BN REPORT NUMBER: E04A26070841F00401 ISSUE DATE: July 27, 2026 FCC ID: 2ALNA-KF012BN IC: 35418-KF012BN Prepared for Shenzhen Thousandshores Technology Co., Ltd. Room 1101, Building B, Lotus Plaza, No. 3186 Nanshan Avenue, Majialong Community, Nantou Street, Nanshan District, Shenzhen, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A26070841F00401 Page 2 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 July 27, 2026 Initial Issue REPORT NO.: E04A26070841F00401 Page 3 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) RSS-247 Clause 6.3.2 Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 or 11.8.2 FCC Part 15.247 (a)(2) RSS-247 Clause 6.3.1(a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 6.3.1(b) Pass Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 6.6 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247(d) FCC Part 15.205/15.209 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass Note: 1. For ISED, this report is also performed according to ANSI C63.10-2020 + Cor.1-2023 + C63.10a-2024 + Errata to C63.10a-2024 standards. 2. N/A: In this whole report not applicable. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to < FCC 47 CFR PART 15 SUBPART C, ISED RSS-247 Issue 4> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A26070841F00401 Page 4 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. SUPPORT UNITS FOR SYSTEM TEST ................................................................... 9 5.8. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 11 7. ANTENNA PORT TEST RESULTS ..................................................................................... 13 7.1. Conducted Output Power ........................................................................................ 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ....................................................... 14 7.3. Power Spectral Density ........................................................................................... 16 7.4. Conducted Band edge and spurious emission ........................................................ 17 7.5. Duty Cycle .............................................................................................................. 19 8. RADIATED TEST RESULTS ............................................................................................... 20 8.1. Radiated Band edge and Spurious Emission .......................................................... 26 9. ANTENNA REQUIREMENT ................................................................................................ 38 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 40 11. TEST DATA - APPENDIX A ................................................................................... 43 REPORT NO.: E04A26070841F00401 Page 5 of 43 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATI…
