2ALQ5-G1100SGUAI SMART WATER BOTTER G1100

Welcome to use SGUAI G1100 Smart Water Bottle WARM TIPS For the first time use, thoroughly clean the inner container and the cup mouth of the bottle with warm water or add some detergent. When cleaning, do not immerse the bottle body in water or boil it. There is a screen on the body of the cup lid, so please avoid dropping or violent collision. When the bottle is idle for a long time, remember to pour out the remaining water in the bottle. Before use, please charge the bottle first with the included Type-C cable. And then please download the SGUAI APP to complete the personalized settings for the smart water bottle. Before use, please download the SGUAI APP to complete the personalized settings for the smart water bottle. DOWNLOAD THE APP 1.Download our free SGUA App from the APP Store or on Google Play. 2.Check that you have an internet connection and your Bluetooth is turned on and enable location services (at least while using the app). 2.Follow the steps in the app to create an account, set parameters for a personalized hydration goal, add your bottle to your profile, and set your water reminders.. 4.Set down your bottle on a flat surface after every refill and drink. Remember to sync the app near the bottle each day so your water is tracked correctly. Android/iOS version: NOTICE: To install a mobile phone bound smart bottle, the following conditions must be met: 1.The hardware of the mobile phone supports Bluetooth 4.0 or above. 2.Android operating system must be based on Android 8.0 or above. 3.3.iOS operating system must be based on 10.0 or above. 内侧面 外侧面 Received the item Contact us via Amazon or our moilbox [email protected] Unsatisfied /Need Support Prompt response, andfriendly service within 24 hours with satisfying solution. Share your experience via reviews or feedback， recommend to your Satisfied friends or families. SMART WATER BOTTLE USER MANUAL Please read the manual carefully before use G1100 Brand: SGUAI Manufacturer: SGUAI (Shenzhen) Intelligent Technology Co., Ltd Address: 2nd floor, Building 11, Zhiheng Industrial Park, Guankou Second Road Nantou Street, Nanshan District, Shenzhen City, Guangdong Province. www.twitter.com/sguaiofficial www.instagram.com/sguaiofficial www.facebook.com/sguaiofficial www.sguai.com [email protected] SPECIFICATIONS: Model number: SGUAI-G1100 Capacity: 630ml / 22.2oz Battery: 700 mAh Rated voltage: 3.7V Input parameters: 5V / 1A Waterproof: IPX 6 Cup body size:: 77*77*262mm Weight:409g / 0.90lb Lid Material:Food-grade PP (polypropylene) Body Meaterial:304 stainless stell Name: SGUAI SMART WATER BOTTER G1100 SGUAL SMART WATER TEMPERATURE DISPLAY Water temperature display: display the current real-time water temperature in the cup UV STERILIZATIONCHARGING METHOD To charge your bottle, plug the Type-C cable in the charging port and connect the USB to your laptop or a 5V adapter, just like your smartphone. IN CHARGING FULLY CHARGED DRINK REMINDER 1 3 7 5 6 2 4 SMART WATER BOTTLE USER MANUAL PACKAGE LIST Smart Water Bottle *1, Type-C cable, Carrying Rope*1, User Manual*1 User Manual*1 The major function of the touch control zone: Type-C cableSmart Water Bottle *1 Basic operation instructions Slide touch to activate the screen to display the current time Touch sliding second to display water volume Touch slide again to display the water temperature G1100 Drinking spout Pixel Display screen DRINKING WATER DISPLAY Tracks Water Intake with Bluetooth: the screen shows the battery logo for continuously charging and flashing. the screen shows that the battery is fully grid. LOW BATTERY REMINDER When the power is less than 20% or 10%, the battery icon on the screen will keep flashing to remind you. 小水怪（深圳）智能科技有限公司 G1100产品包装盒 小水怪（深圳）智能科技有限公司 版权所有 型号 设计 设计确认 G1100页数 日期 品质确认 1/1 23.08.19 版本 部门 研发确认 V1.2 市场部 img img img 3 img 4 APP Login Page Introduction 1. If first time using, please select "Login/Sign up with Code" to access the sign-up page.(see img 2) 2. Enter your email address or mobile phone number and click ”Send”to receive a verification code. 3. Once received the code, and fill it in and click ”Sign Up.”This will take you to the password setting page. (see img 3) 4. After creating the account, please set parameters for a personalized hydration goal, to discover its smart features. (see img4) BLUETOOTH & CONNECTIVITY Click on [Device] WaterDeviceMe WaterDeviceMe WaterDeviceMe Click on [Search for Devices] Search Device Click on the plus sign Interface Turn on Bluetooth, within the “Device” page click the plus sign, The app will search for a bottle close by. When it has found a bottle, click the bottle to be bound, and confirm. Click the icon to enter bottle setting page. Smart bottle setting Display the current water temperature Temperature Mode: switchable between Celsius and Fahrenheit. Time Mode: Two different time display modes: 24-hour and 12-hour. Manual Sterilization: you can choose the UV sterilization mode you need according to your needs. The UV sterilization process needs to take 60 seconds. Automatic Sterilization: you can choose the automatic UV sterilization Drinking water detection Today's water intake Click on [Drinking Water Statistics] Water DeviceMe Drinking water statistics After adding water or drinking water each time, please let the water cup sit horizontally for 10 seconds to complete the water consumption test CONNECT Please ensure that your Click on me phone's Bluetooth is turned on Water Consumption Detection Click the total module to enter the “Statistics Details”interface WATER INTAKE STATISTIC You can check weekly/monthly/yearly drinking water report through the APP[ME]-[Water Statistic] page. Fill your bottle completely with water. Screw on the bottle lid and let sit on a flat stable surface for 10 seconds to calibrate.through the APP[ME]-[Water Statistic] page. Set down your bottle after every refill and drink. Remember to sync the app near the bottle each day so your water is tracked correctly. lid and let sit o…

Text truncated - open the document above for the full version.

- Sguai (Shenzhen) Intelligent Technology Co., Ltd - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/22/2023 U.S. Agent Designation Name and company of U.S. agent: Linkwld LLC Physical U.S. address of agent: 1942 Broadway St. STE 314C, Boulder, CO, 80302, US FRN of U.S. agent: 0033625682 Email address of U.S. agent: Sguai (Shenzhen) Intelligent Technology Co., Ltdacknowledges their consent for the following contact located in the United States to act as theiragent for service of process for the equipment for which authorization is sought (FCC ID: 2ALQ5-G1100): [email protected] Linkwld LLC acknowledges their obligation to accept service of process on behalf of Sguai (Shenzhen) Intelligent Technology Co., Ltd. Sguai (Shenzhen) Intelligent Technology Co., Ltd with the FRN [0026419440] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Signature [Name] [Title]Manager [Company] Sguai (Shenzhen) Intelligent Technology Co., Ltd Signature [Name of U.S. agent] Timothy Zhu 48_[mo del] US_Agent_2.911(d)(7) - U, V04 - Sguai (Shenzhen) Intelligent Technology Co., Ltd - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. [Title of U.S. agent]Manager [Company of U.S. agent] Linkwld LLC

-Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 9/22/23 Towhomitmayconcern: We,[Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd],herebycertifythattheequipmentforwhich authorizationissought(FCCID:[2ALQ5-G1100])isnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature LuckyZheng manager Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

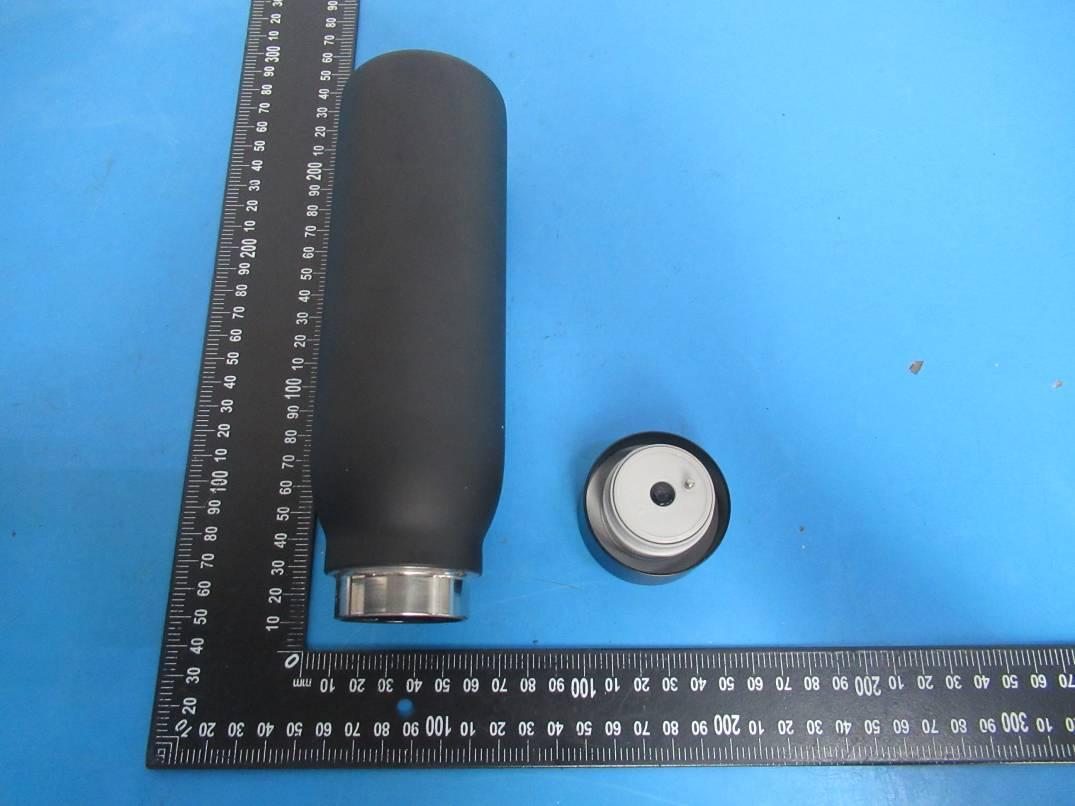

ProjectNo.:18220WC301745Page 1 of 3 AppendixII--ExternalPhotograph ProjectNo.:18220WC301745Page 2 of 3 ProjectNo.:18220WC301745Page 3 of 3

LabelLocationOnEUT Label ProductName:SGUAISMARTWATERBOTTERG1100 ModelNo.:SGUAI-G1100 FCCID:2ALQ5-G1100

ProjectNo.:18220WC301745Page 1 of 3 AppendixIII--InternalPhotograph ProjectNo.:18220WC301745Page 2 of 3 ANT ProjectNo.:18220WC301745Page 3 of 3

RFEXPOSUREEVALUATION FCCID:2ALQ5-G1100 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 2402-0.30-0.30 ±1 0.70050.364 3 GFSK 2440-0.71-0.71 ±1 0.29050.334 3 2480-1.39-1.39±1-0.39050.288 3 Result:NoStandaloneSARtestisrequired.

Page1of23 AppendixTestData ReportNo.:18220WC30174501TestSampleNo.:1-2-2 StartTestDate: 2023.08.16 FinishTestDate:2023.08.23 TestEngineer:Auditor: Temperature:23.7 °C RelativeHumidity:49% Pressure:101kPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz] DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6802401.6562402.3360.5PASS 24400.6922439.6402440.3320.5PASS 24800.6922479.6442480.3360.5PASS Page2of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of23 Page4of23 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz] OCB[MHz] FL[MHz]FH[MHz] BLE_1MAnt1 24021.03232401.49332402.5256 24401.03212439.49312440.5252 24801.02992479.49252480.5224 Page5of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of23 Page7of23 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt1 2402-0.30≤30PASS 2440-0.71≤30PASS 2480-1.39≤30PASS Page8of23 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of23 Page10of23 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-15.49≤8.00PASS 2440-15.91≤8.00PASS 2480-16.61≤8.00PASS Page11of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of23 Page13of23 AppendixE:Bandedgemeasurements TestResult TestMod e Antenn a ChNam e Frequency[MHz ] RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1MAnt1 Low2402-1.15-57.3≤-21.15PASS High2480-2.33-56.52≤-22.33PASS Page14of23 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of23 AppendixF:ConductedSpuriousEmission TestResult TestMod e Antenn a Frequency[MHz ] FreqRange [MHz] RefLeve l [dBm] Result[dBm ] Limit[dBm ] Verdic t BLE_1MAnt1 2402 Reference-1.44-1.44---PASS 30~1000-1.44-69.23≤-21.44PASS 1000~2650 0 -1.44-54≤-21.44PASS 2440 Reference-2.32-2.32---PASS 30~1000-2.32-69.08≤-22.32PASS 1000~2650 0 -2.32-53.9≤-22.32PASS 2480 Reference-2.39-2.39---PASS 30~1000-2.39-68.36≤-22.39PASS 1000~2650 0 -2.39-53.39≤-22.39PASS Page16of23 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of23 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of23 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Page19of23 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Page20of23 Page21of23 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz] ONTime [ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.380.6360.322.20 24400.380.6360.322.20 24800.380.6360.322.20 Page22of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page23of23 ---End---

ReportNo.:18220WC30174501FCCID:2ALQ5-G1100Page1of32 FCCTestReport Applicant:Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd Address: Floor2,Building11,ZhihengIndustrialPark, GuankouerRoad,NantouStreet,Nanshan District,ShenzhenCity,GuangdongProvince, China ProductName:SGUAISMARTWATERBOTTERG1100 ReportDate:Sept.22,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30174501FCCID:2ALQ5-G1100Page2of32 Contents 1.GeneralInformation.................................................................................................................................6 1.1.ClientInformation...........................................................................................................................6 1.2.DescriptionofDevice(EUT)..........................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest..........................................................................................7 1.4.DescriptionofTestModes.............................................................................................................8 1.5.MeasurementUncertainty.............................................................................................................8 1.6.TestSummary................................................................................................................................9 1.7.DescriptionofTestFacility...........................................................................................................10 1.8.Disclaimer....................................................................................................................................10 1.9.TestEquipmentList......................................................................................................................11 2.Antennarequirement..............................................................................................................................13 2.1.Conclusion...................................................................................................................................13 3.ConductedEmissionatACpowerline..................................................................................................14 3.1.EUTOperation.............................................................................................................................14 3.2.TestSetup....................................................................................................................................14 3.3.TestData......................................................................................................................................15 4.OccupiedBandwidth..............................................................................................................................17 4.1.EUTOperation.............................................................................................................................17 4.2.TestSetup....................................................................................................................................17 4.3.TestData......................................................................................................................................17 5.MaximumConductedOutputPower......................................................................................................18 5.1.EUTOperation.............................................................................................................................18 5.2.TestSetup....................................................................................................................................18 5.3.TestData......................................................................................................................................18 6.PowerSpectralDensity..........................................................................................................................19 6.1.EUTOperation.............................................................................................................................19 6.2.TestSetup....................................................................................................................................19 6.3.TestData......................................................................................................................................19 7.Emissionsinnon-restrictedfrequencybands.......................................................................................20 7.1.EUTOperation.............................................................................................................................20 7.2.TestSetup....................................................................................................................................20 7.3.TestData......................................................................................................................................20 8.Bandedgeemissions(Radiated)..........................................................................................................21 8.1.EUTOperation.............................................................................................................................21 8.2.TestSetup....................................................................................................................................21 8.3.TestData......................................................................................................................................22 9.Emissionsinfrequencybands(below1GHz).......................................................................................24 9.1.EUTOperation.............................................................................................................................24 9.2.TestSetup................................................................................................................…

Text truncated - open the document above for the full version.

version01 Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:SGUAI-G1100 FCCID:2ALQ5-G1100 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:SGUAI-T30 Typeofantenna:PCBantenna Gainoftheantenna:1.32dBi Frequencyrange:2400~2500MHZ Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:Sguai(Shenzhen)IntelligentTechnologyCo.,Ltd Address:Floor2,Building11,ZhihengIndustrialPark,GuankouerRoad,Nantou Street,NanshanDistrict,ShenzhenCity,GuangdongProvince,China City:Shenzhen ZIP/Postalcode:/ Country:China Place:ShenzhenDate:9/22/2023 Signature:

Antenna Test Report Person in charge: Chen Shu Version: V1 Date: 2023.04.14 公司网址： Tel: 0755-85263741 Fax: 0755-85263741 Company address: 5D, Building L, No. 26, Lane 2, Liuxian 1st Road, District 71, Baoan District, Shenzhen http://www.tll-skylink.com Item name: SGUAI-T30 Part No.: PCB Antenna Shenzhen Tianlianling Technology Co., Ltd. R & D environment 微波暗室 1.2G/3G communication microwave a nechoic chamber 2.4G Microwave Anechoic Room Com munication Product 2.CMW500 3. Agilent Network Analyzer 4. HP Network Analyzer 5.GPS101 etc. and ancillary equipment R & D equipment Customized service for you client's namemodel ** Antenna Little water monster * PCB frequency BT 2400~2500MHz Information description: module side ANT L1 L2 L3 L4 L5 原主板匹配不变 L1（0201） L2（0201） L3（0201） L4（0201） L5（0201） value / / / / / Antenna Matching Circuit Return loss passive test • impedance • VSWR • • • gain efficiency direction map active test •2G 3G 4G 传导测试 & TRP&TIS • WIFI 2.4G&5.8G 传导测试& TRP&TIS •BT 传导测试 & TRP&TIS •GPS •NB-IOT TRP • 传导测试 非信令模式下传导测试& 0~7.5G扫描干扰分析 Testing ability Fre （MHz） Eff（%） (dB) Gain (dB) 2400 44.94-0.5 2410 45.46-0.53 2420 45.25-0.39 2430 44.39-0.11 2440 43.89-0.35 2450 39.97-0.65 2460 36.9-0.74 2470 39.30.15 2480 39.970.73 2490 42.741.32 2500 40.671.19 Efficiency/Gain Direction map Direction map Direction map 1: The antenna is an on-board antenna, and there are no assembly instructions and environmental treatment documents, please be aware; 2: The efficiency of the onboard antenna is greater than 35%, and there is no problem with the measured data, and the final test is subject to the customer. Summarize THANK YOU PPT模板下载：www.1ppt.com/moban/ 行业PPT模板： www.1ppt.com/hangye/ 节日PPT模板：www.1ppt.com/jieri/ PPT素材下载： www.1ppt.com/sucai/ PPT背景图片：www.1ppt.com/beijing/ PPT图表下载： www.1ppt.com/tubiao/ 优秀PPT下载：www.1ppt.com/xiazai/ PPT教程： www.1ppt.com/powerpoint/ Word教程： www.1ppt.com/word/ Excel教程： www.1ppt.com/excel/ 资料下载：www.1ppt.com/ziliao/ PPT课件下载： www.1ppt.com/kejian/ 范文下载：www.1ppt.com/fanwen/ 试卷下载：www.1ppt.com/shiti/ 教案下载：www.1ppt.com/jiaoan/ PPT论坛：www.1ppt.cn

ProjectNo.:18220WC301745Page 1 of 2 AppendixI--TestSetupPhotograph_RF ConductedEmissionatACpowerline Emissionsinfrequencybands(below1GHz) ProjectNo.:18220WC301745Page 2 of 2 Emissionsinfrequencybands(above1GHz)
