2ALQ5-M1Intelligent traveling cup

M1使用说明书 规格：350*140mm 成品折叠后：70*70mm M1 User guide Remark:when touch the screen please touch the place without numbers. Touchable area you need to connect the charging cable for your first time use. Recharge to activate the bottle and see the screen light up after that it is activate successfully. Step 1 If the bottle has been activated (charge once is activated), click the APP to search for the connect, then you can synchronize the drinking data. Step 2 1. Temperature Display Red 61°C-99°COrange 37°C-60°CGreen 0°C-36°C Click the lid, the screen&light strip will light up at same time. screen show the current water temperature, light strip will display green or orange or red colors when the water temperature change. Tepmerature display have two unit options: Celsius °C and Fahrenheit °F. For the switching method pls refer the figure 2of the APP. Brand Model: Capacity: Battery: Waterproof: Display: Charging: Size: Certification: Sguai M1 400/600ml 220mAh IPX7 LCD Megnatic charging 216x66mm/243x 70mm FCC FDA CE Rohs Specs Warning 2. Remind Drinking Cancel the alarmSet up alarm Alarm set up: lid set up; APP set up. Lid set up: Lid set up have three options:1hour, 1.5hours, 2hours. Single click to activate the screen.then double click the touchable place on the lid.after you hear “d” voice the screen will show the alarm icon and 1h word on the lid set up success,every 1 hour will announce “d~d~d” sound to remind drinking.then double click the screen second time, It will show switch to 1.5h reminding.third time double click switch to 2h reminding.fourth time double click cancel the alarm. Alarm set up ,will cancel automaticly after 8 hours no touch. APP set up: refer to the figure 2. The battery symbol grid is moving while charging. Moving stopped after charging complete. 3.Drinking data 4.Charging 5.Expired water reminder When the water in the cup has not been drunk for more than 8 hours (without touching the cup lid) The display shows the "X" symbol, and the light is red. Click lid, screen&light strip light up same time. Then click again. Show the target drinking data percentage (percentage=daily drinking/target drinking) APP check: Refer to Figure 4 APP installation For Android BT support 4.0 or above Android OS support android8.0 or above For Iphone BT support 4.0 or above IOS support 10.0 or above 1.Connect the bottle Sign in the APP Click "Water bottle" at the bottom bar. Click to search for a bottle, click on the searched bottle icon and connect success refer Figure 1 2.Set up 3. Health analysis Click the icon to enter the bottle settings Click the icon to enter the detailed drinking water data Connect the bottle (1) Figure 1 Local weather Daliy drinking data Display current temperature Setting data Calculate drinking water goals Switch to check the daily/weekly/monthly/year drinking data Link or disconnect the water cup Set up the drinking target Switch the bottle alarm or APP alarm Bottle screen lights up Set up (2) Figure 2 Set APP alarm reminder time Switch °C or °F (Display of lid temperature) Home (3) Figure 3 Health analysis (4) Figure 4 Every time adding or drinking, Please cover the lid then wait for 10s to synchroize data Smart bottle Manual * Please read carefully before using Details of materials for food contact Name Plastci Metal Bottle body Temperature sensor Food grade Tritan stainless steel (06Cr19Ni10) GB4806.9-2016 Use Lid Sealing ring Liner Standard Food gradePP ( Polypropylene) GB4806.7-2016 Food grade silicon GB4806.11-2016 Food grade Ceramic paint GB4806.10-2016 Silicon Coating 1. Do not expose to high temperature sunlight 2. Do not store carbonated drinks 3. Do not use to keep dairy products or baby food for a long time (with bacteria multiplying danger) 4. Do not use heating equipment such as microwave ovens to heat the product 5. Do not use the dishwasher 6. When hot water is installed, please place the product out of the reach of children to avoid Bruise/burn 7. Do not violently bump, so as not to cause deformation/breakage of the cup body 8. Non-professionals do not open the lid for repair or replacement parts 9. Do not put too much boiling water to avoid boiling water overflow when screwing on the lid 10. This product has passed the IPX7 waterproof rating test, you can rest assured to wash, but the Electronic chip components built in cup lid are not suitable for long-term soaking in water, and boiling in water is prohibited. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

2020.10.28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ALQ5-M1 Product Name: Intelligent traveling cup Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: 2020.10.28 Signatory Name Lucky Zheng Position General manager Company Name Sguai (Shenzhen) Intelligent Technology Co., Ltd Address Floor 2, Building 11, Zhiheng Industrial Park, Guankouer Road, Nantou Street, Nanshan District, Shenzhen City, Guangdong Province Tel +86-13825257601 Fax +86-755-23219340 Email [email protected]

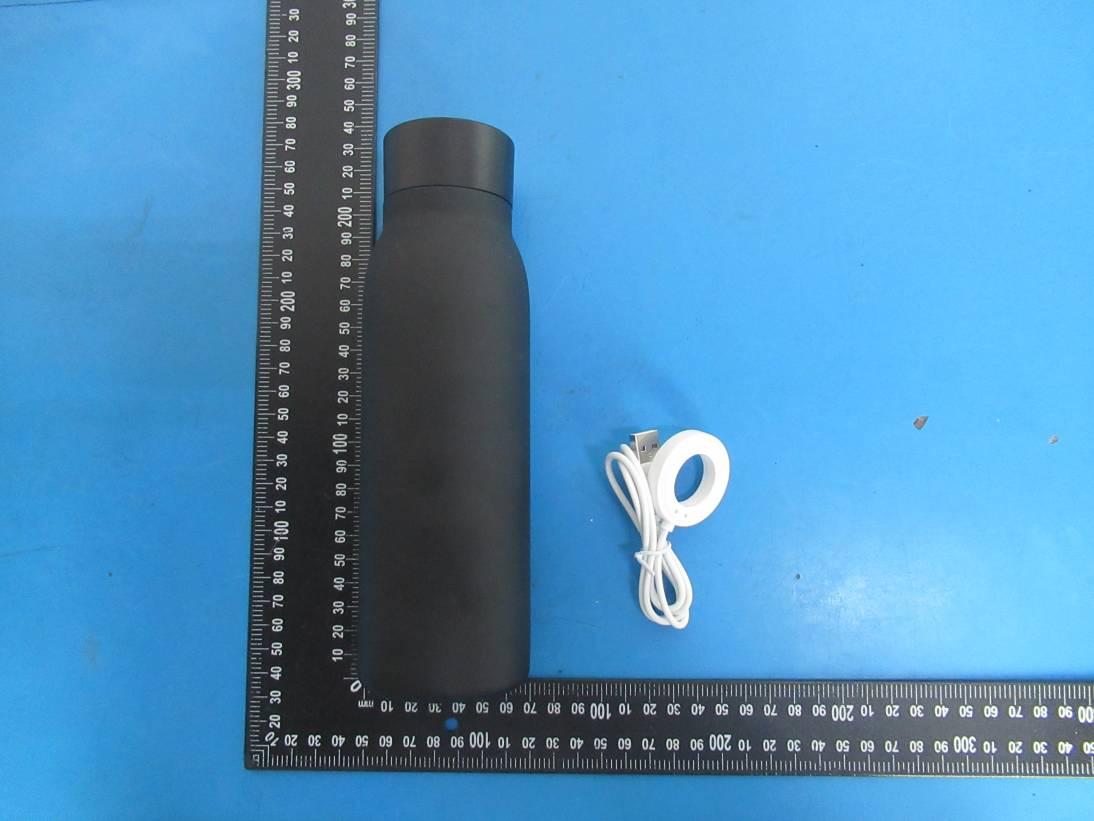

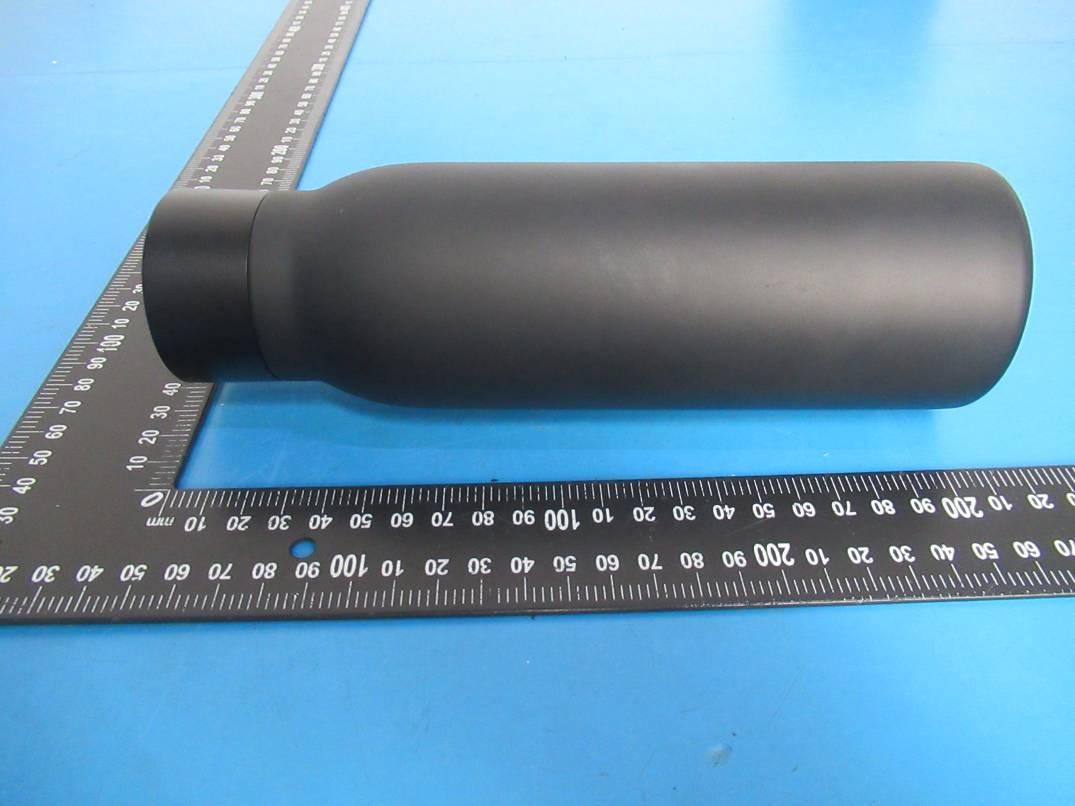

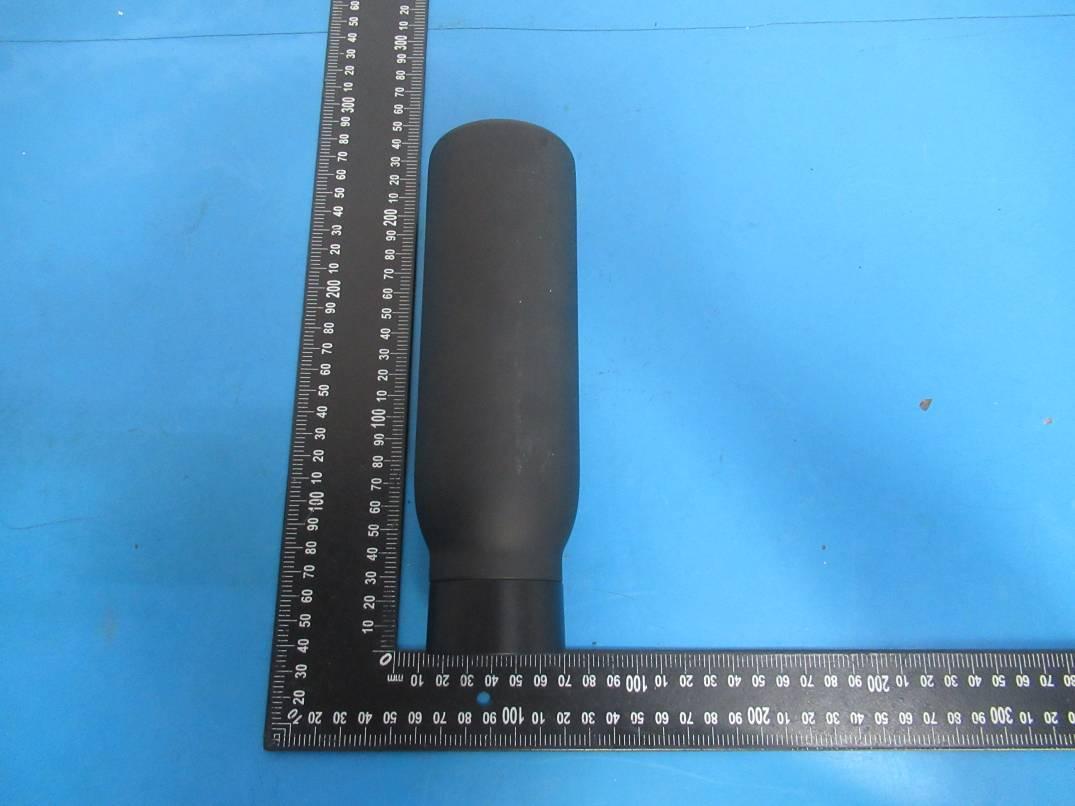

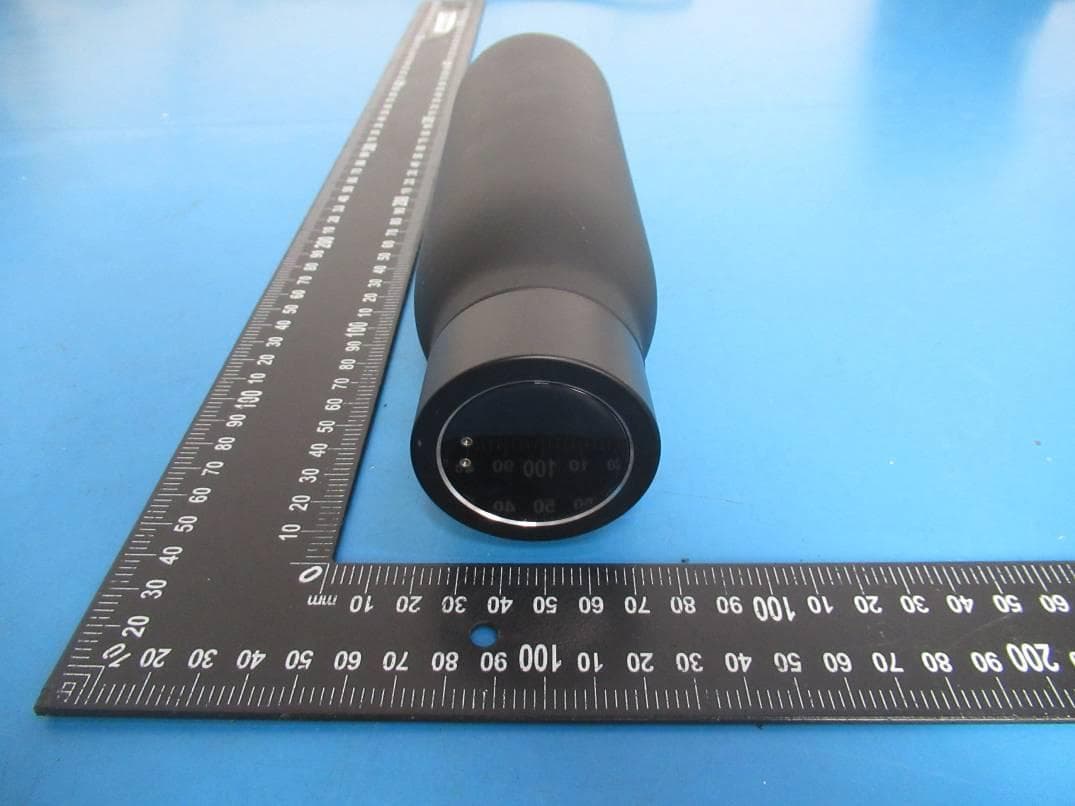

FCC ID: 2ALQ5-M1 External photos

2.0cm 1.8cm FCC ID: 2ALQ5-M1 Sguai (Shenzhen) Intelligent Technology Co., Ltd Intelligent traveling cup Model No.: M1 Location

FCC ID: 2ALQ5-M1 Internal photos ANT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. Worse case is as below: 2480MHz -13.477dBm（0.045 mW）output power (0.045mW /5mm)·[√2.480(GHz)]= 0.014 < 3.0 for 1-g SAR Then SAR evaluation is not required.

FCC TEST REPORT FCC ID: 2ALQ5-M1 On Behalf of Sguai (Shenzhen) Intelligent Technology Co., Ltd Intelligent traveling cup Model No.: M1 Prepared for : Sguai (Shenzhen) Intelligent Technology Co., Ltd Address : Floor 2, Building 11, Zhiheng Industrial Park, Guankouer Road, Nantou Street, Nanshan District, Shenzhen City, Guangdong Province Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2006149-C01-R05 Date of Receipt : June 28, 2020 Date of Test : October 12-22, 2020 Date of Report : October 22, 2020 Version Number : V0 Page 2 of 39 Report No.: A2006149-C01-R05 TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results ---------------------------------------------------------------- 6 1.1. Description of Standards and Results ---------------------------------------------------------- 6 2. General Information ------------------------------------------------------------------------------------ 7 2.1. Description of Device (EUT) -------------------------------------------------------------------- 7 2.2. Accessories of Device (EUT) ------------------------------------------------------------------- 8 2.3. Tested Supporting System Details -------------------------------------------------------------- 8 2.4. Block Diagram of connection between EUT and simulators ------------------------------- 8 2.5. Test Mode Description --------------------------------------------------------------------------- 8 2.6. Test Conditions ------------------------------------------------------------------------------------ 8 2.7. Test Facility ---------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ----------------------------------------------------------------------- 9 2.9. Test Equipment List ---------------------------------------------------------------------------- 10 3. Spurious Emission --------------------------------------------------------------------------------------11 3.1. Test Limits --------------------------------------------------------------------------------------- 11 3.2. Test Procedure ----------------------------------------------------------------------------------- 11 3.3. Test Setup ---------------------------------------------------------------------------------------- 12 3.4. Test Results -------------------------------------------------------------------------------------- 13 4. Power Line Conducted Emission ------------------------------------------------------------------- 16 4.1. Test Limits --------------------------------------------------------------------------------------- 16 4.2. Test Procedure ----------------------------------------------------------------------------------- 16 4.3. Test Setup ---------------------------------------------------------------------------------------- 16 4.4. Test Results -------------------------------------------------------------------------------------- 17 5. Conducted Maximum Output Power ------------------------------------------------------------- 18 5.1. Test limits ---------------------------------------------------------------------------------------- 18 5.2. Test Procedure ----------------------------------------------------------------------------------- 18 5.3. Test Setup ---------------------------------------------------------------------------------------- 18 5.4. Test Results -------------------------------------------------------------------------------------- 18 6. Peak Power Spectral Density ------------------------------------------------------------------------ 19 6.1. Test limits ---------------------------------------------------------------------------------------- 19 6.2. Test Procedure ----------------------------------------------------------------------------------- 19 6.3. Test Setup ---------------------------------------------------------------------------------------- 19 6.4. Test Results -------------------------------------------------------------------------------------- 19 7. Bandwidth ----------------------------------------------------------------------------------------------- 21 7.1. Test limits ---------------------------------------------------------------------------------------- 21 7.2. Test Procedure ----------------------------------------------------------------------------------- 21 7.3. Test Setup ---------------------------------------------------------------------------------------- 21 7.4. Test Results -------------------------------------------------------------------------------------- 21 8. Band Edge Check -------------------------------------------------------------------------------------- 25 8.1. Test limits ---------------------------------------------------------------------------------------- 25 8.2. Test Procedure ----------------------------------------------------------------------------------- 25 8.3. Test Setup ---------------------------------------------------------------------------------------- 25 8.4. Test Results -------------------------------------------------------------------------------------- 25 9. Antenna Requirement -------------------------------------------------------------------------------- 28 9.1. Standard Requirement -------------------------------------------------------------------------- 28 9.2. Antenna Connected Construction ------------------------------------------------------------- 28 Page 3 of 39 Report No.: A2006149-C01-R05 9.3. Results -------------------------------------------------------------------------------------------- 28 10. Test Setup Photo --------------------------------------------------------------------------------------- 29 10.1. Photos of Radiated emission ------------------------------------------------------------------ 29 10.2. Photos of Conducted Emission test ----------------------------------------------------------- 30 11. …

Text truncated - open the document above for the full version.

FCC ID: 2ALQ5-M1 Test Setup photos Photos of Radiated emission Photos of Conducted Emission test
