2ALTTCT1800i3ALLSYNC

i3ALLSYNC TOUCH Stand-Alone Rx 4.0 Quick start guide Description of functions 1 HDMI IN LAN RJ45HDMI OUTDC Jack 5V/2A Network LEDPower LED Power buttonUSB 2.0USB 3.0 The SDCARD slot is only used for support and development purposes and has no operational use. How to connect 2 Connect a HDMI cable from a display to the HDMI OUT port of the receiver. Connect a USB cable from a touch display to the USB port of the receiver. Connect the Power DC Jack 5V/2A. The device will automatically start up after inserting the Power Supply. How to pair 3 i3ALLSYNC HDMI Touch transmitter Wired Pairing 1 Connect your i3ALLSYNC HDMI Touch TX to your receiver via USB Port. 2 Open the settings of the i3ALLSYNC receiver. 3 Select "WIFI HDMI Tx Pairing" 4 The dialog will show "wired pairing", select "next". 5 In "Pairing Data Setting", select "Pairing" 6 Provide the system access to the USB, select "OK". 7 "Transferring data for pairing", it will be paired in a couple of seconds. 8 "Successfully transfer data for pairing", the pairing process is finished with success, just press "OK". 9 Unplug the HDMI TX and connect it to your laptop/tablet/... 10 HDMI TX is now paired and ready to use, enjoy! i3ALLSYNC HDMI Touch transmitter Wireless Pairing When using the i3ALLSYNC TRANSMITTER for the first time: 1. Activate the i3ALLSYNC app on your i3TOUCH or i3HUDDLE 2. Select "Setting" 3. "WiFi HDMI Tx pairing" on your i3TOUCH or i3HUDDLE 4. Press the main button of transmitter for 4 seconds. The main button will now light up with a constantly white colour. 5. Enter your Wi-Fi password and press "pairing", while pairing the main button will blink green, and when successful, it will stay green. Please refer to the i3ALLSYNC receiver user manual for more information about the workflow of the transmitter application. You can download the i3ALLSYNC receiver user manual on our website: www.i3-technologies.com How to use 4 i3ALLSYNC HDMI Touch TX 1 Connect the hardware transmitter to your laptop. 2 Wait for a constant green light to start mirroring. 3 Press the main button to mirror, the main button will change into blue. i3ALLSYNC Software applications 1 Make sure that the transmitting devices are on the same WiFi-network as the receiver device. 2 Open your transmitter application. 3 Choose the right receiver by device name. 4 Enter the login code which is shown on the i3ALLSYNC Receiver screen. Includes i3NOTES and i3OVERLAY Please check our manuals of i3NOTES and i3OVERLAY on our website: www.i3-technologies.com i3ALLSYNC Software applications 1 Android: download "i3ALLSYNC" transmitter app via the PlayStore. 2 Windows: download the application via the website: www.i3allsync.com. 3 iOS: use the AirPlay function. 4 macOS: Download the application via the website: www.i3allsync.com . Or use Airplay (doesn’t support touch). REGULATORY INFORMATION DISPOSAL OF WASTE BATTERIES AND ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the product or its batteries or its packaging means that this product and any batteries it contains must not be disposed of with your household waste, but hand over to an applicable collection point for the recycling of batteries and electrical and electronic equipment. This separate collection and recycling will help to conserve natural resources and prevent potential negative consequences for human health and the environment due to possible presence of hazardous substances in batteries and electrical and electronic equipment. For more information about where to drop off your batteries and electrical and electronic waste, please contact your local city/municipality office, your household waste disposal service, or the shop where you purchased this product. Contact [email protected] for additional information on WEEE and waste batteries. Any changes or modifications could void the user’s authority to operate this device. This product is for use with NRTL Listed (UL, CSA, ETL, etc), and/or IEC/EN 60950-1 compliant (CE marked) Information Technology Equipment. No serviceable parts included. This device is rated as a commercial product for operation at +0°C to +35°C. RADIO FREQUENCY ENERGY EXPOSURE WARNING This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. EU DECLARATION OF CONFORMITY Hereby, i3-Technologies N.V. declares that this product is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU, 2014/35/EU, 2014/53/EU, and 2011/65/EU, where applicable. The availability of products may vary by region. For more info, contact your dealer. This device may contain commodities, technology or software subject to export laws and regulations. Diversion contrary to law is prohibited. This equipment is for indoor use only, and is not intended for use in machinery, medical or industrial applications. FCC INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferenc…

Text truncated - open the document above for the full version.

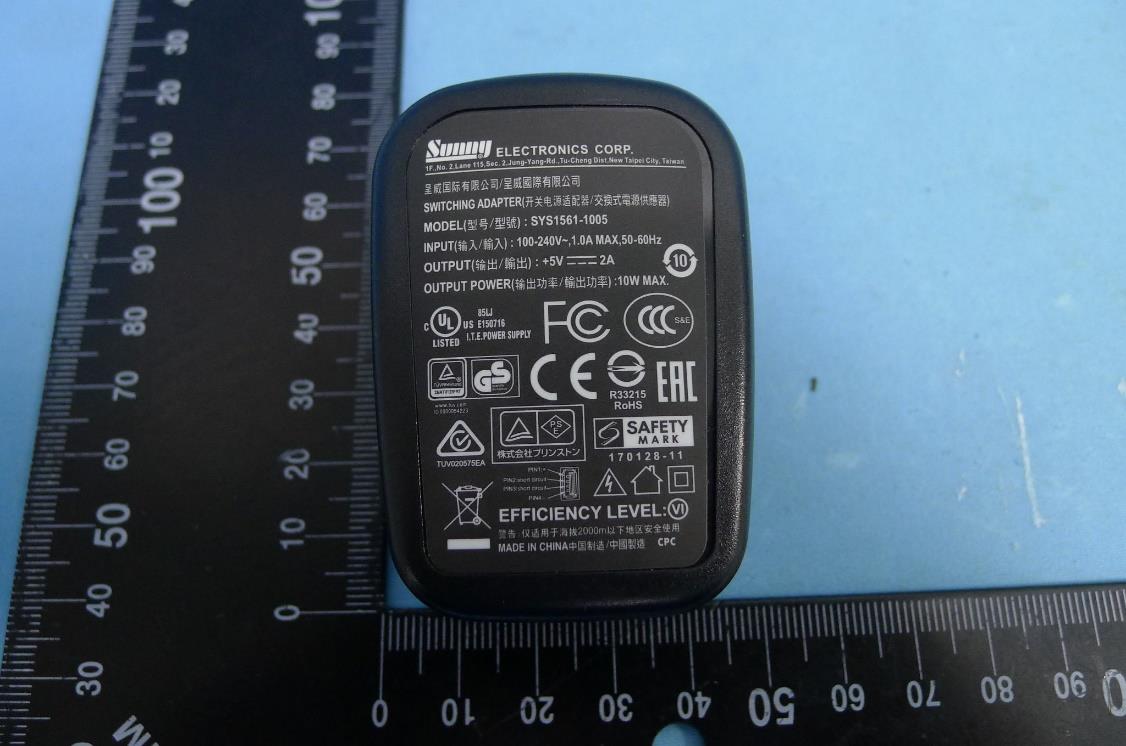

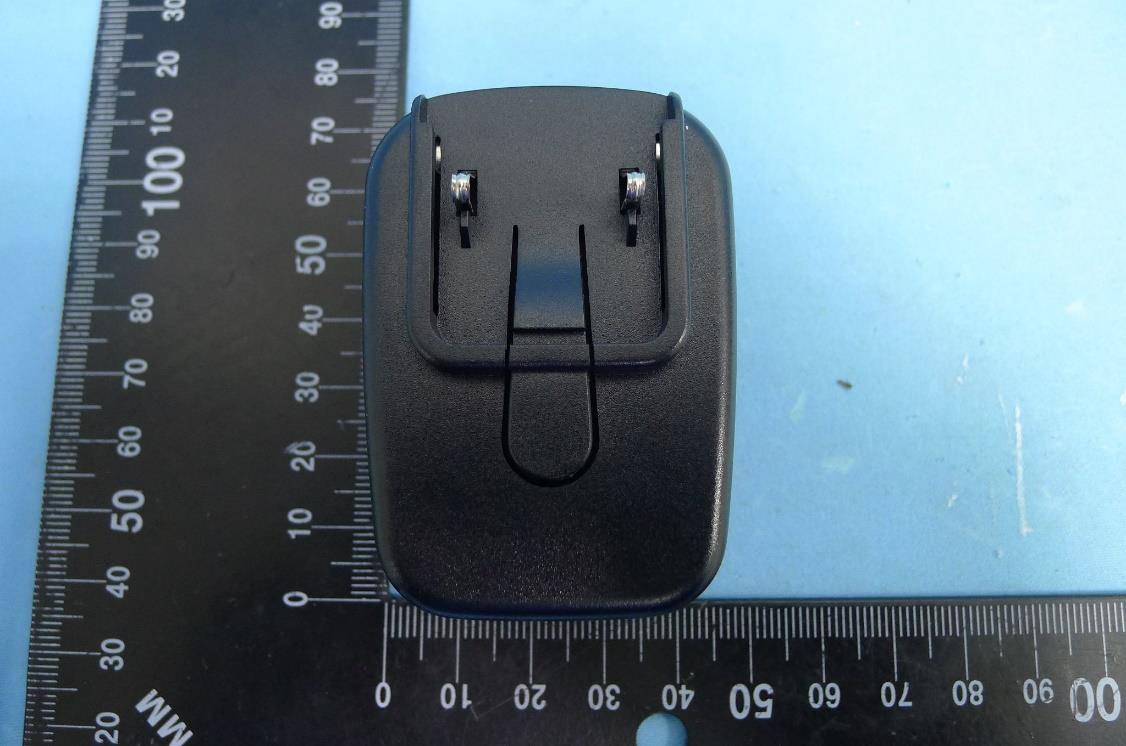

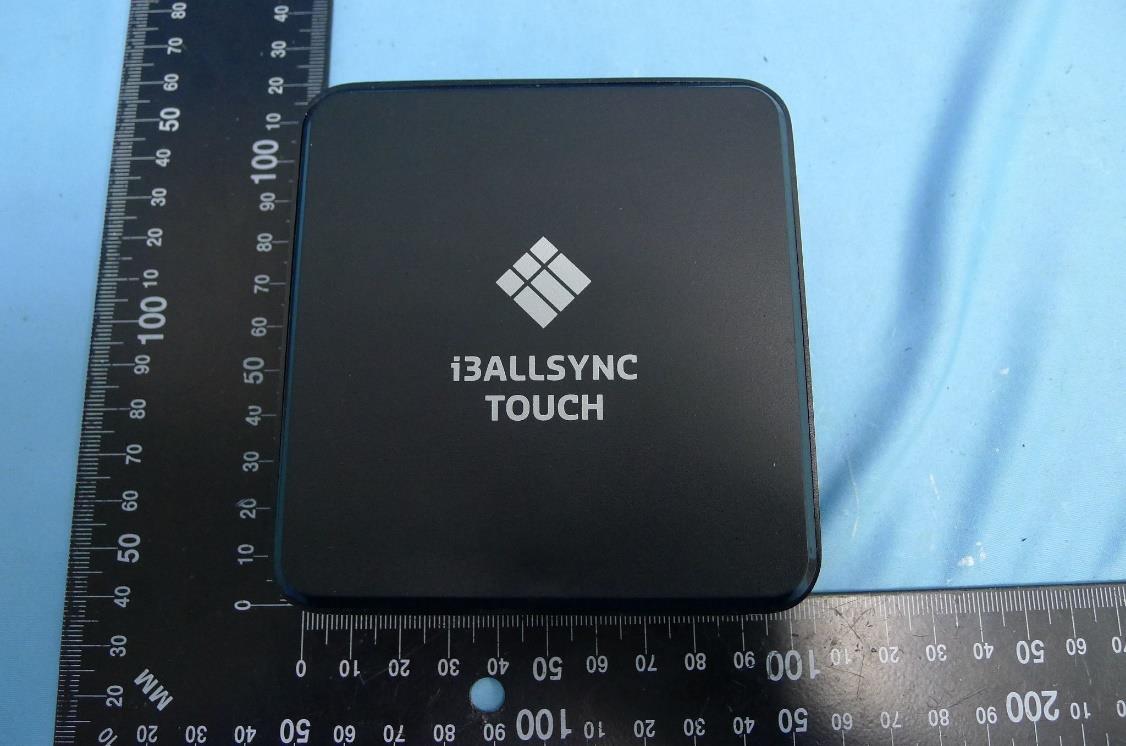

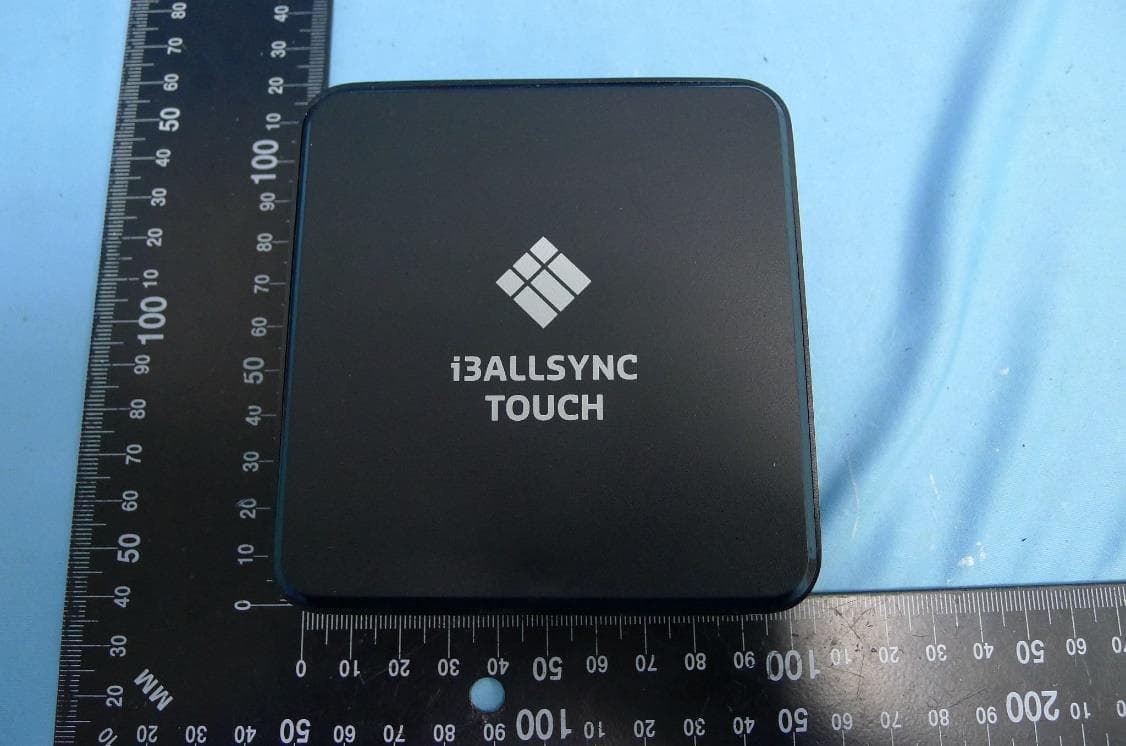

Report No.: 2003TW1201-U2~U5 Product: i3ALLSYNC Brand Name: i3-Technologies Model Number: i3ALLSYNC RX45 1 of 8 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2003TW1201-U2~U5 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2003TW1201-U2~U5 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2003TW1201-U2~U5 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2003TW1201-U2~U5 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2003TW1201-U2~U5 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2003TW1201-U2~U5 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2003TW1201-U2~U5 8 of 8 (15) EUT Photo (16) EUT Photo

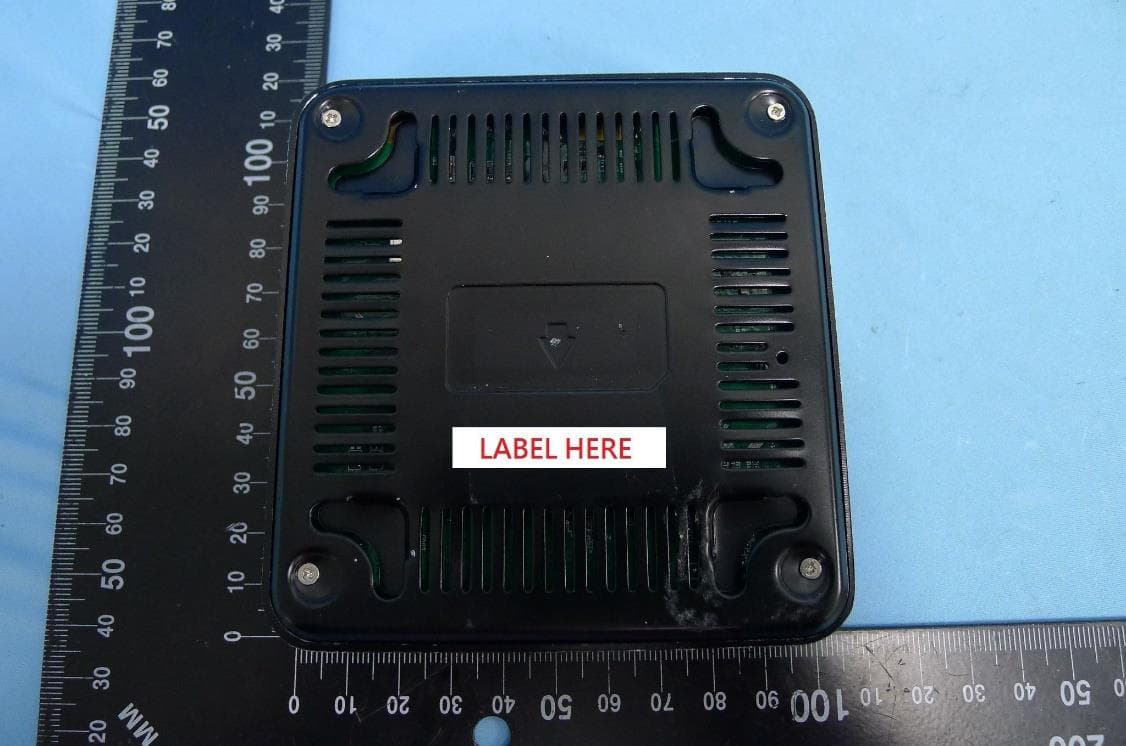

Label Label location

Report No.: 2003TW1201-U2~U5 Product: i3ALLSYNC Brand Name: i3-Technologies Model Number: i3ALLSYNC RX45 1 of 4 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2003TW1201-U2~U5 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2003TW1201-U2~U5 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2003TW1201-U2~U5 4 of 4 (7) EUT Photo

MRT Technology (Taiwan) Co., Ltd Report No.: 2003TW1201-U6 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2020-05-15 Web: www.mrt-cert.com FCC ID: 2ALTTCT1800 Page Number: 1 of 6 Maximum Permissible Exposure FCC ID: 2ALTTCT1800 APPLICANT: i3-Technologies N.V. Application Type: Certification Product: i3ALLSYNC Model No.: i3ALLSYNC RX45 Trademark: FCC Rule Part(s): Part 2.1091 Received Date: December 23, 2019 Test Date: April 10, 2020 Tested By : ( Fran Chen ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2003TW1201-U6 FCC ID: 2ALTTCT1800 Page Number: 2 of 6 Revision History Report No. Version Description Issue Date 2003TW1201-U6 1.0 Original Report 2020-05-15 Report No.: 2003TW1201-U6 FCC ID: 2ALTTCT1800 Page Number: 3 of 6 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name i3ALLSYNC Model No. i3ALLSYNC RX45 Brand Name Supports Radios Spec. 2.4G: 802.11b/g/n-20/n-40 5G: 802.11a/n-20/ac-20n/n-40/ac-40/ac-80, Band 1, 4 Bluetooth Dual Mode: V2.1+EDR/ V4.0 LE Report No.: 2003TW1201-U6 FCC ID: 2ALTTCT1800 Page Number: 4 of 6 1.2. Antenna Description 2.4GHz Antenna Type FPCB Antenna M/N RF11C00762S Antenna Gain 4.16dBi 5.0GHz Antenna Type FPCB Antenna M/N RF11C00762S Antenna Gain 4.0dBi Report No.: 2003TW1201-U6 FCC ID: 2ALTTCT1800 Page Number: 5 of 6 2. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.4 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 Note : (1) f= Frequency in MHz , (2) * = Plane-wave equivalent power density Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Under normal use condition, is at least 20cm away from the body of the user . So, this device is classified as Mobile Device. Report No.: 2003TW1201-U6 FCC ID: 2ALTTCT1800 Page Number: 6 of 6 2.2. Test Result Mode Frequency Band (MHz) Maximum Output Power (dBm) Gain (dBi) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) BT 2402~2480 4.849 4.16 0.0016 1 BLE 2402~2480 7.977 4.16 0.0033 1 WiFi 2.4G 2412~2462 24.010 4.16 0.1305 1 WiFi 5G (Band1) 5150~5250 16.050 4.00 0.0201 1 WiFi 5G (Band4) 5725~5850 16.200 4.00 0.0208 1 Conclusion : CPD1/LPD1 + CPD2/LPD2 + ... + CPDN/LPDN ≦ 1 CPD : Calculation Power Density LPD : Limit of Power Density Mode Power Density Limit Conclusion Result (≦ 1 ) WiFi 2.4G 0.1305 1 0.1513 Pass WiFi 5G (Band4) 0.0208 1 Therefore, the Max Power Density at R (20 cm) = 0.1513mW/cm 2 . So, device can comply with FCC radiation exposure requirement specified in the FCC Rule 2.1091. The End

MRT Technology (Taiwan) Co., Ltd Report No.: 2003TW1201-U5 Phone: +886-3-3288388 Report Version: 1.0 Web: www.mrt-cert.com Issue Date: 2020-05-15 FCC ID: 2ALTTCT1800 Page Number: 1 of 128 FCC ID: 2ALTTCT1800 APPLICANT: i3-Technologies N.V. Application Type: Certification Product: i3ALLSYNC Model No.: i3ALLSYNC RX45 Trademark: FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v02r01, KDB 662911 D01v02r01 Received Date: December 23, 2019 Test Date: March 19, 2020 ~ April 7, 2020 MEASUREMENT REPORT FCC PART 15 Subpart E- WLAN 802.11a/n/ac Tested By : ( Peter Syu ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the tested samples. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v02r01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2003TW1201-U5 FCC ID: 2ALTTCT1800 Page Number: 2 of 128 Revision History Report No. Version Description Issue Date Note 2003TW1201-U5 1.0 Original Report 2020-05-15 Report No.: 2003TW1201-U5 FCC ID: 2ALTTCT1800 Page Number: 3 of 128 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description.................................................................................................. 7 2.2. Operation Frequencies and Channel List ...................................................................... 8 2.3. Test Mode ...................................................................................................................10 2.4. Test Software ...............................................................................................................10 2.5. Device Capabilities ...................................................................................................... 11 2.6. Test Configuration ....................................................................................................... 11 2.7. EMI Suppression Device(s)/Modifications .................................................................... 11 2.8. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION OF TEST .......................................................................................................12 3.1. Evaluation Procedure ..................................................................................................12 3.2. AC Line Conducted Emissions ....................................................................................12 3.3. Radiated Emissions .....................................................................................................13 4. ANTENNA REQUIREMENTS .................................................................................................14 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................15 6. MEASUREMENT UNCERTAINTY ..........................................................................................16 7. TEST RESULT .......................................................................................................................17 7.1. Summary .....................................................................................................................17 7.2. 26dB Bandwidth Measurement ....................................................................................18 7.2.1. Test Limit .....................................................................................................................18 7.2.2. Test Procedure used ....................................................................................................18 7.2.3. Test Setting ..................................................................................................................18 7.2.4. Test Setup ...................................................................................................................18 7.2.5. Test Result ...................................................................................................................19 7.3. 6dB Bandwidth Measurement ......................................................................................24 7.3.1. Test Limit .....................................................................................................................24 7.3.2. Test Procedure used ....................................................................................................24 7.3.3. Test Setting ..................................................................................................................24 Report No.: 2003TW1201-U5 FCC ID: 2ALTTCT1800 Page Number: 4 of 128 7.3.4. Test Setup ...................................................................................................................24 7.3.5. Test Result ...................................................................................................................25 7.4. Output Power Measurement …

Text truncated - open the document above for the full version.

Report No.: 2003TW1201-U2~U5 Product: i3ALLSYNC Brand Name: i3-Technologies Model Number: i3ALLSYNC RX45 1 of 3 Test Photograph Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2003TW1201-U2~U5 2 of 3 Description: Radiated Emission Test Setup for 30MHz~1GHz Description: Radiated Emission Test Setup for 1GHz~18GHz Report No.: 2003TW1201-U2~U5 3 of 3 Description: Radiated Emission Test Setup for 18GHz~40GHz Description: Conducted Emission Test Setup
