Kaiterra Sensedge Mini Air Quality Monitor Made in China www.kaiterra.com [email protected] Origins Technology Limited. 18 Xinzhong St Dushiyangguang4-1106, Dongcheng, Beijing, China ENGLISH Kaiterra Sensedge Mini Air Quality Monitor User Manual What’s Included  Sensedge Mini  Sensedge Mini sensor modules x 2  Surface / Drywall mount  Electrical box mount  Drywall screws and anchors (3 pairs)  Electrical box screws (US) x 2  Electrical box screws (China and EU) x 2  Fastening screws x 2  USB cable  Charger  Certificate of calibration and testing  User manual  Certificate of conformity Important Safeguards Please read the safety warnings before use and take the necessary precautions to reduce the risk of fire, electric shock, or injury. The Kaiterra limited warranty applies only if the unit is used according to these instructions. WARNING  To reduce safety risks, always use service personnel from the manufacturer or service provider, or other qualified personnel for installation and maintenance.  Make sure the power is OFF during installation or maintenance.  DO NOT tamper with or use nonofficial spare parts for repair or maintenance.  DO NOT use the device in environments with high humidity or possible direct exposure to water.  DO NOT use the device in an outdoor environment.  DO NOT use the device near heat sources such as radiators, furnaces, ovens, or stoves. Getting Started The Sensedge Mini is a commercial-grade air quality monitor. This user manual will provide a basic guide to its first use. Further information can be found on the Kaiterra Support Portal at http://support.kaiterra.com/sensedge-mini Externals and Air Flow Air is drawn into the Sensedge Mini from the lower side, as well as the air intake on the upper side. It is vital that neither side of the device is covered. Any changes in airflow may affect the readings and accuracy. Power and Connectivity The Sensedge Mini provides multiple power and connectivity options: Power:  USB-C: Only use the cable and charger/adapter supplied with the device  DC direct wiring: Used for power supply of 12V, 1000mA  PoE (Power over Ethernet): Available for model SE000200P Connectivity:  2.4GHz Wi-Fi (802.11 b/g/n)  Ethernet: Used for data transfer via Ethernet  RS-485: Used for Modbus communication Sensor Modules The Sensedge Mini utilizes a modular design to allow for easy control and replacement of sensors. A CO2 sensor and a temperature and relative humidity sensor areis built into the core of the device, and a variety of other sensors may be inserted using the two sensor bays on the lower side of the device. To insert a sensor module, simply align it with the bay and press it in, ensuring the Kaiterra logo on the plastic tab is facing outwards. When inserted correctly, the module will click into place, and an LED light above the bay will briefly flash red if the device is powered on. To remove a sensor module, gently pull the tab outward and remove the module from the bay. Make sure to pull at a 90 degree angle. Sensors may be inserted in either sensor bay, and in any order. They may be swapped both when the Sensedge Mini is powered on and operational, and when the device is turned off. By default, the Sensedge Mini is shipped with the KM-200 and KM-203 sensor modules, which together measure PM2.5, and TVOC., temperature, and relative humidity. Sensor Module Status Light Indications: Steady OFF Sensor working normal Flash red once Sensor module powered on Steady ON Sensor module needs to be changed Flash Sensor module failure Flash slowly Sensor module in sleep mode Control and Status Move the ON/OFF switch right to turn on the device. The STATUS light will go on briefly to indicate the device has been powered on. To reset the device, use a paperclip and hold down the RESET pinhole. The STATUS light will flash red rapidly, indicating that the reset is successful. STATUS Light Indications: Standard operation: Steady OFF Device working normal Flash red once Device powered on Flash red rapidly Reset successful Configuration: Flash yellow Device in configuration mode Flash yellow rapidly for 5 seconds Identify via configuration tool Flash green rapidly Connecting to the network Glow green gradually Connecting to the cloud Troubleshooting: Steady ON in red Device failure Flash red No network connection Installation The Sensedge Mini can be mounted on a concrete block wall, drywall, ceiling, or to an electrical box. For detailed instructions on installation, power, and connectivity setup, please visit our support center website at http://support.kaiterra.com/sensedge-mini or scan the QR code below. Warranty Information Kaiterra provides a 1-year limited manufacturer warranty on the Sensedge Mini. To obtain a copy of the warranty for this product, please visit https://support.kaiterra.com/policies Troubleshooting For additional support, please contact your sales representative or email us at [email protected] CHINESE Kaiterra 睿石Mini空气质量监测仪用户手册 包装清单  睿石Mini主机  睿石Mini传感器模块 x 2  墙面/石膏板墙安装圆盘底座  有底盒安装方盘底座  石膏板螺丝&锚栓（3对）  底盒螺丝（美标）x 2  底盒螺丝（国标/欧标）x 2  固定螺丝x 2  USB数据线  充电器  校准测试报告  用户手册  合格证书 重要预防措施 请在使用前阅读安全须知，并采取必要预防措施来降低火灾、电击或受伤的风险。原点生 活（Kaiterra）有限保修仅在遵照这些说明使用设备时适用。 安全须知  为了避免危险，必须始终由制造商、服务代理商或有资质的人员进行安装、维护等操 作。  安装与维护前，请确保电源已断开。  请勿以任何方式改造或使用非官方配件维修维护设备。  请勿将设备置于高湿度环境或可能直接接触水的位置。  请勿将设备置于室外。  请勿将设备放在散热器、壁炉、烤箱、炉灶等热源附近。 开始使用 睿石Mini是一款商用空气质量监测仪。此手册为用户首次使用设备提供指导，更多信息 可以在Kaiterra官网的“客户支持”中查询，链接地址： http://support.kaiterra.com/sensedge-mini。 外观和空气流动 睿石Mini的进气口位于设备的上方和下方，使用时请确保设备的任何一侧都不能被覆盖。 气流的变化可能影响睿石Mini的读数及准确性。 供电和联网方式 睿石Mini提供多种供电和联网选择： 供电：  USB-C：仅可使用设备随附的数据线及充电器或适配器  DC电源接口：用于12V，1000mA供电  PoE（通过以太网供电）：适用于型号SE000200P 联网：  2.4GHz Wi-Fi （802.11 b/g/n）  以太网：用于通过以太网进行数据传输  RS-485：用于支持Modbus通讯 传感器模块 睿石Mini采用模块化设计，便于控制及更换传感器。其中，二氧化碳和温湿度传感器内 置于设备内部，设备下方的两个传感器凹槽可用于装载各种其他的传感器模块。 安装传感器模块时，只需将传感器轻压入凹槽内，确保铝制外壳上的Kaiterra标志朝外即 可。当正确安装后，模块将被锁定于凹槽内，如设备已经接入电源，模块凹糟上方的模块 状态指示灯会短暂亮起且呈红色。 如需拆卸模块，轻轻提起拉环，使拉环与模块呈9…

Text truncated - open the document above for the full version.

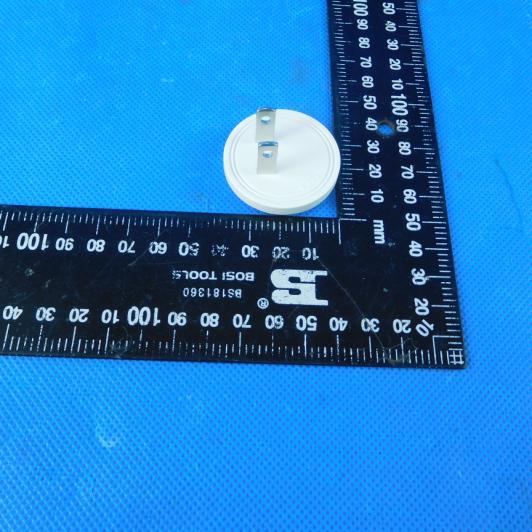

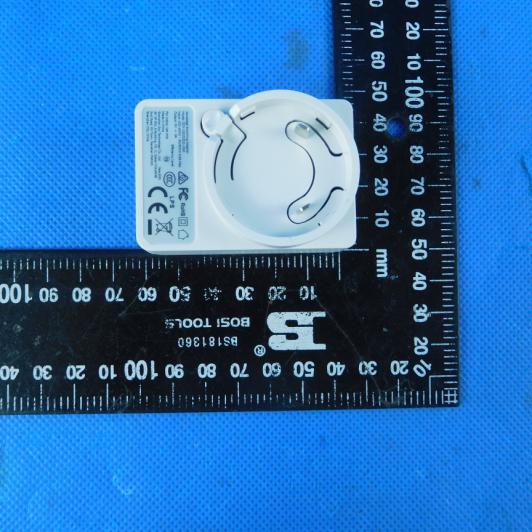

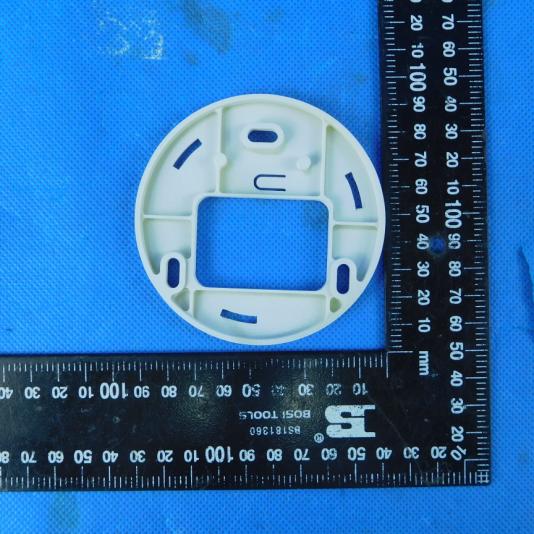

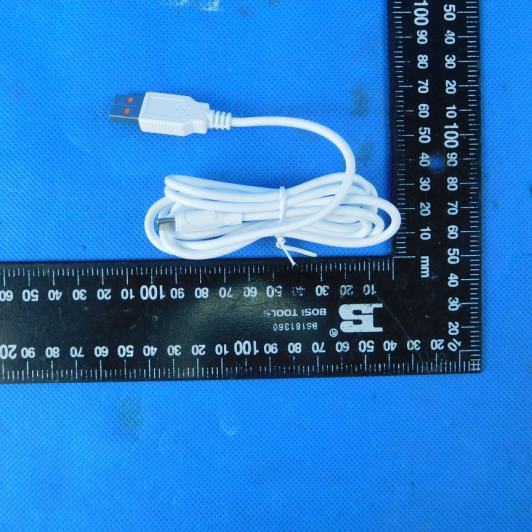

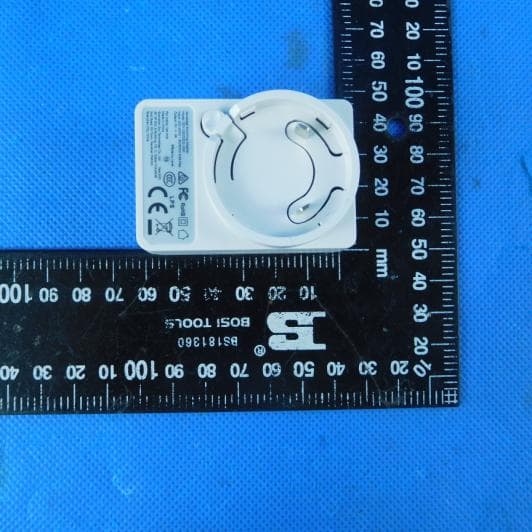

External Photos

Internal Photos

FCC ID: 2ALV5-SE-200 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result 802.11b 12.72 13.0 0.0040 1.0000 Pass 802.11g 12.48 13.0 0.0040 1.0000 Pass 802.11n(H20) 11.77 12.0 0.0032 1.0000 Pass Note: 1) The maximum antenna gain is 0dBi 2) The exposure evaluation safety distance is 20cm.

Page: 1 of 44 TEST REPORT Report No. ...................................... : CHTEW20090151 Report Verification: Project No.................................： FCC ID ............................................. : Applicant’s name ........................... : Address ............................................. : Test item description .................... : Trade Mark ....................................... : Model/Type reference ....................... : Listed Model(s) ................................. : Standard ......................................... : Date of receipt of test sample..........: Date of testing.............................: Date of issue...............................: Result .................. ........................: SHT2008073902EW 2ALV5-SE-200 Origins Technology Limited 18 Xinzhong St Dushiyangguang4-1106, Dongcheng, Beijing, China Kaiterra Sensedge Mini Air Quality Monitor Kaiterra SE-200 - FCC CFR Title 47 Part 15 Subpart C Section 15.247 Aug.26, 2020 Aug.26, 2020- Sept.21, 2020 Sept.22, 2020 PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20090151 Page: 2 of 44 Issued: 2020-09-22 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test mode 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 26 6. TEST SETUP PHOTOS 33 7. EXTERANAL AND INTERNAL PHOTOS 35 8. APPENDIX REPORT 44 Report No.: CHTEW20090151 Page: 3 of 44 Issued: 2020-09-22 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2020-09-22 Original Report No.: CHTEW20090151 Page: 4 of 44 Issued: 2020-09-22 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW20090151 Page: 5 of 44 Issued: 2020-09-22 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3. SUMMARY 3.1. Client Information Applicant: Origins Technology Limited Address: 18 Xinzhong St Dushiyangguang4-1106, Dongcheng, Beijing, China Manufacturer: Origins Technology Limited Address: 18 Xinzhong St Dushiyangguang4-1106, Dongcheng, Beijing, China 3.2. Product Description Name of EUT: Kaiterra Sensedge Mini Air Quality Monitor Trade Mark: Kaiterra Model No.: SE-200 Listed Model(s): - Power supply: AC 120V Hardware version: 2.0 Software version: 1.0.11 3.3. Radio Specification Description Support type *2 : 802.11b, 802.11g, 802.11n(HT20) Modulation: DSSS for 802.11b OFDM for 802.11g/802.11n(HT20) Operation frequency: 2412MHz~2472MHz Channel number: 11 Channel separation: 5MHz Antenna type: PCB Antenna Antenna gain: 0dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW20090151 Page: 6 of 44 Issued: 2020-09-22 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2019-10) 3.4. Testing Laboratory Information La…

Text truncated - open the document above for the full version.

Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 28 APPENDIX REPORT Project No. SHT2008073902EW Radio Specification WIFI 2.4G Test sample No. YPHT20080739004 Model No. SE-200 Start test date 2020/9/1 Finish date 2020/9/1 Temperature 25°C Humidity 50% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Conducted Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty Cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 28 Appendix A：Conducted Peak Output Power Type Channel Peak Output power (dBm) Average Output power (dBm) Limit (dBm) Result 802.11b 01 14.29 11.85 ≤ 30.00 Pass 06 14.72 12.24 11 15.17 12.72 802.11g 01 14.78 11.63 ≤ 30.00 Pass 06 15.18 12.07 11 15.56 12.48 802.11n (HT20) 01 14.99 11.77 ≤ 30.00 Pass 06 14.42 11.18 11 14.80 11.63 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 28 Appendix B：Power Spectral Density Type Channel Power Spectral Density (dBm/30KHz) Limit (dBm/3KHz) Result 802.11b 01 -4.82 ≤8.00 Pass 06 -3.13 11 -3.72 802.11g 01 -10.70 ≤8.00 Pass 06 -9.61 11 -9.06 802.11n(HT20) 01 -10.25 ≤8.00 Pass 06 -10.28 11 -10.65 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 28 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b 01 9.66 ≥0.5 Pass 06 10.08 11 10.08 802.11g 01 16.62 ≥0.5 Pass 06 16.53 11 16.65 802.11n(HT20) 01 17.88 ≥0.5 Pass 06 17.76 11 17.82 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 28 Appendix D：99% Occupied Bandwidth Type Channel 99% Bandwidth (MHz) Limit (MHz) Result 802.11b 01 13.34 - Pass 06 13.52 11 13.79 802.11g 01 16.87 - Pass 06 16.90 11 16.90 802.11n(HT20) 01 17.92 - Pass 06 17.95 11 17.95 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 28 Type: 802.11 b CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 28 Type: 802.11 g CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 28 Type: 802.11n(HT20) CH01 CH06 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 15 of 28 Appendix E：Duty Cycle Modulation Type Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 11b 2437 1.00 1.00 100.0% 1.0 11g 2437 1.00 1.00 100.0% 1.0 11n20 2437 1.00 1.00 100.0% 1.0 11b 11g Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 16 of 28 11n20 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 17 of 28 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Bandedge Type: 802.11 b CH01 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 18 of 28 Test Item: Bandedge Type: 802.11 g CH01 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 19 of 28 Test Item: Bandedge Type: 802.11 n(HT20) CH01 CH11 Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 20 of 28 Test Item: SE Type: 802.11 b CH01 Reference level CH01 30MHz~1000MHz CH01 1GHz~26GHz Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 21 of 28 CH06 Reference level CH06 30MHz~1000MHz CH06 1GHz~26GHz Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 22 of 28 CH11 Reference level CH11 30MHz~1000MHz CH11 1GHz~26GHz Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 23 of 28 Test Item: SE Type: 802.11 g CH01 Reference level CH01 30MHz~1000MHz CH01 1GHz~26GHz Project No.: SHT2008073902EW Radio Specification: WIFI 2.4G Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 24 of 28 CH06 Reference level CH06 30…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
