2ALXL-OE1IMUZEN Sway Shake Open-Ear Headphones

MUZEN
Sway
Shake
Open-Ear
Headphones
To
all
users
Thank
you
very
much
for
using
our
products.
This
product
is
a
new
rear-hanging
headphone
product
launched
by
the
OG
sub-brand
of
the
Maowang
audio
brand.
It
inherits
the
product
experience
of
Maowang
products,
which
is
"good-looking,
good-sounding,
easy
to
use
and
fun",
allowing
you
to
connect
with
your
favorite
music
and
sound
content
more
conveniently
and
easily.
It
is
not
only
small
and
portable
but
also
easy
to
operate,
suitable
for
multiple
scenarios,
and
we
hope
to
bring
you
a
high-quality
listening
experience.
Note:
Since
this
product
is
battery- powered,
in
order
to
give
you
a
better
product
experience,
we
recommend
that
you
charge
it
for
two
hours
before
using
it
when
you
get
it.
What's
in
the
box
1.Headphones
x1
2.Usb
Cable
x1
3.Manual
x1
4.Warranty
Card
x1
Operating
Instructions
1
is
the
headphone
touch
area
**Note:
Only
area
1
supports
touch
control
2
Charging
port
3
Light
display
area
Lighting
effect
display:
1.Battery
display:
The
breathing
lights
on
the
left
and
right
sides
flash
when
charging,
and
turn
off
after
3
minutes
of
full
power
2.Low
battery:
The
light
flashes
and
there
is
a
voice
prompt
of
low
battery
HOW
TO
TURN
ON
HEADPHONES
When
headphones
are
off,
touch
the
R
area
for
two
seconds
to
turn
on.
Function
Instructions
For
Use
Switch
On
Touch
R
area
for
2s
Switch
Off
Touch
R
area
for
3s
Bluetooth
Reset
Quick
tap
R
area
5
times

Play/Pause
Quick
tap
R
area
2
times
Forward
Touch
R
area
for
1s
and
release
Answer/Hung
up
a
call
Touch
R
area
2
times
Reject
a
call
Touch
R
area
for
1s
Third-party
inbound
call
answering
Quick
tap
R
area
2
times
Wake
up
voice
assistant
Quick
tap
R
area
3
times
Lights
on/off
Quick
tap
R
area
1
time
and
then
long
press
for
1s
Specifications
Product
Name:
Sway
Shake
Open-Ear
Headphones
Model:
XOG-OE1
Bluetooth
version:
5.3
Speaker
size:
Φ0.63in
Size:
4.4in
x
5.2in
x
2in
Net
weight:
0.05lb
Battery:
80mAh
Frequency
response
range:
20Hz-20KHz
Charging
port:
Type-C
Charging
voltage:
DC
5V

1A
Warranty
period:
1
year
Manufacturer:
Shenzhen
Airsmart
Technology
Co.,
Ltd.
Add.:
Room
1202,
Block
A,
Guangqi
Future
Center,
Gaoxin
South
4th
Road,
Nanshan,
Shenzhen,
China
Contact:
[email protected]
Made
In
China
***Note:
Since
this
product
uses
Bluetooth
connection,
in
daily
use,
it
may
be
affected
by
factors
such
as
the
environment,
mobile
phone
brand,
and
usage
behavior.
It
is
normal
to
have
short
and
slight
sound
jams
during
music
playback.

Important
Notes
To
ensure
safety,
please
read
and
follow
the
following
safety
instructions
in
detail:

1.
The
manufacturer
has
the
right
to
make
some
detailed
modifications
or
adjustments
to
the
specifications
and
product
details
of
this
product
without
notifying
the
user.

2.
Please
use
the
product
in
a
dry
environment.

3.
The
product
should
not
be
close
to
or
in
contact
with
exposed
fire
sources.

4.
The
product
is
waterproof
grade
IPX5,
but
it
is
necessary
to
pay
attention
to
certain
waterproof
and
moisture-proof
in
daily
use.

5.
The
normal
operating
environment
temperature
of
this
product
is
0-45°.
It
is
recommended
not
to
use
this
product
under
environmental
conditions
exceeding
this.

6.
Do
not
modify,
repair
or
dismantle
this
product
without
authorization,
otherwise,
you
will
not
be
able
to
enjoy
the
warranty
service.

7.
If
consumers
use
a
power
adapter
for
power
supply,
they
should
purchase
a
power
adapter
that
has
obtained
CCC
certification
and
meets
the
standard
requirements.

8.
Note
that
if
the
battery
is
not
replaced
properly,
there
is
a
risk
of
explosion.
If
necessary,
please
go
to
a
professional
repair
shop.
After
replacing
the
battery,
this
product
will
no
longer
enjoy
warranty
service.
Product
Pollution
Index
Name
and
content
of
toxic
substances
in
the
product
Component
name
Toxic
and
hazardous
substances
or
elements
Structural
components
Lead
(Pb)
Cadmiu m
(Cd)
Mercur y
(Hg)
Hexavalent
chromium
(Cr6+)
Polybrominat ed
biphenyls
(PBB)
Polybrominated
diphenyl
ethers
(PBDE)
Motherboard
〇
〇
〇
〇
〇
〇
Battery
〇
〇
〇
〇
〇
〇
Wires
〇
〇
〇
〇
〇
〇
Speakers
Screws
〇
〇
〇
〇
〇
〇
Packaging
materials
〇
〇
〇
〇
〇
〇
〇:
Indicates
that
the
content
of
the
hazardous
substance
in
all
homogeneous
materials
of
the
component
is
below
the
limit
requirements
specified
in
SJ/T113642014
X:
Indicates
that
the
content
of
the
hazardous
substance
in
at
least
one
homogeneous
material
of
the
component
exceeds
the
limit
requirements
specified
in
SJ/T113642014
Warranty
terms
1.Enjoy
one
year
of
free
warranty
service
from
the
date
of
purchase.
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) …

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2ALXL-OE1I XOG-OE1I We, Applicant Company Name: Shenzhen Airsmart Technology Co., Ltd. Address: 12/F, Building A, Guangqi Future Center, No.88 Gaoxin South 4th Rd, Yuehai Street, Nanshan, Shenzhen, China Phone: +86-755-22670865 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc.. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-11 Signature Date Printed Name of Signee / Title: Dejun Zeng / Manager Company: Shenzhen Airsmart Technology Co., Ltd. Address: 12/F, Building A, Guangqi Future Center, No.88 Gaoxin South 4th Rd, Yuehai Street, Nanshan, Shenzhen, China Phone: +86-755-22670865 Fax: +86-755-26908619 Email: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2ALXL-OE1I XOG-OE1I For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-11 Signature Date Printed Name of Signee / Title: Dejun Zeng / Manager Company: Shenzhen Airsmart Technology Co., Ltd. Address: 12/F, Building A, Guangqi Future Center, No.88 Gaoxin South 4th Rd, Yuehai Street, Nanshan, Shenzhen, China Phone: +86-755-22670865 Fax: +86-755-26908619 Email: [email protected]

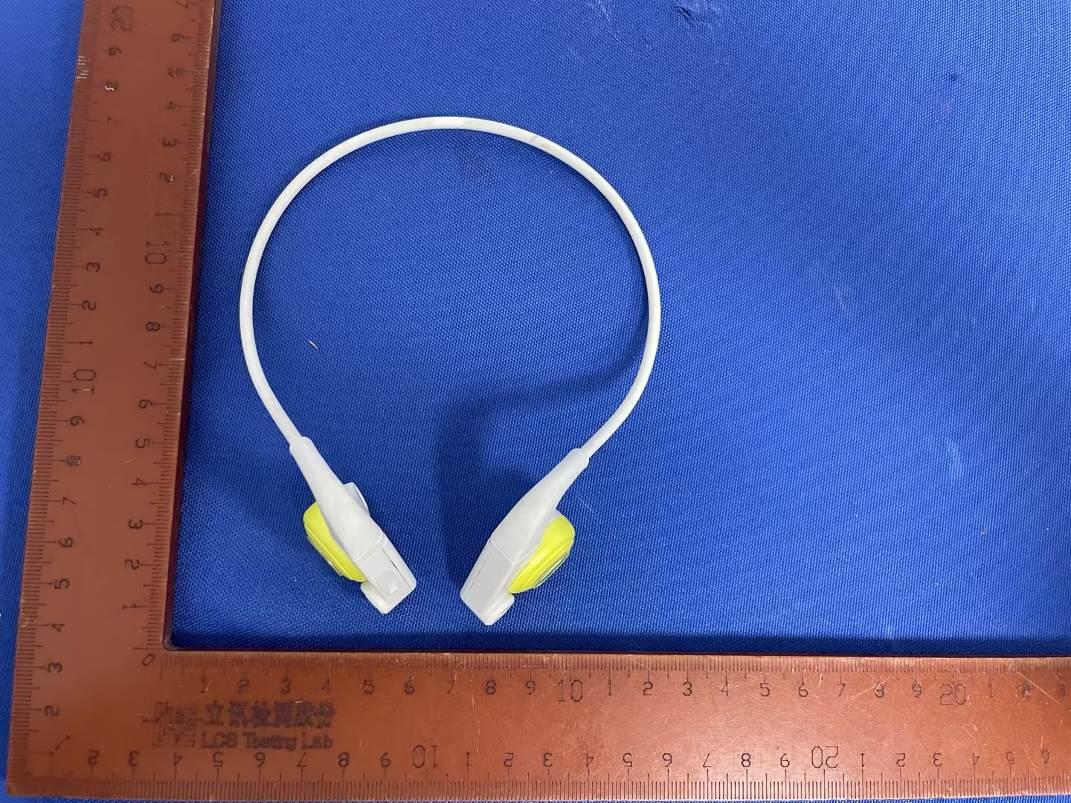

Page 1 of 4 FCC ID: 2ALXL-OE1I Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2ALXL-OE1I Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2ALXL-OE1I Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2ALXL-OE1I Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7
