2ALZLTT100TIKITORCHTiki Torch Bluetooth Speaker

www.goldwood.com Tiki Torch 1 2 Specifications: -Ambient temperature for operation: 7° F to 95° F -Charge time: 5 hours -Charge duration (depending on lighting and sound intensity): Light only: around 20 hours 60% Volume+Light: around 6-7 hours Max Volume+Light: around 5 hours -IP Class: IP44 -Power: 60W Total system Power -Sensitivity: 90 -Frequency Response: 70Hz – 20kHz -Bluetooth Name: UUFFOO Contents: 1 x Luminous Speaker 1 x fastener for lantern 4 x poles 1 x Spike 1 x USB charging cable 1 x User manual Construction: Put all the parts together and fasten the luminous speaker on the upper part of the fastener. Then connect the poles and the spike by means of a turn. After that you can push the ground spike into the ground. Product Operation Panel: Top of speaker: Features: - Weatherproof against rain, snow, ice, salt, pool chemicals, etc. - Built In Bluetooth Receiver - Butyl Rubber Surrounds - Voiced for Outdoor Performance - 2- Way Design and Functionality Battery Operation: 1. Please charge the battery fully before first use. 2. Connect the USB adapter to the speaker using the charge port. While battery is charging the indicator will be red. 3. Charge the battery until the indicator light is green. 4. After the battery has been charged, turn on the speaker by pressing the Bluetooth ON/OFF button. The indicator light will be blue. Press (and hold for about 2 seconds) the Light ON/OFF button at the top of the speaker to turn on or off the light. Press the Light ON/OFF button a 2nd time to have the light enter flickering flame mode. Then follow the Bluetooth Function instructions Note:The built-in battery is not replaceable. Please do not remove or replace it in the trash. If you must dispose of this speaker, bring it to your local recycling center. Luminous Speaker Fastener Pole spike Bluetooth ON/OFF button Light ON button USB Charge Port Bluetooth Function (Initial Setup): 1.Make sure battery is fully charged before attempting to connect the first time. 2.Starting with the 1st Tiki Torch, press the Bluetooth ON/OFF button on the top of the speaker. There will be an audible activation beep and the indicator light will flash blue. 3.On your phone, turn Bluetooth to “ON” and select “UUFFOO” in your Blue- tooth device list. beep from the Once the device is connected you will hear a second audible speaker and the indicator light will be solid blue. 4 speaker by pressing the Bluetooth ON/OFF button (the indicator will flash blue). After the speaker is on, press and hold(for about 3 seconds) the Bluetooth ON/OFF button on each additional speaker. You will hear a beep sound from the additional speakers and the indicator light will flash green momentarily. The indicator light on the 1st/main speaker will remain green and the indicators on the additional speakers will turn off. To cancel the pairing, press and hold (for about 3 seconds) the Bluetooth On/OFF button. . PAIRING: To connect additional speakers, first turn on the additional 5 6.For subsequent use simply turn on the 1st/main speaker, connect to your Bluetooth device then turn on the additional speakers. You will now hear music from all the speakers. If one of the additional speakers does not connect, press and hold the Bluetooth ON/OFF button (for about 3 seconds) to re-pair with the main speaker. . To turn off the Bluetooth function, press the Bluetooth ON/OFF button. Precautions: -The USB Cable is not waterproof, please only charge the battery indoors. -this product should never be submerged in water -disconnect the power adaptor from the outlet when not in use -do not stand or jump on this product -keep this product away from chemicals and high heat -do not attempt to disassemble the speaker -do not use this product outdoors if they are cracked or damaged 34 Troubleshooting: If the additional speakers do not connect to the 1st speaker or you do not hear an audible beep sound when pairing the additional speakers, please press and hold(3s) the ON/OFF button on the additional speakersagain. Make sure only 1 “UUFFOO” record is in the device list, otherwise, you will not be able to pair. To fix this, simply have your device “Forget this Device” on any additional “UUFFOO” devices leaving only 1. This product has a memory storage function (if the batteries are not fully exhausted), when you turn on speaker, the light and speaker will maintain the same settings and pairing as the last time used. If the battery is exhausted there will be no memory storage function and you will need to pair the 1st speaker with the additional speakers. www.goldwood.com Made in China FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party.Responsible for compliance could void the user’s authority to operate this equipment. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may n…

Text truncated - open the document above for the full version.

Rev1/26/2023 (GoldwoodSound,Inc.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:07-03-2023 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:(2ALZLTT100TIKITORCH) [GoldwoodSound,Inc.](“theapplicant”)certifiesthattheequipmentforwhichauthorizationissoughtis not“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)MartyBloom Rev1/26/2023 GoldwoodSound,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:07-03-2023 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:(2ALZLTT100TIKITORCH) [GoldwoodSound,Inc.](“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredListasanentityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)MartyBloom

GoldwoodSound,Inc. Rev11/20/07 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2ALZLTT100TIKITORCH PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram Schematics OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,Wealsorequestingthe commissiontograntshort-termconfidentialityrequestonthefollowingattachmentsuntil180 daysaftertheGrantDateofEquipmentAuthorizations. ExhibitTypeFileName Sincerely, MartyBloom 2023.07.03

Declarationonmodeldifference We,theundersigned,herebyconfirmthatthesemodelsareidentical,andallmodelshavethe sameRFmodule,PCBlayout,antenna,schematicdiagramandcomponents.Onlythemodelname andappearancearedifferent. ProductionnameTrademarkFCCModelno. TikiTorchBluetooth Speaker N/A2ALZLTT100TIKITO RCH TT100,PBG-1280S, PB-21100501 Confirmedby: MartyBloom GoldwoodSound,Inc. 2023.07.03

GoldwoodSound,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2023.07.03 SUBJECT:FCCApplicationfor(FCCID:2ALZLTT100TIKITORCH) ToWhomItMayConcern: We,theundersigned,herebyauthorizeEMTEK(DONGGUAN)CO.,LTD.atSamLvon ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(DONGGUAN)CO.,LTD.onourbehalfshallhave thesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Sincerely, MartyBloom 2023.07.03

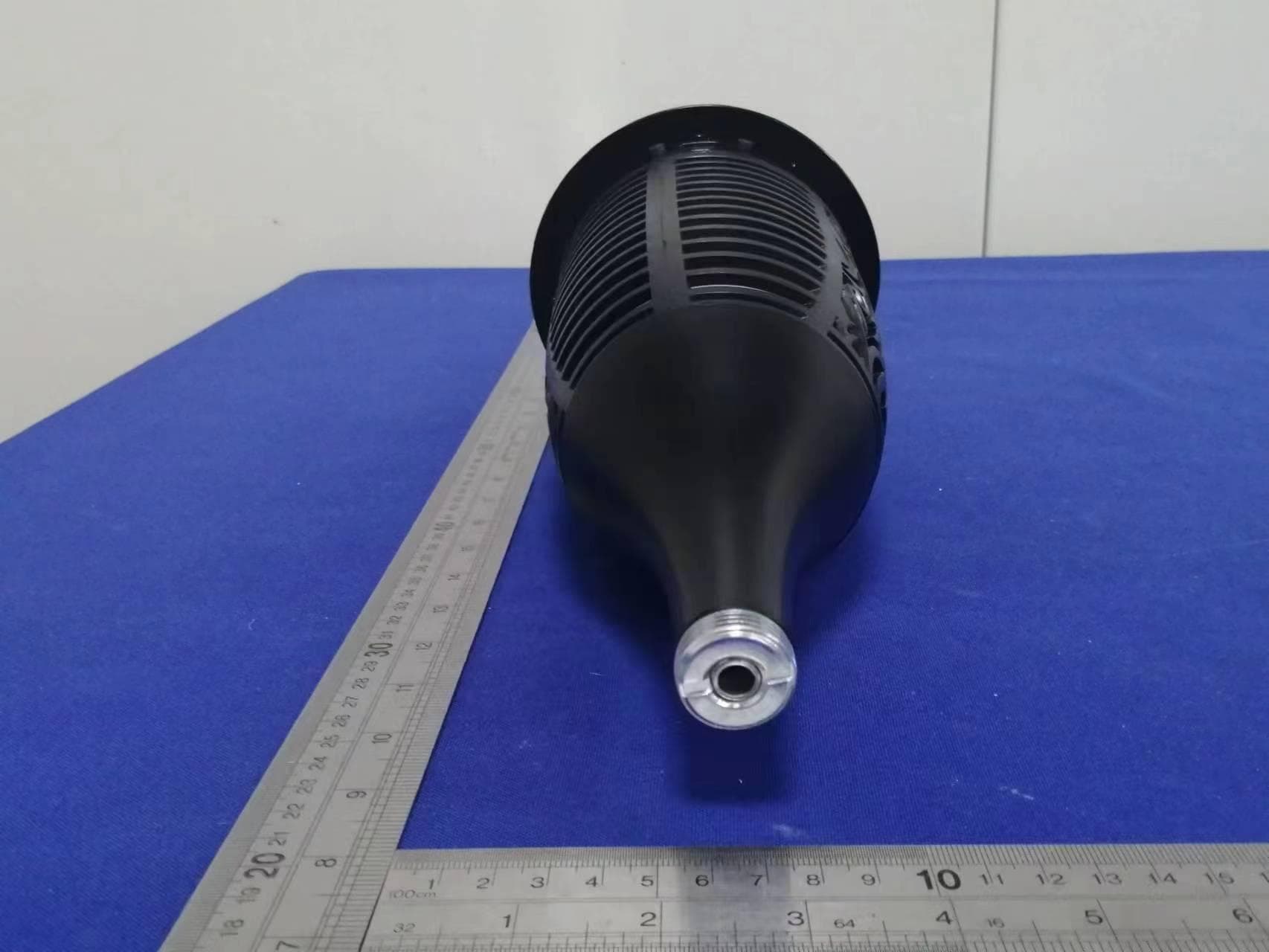

FCCID:2ALZLTT100TIKITORCH

FCCID:2ALZLTT100TIKITORCH ANT

FCCID:2ALZLTT100TIKITORCH ANT

ReportNo.EDG2306090193E00103RPage1of7Ver.1.0 TESTREPORT ProductName：TikiTorchBluetoothSpeaker ModelNumber：TT100,PBG-1280S,PB-21100501 FCCID：2ALZLTT100TIKITORCH Preparedfor:GoldwoodSound,Inc. Address:9333OsoAve.Chatsworth,CA91311 Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2306090193E00103R Date(s)ofTests:Jun09,2023toJun26,2023 Dateofissue:Jun26,2023 $ 二维码 $ ReportNo.EDG2306090193E00103RPage2of7Ver.1.0 TableofContents 1.TESTRESULTCERTIFICATION...............................................................................................................................................3 2.EUTSPECIFICATION.................................................................................................................................................................5 3.TESTREQUIREMENT................................................................................................................................................................6 4.MEASUREMENTRESULT.........................................................................................................................................................7 ReportNo.EDG2306090193E00103RPage3of7Ver.1.0 1.TESTRESULTCERTIFICATION Applicant:GoldwoodSound,Inc. Address:9333OsoAve.Chatsworth,CA91311 Manufacturer:Powerbeauty(DongGuan)IndustrialCo.,Ltd. Address: No.1,EasternIndustryPark,ShujiuVillage,ChangpingTown,DongguanCity, China Factory:Powerbeauty(DongGuan)IndustrialCo.,Ltd. Address: No.1,EasternIndustryPark,ShujiuVillage,ChangpingTown,DongguanCity, China EUT:TikiTorchBluetoothSpeaker ModelName:TT100,PBG-1280S,PB-21100501 Trademark:N/A MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT §15.247(i),§2.1093 PASS TheaboveequipmentwastestedbyEMTEK(DONGGUAN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththeprocedures giveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribedinthisreportisin compliancewiththerequirementsofFCCRulesFCC§15.247(i),§2.1093. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:Jun09,2023toJun26,2023 Preparedby: WarrenDeng/Editor Reviewer: TimDong/Supervisor Approve&AuthorizedSigner:SamLv/Manager ReportNo.EDG2306090193E00103RPage4of7Ver.1.0 ModifiedHistory VersionReportNo.RevisionDateSummary EDG2306090193E00103R/OriginalReport ReportNo.EDG2306090193E00103RPage5of7Ver.1.0 2. EUTSpecification CharacteristicsDescription Product:TikiTorchBluetoothSpeaker ModelNumber: TT100,PBG-1280S,PB-21100501 Thesemodelsarethesameexceptthemodelnameandappearance,Here selectTT100fortest. Sample:1# DeviceType: BluetoothV5.3 DataRate: 1MbpsforGFSKmodulation 2Mbpsforπ/4-DQPSKmodulation 3Mbpsfor8DPSKmodulation BLE1MbpsforGFSKmodulation BLE2MbpsforGFSKmodulation Modulation: GFSK,π/4-DQPSK,8DPSK OperatingFrequency Range(s): 2402-2480MHz NumberofChannels: 79channelsforBT 40channelsforBLE TransmitPowerMax: -3.27dBm(0.000471W)forBT 5.03dBm(0.003221W)forBLE AntennaGain:-0.58dBi Powersupply: DC5VfromUSB DC3.7Vfrombattery Evaluationapplied:MPEEvaluation SAREvaluation ReportNo.EDG2306090193E00103RPage6of7Ver.1.0 3. TestRequirement RFEXPOSUREEVALUATION Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessof theCommission’sguidelines. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurementsorcomputer simulation.WhenroutineSARevaluationisnotrequired,portabletransmitterswithoutputpowergreaterthan theapplicablelowthresholdrequireSARevaluationtoqualityforTCBapproval. OneantennaisavailablefortheEUT.Theminimumseparationdistanceis5mm. ReportNo.EDG2306090193E00103RPage7of7Ver.1.0 4. MeasurementResult Antennagain:-0.58dBi Whenasinglemoduleworks,themeasurementresultsareasfollows: BT Transmit Frequency (MHz) Mode Measured Power (dBm) Tune upPower (dBm) Maxtuneup power (dBm) Calculation Result 1-gSAR 2402GFSK -4.8-5±1-4 0.12343 2441GFSK-4.7-5±1-40.12443 2480GFSK-4.56-5±1-40.12543 2402Π/4-DQPSK-3.73-4±1-30.15543 2441Π/4-DQPSK-3.69-4±1-30.15663 2480Π/4-DQPSK-3.95-4±1-30.15793 24028DPSK-3.44-4±1-30.15543 24418DPSK-3.27-4±1-30.15663 24808DPSK-3.52-4±1-30.15793 BLE Transmit Frequency (MHz) RateMode Measured Power (dBm) Tune upPower (dBm) Maxtuneup power (dBm) Calculation Result 1-gSAR 24021MbpsGFSK 4.954±15 0.98020413 24411MbpsGFSK4.624±150.98792713 24801MbpsGFSK4.824±150.99599203 24022MbpsGFSK5.085±161.23400383 24412MbpsGFSK4.734±150.98792713 24802MbpsGFSK4.964±150.99599203 AccordingtoKDB447498,nostand-alonerequiredforBT&BLEantenna,andnosimultaneousSAR measurementisrequired. ***EndofReport***

ReportNo.EDG2306090193E00101RPage1of73Ver.1.0 TESTREPORT ProductName：TikiTorchBluetoothSpeaker ModelNumber：TT100,PBG-1280S,PB-21100501 FCCID：2ALZLTT100TIKITORCH Preparedfor:GoldwoodSound,Inc. Address:9333OsoAve.Chatsworth,CA91311 Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2306090193E00101R Date(s)ofTests:Jun09,2023toJun26,2023 Dateofissue:Jun26,2023 $ 二维码 $ ReportNo.EDG2306090193E00101RPage2of73Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION..........................................................................................................................................3 2EUTTECHNICALDESCRIPTION.......................................................................................................................................5 3SUMMARYOFTESTRESULT.............................................................................................................................................6 4TESTMETHODOLOGY........................................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS.............................................................................................7 4.2MEASUREMENTEQUIPMENTUSED.........................................................................................................................7 4.3DESCRIPTIONOFTESTMODES.................................................................................................................................8 4.4TABLEOFPARAMETERSOFTEXTSOFTWARESETTING....................................................................................8 5FACILITIESANDACCREDITATIONS................................................................................................................................9 5.1FACILITIES.....................................................................................................................................................................9 5.2EQUIPMENT...................................................................................................................................................................9 5.3LABORATORYACCREDITATIONSANDLISTINGS.................................................................................................9 6TESTSYSTEMUNCERTAINTY.........................................................................................................................................10 7SETUPOFEQUIPMENTUNDERTEST............................................................................................................................11 7.1RADIOFREQUENCYTESTSETUP1.........................................................................................................................11 7.2RADIOFREQUENCYTESTSETUP2.........................................................................................................................11 7.3CONDUCTEDEMISSIONTESTSETUP....................................................................................................................13 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM....................................................................................14 7.5SUPPORTEQUIPMENT...............................................................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS.....................................................................................................15 8.1StandardApplicable........................................................................................................................................................15 8.2EUTPseudorandomFrequencyHoppingSequence.......................................................................................................15 8.3EqualHoppingFrequencyUse.......................................................................................................................................16 8.4FrequencyHoppingSystem............................................................................................................................................16 9TESTREQUIREMENTS......................................................................................................................................................17 9.120DB&99%BANDWIDTH............................................................................................................................................17 9.2CARRIERFREQUENCYSEPARATION.....................................................................................................................29 9.3NUMBEROFHOPPINGFREQUENCIES...................................................................................................................32 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)................................................................................................35 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER...............................................................................................41 9.6CONDUCTEDSUPRIOUSEMISSION........................................................................................................................47 9.7RADIATEDSPURIOUSEMISSION............................................................................................................................57 9.8CONDUCTEDEMISSIONTEST.................................................................................................................................68 9.9ANTENNAAPPLICATION...........................................................................................................................................71 ReportNo.EDG2306090193E00101RPage3of73Ver.1.0 1TESTRESULTCERTIFICATION Applicant:GoldwoodSou…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) NOTE:As the antenna belongs to the dual-antenna parallel structure, the whole dual- antenna parallel structure is evaluated together when testing the antenna gain. Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

FCCID:2ALZLTT100TIKITORCH
