AVENIR TELECOM Address: 208, Boulevard de Plombieres 13014 Marseille-FRANCE Email: [email protected] TEL: 33（0）4 88 00 60 00 Pr oduct Similar ity Declar ation Date: 2020-05-19 Dear Sir/Madam, We, AVENIR TELECOM, hereby declare that we have a product named as Feature phones, (Model number: M1, FCC ID: 2AM4J-M1) was tested by BACL, Meanwhile, for our marketing purpose, we would like to list a series model (M1SC, UPENM1SCXXXX, M1SCXXXX, UPENM1SCXXX, M1SCXXX, UPENM1BXXX, M1BXXX, UPENM1BXX, M1BXX) on reports and cert, all the models are identical in schematics, they only have different name. No other changes are made on them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Eric Ren General Manager of China ofiice

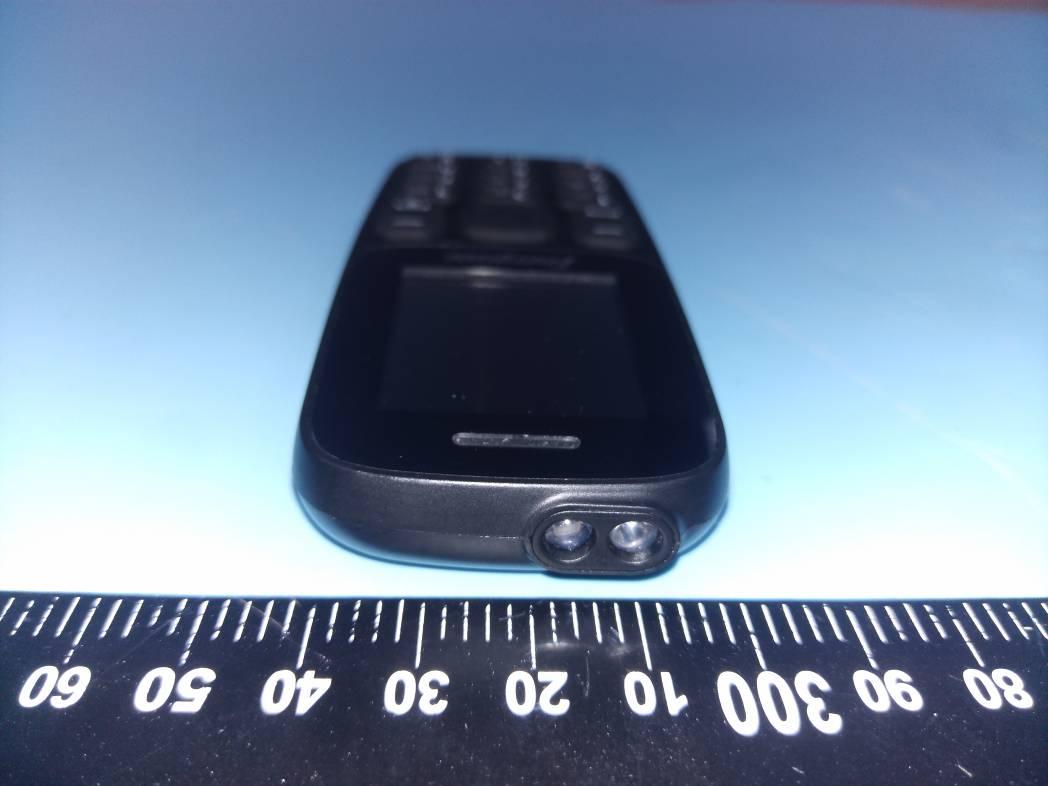

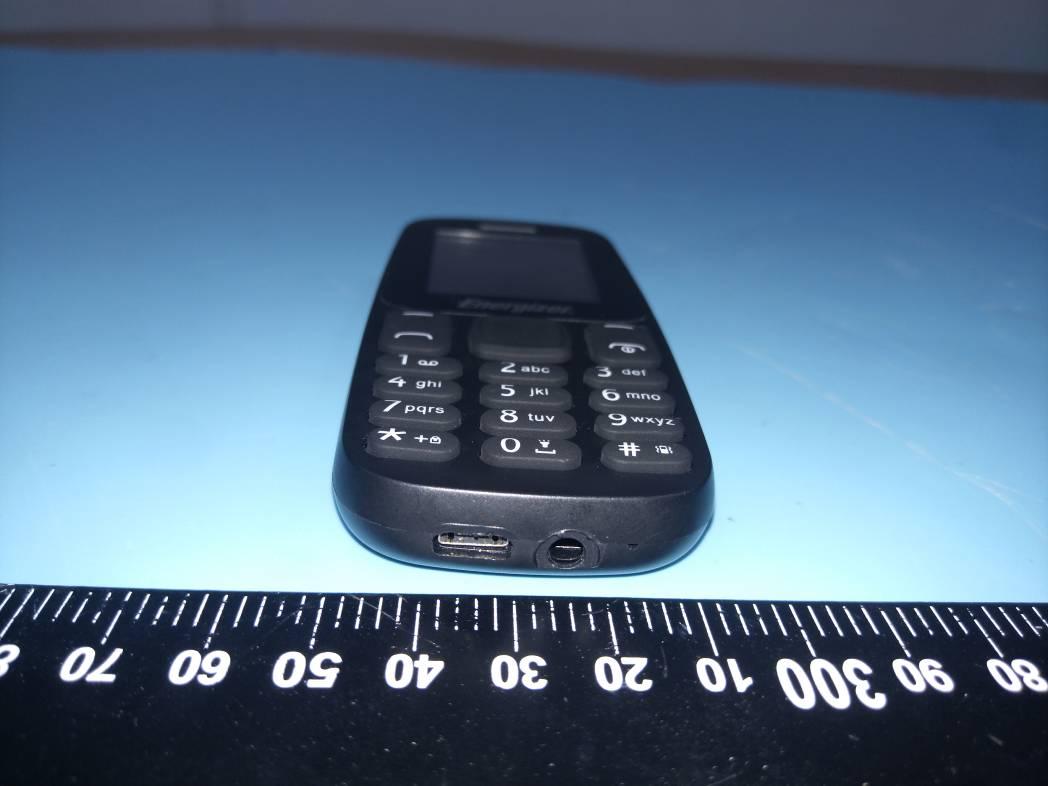

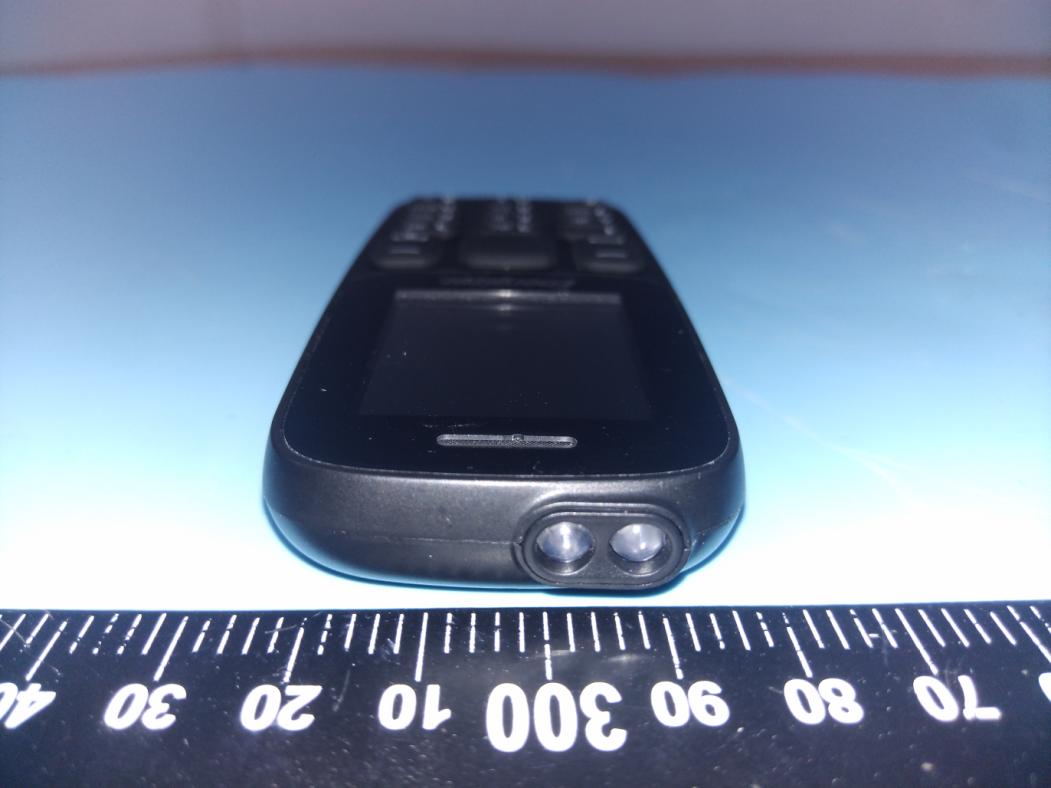

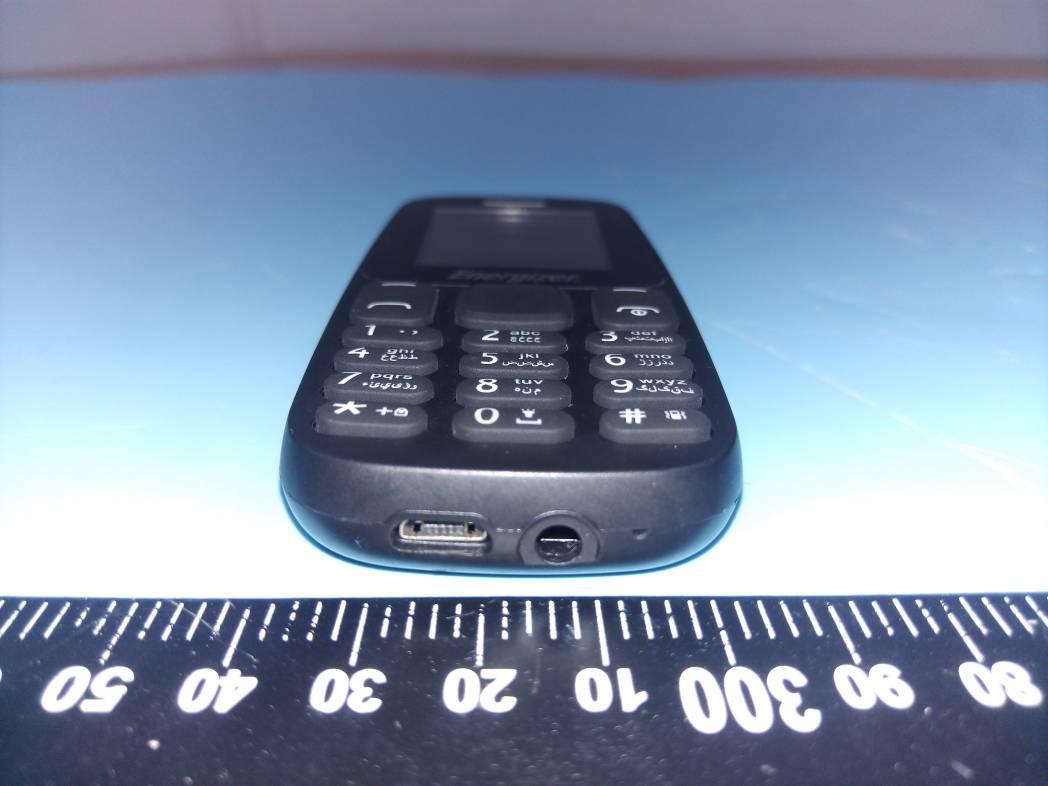

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS For Model:M1 For Model:M1SC Adapter

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS For Model: M1 GSM Antenna For Model:M1SC GSM Antenna BT Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For AVENIR TELECOM 208, Boulevard de Plombieres 13014 Marseille-France FCC ID: 2AM4J-M1 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : F e a t u r e p h o n e s Report Number: RSZ200420001-00B Report Date: 2020-06-03 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B FCC Part 15.247 Page 2 of 30 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.933 --- PASS 2441 0.987 --- PASS 2480 0.969 --- PASS 2DH1 Ant1 2402 1.260 --- PASS 2441 1.266 --- PASS 2480 1.296 --- PASS 3DH1 Ant1 2402 1.290 --- PASS 2441 1.293 --- PASS 2480 1.296 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix C: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 5.29 <=20.97 PASS 2441 4.27 <=20.97 PASS 2480 4.05 <=20.97 PASS 2DH1 Ant1 2402 6.56 <=20.97 PASS 2441 5.38 <=20.97 PASS 2480 4.78 <=20.97 PASS 3DH1 Ant1 2402 6.76 <=20.97 PASS 2441 5.86 <=20.97 PASS 2480 5.30 <=20.97 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix D: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1 >=0.658 PASS 2DH1 Ant1 Hop 1 >=0.844 PASS 3DH1 Ant1 Hop 1.33 >=0.862 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix E: Time of occupancy Test Result Test Mode Antenna Channel Burst Width [ms] Total Hops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.39 290 0.112 <=0.4 PASS DH3 Ant1 Hop 1.64 110 0.18 <=0.4 PASS DH5 Ant1 Hop 2.88 90 0.259 <=0.4 PASS 2DH1 Ant1 Hop 0.38 290 0.11 <=0.4 PASS 2DH3 Ant1 Hop 1.63 140 0.228 <=0.4 PASS 2DH5 Ant1 Hop 2.86 90 0.258 <=0.4 PASS 3DH1 Ant1 Hop 0.38 320 0.121 <=0.4 PASS 3DH3 Ant1 Hop 1.62 130 0.211 <=0.4 PASS 3DH5 Ant1 Hop 2.86 110 0.315 <=0.4 PASS Note 1：A period time=0.4*79=31.6(S), Result=Burst Width*Totalhops Note 2: Total hops=Hopping Number in 3.16s*10 Note 3: Hopping Number in 3.16s=Total of highest signals in 3.16s Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 2DH1_Ant1_Hop 2DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 2DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 3DH1_Ant1_Hop 3DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 3DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix F: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B Appendix G: Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200420001-00B 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
