2AM6L-M1NTKHMDVR

M1N-TKH0401 User Manual M1N-TKH0401 User Manual （ V1.0 ） Streamax Technology Co., Lt M1N-TKH0401 User Manual 1Overview 《 M1N-TKH0401 User Manual 》 It aims to better understand the powerful functions of the equipment system and how to guide us to fully understand and use these functions more efficiently. 1.1 System Introduction M1N-TKH0401 is a cost-effective device specially developed for mobile video surveillance and remote video surveillance, featuring high functional scalability. It is equipped with a high-speed processor and an embedded operating system, integrating state-of-the-art H.265 video compression/decompression technology and GPS/BD positioning technology in the IT industry. It supports video recording in 1080p, 720p, WD1, WHD1, WCIF, D1, HD1, and CIF formats. In addition, it supports extended AI intelligent algorithms to report alarms by using the Advanced Driver Assistance System (ADAS) and implement Blind Spot Detection (BSD) and Driver Status Monitor (DSM), effectively assisting drivers in safe driving and reducing traffic accidents. 1.2 Functional Overview M1N-TKH0401 is a cost-effective intelligent device specially developed for remote video and driving safety monitoring of commercial vehicles.Its functional characteristics are as follows: M1N-TKH0401 User Manual Embedded Linux operating system Extended AI intelligent algorithms H.265/H.264 encoding/decoding to improve the memory space utilization Dual SD cards Good anti-vibration performance, simple design, flexible and easy installation, and high reliability, providing comprehensive functions 2 Display Operation The operation of parameter configuration, preview, playback and data export of the host can be carried out through the CP4 control panel, freight operation and maintenance treasure or IE terminal. CP4 can be operated by full-screen touch or connected with a mouse. 2.1 Button Control ButtonDescription ReplayButtons for reporting stops with special equipment for school buses. AnnounceThe school bus special equipment report button, press the stop button on the direct interface to enter the stop report interface. Number 1-0 Press 1-9 to display channels 1-9 when you are currently in the direct interface, and press 0 to display the next channel. Number input key ArrowDirection selection key EnterConfirm selection key ExitExit the current menu M1N-TKH0401 User Manual 2.2 Mouse control You can connect a mouse through the USB port to operate on the CP4 panel, and the mouse cursor will appear on the screen after connection. When the device is in four screens/nine screens, double-click the left mouse button to zoom into a single screen display; Click the left mouse button to select or perform other operations; ； Click the right mouse button to pop up the bottom menu bar. 2.3 Interface Operation When using CP4, you can directly click the corresponding option on the screen with your hand, or you can click with the mouse. To return to the previous interface, click the return button in the upper right corner of the current interface 。 3 Function Instructions 3.1 Pass-through Interface After the device is turned on, it enters the video pass-through preview interface by default. In the M1N-TKH0401 User Manual pass-through interface, touch the screen (or click the right button of the mouse), and a menu will pop up at the bottom. [Playback], [Biz Menu], [Login Profile Picture].  Click anywhere on the screen (or click the right mouse button) to pop up the bottom menu bar;  The video through preview interface can be superimposed: time, vehicle speed, license plate, positioning information, alarm status, channel name, vehicle self-number, ACC information; whether the superimposed information is displayed and the display position can be configured in the parameter settings;  Single screen: Click [Single screen] to switch the video channel; Four-screen/nine-screen: After selecting thefour-screen/nine-screen layout, double-click a video screen to zoom in to a single-screendisplay, and click again to return to the four-screen/nine-screen layout. 3.1.1 Single Screen Single Screen: Click [Single screen] on the pass-through interface, and the pass-through interface will display a single channel video. Double-click the screen to return to the four-screen layout. M1N-TKH0401 User Manual 3.1.2 Four Screens Four Screens: Click [Four screens] on the pass-through interface, the pass-through interface displays 4 channels of video, and only the channel connected to the camera will have the screen display. As shown below. Double-click a channel on the screen to zoom in and display a channel individually, and double-click again to return to the four screens. 3.1.3 Nine Screens Nine Screens: Click [Nine screens] on the direct interface, the direct interface displays 9 channels of video, and only the channel connected to the camera will have the screen display. As shown below. Double-click a channel on the screen to zoom in and display a channel individually, and double-click again to return to the nine screens. M1N-TKH0401 User Manual 3.1.4Replay Playback: Click [Playback] on the direct interface to directly enter the playback interface, as shown in the figure below: 3.1.5Biz Menu Biz Menu ： Click [Biz Menu] on the direct interface to enter the following interface: 3.1.6Log in In the direct interface, touch the screen (or clickthe right mouse button), a menu will pop up at the bottom, and click the avatar button on the far right to log in and enter the setting interface: M1N-TKH0401 User Manual 3.2 System Message In the direct interface, click [Login Profile]>[System] to enter the following interface: M1N-TKH0401 User Manual 3.3 Video Search 3.3.1Video Query Click [Login Avatar]>[Video Search] on the direct interface to enter the video query interface (operate when the SD card exists), the interface is as shown in the figure below: 3.3.2Video Playback In the video query result interface, click Playback directly to playback the video …

Text truncated - open the document above for the full version.

Streamax Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-27 Subject; Request for Long Term Confidentiality FCC ID: 2AM6L-M1NTKH To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Tune-up Operational Description Software security operational description Part List It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Haitang Cao Title: Quality Manager

StreamaxTechnologyCo.,Ltd. 21-23/F,BuildingB1,Zhiyuan,No.1001,XueyuanAvenue, NanshanDistrict,Shenzhen,Guangdong,518055China AgentAuthorization Company:StreamaxTechnologyCo.,Ltd. Address:21-23/F,BuildingB1,Zhiyuan,No.1001,XueyuanAvenue, NanshanDistrict,Shenzhen,Guangdong,518055China ProductName:MDVR ModelNumber(s):M1N-TKH0401 ProductDescription:MDVR WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-05-27 Name:HaitangCao Title:QualityManager Company:StreamaxTechnologyCo.,Ltd.

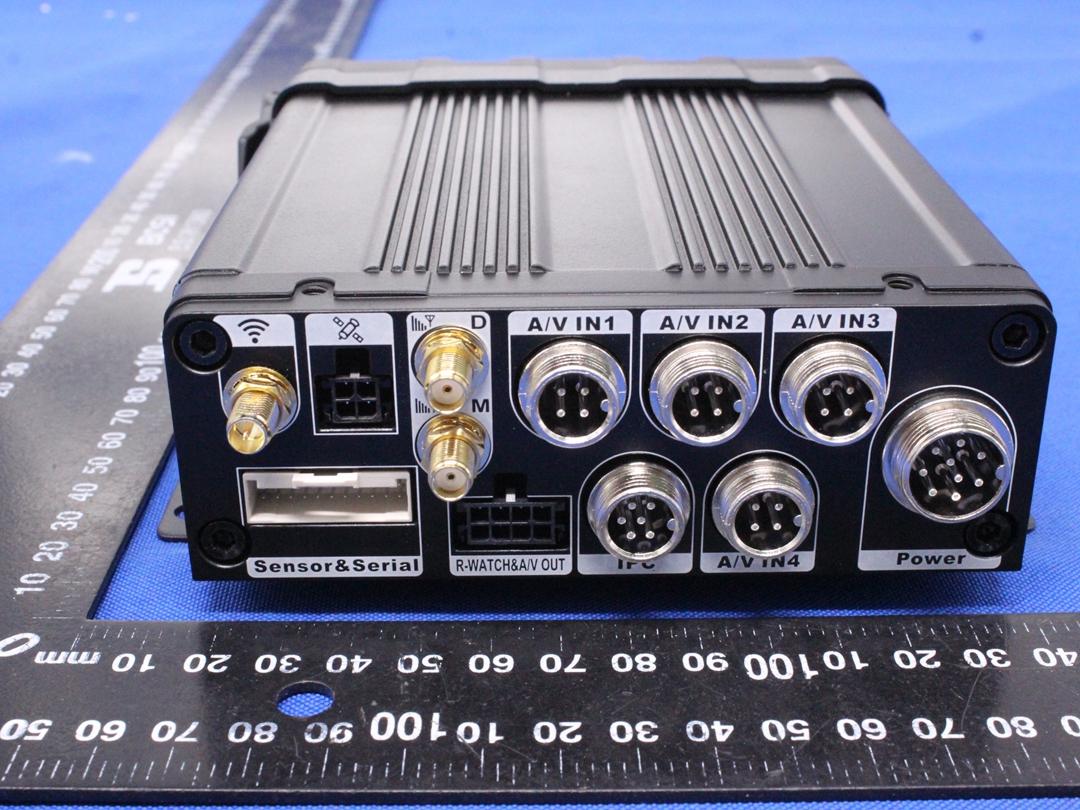

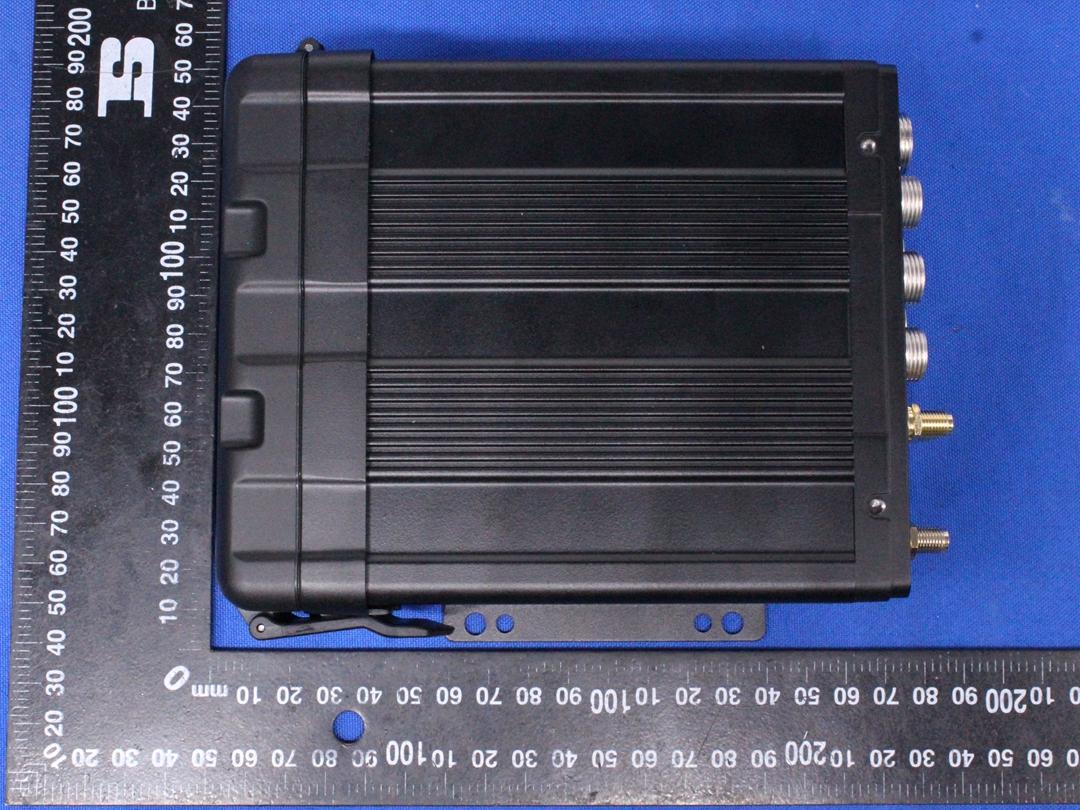

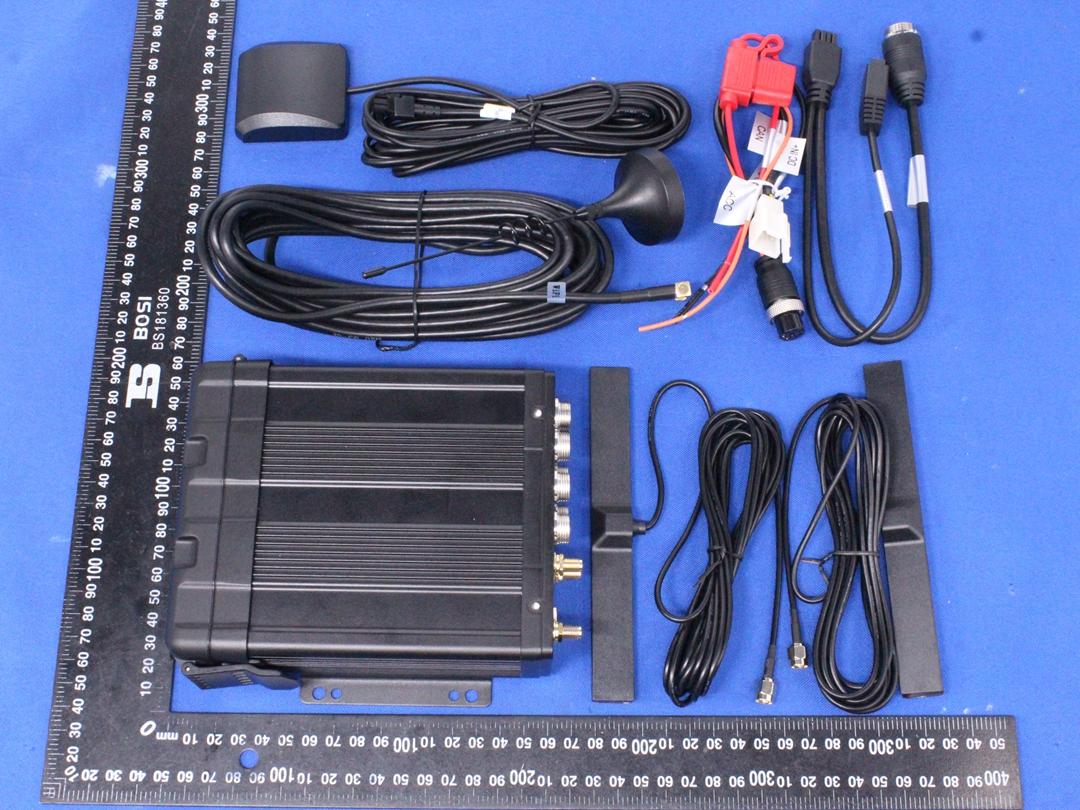

Page 1 of 4 Appendix C: Photographs of EUT Product: MDVR Model: M1N-TKH0401 External Photos WCDMA/LTE Main ANT WIFI ANT LTE DIV ANT Page 2 of 4 Page 3 of 4 Page 4 of 4

Size: Label and Location Model:M1N-TKH0401 Location

Page 1 of 8 Appendix C: Photographs of EUT Product: MDVR Model: M1N-TKH0401 Internal Photos Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) For 2.4G WIFI: The maximum output power for antenna is 14.99dBm (31.55mW) at 2437MHz, 1.60dBi antenna gain(with 1.45 numeric antenna gain.) For 5G WIFI: The maximum output power for antenna is 8.006dBm (6.32mW) at 5745MHz, 4.87dBi antenna gain(with 3.07 numeric antenna gain.) For WCDMA Band V: The maximum output power for antenna is 23.21dBm (209.41mW) at 826.4MHz, 1.90dBi antenna gain(with 1.55 numeric antenna gain.) For WCDMA Band IV: The maximum output power for antenna is 23.21dBm (209.41mW) at 1712.4MHz, 1.27dBi antenna gain(with 1.34 numeric antenna gain.) For WCDMA Band II: The maximum output power for antenna is 23.15dBm (206.54mW) at 1907.6MHz, 0.54dBi antenna gain(with 1.13 numeric antenna gain.) For LTE Band 2: The maximum output power for antenna is 23.67dBm (232.81mW) at 1850.7MHz, 0.54dBi antenna gain(with 1.13 numeric antenna gain.) For LTE Band 4: The maximum output power for antenna is 23.38dBm (217.77mW) at 1732.5MHz, 1.27dBi antenna gain(with 1.34 numeric antenna gain.) For LTE Band 5: The maximum output power for antenna is 23.07dBm (202.77mW) at 824.7MHz, 1.90dBi antenna gain(with 1.55 numeric antenna gain.) For LTE Band 12: The maximum output power for antenna is 23.93dBm (247.17mW) at 715.3MHz, 2.01dBi antenna gain(with 1.59 numeric antenna gain.) For LTE Band 13: The maximum output power for antenna is 24.15dBm (260.02mW) at 782MHz, 1.02dBi antenna gain(with 1.26 numeric antenna gain.) For LTE Band 14: The maximum output power for antenna is 24.28dBm (267.92mW) at 793MHz, 1.99dBi antenna gain(with 1.58 numeric antenna gain.) For LTE Band 66: The maximum output power for antenna is 23.33dBm (215.28mW) at 1745MHz, 1.27dBi antenna gain(with 1.34 numeric antenna gain.) For LTE Band 71: The maximum output power for antenna is 23.44dBm (220.80mW) at 693MHz, 0.57dBi antenna gain(with 1.14 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Mode Power(mW) numeric antenna gain Power density (mW/cm 2 ) Limit (mW/cm 2 ) Result 2.4G WIFI 31.55 1.45 0.009104 1.0 PASS 5G WIFI 6.32 3.07 0.003861 WCDMA Band V 209.41 1.55 0.064593 WCDMA Band IV 209.41 1.34 0.055841 WCDMA Band II 206.54 1.13 0.046445 LTE Band 2 232.81 1.13 0.052352 LTE Band 4 217.77 1.34 0.058071 LTE Band 5 202.77 1.55 0.062544 LTE Band 12 247.17 1.59 0.078207 LTE Band 13 260.02 1.26 0.065197 LTE Band 14 267.92 1.58 0.084239 LTE Band 66 215.28 1.34 0.057407 LTE Band 71 220.80 1.14 0.050091

Report No.: TCT210423E045 Page 1 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Modulati on Channel RB Configuration Average Power [dBm] E.i.r.p [dBm] Verdict Size Offset QPSK LCH 1 0 23.67 24.21 PASS 1 3 23.55 24.09 PASS 1 5 23.51 24.05 PASS 3 0 23.17 23.71 PASS 3 2 23.14 23.68 PASS 3 3 23.16 23.70 PASS 6 0 21.94 22.48 PASS MCH 1 0 23.12 23.66 PASS 1 3 23.26 23.80 PASS 1 5 23.10 23.64 PASS 3 0 23.15 23.69 PASS 3 2 23.12 23.66 PASS 3 3 23.17 23.71 PASS 6 0 21.96 22.50 PASS HCH 1 0 22.67 23.21 PASS 1 3 22.72 23.26 PASS 1 5 22.56 23.10 PASS 3 0 22.58 23.12 PASS 3 2 22.68 23.22 PASS 3 3 22.67 23.21 PASS 6 0 21.63 22.17 PASS 16QAM LCH 1 0 22.18 22.72 PASS 1 3 22.36 22.90 PASS 1 5 22.16 22.70 PASS 3 0 21.94 22.48 PASS 3 2 21.79 22.33 PASS 3 3 21.71 22.25 PASS 6 0 21.03 21.57 PASS MCH 1 0 22.14 22.68 PASS 1 3 22.19 22.73 PASS 1 5 22.11 22.65 PASS 3 0 21.87 22.41 PASS 3 2 21.85 22.39 PASS Report No.: TCT210423E045 Page 2 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3 3 21.84 22.38 PASS 6 0 21.18 21.72 PASS HCH 1 0 21.97 22.51 PASS 1 3 22.16 22.70 PASS 1 5 22.43 22.97 PASS 3 0 21.50 22.04 PASS 3 2 21.33 21.87 PASS 3 3 21.15 21.69 PASS 6 0 21.05 21.59 PASS Channel Bandwidth: 3 MHz Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Average Power [dBm] E.i.r.p [dBm] Verdict Size Offset QPSK LCH 1 0 22.76 23.30 PASS 1 7 23.08 23.62 PASS 1 14 23.07 23.61 PASS 8 0 21.83 22.37 PASS 8 4 21.82 22.36 PASS 8 7 21.88 22.42 PASS 15 0 21.91 22.45 PASS MCH 1 0 22.94 23.48 PASS 1 7 22.65 23.19 PASS 1 14 22.95 23.49 PASS 8 0 21.87 22.41 PASS 8 4 21.86 22.40 PASS 8 7 21.97 22.51 PASS 15 0 21.82 22.36 PASS HCH 1 0 22.68 23.22 PASS 1 7 22.40 22.94 PASS 1 14 22.64 23.18 PASS 8 0 21.81 22.35 PASS 8 4 21.71 22.25 PASS 8 7 21.52 22.06 PASS 15 0 21.54 22.08 PASS 16QAM LCH 1 0 22.13 22.67 PASS 1 7 21.86 22.40 PASS 1 14 21.63 22.17 PASS 8 0 20.70 21.24 PASS 8 4 21.35 21.89 PASS 8 7 21.32 21.86 PASS Report No.: TCT210423E045 Page 3 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 15 0 21.07 21.61 PASS MCH 1 0 21.71 22.25 PASS 1 7 22.20 22.74 PASS 1 14 22.16 22.70 PASS 8 0 20.95 21.49 PASS 8 4 20.95 21.49 PASS 8 7 20.96 21.50 PASS 15 0 20.86 21.40 PASS HCH 1 0 21.49 22.03 PASS 1 7 21.31 21.85 PASS 1 14 21.37 21.91 PASS 8 0 20.88 21.42 PASS 8 4 20.88 21.42 PASS 8 7 20.71 21.25 PASS 15 0 20.51 21.05 PASS Channel Bandwidth: 5 MHz Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm] E.i.r.p [dBm] Verdict Size Offset QPSK LCH 1 0 22.98 23.52 PASS 1 12 22.87 23.41 PASS 1 24 22.72 23.26 PASS 12 0 21.73 22.27 PASS 12 6 21.72 22.26 PASS 12 13 21.71 22.25 PASS 25 0 21.82 22.36 PASS MCH 1 0 22.97 23.51 PASS 1 12 22.76 23.30 PASS 1 24 22.96 23.50 PASS 12 0 21.81 22.35 PASS 12 6 21.80 22.34 PASS 12 13 21.90 22.44 PASS 25 0 21.86 22.40 PASS HCH 1 0 22.62 23.16 PASS 1 12 22.39 22.93 PASS 1 24 22.65 23.19 PASS 12 0 21.72 22.26 PASS 12 6 21.67 22.21 PASS 12 13 21.52 22.06 PASS 25 0 21.55 22.09 PASS Report No.: TCT210423E045 Page 4 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 16QAM LCH 1 0 21.39 21.93 PASS 1 12 21.44 21.98 PASS 1 24 21.46 22.00 PASS 12 0 20.80 21.34 PASS 12 6 20.80 21.34 PASS 12 13 20.80 21.34 PASS 25 0 20.76 21.30 PASS MCH 1 0 21.62 22.16 PASS 1 12 21.53 22.07 PASS 1 24 21.67 22.21 PASS 12 0 20.72 21.26 PASS 12 6 20.72 21.26 PASS 12 13 20.89 21.43 PASS 25 0 20.83 21.37 PASS HCH 1 0 21.66 22.20 PASS 1 12 21.44 21.98 PASS 1 24 21.54 22.08 PASS 12 0 20.70 21.24 PASS 12 6 20.48 21.02 PASS 12 13 20.46 21.00 PASS 25 0 20.38 20.92 PASS Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Average Power [dBm] E.i.r.p [dBm] Verdict Size Offset QPSK LCH 1 0 22.96 23.50 PASS 1 24 22.97 23.51 PASS 1 49 22.58 23.12 PASS 25 0 21.80 22.34 PASS 25 12 21.88 22.42 PASS 25 25 21.84 22.38 PASS 50 0 21.83 22.37 PASS MCH 1 0 23.26 23.80 PASS 1 24 22.99 23.53 PASS 1 49 23.11 23.65 PASS 25 0 21.76 22.30 PASS 25 12 21.75 22.29 PASS 25 25 21.92 22.46 PASS 50 0 21.82 22.36 PASS HCH 1 0 22.70 23.24 PASS Report No.: TCT210423E045 Page 5 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1 24 22.61 23.15 PASS 1 49 22.59 23.13 PASS 25 0 21.64 22.18 PASS 25 12 21.64 22.18 PASS 25 25 21.45 21.99 PASS 50 0 21.72 22.26 PASS 16QAM LCH 1 0 21.75 22.29 PASS 1 24 22.05 22.59 PASS 1 49 21.29 21.83 PASS 25 0 20.94 21.48 PASS 25 12 20.83 21.37 PASS 25 25 20.75 21.29 PASS 50 0 20.82 21.36 PASS MCH 1 0 21.84 22.38 PASS 1 24 21.98 22.52 PASS 1 49 22.41 22.95 PASS 25 0 20.96 21.50 PASS 25 12 20.95 21.49 PASS 25 25 21.06 21.60 PASS 50 0 20.86 21.40 PASS HCH 1 0 22.41 22.95 PASS 1 24 22.14 22.68 PASS 1 49 21.55 22.09 PASS 25 0 20.61 21.15 PASS 25 12 21.13 21.67 PASS 25 25 20.74 21.28 PASS 50 0 20.51 21.05 PASS Channel Bandwidth: 15 MHz Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Average Power [dBm] E.i.r.p [dBm] Verdict Size Offset QPSK LCH 1 0 22.70 23.24 PASS 1 37 22.60 23.14 PASS 1 74 22.57 23.11 PASS 37 0 21.75 22.29 PASS 37 18 21.74 22.28 PASS 37 38 21.77 22.31 PASS 75 0 21.76 22.30 PASS MCH 1 0 22.85 23.39 PASS 1 37 22.80 23.34 PASS Report No.: TCT210423E045 Page 6 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1 74 23.03 23.57 PASS 37 0 21.79 22.33 PASS 37 18 21.78 22.32 PASS 37 38 21.77 22.31 PASS 75 0 21.77 22.31 PASS HCH 1 0 22.53 23.07 PASS 1 37 22.39 22.93 PASS 1 74 22.17 22.71 PASS 37 0 21.55 22.09 PASS 37 18 21.54 22.08 PASS 37 38 21.53 22.07 PASS 75 0 21.61 22.15 PASS 16QAM LCH 1 0 21.62 22.16 PASS 1 37 21.60 22.14 PASS 1 74 21.37 21.91 PASS 37 0 21.72 22.26 PASS 37 18 21.80 22.34 PASS 37 38 21.78 22.32 PASS 75 0 20.75 21.29 PASS MCH 1 0 21.20 21.74 PASS 1 37 21.58 22.…

Text truncated - open the document above for the full version.

Report No.: TCT210423E045 Page 41 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 3 MHz)_HCH_16QAM_1RB#14 (Channel Bandwidth: 3 MHz)_HCH_16QAM_8RB#0 (Channel Bandwidth: 3 MHz)_HCH_16QAM_8RB#4 Report No.: TCT210423E045 Page 42 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 3 MHz)_HCH_16QAM_8RB#7 (Channel Bandwidth: 3 MHz)_HCH_16QAM_15RB#0 Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#0 Report No.: TCT210423E045 Page 43 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#12 (Channel Bandwidth: 5 MHz)_LCH_QPSK_1RB#24 (Channel Bandwidth: 5 MHz)_LCH_QPSK_12RB#0 Report No.: TCT210423E045 Page 44 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_LCH_QPSK_12RB#6 (Channel Bandwidth: 5 MHz)_LCH_QPSK_12RB#13 (Channel Bandwidth: 5 MHz)_LCH_QPSK_25RB#0 Report No.: TCT210423E045 Page 45 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#12 (Channel Bandwidth: 5 MHz)_MCH_QPSK_1RB#24 Report No.: TCT210423E045 Page 46 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_QPSK_12RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_12RB#6 (Channel Bandwidth: 5 MHz)_MCH_QPSK_12RB#13 Report No.: TCT210423E045 Page 47 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#12 Report No.: TCT210423E045 Page 48 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_HCH_QPSK_1RB#24 (Channel Bandwidth: 5 MHz)_HCH_QPSK_12RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_12RB#6 Report No.: TCT210423E045 Page 49 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_HCH_QPSK_12RB#13 (Channel Bandwidth: 5 MHz)_HCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#0 Report No.: TCT210423E045 Page 50 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#12 (Channel Bandwidth: 5 MHz)_LCH_16QAM_1RB#24 (Channel Bandwidth: 5 MHz)_LCH_16QAM_12RB#0 Report No.: TCT210423E045 Page 51 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_LCH_16QAM_12RB#6 (Channel Bandwidth: 5 MHz)_LCH_16QAM_12RB#13 (Channel Bandwidth: 5 MHz)_LCH_16QAM_25RB#0 Report No.: TCT210423E045 Page 52 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#12 (Channel Bandwidth: 5 MHz)_MCH_16QAM_1RB#24 Report No.: TCT210423E045 Page 53 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_16QAM_12RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_12RB#6 (Channel Bandwidth: 5 MHz)_MCH_16QAM_12RB#13 Report No.: TCT210423E045 Page 54 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_MCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#12 Report No.: TCT210423E045 Page 55 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#24 (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#6 Report No.: TCT210423E045 Page 56 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#13 (Channel Bandwidth: 5 MHz)_HCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#0 Report No.: TCT210423E045 Page 57 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#0 Report No.: TCT210423E045 Page 58 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Report No.: TCT210423E045 Page 59 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#49 Report No.: TCT210423E045 Page 60 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#25 Report No.: TCT210423E045 Page 61 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_MCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#24 Report No.: TCT210423E045 Page 62 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#12 Report No.: TCT210423E045 Page 63 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#0 Report No.: TCT210423E045 Page 64 …

Text truncated - open the document above for the full version.

Report No.: TCT210423E045 Page 73 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#37 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#74 Report No.: TCT210423E045 Page 74 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#18 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#38 Report No.: TCT210423E045 Page 75 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#37 Report No.: TCT210423E045 Page 76 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#74 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#18 Report No.: TCT210423E045 Page 77 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#38 (Channel Bandwidth:15 MHz)_HCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#0 Report No.: TCT210423E045 Page 78 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#74 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#0 Report No.: TCT210423E045 Page 79 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#18 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#38 (Channel Bandwidth:15 MHz)_LCH_16QAM_75RB#0 Report No.: TCT210423E045 Page 80 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#74 Report No.: TCT210423E045 Page 81 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#18 (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#38 Report No.: TCT210423E045 Page 82 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_MCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#37 Report No.: TCT210423E045 Page 83 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#74 (Channel Bandwidth:15 MHz)_HCH_16QAM_37RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_37RB#18 Report No.: TCT210423E045 Page 84 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:15 MHz)_HCH_16QAM_37RB#38 (Channel Bandwidth:15 MHz)_HCH_16QAM_75RB#0 Channel Bandwidth: 20 MHz (Channel Bandwidth:20 MHz)_LCH_QPSK_1RB#0 Report No.: TCT210423E045 Page 85 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_LCH_QPSK_1RB#49 (Channel Bandwidth:20 MHz)_LCH_QPSK_1RB#99 (Channel Bandwidth:20 MHz)_LCH_QPSK_50RB#0 Report No.: TCT210423E045 Page 86 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_LCH_QPSK_50RB#25 (Channel Bandwidth:20 MHz)_LCH_QPSK_50RB#50 (Channel Bandwidth:20 MHz)_LCH_QPSK_100RB#0 Report No.: TCT210423E045 Page 87 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth:20 MHz)_MCH_QPSK_1RB#49 (Channel Bandwidth:20 MHz)_MCH_QPSK_1RB#99 Report No.: TCT210423E045 Page 88 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_MCH_QPSK_50RB#0 (Channel Bandwidth:20 MHz)_MCH_QPSK_50RB#25 (Channel Bandwidth:20 MHz)_MCH_QPSK_50RB#50 Report No.: TCT210423E045 Page 89 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_MCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth:20 MHz)_HCH_QPSK_1RB#49 Report No.: TCT210423E045 Page 90 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_HCH_QPSK_1RB#99 (Channel Bandwidth:20 MHz)_HCH_QPSK_50RB#0 (Channel Bandwidth:20 MHz)_HCH_QPSK_50RB#25 Report No.: TCT210423E045 Page 91 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_HCH_QPSK_50RB#50 (Channel Bandwidth:20 MHz)_HCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_LCH_16QAM_1RB#0 Report No.: TCT210423E045 Page 92 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_LCH_16QAM_1RB#49 (Channel Bandwidth:20 MHz)_LCH_16QAM_1RB#99 (Channel Bandwidth:20 MHz)_LCH_16QAM_50RB#0 Report No.: TCT210423E045 Page 93 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_LCH_16QAM_50RB#25 (Channel Bandwidth:20 MHz)_LCH_16QAM_50RB#50 (Channel Bandwidth:20 MHz)_LCH_16QAM_100RB#0 Report No.: TCT210423E045 Page 94 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth:20 MHz)_MCH_16QAM_1RB#49 (Channel Bandwidth:20 MHz)_MCH_16QAM_1RB#99 Report No.: TCT210423E045 Page 95 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth:20 MHz)_MCH_16QAM_50RB#0 (Channel Bandwidth:20 MHz)_MCH_16QAM_50RB#25 (Channel Bandwidth:20 MHz)_MCH_16QAM_50RB#50 Report No.: TCT…

Text truncated - open the document above for the full version.

Report No.: TCT210423E045 Page 105 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_25RB#0 Report No.: TCT210423E045 Page 106 of 232 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com (Channel Bandwidth: 5 MHz)_LCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_25RB#…

Text truncated - open the document above for the full version.
