2AM6U-N910-1POS Terminal

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] D ate: 2022-3-21 To FEDERALCOMMUNICATIONSCOMMISSION AuthorizationandEvaluationDivision7435O aklandMillsRoad Columbia,MD21046 DearSir/Madam, We,Fujian Newland Payment Technology Co.,Ltd.,hereby authorize China Certification ICT Co.,Ltd(Dongguan) to act as a laboratory for testing and test report generation for the following project(s): (Product description:POS Terminal,Model:N910,FCCID:2AM6U-N910-1), Original Product description:POS Terminal, Original Model:N910, Original FCC ID:2AM6U-N910, The original test results are applicable and representative to the device. 1. The case and antenna have not changed 2. WWAN, BT, WIFI, the integrated module of the main control unit has not changed 3. Only changed the NFC chip and peripheral interface circuit Please contact me should there be need for any additional clarification or information. Sincerely, Signature Printed Name: Yonghong Zhuang Title:Certification manager

QA-FR-171-A Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] FCC Confidential Authorization Date: 2022-3- 21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AM6U-N910-1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Fujian Newland Payment Technology Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • BOM • Tune up • Software security statement The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Yonghong Zhuang Title:Certification manager

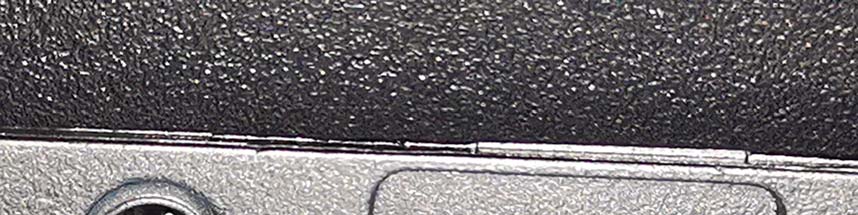

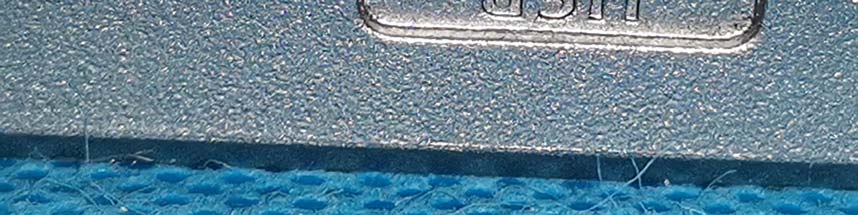

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Adapter 1# Adapter 2#

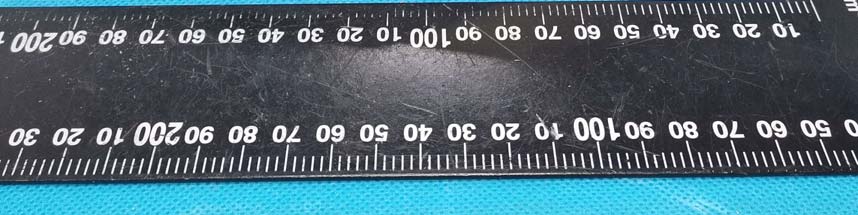

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS 2G/3G/4G Antenna Bluetooth/WiFi Antenna GPS Antenna NFC Antenna Battery 1# Battery 2#

SAR TEST REPORT Applicant: Fujian Newland Payment Technology Co.,Ltd. Address: No. B602, Building #1, Haixia Jingmao Plaza, Fuzhou Bonded Area 350015,Fuzhou, Fujian, China FCC ID: 2AM6U-N910-1 Product Name: POS Terminal Model Number: N910 Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliance with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR21120058-20A4 Date Of Issue: 2022-05-30 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR21120058-20A4 Page 2 of 88 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR(W/kg) Highest Reported 10g SAR(W/kg) Body-Supported (Gap 0mm) Limits (W/kg) Handheld (Gap 0mm) Limits (W/kg) GSM 850 0.68 1.6 0.33 4.0 PCS 1900 0.700.03 WCDMA Band 2 1.160.06 WCDMA Band 4 1.240.04 WCDMA Band 5 1.180.37 LTE Band 2 0.700.05 LTE Band 4 0.730.10 LTE Band 7 0.430.06 LTE Band 13 0.840.39 LTE Band 26&5 1.020.38 WLAN 2.4G 0.140.35 WLAN 5.2G 0.110.26 WLAN 5.3G 0.080.19 WLAN 5.6G 0.070.24 WLAN 5.8G 0.070.27 Maximum Simultaneous Transmission SAR Items Body-Supported (Gap 0mm) Limits (W/kg) Handheld (Gap 0mm) Limits (W/kg) Sum SAR(W/kg) 1.411.6 0.56 4.0 SPLSR N/A N/A N/A 0.04 EUT Received Date: 2022/01/04 Test Date: 2022/04/08-2022/04/09, 2022/05/11 Test Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR21120058-20A4 Page 3 of 88 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR21120058-20A4 Page 4 of 88 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 7 1.3 SAR LIMTS ........................................................................................................................................... 8 2. SAR MEASUREMENT SYSTEM ............................................................................................ 9 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 16 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 16 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 17 4.1 LIQUID VERIFICATION ...................................................................................................................... 17 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 21 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 22 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 31 5.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................... 31 5.2 CHEEK/TOUCH POSITION .................................................................................................................. 32 5.3 EAR/TILT POSITION ........................................................................................................................... 32 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 33 5.5 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 34 5.6 SAR EVALUATION PROCEDURE ....................................................................................................... 35 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 36 6.1 TEST PROCEDURE .............................................................................................................................. 36 6.2 DESCRIPTION OF TEST CONFIGURATION ......…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: CR21120058-20A4 Page 1 of 3 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: CR21120058-20A4 Page 2 of 3 Body Back Setup Photo(0mm) Handheld Left Setup Photo(0mm) Report No.: CR21120058-20A4 Page 3 of 3 Handheld Right Setup Photo(0mm) Handheld Top Setup Photo(0mm)

TEST REPORT Applicant: Fujian Newland Payment Technology Co.,Ltd. Address: No. B602, Building #1, Haixia Jingmao Plaza, Fuzhou Bonded Area 350015,Fuzhou, Fujian,China. FCC ID: 2AM6U-N910-1 Product Name: POS Terminal Model Number: N910 Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR21120058-00B Date Of Issue: 2022-01-26 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR21120058-00B Page 2 of 36 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR21120058-00B Page 3 of 36 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 17 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 17 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 18 3.3.1 Applicable Standard ..................................................................................................................................... 18 3.3.2 EUT Setup..................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.247 TEST REPORT For Fujian Newland Payment Technology Co.,Ltd. No.1,Rujiang XiRoad,Mawei District Newland, Fuzhou,Fujian,P.R.China Report Type: Original Report Product Name: Intelligent POS Terminal Re port Number: RXM170815054-00D Re port Date: 2017-10-03 Reviewed By: Jerry Zhang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2AM6U-N910 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM170815054-00D FCC Part 15.247 Page 2 of 57 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 10 EXTERNAL CABLE ...................................................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE ............................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 RESULT ..................................................................................................................................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a)– AC LINE CONDUCTED EMISSIONS ...................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 16 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 17 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 21 APPLICABLE STANDARD ............................................................................................................................................ 21 EUT SETUP ................................................................................................................................................................ 21 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 22 TEST PROCEDURE ....................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
