2AM6U-NAX800POS Terminal

Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] Date: 2023-11-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AM6U-NAX800) Fujian Newland Payment Technology Co.,Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Client’s signature Printed Name: Yonghong Zhuang Title:Certification manager Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] Date: 2023-11-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AM6U-NAX800) Fujian Newland Payment Technology Co.,Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Client’s signature Printed Name: Yonghong Zhuang Title:Certification manager

QA-FR-170-B Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] FCC Authorization Date: 2023-09-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Fujian Newland Payment Technology Co.,Ltd., Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Yonghong Zhuang Title:Certification manager

QA-FR-172-A Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] FCC Confidential Authorization Date: 2023-09-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AM6U-NAX800 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Fujian Newland Payment Technology Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • BOM • Tune-Up • U-NII Device Security Declaration As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Printed Name: Yonghong Zhuang Title:Certification manager

Fujian Newland Payment Technology Co.,Ltd. ADD: No. B602, Building #1, Haixia Jingmao Plaza,Fuzhou Bonded Area 350015, Fuzhou,Fujian, China TEL: +86-0591-83979587 FAX: +86-0591-83977666 Email: [email protected] Date: 2023-09-14 To FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, This device with FCC ID:2AM6U-NAX800 integrates LTE module, the module have been certified with FCC ID: 2AM6U-SC600NA and certified on 09/08/2023, this was change ID application based on the original module report of model: SC600Y-NA, SC600T-NA (FCC ID: XMR2019SC600NA). No hardware design changes are made on the modules, and the software has not been changed to increase the R F output power of the modules. Pursuant to KDB 996369 D02v01, the original modular report a s following are submitted to represent the compliance of Part 15C, Part 15E, Part 2/22/24/27/90 conducted RF testing items of this device. The Original Modular Report Number: DDT-B21122007-1E01 DDT-B21122007-1E02 DDT-B21122007-1E03 DDT-B21122007-1E04 DDT-B21122007-1E05 The radiated RF testing items are tested on this host device, and the test report is submitted additionally, the report number are CR230845268-00A, CR230845268-00B, CR230845268- 00C, CR230845268-00D , CR230845268-00G,CR230845268-00H. These reports will be used with the original modular report. Please contact me should there be need for any additional clarification or information. Sincerely, Signature Pr inted Name: Yonghong Zhuang Title: Certification manager

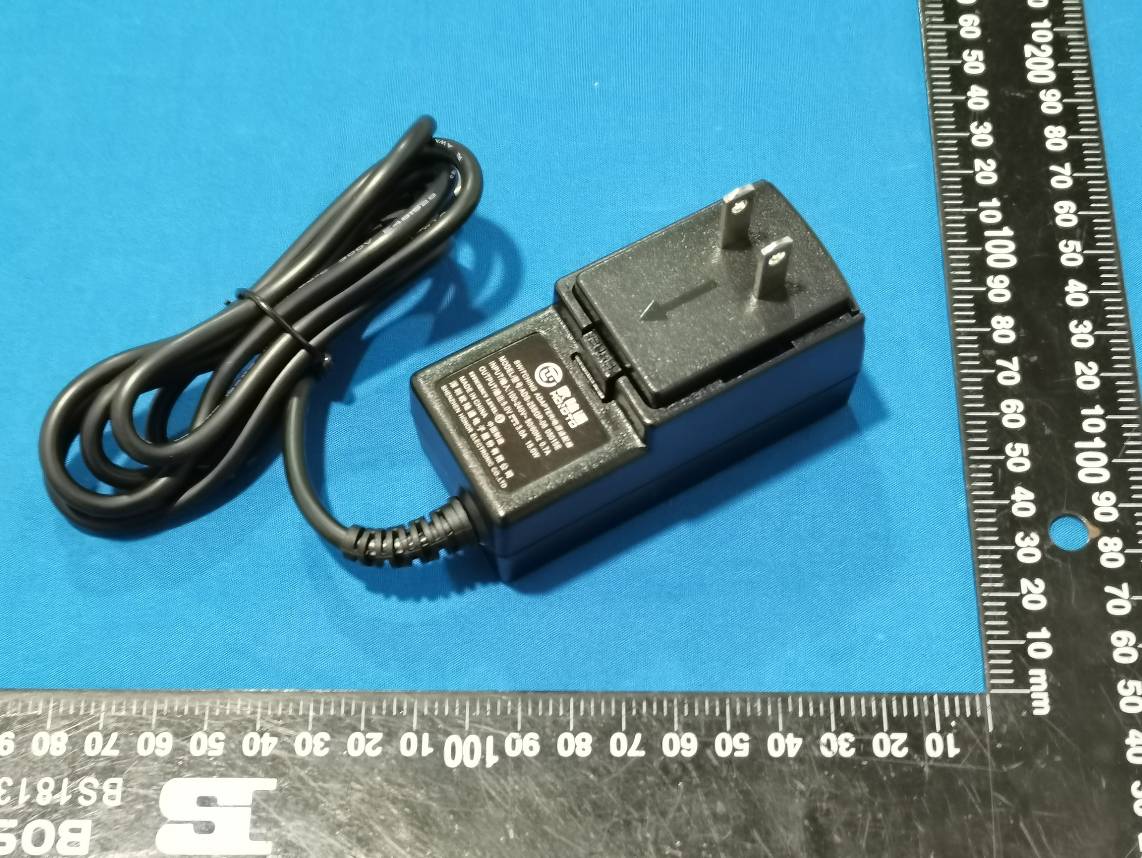

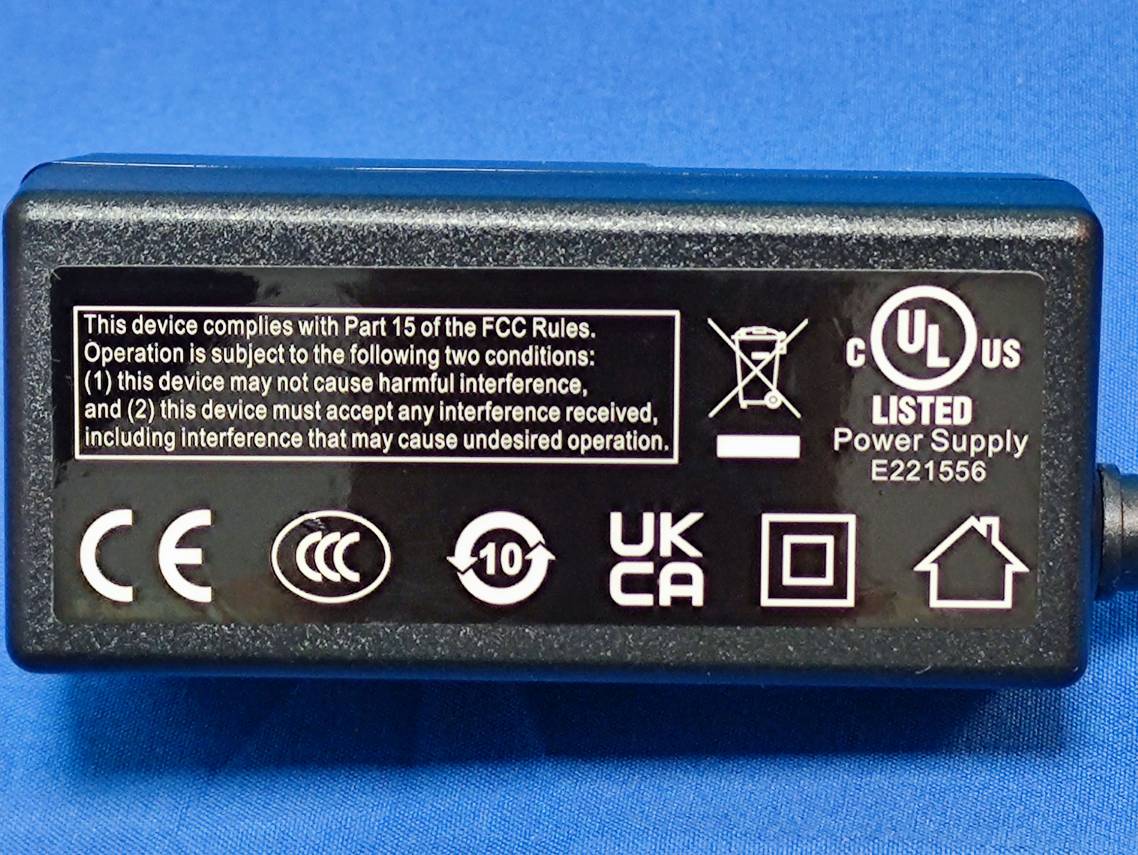

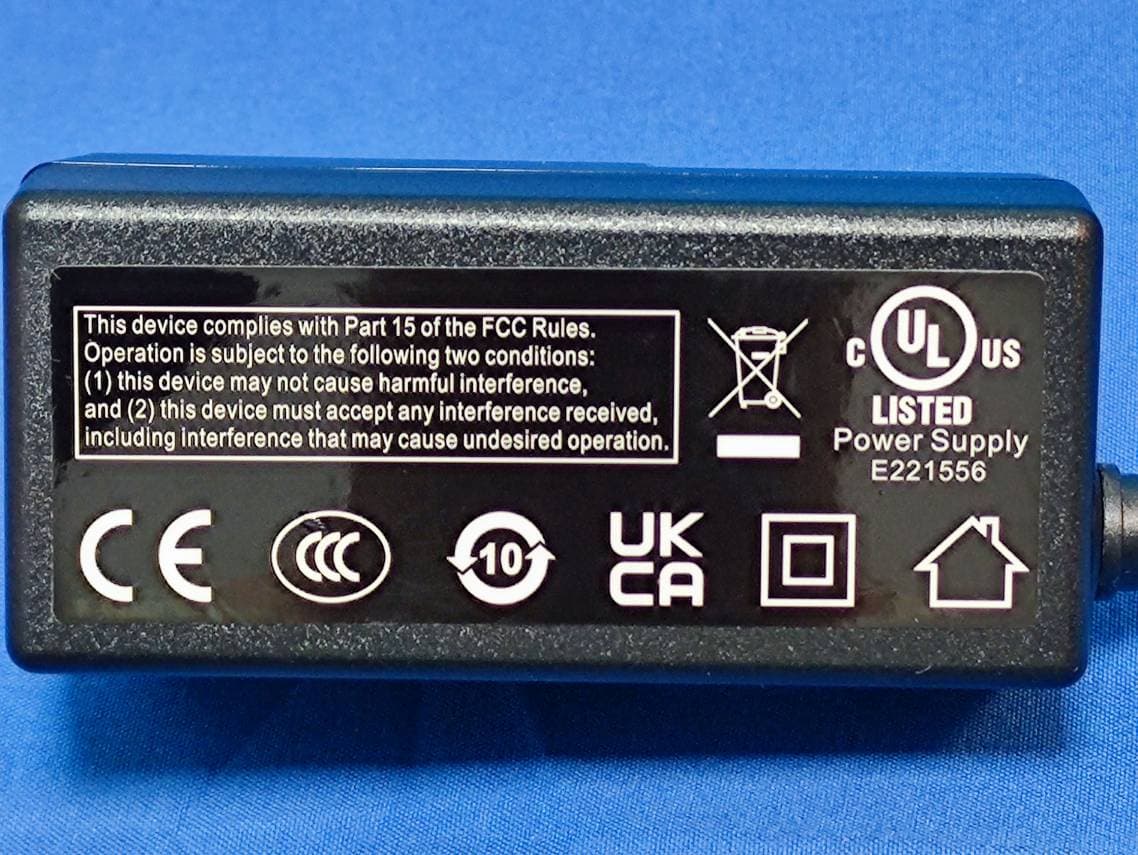

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 1 of 9 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 2 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 3 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 4 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 5 of 9 Adapter 1# China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 6 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 7 of 9 Adapter 2# China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 8 of 9 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-EXP Page 9 of 9

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 1 of 14 EUT INTERNAL PHOTOGRAPHS WWAN DIV Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 2 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 3 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 4 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 5 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 6 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 7 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 8 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 9 of 14 GPS Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 10 of 14 Buletooth&WIFI Antenna WWAN Main Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 11 of 14 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 12 of 14 NFC Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 13 of 14 FCC ID: 2AM6U-SC600NA China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-INP Page 14 of 14 FCC ID: 2AM6U-SC600NA

APPENDIX C CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 1 of 176 Plot 1#:WCDMA Band 2_Mid_Body Back DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.380 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.37 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.596 W/kg SAR(1 g) = 0.366 W/kg; SAR(10 g) = 0.222 W/kg Maximum value of SAR (measured) = 0.397 W/kg 0 dB = 0.397 W/kg = -4.01 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 2 of 176 Plot 2#:WCDMA Band 2_Mid_Handheld Back DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.38 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.869 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 5.52 W/kg SAR(1 g) = 2.66 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 4.46 W/kg 0 dB = 4.46 W/kg = 6.49 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 3 of 176 Plot 3#:WCDMA Band 2_Mid_Handheld Front DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0493 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.821 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0670 W/kg SAR(1 g) = 0.042 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.0559 W/kg 0 dB = 0.0559 W/kg = -12.53 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 4 of 176 Plot 4#:WCDMA Band 2_Mid_Handheld Left DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.224 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.548 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.268 W/kg SAR(1 g) = 0.165 W/kg; SAR(10 g) = 0.103 W/kg Maximum value of SAR (measured) = 0.221 W/kg 0 dB = 0.221 W/kg = -6.56 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 5 of 176 Plot 5#:WCDMA Band 2_Mid_Handheld Right DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.281 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.339 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.343 W/kg SAR(1 g) = 0.178 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.279 W/kg 0 dB = 0.279 W/kg = -5.54 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 6 of 176 Plot 6#:WCDMA Band 2_Mid_Handheld Top 1 DUT: POS Terminal; Type: X800; Communication System: Generic WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.433 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.18, 5.18, 5.18) @ 1880 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470)…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 59 of 176 Plot 59#:LTE Band 13_50%RB_Mid_Handheld Right DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used: f = 782 MHz; σ = 0.892 S/m; ε r = 42.504; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 782 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.336 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.095 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.399 W/kg SAR(1 g) = 0.243 W/kg; SAR(10 g) = 0.161 W/kg Maximum value of SAR (measured) = 0.329 W/kg 0 dB = 0.329 W/kg = -4.83 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 60 of 176 Plot 60#:LTE Band 13_1RB_Mid_Handheld Top 1 DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used: f = 782 MHz; σ = 0.892 S/m; ε r = 42.504; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 782 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.163 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.70 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.185 W/kg SAR(1 g) = 0.134 W/kg; SAR(10 g) = 0.098 W/kg Maximum value of SAR (measured) = 0.165 W/kg 0 dB = 0.165 W/kg = -7.83 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 61 of 176 Plot 61#:LTE Band 13_50%RB_Mid_Handheld Top 1 DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used: f = 782 MHz; σ = 0.892 S/m; ε r = 42.504; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 782 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.119 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.15 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.139 W/kg SAR(1 g) = 0.100 W/kg; SAR(10 g) = 0.073 W/kg Maximum value of SAR (measured) = 0.124 W/kg 0 dB = 0.124 W/kg = -9.07 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 62 of 176 Plot 62#:LTE Band 13_1RB_Mid_Handheld Top 2 DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used: f = 782 MHz; σ = 0.892 S/m; ε r = 42.504; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 782 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (11x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.112 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.260 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.140 W/kg SAR(1 g) = 0.077 W/kg; SAR(10 g) = 0.050 W/kg Maximum value of SAR (measured) = 0.113 W/kg 0 dB = 0.113 W/kg = -9.47 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 63 of 176 Plot 63#:LTE Band 13_50%RB_Mid_Handheld Top 2 DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 782 MHz;Duty Cycle: 1:1 Medium parameters used: f = 782 MHz; σ = 0.892 S/m; ε r = 42.504; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 782 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (11x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0860 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.510 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.059 W/kg; SAR(10 g) = 0.039 W/kg Maximum value of SAR (measured) = 0.0851 W/kg 0 dB = 0.0851 W/kg = -10.70 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 64 of 176 Plot 64#:LTE Band 14_1RB_Mid_Body Back DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 793 MHz;Duty Cycle: 1:1 Medium parameters used: f = 793 MHz; σ = 0.894 S/m; ε r = 42.472; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 793 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.1…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 119 of 176 Plot 119#:LTE Band 41_50%RB_Mid_Handheld Top 2 DUT: POS Terminal; Type: X800; Communication System: Generic TDD-LTE; Frequency: 2593 MHz;Duty Cycle: 1:1.58 Medium parameters used: f = 2593 MHz; σ = 1.932 S/m; ε r = 38.262; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(4.52, 4.52, 4.52) @ 2593 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (11x14x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0514 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.810 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0650 W/kg SAR(1 g) = 0.037 W/kg; SAR(10 g) = 0.026 W/kg Maximum value of SAR (measured) = 0.0522 W/kg 0 dB = 0.0522 W/kg = -12.82 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 120 of 176 Plot 120#:LTE Band 66_1RB_Mid_Body Back DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.382 S/m; ε r = 40.377; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.38, 5.38, 5.38) @ 1745 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.875 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.71 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.678 W/kg; SAR(10 g) = 0.417 W/kg Maximum value of SAR (measured) = 0.940 W/kg 0 dB = 0.940 W/kg = -0.27 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 121 of 176 Plot 121#:LTE Band 66_50%RB_Mid_Body Back DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.382 S/m; ε r = 40.377; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.38, 5.38, 5.38) @ 1745 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (10x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.837 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.49 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.644 W/kg; SAR(10 g) = 0.396 W/kg Maximum value of SAR (measured) = 0.895 W/kg 0 dB = 0.895 W/kg = -0.48 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 122 of 176 Plot 122#:LTE Band 66_1RB_Mid_Handheld Back DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.382 S/m; ε r = 40.377; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.38, 5.38, 5.38) @ 1745 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.76 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.269 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 4.04 W/kg SAR(1 g) = 2.03 W/kg; SAR(10 g) = 1.04 W/kg Maximum value of SAR (measured) = 3.31 W/kg 0 dB = 3.31 W/kg = 5.20 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 123 of 176 Plot 123#:LTE Band 66_50%RB_Mid_Handheld Back DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.382 S/m; ε r = 40.377; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.38, 5.38, 5.38) @ 1745 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.61 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.133 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 3.82 W/kg SAR(1 g) = 1.92 W/kg; SAR(10 g) = 0.983 W/kg Maximum value of SAR (measured) = 3.11 W/kg 0 dB = 3.11 W/kg = 4.93 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 124 of 176 Plot 124#:LTE Band 66_1RB_Mid_Handheld Front DUT: POS Terminal; Type: X800; Communication System: Generic FDD-LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1745 MHz; σ = 1.382 S/m; ε r = 40.377; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(5.38, 5.38, 5.38) @ 1745 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, …

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 175 of 176 Plot 175#:BT_Mid_Handheld Top 1 DUT: POS Terminal; Type: X800; Communication System: Bluetooth(8-DPSK,3DH5) (0); Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.801 S/m; ε r = 38.738; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2441 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (12x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0731 W/kg Zoom Scan (7x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.188 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.292 W/kg SAR(1 g) = 0.100 W/kg; SAR(10 g) = 0.056 W/kg Maximum value of SAR (measured) = 0.128 W/kg 0 dB = 0.128 W/kg = -8.93 dBW/kg China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 176 of 176 Plot 176#: BT Mid - Handheld Top 2 DUT: POS Terminal; Type: X800; Communication System: Bluetooth(8-DPSK,3DH5) (0); Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used: f = 2441 MHz; σ = 1.801 S/m; ε r = 38.738; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: ES3DV3 - SN3157; ConvF(4.74, 4.74, 4.74) @ 2441 MHz; Calibrated: 2023/4/10  Sensor-Surface: 3mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1493; Calibrated: 2023/3/17  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (12x13x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0366 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.112 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.0690 W/kg SAR(1 g) = 0.031 W/kg; SAR(10 g) = 0.019 W/kg Maximum value of SAR (measured) = 0.0355 W/kg 0 dB = 0.0355 W/kg = -14.50 dBW/kg

SAR TEST REPORT Applicant: Fujian Newland Payment Technology Co.,Ltd. Address: No. B602, Building #1, Haixia Jingmao Plaza, Fuzhou Bonded Area 350015,Fuzhou, Fujian,China FCC ID: 2AM6U-NAX800 Product Name: POS Terminal Model Number: X800 Standard(s): 47 CFR Part 2(2.1093) The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230845268-SA Date Of Issue: 2023-09-17 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 2 of 105 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR(W/kg) Highest Reported 10g SAR(W/kg) Body-Supported (Gap 10mm) Limits (W/kg) Handheld (Gap 0mm) Limits (W/kg) WCDMA Band 2 0.39 1.6 1.45 4.0 WCDMA Band 4 0.27 1.73 WCDMA Band 5 0.07 0.62 LTE Band 7 0.80 1.74 LTE Band 12&17 0.06 0.57 LTE Band 13 0.06 0.49 LTE Band 14 0.08 0.57 LTE Band 25&2 0.79 1.48 LTE Band 26&5 0.11 0.55 LTE Band 41 0.07 0.56 LTE Band 66&4 0.80 1.23 LTE Band 71 0.08 0.50 WLAN 2.4G 0.05 0.26 WLAN 5.2G 0.23 0.50 WLAN 5.3G 0.18 0.50 WLAN 5.6G 0.53 1.19 WLAN 5.8G 0.01 1.99 Bluetooth 0.02 0.08 Maximum Simultaneous Transmission SAR Items Body-Supported (Gap 10mm) Limits (W/kg) Handheld (Gap 0mm) Limits (W/kg) Sum SAR(W/kg) 1.33 1.6 3.73 4.0 SPLSR N/A 0.04 N/A 0.1 EUT Received Date: 2023/08/09 Test Date: 2023/09/06-2023/09/12 Test Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR230845268-SA Page 3 of 105 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recogniz…

Text truncated - open the document above for the full version.
