2AMEAT38481866Walkie Talkie

UserManual WalkieTalkiesModelT38 ENGLISHINSTRUCTION 1InstructionForUse Thissetincludes2PACKwalkie-talkie:therearecommunication deviceswhichoperateon462MHZ.Theycomewith22channelsas wellasback-litLCDscreen,enablingyoutocommunicateoverseveral kilometersfree-of–charge(upto6KMinopenareas). Note:Pleasereadtheusermanualcarefullybeforeusingthe equipmentandretainforfutureconsultation! SpecificRecommendations Ifyoucarryanykindofpersonalmedicaldevice,pleaseconsulta doctorbeforeuse.  Toavoidtheriskofburns,donotusethedeviceiftheaerialis damageinanyway. Donnotusethedeviceinapotentiallyexplosivesetting(e.g. Aroundpumps,onthelowerdeckofaboatorarounda fuel-storageinstallationorchemicalproducts. Switchoffthedeviceifonanairplaneorinahospital.  Neverusethedeviceincloseproximitytoaradiothatavoidto interference. Removethebatteriesifthedeviceisnotuseforanextended periodoftime.Nevermixusedandnewbatteries. Positionthetransmitterandantennaatleast5cmfromyourface. Directtheantennaupwardsandspeaknormally.  Cleanthedevicewithadampcloth.Don’tuseagentsandsolvent forcleaning. Donotmodifythedeviceinanyway.Intheeventofdamage occurring,ensurethatthedeviceuscheckedbyaqualified professional. Thedevicecannotbeusedtocontacttheemergencyservices. 2KeyFunctions 3BeforeUsethedevice 3.1Removingthebeltclip Beforeinsertbatteriesintothedevice,firstremovethebeltcliplatch awayfromthedevice. 3.2InstallingtheBatteries 1,Sliddownthebatterycompartmentcover. 2,Insert3*AAAbatterieseachwalkietalkie(Notincluded) 3,Positionthebatteriesaccordingtothepolaritymakingonthe batterycompartment. 4,Afterplacingbatteriesintocorrectpositions,replacethebattery cover. 4Usingthedevice 4.1Turningthedeviceon/off Switchonthedevice:Pressandholdonthe2secondsthenyou willhearabeepsound. Switchoffthedevice:Pressandholdonthe3secondsthenyou willhearabeepsound. 4.2Adjustingthevolume Toincreasethevolume,presstheUp▲button.AndpresstheDown ▼buttontodecreasethevolume. Note:Thevolumelevelisdisplayonthescreen. 4.3LowBatteryIndication Thedevicecandetectthelowbatterylevelwhenthebatteryvoltage goeslow.Whenbatteryvoltageislow,thebatteryiconwillflashand abeepwillbeheardtoindicatethatthebatteriesneedtobereplaced. 4.4Receiving/transmittingcommunications: Thedevicesarein“Reception”modewhenitisturnedONandno transmitting.Whenasignalisreceivedonthecurrentchannel,the LCDwilldisplayinreception. WhenyoupressthePTT(pushtotalk)button,thedevicesswitchesto “Transmission”mode. HoldthedeviceinaverticalpositionwiththeMic(microphone)3-5cm awayfromyourmouth.WhileholdingthePTTbutton,speakintothe microphoneinanormaltoneofvoice. ReleasethePTTbuttonwhenyouhavefinishedtransmitting. Forotherstoreceiveyourtransmission,theymustbeonthesame channelwithyou. Note:1,Thetalkingrangewilldependonyoursurroundingsand environment.Itwillbeaffectedbyobstructionssuchashillsor buildings. 2,Don’ttrytousetwodeviceswhicharelessthan1.5m(5feet)apart. Otherwise,youmayexperienceinterference. 4.5ChangingChannels PresstheMENUbuttononetime,thechannelnumberwillflashonthe display. Presstheup▲/down▼buttontochangethechannel. PressthePTTbuttontoconfirmandreturntostand-bymode. Note:ifnobuttonispressedwithin15secondsduringsetting,the devicewillreturntostand-bymode. 4.6CTCSS(ContinuesToneCodedSquelchSystem) PresstheMENUbuttontwice,thecurrentCTCSScodewillflashonthe display.Presstheup▲/down▼buttontochangethe38available codes. PressthePTTbuttontoconfirmandreturntostand-bymode.. Licensefreeradio’soperatingonthe400-470MHZfrequencyband, thedevicehas22availableradiochannels.Iftherearemanydevice usersnearyou,thereisachancethatsomeoftheusersareoperating onthesameradiochannel. WhenusingCTCSS,alowfrequencytone(between67-250Hz)willbe transmittedalongwiththevoicesignal.Thereare38availabletones tochooseform. Youarefreetochooseoneofthe38availablesub-channels.Dueto filtering,thesesub-channelswillgenerallynotbeaudiblesotheywill notedisturbthecommunication. 4.7VOX(Handsfreefunction) PresstheMENUbuttonthreetimes,thecurrentVOXsettingwillflash onthedisplayandtheVOXiconwilldisplay, PressUP▲buttontosettheVOXsensitivitylevelbetween1and3 level(level3isthehighsensitivelevel). Pressdown▼buttonuntil“OF”appearsonthedisplaytoturnVOX OFF. PressthePTTbuttontoconfirmandreturntostand-bymode. InVOXmode,theradiowilltransmitasignalwhenitisactivatedby yourvoiceorothersoundaroundyou. VOXOperationisnotrecommendedifyouplantouseyourdeviceina noisyorwindyenvironment. Note:VOXmodewillbeoverridewhenyoupressthePTTbutton. 4.8Scanningforanactiveradiochannel PressandholdtheUP▲button2seconds:The“SCAN”function indicatorwillappearonthedisplayandthechannelwillscan continuouslyfrom1to22.Onceanactivechannelisfound,the scanningwillstopandyoucanlistentothetransmission. Whenthetransmissionisonthefoundchannelstop,thescanningwill resumeautomatically. Note:IfyoupressPTTbuttonwhilelisteningtoafoundchannel,the devicewillgobacktostand-bymodeonthefoundchannel. 4.9Monitor PressandholdtheDOWN▼buttonabout3secondstoactivemonitor. ReleasetheDOWN▼buttonreturntostandbymode. 4.10SettingtheCalltones Thedevicehas10calltones. PresstheMENUbutton4times,“CA”isdisplayedandonthecurrent calltone. PresstheUP▲/Down▼buttontochangeanothercalltones. PressthePTTbuttontoconfirmandreturntostand-bymode. 4.11Sendingacalltone PressthePTTbuttononetimequickly,thecalltonewillbetransmitted onthesettingchannel. 4.12KeyToneOn/Off Youcanon/offthekeytonewhenpressthebuttons. PresstheMENUbutton5times,“KO”willbedisplayed. PresstheUP▲/Down▼buttondisablethekeytoneON/OFF. PressThePTTbuttontoconfirmyourselectionandreturntothe stand-bymode. 4.13RogerBeepOn/Off AfterthePTTbuttonreleased,thedevicewillsendoutarogerbeepto confirmthathavestoppedtalking. PresstheMENUbutton6times,“RO”willbedisplayed. PresstheUP▲/Down▼buttondisabletherogerbeepON/OFF. PressThePTTbuttontoconfirmyourselectionandreturntothe stand-bymode. 4.14Back-litdisplay PressanybuttonexceptfortheMENUbuttontoactivatethebacklight oftheLCDdisplay.Thebacklightwilllightonabout5seconds. 4.15Earpiececonnection Thedevicecanbeusedwithearpiece(Ifthereisearpiecepacked togetherwiththedevic…

Text truncated - open the document above for the full version.

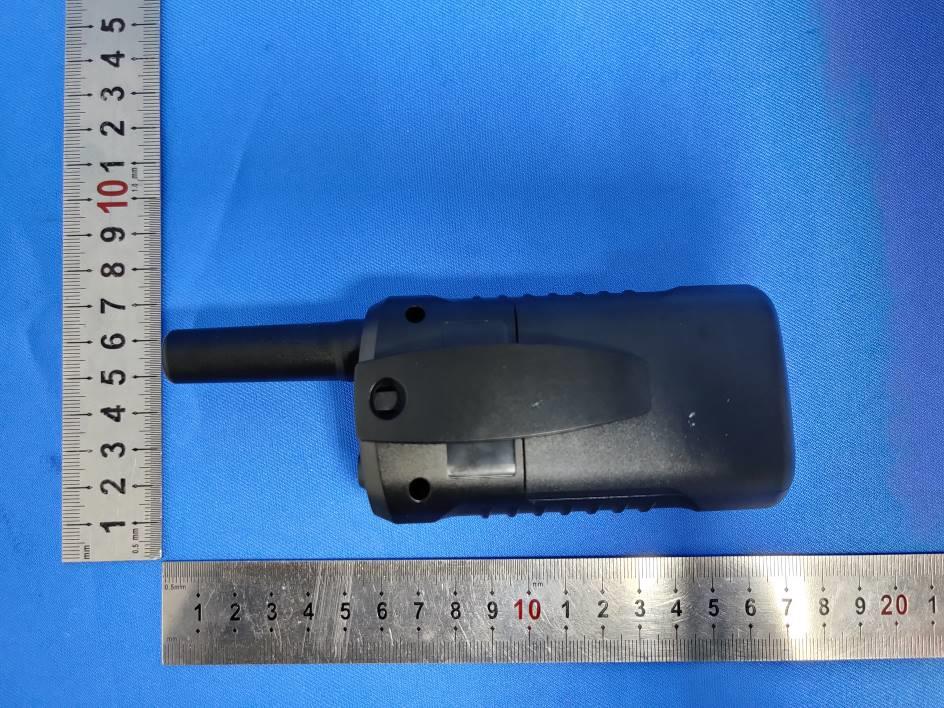

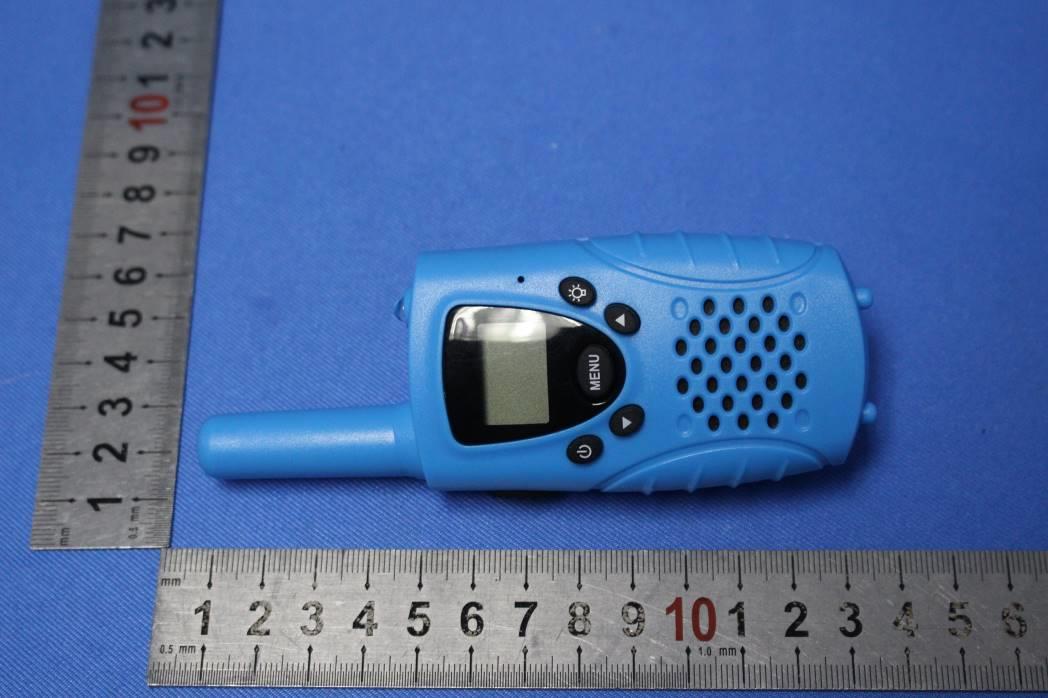

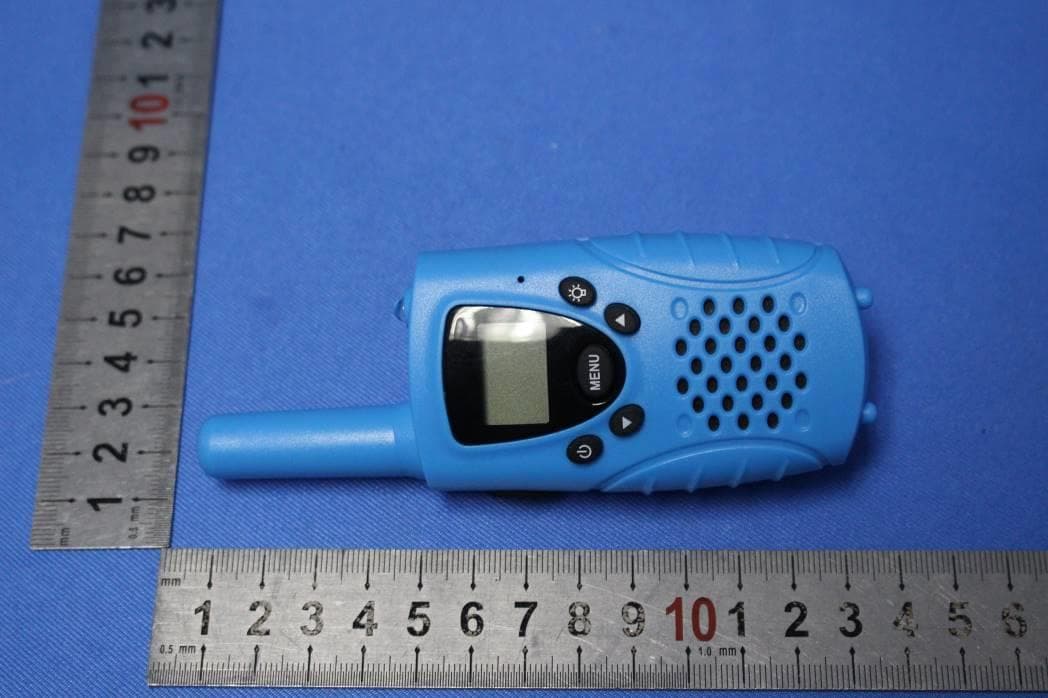

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZEM2011012215CR FCC ID: 2AMEAT38481866 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

FCC ID: 2AMEAT38481866 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Internal Photos for SZEM2011012215CR FCC ID: 2AMEAT38481866 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 EUT Constructional Details Antenna SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3

Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Appendix C Calibration certificate 1. Dipole D450V3 - SN1103(2018/04/11) 2. DAE DAE4-SN 1245(2020/05/27) 3. Probe EX3DV4-SN 3798(2020/05/29) Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Dipole D450V3 SN 1103 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2018/4/11 -21.7 / 58.9 / 2019/4/10 -22.4 -3.23% 59.5 0.6Ω 2020/4/10 -22.2 -2.30% 59.8 0.9Ω Body Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2018/4/11 -23.4 / 56.1 / 2019/4/10 -24.2 -3.42% 57.7 1.6Ω 2020/4/10 -24.0 -2.56% 57.3 1.2Ω

Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Page: 1 of 42 FCC SAR TEST REPORT Application No.: Applicant: Address of Applicant: Manufacturer: Address of Manufacturer: Factory: Address of Factory: Product Name: Model No.(EUT): Series Model: Trade mark: FCC ID: Standard(s) : Date of Receipt: Date of Test: Date of Issue: KSEM2012001653CR Global Mei Chuang Co., Limited FLAT / RM A, 9 /F, SILVERCORP INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KL, HONGKONG, China. Huizhou LFY Technology Co., Ltd. Loujiao Xiaozu, Chayuan Village Committee, Qiuchang Street Office, Huiyang, Huizhou, Guangdong, China. Huizhou LFY Technology Co., Ltd. Loujiao Xiaozu, Chayuan Village Committee, Qiuchang Street Office, Huiyang, Huizhou, Guangdong, China. Walkie Talkie T38 T38, T66, T18, T48 N/A 2AMEAT38481866 FCC 47CFR §2.1093 2020-12-18 2020-12-23 to 2020-12-23 2020-12-24 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Eric Lin Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Page: 2 of 42 REVISION HISTORY Revision Record Version Description Date Remark 00 Original 2020-12-24 Original Authorized for issue by: Richard.Kong/ Project Engineer Eric.Lin/Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Page: 3 of 42 TEST SUMMARY Frequency Band Test position Test mode Max Reported SAR-1g (W/kg) SAR limit (W/kg) Verdict PTT (450MHz) Front of face FM 0.284 1.6 PASS Back side with Splint FM 0.652 1.6 PASS Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Page: 4 of 42 CONTENTS 1 GENERAL INFORMATION......................................................................................................................... 6 1.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 6 1.1.1 DUT Antenna Locations .................................................................................................................. 7 1.2 TEST SPECIFICATION............................................................................................................................. 8 1.3 RF EXPOSURE LIMITS ............................................................................................................................ 9 1.4 TEST LOCATION ...................................................................................................................................10 1.5 TEST FACILITY .....................................................................................................................................10 2 LABORATORY ENVIRONMENT ...............................................................................................................11 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ...............................................................................12 3.1 THE SAR MEASUREMENT SYSTEM ........................................................................................................12 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .....................................................................................................13 3.3 DATA ACQUISITION ELECTRONICS (DAE) ...............................................................................................14 3.4 SAM TWIN PHANTOM ...........................................................................................................................14 3.5 ELI PHANTOM .....................................................................................................................................15 3.6 DEVICE HOLDER FOR TRANSMITTERS.....................................................................................................16 3.7 MEASUREMENT PROCEDURE .................................................................................................................17 3.7.1 Scanning procedure ......................................................................................................................17 3.7.2 Data Storage .................................................................................................................................19 3.7.3 Data Evaluation by SEMCAD ........................................................................................................19 4 SAR MEASUREMENT VARIABILITY AND UNCERTAINTY .....................................................................21 4.1 SAR MEASUREMENT VARIABILITY...........................................................................................................21 4.2 SAR MEASUREMENT UNCERTAINTY ........................................................................................................22 5 DESCRIPTION OF TEST POSITION .........................................................................................................23 5.1 HANDHELD PUSH-TO-TALK (PTT) TWO-WAY RADIOS ................................................................................23 6 SAR SYSTEM VERIFICATION PROCEDURE ...........................................................................................24 6.1 TISSUE SIMULATE LIQUID ......................................................................................................................24 6.1.1 Recipes for Tissue Simulate Liquid ................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101221501 Page: 1 of 33 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2011012215CR Applicant: Global Mei Chuang Co., Limited Address of Applicant: FLAT / RM A, 9 /F, SILVERCORP, INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KL, HONGKONG, China. Manufacturer: Huizhou LFY Technology Co., Ltd. Address of Manufacturer: Loujiao Xiaozu, Chayuan Village Committee, Qiuchang Street Office, Huiyang, Huizhou, Guangdong, China. Factory: Huizhou LFY Technology Co., Ltd. Address of Factory: Loujiao Xiaozu, Chayuan Village Committee, Qiuchang Street Office, Huiyang, Huizhou, Guangdong, China. Equipment Under Test (EUT): EUT Name: Walkie Talkie Model No.: T38, T66, T18, T48 ♣ ♣ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. FCC ID: 2AMEAT38481866 Standard(s) : 47 CFR Part 95, Subpart B Date of Receipt: 2020-11-30 Date of Test: 2020-12-04 to 2020-12-10 Date of Issue: 2020-12-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101221501 Page: 2 of 33 Revision Record Version Chapter Date Modifier Remark 01 2020-12-22 Original Authorized for issue by: Damon Su/Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101221501 Page: 3 of 33 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 95, Subpart B N/A 47 CFR Part 95, Subpart B 95.587(b) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Frequency Stability 47 CFR Part 95, Subpart B ANSI/TIA-603- E:2016 47 CFR FCC Part95.565 & FCC Part2.1055; Pass Effective Radiated Power (ERP) 47 CFR Part 95, Subpart B ANSI/TIA-603- E:2016 47 CFR FCC Part95.567 & FCC Part2.1046; Pass Occupied Bandwidth 47 CFR Part 95, Subpart B ANSI/TIA-603- E:2016 47 CFR FCC Part 95.573 & FCC Part2.1049; Pass Modulation characteristics 47 CFR Part 95, Subpart B ANSI/TIA-603- E:2016 47 CFR FCC Part 95.575 & FCC Part2.1047; Pass Radiated Spurious Emissions 47 CFR Part 95, Subpart B ANSI/TIA-603- E:2016 47 CFR FCC Part 95.579 & FCC Part2.1053; Pass Declaration of EUT Family Grouping: Model No.: T38, T66, T18, T48 Only the model T38 was tested, since according to the declaration from the applicant, the electrical circuit design, layout, components used, internal wiring and functions were identical for the above models, with only difference on model names. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM201101221501 Page: 4 of 33 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 TEST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................13 6.1 ANTENNA REQUIREMENT ................................................................................................................13 6.1.1 Test Requirement: ..................................................................................................................13 6.1.2 Conclusion ..............................................................................................................................13 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................14 7.1 FREQUENCY STABILITY ..................................................................................................................14 7.1.1 E.U.T. Operation .....................................................................................................................14 7.1.2 Test Setup Diagram ................................................................................................................14 7.1.3 Measurement Procedure and Data .........................................................................................14 7.2 EFFECTIVE RADIATED POWER (ERP) ..............................................................................................16 7.2.1 E.U.T. Operation .....................................................................................................................16 7.…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 1. SAR measurement System Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 450MHz Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 3. Photographs of EUT test position Photo 2: Front side 25mm Photo 3: Back side 0mm with Back Splint Compliance Certification Services (Kunshan) Inc. Report No.: KSEM201200165301 4. EUT Constructional Details Details please Refer to the <External Photos>&<Internal Photos>.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Setup Photos for SZEM2011012215CR FCC ID: 2AMEAT38481866 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 Photographs 1.1 Effective Radiated Power Test Setup 1.2 Radiated Spurious Emissions Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3
