2AMEH-POCKETWIFIV3Pocket WiFi

Plug the Pocket WiFi into the correct port of inverter. Pocket WiFi V3.0 (-P/-E) User Manual Read this user manual carefully prior to use. SolaxCloud Registration Step 1: Use your smart phone to scan following QR code or search for the keyword “SolaxCloud” in browser to download the Monitoring App. IOS Google 2. MONITORING 1. INSTALLATION Ensure all power has been turned off at least 5 minutes prior to installation. Remove the cover of DONGLE port at the bottom of the inverter. Ready to install your Pocket WiFi. Step 2: Touch the Setting button at upper left corner of the Monitoring App to choose language. Step 3: Touch “Create a new account” at the bottom of Monitoring App. Step 4: Fill in your registration Email, get the Verification code, input your password to create the account. -P External antenna OR -E Extended antenna For the -P/-E version of Pocket WiFi, screw the antenna to the end of the shell. *Antenna type is divided into external antenna and extended antenna. It is already selected when you purchase Pocket WiFi. Local Mode Use your smart phone to connect the SolaX Wi-Fi signal (Wifi_Sxxxxxxxxx). Then touch Local and type in password (initially same as the Registration No.) to access the Local Mode in the Monitoring App. *Visit the local password setting instruction on www.solaxcloud.com/wifiSetting/ Wi-Fi Connection Step 1: Login your account. Step 2: Click "+" to create your site. Step 3: Fill in site information and add device. Step 4: Setup your internet Wi-Fi connection. Start to configure the device network. SWXXXXXXXX Note that the side with the QR code is on the top and the direction of the button should be the same. 614.00602.02 SolaX Power Network Technology (Zhejiang) Co., Ltd. No.288 shizhu Road, Tonglu Economic Zone,ADD Tonglu City, Zhejiang Province, China. +86 571 56260011 Tel FAX +86 571 56075753 [email protected] WEB www.solaxpower.com PROOF OF PURCHASE Name Product Serial Number Date of Commissioning Installation Company Name Phone Number Address Country Zip Code Email Date of Delivery Signature APPEARANCE AND DIMENSIONS TECHNICAL DATA Step 4: Complete registration, login, add site and other related operations according to the guidelines ofthe User guide. Step 5: Click the Warranty Manage and add your installation information to get warranty for your devices. Monitoring Website Step 1: Ensure that your computer or laptop is connected to a network. Step 2: Open a browser and enter www.solaxcloud.com/ Step 3: Select your display language and read the User guide, then create a new account. User guide Retain this page as proof of your purchase. See warranty registration notice for more details. Terms and Conditions SolaX grants a standard 24-month warranty. The terms of this warranty begin from the date marked on the purchase invoice. SolaX will only perform warranty service when the faulty unit is returned to SolaX along with a copy of the invoice and proof of purchase issued by the dealer. In addition, the type label of the unit must be fully legible. If these requirements are not fulfilled, SolaX reserves the right to deny warranty service. Exclusion of Liability Warranty claims are excluded for direct or indirect damage due to: Use of unit in ways not intended, improper or substandard installation, improper operation and unauthorized modification to the units, or repair attempts. Missing warranty card and serial number. Operating the units with defective protective equipment. Influence of foreign objects and force majeure. Inadequate ventilation. Non-observance to relevant safety instructions. WARRANTY REGULATION AND LIABILITY Pocket WiFi V3.0: Pocket WiFi V3.0 -P/-E: SAFETY INSTRUCTIONS Prior to installation, ensure all power going to the inverter has been cut off. Keep away from flammable, explosive materials. Do not dismantle or scrap by force. Children should be supervised to ensure that they do not play with this appliance. Indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal center or the store where the products was purchased. S TAT RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Wireless Mode 802.11 b/g/n Supply Voltage 5V DC Frequency 2.4 GHz Antenna Gain 3.63 dBi Weight50 g (-P/-E <107g) Pocket WiFi V3.0 (-P/-E) Model Product NamePocket WiFi Rated Power1.3 W Antenna Type IPEX Operating Temperate -40~85 °C EIRP Power 18.00 dBm( Measured Max. Average) IP 65 Degree of Protection Dimension 95.5*45.7*28.5 mm 112*45.7*28.5 mm Dimension (-P/-E) 192.168.10.10 WiFi configuration IP address This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These lim…

Text truncated - open the document above for the full version.

SolaX Power Network Technology (Zhejiang) Co., Ltd. Date: 2022-10-31 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AMEH-POCKETWIFIV3 To Whom It May Concern: This letter is to ascertain that SolaX Power Network Technology (Zhejiang) Co., Ltd. EUT : Pocket WiFi Model Name : Pocket WiFi V3.0, Pocket WiFi V3.0 -P, Pocket WiFi V3.0 -E We will apply for FCC SDOC. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature ： Client’s name / title ： Xianhongzhu / Product Manager Contact information / address: SolaX Power Network Technology (Zhejiang) Co., Ltd. /No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province 310000,P. R. CHINA

( SolaX Power Network Technology (Zhejiang) Co., Ltd.) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AMEH- POCKETWIFIV3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name BOM, Block Diagram, Schematics, Operational Description BOM.pdf, Block Diagram .pdf, Schematics .pdf , Operation Description .pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Short-term confidentiality requested: 180 days Exhibit Type File Name External Photos, Internal Photos, Test Setup Photos, User Manual External Photos.pdf, Internal Photos .pdf, Test Setup Photos .pdf, User Manual.pdf Sincerely, Xianhongzhu / Product Manager SolaX Power Network Technology (Zhejiang) Co., Ltd.

Difference Statement Model：Pocket WiFi V3.0, Pocket WiFi V3.0 -P, Pocket WiFi V3.0 -E Only the antenna gain of the three models is different, and the internal circuit boards are the same. The model Pocket WiFi V3.0 is Built-in antenna, and the antenna gain is 3.63 dBi. The model Pocket WiFi V3.0-P is a Whip antenna with an antenna gain of 3.0 dBi. Model Pocket WiFi V3.0-E is a Suction cup antenna with an antenna gain of 3.5 dBi. So we choose "Pocket WiFi V3.0" for RF test. October 31, 2022 Xianhongzhu / Product Manager SolaX Power Network Technology (Zhejiang) Co., Ltd.

(SolaX Power Network Technology (Zhejiang) Co., Ltd.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: October 31, 2022 SUBJECT: FCC Application for FCC ID: 2AMEH-POCKETWIFIV3 To Whom It May Concern: We, the undersigned, hereby authorize Tony Wei at EMTEK(NINGBO) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK(NINGBO) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Xianhongzhu / Product Manager SolaX Power Network Technology (Zhejiang) Co., Ltd.

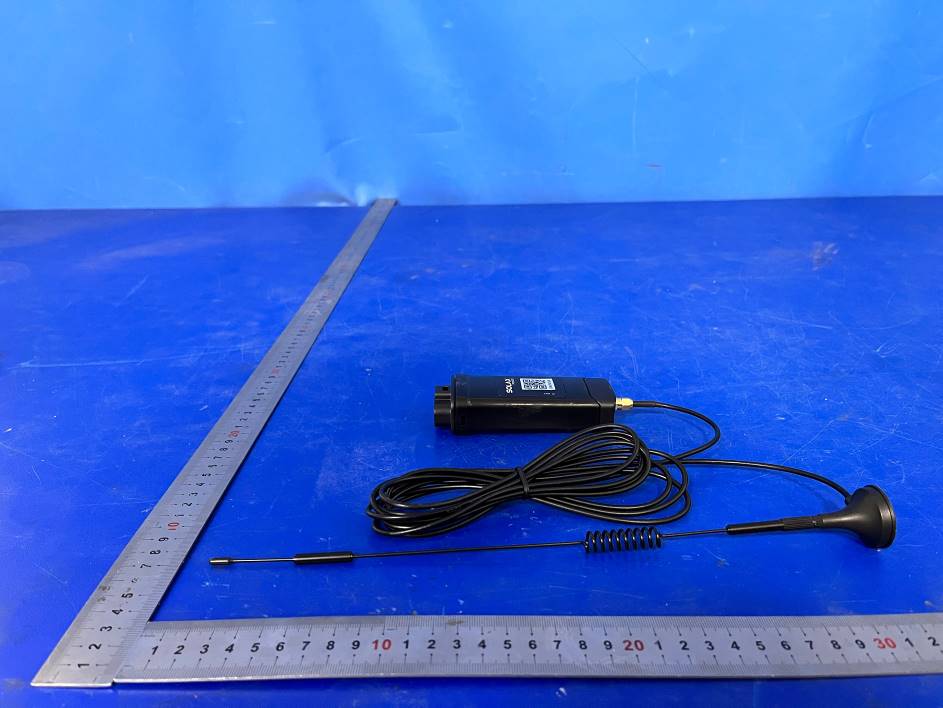

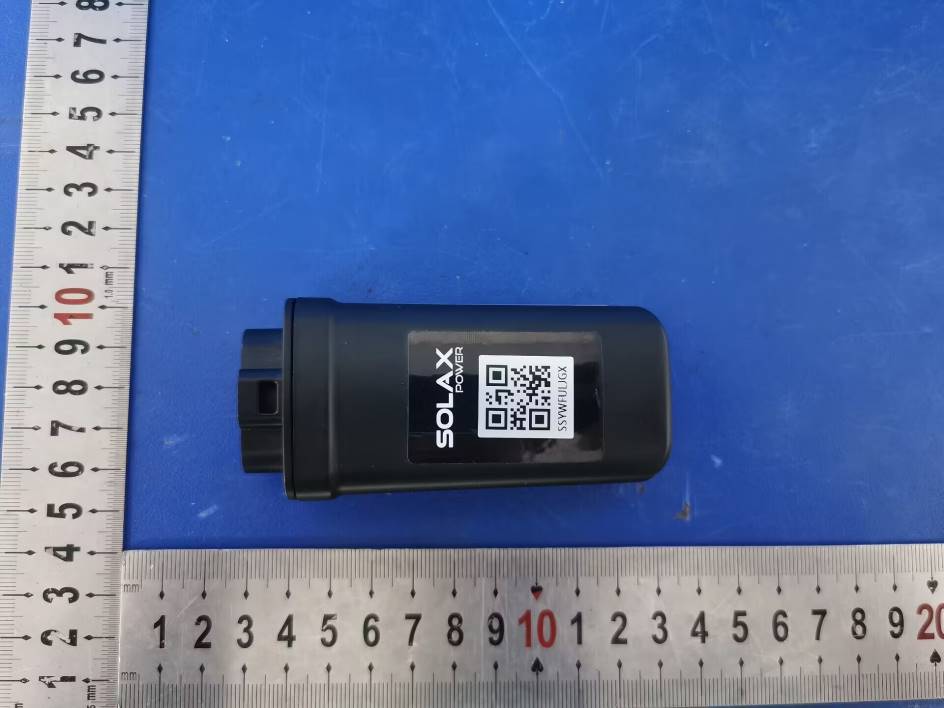

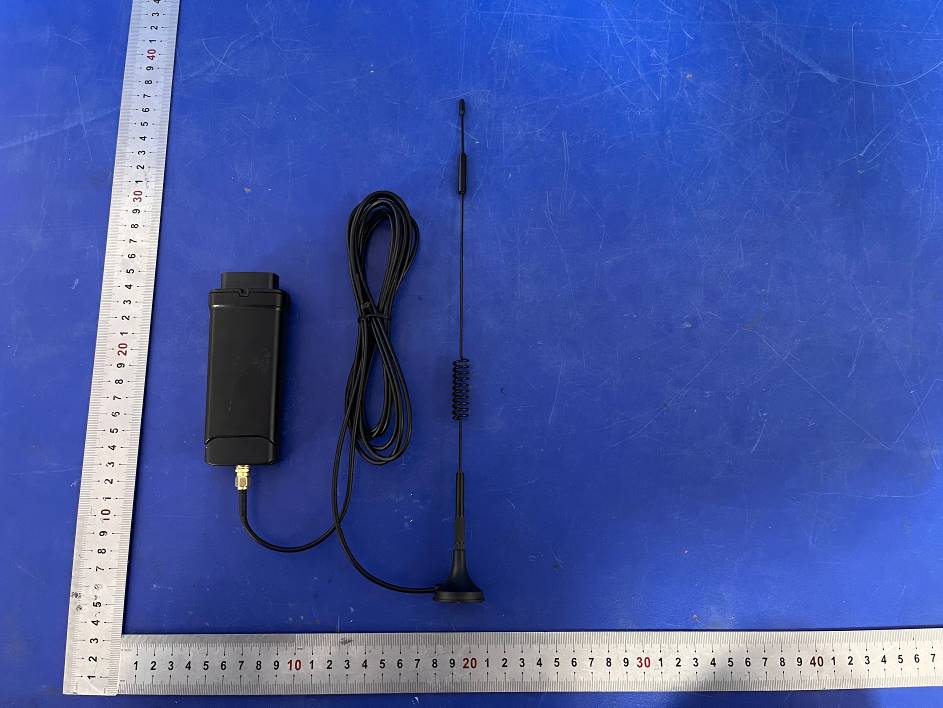

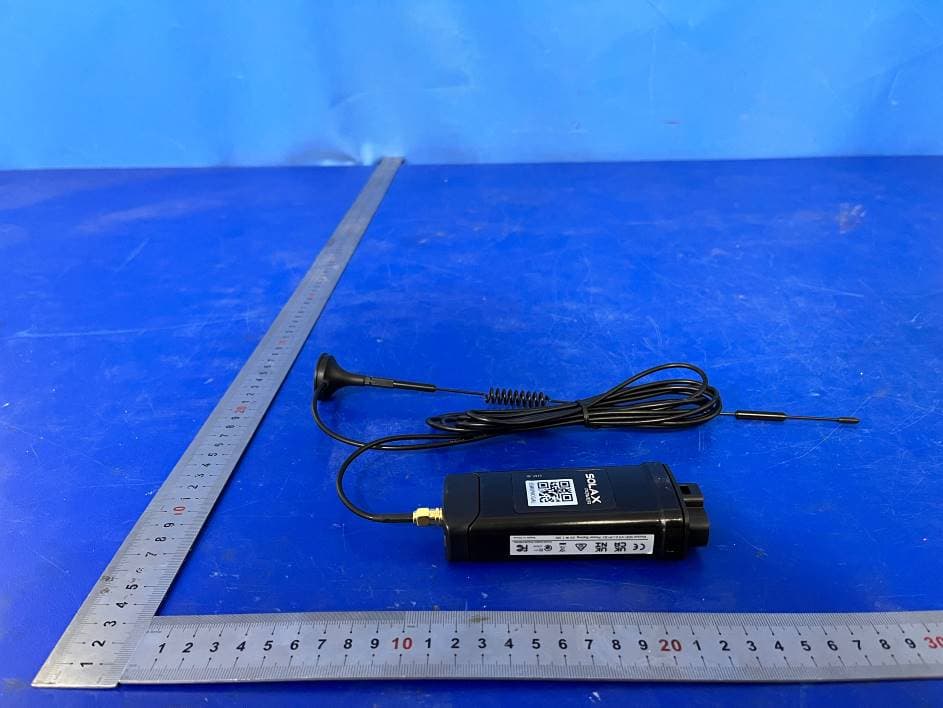

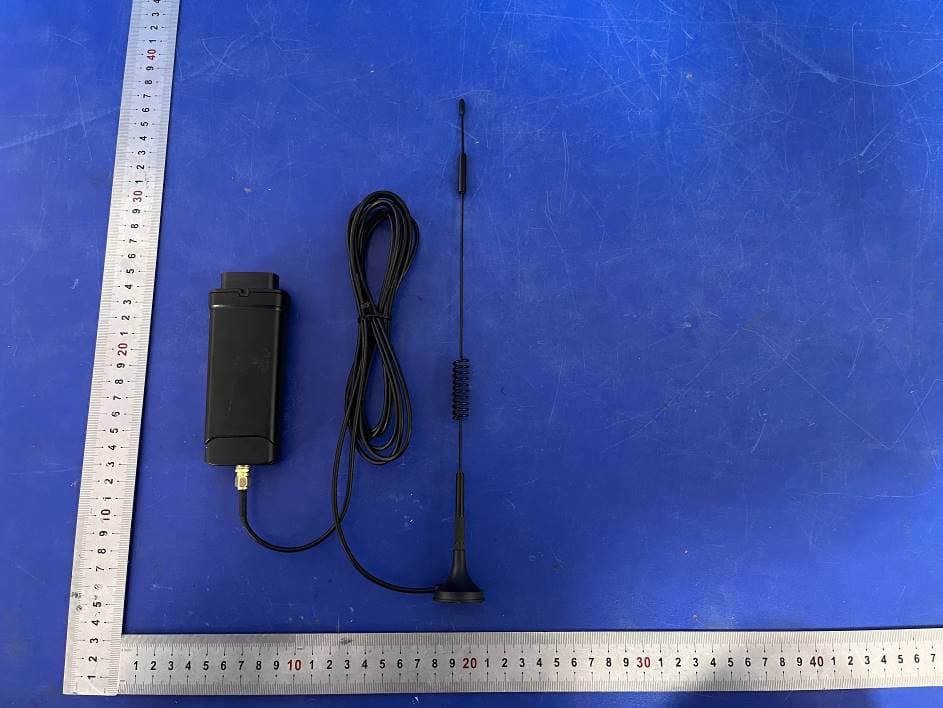

External photos: Pocket WiFi V3.0 Pocket WiFi V3.0 ‐E Pocket WiFi V3.0 ‐P ---The End---

Label and Label Location

Internal photos: Antenna WIFI antenna WIFI antenna ---The End--- WIFI antenna

FCC ID: 2AMEH-POCKETWIFIV3 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE,1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. mW = 10^( dBm/10) 11.2 Measurement Result Operation Frequency: 2412 MHz-2462 MHz; Antenna gain: 3.63 dBi; R=20cm WIFI Channel Freq. (MHz) modulation Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2) Power density Limits (mW/cm2 ) 2412 802.11b 14.78 14±1 15 2.31 0.014512062 1 2437 14.37 14±1 15 2.31 0.014512062 1 2462 14.48 14±1 15 2.31 0.014512062 1 2412 802.11g 13.42 13±1 14 2.31 0.011527341 1 2437 13.08 13±1 14 2.31 0.011527341 1 2462 13.18 13±1 14 2.31 0.011527341 1 2412 802.11n20 12.20 12±1 13 2.31 0.009156492 1 2437 12.05 12±1 13 2.31 0.009156492 1 2462 12.03 12±1 13 2.31 0.009156492 1 2422 802.11n40 10.33 10±1 11 2.31 0.005777356 1 2437 10.10 10±1 11 2.31 0.005777356 1 2452 10.12 10±1 11 2.31 0.005777356 1 *** End of Report ***

ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 1 / 12 SPECIFICATIONFORAPPROVAL CUSTOMER/PROJECT：XSOLAX CUSTOMERP.N：311601001800 PRODUCTNAME：WIFIANT MODELNO：4S001A Pleasereturntousonecopyof“SPECIFICATIONFORAPPROVAL”withyour approvedsignature. ADD:No.358LiuyuanRD.,BaoshanUrbanIndustrial District.,Shanghai,PR.China. TEL:+86-21-66276925(26/29/35)－615 SUPPLIERAUTHORIZEDSIGNATURE PREPAREDCHECKEDAPPROVED JennyStevenAlex CUSTOMERAUTHORIZEDSIGNATURE PMJennyQEsun ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 2 / 12 Content TUTUcontentUUTT................................................................................................................................1 TUTU1UUTTUNounexplanation.....................................................................................................................4 TUTU2UUTTTestequipmentUUTT........................................................................................................................4 TUTU3UUTTWorkingfrequencybandUUT.....................................................................................................4 TUTU4UUTTTestproject...............................................................................................................................5 TUTU4.1UUTTTUTUVSWRplotUUTT...............................................................................................................5 TUTU 4.2 UUTTTUTU Simthplot UUTT .................................................................................................................5 TUTU 4.3 UUTUTU Radiationpattern UUTT ......................................................................................................5 TUTU4.4UTUTUGain&Efficiency......................................................................................................5 TUTU5UUTTAntennaparameter...................................................................................................................5 TUTU 5.1 UUTTTUTU VSWR UUTT ......................................................................................................................5 TUTU 5.1.1 UUTTTUTU VSWRplot UUTT ...................................................................................................5 TUTU 5.1.2 UUTTUTU VSWRdata UUTT ....................................................................................................6 TUTU 5.2 UU Simthplot UUTT ..................................................................................................................6 TUTU 5.3 UUTTTUTU Radiationpattern......................................................................................................7 TUTU5.3.1UUTTTUTUH-planeUUTT..........................................................................................................7 TUTU5.3.2UUTTUTUE-planeUUTT........................................................................................................8-9 TUTU 5.4 UUTTUTU UGain&Efficiency UUTT ...............................................................................................10 TUTU 6 UUTT Environmentaltreatmentsuggestions U ..................................................................................10 TUTU 7 UUTT Impedancematching..............................................................................................................10 TUTU8UUTTTUTUAntennaplanU.........................................................................................................................11 TUTU8.1UUTTTUTUAntennadimensionaldrawing................................................................................11 TUTU8.2UUTTTUTUCoaxicalcablelengthdrawingUUTT...............................................................................11 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 3 / 12 TUTU 8.3 UUTTTUTU Connecterdrawing.......................................................................................................11 TUTU9UUTTAntennainstallationguide.....................................................................................................12 TUTU9.1UUTTAntennainstallationinstructions.........................................................................12 TUTU9.2UUTTTUTUCoaxicalroutingUUTT..................................................................................................12 TUTU 10 UUTTUTU Other..............................................................................................................................12 1Nounexplanation ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 4 / 12 dBiDecibelrelativeisotropicantenna TxTransmitfrequency RxReceivefrequency TRPTotalRadiatedPower TISTotalIsotropicSensitivity VSWRVoltageStandingWaveRatio GSMGlobalServiceforMobilecommunication DCSDigitalCommunicationSystem CDMACodeDivisionMultipleAccess WCDMAWidebandCodeDivisionMultipleAccess 2Testequipment networkanalyzer Agilent8960 SATIMO64chamber 3Workingfrequencyband TheyellowIdentificationistheusingband Band (2.4G)2400MHz～2500MHz 5.8G5150MHz～5850MHz ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 5 / 12 4Testproject 4.1VSWRplot 4.2Simthplot 4.3Radiationpattern 4.4Gain&Efficiency 4.5TRP&TIS 5Antennaparameter 5.1VSWR 5.1.1VSWRplot ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 6 / 12 5.1.2VSWRdata Freq/MHz24002500 VSWR1.61.9 5.2Simthplot ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 7 / 12 5.3Radiationpattern 5.3.1H-plane ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 8 / 12 5.3.2E-plane ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 9 / 12 5.4UGain&Efficiency ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 10 / 12 Frequency[Hz]EfficiencyGain[dBi] 2.4E+0966%3.082669 2.41E+0965%3.02835 2.42E+0968%3.152057 2.43E+0967%3.249786 2.44E+0964%2.917737 2.45E+0963%2.803774 2.46E+0962%2.819249 2.47E+0958%2.563009 2.48E+0956%2.334871 2.49E+0957%2.515357 2.5E+0954%2.185912 6Environmentaltreatmentsuggestions Environmentdoesnotneedtreatment 7Impedancematching Thematchingcircuithasnotbeenchanged 8Antennaplan ShanghaiJesoncomCommunicationEngineeringC…

Text truncated - open the document above for the full version.

ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 1 / 11 SPECIFICATIONFORAPPROVAL CUSTOMER/PROJECT：XSOLAX CUSTOMERP.N：311601000600 PRODUCTNAME：WIFIANT MODELNO：15K003A Pleasereturntousonecopyof“SPECIFICATIONFORAPPROVAL”withyour approvedsignature. ADD:No.358LiuyuanRD.,BaoshanUrbanIndustrial District.,Shanghai,PR.China. TEL:+86-21-66276925(26/29/35)－615 SUPPLIERAUTHORIZEDSIGNATURE PREPAREDCHECKEDAPPROVED JennyStevenAlex CUSTOMERAUTHORIZEDSIGNATURE PMJennyQEsun ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 2 / 11 Content TUTU content UUTT ................................................................................................................................1 TUTU1UUTTUNounexplanation.....................................................................................................................4 TUTU2UUTTTestequipmentUUTT........................................................................................................................4 TUTU3UUTTWorkingfrequencybandUUT.....................................................................................................4 TUTU4UUTTTestproject...............................................................................................................................5 TUTU4.1UUTTTUTUVSWRplotUUTT...............................................................................................................5 TUTU 4.2 UUTTTUTU Simthplot UUTT .................................................................................................................5 TUTU4.3UUTUTURadiationpatternUUTT......................................................................................................5 TUTU4.4UTUTUGain&Efficiency......................................................................................................5 TUTU5UUTTAntennaparameter...................................................................................................................5 TUTU 5.1 UUTTTUTU VSWR UUTT ......................................................................................................................5 TUTU 5.1.1 UUTTTUTU VSWRplot UUTT ...................................................................................................5 TUTU 5.1.2 UUTTUTU VSWRdata UUTT ....................................................................................................6 TUTU 5.2 UU Simthplot UUTT ..................................................................................................................6 TUTU5.3UUTTTUTURadiationpattern......................................................................................................7 TUTU5.3.1UUTTTUTUH-planeUUTT..........................................................................................................7 TUTU 5.3.2 UUTTUTU E-plane UUTT ........................................................................................................8-9 TUTU 5.4 UUTTUTU UGain&Efficiency UUTT ...............................................................................................10 TUTU 6 UUTT Environmentaltreatmentsuggestions U ..................................................................................10 TUTU 7 UUTT Impedancematching..............................................................................................................10 TUTU8UUTTTUTUAntennaplanU.........................................................................................................................11 TUTU8.1UUTTTUTUAntennadimensionaldrawing................................................................................11 TUTU8.2UUTTTUTUCoaxicalcablelengthdrawingUUTT...............................................................................11 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 3 / 11 TUTU 8.3 UUTTTUTU Connecterdrawing.......................................................................................................11 1Nounexplanation ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 4 / 11 dBiDecibelrelativeisotropicantenna TxTransmitfrequency RxReceivefrequency TRPTotalRadiatedPower TISTotalIsotropicSensitivity VSWRVoltageStandingWaveRatio GSMGlobalServiceforMobilecommunication DCSDigitalCommunicationSystem CDMACodeDivisionMultipleAccess WCDMAWidebandCodeDivisionMultipleAccess 2Testequipment networkanalyzer Agilent8960 SATIMO64chamber 3Workingfrequencyband TheyellowIdentificationistheusingband Band (2.4G)2400MHz～2500MHz 5.8G5150MHz～5850MHz ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 5 / 11 4Testproject 4.1VSWRplot 4.2Simthplot 4.3Radiationpattern 4.4Gain&Efficiency 4.5TRP&TIS 5Antennaparameter 5.1VSWR 5.1.1VSWRplot ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 6 / 11 5.1.2VSWRdata Freq/MHz24002500 VSWR1.41.8 5.2Simthplot ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 7 / 11 5.3Radiationpattern 5.3.1H-plane 5.3.2E-plane ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 8 / 11 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 9 / 11 5.4UGain&Efficiency Frequency[Hz]EfficiencyGain[dBi] ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 10 / 11 240000000046%3.328330282 241000000047%3.166213031 242000000050%3.394949211 243000000051%3.637590036 244000000053%3.407480388 245000000053%3.465102035 246000000054%3.407844042 247000000054%3.171319114 248000000054%3.298410001 249000000054%3.147985841 250000000052%2.925550042 6Environmentaltreatmentsuggestions Environmentdoesnotneedtreatment 7Impedancematching Thematchingcircuithasnotbeenchanged 8Antennaplan ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 11 / 11

ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 1 / 12 SPECIFICATIONFORAPPROVAL CUSTOMER/PROJECT：XSOLAX CUSTOMERP.N：311601001600 PRODUCTNAME：WIFIANT MODELNO：12I001A Pleasereturntousonecopyof“SPECIFICATIONFORAPPROVAL”withyour approvedsignature. ADD:No.358LiuyuanRD.,BaoshanUrbanIndustrial District.,Shanghai,PR.China. TEL:+86-21-66276925(26/29/35)－615 SUPPLIERAUTHORIZEDSIGNATURE PREPAREDCHECKEDAPPROVED JennyStevenAlex CUSTOMERAUTHORIZEDSIGNATURE PMJennyQEsun ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 2 / 12 Content TUTUcontentUUTT................................................................................................................................1 TUTU1UUTTUNounexplanation.....................................................................................................................4 TUTU2UUTTTestequipmentUUTT........................................................................................................................4 TUTU3UUTTWorkingfrequencybandUUT.....................................................................................................4 TUTU4UUTTTestproject...............................................................................................................................5 TUTU4.1UUTTTUTUVSWRplotUUTT...............................................................................................................5 TUTU 4.2 UUTTTUTU Simthplot UUTT .................................................................................................................5 TUTU 4.3 UUTUTU Radiationpattern UUTT ......................................................................................................5 TUTU4.4UTUTUGain&Efficiency......................................................................................................5 TUTU5UUTTAntennaparameter...................................................................................................................5 TUTU 5.1 UUTTTUTU VSWR UUTT ......................................................................................................................5 TUTU 5.1.1 UUTTTUTU VSWRplot UUTT ...................................................................................................5 TUTU 5.1.2 UUTTUTU VSWRdata UUTT ....................................................................................................6 TUTU 5.2 UU Simthplot UUTT ..................................................................................................................6 TUTU 5.3 UUTTTUTU Radiationpattern......................................................................................................7 TUTU5.3.1UUTTTUTUH-planeUUTT..........................................................................................................7 TUTU5.3.2UUTTUTUE-planeUUTT........................................................................................................8-9 TUTU 5.4 UUTTUTU UGain&Efficiency UUTT ...............................................................................................10 TUTU 6 UUTT Environmentaltreatmentsuggestions U ..................................................................................10 TUTU 7 UUTT Impedancematching..............................................................................................................10 TUTU8UUTTTUTUAntennaplanU.........................................................................................................................11 TUTU8.1UUTTTUTUAntennadimensionaldrawing................................................................................11 TUTU8.2UUTTTUTUCoaxicalcablelengthdrawingUUTT...............................................................................11 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 3 / 12 TUTU 8.3 UUTTTUTU Connecterdrawing.......................................................................................................11 TUTU9UUTTAntennainstallationguide.....................................................................................................12 TUTU9.1UUTTAntennainstallationinstructions.........................................................................12 TUTU9.2UUTTTUTUCoaxicalroutingUUTT..................................................................................................12 TUTU 10 UUTTUTU Other..............................................................................................................................12 1Nounexplanation ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 4 / 12 dBiDecibelrelativeisotropicantenna TxTransmitfrequency RxReceivefrequency TRPTotalRadiatedPower TISTotalIsotropicSensitivity VSWRVoltageStandingWaveRatio GSMGlobalServiceforMobilecommunication DCSDigitalCommunicationSystem CDMACodeDivisionMultipleAccess WCDMAWidebandCodeDivisionMultipleAccess 2Testequipment networkanalyzer Agilent8960 SATIMO64chamber 3Workingfrequencyband TheyellowIdentificationistheusingband Band (2.4G)2400MHz～2500MHz 5.8G5150MHz～5850MHz ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 5 / 12 4Testproject 4.1VSWRplot 4.2Simthplot 4.3Radiationpattern 4.4Gain&Efficiency 4.5TRP&TIS 5Antennaparameter 5.1VSWR 5.1.1VSWRplot 5.1.2VSWRdata ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 6 / 12 Freq/MHz24002500515057005800 VSWR 1.21.31.11.32.0 5.2Simthplot 5.3Radiationpattern ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 7 / 12 5.3.1H-plane 5.3.2E-plane ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 8 / 12 ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 9 / 12 5.4UGain&Efficiency Frequency[Hz]EfficiencyGain[dBi] ShanghaiJesoncomCommunicationEngineeringCo.,Ltd 10 / 12 2.4E+0976%3.439045 2.41E+0975%3.514669 2.42E+0976%3.683037 2.43E+0976%3.638502 2.44E+0975%3.458362 2.45E+0974%3.548148 2.46E+0975%3.554285 2.47E+0973%3.511233 2.48E+0974%3.381227 2.49E+0974%3.375067 2.5E+0972%3.185403 5.15E+0954%6.839379 5.2E+0955%6.342397 5.25E+0955%5.570083 5.3E+0956%6.211342 5.35E+0958%7.168601 5.4E+0959%6.849573 5.45E+0958%6.492075 5.5E+0957%5.991…

Text truncated - open the document above for the full version.

Report No.EDG2209290149E01301R Page 1 of 65 Ver.1.0 TEST REPORT $二维码$ Product Name : Pocket WiFi Model Number : Pocket WiFi V3.0, Pocket WiFi V3.0 -P, Pocket WiFi V3.0 -E FCC ID : 2AMEH-POCKETWIFIV3 Prepared for : SolaX Power Network Technology (Zhejiang) Co. ,Ltd. Address : No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P.R. China Prepared by : EMTEK (DONGGUAN) CO., LTD. Address : -1&2F., Building 2, Zone A, Zhongda Marine Biotechnology Research and Development Base, No. 9, Xincheng Avenue, Songshanhu High-technology Industrial Development Zone, Dongguan, Guangdong, China Tel : +86-0769-22807078 Fax: +86-0769-22807079 Rep…
