125 mm 51 mm 技术要求： 1. 1. 封面封底 157g 铜版纸覆哑膜彩打，内部纸 80g 双胶纸黑白印刷，正反打印 2. 2. 装订方式 : 页码大于 60 页需用胶装 3. 3. 未注尺寸公差按 +- 1.5mm 4. 4. 图面、字体印刷清晰、无毛边、不起边、油墨不脱落 5. 5. 字体颜色为 PANTONE Black C，无边框，底色为白色 6. 6. 符合 RoHS 要求 描述 快速安装指南 Pocket WiFi+4GM series 多语言版 SolaX 设计 余雅萍 2023/01/04 审核 高蒙 2023/01/04 材料 双胶纸 核准 施鑫淼 2023/01/04 料号 320102062600 浙江艾罗网络能源技术股份有限公司 单位 mm 页次 REV.Description 00 首次发行 余雅萍 2023/01/04 REV.Description 描述 快速安装指南 Pocket WiFi+4GM series 多语 言版 SolaX 浙江艾罗网络能源技术股份有限公司 SolaX Power Network Technology (Zhejiang) Co., Ltd. 料号 320102062600 单位 mm 页次 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/ Pocket WiFi+4GM Installation Manual www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/ Pocket WiFi+4GM Installation Manual 1 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation and maintenance can only be performed by qualified personnel who: • Are licensed and/or satisfy state and local jurisdiction regulations; • Have good knowledge of this manual and other related documents. 3. Before installing the device, carefully read, fully understand and strictly follow the detailed instruction of this manual and other related regulations. SolaX shall not be liable for any consequences caused by the violation of the storage, transportation, installation, and operation regulations specified in this document and the user manual. 4. Use insulated tools when installing the device. Individual protective tools must be worn during installation, electrical connection and maintenance. 5. Please visit the website www.solaxpower.com of SolaX for more information. Descriptions of Labels CE mark of conformity UKCA mark of conformity RCM mark of conformity Do not dispose of the inverter together with household waste. FCC mark of conformity ENGLISH 2 RF EXPOSURE WARNING! • Install and operate the device in accordance with provided instructions. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. • End-users and installers must be provided with antenna installation instructions andtransmitter operating conditions for satisfying RF exposure compliance. CAUTION! • Do not dismantle or scrap by force. • Anti-static measures should be taken to decrease the damage of static electricity toelectronic components. • Keep away from flammable, explosive materials. • All the product labels and nameplate on the module shall be maintained clearly visible. ENGLISH 3 CE DECLARATION OF COMFORMITY • The product conforms to RF specifications and technical standards. • The device complies with DOC declaration. • The device meets the basic requirements and other relevant provisions of 2014/53/EU directive. • The device is allowed to be used in all EU member states. ENGLISH 4 FCC RULES This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ENGLISH 5 Sicherheit Allgemeiner Hinweis 1. Inhalt kann regelmäßig aktualisiert oder überarbeitet werden. SolaX behält sich das Recht vor, Verbesserungen oder Änderungen an dem/den in diesem Handbuch beschriebenen Produkt(en) und Programm(en) ohne vorherige Ankündigung vorzunehmen. 2. Die Installation und Wartung darf nur von qualifiziertem Personal durchgeführt werden, das: • als solche zugelassen sind und/oder die Vorschriften der staatlichen und lokalen Gesetzgebung erfüllen; • gute Kenntnisse dieses Handbuchs und anderer damit zusammenhängender Dokumente haben. 3. Lesen Sie vor der Installation des Geräts die ausführlichen Anweisungen des Benutzerhandbuchs und anderer damit zusammenhängender Vorschriften sorgfältig durch, machen Sie sich mit ihnen vertraut und befolgen Sie sie genau. SolaX haftet nicht für Folgen, die durch die Verletzung der in diesem Dokument und im Benutzerhandbuch angegebenen Lager-, Transport-, Installations- und Betriebsvorschriften entstehen. 4. Benutzen Sie bei der Installation des Geräts isolierte Werkzeuge. Bei der Installation, dem elektrischen Anschluss und der Wartung muss individuelle Schutzausrüstung getragen werden. 5. Besuchen Sie bitte die Website www.solaxpower.com von SolaX für weitere Informationen. DEUTSCH 6 Beschreibungen der Etiketten CE-KennzeichnungUKCA-ZeichenRCM-Zeichen Entsorgen Sie den das Gerät nicht mit dem Hausmüll FCC-Zeichen WARNUNG VOR HF-EXPOSITION! • Installi…

Text truncated - open the document above for the full version.

SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd. Rev1/26/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.2.20 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2AMEHPOCKETV4LTEM SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd.(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, XIANHONGZHU SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd. Rev1/26/2023 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023.2.20 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2AMEHPOCKETV4LTEM SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd.(“theapplicant”)certifiesthat,as ofthedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, XIANHONGZHU

Rev 1/ 26/ 2023 SolaX Power Network Technology (Zheji ang) Co. ,L td. Federal Communica tions Commission Authorization and Evaluation Divisi on 7435 Oakland Mills Road Columbia, MD 21046 USA Date: February-19-2023 Ref:Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code:2AMEHPOCKETV4LTEM SolaX Power Network Technology (Zheji ang) Co. ,L td. certifies that, as of the date of the filing of the applica tion, SOLAX POWER USA LLC is our desi gnated U.S. agent for se rviceof pro cessfor the above referenced FCC ID. SolaX Power Network Technology (Zheji ang) Co. ,L td. accepts to maintain an agent for no lessthan one year after the grantee has terminated all marketing and importation or the concl usi on of any Commission-related proceeding involving the equipment. SOLAX POWER USA LLC. accepts, as of the date of the filing of the applica tion, the obligation of the desi gnated U.S. agent for se rviceof processfor the above referenced FCC ID. Designate d U.S. Agent Information: Name: SOLAX POWER USA LLC FRN:0033415704 Address:3812 SEPULVEDA BLVD. STE. 310,, CA 90505 ContactPerson: XIAOHONG BAI Tel.: (440) 770-6575 201 Email: [email protected] Sincerely, SolaX Power Network Technology (Zheji ang) Co. ,L td. SOLAX POWER USA LLC XIANHONG ZHUXIAOHONG BAI

SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd. POALetter FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 FCCApplicationforFCCID:2AMEHPOCKETV4LTEM ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.onour behalf,toapplytotheFederalCommunicationsCommissiononourequipment.Anyandallacts carriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethesameeffectasacts ofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,theapplicant, arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Client’sSignature: XIANHONGZHU Date:2023.2.20 SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd.

SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd. SDoCAttestationLetter To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AMEHPOCKETV4LTEM ProductDescription:PocketWiFi+4GM TypeDesignation:PocketWiFi+4GM Trademark:TriplePower ToWhomItMayConcern: HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Client’sSignature: XIANHONGZHU Date:2023.2.20 SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd.

SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd. Rev11/20/07 ConfidentialityLetter FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AMEHPOCKETV4LTEM PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram CircuitSchematic OperationDescription BOM Tune-upProcedure PocketWiFi+4GM_BlockDiagram PocketWiFi+4GM_CircuitSchematic PocketWiFi+4GM_OperationDescription PocketWiFi+4GM_BOM TuneUpProcedure Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow foraperiodof180days: ExhibitTypeFileName UserManual ExternalPhotos InternalPhotos TestSetupPhotos AntennaTestSetupPhotos PocketWiFi+4GM_UserManual PocketWiFi+4GM_ExternalPhotos PocketWiFi+4GM_InternalPhotos PocketWiFi+4GM_TestSetupPhotos PocketWiFi+4GM_WIFIAntTestSetupPhotos Client’sSignature: XIANHONGZHU Date:2023.2.25 SolaXPowerNetworkTechnology(Zhejiang)Co.,Ltd.

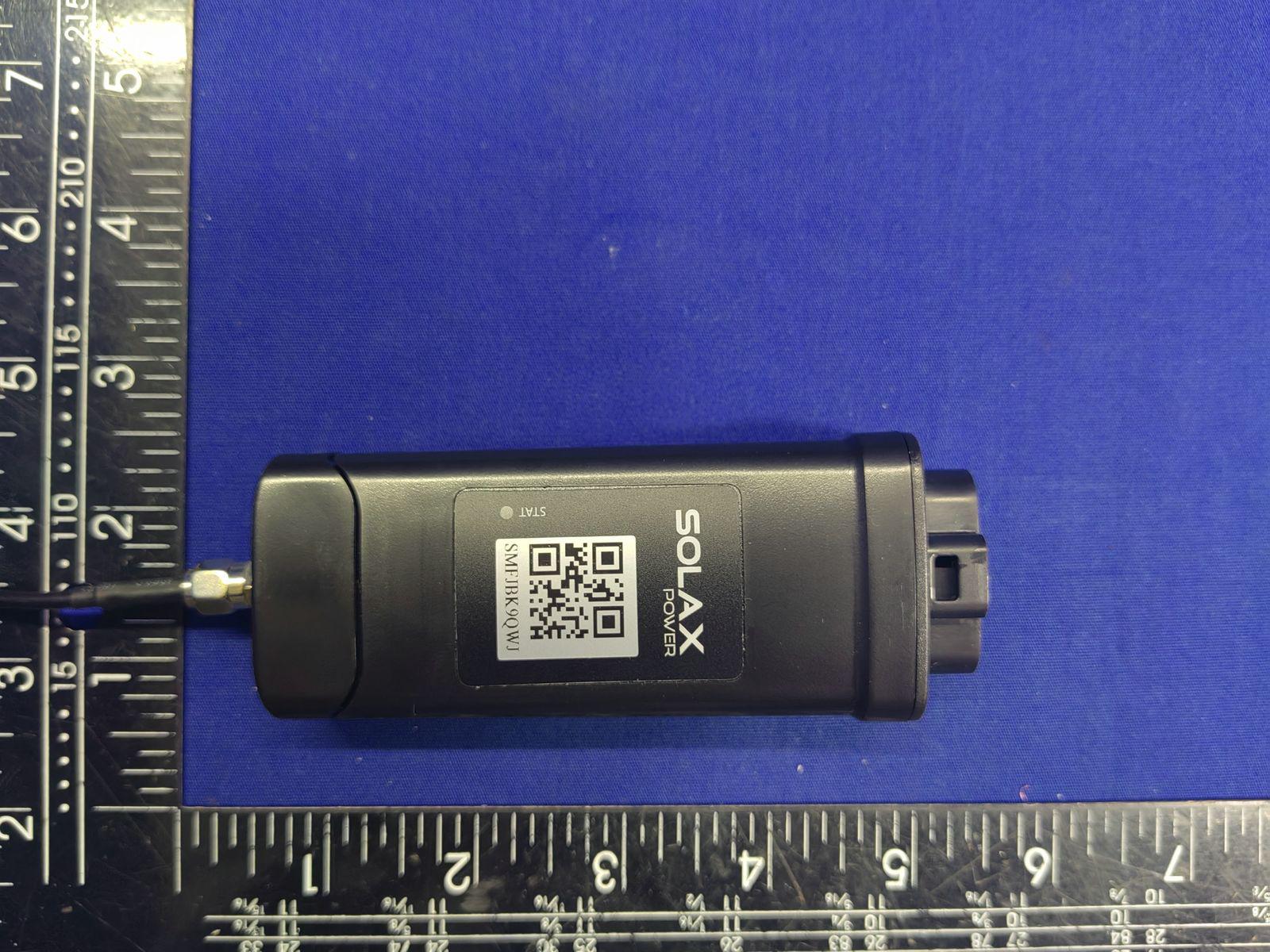

Page1of4 EXTERNALPHOTOS 4GANT Page2of4 Page3of4 Page4of4 -----TheEnd-----

Page1of2 INTERNALPHOTOS Page2of2 -----TheEnd----- 2.4GWIFIANT

FCCID:2AMEHPOCKETV4LTEM 1.RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b). LimitsforMaximumPermissibleExposure(MPE). Frequency Range(MHz) ElectricField Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2. Pout=outputpowertoantennainmW. G=Numericgainoftheantennarelativetoisotropicantenna. Pi=3.1416. R=distancebetweenobservationpointandcenteroftheradiatorin20cm. PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotal. powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. 2.EUTTECHNICALDESCRIPTION CharacteristicsDescription ProductPocketWiFi+4GM ModelNumberPocketWiFi+4GM PowerSupply DC5V TemperatureRange -35°C~60°C OperationBand: LTEB2/B4/B5/B12/B13/B25/B26/B66/B85 NB-IOTB2/B4/B5/B12/B13/B25/B66/B71/B85 Modulation: QPSK/16QAMforLTE BPSK,QPSKforNB-IOT OperatingFrequency Range(s): LTEBand2:Tx:1850-1910MHz,Rx:1930-1990MHz LTEBand4:Tx:1710-1755MHz,Rx:2110-2155MHz LTEBand5:Tx:824-849MHz,Rx:875-885MHz LTEBand12:Tx:699-716MHz,Rx:729-746MHz LTEBand13:Tx:777-787MHz,Rx:746-756MHz LTEBand25:Tx:1850-1915MHz,Rx:1930-1995MHz LTEBand26:Tx:814-849MHz,Rx:859-894MHz LTEBand66:Tx/Rx:1710-1780MHz LTEBand85:Tx:698-716MHz,Rx:728-746MHz NB-IOTBand2:Tx:1850-1910MHz,Rx:1930-1990MHz NB-IOTBand4:Tx:1710-1755MHz,Rx:2110-2155MHz NB-IOTBand5:Tx:824-849MHz,Rx:875-885MHz NB-IOTBand12:Tx:699-716MHz,Rx:729-746MHz NB-IOTBand13:Tx:777-787MHz,Rx:746-756MHz NB-IOTBand25:Tx:1850-1915MHz,Rx:1930-1995MHz NB-IOTBand66:Tx/Rx:1710-1780MHz NB-IOTBand71:Tx/Rx:663-698MHz NB-IOTBand85:Tx:698-716MHz,Rx:728-746MHz AntennaType:ExternalAntenna AntennaGain: LTEBand2:1.49dBi LTEBand4:1.28dBi IEEE802.11WLAN ModeSupported 802.11b 802.11g 802.11n(20MHzchannelbandwidth) 802.11n(40MHzchannelbandwidth) Modulation DSSSwithDBPSK/DQPSK/CCKfor802.11b OFDMwithBPSK/QPSK/16QAM/64QAMfor802.11g/n OperatingFrequency Range 2412-2462MHzfor802.11b/g/n(HT20) 2422-2452MHzfor802.11b/g/n(HT40) NumberofChannels 11channelsfor802.11b/g/n(HT20) 7Channelsfor802.11n(HT40) AntennaTypePCBAntenna AntennaGain3.26dBi LTEBand5:1.16dBi LTEBand12:2.87dBi LTEBand13:1.95dBi LTEBand25:1.49dBi LTEBand26:1.26dBi LTEBand66:1.28dBi LTEBand85:2.87dBi NB-IOTBand2:1.49dBi NB-IOTBand4:1.28dBi NB-IOTBand5:1.16dBi NB-IOTBand12:2.87dBi NB-IOTBand13:1.95dBi NB-IOTBand25:1.49dBi NB-IOTBand66:1.28dBi NB-IOTBand71:2.87dBi NB-IOTBand85:2.87dBi 3.MeasurementResult ModePG(mW) Antenna gain(dBi) Antenna GainNumeric R (cm) Evaluation result (mW/cm2) Power densityLimits (mW/cm2) 2.4GWIFI93.32543.262.12200.01861.0000 LTEB2153.61251.491.41200.03061.0000 LTEB4150.38971.281.34200.02991.0000 LTEB5150.20971.161.31200.02990.5498 LTEB12214.94282.871.94200.04280.4665 LTEB13173.90941.951.57200.03460.5197 LTEB25156.43111.491.41200.03110.5270 LTEB26149.69871.261.34200.02981.0000 LTEB66139.64761.281.34200.02781.0000 LTEB85261.41702.871.94200.05200.4770 NB-IOTB2160.65891.491.41200.03201.0000 NB-IOTB4139.64761.281.34200.02781.0000 NB-IOTB5155.43431.161.31200.03090.5498 NB-IOTB12224.62492.871.94200.04470.4665 NB-IOTB13178.60961.951.57200.03550.5197 NB-IOTB25140.92891.491.41200.02800.5270 NB-IOTB66136.96201.281.34200.02721.0000 NB-IOTB71218.81572.871.94200.04350.4437 NB-IOTB85234.30712.871.94200.04660.4770 Note:Allthemodesaretested,onlytheworstdataaredescribedinthetable. Conclusionofsimultaneoustransmitter: Bothofthemodule1andmodule2cantransmitsimultaneously,theformulaofcalculatedthe MPEis: CPD1/LPD1+CPD2/LPD2+......etc.<1 CPD=Calculationpowerdensity LPD=Limitofpowerdensity Thereforetheworst-casesituationis0.0186/1+0.0520/0.4770=0.1276,whichislessthan1,this confirmedthatthedevicecomplywithFCC1.1310MPElimit. -----TheEnd-----
