2AMG5-STG-7076-KBWIRELESS CHARGING MAGNETIC BATTERY

FCC InstructionsChanges or modifications not expressly approved by the party re sponsible for compliance could void the user’s authority to operate the produ ct. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed to provide reasonable protection against harmful inter ference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance w ith the instructions, may cause harmful interference to radio communica tions. However, there is no guarantee that interference will not occur in a par ticular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the eq uipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the product and receiver.- Connect the product into an outlet on a circuit different fr om that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includi ng interference that may cause undesired operation.The device has been evaluated to meet general RF exposure requi rement.The device can be used in portable exposureconditionwithoutrestrict ion. 68mm 14mm 102mm

JLR Gear 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: JLR Gear Address: 2434 Research Dr Livermore, California United States 94550 Product Name: WIRELESS CHARGING MAGNETIC BATTERY FCCID: 2AMG5-STG-7076-KB Model(s): 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U-*** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) 2.911(d)(5)(i) EquipmentType We, [JLR Gear] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Eric Marshburn Date: 2024/08/08 Title and Company name: / JLR Gear NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

JLR Gear 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: JLR Gear Address: 2434 Research Dr Livermore, California United States 94550 Product Name: WIRELESS CHARGING MAGNETIC BATTERY FCCID: 2AMG5-STG-7076-KB Model(s): 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U-*** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) 2.911(d)(5)(ii) Applicant filing We, [JLR Gear] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Eric Marshburn Date: 2024/08/08 Title and Company name: / JLR Gear NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com JLR Gear 2.911 (d)(5)(ii) Applicant Attestation v1.2 munications-supply-chain-through-the

JLR Gear U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: JLR Gear FRN: 0026573915 Contact Name: Eric Marshburn Address: 2434 Research Dr Livermore, California United States 94550 Telephone No: 510-777-9894 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024.8.8 Signed by (Printed Name/Title): Eric Marshburn The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: JLR Gear FCC ID: 2AMG5-STG-7076-KB Contact Name: Eric Marshburn Address: 2434 Research Dr Livermore, California United States 94550 Telephone No: 510-777-9894 Email: [email protected] FRN: 0026573915 Applicant Signature: Date: 2024.8.8 Signed by (Printed Name/Title): Eric Marshburn

Declaration on model difference We the undersigned hereby confirm that any of o The following models of units we produce are identical in electrical, mechanical and physical structure; The difference is only in the model name, we finally have 2AMG5-STG-7076-KB as test model. Production name Trade name Model no. WIRELESS CHARGING MAGNETIC BATTERY N/A 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J- ***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U- *** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) Signature: Date: 2024/08/08 Name: Eric Marshburn Title: Company: JLR Gear

JLR Gear 2024.08.08 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: WIRELESS CHARGING MAGNETIC BATTERY FCCID: 2AMG5-STG-7076-KB Model(s): 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U- *** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Eric Marshburn Contact information / address: 2434 Research Dr Livermore, California United States 94550

JLR Gear 2024.08.08 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name: WIRELESS CHARGING MAGNETIC BATTERY FCCID: 2AMG5-STG-7076-KB Model(s): 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U- *** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Eric Marshburn Contact information / address: 2434 Research Dr Livermore, California United States 94550

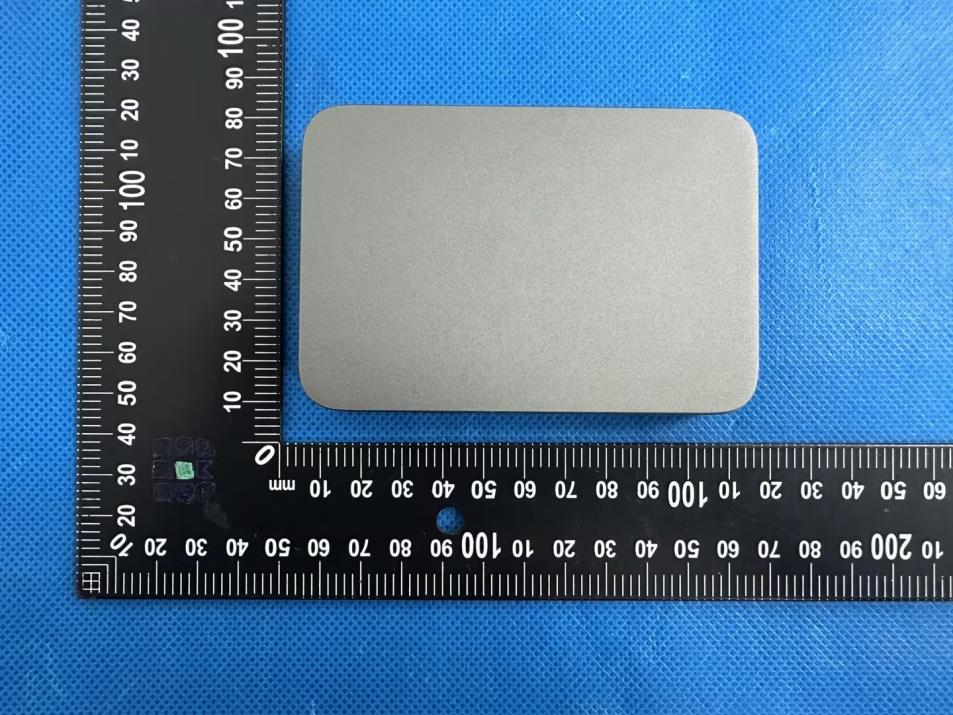

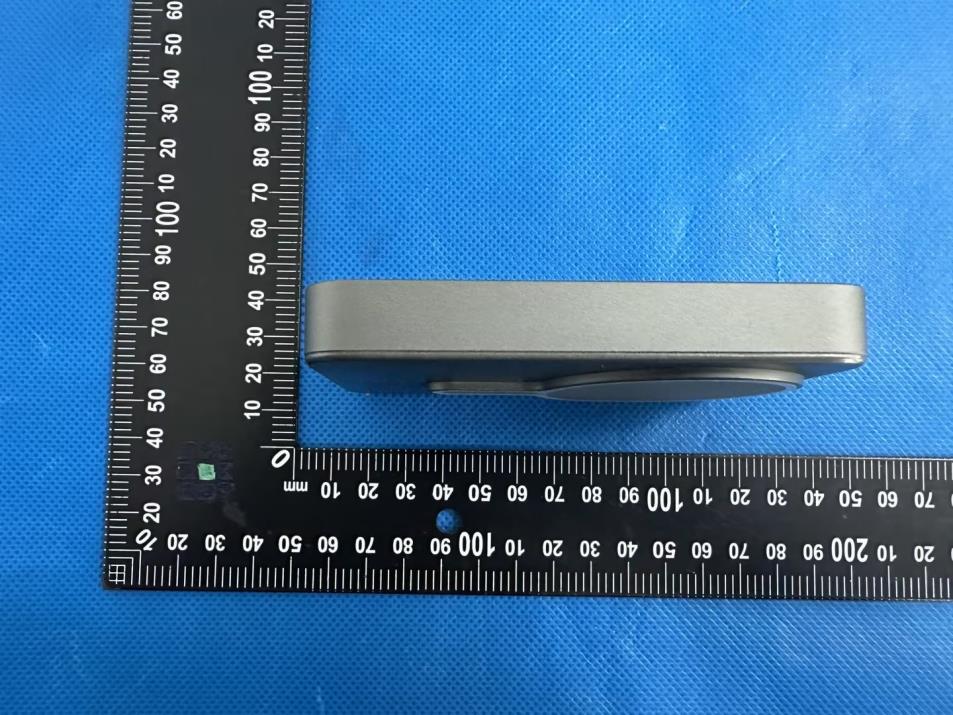

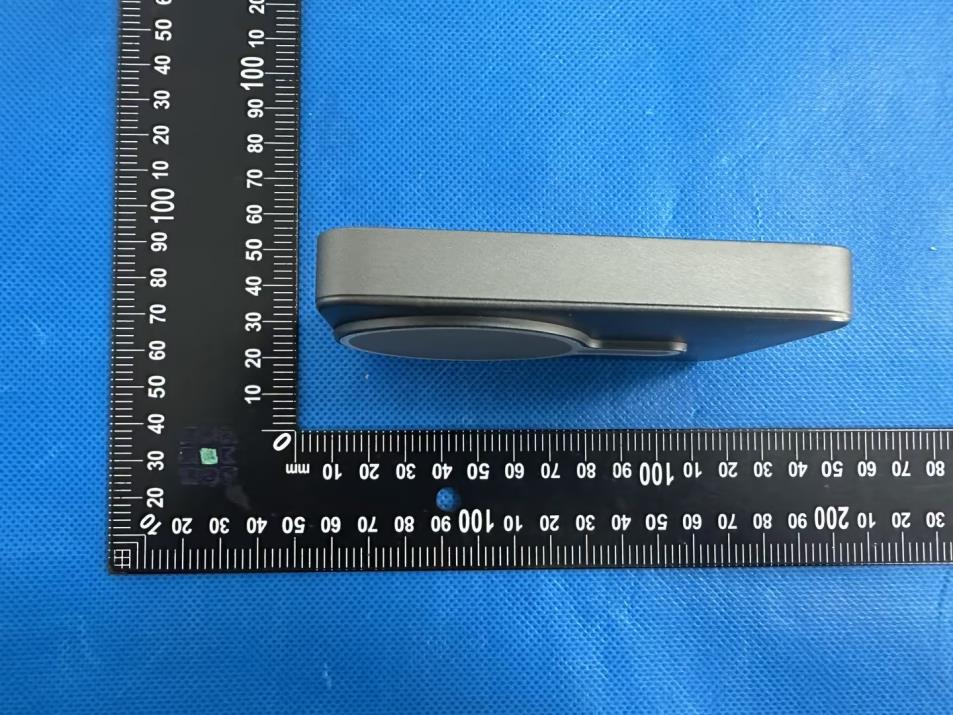

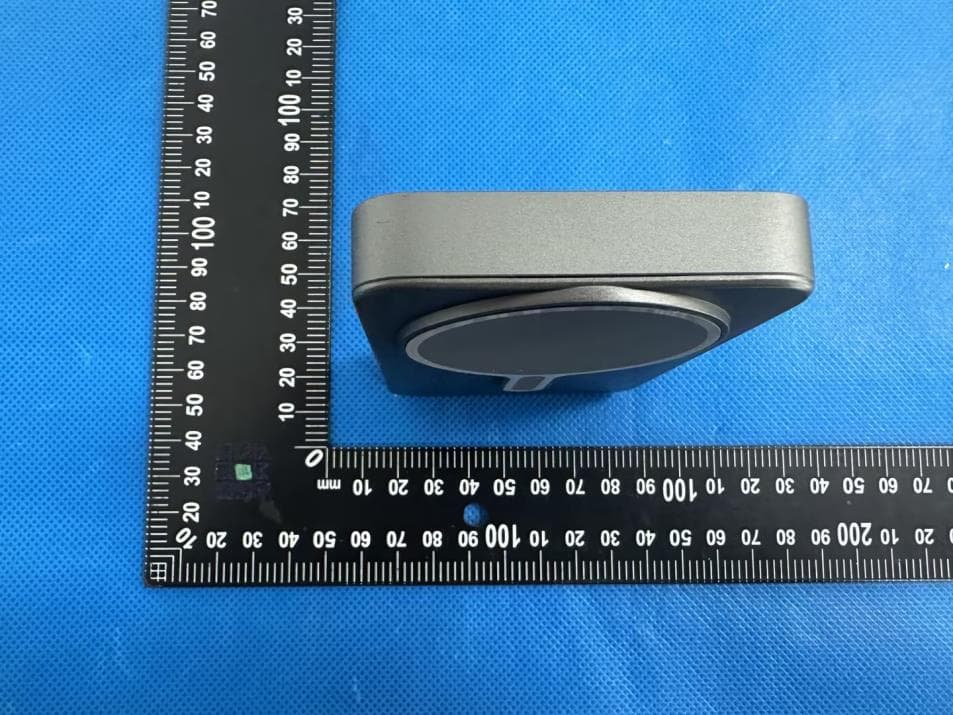

External Photos

Model：2AMG5-STG-7076-KB FCC ID: 2AMG5-STG-7076-KB Label location

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page 1 of 15 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407667117-2E Applicant: JLR Gear Product Name: WIRELESS CHARGING MAGNETIC BATTERY Test Model: 2AMG5-STG-7076-KB Tested Date: 2024-07-04 to 2024-07-11 Issued Date: 2024-08-12 Report No.: BCTC2407667117-2E No.：BCTC/RF-EMC-005 Page 2 of 15 Edition：B.2 FCC ID: 2AMG5-STG-7076-KB The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: WIRELESS CHARGING MAGNETIC BATTERY Trademark: Connect Model/Type Reference: 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***, A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U-*** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) Prepared For: JLR Gear Address: 2434 Research Dr Livermore, California United States 94550 Manufacturer: ShenZhen iGood Tech Co.,Ltd Address: Room201, Building 3, Fifth Industrial Zone, Tianliao Community, Yutang Street, Guangming District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2024-07-04 Sample Tested Date: 2024-07-04 to 2024-07-11 Report No.: BCTC2407667117-2E Test Standards: FCC CFR 47 part1, 1.1307(b), 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Test Results: PASS Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2407667117-2E No.：BCTC/RF-EMC-005 Page 3 of 15 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Product Information ............................................................................................... 5 2.1 Product Information ............................................................................................... 5 2.2 Support Equipment ............................................................................................... 5 2.3 Test Mode ............................................................................................................. 6 3. Test Facility And Test Instrument Used ................................................................. 7 3.1 Test Facility ........................................................................................................... 7 3.2 Test Instrument Used ............................................................................................ 7 4. Method Of Measurement ....................................................................................... 8 4.1 Applicable Standard .............................................................................................. 8 4.2 Block Diagram Of Test Setup ................................................................................ 8 4.3 Limit ...................................................................................................................... 9 4.4 Test procedure ...................................................................................................... 9 4.5 Equipment Approval Considerations ................................................................... 10 4.6 E and H field Strength ......................................................................................... 11 5. Photographs Of Test Set-Up ............................................................................... 14 (Note: N/A Means Not Applicable) Report No.: BCTC2407667117-2E No.：BCTC/RF-EMC-005 Page 4 of 15 Edition：B.2 1. Version Report No. Issue Date Description Approved BCTC2407667117-2E 2024-08-12 Original Valid Report No.: BCTC2407667117-2E No.：BCTC/RF-EMC-005 Page 5 of 15 Edition：B.2 2. Product Information 2.1 Product Information Model/Type reference: 2AMG5-STG-7076-KB,PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-***N-***O-***P-***Q-***R-***S-***T- ***U-*** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) Model differences: The following models of units we produce are identical in electrical, mechanical and physical structure; The difference is only in the model name, we finally have 2AMG5-STG-7076-KB, as test model. Hardware Version: V1.0 Software Version: V1.0 Type of Modulation: ASK Operation Frequency: 112-205KHz Antenna installation: Loop coil antenna Ratings: USB-C Input: DC 5V/3A, 9V/2A USB-C Output: DC 5V/3A,9V/2.22A,12V/1.67A Wireless Output: 5W/7.5W/10W/15W Battery: DC 3.85V, 10000mAh 2.2 Support Equipment No. Device Type Brand Model Series No. Note E-1 WIRELESS CHARGING MAGNETIC BATTERY N/A 2AMG5-STG-70 76-KB N/A EUT E-2 Dummy load N/A DL01 N/A Dummy load E-3 Adapter N/A KA3601A-125288 0US N/A Auxiliary Report No.: BCTC2407667117-2E No.：BCTC/RF-EMC-005 Page 6 of 15 Edition：B.2 Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 2.3 Test Mode DC Mode Mode 1 Wireless Charging (Full load) Mode 2 Wireless Charging (Half load) Mode 3 Wireless Charging (Null load) Note: All test mode were tested and passed, only shows the worst case mode which were recorded in this report. Report No.: BCTC2407667117-2E No.：BCTC/R…

Text truncated - open the document above for the full version.

Antenna Specification Length * Width：40mm *40mm. Thickness:0.9mm Inside diameter：5mm Manufacturer: ShenZhen iGood Tech Co.,Ltd Address: Room201, Building 3, Fifth Industrial Zone, Tianliao Community, Yutang Street, Guangming District, Shenzhen

No.：BCTC/RF-EMC-005 Page 1 of 25 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407667117-1E Applicant: JLR Gear Product Name: WIRELESS CHARGING MAGNETIC BATTERY Test Model.: 2AMG5-STG-7076-KB Tested Date: 2024-07-04 to 2024-07-11 Issued Date: 2024-08-12 Report No.: BCTC2407667117-1E No.：BCTC/RF-EMC-005 Page 2 of 25 Edition：B.2 FCC ID: 2AMG5-STG-7076-KB The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: WIRELESS CHARGING MAGNETIC BATTERY Trademark: Connect Model/Type Ref.: 2AMG5-STG-7076-KB, PD-14, PD-08, IGT-12,GT-***, iGT-***,A-***B-*** C-*** D-***E-***F-***G-***H-**,I-***J-***K-***L-***M-*** N-*** O-***P-***Q-***R-***S-***T-***U-*** V-***W-*** X-*** Y-*** Z*** , WS-***, US-*** , UD-*** (*** represents any number 0-9 or letter A-Z or blank. It only represents different models due to different appearance colors and sales strategies) Prepared For: JLR Gear Address: 2434 Research Dr Livermore, California United States 94550 Manufacturer: ShenZhen iGood Tech Co.,Ltd Address: Room201, Building 3, Fifth Industrial Zone, Tianliao Community, Yutang Street, Guangming District, Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-04 Sample tested Date: 2024-07-04 to 2024-07-11 Report No.: BCTC2407667117-1E Test Standards: FCC Part15.209 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2407667117-1E No.：BCTC/RF-EMC-005 Page 3 of 25 Edition：B.2 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information and Test Setup ...................................................................... 7 4.1 Product Information ................................................................................................. 7 4.2 Test Setup Configuration ......................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Test Mode ............................................................................................................. 8 5. Test Facility and Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup ................................................................................ 11 6.2 Limit ....................................................................................................................... 11 6.3 Test Procedure ...................................................................................................... 11 6.4 EUT Operating Conditions ..................................................................................... 12 6.5 Test Result ............................................................................................................ 13 7. Radiated Emissions ............................................................................................. 15 7.1 Block Diagram Of Test Setup ................................................................................ 15 7.2 Limit ....................................................................................................................... 16 7.3 Test Procedure ...................................................................................................... 16 7.4 Test Result .......................................................................................................... 17 8. Bandwidth Test .................................................................................................... 20 9. Antenna Requirements ........................................................................................ 22 10. EUT Test Setup Photographs.............................................................................. 23 Report No.: BCTC2407667117-1E No.：BCTC/RF-EMC-005 Page 4 of 25 Edition：B.2 1. Version Report No. Issue Date Description Approved BCTC2407667117-1E 2024-08-12 Original Valid Report No.: BCTC2407667117-1E No.：BCTC/RF-EMC-005 Page 5 of 25 Edition：B.2 2. Test Summary The Product has been tested according to the following specifications: No. Test Parameter Clause No Results 1 Conducted Emission 15.207 PASS 2 Radiated Emission 15.209 PASS 3 20dB Bandwidth 15.215 PASS 4 Antenna Requirement 15.203 PASS Report No.: BCTC2407667117-1E No.：BCTC/RF-EMC-005 Page 6 of 25 Edition：B.2 3. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. No. Item Uncertainty 1 3m chamber Radiated spurious emission(9kHz-30MHz) U=3.7dB 2 3m chamber Rad…

Text truncated - open the document above for the full version.
