EN REGISTERONLINE www.motocaddy.com/warranty Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations Distance Measurement Device (DMD) features are legal to use when local USGA and R&A rule 4.3 is in effect. Always check local and competition rules prior to commencing play IMPORTANT: Scan the QR code to ensure that your M3 GPS software remains up to date and performance is always optimised M3 GPS / M3 GPS DHC Electric Trolley Instruction Manual ORIGINAL VERSION Page 2 Software Updates / Locating your Serial Number / Information about DHC Locating your Serial Number The serial number is located on the trolley underside next to the motor (fig. 1). This number is required when registering your warranty online and should be kept handy for future use. The same number should also be on the box received with your trolley. Please ensure you keep hold of the packaging in case you need to return your trolley for any reason. A proof of purchase must also be kept in case your trolley requires servicing during its warranty period. Fig 1 IMPORTANT - Software Updates The M3 GPS has been developed to allow course and system updates via the Motocaddy App or using the enclosed USB cable. It is recommended that you always use the latest firmware version to enable you to take advantage of bug fixes and system improvements. You can register your email address to join our dedicated M3 GPS mailing list by scanning the QR code or visiting www.motocaddy.com/m3gps. Please keep a record of your trolley serial number here for future reference: M C M Information about DHC (Downhill Control) models The information in this instruction manual applies to both standard and DHC electric trolley models. For DHC specific functionality, please turn to page 34. Page 3 4 Equipment Overview 1. LCD Touchscreen Display 2. USB Port (on underside of handle) 3. Upper Bag Support 4. Upper Release Latch 5. Battery Connector 6. Battery 7. Battery Tray 8. EASILOCK™ Lower Bag Support 9. Front Wheel 10. Front Wheel Alignment Adjusters 11. Rear Wheels 12. Rear Wheel Release Button 13. Motor (under Battery Tray) 14. Auto-Open Stand 15. Lower Release Latch Equipment Overview 13 2 11 5 6 8 9 10 12 14 15 3 7 1 Page 4 Safe use of your Trolley Safety cut-out This Motocaddy trolley is fitted with a timed safety cut-out feature. Once started, the trolley will automatically cut power to the motor after ten minutes to reduce the risk of damage to the trolley. Pressing the On/Off button will restart the trolley. Safe use of your Trolley Motocaddy trolleys are designed for the transportation of golf bags and clubs contained within. Using the trolley for any other purpose may cause damage to the trolley and cause harm to the user. • Do not attempt to transport any other equipment; • The trolley is not designed for the transportation of people; • The maximum rated load suitable for this trolley is 20kg; • Do not use the trolley to assist you when walking up hills; • Submerging the trolley in water (e.g. a lake) is likely to cause damage to the trolley; • Do not operate the trolley whilst under the influence of drugs or alcohol; • This trolley can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the trolley in a safe way and understand the hazards involved. Children shall not play with the trolley. Cleaning and user maintenance shall not be made by children without supervision; Page 5 Trolley Care Caring for your Trolley Although your Motocaddy trolley has been weatherproofed, please follow these simple guidelines to help protect your trolley: • Do not store your trolley outside; • Try to minimise exposure to rain as much as possible with an umbrella during heavy rainfall; • Wipe excess water from the trolley prior to storage; • Never use a pressure washer to clean your trolley. To prevent water damage, wipe down with a damp cloth; • Avoid using high pressure air hoses near moving components; • Avoid exposure to items which may scratch, damage or exert excessive force on the LCD display; This Motocaddy trolley is designed to require very little maintenance. We do however recommend checking your trolley before each use to ensure: • There is no build up of excess mud and dirt; • The rear wheels are securely fitted and turn freely; • The front wheel nut is on tightly and quick release lever is clamped down; • The front wheel is not clogged up and turns freely; Only original Motocaddy parts should be used when repairing your trolley. If you experience an issue with your trolley, please contact our Technical Support team for further assistance. Page 6 Important Battery Safety & Care Important Battery Safety & Care Information • Always recharge as soon as possible after finishing your round, regardless of the number of holes played - ideally within 12 hours. Leaving batteries uncharged for extended periods may reduce capacity and could void your warranty; • Never leave batteries charging for longer than necessary - disconnect once the green LED light indicates the battery is fully charged; • Ensure that only Motocaddy 28V Lithium batteries are charged with Motocaddy 28V Lithium battery chargers (Model LC-2323) and the charger is always connected to an earthed socket outlet; • Batteries must be stored and charged on a dry, non-carpeted surface at a temperature ranging between 10°C and 30°C - charging outside these temperatures may reduce capacity; • The battery and charger must only be opened and maintained by authorised personnel. Unauthorised opening increases the risk of safety issues and will invalidate your warranty; • Take care not to drop the battery as this may cause damage to the internal cells which could affect battery performance and safety; • Regularly check the battery for visible signs of damage. Do not charge or use the battery if any damage …

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Motocaddy Ltd. Address Units 15 to 18, Stansted Distribution Centre Start Hill Great Hallingbury Hertfordshire CM22 7DG United Kingdom Grantee Code 2AMH4 FCC ID 2AMH4M3GPS Authorized Contact Name Ian Gell Contact Email [email protected] Contact Phone +441279712370 I , the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made i n t his application, the Applicant is responsible for: (1)labeling the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c )if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensur e t hat production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept t hat they are the responsibl e par ty and agree to abide by t heir responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements . (1 )the Applicant understands, accepts and agrees t hat a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS , F CC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS . f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. S ee 47C FR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions . Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [Motocaddy Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Motocaddy Ltd.] ( “the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date:2023-02-08 Print Name: Ian Gell Title: Engineering and Technology Director *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Motocaddy Ltd. Current Date :2023-03-11 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Motocaddy Ltd.) HEREBY DECLARED THAT Product Description Golf Trolley Model No. M3 GPS Manufacturer’s Name Motocaddy Ltd. Manufacturer’s Address Units 15 to 18, Stansted Distribution Centre Start Hill Great Hallingbury Hertfordshire CM22 7DG United Kingdom *Except that the different model number, different tyre and model with “DHC” means it with Down Hill Control use a clutch (DHC) deviation, are identical with the original product as follows: Note: they share the same motor, charger, battery pack, same handle part (which the RF module and antenna all inside it) and similar appearance. with the model(s) below which samples we chose to be tested by SGS Model No. (型号): M3 GPS DHC Manufacturer’s Name (生产商名称): Motocaddy Ltd. Manufacturer’s Address（生产商商地址): Units 15 to 18, Stansted Distribution Centre Start Hill Great Hallingbury Hertfordshire CM22 7DG United Kingdom Sincerely, Signature (签字): Printed Name (姓名): Ian Gell Position/Title (职位): Engineering and Technology Director Contact Number (联系电话): +441279712370

Motocaddy Ltd. Date: 2022-11-07 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2AMH4M3GPS To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Motocaddy Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Ian Gell Title: Engineering and Technology Director Signature: On behalf of Company: Motocaddy Ltd. Telephone: +441279712370

Motocaddy Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Motocaddy Ltd. Units 15 to 18, Stansted Distribution Centre Start Hill Great Hallingbury Hertfordshire CM22 7DG United Kingdom Regarding: Confidentiality Request regarding application for FCC ID: 2AMH4M3GPS LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Printed Name (on file with the FCC associated with the Grantee Code): I an Gell Title: Engineering and Technology Director Company Name: Motocaddy Ltd.

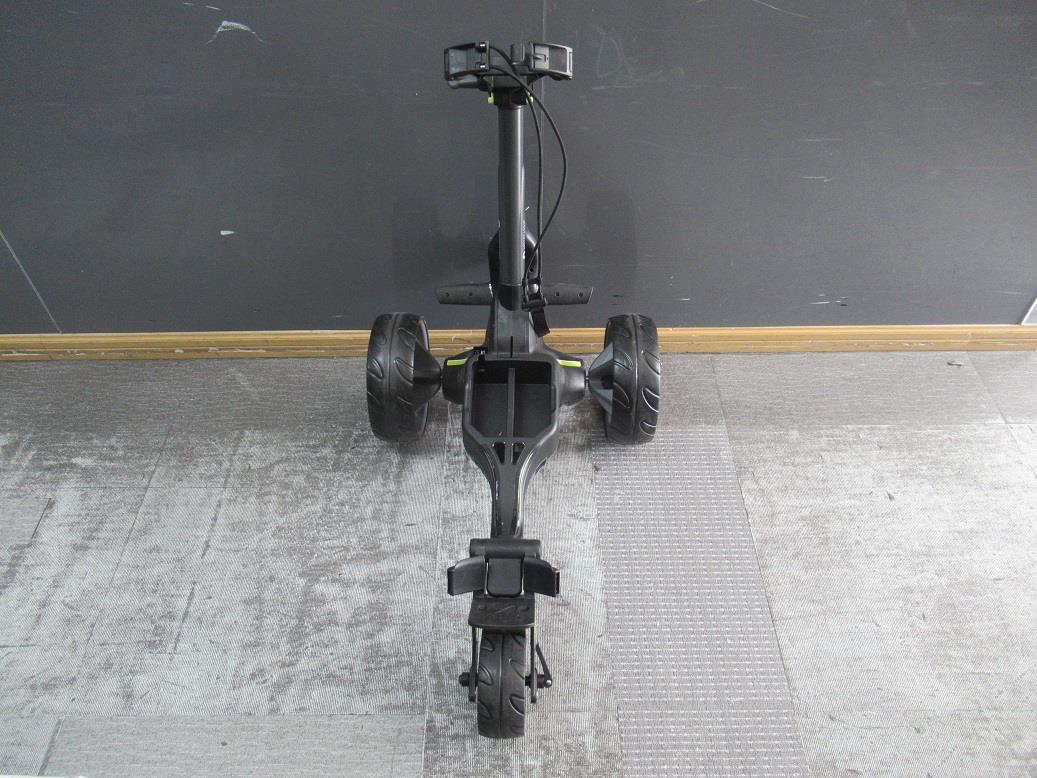

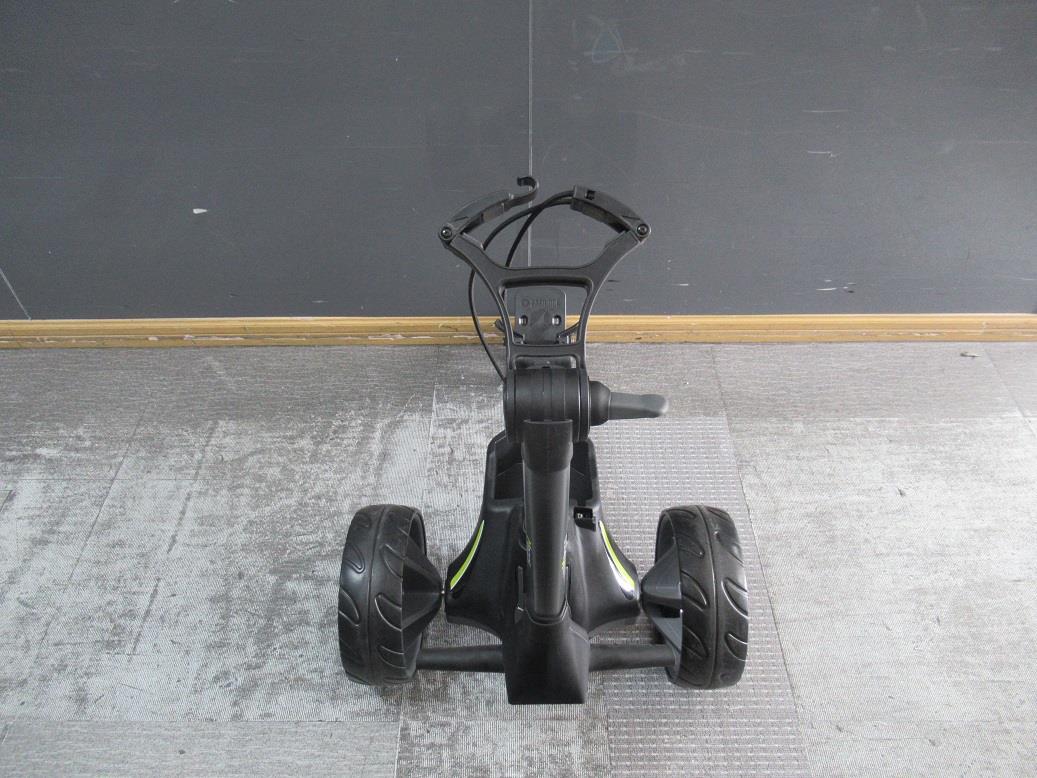

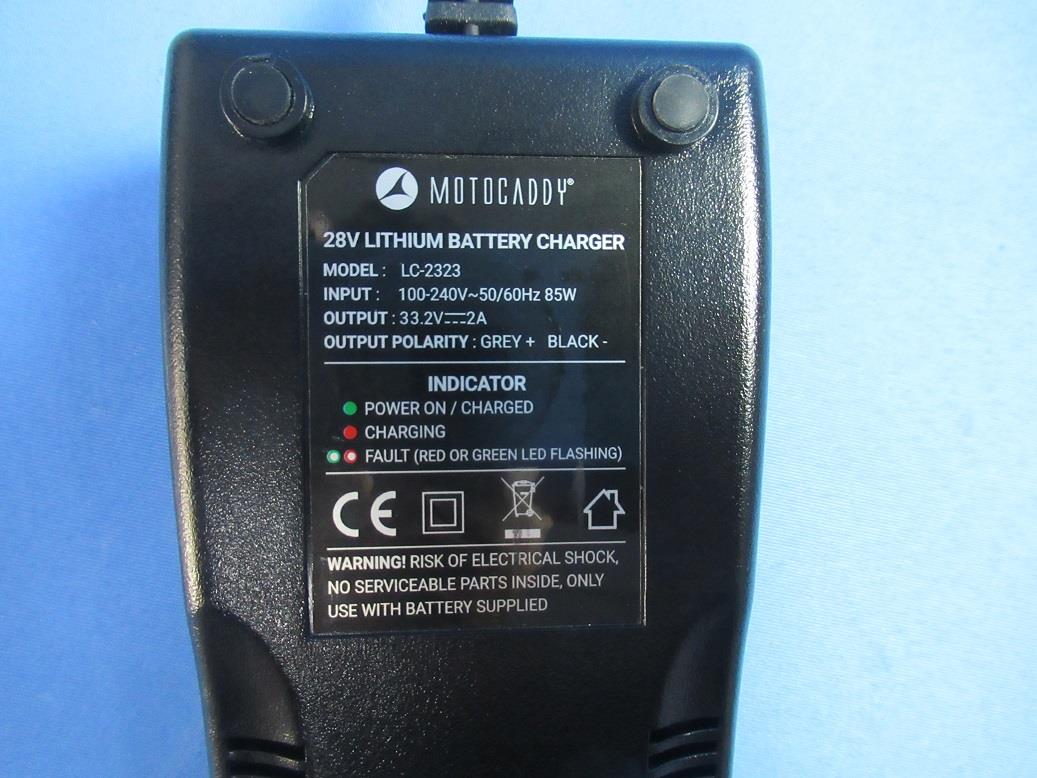

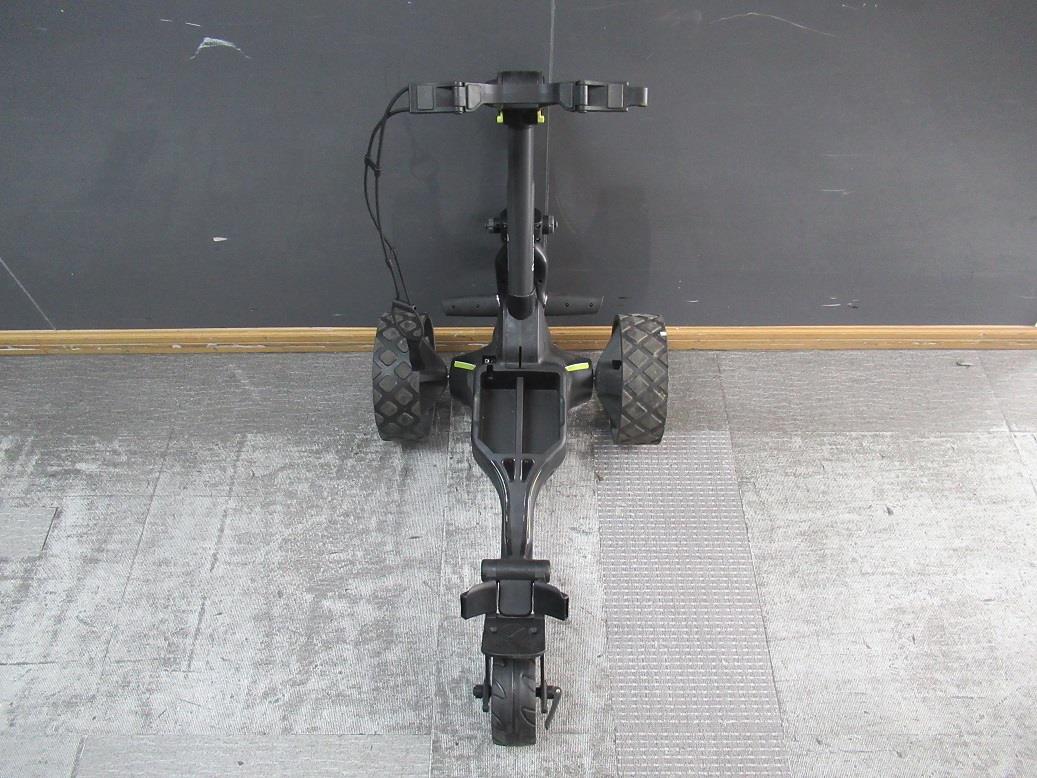

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 8 External Photos for SHCR2201000294HS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 8 EUT Constructional Details (EUT Photos) Model: M3 GPS DHC SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 8 Model: M3 GPS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 8 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 8 Battery charger for Both model SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 8 Battery for Both model SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 8

Model: M3 GPS Model: M3 GPS DHC Label Location

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 10 Internal Photos for SHCR2201000294HS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 10 EUT Constructional Details (EUT Photos) Internal Photo for M3 GPS & M3 GPS DHC SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 10 Internal photo for charger BT Antenna SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 10 of 10

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220100029402 Page: 1 of 10 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2201000294HS FCC ID: 2AMH4M3GPS IC: 29364-M3GPS Applicant: Motocaddy Ltd. Address of Applicant: Units 15 to 18, Stansted Distribution Centre Start Hill Great Hallingbury Hertfordshire CM22 7DG United Kingdom Manufacturer: CADDIESTER GOLF BUGGY TECHNOLOGY LTD Address of Manufacturer: NO.16-8 TONGZI RIVER WEST ROAD, ZHONGLOU DEVELOPMENT DIST, CHANGZHOU, CHINA Factory: CADDIESTER GOLF BUGGY TECHNOLOGY LTD Address of Factory: NO.16-8 TONGZI RIVER WEST ROAD, ZHONGLOU DEVELOPMENT DIST, CHANGZHOU, CHINA Equipment Under Test (EUT): EUT Name: Golf Trolley Model No.: M3 GPS DHC Add Model No.: M3 GPS Trade Mark: Motocaddy Standard(s) : FCC Rules 47 CFR §2.1093 KDB 447498 D04 interim General RF Exposure Guidance v01 RSS-102 Issue 5 Amendment 1 (February 2, 2021) Date of Receipt: 2022-02-14 Date of Test: 2022-02-14 to 2022-06-10 Date of Issue: 2023-06-13 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220100029402 Page: 2 of 10 Revision Record Version Description Date Remark 00 Original 2023-06-13 / Authorized for issue by: Wade Zhang/Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220100029402 Page: 3 of 10 2 Contents Page 1 COVER PAGE .................................................................................................................................... 1 2 CONTENTS ........................................................................................................................................ 3 3 GENERAL INFORMATION ................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................ 4 3.2 DETAILS OF E.U.T. ....................................................................................................................... 4 3.3 SEPARATION DISTANCE ................................................................................................................ 4 3.4 TEST LOCATION ............................................................................................................................ 5 3.5 TEST FACILITY .............................................................................................................................. 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................... 6 4.1 BLANKET 1 MW BLANKET EXEMPTION ........................................................................................... 6 4.2 MPE-BASED EXEMPTION .............................................................................................................. 6 4.3 SAR-BASED EXEMPTION ............................................................................................................... 7 4.4 RF EXPOSURE TEST EXEMPTIONS FOR SIMULTANEOUS TRANSMISSION .......................................... 8 5 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ............................................................. 9 6 MEASUREMENT AND CALCULATION .......................................................................................... 10 6.1 MAXIMUM TRANSMIT POWER ....................................................................................................... 10 6.2 RF EXPOSURE CALCULATION ...................................................................................................... 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220100029402 Page: 4 of 10 3 General Information 3.1 General Description of E.U.T. Power supply: DC 28.8V Battery Charging Adapter Model: LC-2323 Input: AC 100-240V 50/60Hz 85W Output: DC 33.2V 2A S/N: SN12000291 Firmware Version: V1.03 Product Type: Portable device Mobile device Fixed device 3.2 Details of E.U.T. Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: PCB Antenna Antenna Gain: 5.9dBi (Provided by manufacturer) 3.3 Separation Distance Separation distance between the antenna to person (R): 1cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. The BLE Antenna to LCD screen Distance (1cm) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220100029402 Page: 5 of 10 3.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. E&E Lab 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS- CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 6332.01) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the American Association for Laboratory Accreditation(A2LA). • FCC (Designation Number: CN1301) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. • ISED (CAB Identifier: CN0020) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. EMC Laboratory has bee…
