2AMIWUZ211Mobile Wi-Fi

Get To Know Your Mobile WiFi About Mobile WiFi 1.Power Button 2. *Microphone 3.Forced Reset Button 4. Type-C USB interface 5. Display screen and Touch screen 6. *Speaker 7. *Microphone 8.Indicator Light 10.AI Smart Button/WPS Button 11.SIM Card Slot 12.Device Label 1. Network Signal Status 2. WLAN WiFi Status 3. Status Code 4. SIM Card Status（Physical SIM Mode） 5.Bluetooth 6. GPS 7. Battery Level 8. Battery Status 9. Menu 1. Buttons 1) Power Button: Long press the Power Button for more than 3 seconds to power on/off the device; Short press to turn the screen on oroff. 2) AI Smart Button：Short press to turn on the screen. Short press again to turn on the AI. 3) Forced Reset Button：Short press to force restart and restore to factory settings. Long press for more than 8 seconds to force power off. (Warning: Please do not press the Forced Reset Button without customer service support.) 4) Screen Lock: After 60 seconds without use， the device screen will lock. After 90 seconds without use，the screen will turn off. To lock and turn off the screen， just short press the power button. 5) Unlock Screen: Short press the power button to turn onand unlockthe screen. 2. Indicator Light Description Power On Status PulsingRed Light Charging，Low Battery Pulsing Yellow Light Charging，Medium Battery Pulsing Green Light Charging，High Battery Continuous Green Light ChargingCompleted Flashing Red Light Low Battery Flashing Blue Light No network Continuous Blue Light Normal network Power Off Status Pulsing Red Light Charging，Low Battery Pulsing Yellow Light Charging，Medium Battery Pulsing Green Light Charging，High Battery Continuous Green Light ChargingCompleted System Status Continuous Green Light System Starting Up Pulsing Yellow Light SoftwareUpgrade With System Start- up Pulsing Red Ligh System Shutdown 3. How to connect a device to yourMobile WiFiNetwork 1）WiFi Network Manual Connection a) Find the SSID and KEY displayed on the bottom label of the Mobile WiFi device b) Enter the SSID and KEY found on the network connection of your phone or other device you want to connect to successfully connect to the network. Note: If the SSID and KEY displayed on the bottom label of the device are worn off and cannot be viewed clearly, you can start the Mobile WiFidevice and view it in "Home"-> "Network"-> "WLAN" 2). Code ScanConnection (Camera Scanning / Wechat Scanning) a) Start up yourMobile WiFidevice and enter the homescreen b) Click the "I want to connect " button at the bottom right of the screen to enter the code scanning page c) Open your phone or other device’s camera scanner or WeChat to scan the corresponding QR code d) After the scan is completed, your phone or other device will automatically connect to the network. Note: WeChat‘s scan code function can also be used to scan the Ucode QR code on the label on the back of the Mobile WiFidevice 3).NFC Touch Connection a) Turn on the NFC function of your phone or other device you want to connect b) Hold your phone or otherdevice to the front bottom area of the Mobile WiFidevice c) After the connection prompt pops up on your phone or other device, click "Connect" to automatically connect. Note: This feature is only available on Android devices 4). WPS One-click Connection a) Turn on the "WPS" function in the settings of your phone or other device you want to connect. b) Click the "I want to connect " button at the bottom right of Mobile WiFi device`s screen to enter the connection mode selection page c) Select "WPS connection" to enter the WPS network operation page, and click the "" button to activate the WPS network function of Mobile WiFi device d) Yourphone or other device should automaticallyfind the network. After the confirmation prompt pops up on your phone or other device, click "OK" to connect to the network. Note: i）This feature is only available on Android devices 4. Use of SIM card slot 1) Mobile WiFi both support "Physical SIM ”mode and "Virtual SIM ”mode. You can change the setting by navigating to "Home"-> "Network"->" SIM Card Mode ". 2) In the" Physical SIM ” mode, a SIM card must be inserted to use the Mobile WiFidevice. Some SIM cards also need an APN to be setup, which should be setup on the WebUI or App. The external card slot does not support switching SIM cards when the Mobile WiFidevice is on. If you need to use a SIM card, restart theMobile WiFideviceafter inserting or extracting an external SIM card. 3) In the "Virtual SIM ”mode, there is no need to insert a SIM card into the external card slot. You can purchase a data package through the UROCOMM App, and you can connect to a local network by turning on theMobile WiFi device when you arrive at your destination. 5. Device Management 1）Scan the QR code below to download the Urocomm app. With the app you can easily buy data packages, manage your data,change passwords, set up your device, restart your device, and more. 6.About WebUI– Change your settings though your web browser 1)Connect to the WLAN wifi network of your mobile phone or PC device using Mobile WiFi. 2)Enter the address "urocomm.info" or “192.168.225.1” in the browser, the default password is: 12345678 3)After logging in, you can use the Web Page to change your password and set an APN, etc. Mobile WiFi Specifications Product Name Mobile WiFi Model UZ-211-1 Size 86mm*86mm*26mm Weight 191.4g Bands LTE-TDD: B38/B40/B41 LTE-FDD: B2/B4/B5/B7/B12/B17/B18 WCDMA: B2 GSM: B2/B5 WLAN Support 2.4G & 5G IEEE 802.11a/b/g/n/ac LCD Screen 2.8 inches LCD Pixels 240 x 320 pixel Touch screen Support Battery type Lithium-ion 21700 battery Cell Norminal Capacity 5000mAh Cell Rated Capacity 4850mAh USB Port Input：Type-C 5V2A Output：Type-C 5V1A Bluetoot h Support （This feature is coming soon） AI Alexa Cloud MiFi Support Other function s GPS，Power bank， Indicator Light，WPS，Interpreter Working temperat ure -10°C-35°C FAQ 1.How to change the Wi-Fi name and password? First connect your mobile phone or PC device to your Mobile WiFi WLAN network , and …

Text truncated - open the document above for the full version.

QA-FR-170-B 7/29/2014 Company: Beijing ULINK Technology Co., Ltd. Add: No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China Tel: (+86)-010-64585518 Email: [email protected] FCC Authorization 2020-03-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Beijing ULINK Technology Co., Ltd., Hereby authorizes Bay Area Compliance Laboratory Corp. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Yanyan Li Title: Project Manager

QA-FR-171-A Company: Beijing ULINK Technology Co., Ltd. Add: No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China Tel: (+86)-010-64585518 Email: [email protected] Date:2020-03-05 FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AMIWUZ211 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Beijing ULINK Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Yanyan Li Title: Project Manager  Part List/Tune up procedure(for licensed devices)

Beijing ULINK Technology Co., Ltd. Add: No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China Tel: (+86)-010-64585518 Email: [email protected] Date:2019-12-15 DECLARATION OF SIMILARITY FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We Beijing ULINK Technology Co., Ltd., Hereby declare that product: Mobile WiFi, model(s): UZ-201,UZ-200 are electrically identical with the model UZ-211-1 that was tested by BACL.FCC ID: 2AMIWUZ211. The differences between the tested model and multiple models are as follows: They have the same PCB layout and schematic, just have different model name for marketing purpose. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Yanyan Li Title: Project Manager 16

Company: Beijing ULINK Technology Co., Ltd. Add: No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China Tel: (+86)-010-64585518 Email: [email protected] Date: 2020-03-05 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration Subject: FCC ID: 2AMIWUZ211 declaration of frequency bands restriction Dear Sir or Madam: We, Beijing ULINK Technology Co., Ltd., hereby declare that our product Mobile WiFi, Model Number: UZ-211-1,UZ-200,UZ-201 have the ability to work in 2.4G and 5G 4 frequency bands: 5150 MHz~5250 MHz,5250 MHz~5350MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz. For the purpose of marketing, the frequency of the product sold in U.S. are programmed and locked to work only in 2412 MHz~2462 MHz, 2422 MHz~2452 MHz, 2402 MHz~ 2480MHz, 5150 MHz~5250 MHz, 5725 MHz ~5850 MHz, The other frequency bands 5250 MHz~5350MHz,5470 MHz~5725 MHz are disabled by firmware in factory. The end user or any other parties cannot have the capability to activate the other frequency bands. We applied for testing only frequency bands: 2412 MHz~2462 MHz, 2422 MHz~2452 MHz, 2402 MHz~ 2480MHz, 5180MHz~5240MHz, 5745MHz~5825MHz for the United States this time in BACL. Please contact me if you have any question. Signature: Printed Name: Yanyan Li Title: Project Manager

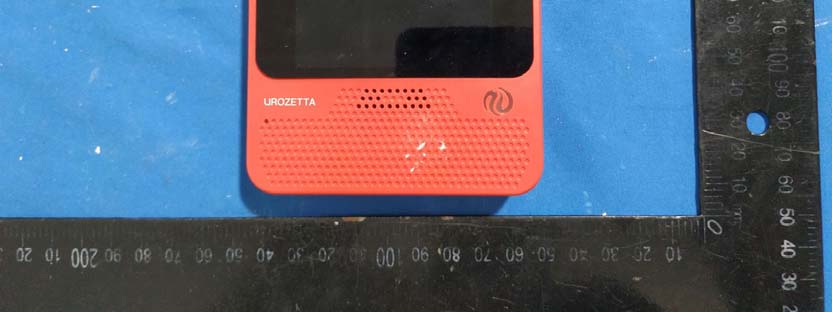

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

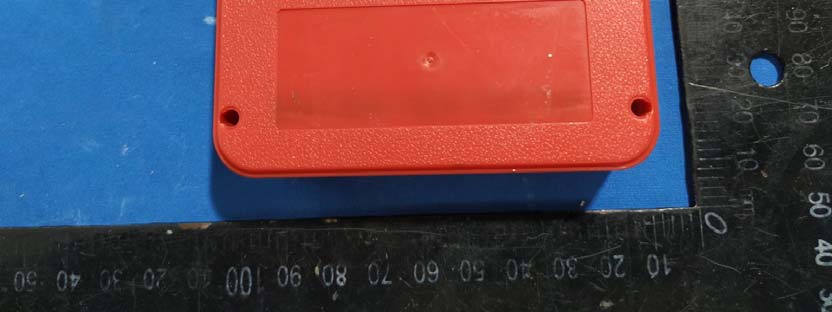

Label location

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Module 1 Module 2 GPS Antenna Bluetooth/Wi-Fi Antenna Main Antenna 2 For WWAN 2 DIV Antenna Main Antenna 1 For WWAN 1

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Beijing ULINK Technology Co., Ltd. No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China FCC ID: 2AMIWUZ211 Report Type: Original Report Product Type: Mobile WiFi Report Number: RBJ190927050-20 Report Date: 2020-05-08 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RBJ190927050-20 SAR Evaluation Report 2 of 145 Attestation of Test Results EUT Information EUT Description Mobile WiFi Tested Model UZ-211-1 Multiple Models UZ-200,UZ-201 FCC ID 2AMIWUZ211 Serial Number RBJ190927050-SA-S1 Test Date 2020-01-16~ 2020-05-07 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) Main 1 Antenna GSM 850 1g Body SAR 0.42 1.6 PCS 1900 1g Body SAR 1.03 WCDMA Band 2 1g Body SAR 0.59 LTE Band 2 1g Body SAR 0.68 LTE Band 4 1g Body SAR 1.17 LTE Band 5 1g Body SAR 0.55 LTE Band 7 1g Body SAR 1.35 LTE Band 12&17 1g Body SAR 0.25 LTE Band 18 1g Body SAR 0.59 LTE Band 40 1g Body SAR 0.51 LTE Band 41&38 1g Body SAR 0.46 Main 2 Antenna GSM 850 1g Body SAR 0.67 PCS 1900 1g Body SAR 0.65 WCDMA Band 2 1g Body SAR 1.14 LTE Band 2 1g Body SAR 1.12 LTE Band 4 1g Body SAR 1.45 LTE Band 5 1g Body SAR 0.54 LTE Band 7 1g Body SAR 1.31 LTE Band 18 1g Body SAR 0.56 LTE Band 40 1g Body SAR 0.26 LTE Band 41&38 1g Body SAR 1.19 WLAN WLAN 2.4G 1g Body SAR 0.11 WLAN 5.2G 1g Body SAR 0.14 WLAN 5.8G 1g Body SAR 0.07 Simultaneous 1g Body SAR 1.52 1g Body SAR 1.42 (Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximit y to the human body (frequencyrange of 30 MHz to 6 GHz) Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RBJ190927050-20 SAR Evaluation Report 3 of 145 Applicable Standards KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RBJ190927050-20 SAR Evaluation Report 4 of 145 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 22 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 24 EUT TEST STRATEGY AND METHODOLOGY .......................................................................................…

Text truncated - open the document above for the full version.

Test Plot 1 DUT: Mob Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 1#: GSM 850 bile WiFi; Ty cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (71x71x1):In value of SAR an (8x6x7)/Cu Value = 21.39 (extrapolated = 0.411 W/kg value of SAR 0 dB = 0. 0_Body Back_ ype: UZ-211- m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 nterpolated gr R (interpolated ube 0:Measure 9 V/m; Power d) = 0.633 W/k g; SAR(10 g) R (measured) = .428 W/kg = - _Middle -1; Serial: RB RS-3 slots; Fr MHz; σ = 0.90 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 rid: dx=1.500 d) = 0.447 W/k ement grid: dx r Drift = 0.02 kg = 0.310 W/k g = 0.428 W/kg -3.69 dBW/kg BJ190927050- requency: 836 09 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA mm, dy=1.50 kg x=8mm, dy=8 dB g g g -SA-S1 6.6 MHz;Duty 0.795; ρ = 100 836.6 MHz; C ) TP:1412 AD X Version 00 mm 8mm, dz=5mm Rep Cycle: 1:2.66 00 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m port No.: RBJ1 6 19/10/22; 70) 190927050-20 Page 1 of 24 0 48 Test Plot 2 DUT: Mob Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 2#: GSM 850 bile WiFi; Ty cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (71x71x1):In value of SAR an (5x5x7)/Cu Value = 12.27 (extrapolated = 0.145 W/kg value of SAR 0 dB = 0. 0_Body Front ype: UZ-211- m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 nterpolated gr R (interpolated ube 0:Measure 7 V/m; Power d) = 0.189 W/k g; SAR(10 g) R (measured) = .152 W/kg = - t_Middle -1; Serial: RB RS-3 slots; Fr MHz; σ = 0.90 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 rid: dx=1.500 d) = 0.154 W/k ement grid: dx r Drift = -0.07 kg = 0.106 W/k g = 0.152 W/kg -8.18 dBW/kg BJ190927050- requency: 836 09 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA mm, dy=1.50 kg x=8mm, dy=8 7 dB g g g -SA-S1 6.6 MHz;Duty 0.795; ρ = 100 836.6 MHz; C ) TP:1412 AD X Version 00 mm 8mm, dz=5mm Rep Cycle: 1:2.66 00 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m port No.: RBJ1 6 19/10/22; 70) 190927050-20 Page 2 of 24 0 48 Test Plot 3 DUT: Mob Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 3#: GSM 850 bile WiFi; Ty cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (61x81x1):In value of SAR an (5x5x7)/Cu Value = 13.3 (extrapolate d = 0.162 W/kg value of SAR 0 dB = 0. 0_Body Left_M ype: UZ-211- m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 nterpolated gr R (interpolated ube 0:Measure 1 V/m; Power d) = 0.266 W/k g; SAR(10 g) R (measured) = .176 W/kg = - Middle -1; Serial: RB RS-3 slots; Fr MHz; σ = 0.90 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 rid: dx=1.500 d) = 0.177 W/k ement grid: dx r Drift = -0.04 kg = 0.096 W/k g = 0.176 W/kg -7.54 dBW/kg BJ190927050- requency: 836 09 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA mm, dy=1.50 kg x=8mm, dy=8 4 dB g g g -SA-S1 6.6 MHz;Duty 0.795; ρ = 100 836.6 MHz; C ) TP:1412 AD X Version 00 mm 8mm, dz=5mm Rep Cycle: 1:2.66 00 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m port No.: RBJ1 6 19/10/22; 70) 190927050-20 Page 3 of 24 0 48 Test Plot 4 DUT: Mob Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 4#: GSM 850 bile WiFi; Ty cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (61x81x1):In value of SAR an (5x5x7)/Cu Value = 12.48 (extrapolated = 0.108 W/kg value of SAR 0 dB = 0. 0_Body Top_M ype: UZ-211- m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 nterpolated gr R (interpolated ube 0:Measure 8 V/m; Power d) = 0.149 W/k g; SAR(10 g) R (measured) = .116 W/kg = - Middle -1; Serial: RB RS-3 slots; Fr MHz; σ = 0.90 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 rid: dx=1.500 d) = 0.119 W/k ement grid: dx r Drift = -0.02 kg = 0.075 W/k g = 0.116 W/kg 9.36 dBW/kg BJ190927050- requency: 836 09 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA mm, dy=1.50 kg x=8mm, dy=8 2 dB g g g -SA-S1 6.6 MHz;Duty 0.795; ρ = 100 836.6 MHz; C ) TP:1412 AD X Version 00 mm 8mm, dz=5mm Rep Cycle: 1:2.66 00 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m port No.: RBJ1 6 19/10/22; 70) 190927050-20 Page 4 of 24 0 48 Test Plot 5 DUT: Mob Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 5#: GSM 850 bile WiFi; Ty cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (51x81x1): I value of SAR an (6x5x7)/Cu Value = 5.757 (extrapolated = 0.026 W/kg value of SAR 0 dB = 0. 0_Body Botto ype: UZ-211- m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 Interpolated g R (interpolated ube 0: Measur 7 V/m; Power d) = 0.0330 W g; SAR(10 g) R (measured) = .0306 W/kg = m_Middle -1; Serial: RB RS-3 slots; Fr MHz; σ = 0.90 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 grid: dx=1.500 d) = 0.0326 W rement grid: d r Drift = -0.07 W/kg = 0.022 W/k g = 0.0306 W/k -15.14 dBW/ BJ190927050- requency: 836 07 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA 0 mm, dy=1.50 W/kg dx=8mm…

Text truncated - open the document above for the full version.

Report No.: RBJ190927050-20 Page 1 of 4 aAPPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Model: Twin SAM V5.0; S/N: 1412 Body Back Setup Photo(10 mm) 10mm Report No.: RBJ190927050-20 Page 2 of 4 Body Front Setup Photo(10 mm) Body Left Setup Photo(10 mm) 10mm 10mm Report No.: RBJ190927050-20 Page 3 of 4 Body Right Setup Photo(10 mm) Body Top Setup Photo(10 mm) 10mm 10mm Report No.: RBJ190927050-20 Page 4 of 4 Body Bottom Setup Photo(10 mm) 10mm

FCC PART 15.407 TEST REPORT For Beijing ULINK Technology Co., Ltd. No.9-161, Fuqian street, Niulanshan town, Shunyi District,Beijing,China Report Type: Original Report Product Name: Mobile WiFi Re port Number: RBJ190927050-00C Re port Date: 2020-02-19 Reviewed By: Ivan Cao Assistant mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AMIWUZ211 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RBJ190927050-00C Page 2 of 64 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 CONFIGURATION OF TEST SETUP ................................................................................................................................. 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 FCC §15.407(f) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205 & §15.407(b) –UNWANTED EMISSION ............................................................................ 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ....................................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View-AC/DC Adapter Conducted Emissions Side View- AC/DC Adapter Conducted Emissions Front View Conducted Emissions Side View
