ZFX USER Wireless Headphone ZP-BHP-M GUIDE 1. 2 PACKAGE INCLUDE 1.RGB Headband LED 2.Adaptative Designheadband 3.Soft Ear Cushion 4.RGBLEDEarcup 5.USB-Cchargingcable Headphone*4 PCS Charging cable*4 PRODUCT OVERVIEW 3 09. Volume + 10. Volume - 11. Disco/Bluetooth mode switch 12. USB-C charging port 13. 3.5mm input for wired use 14. LED indicator 15. Power & RGB LED On/Off 16. Build-in Microphone Operate 9 A. How to answer and end incoming call When HeadphoneinBTmode and incoming call 1.Answercall: click the Power button 2.Rejectcall: double click the Power button 3.Endcall:clickthePowerbutton B. Turn ON/OFF RGB light 1.Click the Power button to Turn ON/OFF RGB Light CONNECT TO Devices 5 Bluetooth Mode: Connect Headphone via Bluetooth: 1.Open Bluetooth connection on your phone 2.Power on the headphone 3.Switch to the BT mode 4.Search the Bluetooth device for BSBTH22WH and connect it 5. The Headphone is in a broadcast transmission state(Master headphone), and the audio signal from the smartphone will be received by other headphones(slave headphones) in the team. *If there is an incoming call, the Master headphone will pause music transmission until the call ends, and transmission will automatically resume CONNECT TO Devices 5 Disco Mode: 1.Switch the Headphone to Disco Mode 2.Headphonewillbetheslaveheadphones and can receive audio signals from the Master headphone 3.If you want to stop receiving music from the main headphones, you can switch to Bluetooth mode *In Disco mode, The Bluetooth will disconnect and headphone can’t to be searched by other Bluetooth devices Master Headphone Slave Headphone Slave Headphone Slave Headphone How to add new headphone 9 There is no limit to the number of headphones in the group, and you can purchase more headphones of the same model to join the group LED&BUZZER INDICATION Headphone LED status Buzzer statusHeadphone Staus Blue/Green LED ON / Bluetooth/Disco mode Blue/Green LED OFF / Power OFF Blue LED+Green LED Alternating flash / Bluetooth paring mode Blue LED flash slowly / Bluetooth reconnect Green LED flash slowly /The Master headphone disconnect ， RedLEDflashone time every 3 sec Low power Low power indication Red LED lighting steadily / Headphone charging Red LED OFF / Headphone charging completed/no Charging 12 Note: When the available battery power is lower than 20%, the RGB light will be forced off and cannot be turned on, which will help to extend the battery life. 2AMLDBTM

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Southern Telecom Inc FRN: 0017985201 Contact Name: Shannon Wu Address: 5601 1st Ave 2nd Floor Brooklyn, NY 11220 Telephone No: (718) 567-7778 131 Email: [email protected] Applicant: Company name: Shenzhen ZFX Technology CO.,Ltd Product Description: Wireless headphone Grantee code: 2AMLD FCC ID: 2AMLDBTM Contact Name: Eva Zhang Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANDONG, China, 518110 Telephone No: 0755-33682771 Email: [email protected] [Shenzhen ZFX Technology CO.,Ltd] certifies that, as of the date of this filing of the application with the TCB, [Southern Telecom Inc] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen ZFX Technology CO.,Ltd] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Southern Telecom Inc] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 8.14.2023 Applicant’s Name: Eva Zhang US Agent’s Name: Shannon Wu Title: VP Title: Sourcing Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen ZFX Technology CO.,Ltd Grantee code: 2AMLD FCC ID: 2AMLDBTM Contact Name: Eva Zhang Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANDONG, China, 518110 Telephone No: 0755-33682771 Fax No: 0755-29161105 Email: [email protected] i. [Shenzhen ZFX Technology CO.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [ Shenzhen ZFX Technology CO.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Shenzhen ZFX Technology CO.,Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 8.14.2023 Applicant’s Name: Eva Zhang Title: VP Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen ZFX Technology CO.,Ltd Product Similarity Declaration Product name: Wireless headphone Model name: ZP-BHP-M, BSBTH22WH FCC ID: 2AMLDBTM We (Shenzhen ZFX Technology CO.,Ltd) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Demonstrate the detail (descriptions and pictures) as to the difference list above. Signature: Name: Eva Zhang Title: VP Date: 8.14.2023

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Shenzhen ZFX Technology CO.,Ltd Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANDONG, China, 518110 Product Name: Wireless headphone Model Number: ZP-BHP-M, BSBTH22WH FCC Identifier: 2AMLDBTM We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Eva Zhang Date: 8/14/2023 Title: VP Signature of applicant:

C5266091_X10_Ed.1 1/1 Shenzhen ZFX Technology CO.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/14/2023 Subject: Request for Confidentiality FCC ID: 2AMLDBTM To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Eva Zhang Date: 8/14/2023 Title: VP

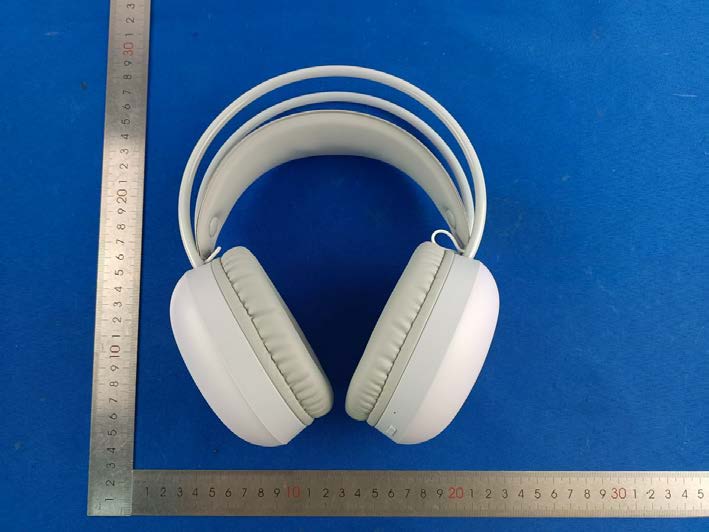

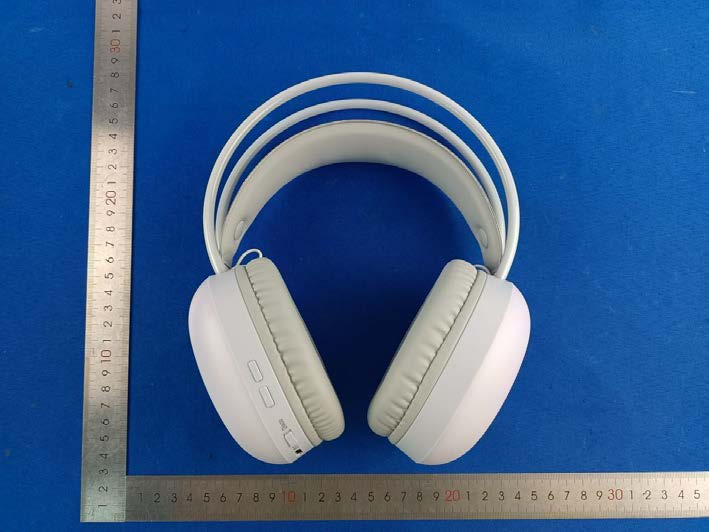

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT (External Photos) Model: ZP-BHP-M Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]
