2AMLDBTPWireless headphone

ZFX USER Wireless Headphone ZP-BHP-P GUIDE 1. 2 PACKAGE INCLUDE 01.RGB Headband LED 02.Adaptative Design headband 03.Soft Ear Cushion 04.RGB LED Earcup 05.USB-C charging cable 01 02 03 04 05 3 06 07 08 09 10 12 11 PRODUCT OVERVIEW 06. Volume +/Prev (one click for Volume+, Press and Hold for volume to Max, double click for previous songs) 07. Power ON/OFF Answer/Reject (Hold and press for 3s for Power ON/OFF, one click for RGB ON/OFF, When call coming, one cilick for Answer call, double click for reject call) 08. Volume -/Next (one click for Volume-, Press and Hold for volume to Min, double click for next songs) 09. USB-C charging port 10. LED indicator 11. 3.5mm input for wired use 12. Build-in Microphone Operate 4 A.How to answer and end incoming call 1.Answer call: click the Power button 2.Reject call: double click the Power button 3.End call: click the Power button 4.Just one of the headphones can answer the call, anthoer can’t hear the voice of call B. Turn ON/OFF RGB light 1.Click the Power button to Turn ON/OFF RGB Light C. How to Share the Music 1.Select any headphone in the pack and connect it to the phone (Audio source device) via BT first, 2.Power on another headphone 3 The two headphones will automatically connect to the phone and share the music 4.If one of the headphones power off, the another headphone will continue to function normally 5.The two headphones of pack also can be working independently If two headphones want to connect different phone,the two headphones need keep the distance >20M) CONNECT TO Devices Connect Headphone via Bluetooth: 1.Open Bluetooth connection on your phone 2.Power on the headphone 3.Search the Bluetooth device for BSBTH25WH and connect it 5 LED&BUZZER INDICATION Headphone LED status BuzzerstatusHeadphoneStaus BlueLEDON / Bluetooth connected Blue LEDOFF / Power OFF Red LED flash one time every 3 sec Low power Low power indication Red LEDlighting steadily / Headphone charging Red LED OFF/Headphone charging completed/no Charging Note: When the available baery power is lower than 20%, the RGB light will be forced off and cannot be turned on, which will help to extend the baery life. 6 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

(Shenzhen ZFX Technology CO.,Ltd) (August 25, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AMLDBTP) [Shenzhen ZFX Technology CO.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Eva Zhang (Shenzhen ZFX Technology CO.,Ltd) (August 25, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AMLDBTP) [Shenzhen ZFX Technology CO.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Eva Zhang

Attestation Statements (August 29, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AMLDBTP ) (Shenzhen ZFX Technology CO.,Ltd), the undersigned, hereby authorize (Southern Telecom Inc.) to act as our designated U.S. agent for service of process, (Shenzhen ZFX Technology CO.,Ltd) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Southern Telecom Inc.) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information ： Company name: Shenzhen ZFX Technology CO.,Ltd Contact Name: Eva Zhang Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, China, 518110 Telephone No: 13538214502 Email: [email protected] U.S. Agent Information: Company Name: Southern Telecom Inc. Address: 5601 1st Ave 2nd Floor Brooklyn, NY 11220 United States Contact Name: Lina Qian Telephone No: (718) 567-7778 131 Email: [email protected] FRN: 0017985201 Applicant Signature: Agent Signature: Applicant printed name: Eva ZhangAgent printed name: Lina Qian

Shenzhen ZFX Technology CO.,Ltd Model Difference Data：August 25, 2023 Product description: Wireless headphone Model name: ZP-BHP-P, BSBTH25WH Trade Name: N/A FCC ID: 2AMLDBTP All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : Eva Zhang（VP） Contact information / address：2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, China, 518110

Shenzhen ZFX Technology CO.,Ltd (August 25, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless headphone / ZP-BHP-P, BSBTH25WH / FCC ID: 2AMLDBTP) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Eva Zhang Title: VP

Shenzhen ZFX Technology CO.,Ltd (August 25, 2023) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Eva Zhang Title: VP

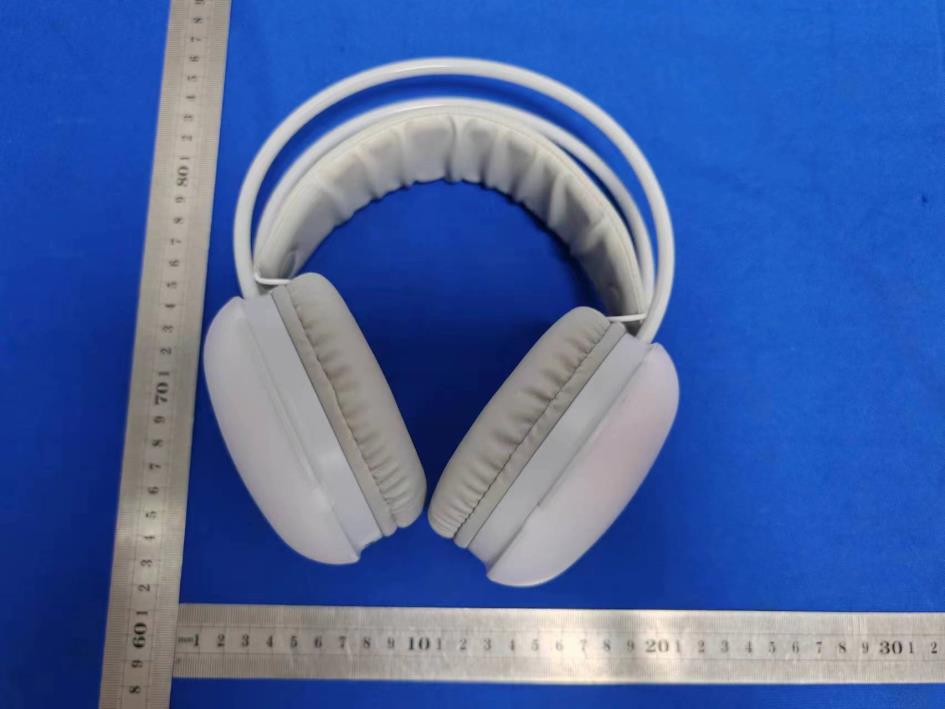

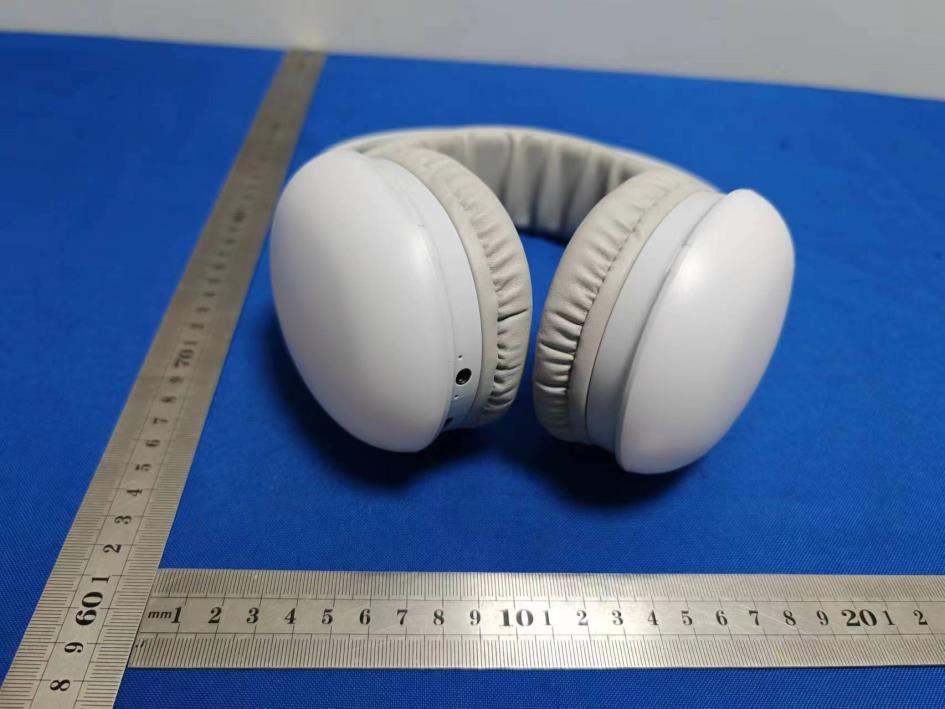

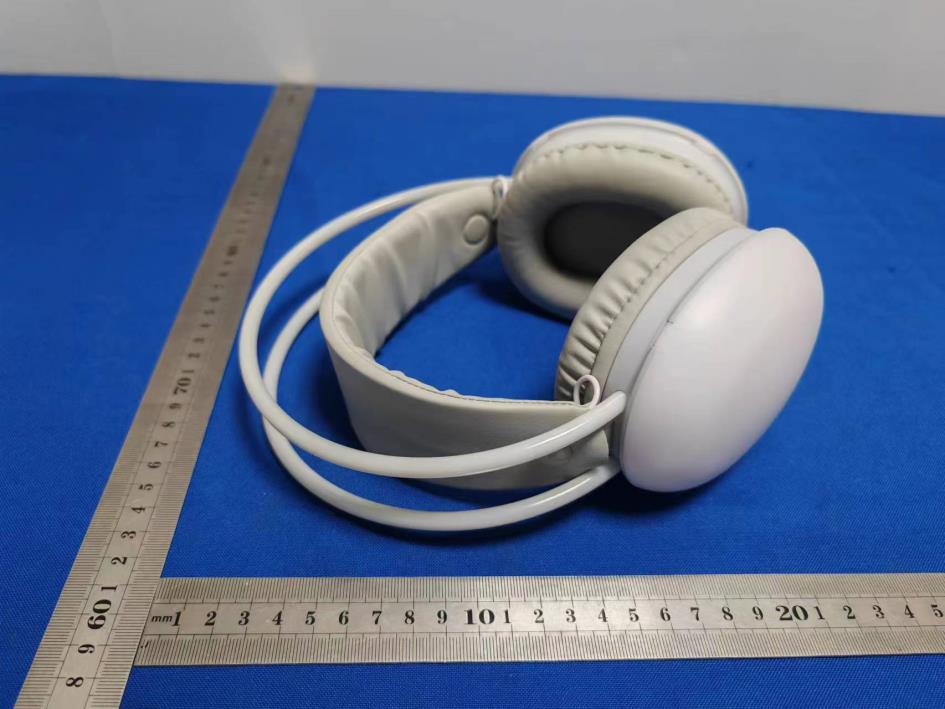

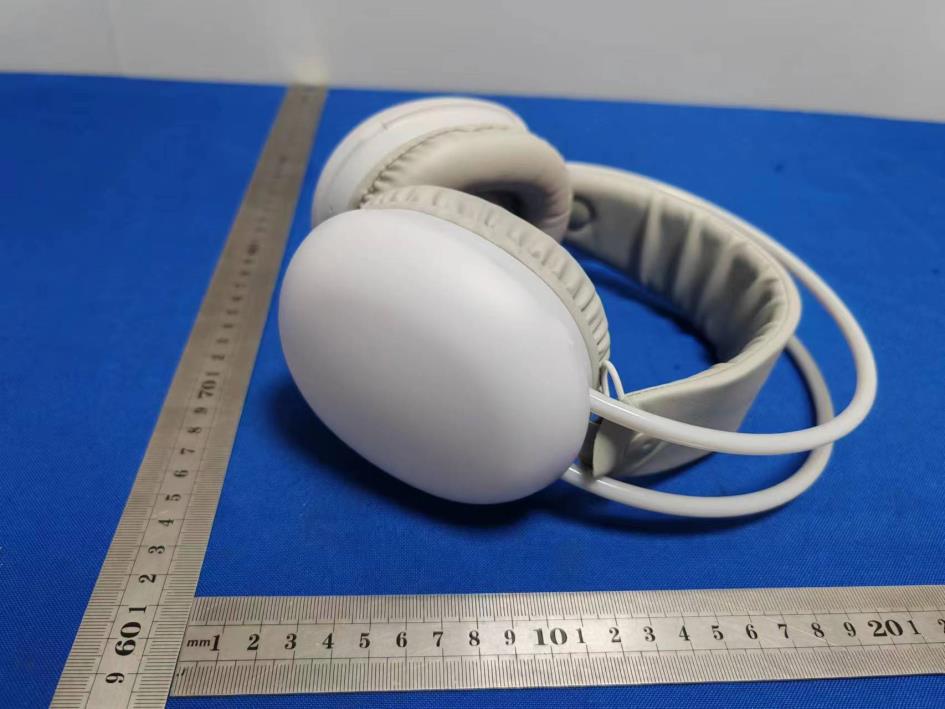

External Photos

FCC ID LABEL: Label Location:

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID:2AMLDBTP Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 8.742 7.49 8±1 9.00 7.94 <5 2.46216 3.00 YES 2.441 7.986 6.29 7±1 8.00 6.31 <5 1.97158 3.00 YES 2.480 7.606 5.76 7±1 8.00 6.31 <5 1.98727 3.00 YES 2.402 9.142 8.21 8.5±1 9.50 8.91 <5 2.76259 3.00 YES 2.441 8.486 7.06 8±1 9.00 7.94 <5 2.48207 3.00 YES 2.480 8.291 6.75 8±1 9.00 7.94 <5 2.50182 3.00 YES 2.402 9.368 8.65 8.5±1 9.50 8.91 <5 2.76259 3.00 YES 2.441 8.646 7.32 8±1 9.00 7.94 <5 2.48207 3.00 YES 2.480 8.511 7.10 8±1 9.00 7.94 <5 2.50182 3.00 YES GFSK π /4DQPSK 8DQPSK Conclusion: For the max result : 2.76259≤ FCC Limit 3.0 for 1g SAR.

频点MHz增益(dBi)效率(dB )效率（%） 2400-4.05-8.6713.58 2410-4.4-8.9512.74 2420-4.82-9.2511.89 2430-5.1-9.4611.31 2440-5.27-9.6610.81 2450-5.36-9.8310.39 2460-5.27-9.9210.18 2470-5.1-9.9810.05 2480-4.92-10.019.98 平均值-4.92-9.5311.21 Antenna test report Antenna impedance parameter test S11 Parameters Antenna passive efficiency test (with 3D&2D pattern) Antenna Photo & Length (mm) Manufacturer: Shenzhen ZFX Technology CO.,Ltd Manufacturer's address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, China, 518110

Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230818006RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 58 TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Wireless headphone FCC ID: 2AMLDBTP Trademark: N/A Model Number: ZP-BHP-P, BSBTH25WH Prepared For: Shenzhen ZFX Technology CO.,Ltd Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, China, 518110 Manufacturer: Shenzhen ZFX Technology CO.,Ltd Address: 2ND FL, BLDG B, YICHENG INDUSTRIAL PARK, XIXIANG TOWN, BAOAN DISTRICT, SHENZHEN, GUANGDONG, China, 518110 Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Aug. 07, 2023 Sample tested Date: Aug. 07, 2023 to Aug. 18, 2023 Issue Date: Aug. 18, 2023 Report No.: CTB230818006RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.:CTB230818006RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 58 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 4 2. TEST SUMMARY ................................................................... 5 3. MEASUREMENT UNCERTAINTY ..................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 7 4.1 Product Information .................................................................... 7 4.2 Test Setup Configuration ............................................................... 7 4.3 Support Equipment .................................................................... 7 4.4 Channel List .......................................................................... 8 4.5 Test Mode ............................................................................ 8 4.6 Test Environment ...................................................................... 8 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 9 5.1 Test Facility ........................................................................... 9 5.2 Test Instrument Used .................................................................. 9 6. AC POWER LINE CONDUCTED EMISSION ............................................ 11 6.1 Block Diagram Of Test Setup .......................................................... 11 6.2 Limit ................................................................................ 11 6.3 Test procedure ....................................................................... 11 6.4 Test Result .......................................................................... 13 7. RADIATED SPURIOUS EMISSION ................................................... 15 7.1 Block Diagram Of Test Setup .......................................................... 15 7.2 Limit ................................................................................ 15 7.3 Test procedure ....................................................................... 16 7.4 Test Result .......................................................................... 17 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 26 8.1 Block Diagram Of Test Setup .......................................................... 26 8.2 Limit ................................................................................ 26 8.3 Test procedure ....................................................................... 26 8.4 Test Result .......................................................................... 27 9. COUDUCTED PEAK OUTPUT POWER ............................................... 34 9.1 Block Diagram Of Test Setup .......................................................... 34 9.2 Limit ................................................................................ 34 9.3 Test procedure ....................................................................... 34 9.4 Test Result .......................................................................... 35 10. 20DB OCCUPIED BANDWIDTH...................................................... 39 10.1 Block Diagram Of Test Setup ......................................................... 39 10.2 Limit ............................................................................... 39 10.3 Test procedure ...................................................................... 39 10.4 Test Result ......................................................................... 39 11. CARRIERFREQUENCIES SEPARATION .............................................. 43 11.1 Block Diagram Of Test Setup ......................................................... 43 11.2 Limit ............................................................................... 43 11.3 Test procedure ...................................................................... 43 11.4 Test Result ......................................................................... 43 12. HOPPING CHANNEL NUMBER ...................................................... 47 12.1 Block Diagram Of Test Setup ....................................................…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G Conducted emissions
