2AMMG-FK-06XSmart Irrigation Timer

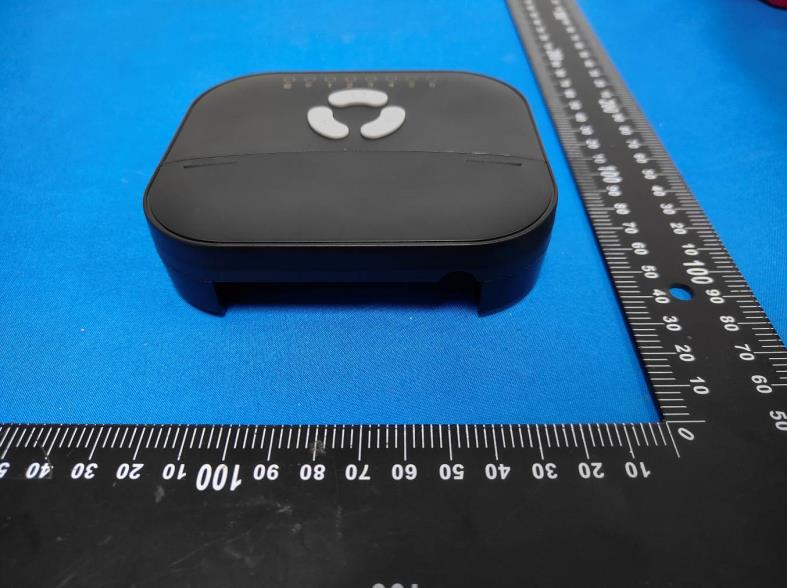

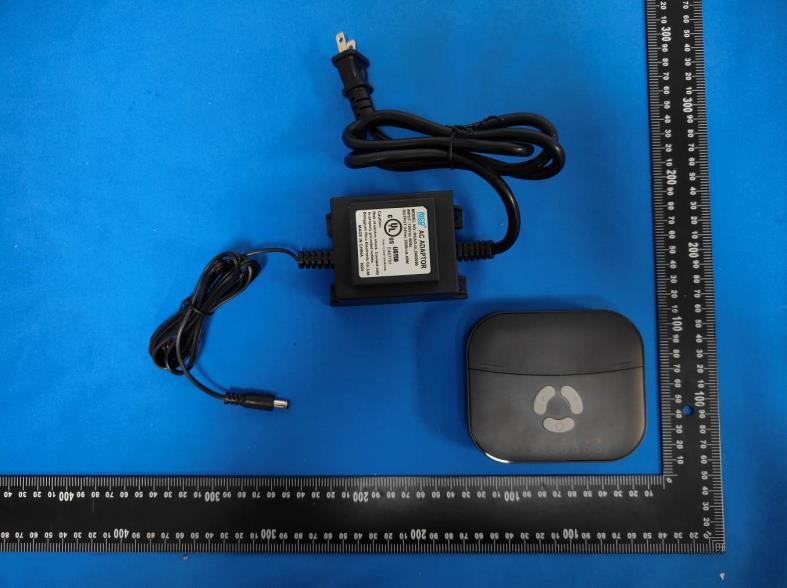

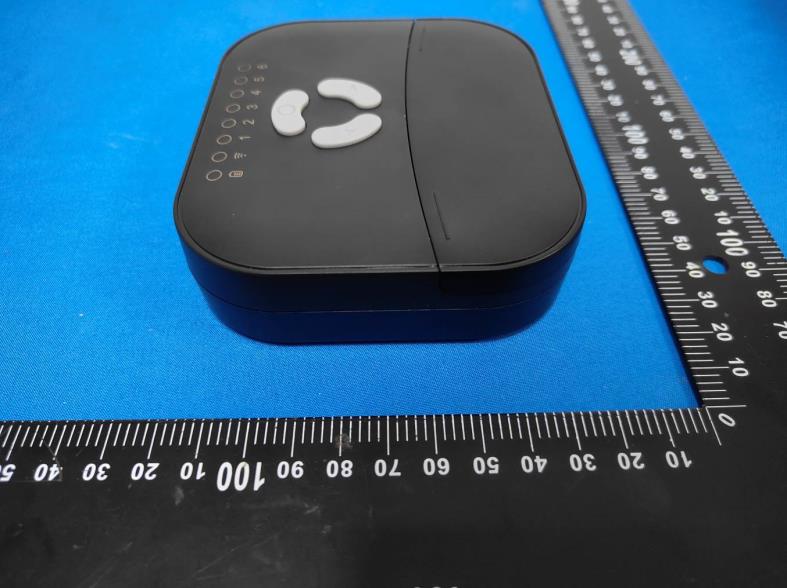

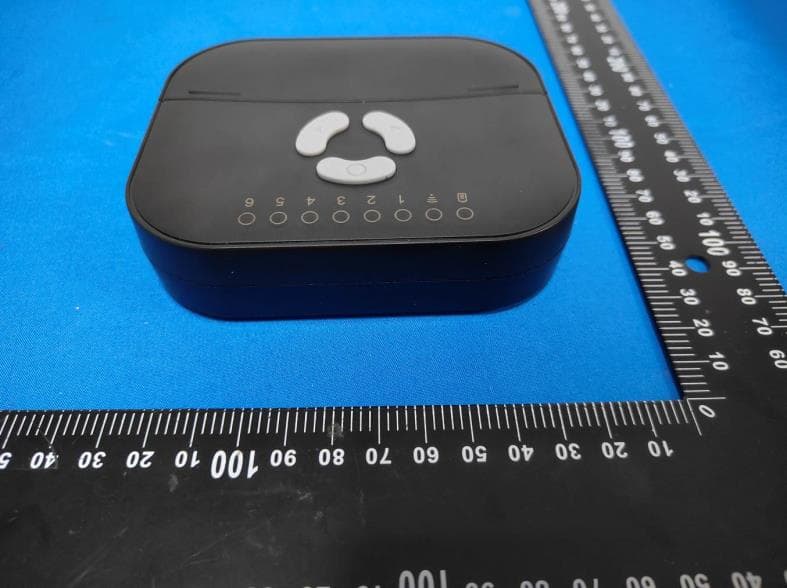

FCC ID: 2AMMG-FK-06X External Photos of the EUT FCC ID: 2AMMG-FK-06X FCC ID: 2AMMG-FK-06X

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AMMG-FK-06X

FCC ID: 2AMMG-FK-06X Internal Photos of the EUT FCC ID: 2AMMG-FK-06X FCC ID: 2AMMG-FK-06X ANT

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. .................... : FCC ID. ........................................... : CTA25111901203 2AMMG-FK-06X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 04, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address ........................................... : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart Irrigation Timer Trade Mark ....................................... : SHELLY Manufacturer .................................... : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Model/Type reference ...................... : FK-06X Listed Models ................................... : FK-04X, FK-07X Rating ............................................... : AC 24.0V From external circuit Result ............................................... : PASS Report No.: CTA25111901203 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Irrigation Timer Model /Type : FK-06X Listed Models : FK-04X, FK-07X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Manufacturer : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111901203 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ........................................................................................... 9 4.6 Simultaneous Transmission for MPE Result ........................................................... 9 5 Conclusion ........................................................................................................................... 9 Report No.: CTA25111901203 Page 4 of 9 Shenzhen …

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model FK-06X Frequency range 2400-2500MHz Manufacturer HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China ANT Peak Gain 0.93 dBi 2. Antenna Photo: Length :14.52mm Width:4.85mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25111901201 2AMMG-FK-06X Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 04, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address ...........................................: 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Smart Irrigation Timer Trade Mark ......................................: SHELLY Manufacturer ...................................: HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Model/Type reference .....................: FK-06X Listed Models ..................................: FK-04X, FK-07X Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Rating ..............................................: AC 24.0V From external circuit Result ..............................................: PASS Report No.: CTA25111901201 Page 2 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Irrigation Timer Model /Type : FK-06X Listed Models : FK-04X, FK-07X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Manufacturer : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111901201 Page 3 of 33 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ...........................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25111901202 2AMMG-FK-06X Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Dec. 04, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address ............................................ : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart Irrigation Timer Trade Mark ....................................... : SHELLY Manufacturer .................................... : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Model/Type reference ...................... : FK-06X Listed Models ................................... : FK-04X, FK-07X Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : AC 24.0V From external circuit Result ............................................... : PASS Report No.: CTA25111901202 Page 2 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Irrigation Timer Model /Type : FK-06X Listed Models : FK-04X, FK-07X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Manufacturer : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. Address : 1306-1room, EASTERN TOWER OF IBC, XIASHA HEDA, QIANTANG DISTRICT, HANGZHOU, 310018 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111901202 Page 3 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility....................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AMMG-FK-06X Company : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. EUT : Smart Irrigation Timer Model Number : FK-06X Report No. : CTA25111901202 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.640 2407.640 2416.280 0.5 PASS 2437 9.040 2432.520 2441.560 0.5 PASS 2462 9.000 2457.440 2466.440 0.5 PASS 11G Ant1 2412 16.280 2403.920 2420.200 0.5 PASS 2437 16.280 2428.920 2445.200 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.400 2420.680 0.5 PASS 2437 17.280 2428.440 2445.720 0.5 PASS 2462 17.280 2453.360 2470.640 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.980 2405.5662 2418.5462 --- --- 2437 12.928 2430.5753 2443.5033 --- --- 2462 12.996 2455.5060 2468.5020 --- --- 11G Ant1 2412 16.550 2403.7700 2420.3200 --- --- 2437 16.590 2428.7370 2445.3270 --- --- 2462 16.561 2453.7431 2470.3041 --- --- 11N20SISO Ant1 2412 17.463 2403.3151 2420.7781 --- --- 2437 17.433 2428.3235 2445.7565 --- --- 2462 17.457 2453.3124 2470.7694 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 15.45 ≤30.00 PASS 2437 14.88 ≤30.00 PASS 2462 14.88 ≤30.00 PASS 11G Ant1 2412 12.97 ≤30.00 PASS 2437 13.63 ≤30.00 PASS 2462 13.82 ≤30.00 PASS 11N20SISO Ant1 2412 13.32 ≤30.00 PASS 2437 14.03 ≤30.00 PASS 2462 14.21 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -13.31 ≤8.00 PASS 2437 -14.16 ≤8.00 PASS 2462 -13.79 ≤8.00 PASS 11G Ant1 2412 -21.57 ≤8.00 PASS 2437 -20.76 ≤8.00 PASS 2462 -20.50 ≤8.00 PASS 11N20SISO Ant1 2412 -20.96 ≤8.00 PASS 2437 -20.33 ≤8.00 PASS 2462 -20.18 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 1.41 -47.53 ≤-18.6 PASS High 2462 1.30 -56.65 ≤-18.7 PASS 11G Ant1 Low 2412 -7.22 -45.87 ≤-27.22 PASS High 2462 -6.83 -51.17 ≤-26.83 PASS 11N20SIS O Ant1 Low 2412 -7.59 -45.69 ≤-27.59 PASS High 2462 -6.35 -51.3 ≤-26.35 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.05 0.05 --- PASS 30~1000 0.05 -54.97 ≤-19.95 PASS 1000~26500 0.05 -43.85 ≤-19.95 PASS 2437 Reference -0.33 -0.33 --- PASS 30~1000 -0.33 -56.11 ≤-20.33 PASS 1000~26500 -0.33 -44.78 ≤-20.33 PASS 2462 Reference -0.48 -0.48 --- PASS 30~1000 -0.48 -54.78 ≤-20.48 PASS 1000~26500 -0.48 -45.25 ≤-20.48 PASS 11G Ant1 2412 Reference -8.13 -8.13 --- PASS 30~1000 -8.13 -58.71 ≤-28.13 PASS 1000~26500 -8.13 -43.82 ≤-28.13 PASS 2437 Reference -7.30 -7.30 --- PASS 30~1000 -7.30 -59.29 ≤-27.3 PASS 1000~26500 -7.30 -44.24 ≤-27.3 PASS 2462 Reference -6.76 -6.76 --- PASS 30~1000 -6.76 -59.19 ≤-26.76 PASS 1000~26500 -6.76 -44.96 ≤-26.76 PASS 11N20SISO Ant1 2412 Reference -8.53 -8.53 --- PASS 30~1000 -8.53 -59.25 ≤-28.53 PASS 1000~26500 -8.53 -43.71 ≤-28.53 PASS 2437 Reference -6.61 -6.61 --- PASS 30~1000 -6.61 -60.02 ≤-26.61 PASS 1000~26500 -6.61 -44.26 ≤-26.61 PASS 2462 Reference -7.50 -7.50 --- PASS 30~1000 -7.50 -59.94 ≤-27.5 PASS 1000~26500 -7.50 -44.8 ≤-27.5 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462

1 FCC Appendix RF Test Data for BLE FCC ID : 2AMMG-FK-06X Company : HANGZHOU FRANKEVER ELECTRONIC CO.,LTD. EUT : Smart Irrigation Timer Model Number : FK-06X Report No. : CTA25111901201 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.644 2401.692 2402.336 0.5 PASS 2440 0.624 2439.696 2440.320 0.5 PASS 2480 0.664 2479.680 2480.344 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0018 2401.5209 2402.5227 --- --- 2440 1.0044 2439.5170 2440.5214 --- --- 2480 1.0033 2479.5186 2480.5219 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.22 ≤30 PASS 2440 -3.52 ≤30 PASS 2480 -3.55 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.24 ≤8.00 PASS 2440 -19.26 ≤8.00 PASS 2480 -19.47 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.54 -56.73 ≤-23.54 PASS High 2480 -4.15 -54.12 ≤-24.15 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -3.36 -3.36 --- PASS 30~1000 -3.36 -67.96 ≤-23.36 PASS 1000~26500 -3.36 -46.3 ≤-23.36 PASS 2440 Reference -3.63 -3.63 --- PASS 30~1000 -3.63 -68.26 ≤-23.63 PASS 1000~26500 -3.63 -47.09 ≤-23.63 PASS 2480 Reference -5.19 -5.19 --- PASS 30~1000 -5.19 -67.76 ≤-25.19 PASS 1000~26500 -5.19 -48.03 ≤-25.19 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21
