2AMWO-FSC-BP103BBluetooth Beacon

FeasyBeacon FSC-BP103B Datasheet 1 www.feasycom.com 1. Description FeasyBeacon FSC-BP103B is a Bluetooth 5.0 low-energy smart beacon, it supports iBeacon, Eddystone (such as URL, UID, TLM), AltBeacon for broadcasting, and can promote up to 10 advertising frame slots. With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor and Outdoor Location, Asset Tracking, Vehicle Tracking, etc. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download). 2. Features  Bluetooth 5.0 Compliant  Pre-programmed with Feasycom Standard Beacon Firmware  Up to 10 slots of Advertising Frames  Portable Small-sized Beacon with 3 Year Battery Life (by Default Settings)  Variety of Additional Components (e.g. Button, Optional G-sensor, Optional Buzzer)  Configurable by Free FeasyBeacon Mobile App and SDK  Customizable Color, Logo, Hardware, Software FeasyBeacon (Bluetooth Beacon) FSC-BP103B Datasheet FeasyBeacon FSC-BP103B Datasheet 2 www.feasycom.com 3. Functional Specifications 4. Product Specifications Item Description Advertising Format Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon Configuring Method FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) Advertising Interval Default 1300 ms, range from 100 ms to 10000 ms Security Access password required, Default Pin Code 000000 Max Number of Broadcast 10 Slots configurable advertising frames Default Broadcast Interval 1300 ms for iBeacon & Eddystone System Compatibility iOS 7.0+, Android 4.3+ Advertising Distance Up to 160m (open area) Firmware Upgrading OTA (upgrade firmware over the air) Item Description Chipset DA14531 Bluetooth Version Bluetooth 5.0 TX power -19.5 dBm to +2.5 dBm Antenna PCB Coil antenna Button Long press central area for power on / off G-Sensor Optional Buzzer Optional Power Supply CR2032 Battery Life 3 Years (ADV Interval = 1300 ms; TX Power = 0 dBm) Material ABS plastic Color White or customized Size 37.8(L)mm x 33.8(W)mm x 7.9(H) mm Net weight 6.4g Protection IP40 Operating temperature -20°C to +60°C FeasyBeacon FSC-BP103B Datasheet 3 www.feasycom.com 5. Configurable Parameters Parameters in the below table are configurable by FeasyBeacon SDK compiled app (e.g. FeasyBeacon app), feel free to download FeasyBeacon app from Google Play App Store or iOS App Store. Parameter Description Device Name UTF-8 string, Default: FSC-BP103B-XXXXXX Pin Code Access password to FSC-BP103B Default: 000000, Range: 000000 ~ 999999 Advertising Interval Default: 1300 ms, Range: 100 ~ 10000 ms Tx Power Maximum Tx power: +2.5 dBm Default: 0 dBm, Range: -19.5 ~ 2.5 dBm Eddystone-URL URL URL that needed to be advertising RSSI at 0m A 1-byte value representing the average received signal strength at 0m from the advertiser (FSC-BP103B), range: 0 ~ -127 Eddystone-UID Namespace 10-byte Namespace Instance 6-byte Instance Reserved Reserved for future use RSSI at 0m A 1-byte value representing the average received signal strength at 0m from the advertiser (FSC-BP103B), range: 0 ~ -127 iBeacon UUID 16-byte UUID, e.g. FDA50693A4E24FB1AFCFC6EB07647825 Major 2-byte Major, range: 0 ~ 65535 Minor 2-byte Minor, range: 0 ~ 65535 RSSI at 1m A 1-byte value representing the average received signal strength at 1m from the advertiser (FSC-BP103B), range: 0 ~ -127 AltBeacon ID1 Beacon Identifier 1 ID2 Beacon Identifier 2 ID3 Beacon Identifier 3 RSSI at 1m A 1-byte value representing the average received signal strength at 1m from the advertiser (FSC-BP103B), range: 0 ~ -127 Manufacturer ID The beacon device manufacturer's company identifier code Manufacturer Reserved Reserved for use by the manufacturer to implement special features FeasyBeacon FSC-BP103B Datasheet 4 www.feasycom.com 6. Battery Life & Cover Range Estimation Tx Power (dBm) Advertising Interval (ms) -19.5 -7 -3.5 0 2.5 100 210 168 146 122 104 150 307 243 203 174 143 200 369 332 242 221 196 300 591 464 369 351 290 400 698 606 484 446 369 550 864 763 611 556 505 750 1160 997 776 751 669 850 1266 1100 849 835 732 1000 1393 1198 1033 941 871 1300 1695 1483 1182 1109 999 2000 2242 1940 1610 1575 1366 3000 2815 2314 2121 2069 1867 4000 3004 2717 2520 2221 2155 5000 3199 3004 2806 2561 2428 6000 3472 3073 2966 2798 2506 7000 3524 3348 3199 2929 2741 10000 2858 3720 3472 3372 3104 Notes: Battery life in days when Applying CR2032. These values are tested or estimated in the laboratory, the battery life might be different in different environments or conditions. FeasyBeacon FSC-BP103B Datasheet 5 www.feasycom.com 7. Dimensions 8. Declaration The contents of this datasheet are subject to change without prior notice for further improvement. Feasycom team reserves all the rights for the final explanation. iBeacon is a trademark of Apple Inc., Eddystone is a trademark of Google Inc. Please contact Feasycom sales team or visit https://www.feasycom.com/ to get more related information if needed. FeasyBeacon FSC-BP103B Datasheet 6 www.feasycom.com 9. Contact Information Shenzhen Feasycom Technology Co.,LTD Address: Rm 2004-2005, 20F, Huichao Technology Bldg, Jinhai Rd, Xixiang, Baoan Dist, Shenzhen, 518100, China. Telephone: 86-755-23062695 Support: [email protected] Sales Service: [email protected] Revision History Version Changes Author 1.0 Initial Release Fish FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular install…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 1/22/2021 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AMWO-FSC-BP103B FSC-BP103B For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature Wan zhifu Manager Shenzhen Feasycom Technology Co.,Ltd

Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 1/22/2021 To whom it may concern: We, Shenzhen Feasycom Technology Co.,Ltd, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AMWO-FSC-BP103B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Wan zhifu Manager Shenzhen Feasycom Technology Co.,Ltd

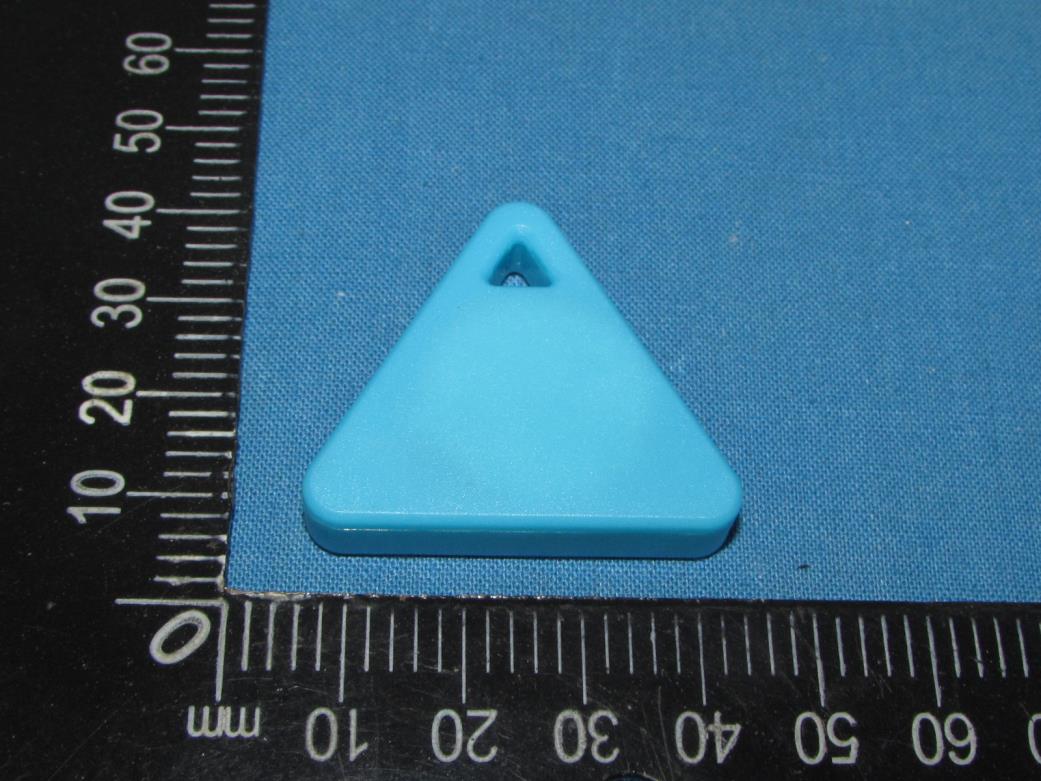

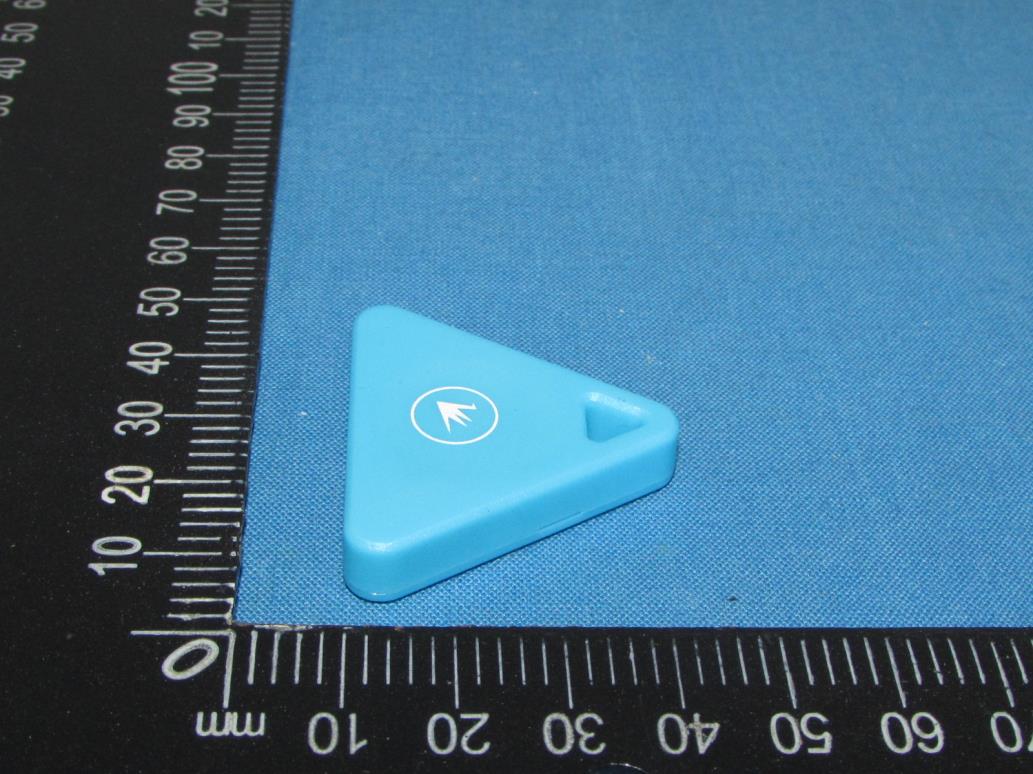

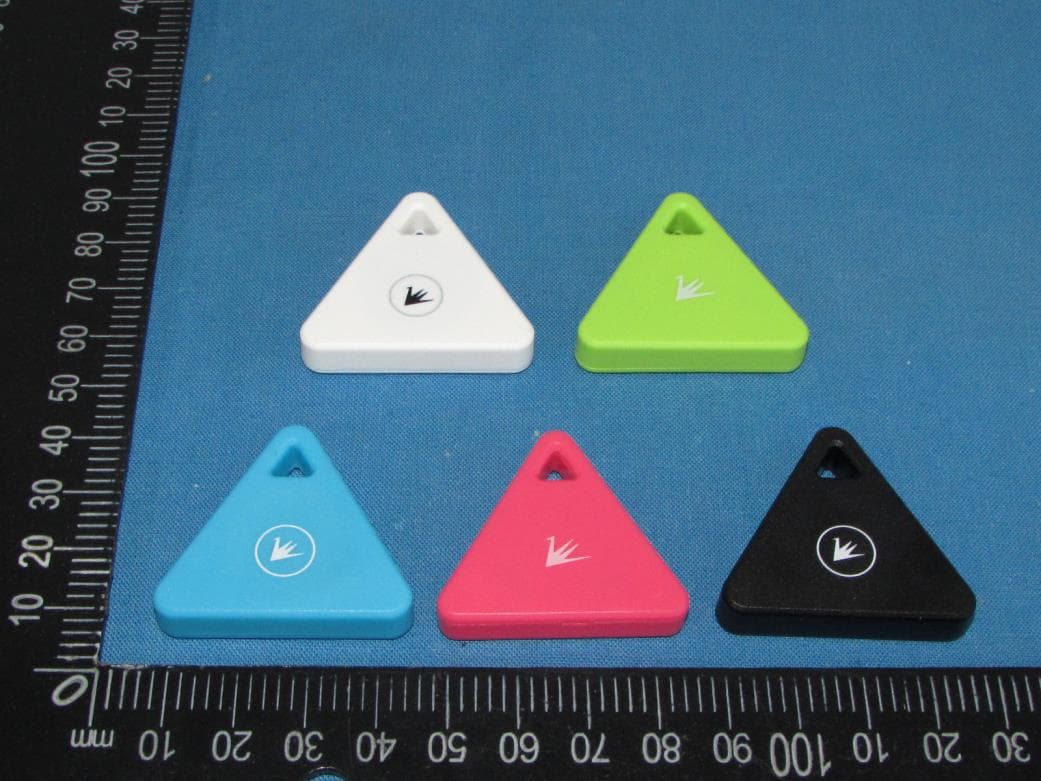

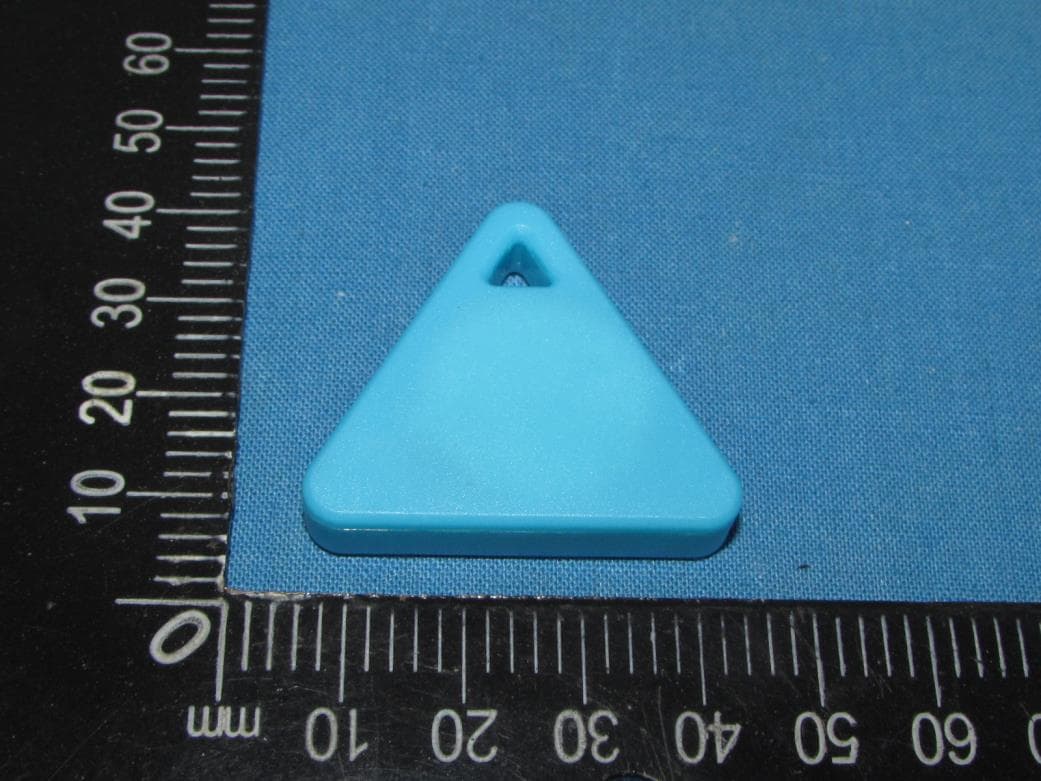

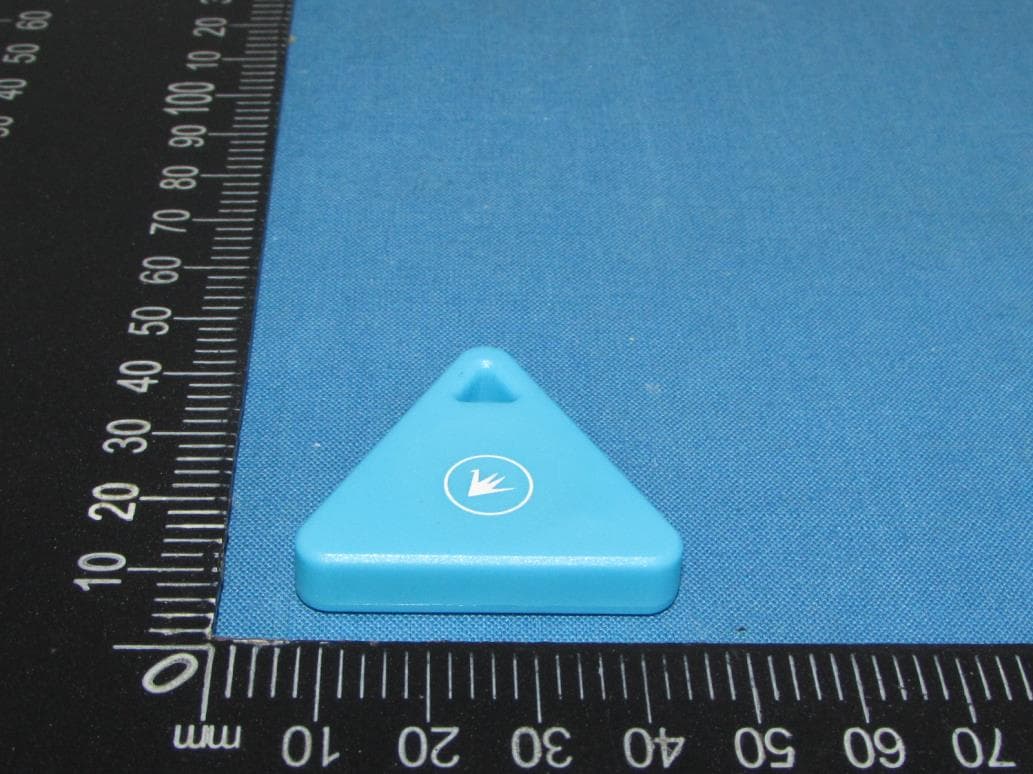

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label & Label Location FCC ID: 2AMWO-FSC-BP103B

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 2 dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 0.93 19 2440 1.74 39 2480 2.22 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.5 1.5 2.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 1.5 3.5 2.24 10 2440 2.5 4.5 2.82 10 2480 3.0 5.0 3.16 10 The antenna gain of the EUT for BT is 2 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 1 of 16 Appendix A RF Test Data for BT(BLE) (Conducted Measurement) Product Name: Bluetooth Beacon Trade Mark: Feasycom Test Model: FSC-BP103B FCC ID: 2AMWO-FSC-BP103B Environmental Conditions Temperature: 22.8 C Relative Humidity: 60% ATM Pressure: 100.0 kPa Test Engineer: Nancy Li Supervised by: Hugo Chen NOTE N/A A.1. 6dB Bandwidth TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.664 2401.668 2402.332 0.5 PASS 2440 0.644 2439.672 2440.316 0.5 PASS 2480 0.672 2479.664 2480.336 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 2 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 3 of 16 A.2. Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict A.3. Maximum peak conducted output power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.93 <=30 PASS 2440 1.74 <=30 PASS 2480 2.22 <=30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 4 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 5 of 16 A.4. Maximum Peak power spectral density TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.13 <=8 PASS 2440 -12.18 <=8 PASS 2480 -11.39 <=8 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 6 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 7 of 16 A.5. Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 0.92 -38.31 <=-19.08 PASS High 2480 2.17 -43.66 <=-17.83 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 8 of 16 BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 ' Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 9 of 16 A.6. RF Conducted Spurious Emissions BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 10 of 16 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 11 of 16 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 12 of 16 A.7. Duty Cycle TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/B Minimum VBW (KHz) BLE_1M Ant1 2402 0.42 0.63 66.67 2.38 2440 0.42 0.63 66.67 2.38 2480 0.42 0.62 67.74 2.38 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 13 of 16 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 14 of 16 A.8. Restrict-band band-edge measurements TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -47.73 <=-41.20 PASS AV 2390.000 -47.25 <=-41.20 PASS Peak 2310.000 -42.56 <=-21.20 PASS Peak 2390.000 -40.42 <=-21.20 PASS High 2480 AV 2483.500 -44.24 <=-41.20 PASS AV 2500.000 -46.56 <=-41.20 PASS Peak 2483.500 -37.86 <=-21.20 PASS Peak 2500.000 -41.12 <=-21.20 PASS 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm . Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 15 of 16 BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B Report No.: TZ210101919-E Page 16 of 16 BLE_1M_Ant1_High_2480_Peak

Report No.: TZ210101919-E Page 1 of 32 FCC TEST REPORT Test report On Behalf of Shenzhen Feasycom Technology Co.,Ltd For Bluetooth Beacon Model No.: FSC-BP103B FCC ID: 2AMWO-FSC-BP103B Prepared for : Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2021/1/1~ 2021/1/12 Date of Report: 2021/1/13 Report Number: TZ210101919-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ210101919-E Page 2 of 32 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Feasycom Technology Co.,Ltd Address ................................. : Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Manufacture's Name ............ : Shenzhen Feasycom Technology Co.,Ltd Address ................................. : Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Product description Trade Mark ............................ : Feasycom Product name ........................... : Bluetooth Beacon Model and/or type reference .. : FSC-BP103B Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2021/1/1~ 2021/1/12 Date of Issue .......................................... : 2021/1/13 Test Result.............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ210101919-E Page 3 of 32 Revision History Revision Issue Date Revisions Revised By 000 2021/1/13 Initial Issue Andy Zhang Report No.: TZ210101919-E Page 4 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION ........................................................................................................................................ 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 2.4. TEST SAMPLE ...................................................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION .................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP .........................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWO-FSC-BP103B TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
