2AMWOFSC-BT826EBluetooth Beacon

-FEA!iYCUJH 肋 FSC-BT826E 2. GENERAL SPECIFICATION General Specification I I Chipset Product Dimension Bluetooth Specification Power Supply / ＼ Output Power ｀ 》 Sep�iti,vity < ＾ 、 Freq 勺 ue杂义Band 飞气勺一 〉 Realtek RTL8761 FSC-BT826E 13mm x 26.9mm x 2 mm Bluetooth V 4.2 ( Dual Mode) 3. 3 Volt DC ≤7.5 dBm -8 2dBm @ 0.1%BER 2.402GHz -2.480GHz ISM band Modulati 勹 o� ＇ �/) 艾乙 GFSK, n/4-DQPSK, 8-DPSK Baseband Cry c �taf.osc 叉 40MHz Hopping & channel ＾ s 。 'Q> SL 1600hops/sec, 1MHz channel space,79 Channels(BT 4.2 to 2MHz channel space) L ' RF Input Impedance 。 ^ 50 ohms Antenna ，，， ／ 入 Integrated chi p antenna Interface ` J C 4 Data: UART, 1 2 C, PCM / 1 2 S Profile 啊 r / 歹PP,HID, GATT, ATT, GAP i Advanced Feature M ，， ＾ 功纨rsync, iBeacon, OTA(optional) Temperature -20 -° C 丿t、令4＋70 °C Humidity 10%~95％呫沪ondensing Environmental RoHS Compl i 、 a � r tO Table 1 Shenzhen Feasycom Technology Co.,LTD www.feal!..Y.com.com 5 Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 2.2 List of applicable FCC rules CFR 47 FCC PART 15 SUBPART C has been investigated. It is applicable to the modular. 2.3 Specific operational use conditions This module is stand-alone modular. If the end product will involve the Multiple simultaneously transmitting condition or different operational conditions for a stand-alone modular transmitter in a host, host manufacturer have to consult with module manufacturer for the installation method in end system. 2.4 Limited module procedures Not Applicable 2.5 Trace antenna designs Not applicable 2.6 RF exposure considerations The device has been evaluated to meet general RF exposure requirement. in portable exposure condition without restriction. 2.7 Antennas This radio transmitter FCC ID: 2AMWOFSC-BT826E has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Internal Identification Antenna Description Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 1 Bluetooth Antenna PCB Antenna 2400 MHz – 2500 MHz 2.00 dBi 2.8 Label and compliance information The final end product must be labeled in a visible area with the following" Contains FCC ID: 2AMWOFSC-BT826E” 2.9 Information on test modes and additional testing requirements Host manufacturer is strongly recommended to confirm compliance with FCC requirements for the transmitter when the module is installed in the host.. 2.10 Additional testing, Part 15 Subpart B disclaimer Host manufacturer is responsible for compliance of the host system with module installed with all other applicable requirements for the system such as Part 15 B

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/3/16 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AMWOFSC-BT826E FSC-BT826E For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Wan zhifu / CEO Company: Shenzhen Feasycom Technology Co.,Ltd Address: Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Phone: +86-755-23715085 Fax: +86-755-23576927 E-Mail: [email protected]

Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/3/16 To whom it may concern: We, Shenzhen Feasycom Technology Co.,Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AMWOFSC-BT826E including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Wan zhifu / CEO Company: Shenzhen Feasycom Technology Co.,Ltd Address: Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Phone: +86-755-23715085 Fax: +86-755-23576927 E-Mail: [email protected]

Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Module Approval Request Letter Date: 2021/3/16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Module Approval Request Letter The Device,FCC ID: 2AMWOFSC-BT826E, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in RTL8761ATV_32QFN). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has one Antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF exposure evaluation in portable exposure condition (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely Name/Title： Wan zhifu / CEO Company: Shenzhen Feasycom Technology Co.,Ltd Address: Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Phone: +86-755-23715085 Fax: +86-755-23576927 E-Mail: [email protected]

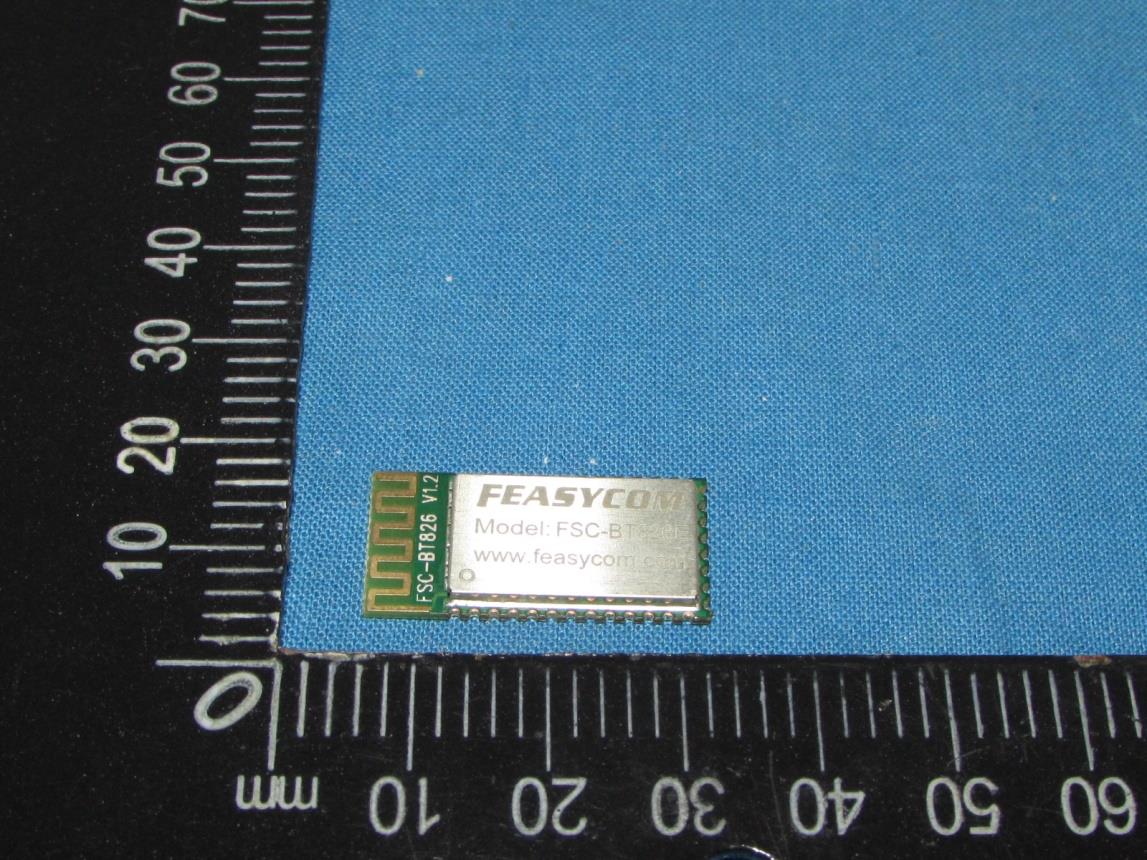

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 1 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2

Size: 20mm(L)*5mm(W) Label Location: FCC ID: 2AMWOFSC-BT826E

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 1 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Bluetooth Antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 2 dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Conducted Power Results EDR Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 4.61 39 2441 4.04 78 2480 4.46 π/4-DQPSK 00 2402 5.91 39 2441 5.28 78 2480 5.69 8-DPSK 00 2402 6.33 39 2441 5.71 78 2480 6.00 BLE Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 7.17 19 2440 6.64 39 2480 7.42 Manufacturing tolerance EDR GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 4.5 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.5 5.0 5.5 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 6.0 5.5 5.5 Tolerance ±(dB) 1.0 1.0 1.0 BLE GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 6.5 6.5 6.5 Tolerance ±(dB) 1.0 1.0 1.0 Results EDR Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 5.5 7.5 5.62 10 2441 5.0 7.0 5.01 10 2480 5.0 7.0 5.01 10 π/4-DQPSK 2402 6.5 8.5 7.08 10 2441 6.0 8.0 6.31 10 2480 6.5 8.5 7.08 10 8-DPSK 2402 7.0 9.0 7.94 10 2441 6.5 8.5 7.08 10 2480 6.5 8.5 7.08 10 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 BLE Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 7.5 9.5 8.91 10 2440 7.5 9.5 8.91 10 2480 7.5 9.5 8.91 10 The antenna gain of the EUT for BT is 2 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 1 of 34 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Beacon Trade Mark: Feasycom Test Model: FSC-BT826E FCC ID: 2AMWOFSC-BT826E Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Nancy Li Supervised by: Hugo Chen A.1 20 dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.954 2401.502 2402.456 --- PASS 2441 0.879 2440.532 2441.411 --- PASS 2480 0.954 2479.466 2480.420 --- PASS 2DH5 Ant1 2402 1.302 2401.337 2402.639 --- PASS 2441 1.311 2440.331 2441.642 --- PASS 2480 1.290 2479.340 2480.630 --- PASS 3DH5 Ant1 2402 1.281 2401.337 2402.618 --- PASS 2441 1.272 2440.352 2441.624 --- PASS 2480 1.272 2479.349 2480.621 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 2 of 34 Test Graph DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 3 of 34 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 4 of 34 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 5 of 34 A.2 Dwell Time TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.90 130 0.377 <=0.4 PASS 2DH5 Ant1 Hop 2.90 120 0.348 <=0.4 PASS 3DH5 Ant1 Hop 2.90 130 0.378 <=0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 6 of 34 Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 7 of 34 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 8 of 34 A.3 Carrier Frequency Separation TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.014 >=0.954 PASS 2DH5 Ant1 Hop 0.994 >=0.874 PASS 3DH5 Ant1 Hop 0.964 >=0.854 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 9 of 34 Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 10 of 34 A.4 Hopping Channel Number TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 >=15 PASS 2DH5 Ant1 Hop 79 >=15 PASS 3DH5 Ant1 Hop 79 >=15 PASS Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 11 of 34 3DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 12 of 34 A.5 Conducted Peak Output Power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 4.61 <=20.97 PASS 2441 4.04 <=20.97 PASS 2480 4.46 <=20.97 PASS 2DH5 Ant1 2402 5.91 <=20.97 PASS 2441 5.28 <=20.97 PASS 2480 5.69 <=20.97 PASS 3DH5 Ant1 2402 6.33 <=20.97 PASS 2441 5.71 <=20.97 PASS 2480 6.00 <=20.97 PASS Test Graph DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 13 of 34 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 14 of 34 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 15 of 34 3DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 16 of 34 A.6 Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 4.17 -38.25 <=-15.83 PASS High 2480 3.95 -40.17 <=-16.06 PASS Low Hop_2402 0.09 -42.12 <=-19.91 PASS High Hop_2480 0.78 -42.61 <=-19.22 PASS 2DH5 Ant1 Low 2402 4.25 -39.19 <=-15.75 PASS High 2480 4.14 -41.61 <=-15.86 PASS Low Hop_2402 -5.66 -44.52 <=-25.66 PASS High Hop_2480 -3.99 -46.74 <=-23.99 PASS 3DH5 Ant1 Low 2402 4.29 -39 <=-15.71 PASS High 2480 4.20 -41.87 <=-15.8 PASS Low Hop_2402 -2.80 -44.16 <=-22.8 PASS High Hop_2480 -2.59 -46.79 <=-22.59 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 17 of 34 Test Graph DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 18 of 34 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 19 of 34 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 20 of 34 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 21 of 34 A.7 RF Conducted Spurious Emissions Test Graph DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 22 of 34 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 23 of 34 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 24 of 34 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 25 of 34 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E Report No.: TZ210301993-E2 Page 26 of 34 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000…

Text truncated - open the document above for the full version.

Report No.: TZ210301993-E2 Page 1 of 38 FCC TEST REPORT Test report On Behalf of Shenzhen Feasycom Technology Co.,Ltd For Bluetooth Beacon Model No: FSC-BT826E FCC ID: 2AMWOFSC-BT826E Prepared for : Shenzhen Feasycom Technology Co.,Ltd Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2021/3/1 - 2021/3/9 Date of Report: 2021/3/10 Report Number: TZ210301993-E2 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ210301993-E2 Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Feasycom Technology Co.,Ltd Address .................................. : Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Manufacture's Name ............ : Shenzhen Feasycom Technology Co.,Ltd Address .................................. : Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen, China Product description Trade Mark ............................. : Feasycom Product name ........................... : Bluetooth Beacon Model No ................................ : FSC-BT826E Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................. ........... : Date (s) of performance of tests ........... : 2021/3/1 - 2021/3/9 Date of Issue ......................................... : 2021/3/10 Test Result ............................................ : PASS Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ210301993-E2 Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 00 2021/3/10 Initial Issue Andy Zhang Report No.: TZ210301993-E2 Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ................................................................................................................... 5 1.2 Support equipment List ................................................................................................................................ 5 1.3 External I/O Cable ........................................................................................................................................ 5 1.4 Description of Test Facility .......................................................................................................................... 6 1.5 Statement of the Measurement Uncertainty ............................................................................................. 6 1.6 Measurement Uncertainty ........................................................................................................................... 7 1.7 Description of Test Modes .......................................................................................................................... 7 2. TEST METHODOLOGY/ ..................................................................................................................... 8 2.1 EUT Configuration ........................................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................................ 8 2.3 General Test Procedures ............................................................................................................................ 8 2.4. Test Sample ................................................................................................................................................. 8 3. SYSTEM TEST CONFIGURATION .................................................................................................. 9 3.1 Justification .................................................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................................... 9 3.3 Special Accessories ..................................................................................................................................... 9 3.4 Block Diagram/Schematics ......................................................................................................................... 9 3.5 Equipment Modifications ............................................................................................................................. 9 3.6 Test Setup ..................................................................................................................................................... 9 4. SUMMARY OF TEST RESULTS .................................................................................................... 10 5. SUMMARY OF TEST EQUIPMENT ............................................................................................... 11 6. MEASUREMENT RESULTS ................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AMWOFSC-BT826E This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Emission Detail View
