2AMWOFSC-BT836BBluetooth Module

FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com FSC-BT836B Bluetooth Module Data Sheet Document Type: FSC-BT836B Document Version: V2.1 Release Date: November 16. 2019 Contact Us Shenzhen Feasycom Technology Co.,LTD Email: [email protected] Address: Room 2004-2005,20th Floor,Huichao Technology Building,Jinhai Road, Xixiang ,Baoan District,Shenzhen,518100,China. Tel: 86-755-27924639 FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com Release Record Version Number Release Date Comments Revision 2.0 2019-08-17 First Release Revision 2.1 2019-11-16 Update antenna package FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com 1. INTRODUCTION FSC-BT836B is Feasycom’s dual-mode (BR/EDR and LE) Bluetooth 5.0 compliant module. It supports SPP, HID, GATT, ATT, and other profiles. It provides several customizable hardware interfaces such as UART, USB, PCM, I2C, AIO, PIO, etc. FSC-BT836B incorporates high-performance MCU, Bluetooth controller and chip antenna in a small package so that customers can integrate FSC-BT836B in small products. FSC-BT836B uses UART as the programming interface, customers can use AT commands to read or write the configuration of the module through UART. FSC-BT836B is powered by Feasycom's Bluetooth stack which could provide more possibilities to the applications of customers. For programming with FSC-BT836B, please refer to the relevant programming user guide. 1.1 Feature ◆ Fully qualified Bluetooth 5.0/4.2/4.0/3.0/2.1/2.0/1.2/1.1 ◆ Postage stamp sized form factor ◆ Low power ◆ Class 1.5 support(high output power) ◆ The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921.6Kbps ◆ UART, I 2 C ,USB hardware interfaces ◆ Support the OTA upgrade ◆ Embedded Bluetooth stack profiles support: SPP, HID,GATT, ATT, GAP ◆ Support Apple MFi (iAP2), iBeacon 1.2 Application ◆ Smart Watch and Bluetooth Bracelet ◆ Health & Medical devices ◆ Wireless POS ◆ Measurement and monitoring systems ◆ Industrial sensors and controls ◆ Asset tacking Module picture as below showing FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com 2. GENERAL SPECIFICATION General Specification Chip Set RTL8761 Product ID FSC-BT836B Dimension 13mm x 26.9mm x 2.4mm Bluetooth Specification Bluetooth V5.0 (Dual Mode) Power Supply 3.3 Volt DC Output Power 10 dBm (Class 1.5) Sensitivity [email protected]%BER Frequency Band 2.402GHz -2.480GHz ISM band Modulation GFSK, π/4-DQPSK, 8-DPSK Baseband Crystal OSC 40MHz Hopping & channels 1600hops/sec, 1MHz channel space,79 Channels(BT 5.0 to 2MHz channel space) RF Input Impedance 50 ohms Antenna Integrated chip antenna Interface Data: UART (Standard), I 2 C Others: PIO, AIO, PWM.USB Profile SPP, HID, GATT, ATT, GAP Advanced Feature MFi, Airsync, iBeacon, OTA FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com Temperature -20ºC to +70 ºC Humidity 10%~95% Non-Condensing Environmental RoHS Compliant Table 1 3. PHYSICAL CHARACTERISTIC FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com Figure 2 4. PIN DEFINITION DESCRIPTIONS 21 14151617181920 13 12 11 10 9 8 7 6 5 4 3 33 22 23 24 25 26 27 28 29 30 UART_TX PIO0/USB_DM PIO4 UART_RTS NC NC NC NC Tran/AIO0 Disc/AIO1 RESET 31 32 2 1 34 UART_RX UART_CTS VDD_3V3 GND BOOT 0 NC SWCLK SWDIO PIO 12 PIO 13 NC GND GND PIO2 PIO3 PIO5 PIO6 PIO7 PIO8 PIO9 PIO10 PIO11 35 36 GND ANT PIO1/USB_DP Figure 1: FSC-BT836B PIN Diagram Pin NO. Pin Name Type Pin Descriptions 1 UART_TX CMOS output UART data output 2 UART_RX CMOS input UART data input FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com 3 UART_CTS CMOS input UART clear to send active low Alternative Function: Programmable input/output line 4 UART_RTS CMOS output UART request to send active low Alternative Function: Programmable input/output line 5 NC 6 NC 7 NC 8 NC 9 Tran/AIO0 I/O Host MCU change UART transmission mode. (Default) Alternative Function: Analogue programmable I/O line. 10 Disc/AIO1 I/O Host MCU disconnect bluetooth. (Default). Alternative Function: Analogue programmable I/O line. 11 RESET CMOS input Reset if low. Input debounced so must be low for >5ms to cause a reset. 12 VDD_3V3 VDD Power supply voltage 3.3V 13 GND VSS Power Ground 14 BOOT0 CMOS input The default is low. (internal 10K resistance drop) UART DFU Mode, Enabled at startup when set to high level, Disabled by default 15 NC NC NC 16 SWCLK Bi-directional Debugging through the clk line(Default) 17 SWDIO Bi-directional Debugging through the data line(Default) 18 PIO12 Bi-directional Programmable input/output line Alternative Function: UART3 data output 19 PIO13 Bi-directional Programmable input/output line Alternative Function: UART3 data input 20 NC NC NC 21 GND VSS Power Ground 22 GND VSS Power Ground 23 PIO0/USB_DM Bi-directional Programmable input/output line Alternative Function: USB_DM(optional) 24 PIO1/USB_DP Bi-directional Programmable input/output line Alternative Function: USB_DP(optional) FSC-BT836B Shenzhen Feasycom Technology Co.,LTD www.feasycom.com 25 PIO2 Bi-directional Programmable input/output line 26 PIO3 Bi-directional Programmable input/output line 27 PIO4 Bi-directional Programmable input/output line Alternative Function: BT Power Mode, low level in run mode, it will be set to high level when fall asleep. 28 PIO5 Bi-directional Programmable input/output line 29 PIO6 Bi-directional Programmable input/output line Alternative Function: I 2 C Serial Clock input/output 30 PIO7 Bi-directional Programmable input/output line Alternative Function:I 2 C Serial Data input/output 31 PIO8 Bi-directional Programmable input/output line 32 PIO9 Bi-directional Programmable input/output line Alternative Function: LED(Default) 33 PIO10 Bi-directional Programmable input/output line Alternative Function: BT Status(Default) 34 PIO11 Bi-directional Programmable input/output line 35 GND VSS Power Ground 36 EXT_ANT RF signal output By default, this PIN is an empty feet. This PIN can connect to an external antenna to im…

Text truncated - open the document above for the full version.

Shenzhen Feasycom Technology Co., Ltd. Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen 518101, China Agent Authorization Company: Shenzhen Feasycom Technology Co., Ltd. Address: Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen 518101, China Product Name: Bluetooth Module Model Number(s): FSC-BT836B Product Description: Bluetooth Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 01, 2020 Name: Wan Zhifu Title: General Manager Company: Shenzhen Feasycom Technology Co., Ltd.

Shenzhen Feasycom Technology Co., Ltd. Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen 518101, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: May 26, 2020 Subject; Request for Confidentiality FCC ID: 2AMWOFSC-BT836B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wan Zhifu Title: General Manager

Shenzhen Feasycom Technology Co., Ltd. Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen 518101, China RE FCC ID: 2AMWOFSC-BT836B To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [Wan Zhifu] [CEO] Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is fixed. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed in a stand-alone configuration as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will labeled Contains TX FCC ID: 2AMWOFSC- BT836B, Please refer to User Manual. Shenzhen Feasycom Technology Co., Ltd. Room 2004A, 20th Floor, Huichao Technology Building, Jinhai Road, Xixiang, Baoan District, Shenzhen 518101, China (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module operates under Part 15 .247 which is exempt from RF exposure evaluation owing to the very low operating power.

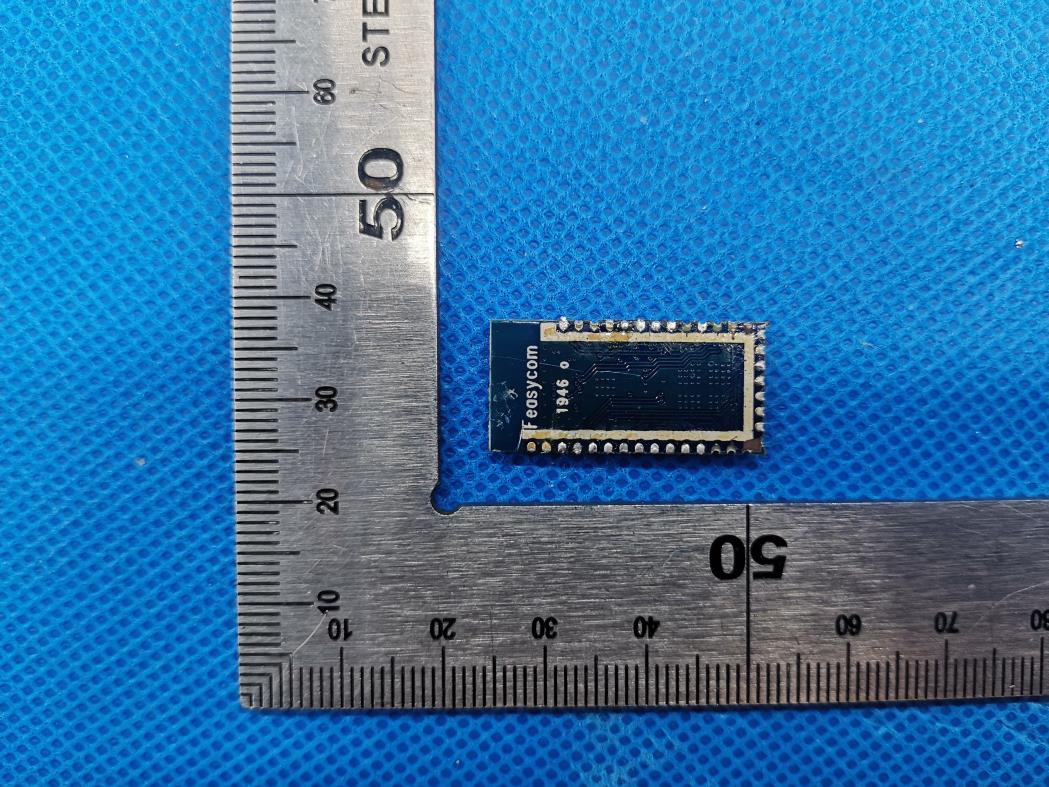

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 5mm*10mm FCC ID: 2AMWOFSC-BT836B

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna INTERNAL VIEW-3 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth Module Model Name FSC-BT836B FCC ID 2AMWOFSC-BT836B 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BLE: P t =4.070dBm=2.55mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.55mW /5mm) .[√2.48(GHz)]= 0.80<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BR/EDR: P t =7.490dBm=5.61mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(5.61mW /5mm) .[√2.48(GHz)]= 1.74<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 66 FCC Test Report Report No.: AGC03285200409FE03 FCC ID : 2AMWOFSC-BT836B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Module BRAND NAME : Feasycom MODEL NAME : FSC-BT836B APPLICANT : Shenzhen Feasycom Technology Co., LTD DATE OF ISSUE : May 26, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03285200409FE03 Page 2 of 66 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 26, 2020 Valid Initial Release Report No.: AGC03285200409FE03 Page 3 of 66 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 Report No.: AGC03285200409FE03 Page 4 of 66 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 37 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 37 10.2. TEST SETUP ......................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 40 10.4. TEST RESULT........................................................................................................................................ 40 11. NUMBER OF HOPPING FREQUENCY ....................................................…

Text truncated - open the document above for the full version.

Report No.: AGC03285200409FE03 Page 41 of 66 RADIATED EMISSION BELOW 1GHZ EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal RESULT: PASS Report No.: AGC03285200409FE03 Page 42 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 4 is the worst case and recorded in the report. Report No.: AGC03285200409FE03 Page 43 of 66 RADIATED EMISSION ABOVE 1GHZ EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 45.6474-28.36 peak 4804.000 37.7554-16.25 AVG 7206.000 40.9974-33.01 peak 7206.000 33.1354-20.87 AVG 45.560.08 37.670.08 38.782.21 30.922.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 43.5174-30.49 peak 4804.000 35.4554-18.55 AVG 7206.000 37.2874-36.72 peak 7206.000 29.3154-24.69 AVG 43.430.08 35.370.08 35.072.21 27.12.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC03285200409FE03 Page 44 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4882.000 45.6974-28.31 peak 4882.000 37.754-16.3 AVG 7323.000 41.174-32.9 peak 7323.000 33.3554-20.65 AVG 45.550.14 37.560.14 38.742.36 30.992.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4882.000 44.2374-29.77 peak 4882.000 36.6154-17.39 AVG 7323.000 39.7774-34.23 peak 7323.000 31.9854-22.02 AVG 44.090.14 36.470.14 37.412.36 29.622.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC03285200409FE03 Page 45 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 46.9374-27.07 peak 4960.000 38.4754-15.53 AVG 7440.000 41.874-32.2 peak 7440.000 34.6754-19.33 AVG 46.710.22 38.250.22 39.162.64 32.032.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 44.7174-29.29 peak 4960.000 35.9154-18.09 AVG 7440.000 39.0774-34.93 peak 7440.000 30.7954-23.21 AVG 44.490.22 35.690.22 36.432.64 28.152.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03285200409FE03 Page 46 of 66 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC03285200409FE03 Page 47 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC03285200409FE03 Page 48 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC03285200409FE03 Page 49 of 66 EUT Bluetooth Module Model Name FSC-BT836B Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC03285200409FE03 Page 50 of 66 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector fu…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP
