2AMX5-SCPP130CARVAAN Plug play

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. IC Caution: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1)This device may not cause interference; and (2)This device must accept any interference, including interference that may cause undesired operation of the device. To maintain compliance with RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)l'a ppareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Pour maintenir la conformité aux directives d'exposition aux radiofréquences, cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

Saregama Inc U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Saregama Inc FRN: 0026685107 Contact Name: Divyaraj Singh Bisht Address: 200 Continental Drive, Suite 401, Newark, Delaware 19713, United States Telephone No: +91981914045 Email: [email protected] This letter is to confirm that we (Saregama Inc) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024-07-29 Signed by (Printed Name/Title): Divyaraj Singh Bisht /Chief Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Saregama Inc FRN: 0026685107 FCC ID: 2AMX5-SCPP130 Contact Name: Divyaraj Singh Bisht Address: 200 Continental Drive, Suite 401, Newark, Delaware 19713, United States Telephone No: +91981914045 Email: [email protected] Applicant Signature: Date: 2024-07-29 Signed by (Printed Name/Title): Divyaraj Singh Bisht /Chief Manager

Saregama Inc 2024.07.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AMX5-SCPP130 [Saregama Inc] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Divyaraj Singh Bisht Saregama Inc 2024.07.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AMX5-SCPP130 [Saregama Inc] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Divyaraj Singh Bisht

Saregama Inc 2024.07.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: CARVAAN Plug play Trademark: CARVAAN MODEL : SCPP130 FCC ID : 2AMX5-SCPP130 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Divyaraj Singh Bisht / Chief Manager Contact information / address: 200 Continental Drive, Suite 401, Newark, Delaware 19713, United States

Saregama Inc 2024.07.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Divyaraj Singh Bisht / Chief Manager Contact information / address: 200 Continental Drive, Suite 401, Newark, Delaware 19713, United States

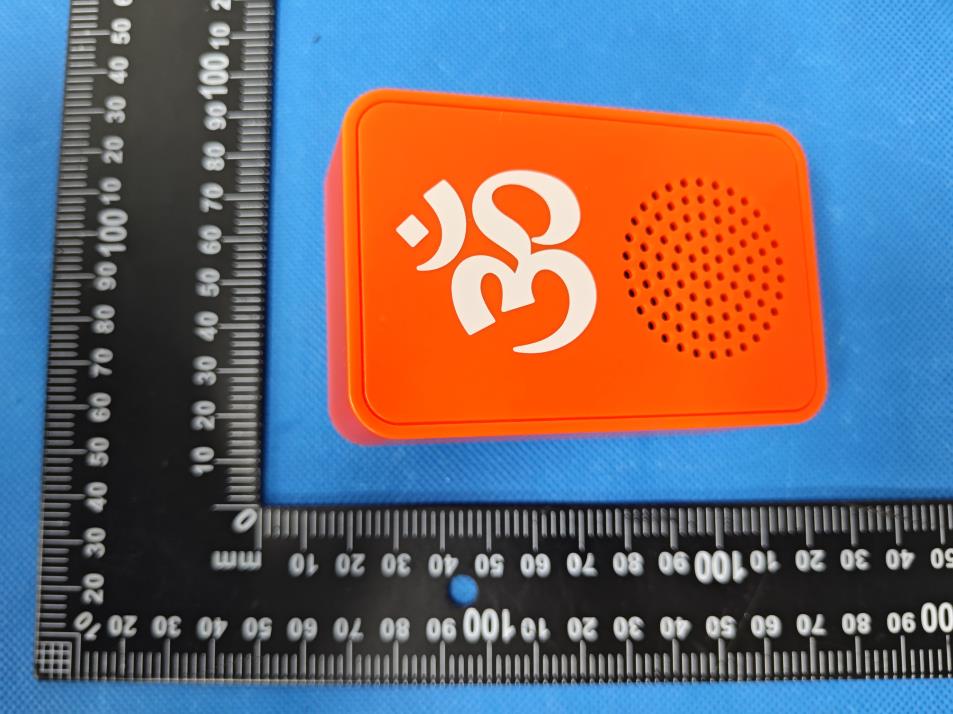

Report No.:BCTC2406425898E External Photos Report No.:BCTC2406425898E Report No.:BCTC2406425898E

Size:40*20mm CARVAAN Plug play FCC ID: 2AMX5-SCPP130 Label location

Report No.:BCTC2406425898E Internal Photos Report No.:BCTC2406425898E Antenna Report No.:BCTC2406425898E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AMX5-SCPP130 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result: 0.00051≤ 1.0, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BT 1±1 2 1.58 1.61 (2.07dBi) 0.00051 1 Pass

No.：BCTC/RF-EMC-005 Page: 1 of 86 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406425898E Applicant: Saregama Inc Product Name: CARVAAN Plug play Test Model: SCPP130 Tested Date: 2024-06-18 to 2024-08-07 Issued Date: 2024-08-07 Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 2 of 86 Edition：B.2 FCC ID: 2AMX5-SCPP130 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: CARVAAN Plug play Trademark: CARVAAN Model/Type Reference: SCPP130 Prepared For: Saregama Inc Address: 200 Continental Drive, Suite 401, Newark, Delaware 19713, United States Manufacturer: Shenzhen Kenuo Digital Technology Co., Ltd Address: 3A01, Building U3, Junxiang U8 Intelligent Manufacturing Industrial Park, Guxing Community, Xixiang Street, Baoan District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-06-18 Sample tested Date: 2024-06-18 to 2024-08-07 Issue Date: 2024-08-07 Report No.: BCTC2406425898E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 3 of 86 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 Test Result .......................................................................................................... 2…

Text truncated - open the document above for the full version.

Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 51 of 86 Edition：B.2 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 52 of 86 Edition：B.2 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 53 of 86 Edition：B.2 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 54 of 86 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 55 of 86 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 56 of 86 Edition：B.2 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: AC 120V/60Hz Remark: N/A Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 1.15 21 Pass NVNT 1-DH1 2441 1.33 21 Pass NVNT 1-DH1 2480 1.32 21 Pass NVNT 2-DH1 2402 1.14 21 Pass NVNT 2-DH1 2441 1.33 21 Pass NVNT 2-DH1 2480 1.3 21 Pass NVNT 3-DH1 2402 1.14 21 Pass NVNT 3-DH1 2441 1.32 21 Pass NVNT 3-DH1 2480 1.29 21 Pass Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 57 of 86 Edition：B.2 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 58 of 86 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 59 of 86 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 60 of 86 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 61 of 86 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 62 of 86 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: AC 120V/60Hz Remark: N/A Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.986 2402.988 1.002 0.607 Pass NVNT 1-DH1 2440.984 2441.984 1 0.578 Pass NVNT 1-DH1 2478.982 2479.982 1 0.535 Pass NVNT 2-DH1 2401.988 2402.988 1 0.771 Pass NVNT 2-DH1 2440.984 2441.984 1 0.781 Pass NVNT 2-DH1 2478.982 2479.982 1 0.794 Pass NVNT 3-DH1 2401.986 2402.99 1.004 0.79 Pass NVNT 3-DH1 2440.986 2441.984 0.998 0.799 Pass NVNT 3-DH1 2478.984 2479.982 0.998 0.797 Pass Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 63 of 86 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 64 of 86 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 65 of 86 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 66 of 86 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 67 of 86 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 68 of 86 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: AC 120V/60Hz Remark: N/A Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 69 of 86 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 70 of 86 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 71 of 86 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test …

Text truncated - open the document above for the full version.

Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 84 of 86 Edition：B.2 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2406425898E No.：BCTC/RF-EMC-005 Page: 85 of 86 Edition：B.2
