2AMY9PLUS450Smart Home Controller (WIFI, Zigbee and Z-Wave)

Quick Start Guide plus Smart Home Controller Thanks for choosing the Ezlo Plus You’ve taken the first step toward making your home smarter and safer. It’s easy to set up your hub. Here is what you have to do. Install the Vera app on your mobile device. Just look for the in the iOS App Store or on Google Play. If you already have the Vera app, just log in. If you just downloaded the app, tap on New to Vera and select Ezlo Plus from the list of controllers. If you already have an account, tap Add New Controller and select the Ezlo Plus from the My Controllers list. Forgot password Password Username Login New to Vera? Next, connect the A/C power adapter to your Ezlo Plus. Once it is powered on, the LED should slowly change from green to blue. Wait for a steady blue light before proceeding. The Ezlo Plus supports both wired and wireless setup. Select your preferred option and follow the prompts. Follow these steps to connect your Ezlo Plus using wireless setup. Follow these steps to connect your Ezlo Plus using wired setup. Wireless setup Wired setup Congratulations! Your Ezlo Plus is now connected and its LED will remain steady blue. If you don't already have one, it's time to create your account. The app will walk you through it. Forgot password Password Username Login New to Vera? Start using your Ezlo Plus by adding devices like lights, thermostats, sensors, and more. Just tap the menu icon at the top left of the dashboard, select Devices, and then tap the + sign to launch the Device Pairing Wizard. Scenes Devices MyHome Choose your favorite scenes Make your home safer. Make your life easier. The Ezlo Plus lets you control Z-Wave, Zigbee, and Wi-Fi devices from a single app. When you add devices such as lights, thermostats, sensors, cameras, and door locks to your Vera system, you’ll be able to enjoy greater comfort and peace of mind with just a touch. Control your home from anywhere. The Vera app offers some key features that help you simplify things at home and help you keep an eye on things when you’re away. Modes Modes give you the power to control all your devices with a single tap. There are pre-set modes for Home, Away, Night, and Vacation. Scenes The true power of home automation is when your home can do things for you. With Scenes you can schedule your lights to turn off when you leave for work in the morning, or to fade up as day turns to night. Notifications Your Vera system can sends push notifications and emails to let you—or other users—know about what’s going on at home. Ezlo VOI This powerful tool lets you use your voice or a scene to control over 27,000 Wi-Fi devices associated with Amazon Alexa or Google Assistant. Need help setting up? You can reach our Customer Care team seven days a week at 866.966.2272 between 6am and 10pm US CST/EST* or at [email protected] You can also purchase our Vera Easy Start service and get one hour of personalized setup assistance through a phone call with one of our most experienced agents. Visit getvera.comto learn more. To find the complete User Guide, as well as information about the products FCC/IC registration, visit getvera.com/ support and click on “Downloads, Firmware & Manuals.” *Customer Care available 6am-10pm CST during Non-DaylightSavings Hours; and 6am-10pm EST during Daylight Savings Hours You’re now ready to enjoy smarter home control. © Ezlo Innovation 2020

Golden Mark (HK) Limited 6/F., Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong Telephone No.: (852) 3728 3130 Fax No.: (852) 3728 3604 Date: March 12, 2021 Hereby, we, Golden Mark (HK) Limited, certify that the product (FCC ID: 2AMY9PLUS450, IC: 22968-PLUS450) have two models as below. EzloPlus-US and e450-US are the same products. These two models only differ in model name. Except for the above differences, their electrical circuit design, layout, components used and internal wiring are identical. Yours Sincerely, Contact name: Poon Hoi Yan Tel: (852) 3728 3130 Email: [email protected] Company name: Golden Mark (HK) Limited

Golden Mark (HK) Limited 6/F., Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong Telephone No.: (852) 3728 3130 Fax No.: (852) 3728 3604 Date: January 7, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Golden Mark (HK) Limited, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Golden Mark (HK) Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2AMY9PLUS450 including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Golden Mark (HK) Limited in connection with the Application shall have the same effect as acts of the Golden Mark (HK) Limited. Golden Mark (HK) Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Contact name: Poon Hoi Yan Title: Manager Tel: (852) 3728 3130 Email: [email protected] Company name: Golden Mark (HK) Limited

Golden Mark (HK) Limited 6/F., Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong Telephone No.: (852) 3728 3130 Fax No.: (852) 3728 3604 Date: January 7, 2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Golden Mark (HK) Limited FCC ID: 2AMY9PLUS450 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Golden Mark (HK) Limited requests that the following documents regarding this submission for FCC ID: 2AMY9PLUS450 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Golden Mark (HK) Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Golden Mark (HK) Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Contact name: Poon Hoi Yan Title: Manager Tel: (852) 3728 3130 Email: [email protected] Company name: Golden Mark (HK) Limited

Golden Mark (HK) Limited Supplier’s Declaration Of Conformity for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: Smart Home Controller Brand Nam:N/A Model Number: EzloPlus-US, e450-US Report Number: SZ20120271E01 FCC ID: 2AMY9PLUS450 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration: Poon Hoi Yan Projector Coordinator ____________________________________ ______________________________________ Name (Full name ) Position / Title 2021.2.26 ____________________________________ ______________________________________ Legal Signature Date

Declaration To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AMY9PLUS450 Don't operate on Channels 12 and 13. US 2.4G channel 12-13 and Country code selection are disabled through proprietary software and are not user changeable Should you have any questions, please feel free to contact me. Date:2021/02/26 Signature : Title: Project Coordinator Company name: Golden Mark (HK) Limited

Golden Mark (HK) Limited UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2AMY9PLUS450, IC: 22968-PLUS450 (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHz Yes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : Country is selected as US by default and user can not change the country code. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. N/A (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The device configuration can not be modified by user as program is not exposed to user by any means. Hardware does not allow USB connection for user which is must to change the configuration. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Contact name: Poon Hoi Yan Title: Projector Coordinator

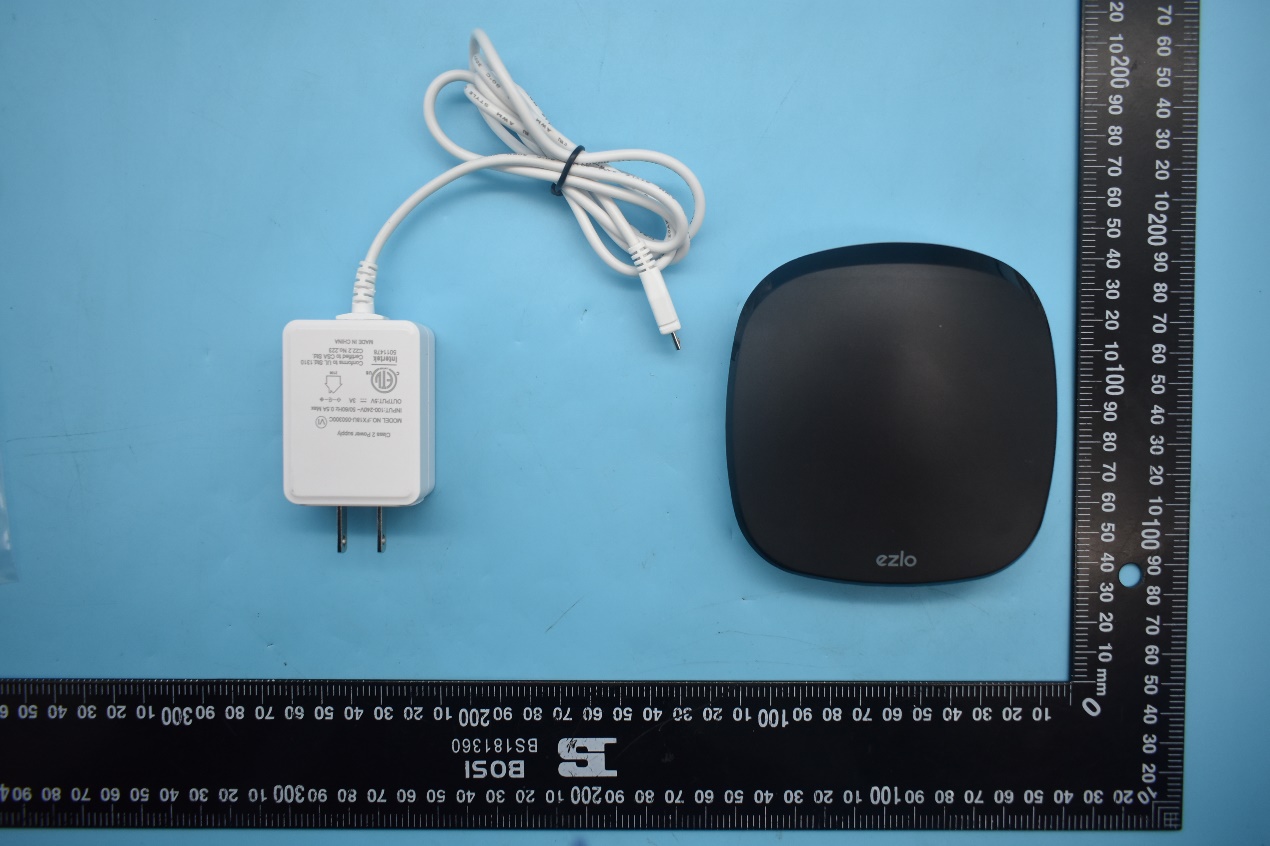

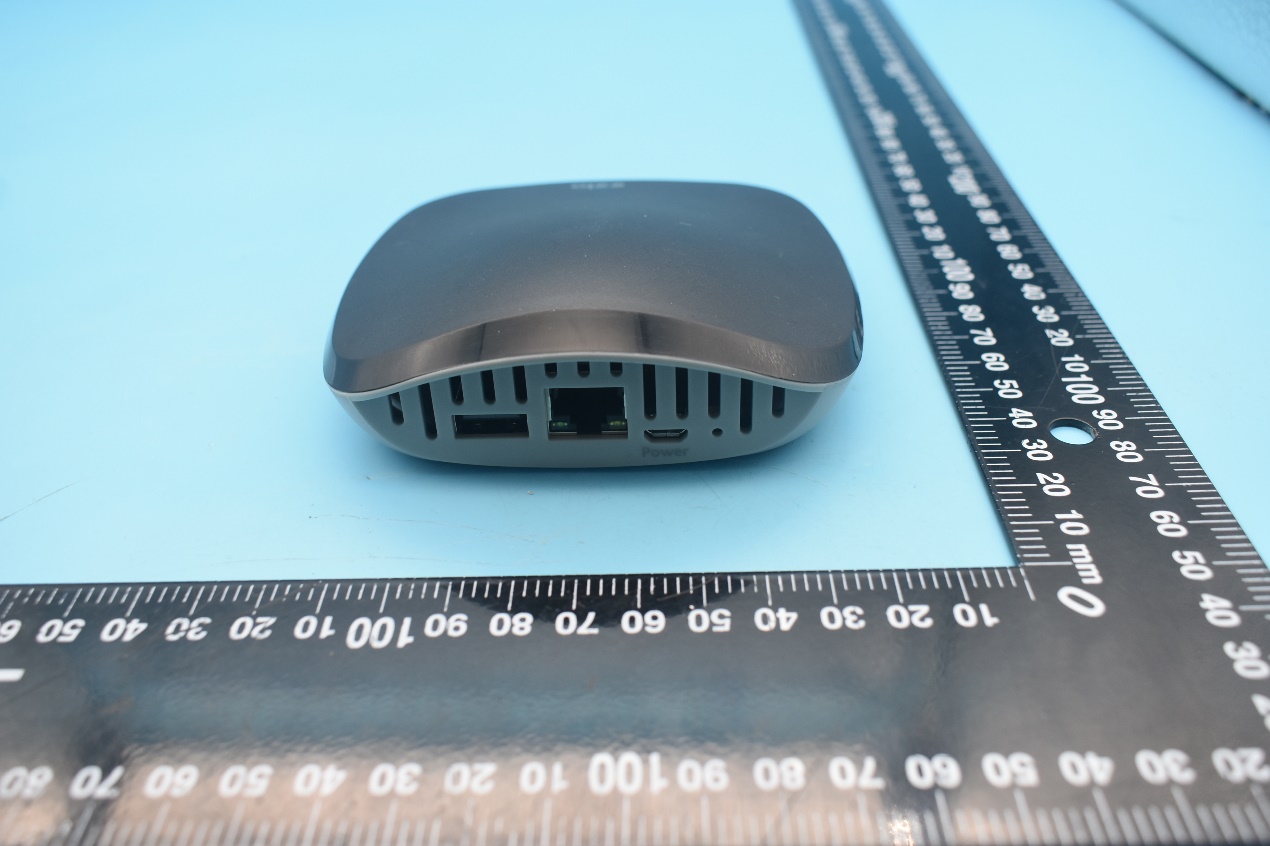

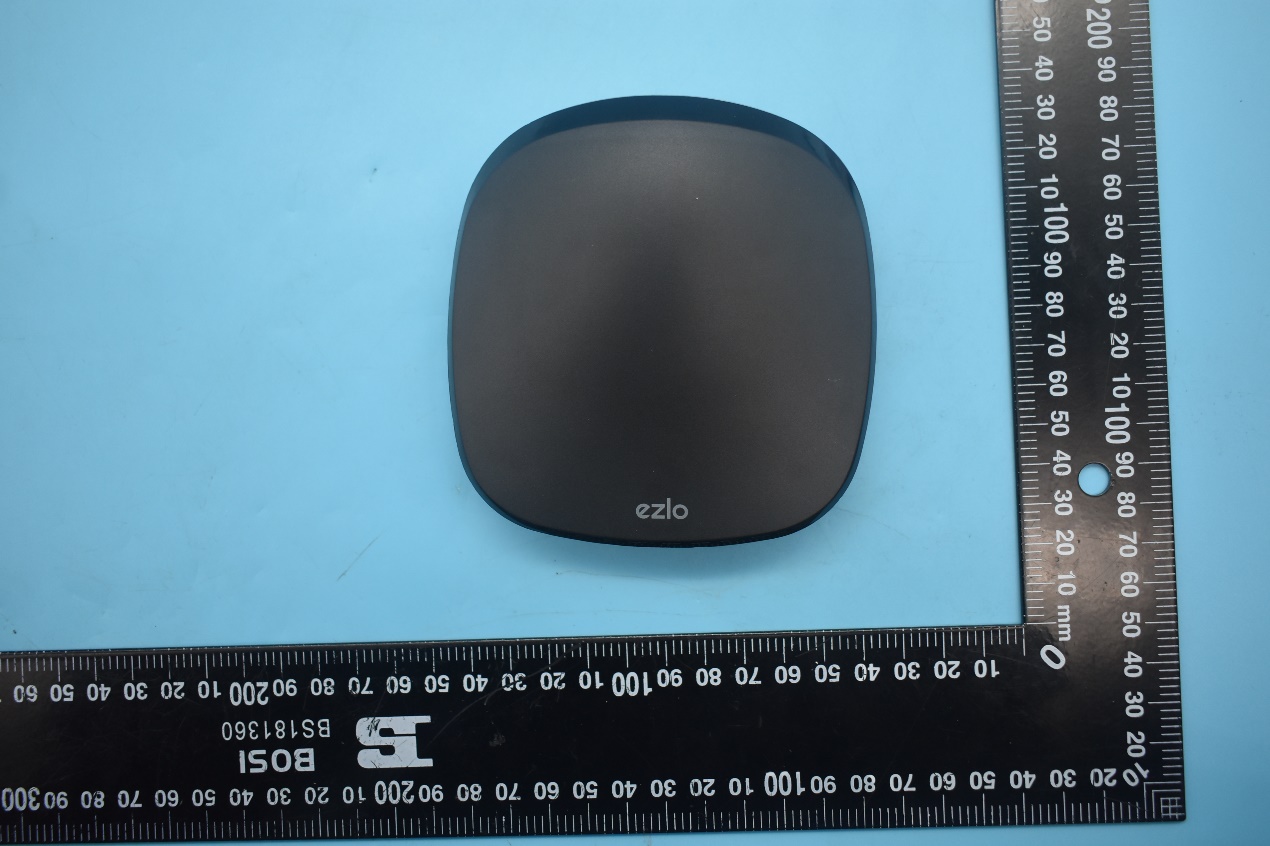

FCC ID:2AMY9PLUS450, IC :22968-PLUS450 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

FCC ID:2AMY9PLUS450, IC:22968-PLUS450 Internal Photos 1. EUT uncover view 2. Antenna view Z-Wave wire Antenna Wi-Fi Antenna Zigbee PCB Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 10 REPORT No.：SZ20120271S01 RF EXPOSURE EVALUATION REPORT APPLICANT :Golden Mark (HK) Limited PRODUCT NAME :Smart Home Controller MODEL NAME :EzloPlus-US, e450-US BRAND NAME :N/A FCC ID : 2AMY9PLUS450 STANDARD(S) : FCC 47CFR Part 2(2.1091) RECEIPT DATE : 2020-12-21 TEST DATE :2020-12-30 to 2021-03-23 ISSUE DATE :2021-03-31 Edited by: Zeng Xiaoying (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120271S01 Page 2of 10 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 Change History Version Date Reason for Change 1.0 2021-03-31 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120271S01 Page 3of 10 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Golden Mark (HK) Limited Applicant Address: 6/F, Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer: Golden Mark (HK) Limited Manufacturer Address: 6/F, Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong 1.2 Equipment under Test (EUT) Description Product Name: Smart Home Controller Serial No.: (N/A, marked #1 by test site) Hardware Version: N/A Software Version: N/A Frequency Bands: Z-Wave 908.4MHz, 916.0MHz Zigbee 2405MHz-2480MHz WLAN 2.4GHz 2412MHz-2462MHz WLAN 5GHz 5180MHz-5240MHz 5745MHz-5825MHz Modulation Mode: Zigbee QPSK WLAN 2.4GHz DSSS, OFDM WLAN 5GHz OFDM Antenna Information: Z-Wave Antenna Type: Wire Antenna Antenna Gain: 2.1dBi Zigbee Antenna Type: PCB Antenna Antenna Gain: 1.0dBi Antenna Information: WLAN 2.4GHz/ WLAN 5GHz Antenna Type: Chip Antenna Antenna Gain: 2.3dBi MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120271S01 Page 4of 10 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method determination /Remark FCC 47CFR Part 2(2.1091) Radio Frequency Radiation Exposure Assessment: mobile devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% risk level. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120271S01 Page 5of 10 2. Device Category and RF Exposure Limit Per user manual, Based on 47CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population/uncontrolled exposure limits …

Text truncated - open the document above for the full version.

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 23 REPORT No.：SZ20120271W01 TEST REPORT APPLICANT :Golden Mark (HK) Limited PRODUCT NAME :Smart Home Controller MODEL NAME :EzloPlus-US, e450-US BRAND NAME :N/A FCC ID : 2AMY9PLUS450 STANDARD(S) : 47 CFR Part 15 Subpart C RECEIPT DATE : 2020-12-21 TEST DATE :2021-01-06 to 2021-01-19 ISSUE DATE :2021-03-31 Edited by: Zeng Xiaoying (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 23 REPORT No.：SZ20120271W01 DIRECTORY 1. Technical Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.1. Applicant and Manufacturer Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.2. Equipment Under Test (EUT) Description ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 3 1.3. The Channel Number and Frequency ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.4. Test Standards and Results ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4 1.5. Environmental Conditions ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5 2. 47 CFR Part 15C Requirements ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 2.1. Antenna Requirement ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 6 2.2. Bandwidth ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 7 2.3. Conducted Emission ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 9 2.4. Field Strength of Fundamental ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 13 2.5. Radiated Emission and Field Strength of Harmonics ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15 Annex A Test Uncertainty ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 21 Annex B Testing Laboratory Information ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 22 Change History Version Date Reason for change 1.0 2021-03-31 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 23 REPORT No.：SZ20120271W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Golden Mark (HK) Limited Applicant Address: 6/F, Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong Manufacturer: Golden Mark (HK) Limited Manufacturer Address: 6/F, Kimberley Plaza, 45-47 Kimberley Road, Tsim Sha Tsui, Kowloon, Hong Kong 1.2. Equipment Under Test (EUT) Description Product Name: Smart Home Controller Serial No: (N/A, marked #1 by test site) Hardware Version: N/A Software Version: N/A Equipment Type: Z-Wave Operating Frequency Range: 908.4MHz, 916.0MHz Channel Number: 2 Antenna Type: Wire Antenna Antenna Gain: 2.1dBi Accessory Information: AC Adapter Brand Name: N/A Model No.: FX18U-050300C Serial No.: (N/A, marked #1 by test site) Rated Output: 5V3A Rated Input: 100-240V 50/60Hz, 0.5A Manufacturer: Shenzhen Fangxin Technology Co., Ltd Note 1: According to the certificate holder, they declared that the models EzloPlus-US, e450-US are the same products. These two models only differ in model name. Except for the above differences, their electrical circuit design, layout, components used and internal wiring are identical. The main measuring model is EzloPlus-US, only the results for EzloPlus-US were recorded in this report. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 23 REPORT No.：SZ20120271W01 Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. 1.3. The Channel Number and Frequency Channel Frequency (MHz) 1 908.4 2 916.0 1.4. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Test Date Test Engineer Result Method determination /Remark 1 15.203 Antenna Requirement N/A N/A PASS No deviation 2 15.215 Bandwidth Jan 06, 2021Liu Bo PASS No deviation 3 15.207 Conducted Emission Jan 09, 2021 Wu Runfeng PASS No deviation 4 15.249 Field strength Jan 19, 2021 Gao Jianrou PASS No deviation 5 15.209, 15.249 Radiated Emission and field strength of harmonics Jan 15, 2021 Gao Jianrou PASS No deviation Note 1: The tests were performed according to the method of measurements prescribed in ANSIC63.10-2013. Note 2: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude …

Text truncated - open the document above for the full version.

FCC ID:2AMY9PLUS450, IC:22968-PLUS450 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Z -wave) (Z igbee)
