Roborock Q5 Pro+ Read this user manual with diagrams carefully before using this product and store it properly for future reference. Robotic Vacuum Cleaner User Manual English 03 Français 17 04 Contents English 05 WARNING 05 Battery and Charging 06 FCC/IC Statement 06 International Symbols Explanation 07 Product Overview 08 Installation 09 Connecting to the App 10 Instructions 11 Routine Maintenance 13 Basic Parameters 14 Common Issue 05 WARNING •For use only with roborock CDZ12RR, CDZ20RR, AED06LRR or AED07LRR charger. •Place the cords from other appliances out of the area to be cleaned. •Do not operate the vacuum in a room where an infant or child is sleeping. •Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned. •Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into. •Do not allow children to sit on the vacuum. •Unplug the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. •Do not carry the product using a dock base or dustbin. •Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air. •The product must be switched off and the plug must be removed from the socket outlet when not in use, before cleaning or maintaining the product. •This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. •Do not use wet cloth or liquids for cleaning the charging contacts. •Do not dismantle, repair or modify the battery or charging dock. •If the dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures. •Keep the charging dock away from heat (such as radiators). Battery and Charging •To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. •Do not wipe the charging contacts with wet cloth or wet hands. •Turn the robot off and use original packaging for shipment. •If placing the robot into storage, charge it fully and turn it off before placing it in a cool dry place. Recharge it at least every three months to prevent the battery over discharging. •Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. 06 FCC/IC Statement Compliance Information Product NameRobotic Vacuum Cleaner with Charging Dock Robotic Vacuum Cleaner Model: Q50ULE Dock Charger Model: CDZ12RR or CDZ20RR Auto-Empty Dock Model: AED06LRR, AED07LRR Product Model Compliance Statement Correspondence of the responsible party in USA Roborock Technology Co. ROOM 1227, 12TH FLOOR, 1000 N. WEST STREET, WILMINGTON, DE 19801 [email protected] Company Address Email International Symbols Explanation ~ – ALTERNATING CURRENT symbol [symbol IEC 60417-5032 (2009-02)] – DIRECT CURRENT symbol [symbol IEC 60417-5031 (2009-02)] This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. 07 Product Overview A A1 Robot (Top View) Press any button to stop the robot during cleaning or docking. Note: A1-1—Vertical Bumper A1-2—LiDAR Sensor A1-3—Wall Sensor A1-4—Dock Locator A3 Robot (Dustbin Removed) A3-1—Air Inlets A3-2—Reset Button A3-3—Air Outlet Spot Clean/Child Lock •Press to Spot clean •Press and hold for 3 seconds to turn on/off the child lock A2 Robot (Bottom View) A2-1—Cliff Sensors A2-2—Omnidirectional Wheel A2-3—Charging Contacts A2-4—Side Brush A2-5—Main Brushes A2-6—Main Brush Cover A2-7—Main Wheels •White: Battery level ≥ 20% •Red: Battery level < 20% •Pulsing: Charging or starting up •Flashing red: Error Power Indicator Power/Clean •Press and hold to turn the robot on or off •Press to start cleaning •Flashing blue slowly: Waiting for connection •Flashing blue quickly: Connecting •Steady blue for five seconds: WiFi connected WiFi Indicator Light Dock •Press to return to dock A5 Power Cable A6 Adjustable Water Tank (Optional) A6-1—Water Tank Stopper A6-2—Filter Components A6-3—Water tank A6-4—Water Tank Latch A6-5—Flow Control A4 Dustbin A4-1—Dustbin Latch A4-2—Washable Filter A7 Mop Cloth (Optional) A7-1—Mop Cloth A7-2—Hook and Loop Pads A8 Dustbin (Disposable Dust Bag Pre-Installed) A9 Dustbin Cover A10 Disposable Dust Bag A11 Base A11-1—Air Duct Cover Screws (10) A11-2—Air Duct Cover A11-3—Screwdriver A11-4—Base Fastening Screws (6) A12 Auto-Empty Dock A12-1—Dustbin Cover A12-2—Dustbin A12-3—Base A12-4—Status Indicator Light •Steady white: Standby •Flashing white: Emptying •Steady red: Malfunction •Light off: Charging Robot/Not Powered On A13 Auto-Empty Dock (Cover Removed) A13-1—Dust Bag Slot A13-2—Filter A12-5—Dock Location Beacon A12-6—Charging C…

Text truncated - open the document above for the full version.

Read this safety guidelines and certification document carefully before using this product and store it properly for future reference. Safety Guidelines & Certification English 01 Français 05 Español (Latinoamérica) 09 English-01 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. • User must read instruction manual. • Risk of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing. • Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. • Use only as described in this manual. Use only manufacturer’s recommended attachments. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. • Do not run appliance over cord. Keep cord away from heated surfaces. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle charger, including charger plug, and charger terminals with wet hands. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use without dust bag. • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. English English-02 • Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. • Turn off the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. • Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. • Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (266°F) may cause explosion. • Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. • Have servicing performed by a qualified repair person using only identical replacement parts.This will ensure that the safety of the product is maintained. • Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. • Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. SAVE THESE INSTRUCTIONS Household use only. WARNING English-03 Laser Safety Class 1 laser product . Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice 56, dated May 8, 2019. Warning Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC/IC Statement English-04 FCC/IC Statement When the robot is docked, press and hold “Dock” for 10 seconds or until you hear an alert sound. This will activa…

Text truncated - open the document above for the full version.

Beijing Roborock Technology Co., Ltd. Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: 30-03-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2AN2O-Q50ULE02 Beijing Roborock Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ruby Hu Title: Project certification Manager Address: Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China Tel.: +86-10-17610851616 Email: [email protected]

Beijing Roborock Technology Co., Ltd. Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: 30-03-2023 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2AN2O-Q50ULE02 Beijing Roborock Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ruby Hu Title: Project certification Manager Address: Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China Tel.: +86-10-17610851616 Email: [email protected]

Beijing Roborock Technology Co., Ltd. U.S. Agent Letter of Attestation To: Federal Communications Commission Date: 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Attestation Statement Part 2.911(d)(7) filing JOC Australia Inche agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email Beijing Roborock Technology Co., Ltd. application, JOC Australia Inc above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. address. APPLICANT Company Name: Beijing Roborock Technology Co., Ltd. Contact Person: Ruby Hu Address:Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China Tel.:+86-10-17610851616 Email:[email protected] FCC ID: U.S. Agent Company Name: JOC Australia Inc Contact Person: Benjamin. Smith/Vice President Address: 18351 Colima Road Ste 585 Rowland Heights, California, 91748 United States of America Tel.: +1(626) 217 4778 Email: [email protected]/[email protected] FCC FRN: 0033379421 Sincerely yours, The ApplicantThe Agent Company Name Beijing Roborock Technology Co., Ltd. JOC Australia Inc Contact Person Ruby HuBenjamin. Smith/Vice President Signature

Page 1 of 1 Beijing Roborock Technology Co., Ltd. Authority to Act as Agent Date: 20230404 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint MS.Yanli Fan of TUV Rheinland (shanghai) Co., Ltd to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Beijing Roborock Technology Co., Ltd. / Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 20230404 Agreement is valid for 12 months from the above date. By: _________ Ruby Hu (Signature) (Print name) Project certification manager +86 010 80701770 (Title) (Telephone) On behalf of: Beijing Roborock Technology Co., Ltd . (Company Name)

Antenna report Antenna Type Band(S) Dimension（mm） PCB antenna 2.4GHz - 2.5GHz 21.5*7 2：测试步骤程序 Test method and standard Name Parameter Method Standard no. Antenna performance Radiation efficiency IEEE Standard Test Procedures for Antennas ANSVIEEE Std 149-2021 测试人员 test person Wangdongyang 测试日期test date 2022-10-12 Beijing Roborock Technology Co., Ltd. Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China Manufacturer Info.: 3：测试设置照片test set up 4：设备清单 test equipment list 序号 设备名称 型号 生产厂家 出产编号 校准日期 校准有效期 1 全电波暗室 AMS-8923 ETS -Lindgren 5421 2022/7/23 2023/7/22 2 转台拉制器 EMCO2090 ETS -Lindgren 125967 / / 3 开关单元 OSP120 Rohde & Schwarz 100939 / / 4 网络分析仪 Agilent E5071C Agilent 101539 2022/2/01 2023/1/31 5 综测仪器 R&S CMW500 Rohde & Schwarz 130259 2022/5/11 2023/5/10 5：测试配置图 6：天线增益测试图及数据antenna gain test graph and datas Passive Test For WIFI Antennna Freq(Mhz) Effi(%) Effi(dB) Gain(dBi) 2400 48.0 -3.1 1.64 2410 47.1 -3.3 2.33 2420 46.7 -3.3 2.04 2430 44.5 -3.5 2.04 2440 44.4 -3.5 2.35 2455 44.4 -3.5 2.54 2450 46.8 -3.3 2.09 2460 46.3 -3.3 1.96 2470 46.3 -3.3 2.08 2480 45.2 -3.4 1.56 2490 46.0 -3.4 1.89 2500 45.8 -3.4 1.40 7：测试步骤 Test Procedure Test Step Flow 1. Maintain the test ambient temperature of 23t2 C, the instrument is powered on and preheated for more than 30 minutes 2. Tum on the darkroom power supply, connect the test cable, and set up the sample according to the standard 3. Outline sets the test content objectives and conducts calibration tests 4. Run the EMQuest OTA software, the test is complete, export the corresponding test diagram and test data, and save to the corresponding directory Test Principle The test principle can be seen in accordance with the standard ANSI/IEEE std 149-2021 Test Conditions 1.The analyte, the network analyzer for testing, the test equipment and the test cable connector should have good reliability, stability, dynamic range and measurement accuracy to ensure the correctness of the measurement accuracy 2. The measuring instrument should have a certificate of conformity and be within the effective calibration period 3. The analyte should be complete and undamaged, and the test environment should be kept clean 8：测试软件 Test Software Test software being used: EMQuest Software Version: 1.08.01 30 330 60 300 120 240 150 210 30 330 60 300 120 240 150 210 0 90 270 Max: 4 Min: -12 Scale: 2/div 180 Angle (°) H-PlaneCut 0 90 270 Max: 4 Min: -10 Scale: 2/div 180 Angle (°) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2477 2482 2484 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 2467 2472 2477 2482 2484 Power (dB) Power (dB)

Beijing Roborock Technology Co., Ltd. MS-0044715 Page 1 of 1 Revision 1 Date: __20230330______ Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2AN2O-Q50ULE02 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction Beijing Roborock Technology Co., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ____________________ ________Ruby Hu________________ (Signature/Title) (Print name)

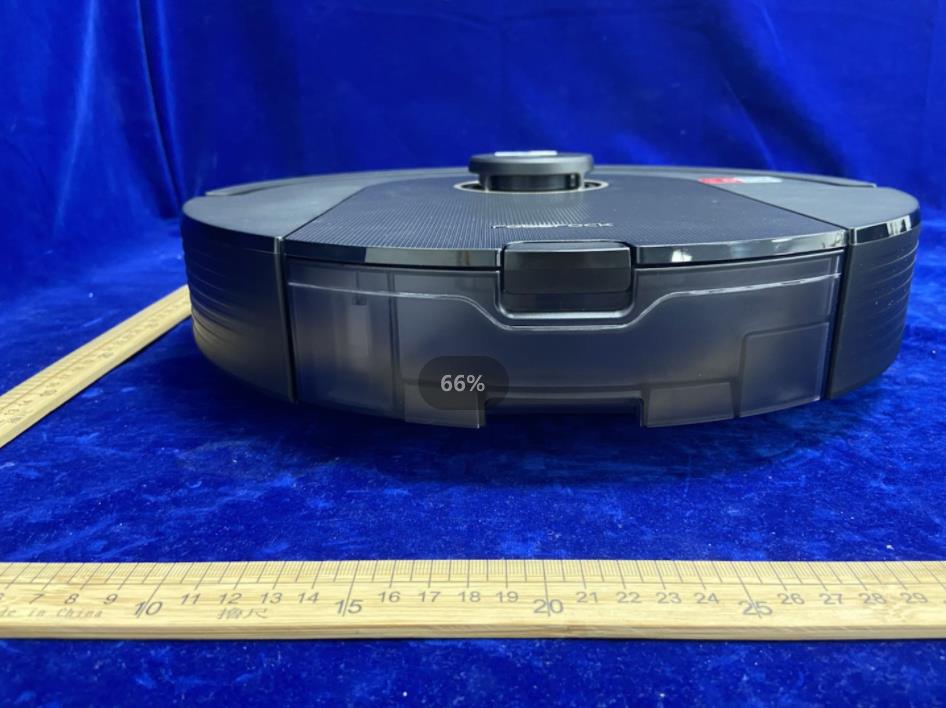

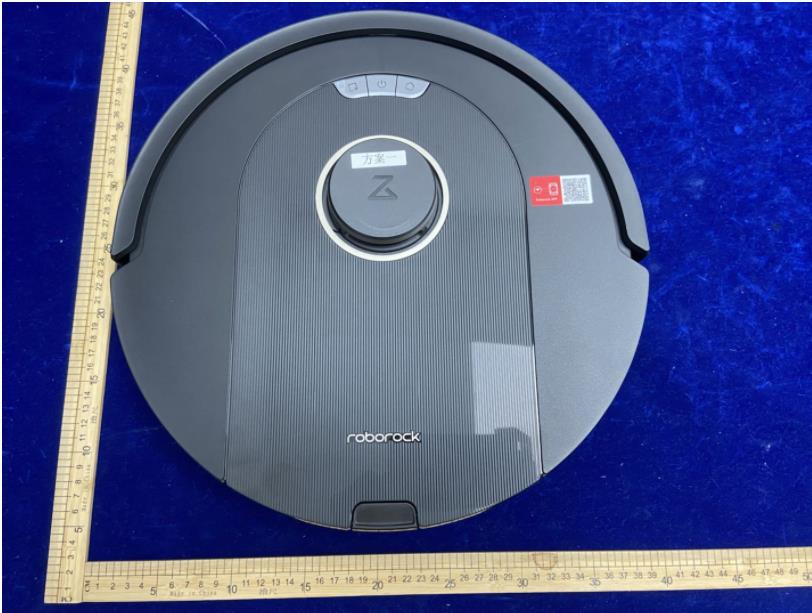

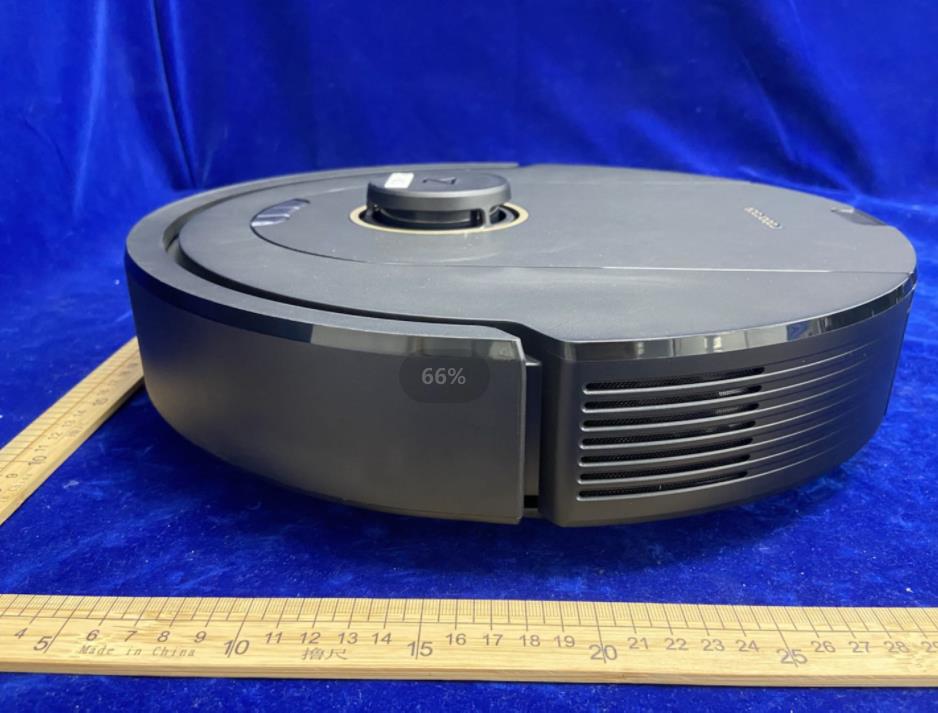

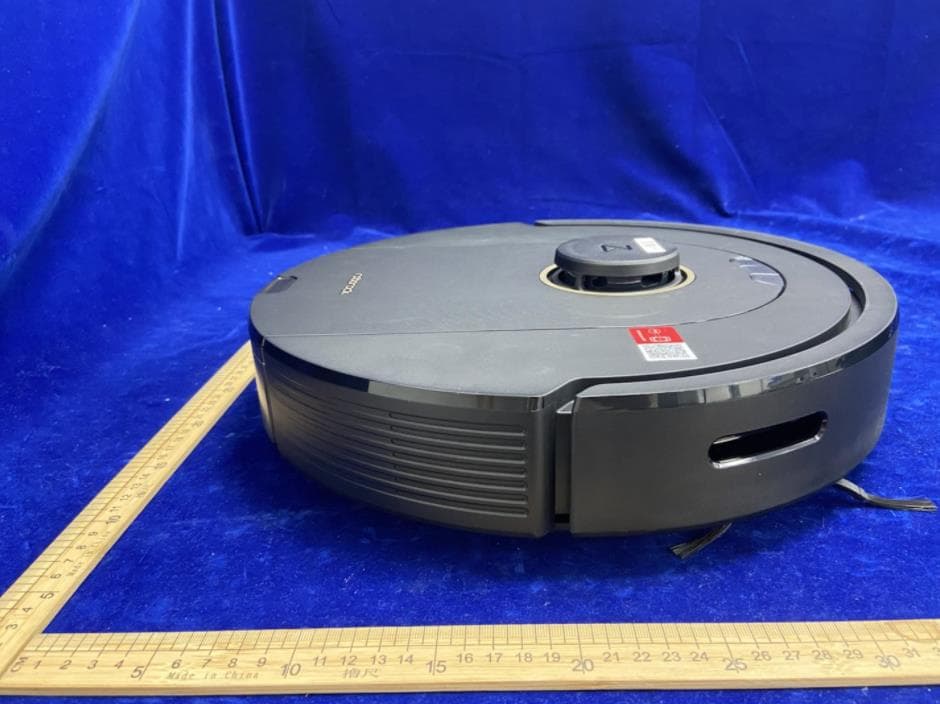

External Photos of EUT Model No. : Q50ULE Page: 1 of 3 External Photos of EUT Model No. : Q50ULE Page: 2 of 3 External Photos of EUT Model No. : Q50ULE Page: 3 of 3

Host label： Warning label：

Internal Photos of EUT Model No. : Q50ULE Page: 1 of 6 Internal Photos of EUT Model No. : Q50ULE Page: 2 of 6 Internal Photos of EUT Model No. : Q50ULE Page: 3 of 6 Internal Photos of EUT Model No. : Q50ULE Page: 4 of 6 ANT Internal Photos of EUT Model No. : Q50ULE Page: 5 of 6 Internal Photos of EUT Model No. : Q50ULE Page: 6 of 6

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06 FCC KDB Publication 865664 D02 v01r02 OET Bulletin 65 (Edition 97-01) RSS-102 Issue 5, Amendment 1, February 2, 2021 FCC ID : 2AN2O-Q50ULE02 IC : 23317-Q50ULE02  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to OET Bulletin 65 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) The nominal maximum conducted output power specified: 2.4GHz DTS: 25.86 dBm From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain (Max. 2.54 dBi for DTS), the RF power density can be calculated as below: Fo 2.4GHz DTS: S (mW/cm 2 ) = PG/4πR 2 = 0.1378 mW/cm 2  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  RF exposure evaluation exempted power for DTS: 2.676 W The nominal maximum conducted output power specified: 2.4GHz DTS: 25.86 dBm Antenna Gain: 2.54dBi for DTS The Max. e.i.r.p. for 2.4GHz DTS: 28.40 dBm = 0.692 W e.i.r.p. for the DTS is less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN233T9H 002 Auftrags-Nr.: Order no.: 168418775 Seite 1 von 21 Page 1 of 21 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-03-16 Auftraggeber: Client: Beijing Roborock Technology Co., Ltd. Room 1001, Floor 10, Building 3, Yard 17, Anju Road, Changping District, Beijing, P.R. China Prüfgegenstand: Test item: Robotic vacuum cleaner Bezeichnung / Typ-Nr.: Identification / Type no.: Q50ULE (Trademark: roborock) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 RSS-Gen Issue 5, Amendment 2, February 2021 RSS-247 Issue 2 February 2017 RSS-102 Issue 5, Amendment 1, February 2, 2021 ANSI C63.10: 2013 Wareneingangsdatum: Date of sample receipt: 2023-03-21 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A003437355-019~022 A003437355-005~008 Prüfzeitraum: Testing period: 2023-03-26 - 2023-04-11 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Chris Chen genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2023-05-29 Ausstellungsdatum: Issue date: 2023-05-29 Stellung / Position Department Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: 2AN2O-Q50ULE02 IC: 23317-Q50ULE02 HVIN: Q50ULE-FNF8 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 17-18F, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P. R. China Mail: [email protected] Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN233T9H 002 Seite 2 von 21 Page 2 of 21 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99%DB BANDWIDTH RESULT: Pass 5.1.5 6DB BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN233T9H 002 Seite 3 von 21 Page 3 of 21 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY.....…
