2AN2O-RSW05BL-M3881NT1

石头世纪科技有限公司 内部文档 未经允许请勿转发 BL-M3881NT1 SPEC <V 5.0> BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 2 Content 1. General Description ................................................................................................................................... 3 2. Product Model Information .................................................................................................................... 3 3. WIFI Specification ....................................................................................................................................... 3 3.1 WIFI features ......................................................................................................................................... 3 3.2 WIFI RF Performance ......................................................................................................................... 4 3.3 Block Diagram ...................................................................................................................................... 5 3.4 Dimension .............................................................................................................................................. 5 3.5 PIN Assignment ................................................................................................................................... 6 3.6 Schematic ............................................................................................................................................... 7 4. Antenna Specification ............................................................................................................................... 8 4.1 Antenna lists ......................................................................................................................................... 8 4.2 Wireless LAN antenna matching circuit ...................................................................................... 9 4.3 Antenna design requirements ........................................................................................................ 9 5. FCC and IC Warning ................................................................................................................................ 10 BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 3 1. General Description The BL-M3881NT1 is a highly integrated WLAN module designed base on HiSilicon Hi3881. It support the IEEE 802.11b/g/n with 20MHz standard bandwidth and 5MHz/10MHz narrow bandwidth, provides the highest PHY rate up to 72.2Mbps@1T1R. This module integrates a high-performance 32-bit microprocessor and 2.4 GHz WLAN subsystem, support SDIO2.0 with clock frequency up to 50 MHz. BL-M3881NT1 is applicable to smart home appliances, intelligent lock, cameras, switch buttons and other smart wireless devices. It is also better to the IP camera, over the top (OTT), set-top box (STB), and TV appliances. 2. Product Model Information Model Number BL-M3881NT1 FCC ID 2AN2O-RSW05 IC 23317-RSW05 3. WIFI Specification 3.1 WIFI features a) Operate at ISM frequency Band (2.4GHz); b) IEEE standards support, 802.11 b/g/n,; c) Enterprise level security supporting: WEP 64bit&128bit, WPA, WPA2, WPA2-PSK and IEEE802.11i; d) IEEE 802.11e QoS Enhancement(WMM); e) Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps (Physical Rate) in downstream and upstream. When it operating in the 2.4GHz ISM band (2.4~2.4835GHz,11 Channels).it support wireless WLAN standards include 802.11b/g/n, communication has 11 channels, whose center frequencies are BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 4 CH1: 2412MHz, CH2: 2417MHz, CH3: 2422MHz, CH4: 2427MHz, CH5: 2432MHz, CH6: 2437MHz, CH7: 2442MHz, CH8: 2447MHz, CH9: 2452MHz, CH10: 2457MHz, CH11:2462MHz respectively. 3.2 WIFI RF Performance Feature Description Standard IEEE 802.11 b/g/n Data Rate 802.11 b: 11, 5.5, 2, 1 Mbps 802.11 /g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11 n: MCS 0 to 7 for HT20MHz：65 Mbps Modulation mode IEEE 802.11b mode: CCK, DQPSK, DBPSK IEEE 802.11g mode: 64QAM, 16QAM, QPSK, BPSK IEEE 802.11n mode : 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc Mode(Peer-to-Peer) Infrastructure mode Scatter Net Frequency Band 2.4GHz band: 2.4~2.4835GHz Transmit Output Power (Tolerance: +/-2.5dBm) 802.11 b: 19dBm;(Peak) 802.11 g: 21dBm; (Peak) 802.11 n (2.4GHz):20.5dBm(Peak)：20MHz; Antenna Type 1x1 Diversity BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 5 3.3 Block Diagram 3.4 Dimension BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 6 3.5 PIN Assignment Pin # Name Type Description 1 GND P Ground 2 ANT RF RF I/O port for WLAN ANT 3 GND P Ground 4~5 NC / --No Connection,keep Floating 6 GPIO6 I HOST to wake-up Device, rising edge trigger(GPIO6) 7-8 NC / --No Connection,keep Floating 9 VDD P Main power voltage input 2.3V-3.6V 10-11 NC / --No Connection,keep Floating 12 PWR_ON I Module chip Power enable, pull high when module w ork,pull low disable power 13 NC / --No Connection,keep Floating 14 SDIO_DATA_2 I/O SDIO data line 2 15 SDIO_DATA_3 I/O SDIO data line 3t 16 SD_CMD I/O SDIO command line 17 SD_CLK I/O SDIO CLK line BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 7 18 SDIO_DATA_0 I/O SDIO data line 0 19 SDIO_DATA_1 I/O SDIO data line 1 20 GND P Ground 21 NC / --No Connection,keep Floating 22 VDIO P Supply voltage for IO 3.3V or 1.8V,i/o supply by host 23 NC / --No Connection,keep Floating 24~30 NC / --No Connection,keep Floating 31 GND P Ground 32 NC / --No Connection,keep Floating 33 GND P Ground 34~35 NC / --No Connection,keep Floating 36 GND P Ground 37~38 NC / --No Connection,keep Floating 39 WL_RST I/O WI-FI reset signal PIN, setting to low asserts a global reset, setting to high desserts a global reset (GPIO7) 40 GPIO5 O Device to wake-up host, rising edge trigger (GPIO5) 41~44 NC / --No Connection,keep Floating I: input O: output P: power 3.6 Schematic BL-M3881NT1 SPEC 石头世纪科技有限公司 内部文档 8 4. Antenna Specification 4.1 Antenna lists No. Type Band(s) Max Peak Gain(dBi) Host Model 1 PCB antenna 2.4GHz - 2.5GHz 3.7 S501-01, S511-01, S551-01 2 PCB antenna 2.4G…

Text truncated - open the document above for the full version.

Beijing Roborock Technology Co., Ltd Declaration Letter We Beijing Roborock Technology Co., Ltd. hereby declare that the product WIFI module/BL-M3881NT1 is capable of operating with channel 12 and 13 in regions other than the US and Canada. Versions of the product available for import and sale in the US and Canada, or any units marked with the FCC ID or IC certification number, will not operation on channels 12 and 13. It will not be possible for users and configure these channels in the US and Canada version. Installation of this product must comply with local regulations and codes. During deployment of the system and its initial setup, professional installer must ensure that the allowed EIRP limit is not exceeded (in the Country of exploitation of this equipment). Date: May 12, 2021 ------------------------------------------ Name / Title Ruby Hu / Project Certification Manager Company: Beijing Roborock Technology Co., Ltd. Tel: +86 010 53241660 Email: [email protected]

Beijing Roborock Technology Co., Ltd. 053019-02a Request for Modular/Limited Modular Approval Date: May 24, 2021 Subject: Manufacturer’s Declaration for ☐ - Modular Approval ☐ - Split Modular Approval ☒ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: _____2AN2O-RSW05_____ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☐ - YES ☒ - NO(*) Details: the module doesn’t have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: Data to the modulation circuit is buffered as described in the operational description provided with the application. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: The module contains its own power supply regulation. Please refer to schematic filed with this application. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☐ - YES ☒ - NO(*) Details: EUT used a permanently attached PCB antenna to the intentional radiator on the host. A list of antennas tested and approved with this device may be found in user’s manual provided with the application. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☐ - YES ☒ - NO(*) Details: The modular transmitter has been performed the testing with the end- product, therefore has not been performed the testing as a stand-alone and then confirmed the compliance. The module and antenna will be install on the end-product shown in the test set photo. Beijing Roborock Technology Co., Ltd. 053019-02a Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☐ - YES ☒ - NO(*) Details: Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual and Packing. 7. The modular transmitter must comply with all specific rule or operating requirements applicable t…

Text truncated - open the document above for the full version.

Beijing Roborock Technology Co., Ltd. 012916 – 09 Authority to Act as Agent Date: _April 26, 2021 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: __ ___ Intertek Testing Service Shanghai __ ____ is au thorized to act on our beha lf, unti l otherwise notified, for applications to American Certification Bod y, Inc. (ACB). We certify that we are not subject to denial o f fede ral bene fits, that includes FCC bene fits, pursuant to Section 53 01 of the Anti-Drug Abus e Act of 1988 , 21 U.S.C. 862 . Furth er, no party, as defined in 47 CFR 1.200 2 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____2022/4/26_____ By: ________ __________________ _____ Ruby Hu_________ (Signature 1 ) (Print name) Title: ____ Project Certification Manager_______ On be half of: _____Beijing Roborock Technology Co., Ltd.______ (Company Name) Telephone: _____+86 010 53241660________ 1 - If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. See https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=33316 . 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Beijin g Roborock Technology Co., Ltd. Request for Confidentiality Date: _ April 26, 2021_ Subject: Confidentiality Request for: FCC ID: 2AN2O-RSW05 , Pursuan t to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______ Beijing Roborock Technology Co., Ltd.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _____ Ruby Hu________________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

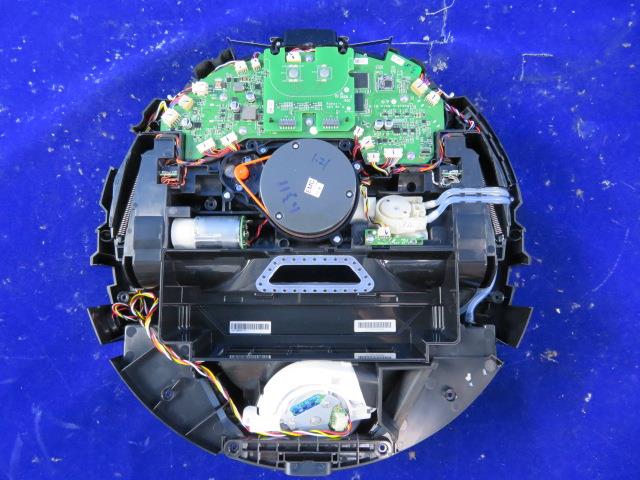

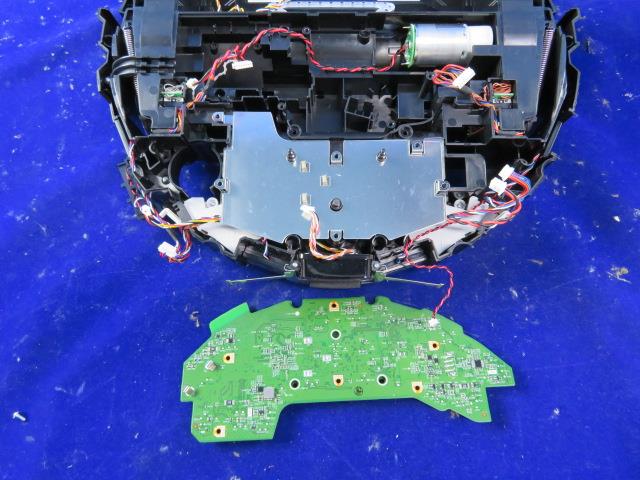

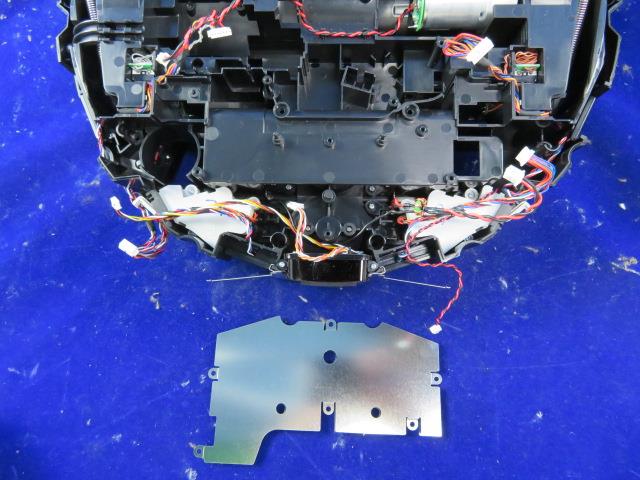

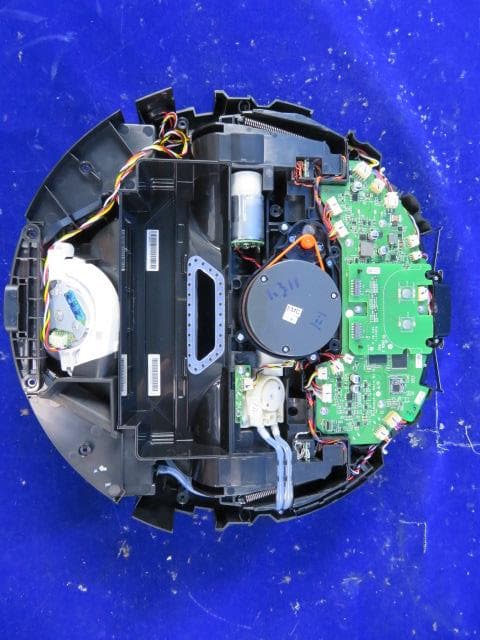

Page 1 of 14 HOST Picture Page 2 of 14 Photo 1. Description: overall view Photo 2. Description: overall view Photo 3. Page 3 of 14 Description: main body and dust container Photo 4. Description: bottom view Photo 5. Description: bottom view Page 4 of 14 Photo 6. Description: internal view Page 5 of 14 Photo 7. Description: internal view Photo 8. Description: internal view Page 6 of 14 Photo 9. Description: internal view Photo 10. Description: internal view Page 7 of 14 Photo 11. Description: internal view Photo 12. Description: internal view Page 8 of 14 Photo 13. Description: internal view Photo 14. Description: internal view Page 9 of 14 Photo 15. Description: internal view Photo 16. Description: internal view Page 10 of 14 Photo 17. Description: internal view Photo 18. Description: internal view Page 11 of 14 Photo 19. Description: internal view Photo 20. Description: internal view Page 12 of 14 Photo 21. Description: internal view Photo 22. Description: internal view Page 13 of 14 Photo 23. Description: internal view Photo 24. Description: internal view Page 14 of 14 Photo 25. Description: internal view Photo 26. Description: docking station

Page 1 of 3 External Picture Page 2 of 3 Page 3 of 3

Label & Location **Since there is no space which indicates FCC ID and IC ID on this module, FCC ID and IC ID is indicated in a manual and Packing.** Module Name:BL-M3881NT1 FCC ID: 2AN2O-RSW05 IC: 23317-RSW05

Host Label: Label Location:

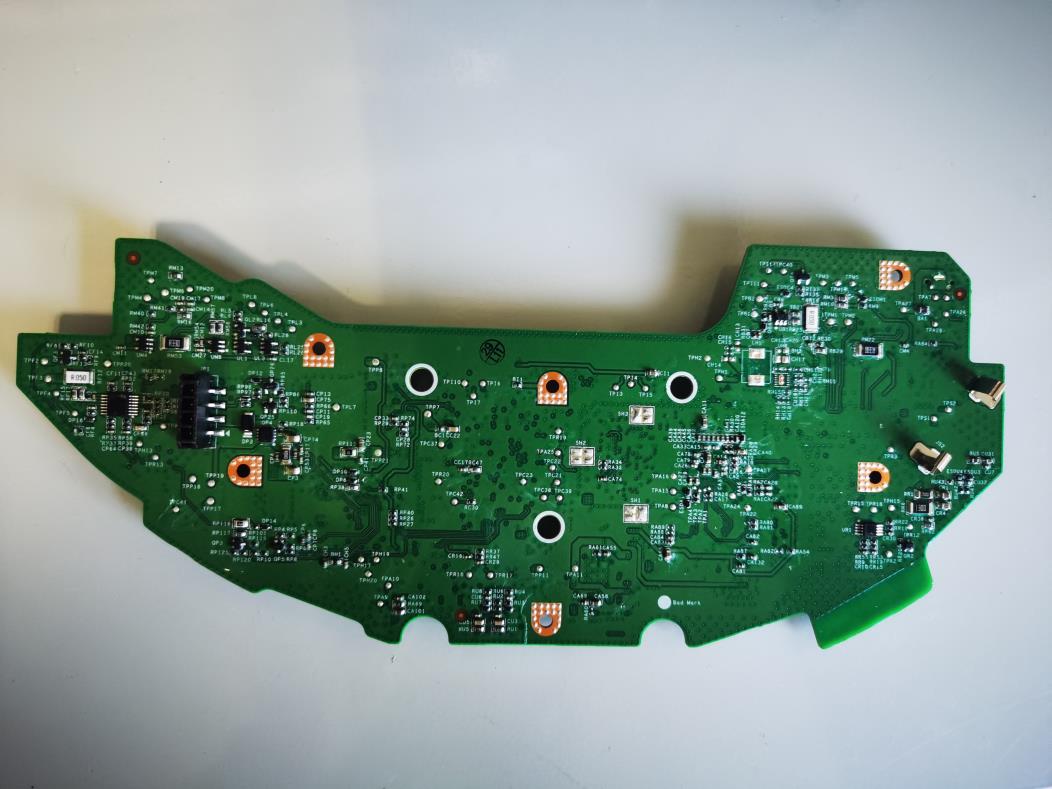

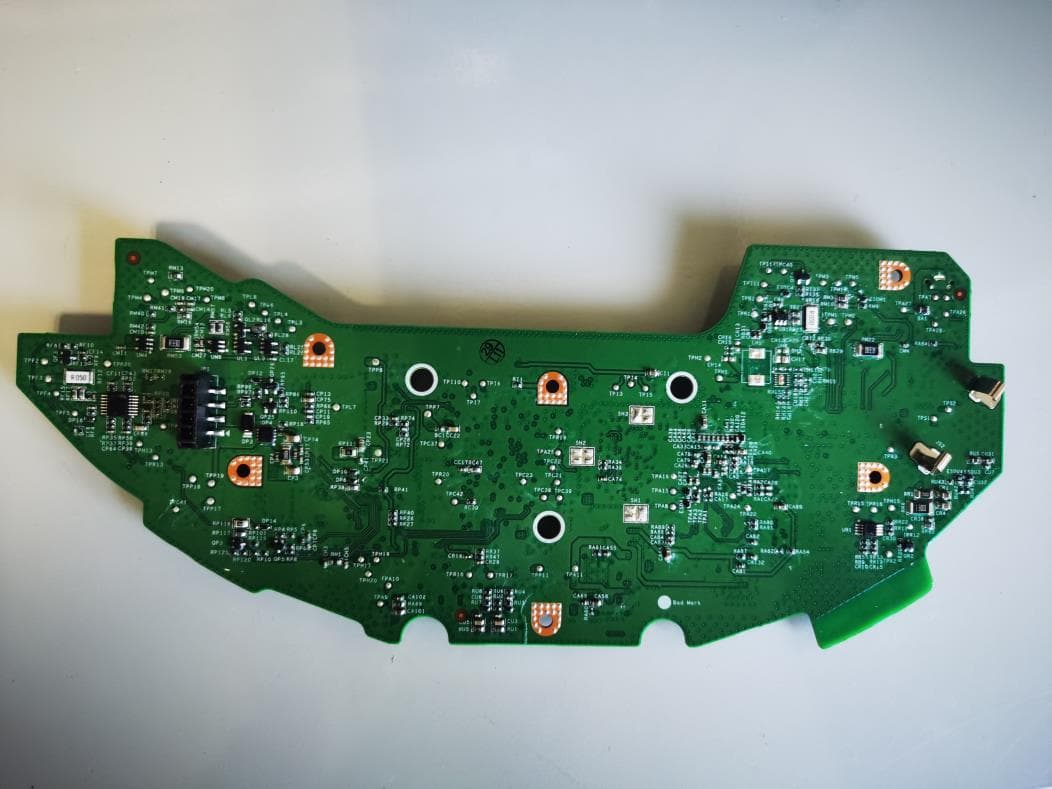

Page 1 of 5 Internal Picture Page 2 of 5 Photo 1. Description: internal view Page 3 of 5 Photo 2. Description: internal view Page 4 of 5 Photo 3. Photo 4. Page 5 of 5 Photo 5. Photo 6. Antenna

Beijing Roborock Technology Co., Ltd. MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: BL-M3881NT1 REPORT NUMBER: 210500859SHA-002 ISSUE DATE: May 19, 2021 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 210500859SHA-002 Applicant: Beijing Roborock Technology Co., Ltd. Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No.8 Heiquan Road, Haidian District, Beijing, P.R. China Manufacturer: Beijing Roborock Technology Co., Ltd. Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No.8 Heiquan Road, Haidian District, Beijing, P.R. China Manufacturer site: Beijing Roborock Technology Co., Ltd. Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No.8 Heiquan Road, Haidian District, Beijing, P.R. China FCC ID: 2AN2O-RSW05 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Wade Zhang Reviewer Daniel Zhao Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 210500859SHA-002 Rev. 01 Initial issue of report May 19, 2021 Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: WIFI Module Type/Model: BL-M3881NT1 Description of EUT: The EUT is a WIFI module which supports WIFI 2.4GHz technology, there have only one model. Rating: DC 3.3V EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: April 30, 2021 Date of test: May 6, 2021 ~ May 14, 2021 1.2 Technical Specification Frequency Band: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20) Operating Frequency: 2412MHz to 2462MHz for IEEE 802.11b/g/n(HT20) Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Channel Number: 11 Channels for 802.11b, 802.11g and 802.11n(HT20) Channel Separation: 5 MHz Antenna Information: 3.7dBi, PCB antenna Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab CAB identifier.: CN0051 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 210500859SHA-001: The maximum radiated power = 22.99dBm = 199.07 mW; Here R is chosen to be 20cm, Frequency band Power Antenna Gain R S Limits (MHz) dBm mW dBi (Numeric) (cm) (mW/cm 2 ) (mW/cm 2 ) 2412 - 2462 22.99 199.07 3.7 2.34 20 0.093 1 Report No.: 210500859SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 8 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. ******************************************* END ************************************

Test report no. 210500859SHA-001 Appendix A Page 1 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek Appendix A: Test results 1. Minimum 6dB bandwidth 1.1 Test Data WLAN Occupied 6dB Bandwidth Mode Test Frequency (MHz) Ant Occupied Bandwidth (MHz) Result 802.11b 2412 Ant0 9.14 Pass 802.11b 2437 Ant0 9.14 Pass 802.11b 2462 Ant0 9.13 Pass 802.11g 2412 Ant0 16.40 Pass 802.11g 2437 Ant0 16.41 Pass 802.11g 2462 Ant0 16.40 Pass 802.11n (HT20) 2412 Ant0 17.63 Pass 802.11n (HT20) 2437 Ant0 17.63 Pass 802.11n (HT20) 2462 Ant0 17.63 Pass 1.2 Test Plots Test report no. 210500859SHA-001 Appendix A Page 2 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11b,2412MHz,Ant0 802.11b,2437MHz,Ant0 802.11b,2462MHz,Ant0 802.11g,2412MHz,Ant0 802.11g,2437MHz,Ant0 802.11g,2462MHz,Ant0 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2437MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 3 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11n(HT20),2462MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 4 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 2. Occupied Bandwidth 2.1 Test Data WLAN 99% Occupied Bandwidth Mode Test Frequency (MHz) Ant 99% Occupied Bandwidth (MHz) Result 802.11b 2412 Ant0 11.162 Pass 802.11b 2437 Ant0 11.358 Pass 802.11b 2462 Ant0 10.842 Pass 802.11g 2412 Ant0 16.725 Pass 802.11g 2437 Ant0 16.734 Pass 802.11g 2462 Ant0 16.773 Pass 802.11n (HT20) 2412 Ant0 17.733 Pass 802.11n (HT20) 2437 Ant0 17.692 Pass 802.11n (HT20) 2462 Ant0 17.759 Pass 2.2 Test Plots Test report no. 210500859SHA-001 Appendix A Page 5 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11b,2412MHz,Ant0 802.11b,2437MHz,Ant0 802.11b,2462MHz,Ant0 802.11g,2412MHz,Ant0 802.11g,2437MHz,Ant0 802.11g,2462MHz,Ant0 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2437MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 6 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11n(HT20),2462MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 7 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 3. Maximum conducted output power and e.i.r.p 3.1 Test Data WLAN AVGSA Output Power Mode Test Frequency (MHz) Ant Duty Cycle Factor (dB) Max Power (dBm) Limit (dBm) EIRP (dBm) Result 802.11b 2412 Ant0 0.00 19.54 30 23.24 Pass 802.11b 2437 Ant0 0.00 16.92 30 20.62 Pass 802.11b 2462 Ant0 0.00 20.71 30 24.41 Pass 802.11g 2412 Ant0 0.00 21.81 30 25.51 Pass 802.11g 2437 Ant0 0.00 19.18 30 22.88 Pass 802.11g 2462 Ant0 0.00 22.99 30 26.69 Pass 802.11n (HT20) 2412 Ant0 0.00 21.30 30 25.00 Pass 802.11n (HT20) 2437 Ant0 0.00 18.75 30 22.45 Pass 802.11n (HT20) 2462 Ant0 0.00 22.47 30 26.17 Pass 3.2 Test Plots Test report no. 210500859SHA-001 Appendix A Page 8 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11b,2412MHz,Ant0 802.11b,2437MHz,Ant0 802.11b,2462MHz,Ant0 802.11g,2412MHz,Ant0 802.11g,2437MHz,Ant0 802.11g,2462MHz,Ant0 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2437MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 9 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11n(HT20),2462MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 10 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 4. Power spectrum density 4.1 Test Data WLAN AVGSA Power Spectral Density Mode Test Frequency (MHz) Ant Duty Cycle Factor (dB) PSD (dBm) RBW (kHz) Limit (dBm) Result 802.11b 2412 Ant0 0.00 -7.071 3 8 Pass 802.11b 2437 Ant0 0.00 -9.775 3 8 Pass 802.11b 2462 Ant0 0.00 -5.744 3 8 Pass 802.11g 2412 Ant0 0.00 -8.404 3 8 Pass 802.11g 2437 Ant0 0.00 -9.691 3 8 Pass 802.11g 2462 Ant0 0.00 -7.143 3 8 Pass 802.11n (HT20) 2412 Ant0 0.00 -8.582 3 8 Pass 802.11n (HT20) 2437 Ant0 0.00 -10.387 3 8 Pass 802.11n (HT20) 2462 Ant0 0.00 -6.522 3 8 Pass 4.2 Test Plots Test report no. 210500859SHA-001 Appendix A Page 11 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11b,2412MHz,Ant0 802.11b,2437MHz,Ant0 802.11b,2462MHz,Ant0 802.11g,2412MHz,Ant0 802.11g,2437MHz,Ant0 802.11g,2462MHz,Ant0 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2437MHz,Ant0 Test report no. 210500859SHA-001 Appendix A Page 12 of 12 TTRFMIC_WiFi_V1 © 2017 Intertek 802.11n(HT20),2462MHz,Ant0

Test report no. 210500859SHA-001 Appendix A Page 1 of 10 TTRFMIC_WiFi_V1 © 2017 Intertek Appendix A: Test results 5. Emission outside the frequency band 5.1 Test Data WLAN Transmitter Spurious Emission Mode Test Frequency (MHz) Ant Plot No. Frequency Range Emission (dBm) Result 802.11b 2412 Ant0 1 Reference Level 6.88 Pass 802.11b 2412 Ant0 2 …
