2AN2O-S80ULT02Robotic Vacuum Cleaner

北京石头世纪科技股份有限公司 图纸 提供 单位 材 质 工 艺 要 求 历 史 版 本 备 注 项目名称Ultron 说明书（FCC） 4.03.0797 V2.0 2022.12.21 王明丽 严得球 料号 版本号 设计时间 平面设计师 包装工程师 比例1:1单位mm 材质：金东太空梭 80g 哑粉， 封面、封底过哑油 骑钉 成品尺寸：182*130mm 页数：32P 参考色：PANTONE Cool Gray 11 C PANTONE 185 C 尺寸偏差：±1.5mm 印刷偏位：±1mm 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 石头科技产品包装图纸 封面示意图 成品尺寸：182*130mm 印刷内容含料号二维码 图片二维码用 11C 印刷 版本号：V2.0,2022.11.30 修改点：全文由 sv 内容更新为 ultron 内容 修改人：王明丽 Roborock S8 Read this user manual with diagrams carefully before using this product and store it properly for future reference. Robotic Vacuum Cleaner User Manual English 03 Français 14 Español 23 03 Contents 04 Safety Information 04 Battery and Charging 04 International Symbols Explanation 05 FCC/IC Statement 06 Product Overview 07 Installation 08 Connecting to the App 08 Instructions 10 Routine Maintenance 11 Basic Parameters 12 Common Issues 04 Safety Information •For use only with roborock CDZ12RR, CDZ20RR, AED06LRR or AED07LRR charger. •Place the cords from other appliances out of the area to be cleaned. •Do not operate the vacuum in a room where an infant or child is sleeping. •Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned. •Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into. •Do not allow children to sit on the vacuum. Battery and Charging •Keep the charging dock away from heat (such as radiators). •Do not wipe the charging contacts with wet cloth or wet hands. •Turn the robot off and use original packaging for shipment. •If placing the robot into storage, charge it fully and turn it off before placing it in a cool dry place. Recharge it at least every three months to prevent the battery over discharging. •Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. International Symbols Explanation ~ – ALTERNATING CURRENT symbol [symbol IEC 60417-5032 (2009-02)] – DIRECT CURRENT symbol [symbol IEC 60417-5031 (2009-02)] 05 FCC/IC Statement Compliance Information Product NameRobotic Vacuum Cleaner with Charging Dock Robotic Vacuum Cleaner Model: S80ULT Dock Charger Model: CDZ12RR or CDZ20RR Auto-Empty Dock Model: AED06LRR, AED07LRR Product Model Compliance Statement Correspondence of the responsible party in USA Roborock Technology Co. 16192 COASTAL HWY LEWES, DE 19958 US [email protected] Company Address Email This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. 06 Press any button to stop the robot during cleaning or docking. Dock Spot Clean/Child Lock Product Overview A A1 Robot (Top View) A2 Robot (Bottom View) A4 Dustbin A5 Charging Dock A3 Robot (Upper Cover Open) A3-1—WiFi Indicator Light •Press to return to dock Note: A1-1—Vertical Bumper A1-2—LiDAR Sensor A1-3—Wall Sensor A1-4—Reactive 3D Obstacle Avoidance Sensor A1-5—Infrared Fill Light •Off: WiFi disabled •Flashing slowly: Waiting for connection •Flashing quickly: Connecting •Steady: WiFi connected •Press to Spot clean •Press and hold for 3 seconds to turn on/off the child lock A4-1—Filter Cover A4-2—Dustbin Latch A4-3—Cover Latch A4-4—Washable Filter A3-2—Reset Button A3-3—Water Tank Latch A3-4—Water Tank A3-5—VibraRise Module A3-6—Air Outlet A3-7—Bumper •White: Battery level ≥ 20% •Red: Battery level < 20% •Pulsing: Charging or starting up •Flashing red: Error Power Indicator Power/Clean •Press and hold to turn the robot on or off •Press to start cleaning A2-1—Cliff Sensors A2-2—Carpet Sensor A2-3—Omnidirectional Wheel A2-4—Charging Contacts A2-5—Side Brush A2-6—Main Brushes A2-7—Main Brush Cover A2-8—Main Wheels A5-1—Power Indicator A6 Power Cable A7 Electric Water Tank A8 VibraRise Mop Cloth Mount A9 VibraRise Mop Cloth A10 Moisture-proof Mat A8-1—Vibration Module A8-2—Mop Cloth Attachment Slot A8-3—Mop Cloth Mount Latches A9-1—Hook and loop pads A7-1—Stopper A7-2—Water Filter A7-3—Water Tank Latch A5-2—Dock Location Beacon A5-3—Charging Contacts A5-4—Power Socket A5-5—Electrode Brushes 07 Installation B B1 Position the charging dock B2 Secure the charging dock with the adhesive tape B3 Attach the Moisture- Proof Mat Important Information 1. Tidy cables and loose items from the ground and move any unstable, fragile, precious, or dangerous items to prevent personal injury or property damage due to items becoming tangled in, struck by, or knocked over by the robot. 2. When using the robot in a raised area, always use a secure physical barrier to prevent accidental falls that may result in personal injury or property damage. Wipe the floor of the area where the charging dock will be placed with a dry cloth, then secure the dock in place using double- sided tape at the bottom of the dock. Note:When necessary, remove the double-sided adhesive tape slowly to reduce residue glue. Press and hold the button to power on the robot. When the power light goes on, place the robot on the dock to charge. Make sure the charging dock power indicator turns off and a “charging” voice alert sounds. To maintain the performance of the high- performance lithium-ion rechargeable battery pack, keep the robot charged. The robot may not turn on when the battery is low. In this case, place the robot directly onto the dock to charge. Note: Power …

Text truncated - open the document above for the full version.

北京石头世纪科技股份有限公司 图纸 提供 单位 材 质 工 艺 要 求 历 史 版 本 备 注 项目名称扫地机 FCC 版本认证手册 印刷内容含料号二维码 4.03.0438 V2.0 2022.03.11 张云鹏 料号 版本号 设计时间 设计师 比例1:1单位mm 182mm 130mm 谢青青包装工程师 石头科技产品包装图纸 版本号： 修改点： 修改人： 版本号：V2.0 修改点：与旧料区分，内容无变更 修改人：张云鹏 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 材质：金东太空梭 105g 哑粉 装订：骑马钉 成品尺寸：182*130mm 页数：16P 参考色：PANTONE Cool Gray 11 C（石头灰） PANTONE 185 C（石头红） 尺寸偏差：±1.5mm 印刷偏位：±1mm Read this safety guidelines and certification document carefully before using this product and store it properly for future reference. Safety Guidelines & Certification English 01 Français 05 Español (Latinoamérica) 09 English-01 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. • User must read instruction manual. • Risk of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing. • Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. • Use only as described in this manual. Use only manufacturer’s recommended attachments. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. • Do not run appliance over cord. Keep cord away from heated surfaces. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle charger, including charger plug, and charger terminals with wet hands. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use without dust bag. • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. English English-02 • Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. • Turn off the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. • Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. • Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (266°F) may cause explosion. • Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. • Have servicing performed by a qualified repair person using only identical replacement parts.This will ensure that the safety of the product is maintained. • Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. • Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. SAVE THESE INSTRUCTIONS Household use only. WARNING English-03 Laser Safety Class 1 laser product . Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice 56, dated May 8, 2019. Warning Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow…

Text truncated - open the document above for the full version.

Page 1 of 1 Beijing Roborock Technology Co., Ltd. Authority to Act as Agent Date: 20221221 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint MS.Yanli Fan of TUV Rheinland (shanghai) Co., Ltd to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Beijing Roborock Technology Co., Ltd. / Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No. 8 Heiquan Road, Haidian District, 100192 Beijing, P. R. China For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 20221221 Agreement is valid for 12 months from the above date. By: _________ Ruby Hu (Signature) (Print name) Project certification manager +86 010 53241660 (Title) (Telephone) On behalf of: Beijing Roborock Technology Co., Ltd. (Company Name)

Beijing Roborock Technology Co., Ltd. MS-0044715 Page 1 of 1 Revision 1 Date: __20221221______ Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2AN2O-S80ULT02 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction Beijing Roborock Technology Co., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ____________________ ________Ruby Hu________________ (Signature/Title) (Print name)

Date: 22 December 2022 FCC ID: 2AN2O-S80ULT02 IC: 23317-S80ULT02 To whom it may concern: We Beijing Roborock Technology Co., Ltd. hereby declare that Robotic Vacuum Cleaner (Model S80ULT) is capable of operating with channel 12 and 13 in regions other than the US and Canada. However, these two channels will be disabled via software, this device available for import and sale in the US and Canada will not operate on channels 12 and 13 and it will not be possible for users to configure these channels in the US and Canada. If you have any questions regarding this, please don’t hesitate to contact us. Sincerely, _________________________ (Ruby Hu / Project certification Manager) Beijing Roborock Technology Co., Ltd.,

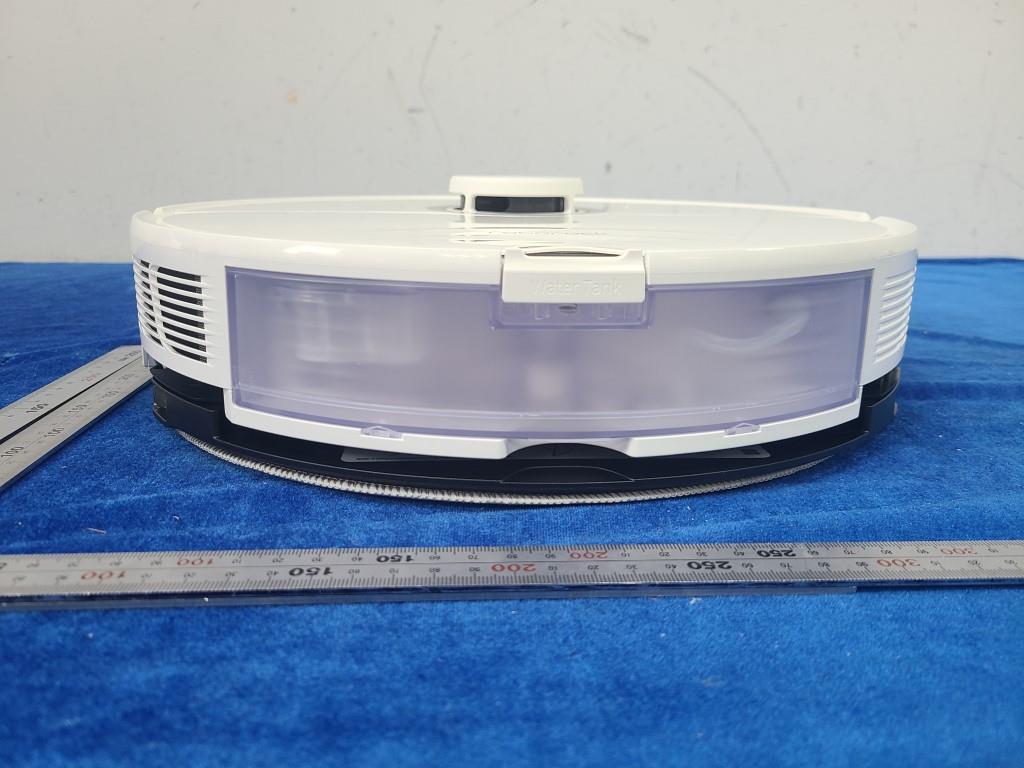

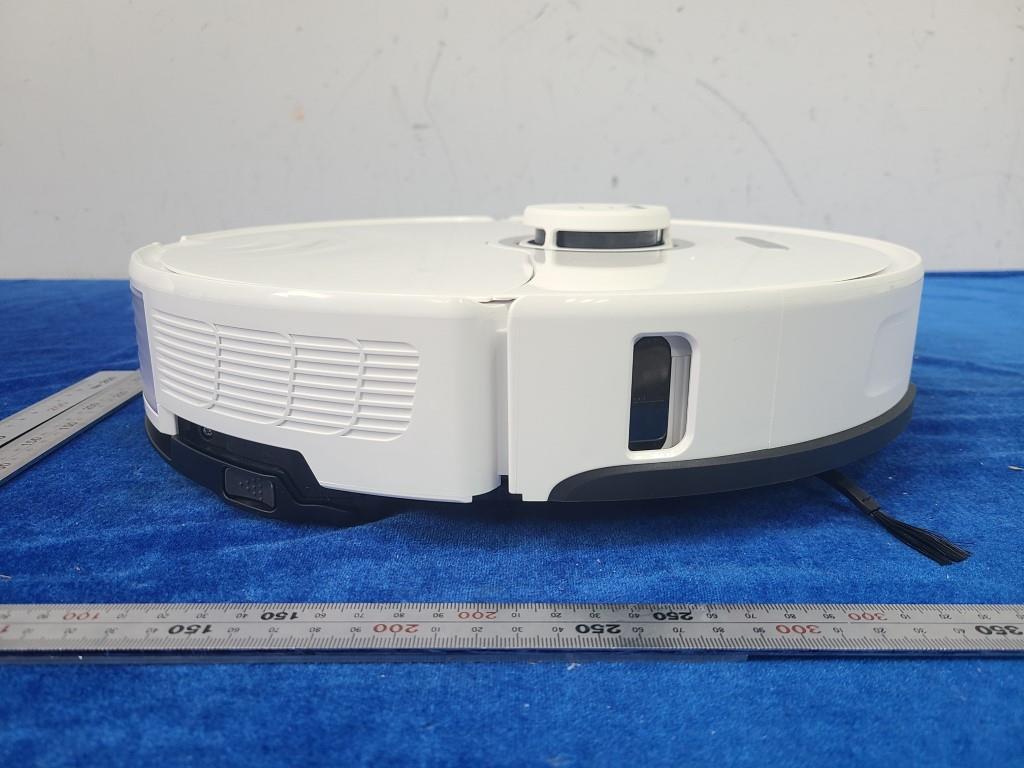

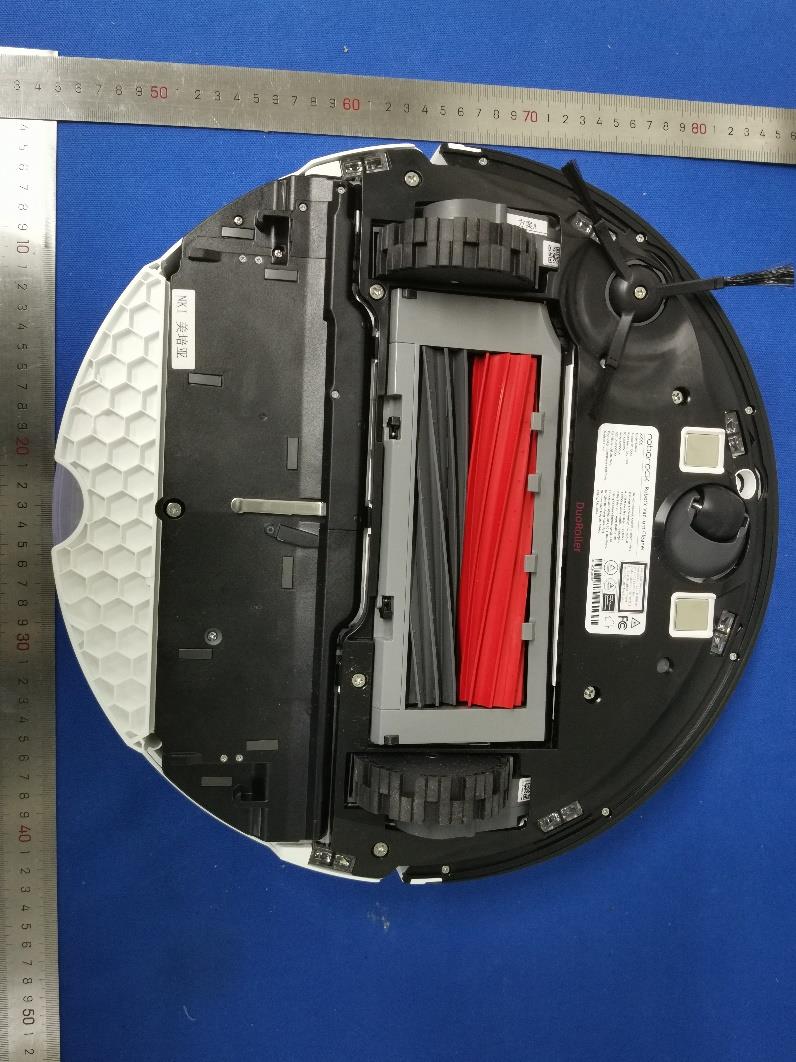

External Photos of EUT Model No. : S80ULT Page: 1 of 3 External Photos of EUT Model No. : S80ULT Page: 2 of 3 External Photos of EUT Model No. : S80ULT Page: 3 of 3

Label Location: Host label： Warning label：

Internal Photos of EUT Model No. : S80ULT Page: 1 of 8 ANT Internal Photos of EUT Model No. : S80ULT Page: 2 of 8 Internal Photos of EUT Model No. : S80ULT Page: 3 of 8 Internal Photos of EUT Model No. : S80ULT Page: 4 of 8 Internal Photos of EUT Model No. : S80ULT Page: 5 of 8 Internal Photos of EUT Model No. : S80ULT Page: 6 of 8 Internal Photos of EUT Model No. : S80ULT Page: 7 of 8 Internal Photos of EUT Model No. : S80ULT Page: 8 of 8

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06 FCC KDB Publication 865664 D02 v01r02 OET Bulletin 65 (Edition 97-01) RSS-102 Issue 5, Amendment 1, February 2, 2021 FCC ID: 2AN2O-S80ULT02 IC: 23317-S80ULT02  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to OET Bulletin 65 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) The nominal maximum conducted output power specified: 2.4GHz DTS: 25.75 dBm From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain (Max. 2.22 dBi for DTS), the RF power density can be calculated as below: Fo 2.4GHz DTS: S (mW /cm 2 ) = PG/4πR 2 = 0.1247 mW/cm 2  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  RF exposure evaluation exempted power for DTS: 2.676 W The nominal maximum conducted output power specified: 2.4GHz DTS: 25.75 dBm Antenna Gain: 2.22dBi for DTS The Max. e.i.r.p. for 2.4GHz DTS: 27.97 dBm = 0.6266 W e.i.r.p. for the DTS is less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 1 of 76 Appendix B: Test Results APPENDIX B: TEST RESULTS .......................................................................................................................................... 1 APPENDIX B.1: TEST RESULTS OF CONDUCTED POWER SPECTRAL DENSITY ..................................................................................... 2 APPENDIX B.2: TEST RESULTS OF 6DB BANDWIDTH .................................................................................................................... 7 APPENDIX B.3: TEST RESULTS OF 99% BANDWIDTH ................................................................................................................. 12 APPENDIX B.4: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ....................................... 17 Band Edge................................................................................................................................................................... 17 Conducted Spurious Emission .................................................................................................................................... 20 APPENDIX B.5: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ............................................................................................. 33 30MHz - 1GHz (Worst case) ....................................................................................................................................... 33 1GHz - 18GHz .............................................................................................................................................................. 35 APPENDIX B.6: TEST RESULTS OF RADIATED EMISSIONS IN RESTRICTED BANDS ............................................................................. 59 Wi-Fi 802.11 b mode, 1 Mbps .................................................................................................................................... 59 Wi-Fi 802.11 g mode, 6 Mbps .................................................................................................................................... 63 Wi-Fi 802.11 n(HT20) mode, MCS0 ............................................................................................................................ 67 Wi-Fi 802.11 n(HT40) mode, MCS0 ............................................................................................................................ 71 APPENDIX B.7: TEST RESULTS OF CONDUCTED EMISSION .......................................................................................................... 75 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 2 of 76 Appendix B.1: Test Results of Conducted Power Spectral Density TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -2.33 ≤8.00 PASS 2437 -0.09 ≤8.00 PASS 2462 0.51 ≤8.00 PASS 11G Ant1 2412 -1.81 ≤8.00 PASS 2437 -0.77 ≤8.00 PASS 2462 -3.3 ≤8.00 PASS 11N20SISO Ant1 2412 -2.26 ≤8.00 PASS 2437 -0.29 ≤8.00 PASS 2462 -4.64 ≤8.00 PASS 11N40SISO Ant1 2422 -5.16 ≤8.00 PASS 2437 -4.78 ≤8.00 PASS 2452 -6.39 ≤8.00 PASS Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 3 of 76 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 4 of 76 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 5 of 76 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 6 of 76 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 7 of 76 Appendix B.2: Test Results of 6dB Bandwidth TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.000 2407.960 2415.960 0.5 PASS 2437 9.040 2432.480 2441.520 0.5 PASS 2462 8.560 2457.960 2466.520 0.5 PASS 11G Ant1 2412 16.360 2403.840 2420.200 0.5 PASS 2437 16.360 2428.840 2445.200 0.5 PASS 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 17.200 2403.600 2420.800 0.5 PASS 2437 17.320 2428.480 2445.800 0.5 PASS 2462 17.000 2453.480 2470.480 0.5 PASS 11N40SISO Ant1 2422 32.960 2406.960 2439.920 0.5 PASS 2437 35.680 2419.480 2455.160 0.5 PASS 2452 35.520 2434.400 2469.920 0.5 PASS Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 8 of 76 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 9 of 76 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 10 of 76 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 11 of 76 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 12 of 76 Appendix B.3: Test Results of 99% Bandwidth TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.886 2405.1431 2419.0291 --- PASS 2437 13.667 2430.2165 2443.8835 --- PASS 2462 13.573 2455.2547 2468.8277 --- PASS 11G Ant1 2412 17.078 2403.5212 2420.5992 --- PASS 2437 20.019 2427.8761 2447.8951 --- PASS 2462 17.617 2453.1217 2470.7387 --- PASS 11N20SISO Ant1 2412 18.421 2402.9992 2421.4202 --- PASS 2437 18.444 2427.8576 2446.3016 --- PASS 2462 18.169 2452.9322 2471.1012 --- PASS 11N40SISO Ant1 2422 37.824 2403.9093 2441.7333 --- PASS 2437 37.028 2418.8925 2455.9205 --- PASS 2452 36.551 2433.8338 2470.3848 --- PASS Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 13 of 76 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 14 of 76 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Prüf…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 20 of 76 Conducted Spurious Emission TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 9.58 9.58 --- PASS 30~1000 9.58 -38.27 ≤-10.42 PASS 1000~26500 9.58 -28.76 ≤-10.42 PASS 2437 Reference 8.80 8.80 --- PASS 30~1000 8.80 -38.33 ≤-11.2 PASS 1000~26500 8.80 -28.85 ≤-11.2 PASS 2462 Reference 8.46 8.46 --- PASS 30~1000 8.46 -37.48 ≤-11.54 PASS 1000~26500 8.46 -28.91 ≤-11.54 PASS 11G Ant1 2412 Reference 2.17 2.17 --- PASS 30~1000 2.17 -38.07 ≤-17.83 PASS 1000~26500 2.17 -29.13 ≤-17.83 PASS 2437 Reference 4.74 4.74 --- PASS 30~1000 4.74 -38.05 ≤-15.26 PASS 1000~26500 4.74 -28.59 ≤-15.26 PASS 2462 Reference 3.17 3.17 --- PASS 30~1000 3.17 -38.43 ≤-16.83 PASS 1000~26500 3.17 -29.23 ≤-16.83 PASS 11N20SISO Ant1 2412 Reference 4.23 4.23 --- PASS 30~1000 4.23 -38.21 ≤-15.77 PASS 1000~26500 4.23 -28.48 ≤-15.77 PASS 2437 Reference 4.08 4.08 --- PASS 30~1000 4.08 -38.59 ≤-15.92 PASS 1000~26500 4.08 -29.5 ≤-15.92 PASS 2462 Reference 6.70 6.70 --- PASS 30~1000 6.70 -37.58 ≤-13.3 PASS 1000~26500 6.70 -29.41 ≤-13.3 PASS 11N40SISO Ant1 2422 Reference 4.75 4.75 --- PASS 30~1000 4.75 -37.64 ≤-15.25 PASS 1000~26500 4.75 -29.37 ≤-15.25 PASS 2437 Reference 3.82 3.82 --- PASS 30~1000 3.82 -37.64 ≤-16.18 PASS 1000~26500 3.82 -28.56 ≤-16.18 PASS 2452 Reference 2.26 2.26 --- PASS 30~1000 2.26 -38.32 ≤-17.74 PASS 1000~26500 2.26 -29.53 ≤-17.74 PASS Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 21 of 76 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 22 of 76 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 23 of 76 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 24 of 76 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 25 of 76 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 26 of 76 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 27 of 76 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 28 of 76 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 29 of 76 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 30 of 76 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 31 of 76 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 32 of 76 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Prüfbericht - Produkte Test Report - Products Appendix B CN22UVRP 001 Page 33 of 76 Appendix B.5: Test Results of Radiated Spurious Emissions Note: 1. Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and above 18GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 18GHz were reported. 2. This testing was carried out on different modulations, but only the worst case was presented in this report. 30MHz - 1GHz (Worst case) EUT Information EUT Name: Robotic Vacuum Cleaner Model: S80ULT Test Mode: WIFI 2.4G_11b_Ch6 Order No/Sample No: 168397761…

Text truncated - open the document above for the full version.
