2AN2O-S81USP01Robotic Vacuum Cleaner

Roborock S8 Pro Ultra Read this user manual with diagrams carefully before using this product and store it properly for future reference. Robotic Vacuum Cleaner User Manual 03 Contents English 04 Safety Information 04 WARNING 05 Battery and Charging 05 International Symbols Explanation 06 FCC/IC Statement 07 Product Overview 08 Installation 09 Connecting to the App 10 Instructions 12 Routine Maintenance 14 Basic Parameters 15 Common Issues 04 Safety Information WARNING •For use only with roborock EWFD07LRR or EWFD08LRR charger. •Place the cords from other appliances out of the area to be cleaned. •Do not operate the vacuum in a room where an infant or child is sleeping. •Do not operate the vacuum in an area where there are lit candles or fragile objects on the floor to be cleaned. •Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into. •Do not allow children to sit on the vacuum. •Do not carry the product using dock base or dustbin. •Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air. •The product must be switched off and the plug must be removed from socket outlet when not in use, before cleaning or maintaining the product. •This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. •Do not dismantle, repair or modify the battery or charging dock. •If the dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures. •Connect to a properly grounded outlet only. See Grounding Instructions. GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. 05 Safety Information Battery and Charging •Keep the charging dock away from heat (such as radiators). •Do not wipe the charging contacts with wet cloth or wet hands. •Turn the robot off and use original packaging for shipment. •If placing the robot into storage, charge it fully and turn it off before placing it in a cool dry place. Recharge it at least every three months to prevent the battery over discharging. •Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. Grounding methods GROUNDED OUTLET GROUNDING PIN GROUNDED OUTLET BOX ADAPTER METAL SCREW TAB FOR GROUNDING SCREW AA200 (A) (B) (C) This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated in sketch A in Grounding methods. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance. International Symbols Explanation ~ – ALTERNATING CURRENT symbol [symbol IEC 60417-5032 (2009-02)] – DIRECT CURRENT symbol [symbol IEC 60417-5031 (2009-02)] – PROTECTIVE EARTH (Protective Ground) symbol [symbol IEC 60417-5019 (2009-02)] 06 FCC/IC Statement Compliance Information Product NameRobotic Vacuum Cleaner with Charging Dock Robotic Vacuum Cleaner Model: S81USP Empty Wash Fill Dock: EWFD07LRR, EWFD08LRR Product Model Compliance Statement Correspondence of the responsible party in USA Roborock Technology Co. 16192 COASTAL HWY LEWES, DE 19958 US. [email protected] Company Address Email This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. 07 A7 Power Cable A8 Dock Base A9 Disposable Dust Bag A6 Dustbin A6-1—Cover Latch A6-2—Filter Cover A6-3—Dustbin Latch A6-4—Air Inlet A6-5—Washable Filter A3 Robot (Upper Cover Open) A3-1—WiFi Indicator Light •Off: WiFi disabled •Flashing slowly: Waiting for connection •Flashing quickly: Connecting •Steady: WiFi connected A3-2—Reset Button A3-3—Bumper A3-4—Mop Wash Sensor A3-5—Water Tank A3-6—Self-Filling Port A3-7—Positioning Button A3-8—VibraRise Module A3-9—Air Outlet Dock A1 Robot (Top View) •Press to return to dock/start emptying •Press and hold to wash mop Press any button to stop the robot during cleaning or docking. Note: A1-1—Vertical Bumper A1-2—LiDAR Sensor A1-3—Wall Sensor A1-4—Charging Contacts A1-5—Reactive 3D Obstacle Avoidance Sensor A1-6—Infrared Fill Light •White: Battery level ≥ 20% •Red: Battery level < 20% •Pulsing: Charging or starting up •Flashing red: Error Power Indicator Light Power/Clean •Press and hold to turn t…

Text truncated - open the document above for the full version.

北京石头世纪科技股份有限公司 图纸 提供 单位 材 质 工 艺 要 求 历 史 版 本 备 注 项目名称扫地机 FCC 版本认证手册 印刷内容含料号二维码 4.03.0438 V2.0 2022.03.11 张云鹏 料号 版本号 设计时间 设计师 比例1:1单位mm 182mm 130mm 谢青青包装工程师 石头科技产品包装图纸 版本号： 修改点： 修改人： 版本号：V2.0 修改点：与旧料区分，内容无变更 修改人：张云鹏 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 版本号： 修改点： 修改人： 材质：金东太空梭 105g 哑粉 装订：骑马钉 成品尺寸：182*130mm 页数：16P 参考色：PANTONE Cool Gray 11 C（石头灰） PANTONE 185 C（石头红） 尺寸偏差：±1.5mm 印刷偏位：±1mm Read this safety guidelines and certification document carefully before using this product and store it properly for future reference. Safety Guidelines & Certification English 01 Français 05 Español (Latinoamérica) 09 English-01 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. • User must read instruction manual. • Risk of Injury. Brush May Start Unexpectedly.Disconnect the main Brush Before Cleaning or Servicing. • Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. • Use only as described in this manual. Use only manufacturer’s recommended attachments. • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. • Do not run appliance over cord. Keep cord away from heated surfaces. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle charger, including charger plug, and charger terminals with wet hands. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use without dust bag. • Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. • Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. English English-02 • Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. • Turn off the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. • Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. • Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (266°F) may cause explosion. • Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. • Have servicing performed by a qualified repair person using only identical replacement parts.This will ensure that the safety of the product is maintained. • Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. • Do not use the product when the temperature is higher than 40°C (104°F) or lower than 4°C (39°F), or there is any liquid or sticky substance on the floor. SAVE THESE INSTRUCTIONS Household use only. WARNING English-03 Laser Safety Class 1 laser product . Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice 56, dated May 8, 2019. Warning Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow…

Text truncated - open the document above for the full version.

Page 1 of 1 Beijing Roborock Technology Co., Ltd. Authority to Act as Agent Date: 20221222 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint MS.Yanli Fan of TUV Rheinland (shanghai) Co., Ltd to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Beijing Roborock Technology Co., Ltd. / Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No. 8 Heiquan Road, Haidian District, 100192 Beijing, P. R. China For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 20221222 Agreement is valid for 12 months from the above date. By: ____________________ Ruby Hu (Signature) (Print name) Project certification manager +86 010 8070 1770 (Title) (Telephone) On behalf of: Beijing Roborock Technology Co., Ltd . (Company Name)

Beijing Roborock Technology Co., Ltd. MS-0044715 Page 1 of 1 Revision 1 Date: _ _20221222_____ Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: 2AN2O-S81USP01 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction Beijing Roborock Technology Co., Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _______________________________________________ ________Ruby Hu________________ (Signature/Title) (Print name)

Date: 22 December 2022 FCC ID: 2AN2O-S81USP01 IC: 23317-S81USP01 To whom it may concern: We Beijing Roborock Technology Co., Ltd. hereby declare that Robotic Vacuum Cleaner (Model S81USP) is capable of operating with channel 12 and 13 in regions other than the US and Canada. However, these two channels will be disabled via software, this device available for import and sale in the US and Canada will not operate on channels 12 and 13 and it will not be possible for users to configure these channels in the US and Canada. If you have any questions regarding this, please don’t hesitate to contact us. Sincerely, _________________________ (R uby Hu / Project certification Manager) Beijing Roborock Technology Co., Ltd.,

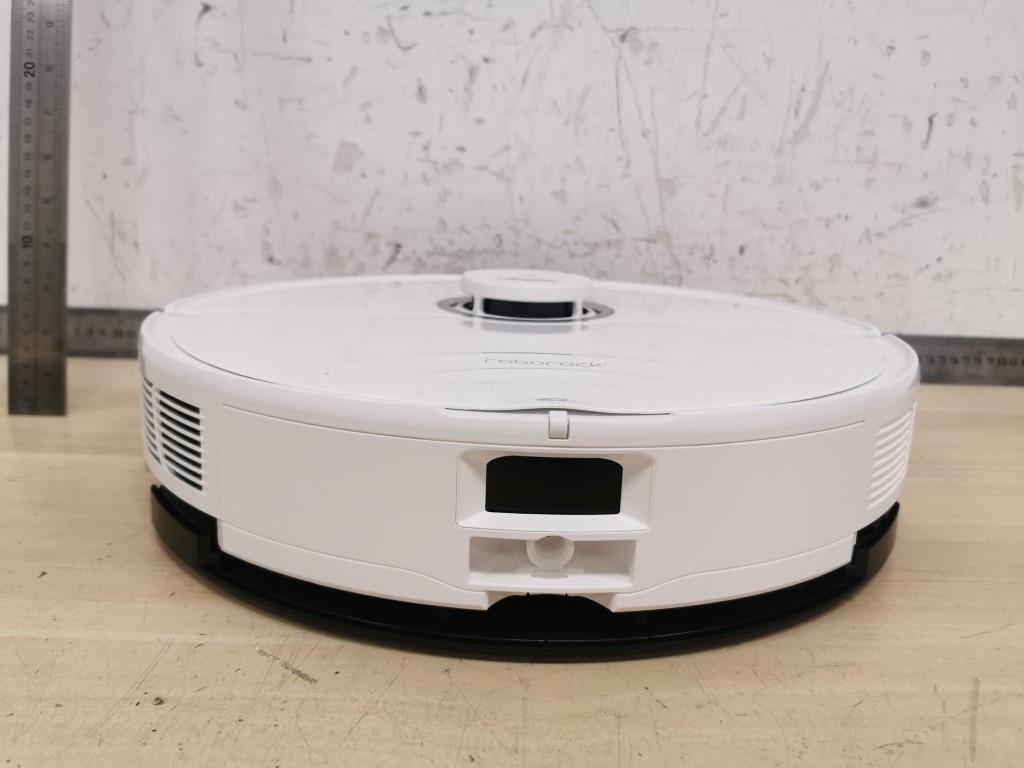

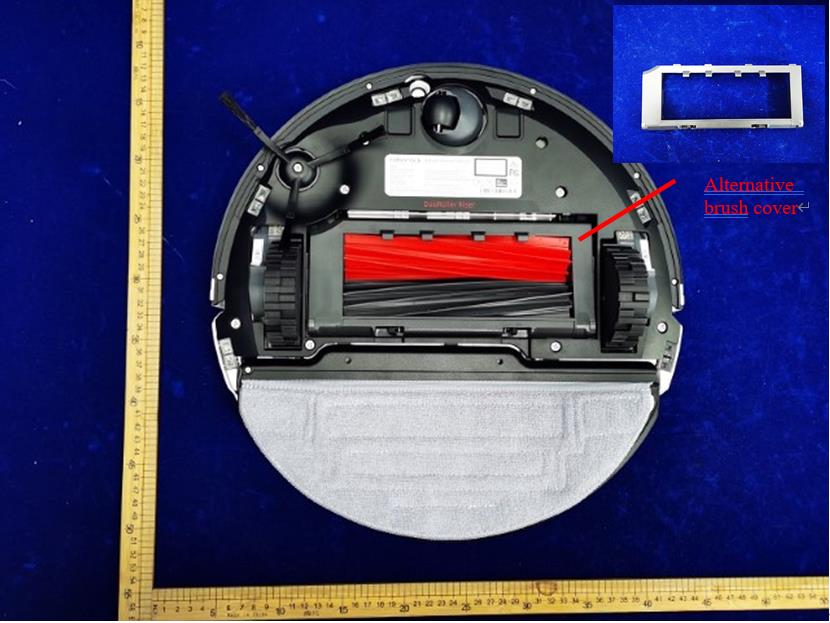

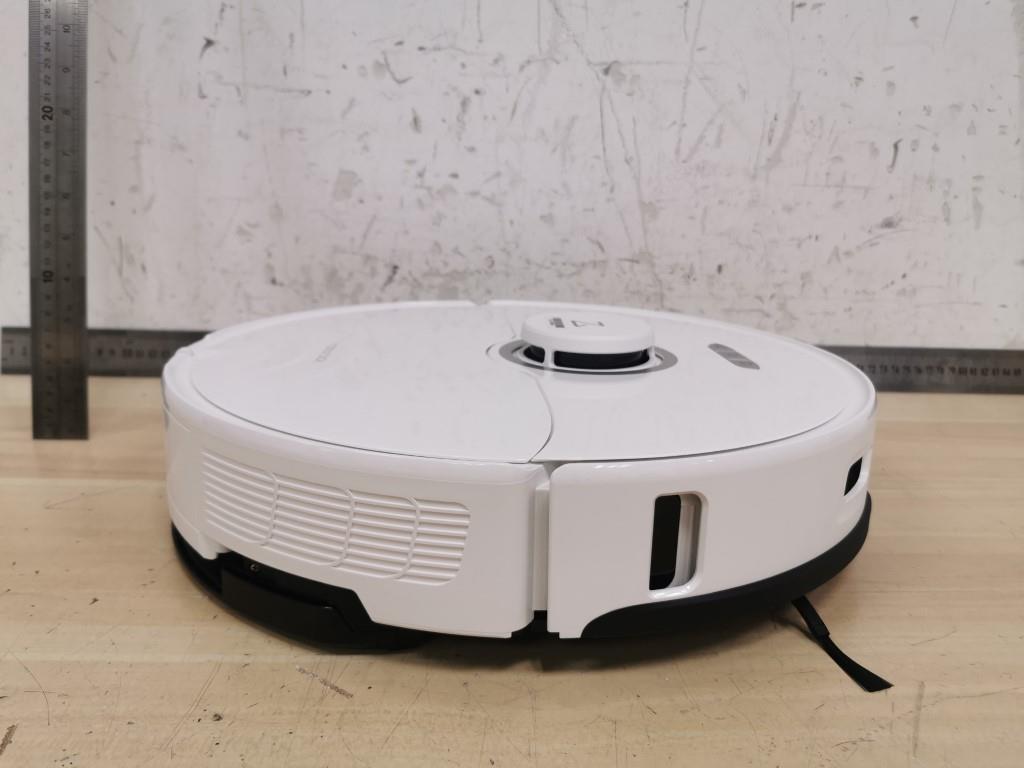

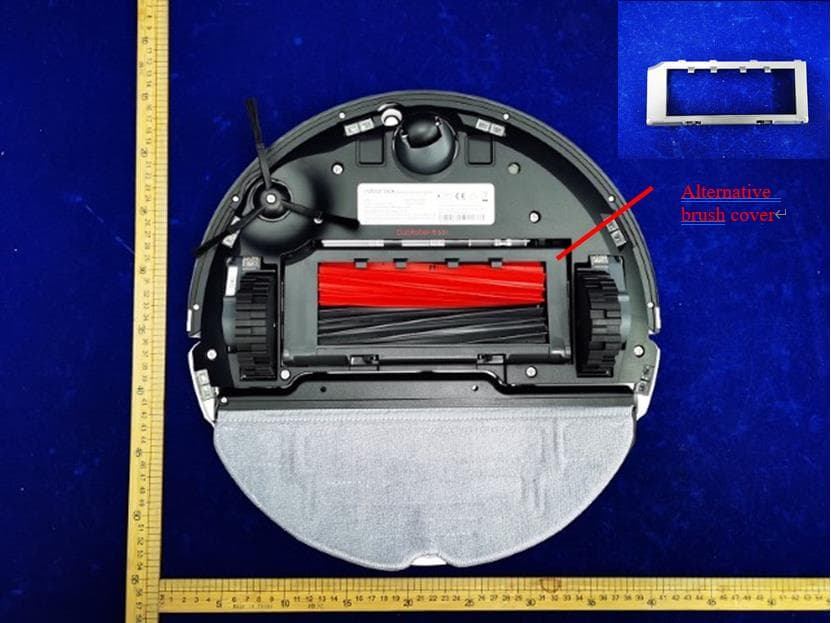

External Photos of EUT Model No. : S81USP Page: 1 of 4 External Photos of EUT Model No. : S81USP Page: 2 of 4 External Photos of EUT Model No. : S81USP Page: 3 of 4 External Photos of EUT Model No. : S81USP Page: 4 of 4

Label Location: Host label： Warning label：

Internal Photos of EUT Model No. : S81USP Page: 1 of 10 Internal Photos of EUT Model No. : S81USP Page: 2 of 10 ANT Internal Photos of EUT Model No. : S81USP Page: 3 of 10 Internal Photos of EUT Model No. : S81USP Page: 4 of 10 Internal Photos of EUT Model No. : S81USP Page: 5 of 10 Internal Photos of EUT Model No. : S81USP Page: 6 of 10 Internal Photos of EUT Model No. : S81USP Page: 7 of 10 Internal Photos of EUT Model No. : S81USP Page: 8 of 10 Internal Photos of EUT Model No. : S81USP Page: 9 of 10 Internal Photos of EUT Model No. : S81USP Page: 10 of 10

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06 FCC KDB Publication 865664 D02 v01r02 OET Bulletin 65 (Edition 97-01) RSS-102 Issue 5, Amendment 1, February 2, 2021 FCC ID:2AN2O-S81USP01 IC:23317-S81USP01  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to OET Bulletin 65 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) The nominal maximum conducted output power specified: 2.4GHz DTS: 20.36 dBm From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain (Max. 2.22 dBi for DTS), the RF power density can be calculated as below: Fo 2.4GHz DTS: S (mW /cm 2 ) = PG/4πR 2 = 0.036 mW/cm 2  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  RF exposure evaluation exempted power for DTS: 2.676 W The nominal maximum conducted output power specified: 2.4GHz DTS: 20.36 dBm Antenna Gain: 2.22dBi for DTS The Max. e.i.r.p. for 2.4GHz DTS: 22.58 dBm = 0.1811 W e.i.r.p. for the DTS is less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN220IAB 002 Auftrags-Nr.: Order no.: 168397766 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-11-08 Auftraggeber: Client: Beijing Roborock Technology Co., Ltd. Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, No. 8 Heiquan Road, Haidian District, Beijing, P.R. CHINA Prüfgegenstand: Test item: Robotic Vacuum Cleaner Bezeichnung / Typ-Nr.: Identification / Type no.: S81USP (Trademark: roborock) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 RSS-Gen Issue 5, Amendment 2, February 2021 RSS-247 Issue 2 February 2017 RSS-102 Issue 5, Amendment 1, February 2, 2021 ANSI C63.10: 2013 Wareneingangsdatum: Date of sample receipt: 2022-11-22 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A003376067-001~008 A003379855-001~003 Prüfzeitraum: Testing period: 2022-11-23 - 2022-12-09 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Chris Chen genehmigt von: authorized by: X Signed by: Lin Lin Datum: Date: 2022-12-27 Ausstellungsdatum: Issue date: 2022-12-27 Stellung / Position Section Manager Stellung / Position Reviewer Sonstiges / Other: FCC ID: 2AN2O-S81USP01 IC: 23317-S81USP01 HVIN: S81USP-FNF8 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN220IAB 002 Seite 2 von 20 Page 2 of 20 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99%DB BANDWIDTH RESULT: Pass 5.1.5 6DB BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN220IAB 002 Seite 3 von 20 Page 3 of 20 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 5 2.1 TEST FACILITIES ................................................................................................................................. 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION .....................................................…
