2AN3JST001-B1CC2538 Zigbee wireless module

1 PRODUCT SPECIFICATION ST-001-B1 User Manual 2 CONTENT FCC Statement...................................................................................................................................3 PRODUCT FEATURES ......................................................................................................................6 PRODUCT SPECIFICATIONS...........................................................................................................7 PIN ASSIGMENT................................................................................................................................8 MODULE PINOUT ........................................................................................................................... 10 MECHANICAL ................................................................................................................................. 11 ENVIRONMENTAL ......................................................................................................................... 12 OPERATING.......................................................................................................................................... 12 STORAGE.............................................................................................................................................. 12 3 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ˗ Reorient or relocate the receiving antenna. ˗ Increase the separation between the equipment and receiver. ˗ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ˗Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~15 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co- located with any other transmitters except in accordance with FCC multi transmitter product procedures. Referring to the multi transmitter policy, multiple transmitter(s) and module(s) can be operated simultaneously without C2PC. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. IMPORTANT NOTE: This module is intended for Equipment monitoring and equipment data collection. The Equipment monitoring and equipment data collection. is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used. 4 20 cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: 2AN3JST001-B1 ". If the size of the end product is larger than 38.5x24mm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Third party Checklist The party below will implement the ST-001-B1 Module in host systems in accordance with the instructions specified in this document and the documents refe…

Text truncated - open the document above for the full version.

\\10.10.11.252\prj-2019\EverComm(華楷)\ST-001-B1\New\FCC證書\Modular-Approval- Letter_140225.docx MODULAR APPROVAL LETTER Modular Approval RequirementYesNo (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes, the modular transmitter has metal shielding. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the modular transmitter uses CC2592 for buffered/ data inputs. (iii) The modular transmitter musthave its own power supply regulation. Yes, the modular transmitter has its own power supply regulator. (iv) The modular transmitter mustcomply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes,the antenna of the modular transmitter complies with FCC requirements. (v) The modular transmitter must be tested in a stand- alone configuration Yes, the modular transmitter is tested in a stand-alone configuration. (vi) The modular transmitter must beequipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes, when the module is installed inside another device, it will be labelled as “ contain transmitter module” XXXXXXXXX” (vii) The modular transmitter mustcomply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer Yes, the user’s manual has provide instructions

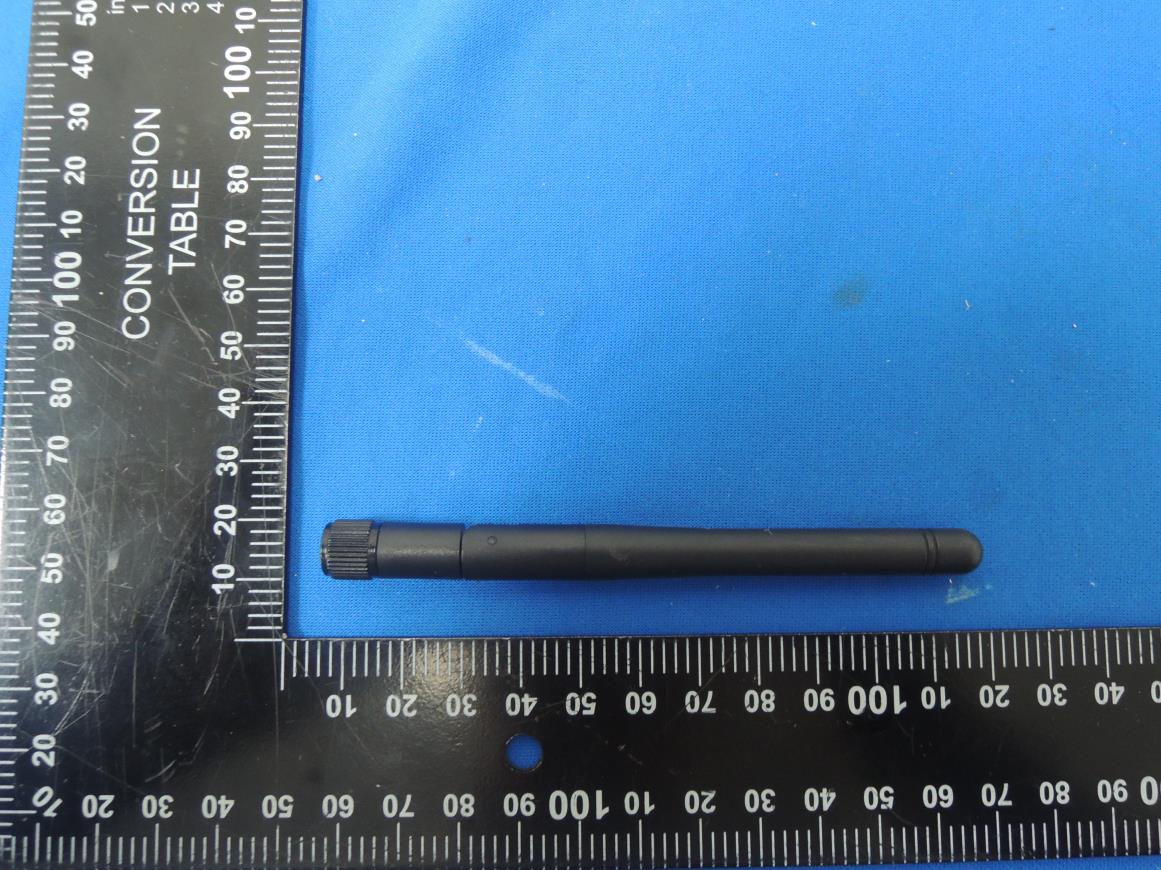

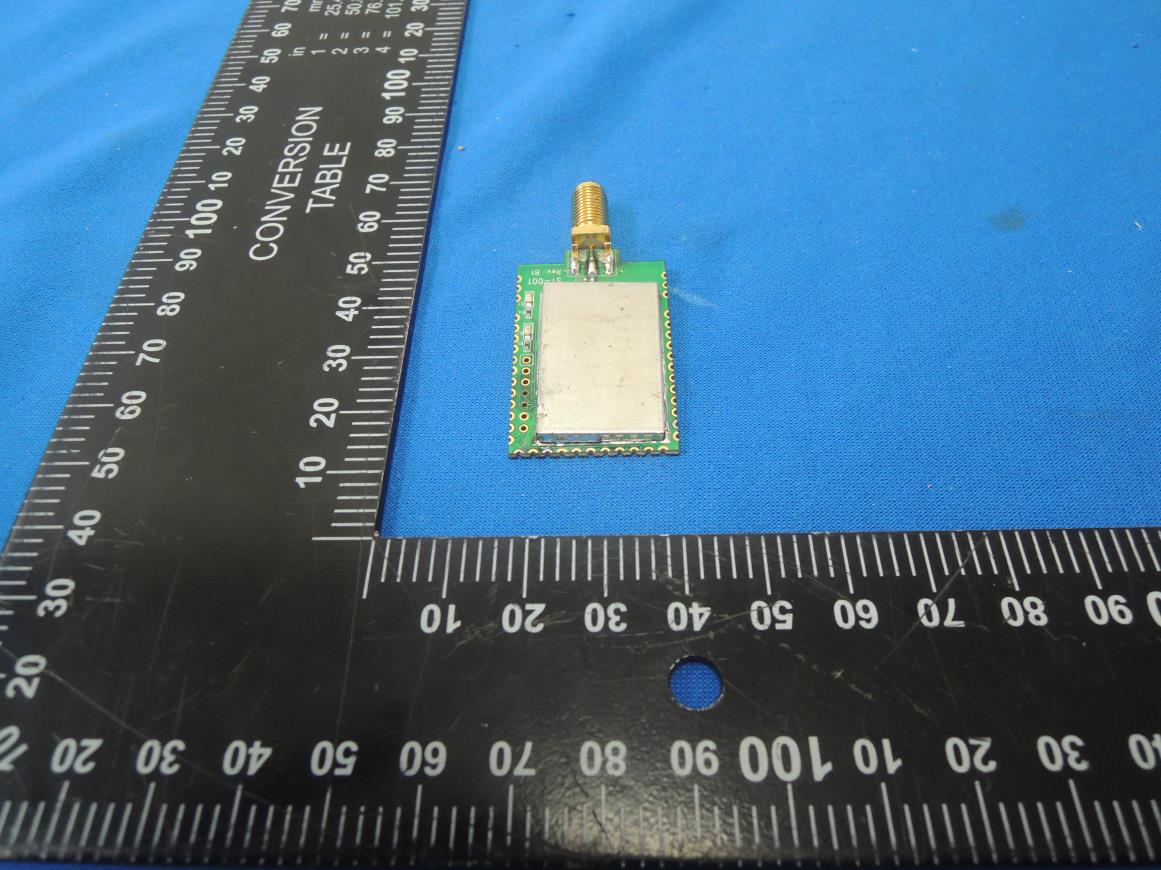

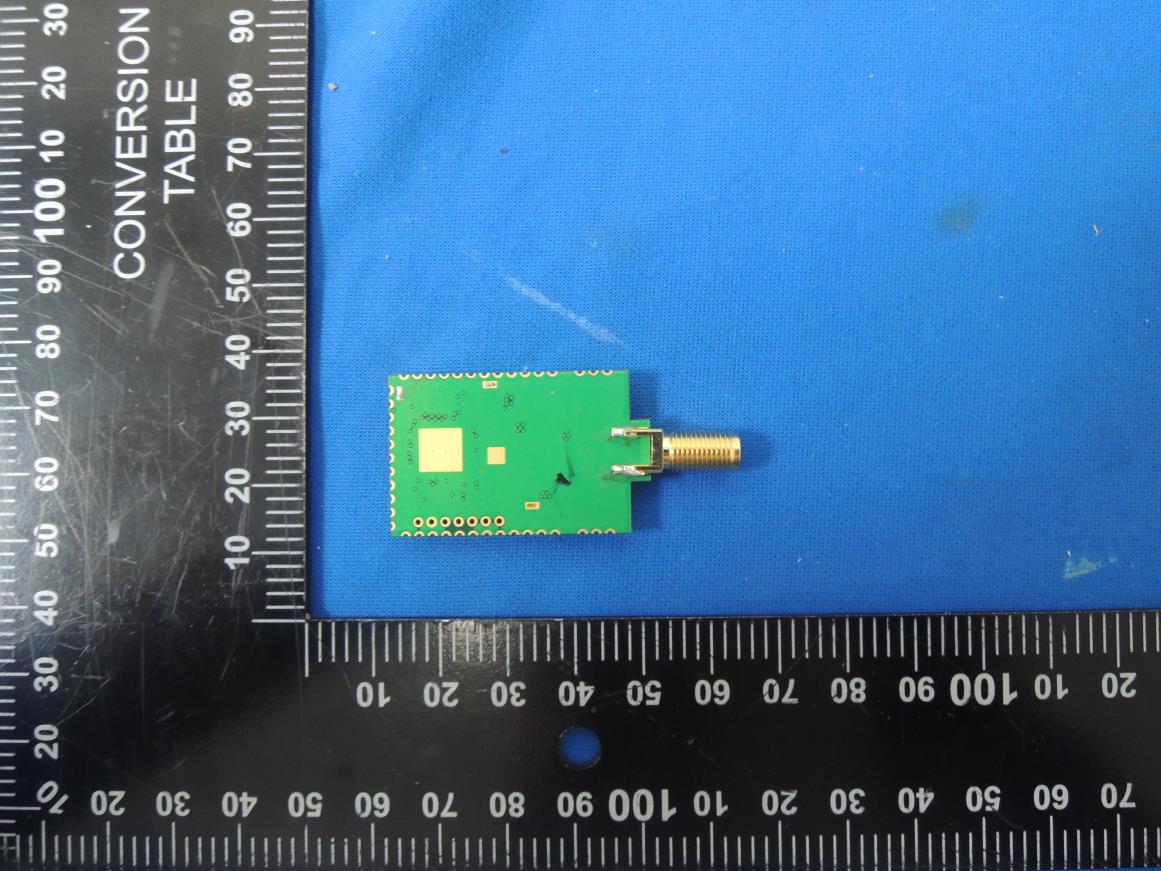

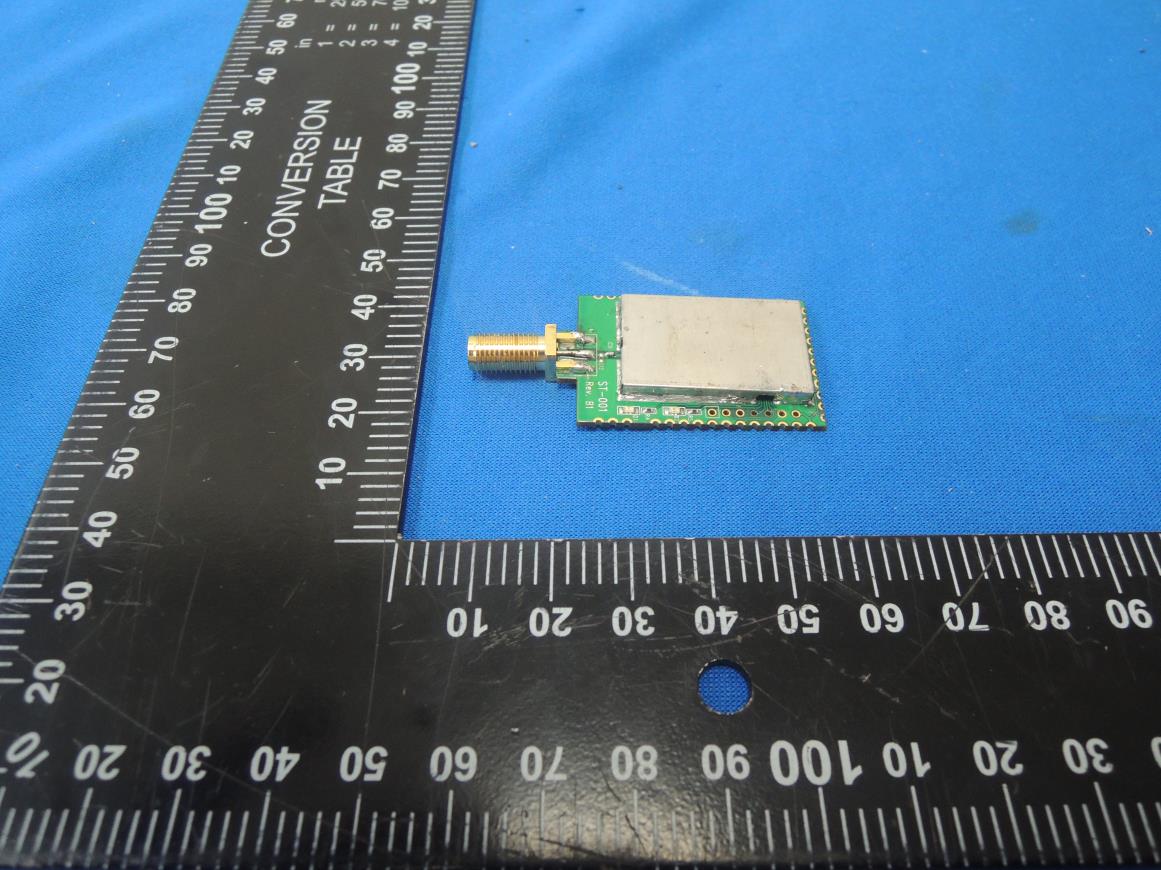

CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 1 of 5 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 2 of 5 CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 3 of 5 Antenna position CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 4 of 5 CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 5 of 5

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: 1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 Page No. : 1 of 1 Photographs of EUT RF Chip

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 T-FD-506-0 Ver 1.2 Page No. : 40 of 42 FCC ID. : 2AN3JST001-B1 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Zigbee: 2405MHz ~ 2475MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 19.43dBm (87.700mW) at 2405MHz (with 2dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFQ1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 T-FD-506-0 Ver 1.2 Page No. : 41 of 42 FCC ID. : 2AN3JST001-B1 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFQ1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 T-FD-506-0 Ver 1.2 Page No. : 42 of 42 FCC ID. : 2AN3JST001-B1 12.5 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2405-2475 19.43 21.43 2 20 0.044 1

CERPASS TECHNOLOGY CORP. Report No.: TEFQ1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 T-FD-506-0 Ver 1.2 Page No. : 1 of 42 FCC ID. : 2AN3JST001-B1 FCC RADIO TEST REPORT Applicant : EverComm Opto Ltd. Address : 9F-5,No.880, Zhongzheng Rd., Zhonghe Dist.,New Taipei City 23586, Taiwan Equipment : CC2538 Zigbee wireless module Model No. : ST-001-B1 Trade Name : FCC ID : 2AN3JST001-B1 I HEREBY CERTIFY THAT : The sample was received on Nov. 21, 2019 and the testing was completed on Dec. 13, 2019 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFQ1911156 Cerpass Technology Corp. Issued Date : Jan. 02, 2020 T-FD-506-0 Ver 1.2 Page No. : 2 of 42 FCC ID. : 2AN3JST001-B1 Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 6 2.4 Description of Test System ......................................................................................................... 7 2.5 General Information of Test ........................................................................................................ 8 2.6 Measurement Uncertainty .......................................................................................................... 8 3. Test Equipment and Ancillaries Used for Tests ............................................................................... 9 4. Antenna Requirements ..................................................................................................................... 11 4.1 Standard Applicable ................................................................................................................. 11 4.2 Antenna Construction and Directional Gain ............................................................................. 11 5. Test of AC Power Line Conducted Emission ................................................................................. 12 5.1 Test Limit .................................................................................................................................. 12 5.2 Test Procedures ....................................................................................................................... 12 5.3 Typical Test Setup .................................................................................................................... 13 5.4 Test Result and Data ................................................................................................................ 14 5.5 Test Photographs ..................................................................................................................... 16 6. Test of Spurious Emission (Radiated) ............................................................................................ 17 6.1 Test Limit .................................................................................................................................. 17 6.2 Test Procedures ....................................................................................................................... 17 6.3 Typical Test Setup .................................................................................................................... 18 6.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 19 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 19 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 21 6.7 Restricted Bands of Operation ................................................................................................. 27 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 28 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 29 7. Test of Spurious Emission (Conducted) ......................................................................................... 30 7.1 Test Limit .................................................................................................................................. 30 7.2 Test Procedure ......................................................................................................................... 30 7.3 Test Setup Layout .................................................................................................................... 30 7.4 Test Result and Data ................................................................................................................ 30 8. On Time, Duty Cycle and Measurement methods ......................................................................... 33 8.1 Test Limit .................................................................................................................................. 33 8.2 Test Procedure .........................…
