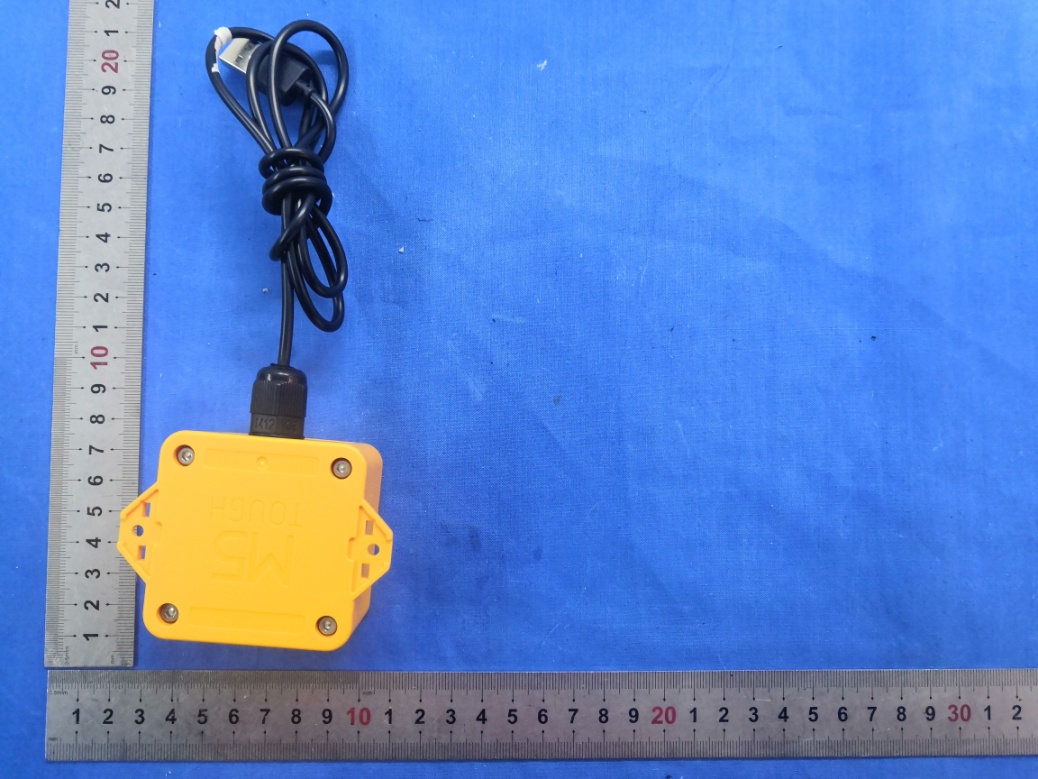

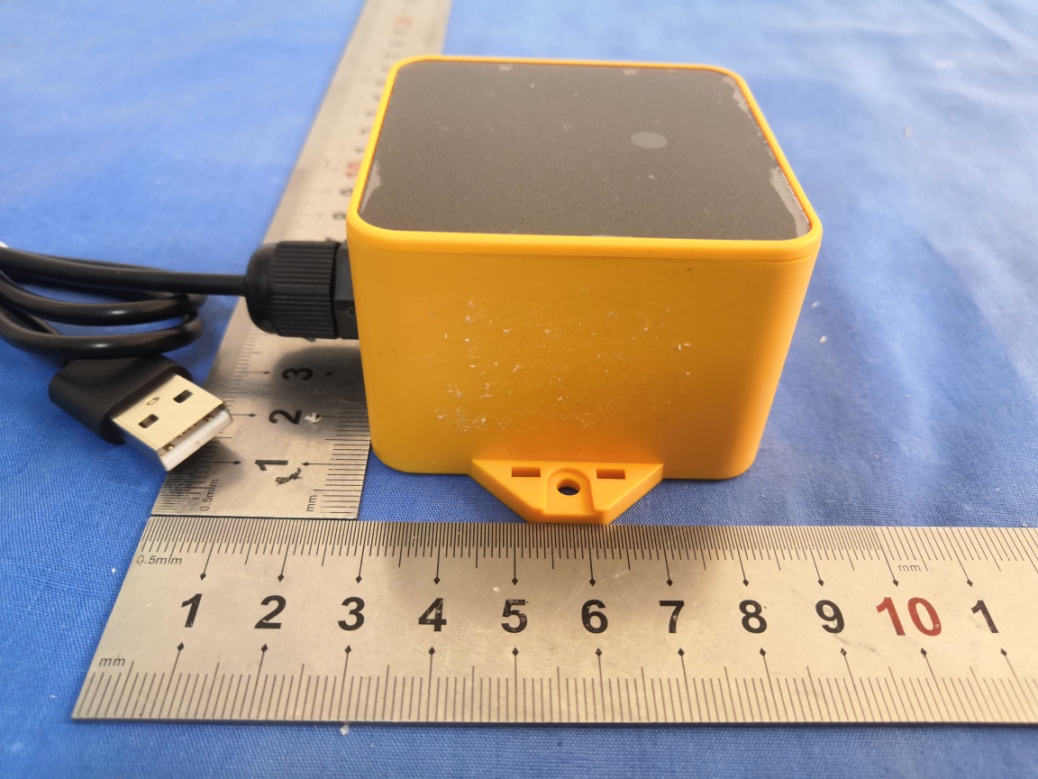

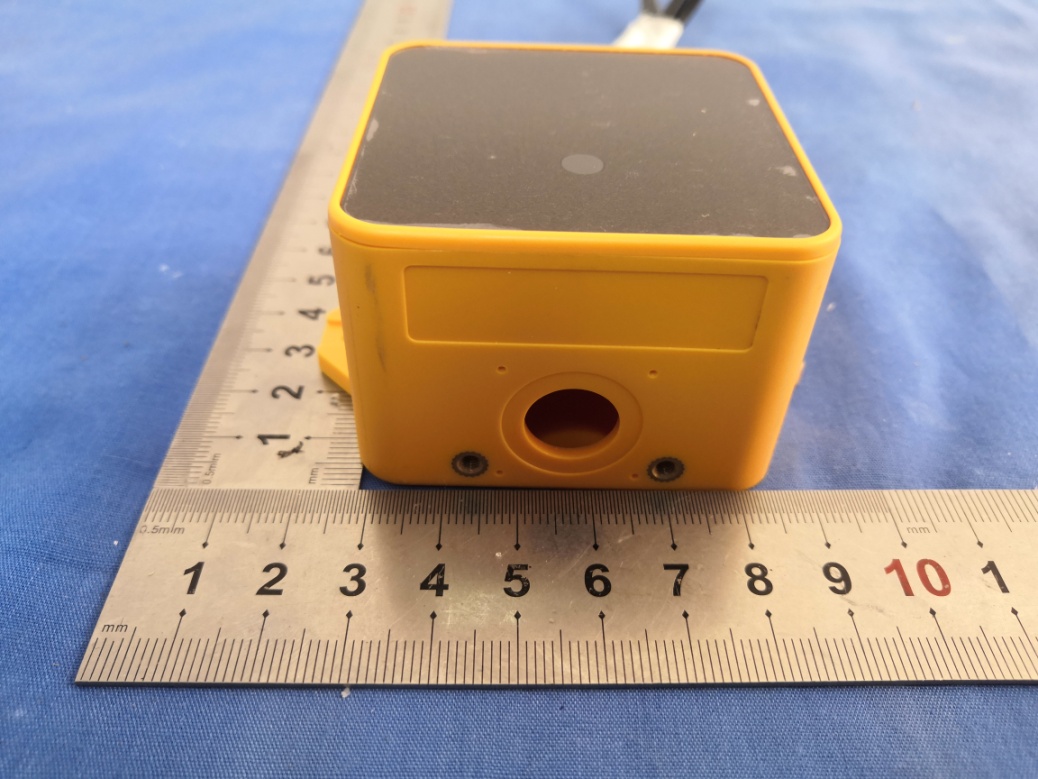

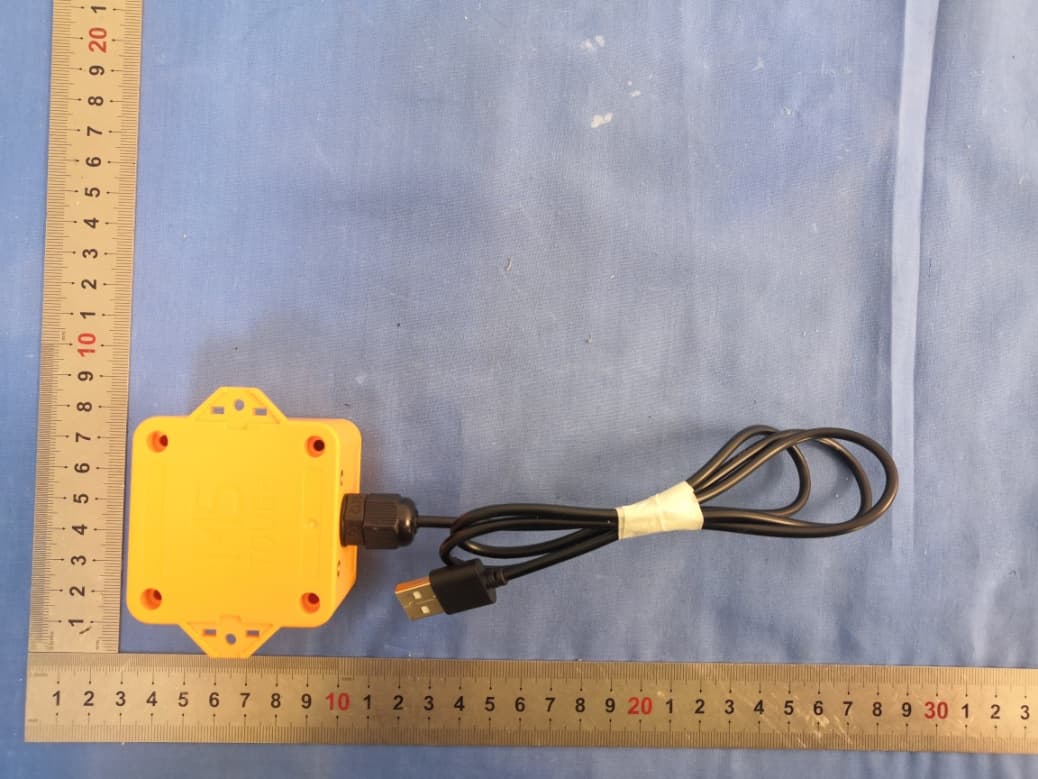

2AN3W-M5STACK-TOUGHTough

TOUGH
Quick
Start USB
Driver Before
the
program
is
burned,
users
please
download
the
corresponding
CP210X
driver
package
according
to
the operating
system
you
are
using,
click
the
button
below.
After
decompressing
the
compressed
package,
select
the installation
package
corresponding
to
the
operating
system
value
for
installation. Download
CP2104
driver For
Mac
OS,
make
sure
System
preferences
->
Security
&
Privacy
->
General
before
installing,
and
allow
the
apps to
be
installed
from
the
App
Store
and
identified
developers
Windows10
MacOS
Linux Arduino-IDE Click
here
to
visit
Arduino's
official
website,Select
the
installation
package
for
your
own
operating
system
to download. M5Stack
Boards
Manager 1.Open
up
Arduino
IDE,
navigate
to
File->Peferences->Settings 2.Copy
the
following
M5Stack
Boards
Manager
url
to
Additional Boards Manager URLs: https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/package_m5stack_index.json 3.Navigate
to
Tools->Board:->Boards Manager... 4.Search
M5Stack
in
the
pop-up
window,
find
it
and
click
Install 5.select
Tools->Board:->M5Stack-Tough 6.Visit Github
(https://github.com/m5stack/M5Tough),
download
the
M5Tough
library,
and
place
it
in
the Arduino
library
file
path
C:\Users\UserName\Documents\Arduino\libraries Bluetooth
serial
port
function Open
the
Arduino
IDE
and
open
the
example
program
File->Examples->BluetoothSerial- >SerialToSerialBT.
Connect
the
device
to
the
computer
and
select
the
corresponding
port
to
burn.
After completion,
the
device
will
automatically
run
Bluetooth,
and
the
device
name
is
ESP32test.
At
this
time,
use
the Bluetooth
serial
port
sending
tool
on
the
PC
to
realize
the
transparent
transmission
of
Bluetooth
serial
data.
WiFi
scanning
function #include "BluetoothSerial.h" #if !defined(CONFIG_BT_ENABLED) || !defined(CONFIG_BLUEDROID_ENABLED) #error Bluetooth is not enabled! Please run `make menuconfig` to and enable it #endif BluetoothSerial SerialBT; void setup() { Serial.begin(115200); SerialBT.begin("ESP32test"); //Bluetooth
device
name Serial.println("The
device
started,
now
you
can
pair
it
with
bluetooth!"); } void loop() { if (Serial.available()) { SerialBT.write(Serial.read()); } if (SerialBT.available()) { Serial.write(SerialBT.read()); } delay(20); } Open
the
Arduino
IDE
and
open
the
example
program
File->Examples->WiFi->WiFiScan.
Connect
the device
to
the
computer
and
select
the
corresponding
port
to
burn.
After
completion,
the
device
will
automatically run
the
WiFi
scan,
and
the
current
WiFi
scan
result
can
be
obtained
through
the
serial
port
monitor
that
comes
with the
Arduino. #include "WiFi.h" void setup() { Serial.begin(115200); //
Set
WiFi
to
station
mode
and
disconnect
from
an
AP
if
it
was
previously
connected WiFi.mode(WIFI_STA); WiFi.disconnect(); delay(100); Serial.println("Setup
done"); } void loop() { Serial.println("scan
start"); //
WiFi.scanNetworks
will
return
the
number
of
networks
found int n = WiFi.scanNetworks(); Serial.println("scan
done"); if (n == 0) { Serial.println("no
networks
found"); } else { Serial.print(n); Serial.println("
networks
found"); for (int i = 0; i < n; ++i) { //
Print
SSID
and
RSSI
for
each
network
found Serial.print(i + 1); Serial.print(":
"); Serial.print(WiFi.SSID(i)); Serial.print("
("); Serial.print(WiFi.RSSI(i)); Serial.print(")"); Serial.println((WiFi.encryptionType(i) == WIFI_AUTH_OPEN)?"
":"*"); delay(10); } } Serial.println(""); //
Wait
a
bit
before
scanning
