2AN3WM5FCV1Flow Connect

Flow Connect 2024 CONTENTS 1. OUTLINE ........................................................................................................................................ 3 1.1. Flow Connect ...................................................................................................................... 3 2. SPECIFICATIONS ........................................................................................................................ 4 3. QUICK START .............................................................................................................................. 6 3.1. SCAN Wi-Fi .......................................................................................................................... 7 3.2 SCAN BLE Device ............................................................................................................ 8 4. FCC Warning ................................................................................................................................ 9 Arduino Install ..................................................................................................................................10 1. OUTLINE The Flow Connect is a highly integrated industrial controller designed for complex automation and communication environments. It features the ESP32-S3R8 microcontroller at its core, equipped with a dual-core Xtensa LX7 processor running at up to 240MHz, and includes 8MB PSRAM and 16MB FLASH memory, capable of handling high-performance computing and multitasking demands. For storage, it utilizes 128Mbit (16MB) 3.3V NOR flash, ensuring long- term, stable operation for firmware, data, and configuration file storage. The controller supports multiple communication protocols, including dual CAN bus, RS232, RS485, and TTL interfaces, making it suitable for a wide range of industrial and IoT applications. To enhance user interaction, the Flow Connect integrates Neopixel RGB LED lighting control, enabling dynamic color and lighting effects for intuitive visual feedback. In addition, the Flow Connect power management system employs multiple DC-DC converters that support various voltage outputs from 12V to 3.3V. It also features built- in electronic fuses (eFuse) to protect each voltage channel from overcurrent, ensuring safe operation even in harsh environments. The Flow Connect is designed with the demanding requirements of industrial control, intelligent transportation, and IoT gateway applications in mind, offering reliable multi- protocol communication, robust data storage, dynamic RGB display, and comprehensive power protection. 1.1. Flow Connect 1. Communication Capabilities: Main Controller: ESP32-S3R8 Wireless Communication: Wi-Fi (2.4 GHz), Bluetooth Low Energy (BLE) 5.0 Dual CAN Bus: Supports dual CAN bus interfaces for reliable data communication in industrial environments. Serial Communication: RS232, RS485, and TTL interfaces for versatile wired communication options. 2. Processor and Performance: Processor Model: Xtensa LX7 Dual-core (ESP32-S3R8) Storage Capacity: 16MB Flash, 8MB PSRAM Processor Operating Frequency: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240 MHz 3. Display and Input: RGB LED: Integrated Neopixel RGB LED for dynamic visual feedback. 4. Memory: NOR Flash: 128Mbit (16MB), 3.3V for firmware and data storage. 5. Power Management: Power Supply: DC-DC converters supporting 12V to 3.3V outputs. Protection: Built-in electronic fuses (eFuse) for overcurrent protection across all voltage channels. 6. GPIO Pins and Programmable Interfaces: Grove Interface: Supports connection and expansion of I2C sensors and other modules. 7. Others: Onboard Interface: Type-C interface for programming, power supply, and serial communication. Physical Dimensions: 60*60*15 mm 2. SPECIFICATIONS 3. QUICK START Before you do this step, look at the text in the final appendix: Installing Arduino 3.1. Print WiFi information 1. Open Arduino IDE (Refer to https://docs.m5stack.com/en/arduino/arduino_ide for the installation guide for the development board and software) 2. Select the ESP32S3 DEV Module board and the corresponding port, then upload the code 3. Open the serial monitor to display the scanned WiFi and signal strength information 3. QUICK START Before you do this step, look at the text in the final appendix: Installing Arduino 3.1. Print BLE information 1. Open Arduino IDE (Refer to https://docs.m5stack.com/en/arduino/arduino_ide for the installation guide for the development board and software) 2. Select the ESP32S3 DEV Module board and the corresponding port, then upload the code 3. Open the serial monitor to display the scanned BLE and signal strength information 4. FCC Warning FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate t…

Text truncated - open the document above for the full version.

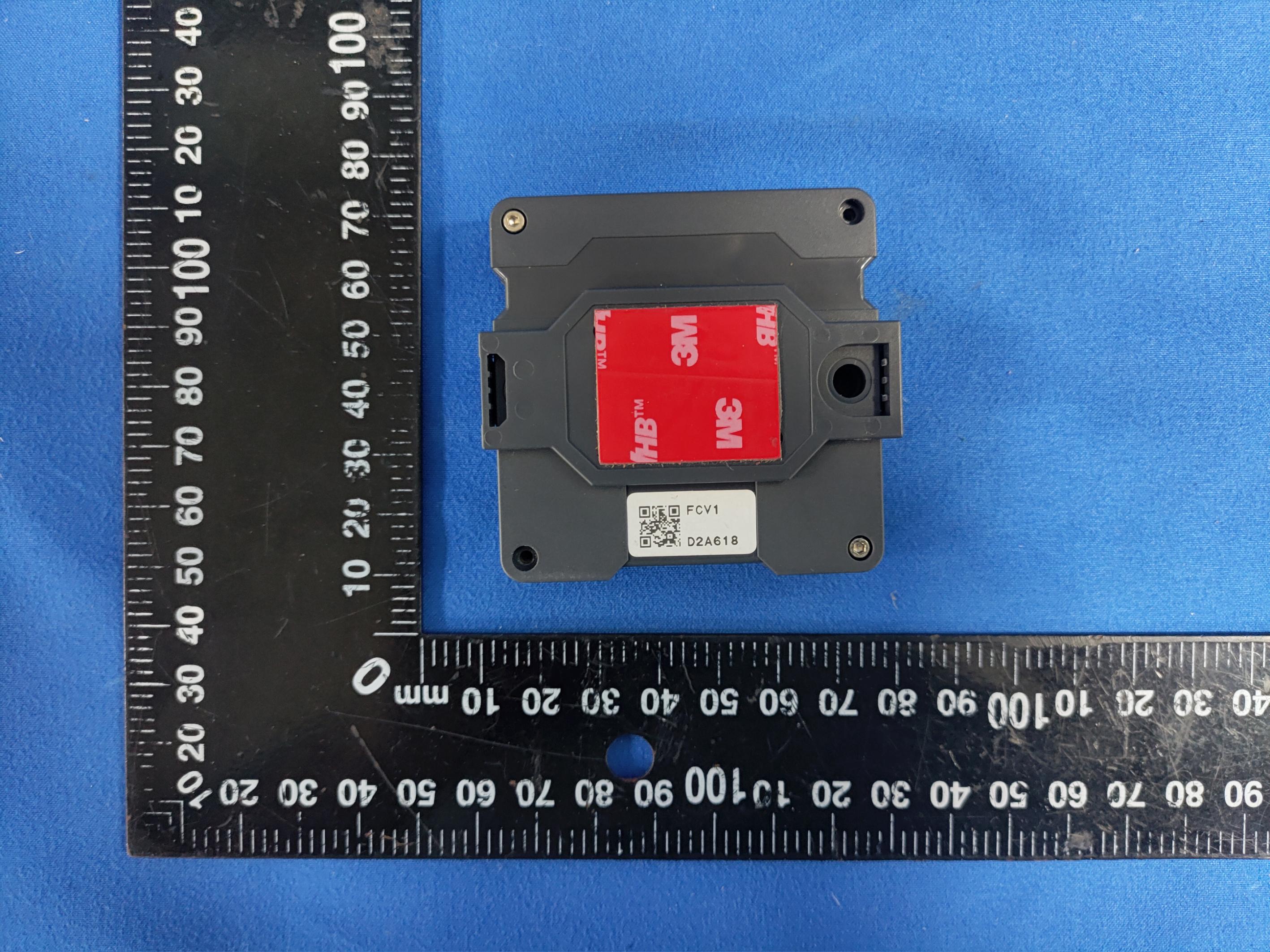

Page1of3 FCCID: 2AN3WM5FCV1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of3 FCCID: 2AN3WM5FCV1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of3 FCCID: 2AN3WM5FCV1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 ------End------

Label FCC ID: 2AN3WM5FCV1

Page1 of 4 FCC ID: 2AN3WM5FCV1 DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhoto s Photo1 Photo2 Page2 of 4 FCC ID: 2AN3WM5FCV1 DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Antenna Page3 of 4 FCC ID: 2AN3WM5FCV1 DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4 of 4 FCC ID: 2AN3WM5FCV1 DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 ------End------

RFExposureevaluation FCCID:2AN3WM5FCV1 Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevice 1.Reference Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergy levelinexcessoftheCommission’sguidelines. Accordingto§1.1310and§2.1091RFexposureiscalculated. KDB447498D01:MobileandPortableDevicesRFExposureProceduresandEquipment AuthorizationPolicies 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; AntennaNo. ModelNo. ofantenna: Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: WIFI&BT/FPCAntenna2.0dBifor2400-2500MHz 5.ManufacturingTolerance WIFI(Conducted) Frequency (MHz) 11b 241224372462 Target(dBm)13.013.013.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11g 241224372462 Target(dBm)13.012.013.0 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) 11n(HT20) 241224372462 Target(dBm)13.012.012.0 Tolerance±(dB)1.01.01.0 Frequency (MHz) 11n(HT40) 242224372452 Target(dBm)12.012.012.0 Tolerance±(Db)1.01.01.0 BLE Frequency (MHz) GFSK1M 240224402480 Target(dBm)0.0-4.0-8.0 Tolerance ± (Db) 1.01.01.0 Frequency (MHz) GFSK2M 240224402480 Target(dBm)0.0-4.0-8.0 Tolerance±(Db)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast 20cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais refertosection4,theRFpowerdensitycanbeobtained. ModulationType OutputpowerAntenna Gain (dBi) Antenna Gain (linear) MPE (Mw/cm 2 ) MPE Limits (Mw/cm 2 ) dBmMw 2.4GWIFI14.025.1192.01.5850.007921.0000 BT-BLE1.01.2592.01.5850.000401.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 3.WIFIandBTdonotsupportsimultaneoustransmission. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ----------------THEENDOFREPORT---------------

Page1of35ReportNo.:AiTDG-240902021W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:M5StackTechnologyCo.,Ltd Applicantadd.: 5F,TangweiStockCommercialBuilding,YouliRoad,Bao’anDistrict, Shenzhen,China Manufacturer:M5StackTechnologyCo.,Ltd Manufactureradd.: 5F,TangweiStockCommercialBuilding,YouliRoad,Bao’anDistrict, Shenzhen,China ProductInformation: ProductName:FlowConnect ModelNo:FCV1 BrandName:M5STACK FCCID:2AN3WM5FCV1 Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Sep.02,2024DateofTest:Sep.02,2024~Sep.11,2024 DateofIssue:Sep.12,2024TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: EmiyaLinSimbaHuang Page2of35ReportNo.:AiTDG-240902021W1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS...........................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty.....................................................................................4 2.2MeasurementUncertainty.................................................................................................................4 3TESTFACILITY...................................................................................................................................................................5 3.1Deviationfromstandard....................................................................................................................5 3.2Abnormalitiesfromstandardconditions...........................................................................................5 3.3TestLocation.....................................................................................................................................5 4GENERALINFORMATION................................................................................................................................................6 4.1Testfrequencies................................................................................................................................7 4.2EUTPeripheralList...........................................................................................................................7 4.3TestPeripheralList............................................................................................................................7 4.4TESTMETHODOLOGY....................................................................................................................8 4.4.1EUTConfiguration.................................................................................................................................8 4.4.2EUTExercise.........................................................................................................................................8 4.4.3GeneralTestProcedures.......................................................................................................................8 4.5DescriptionofTestModes.................................................................................................................9 5EQUIPMENTUSEDDURINGTEST...............................................................................................................................10 6TESTRESULTSANDMEASUREMENTDATA..........................................................................................................11 6.1Antennarequirement.......................................................................................................................11 6.2OnTimeandDutyCycle.................................................................................................................12 6.3MaximumConductedOutputPowerMeasurement.......................................................................13 6.46dBSpectrumBandwidthMeasurement.......................................................................................15 6.5PowerSpectralDensity...................................................................................................................16 6.6ConductedSpuriousEmissionsandBandEdgesTest..................................................................17 6.7Restrict-bandBand-edgeMeasurements.......................................................................................18 6.8RadiatedEmissionsMeasurement.................................................................................................21 6.9ConductedEmissions.....................................................................................................................32 7TESTSETUPPHOTOGRAPHSOFEUT......................................................................................................................35 8EXTERNALPHOTOGRAPHSOFEUT.........................................................................................................................35 9INTERNALPHOTOGRAPHSOFEUT.................................................................…

Text truncated - open the document above for the full version.

Page1of37ReportNo.:AiTDG-240902021W2 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:M5StackTechnologyCo.,Ltd Applicantadd.: 5F,TangweiStockCommercialBuilding,YouliRoad,Bao’anDistrict, Shenzhen,China Manufacturer:M5StackTechnologyCo.,Ltd Manufactureradd.: 5F,TangweiStockCommercialBuilding,YouliRoad,Bao’anDistrict, Shenzhen,China ProductInformation: ProductName:FlowConnect ModelNo.:FCV1 BrandName:M5STACK FCCID:2AN3WM5FCV1 Applicablestandards: FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Sep.02,2024DateofTest:Sep.02,2024~Sep.11,2024 DateofIssue:Sep.12,2024TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalof DongguanYaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedby DongguanYaxu(AiT)TechnologyLimited,personalonly,andshallbenotedintherevisionof thedocument.Thistestreportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: EmiyaLinSimbaHuang Page2of37ReportNo.:AiTDG-240902021W2 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS...........................................................................................................................................................................2 2TESTSUMMARY.................................................................................................................................................................5 2.1StatementoftheMeasurementUncertainty........................................................................................5 2.2MeasurementUncertainty....................................................................................................................5 3TESTFACILITY....................................................................................................................................................................6 3.1Deviationfromstandard.......................................................................................................................6 3.2Abnormalitiesfromstandardconditions...............................................................................................6 3.3TestLocation.........................................................................................................................................6 4GENERALINFORMATION................................................................................................................................................7 4.1Testfrequencies...................................................................................................................................8 4.2EUTPeripheralList..............................................................................................................................9 4.3TestPeripheralList...............................................................................................................................9 4.4TESTMETHODOLOGY.....................................................................................................................10 4.5DescriptionofTestModes..................................................................................................................11 5EQUIPMENTUSEDDURINGTEST...............................................................................................................................12 6TESTRESULTSANDMEASUREMENTDATA..........................................................................................................13 6.1Antennarequirement..........................................................................................................................13 6.1.1Standardrequirement:.............................................................................................................13 6.1.2EUTAntenna:...........................................................................................................................13 6.2OnTimeandDutyCycle....................................................................................................................14 6.2.1Standardrequirement:.............................................................................................................14 6.2.2MeasuringInstrumentsandSetting:........................................................................................14 6.2.3TestProcedures.......................................................................................................................14 6.2.4TestSetupLayout....................................................................................................................14 6.2.5EUTOperationduringTest......................................................................................................14 6.2.6Testresult.................................................................................................................................14 6.3MaximumConductedOutputPeakPowerMeasurement.................................................................15 6.3.1Standardrequirement:.............................................................................................................15 6.3.2MeasuringInstruments:...........................................................................................................15 6.3.3TestProcedures:......................................................................................................................15 6.3.4TestSetupLayout..............................................…

Text truncated - open the document above for the full version.

承拓电子 www.kontec.com.cn 承认书 厂 商： 深圳市承拓电子有限公司 原厂名称： FPC-BT天线 原厂料号： 原厂规格： BT-FPC001-1.13YX黑-IPEX-50mm 客 户： 客户名称： 客户料号： 客户规格： 产品参 考图片 注：承认书一式三份，供应商存档一份，客户存档二份。 文档编号 制作 品质 工程 复核 签章 20240713-001 日 期 文档编号 承认人 日期 签章 深 圳 市 承 拓 电 子 有 限 公 司 承拓电子 www.kontec.com.cn 第1页 产品规格书 PRODUCT SPECIFICATION Customer: Customer’s part number: Product description: FPC-BT天线 Uni Link’s part number: BT-FPC001-1.13YX黑-IPEX-50mm Issue Date: 2024-07-13 Note: 2400-2500 Customer Use Customer's authorized signature Remarks Full approved Conditional approved Rejected 承拓电子 Tel:86-755-89368800 Fax:86-755-89368100 Website:www.kontec.com.cn 深 圳 市 承 拓 电 子 有 限 公 司 承拓电子 www.kontec.com.cn 第2页 1、产品技术指标（PRODUCT TECHNICAL SPECIFICATION） 电性能指标Electrical Specifications 频率范围Frequency Range (MHz) 2400-2500 电压驻波比V.S.W.R <3.0 天线Antenna Gain 2.0dBi 机械指标Mechanical Specifications 天线长度Antenna Length (mm) 43.7*7.3 电缆长度Cable (mm) 50±5mm 连接器型号Connect Type IPEX1代 固定方式Mounting 粘贴式 线材颜色Color of Cable 灰色Grey 工作温度（Operating Temperature） -30°C～+70°C 工作湿度（%） 0%-95% 存储温度（Storing Temperature） -35°C～+75°C 存储湿度（%） 0%-95%

DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 1 of 35 AppendixB RF Test Data for BT (BLE)(ConductedMeasurement) ProductName:Flow Connect TradeMark:M5STACK Test Model:FCV1 EnvironmentalConditions Temperature: 24.6  C RelativeHumidity:52.4 % ATM Pressure:10 0.0 kPa Test Engineer:Emiyalin Supervisedby:SimbaHaung DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 2 of 35 Contents Page COVERPAGE 1 Duty Cycle ........................................................................................................................................................................................3 1.1Test Result............................................................................................................................................................................3 1.2Test Graphs...........................................................................................................................................................................4 2 MaximumConductedOutputPower.................................................................................................................................................7 2.1Test Result............................................................................................................................................................................7 2.2Test Graphs...........................................................................................................................................................................8 3 -6dB Bandwidth...............................................................................................................................................................................11 3.1Test Result..........................................................................................................................................................................11 3.2Test Graphs.........................................................................................................................................................................12 4 MaximumPowerSpectralDensityLevel .........................................................................................................................................15 4.1Test Result..........................................................................................................................................................................15 4.2Test Graphs.........................................................................................................................................................................16 5 Band Edge ......................................................................................................................................................................................19 5.1Test Result..........................................................................................................................................................................19 5.2Test Graphs.........................................................................................................................................................................20 6 ConductedRF SpuriousEmission..................................................................................................................................................24 6.1Test Result..........................................................................................................................................................................24 6.2Test Graphs.........................................................................................................................................................................25 7 RestrictBand ..................................................................................................................................................................................31 7.1Test Result..........................................................................................................................................................................31 7.2Test Graphs.........................................................................................................................................................................32 DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 3 of 35 1 Duty Cycle 1.1 Test Result ModeFrequency(MHz)Duty Cycle(%)Correction Factor 1/T (kHz) BLE 1M240284.40.740.48 BLE 1M244084.40.740.48 BLE 1M248084.130.750.48 BLE 2M240256.992.440.94 BLE 2M244056.852.450.94 BLE 2M248056.962.440.93 DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 4 of 35 1.2 Test Graphs Test Graphs BLE 1M 2402MHz BLE 1M 2440MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 5 of 35 BLE 1M 2480MHz BLE 2M 24 02 MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 6 of 35 BLE 2M 24 40 MHz BLE 2M 24 80 MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 7 of 35 2 MaximumConductedOutputPower 2.1 Test Result ModeFrequency(MHz)ConductedPower (dBm) Limit (dBm)Verdict BLE 1M2402-0.6330Pass BLE 1M2440-4.1830Pass BLE 1M2480-8.7830Pass BLE 2M2402-0.4330Pass BLE 2M2440-4.1330Pass BLE 2M2480-8.5930Pass DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 8 of 35 2.2 Test Graphs Test Graphs BLE 1M 2402MHz BLE 1M 2440MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 9 of 35 BLE 1M 2480MHz BLE 2M 2402MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN3WM5FCV1 Page 10 of 35 BLE 2M 2440MHz BLE 2M 2480MHz DongguanYaxu(AiT)TechnologyLimited Rep ort No.: AiTDG-240902021W1 FCC ID : 2AN…

Text truncated - open the document above for the full version.

DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240902021W2 FCC ID : 2AN3WM5FCV1 Page 1 of 56 AppendixC RF Test Data for 2.4GWIFI(ConductedMeasurement) ProductName:Flow Connect TradeMark:M5STACK Test Model:FCV1 EnvironmentalConditions Temperature: 24.6  C RelativeHumidity:52.4% ATM Pressure:100.0 kPa Test Engineer:Emiyalin Supervisedby:SimbaHaung DongguanYaxu(AiT)TechnologyLimited ReportNo.: AiTDG-240902021W2 FCC ID : 2AN3WM5FCV1 Page 2 of 56 Contents Page COVERPAGE 1 Duty Cycle ...................................................................................................................................................…

Text truncated - open the document above for the full version.
