2AN3WM5STICKCPLUSM5StickC PLUS

M5STICKC PLUS 2020 V0.01 1. OUTLINE StickC PLUS is ESP32 board which based on ESP32-PICO-D4 module, with one LED and one button The board is made of PC+ABC. 1.1 Hardware Composition The hardware of M5StickC PLUS: ESP32-PICO-D4 module, TFT screen, IMU, IR transmitter, Red LED, Button, GROVE interface, TypeC-to-USB interface, Power Management chip and battery. StickT Add infrared camera. ESP32- PICO-D4 is a System-in-Package (SiP) module that is based on ESP32, providing complete Wi-Fi and Bluetooth functionalities. The module integrates a 4-MB SPI flash. ESP32-PICO-D4 integrates all peripheral components seamlessly, including a crystal oscillator, flash, filter capacitors and RF matching links in one single package. TFT Screen is a 1.14-inch color screen driven by Sitronix's ST7789 with a resolution of 135 x 240. Operating voltage range is 2.5~3.3V IMU The MPU-6886 is a 6-axis MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer in a small 3 mm x 3 mm x 0.75 mm 24-pin LGA package. Power Management chip is X-Powers's AXP192. The operating voltage range is 2.9V~6.3V and the charging current is 1.4A. M5StickC PLUS equips ESP32 with everything needed for programming, everything needed for operation and development 2. PIN DESCRIPTION 2.1. USB INTERFACE M5CAMREA Configuration Type-C type USB interface, support USB2.0 standard communication protocol. 2.2. GROVE INTERFACE 4p disposed pitch of 2.0mm M5CAMREA GROVE interfaces, internal wiring and GND, 5V, GPIO32, GPIO33 connected. 3. FUNCTIONAL DESCRIPTION This chapter describes the ESP32-PICO-D4 various modules and functions. 3.1. CPU AND MEMORY ESP32-PICO-D4 contains two low-power Xtensa ® 32-bit LX6 MCU. On-chip memory comprising: ⚫448-KB of ROM, and the program starts for the kernel function calls ⚫For a 520 KB instruction and data storage chip SRAM (including flash memory 8 KB RTC) ⚫RTC flash memory of 8 KB SRAM, when the RTC can be started in Deep-sleep mode, and for storing data accessed by the main CPU ⚫RTC slow memory, of 8 KB SRAM, can be accessed by the coprocessor in Deep- sleep mode ⚫Of 1 kbit of eFuse, which is a 256 bit system-specific (MAC address and a chip set); the remaining 768 bit reserved for user program, these Flash program include encryption and chip ID 3.2. STORAGE DESCRIPTION 3.2.1. External Flash and SRAM ESP32 support multiple external QSPI flash and static random access memory (SRAM), having a hardware-based AES encryption to protect the user programs and data. ⚫ESP32 access external QSPI Flash and SRAM by caching. Up to 16 MB external Flash code space is mapped into the CPU, supports 8-bit, 16-bit and 32-bit access, and can execute code. ⚫Up to 8 MB external Flash and SRAM mapped to the CPU data space, support for 8-bit, 16-bit and 32-bit access. Flash supports only read operations, SRAM supports read and write operations. ESP32-PICO-D4 4 MB of integrated SPI Flash, the code can be mapped into CPU space, support for 8-bit, 16-bit and 32-bit access, and can execute code. Pin GPIO6 ESP32 of, GPIO7, GPIO8, GPIO9, GPIO10 and GPIO11 for connecting module integrated SPI Flash, not recommended for other functions. 3.3. CRYSTAL •ESP32-PICO-D4 integrates a 40 MHz crystal oscillator. 3.4. RTC MANAGEMENT AND LOW POWER CONSUMPTION ESP32 uses advanced power management techniques may be switched between different power saving modes. (See Table 5). • Power saving mode - Active Mode: RF chip is operating. Chip may receive and transmit a sounding signal. - Modem-sleep mode: CPU can run, the clock may be configured. Wi-Fi / Bluetooth baseband and RF - Light-sleep mode: CPU suspended. RTC and memory and peripherals ULP coprocessor operation. Any wake-up event (MAC, host, RTC timer or external interrupt) will wake up the chip. - Deep-sleep mode: only the RTC memory and peripherals in a working state. Wi- Fi and Bluetooth connectivity data stored in the RTC. ULP coprocessor can work. - Hibernation Mode: 8 MHz oscillator and a built-in coprocessor ULP are disabled. RTC memory to restore the power supply is cut off. Only one RTC clock timer located on the slow clock and some RTC GPIO at work. RTC RTC clock or timer can wake up from the GPIO Hibernation mode. • Deep-sleep mode - related sleep mode: power save mode switching between Active, Modem-sleep, Light-sleep mode. CPU, Wi-Fi, Bluetooth, and radio preset time interval to be awakened, to ensure connection Wi-Fi / Bluetooth. - Ultra Low-power sensor monitoring methods: the main system is Deep-sleep mode, ULP coprocessor is periodically opened or closed to measure sensor data. The sensor measures data, ULP coprocessor decide whether to wake up the main system. Functions in different power consumption modes: TABLE 5 4. ELECTRICAL CHARACTERISTICS 4.1. LIMIT PARAMETERS Table 8: Limiting values 1. V IO to the power supply pad, Refer ESP32 Technical Specification Appendix IO_MUX, as SD_CLK of Power supply for VDD_SDIO. 3.0 UIFlow Quick Start This tutorial applies to M5StickC and M5StickC PLUS Burning tool Please click the button below to download the corresponding M5Burner firmware burning tool according to your operating system. Unzip and open the application. Windows10 MacOS Linux Firmware burning 1.Double-click to open the Burner burning tool, select the corresponding device type in the left menu, select the firmware version you need, and click the download button to download. 2.Then connect the M5 device to the computer through the Type-C cable, select the corresponding COM port, the baud rate can use the default configuration in M5Burner, in addition, you can also fill in the WIFI that the device will be connected to during the firmware burning stage information. After configuration, click "Burn" to start burning. 3.When the burning log prompts Burn Successfully , it means that the firmware has been burned. When first burning or the firmware program runs abnormally, you can click "Erase" to erase the flash memory. In the subsequent firmware update, there is no …

Text truncated - open the document above for the full version.

Company: M5Stack Technology Co.,Ltd Add: 106,1st Floor,Building 1,Bright Technology Park,88 Zhuguang North Road,XiliTaoyuan Street,Nanshan District,Shenzhen,Guangdong,China Tel: 13509230623 Fax: 0755-69815195 DECLARATION Dear Sir or Madam: We, M5Stack Technology Co.,Ltd, hereby declare that product name: M5StickC PLUS (model name: M5StickC PLUS, M5StickT. FCC ID: 2AN3WM5STICKCPLUS). There are some differences between M5StickC PLUS and M5StickT. Both models have been tested b y BACL. Please contact me if there is need for any additional clarification or information. Best Regards, Signature: Print Name: Jimmy Lai Title: CEO FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7 4 3 5 Oak land Mills Road C olumbia, MD 21046 The differences of them are as follows: 1. Their model names, colors and appearance are different. 2 . M5StickT adds infrared thermal imaging camera ,so their PCB boards have a little different, This pcb board implement camera function without affecting RF performance. M5StickC PLUS M5StickT M5StickC PLUS's PCB boards M5StickT's PCB boards RF board RF board 3. The RF board of them are same,so the radio parameters of them are same.

QA-FR-170-B Co mpany: M5Stack Technology Co.,Ltd Add: 106,1st Floor,Building 1,Bright Techn ology Park,88 Zhuguang North Road,XiliTaoyuan Street,Nanshan District,Shenzhen,Guangdong,China Tel: 13509230623 Fax : 0755-69815195 FCC Authorization Date: 2020-06-02 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, M5Stack Technology Co.,Ltd, the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Jimmy Lai Title: CEO

Co mpany: M5Stack Technology Co.,Ltd Add: 10 6,1st Floor,Building 1,Bright Technology Park,88 Zhuguang North Road,XiliTaoyuan Street,Nanshan District,Shenzhen,Guangdong,China Tel: 13509230623 Fax: 0755-69815195 E-mail: [email protected] FCC Confidential Authorization Date: 2020-06-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AN3WM5STICKCPLUS To : whom it may concern, In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, M5Stack Technology Co.,Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Typed or Printed Name: Jimmy Lai Title: CEO

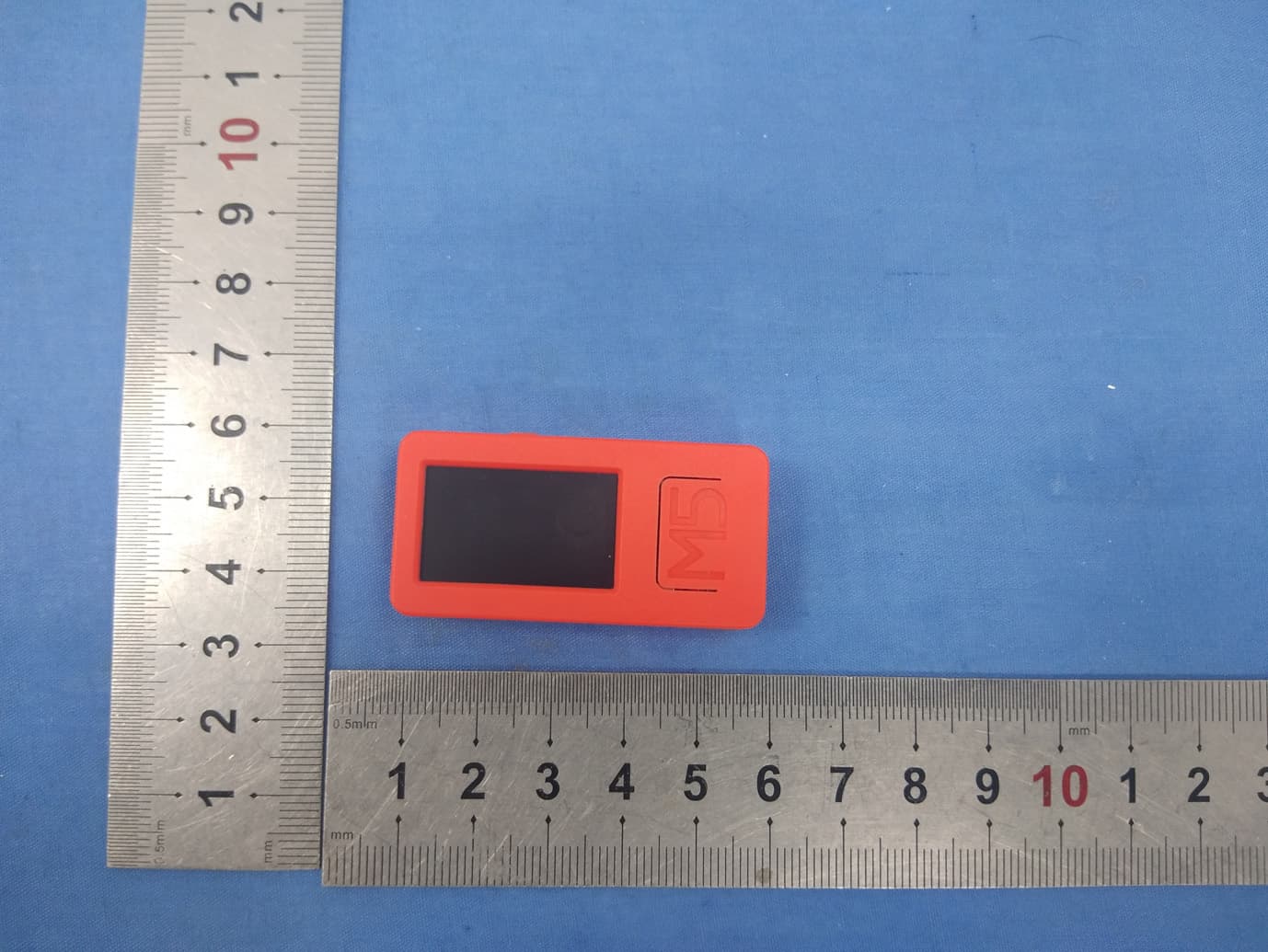

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS M5StickC PLUS: M5StickT:

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS M5StickC PLUS: Antenna M5StickT: Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD200602001-00B FCC Part 15.247 Page 14 of 90 FCC §15.247 (I) & §1.1310 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1310, 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / f/1500 30 1500-100,000 / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Maximum Antenna Gain Tune-up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm) (mW) 802.11b 2412-2462 2.00 1.58 21.00 125.89 20 0.0396 1.0 802.11g 2.00 1.58 20.50 112.20 20 0.0353 1.0 802.11n- HT20 2.00 1.58 20.50 112.20 20 0.0353 1.0 802.11n- HT40 2422-2452 2.00 1.58 20.50 112.20 20 0.0353 1.0 BLE 2402-2480 2.00 1.58 5.50 3.55 20 0.0011 1.0 BT 2402-2480 2.00 1.58 7.50 5.62 20 0.0018 1.0 Note: 1. For the above tune up power were declared by the manufacturer. 2. Wi-Fi and BT/BLE can't transmit simultaneously. Result: The device meet FCC MPE at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For M5Stack Technology Co.,Ltd 106,1st Floor,Building 1,Bright Technology Park,88 Zhuguang North Road,XiliTaoyuan Street,Nanshan District,Shenzhen,Guangdong,China FCC ID: 2AN3WM5STICKCPLUS Report Type: Original Report Product Type: M5StickC PLUS Test Engineer: Lee Li Re port Number: RSHD200602001-00B Re port Date: 2020-07-08 Reviewed B y: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD200602001-00B FCC Part 15.247 Page 2 of 90 1 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 TEST EQUIPMENT LIST ......................................................................................................................................... 13 FCC §15.247 (I) & §1.1310 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................. 14 APPLICABLE STANDARD ............................................................................................................................................ 14 CALCULATED FORMULARY: ....................................................................................................................................... 14 CALCULATED DATA: .................................................................................................................................................. 14 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 17 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 17 TEST RESULTS SUMMARY .......................................................................................................................................... 17 TEST DATA ................................................................................................................................................................ 17 FCC §15.209, §15.205 & §15…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Model Name: M5StickC PLUS Conducted Emissions (Front View) Conducted Emissions (Side View) Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz) Series Model: M5StickT Conducted Emissions (Front View) Conducted Emissions (Side View) Radiated Emissions (Below 1GHz)
