2AN5RFSV2478Shark Byte TX5M.1

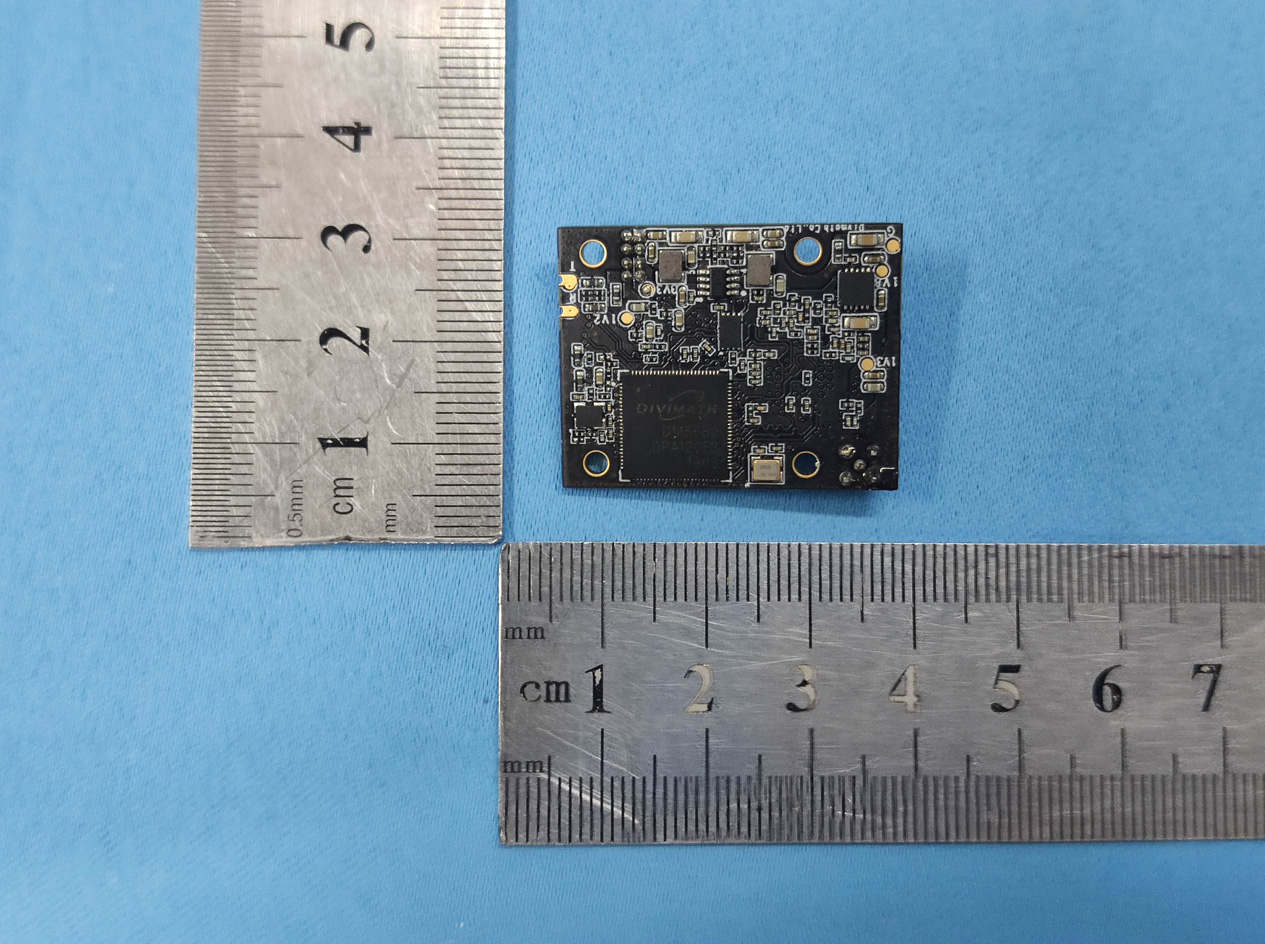

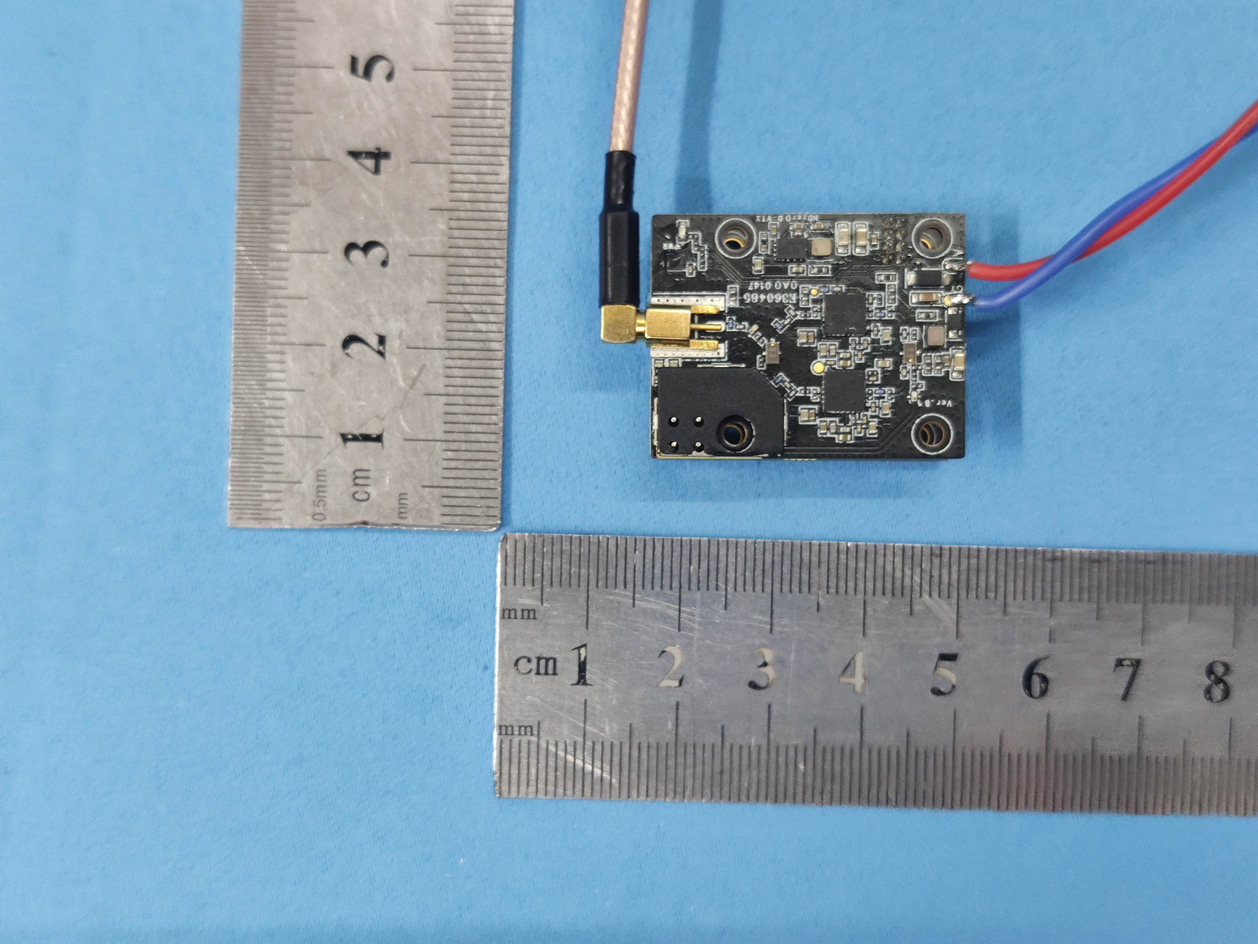

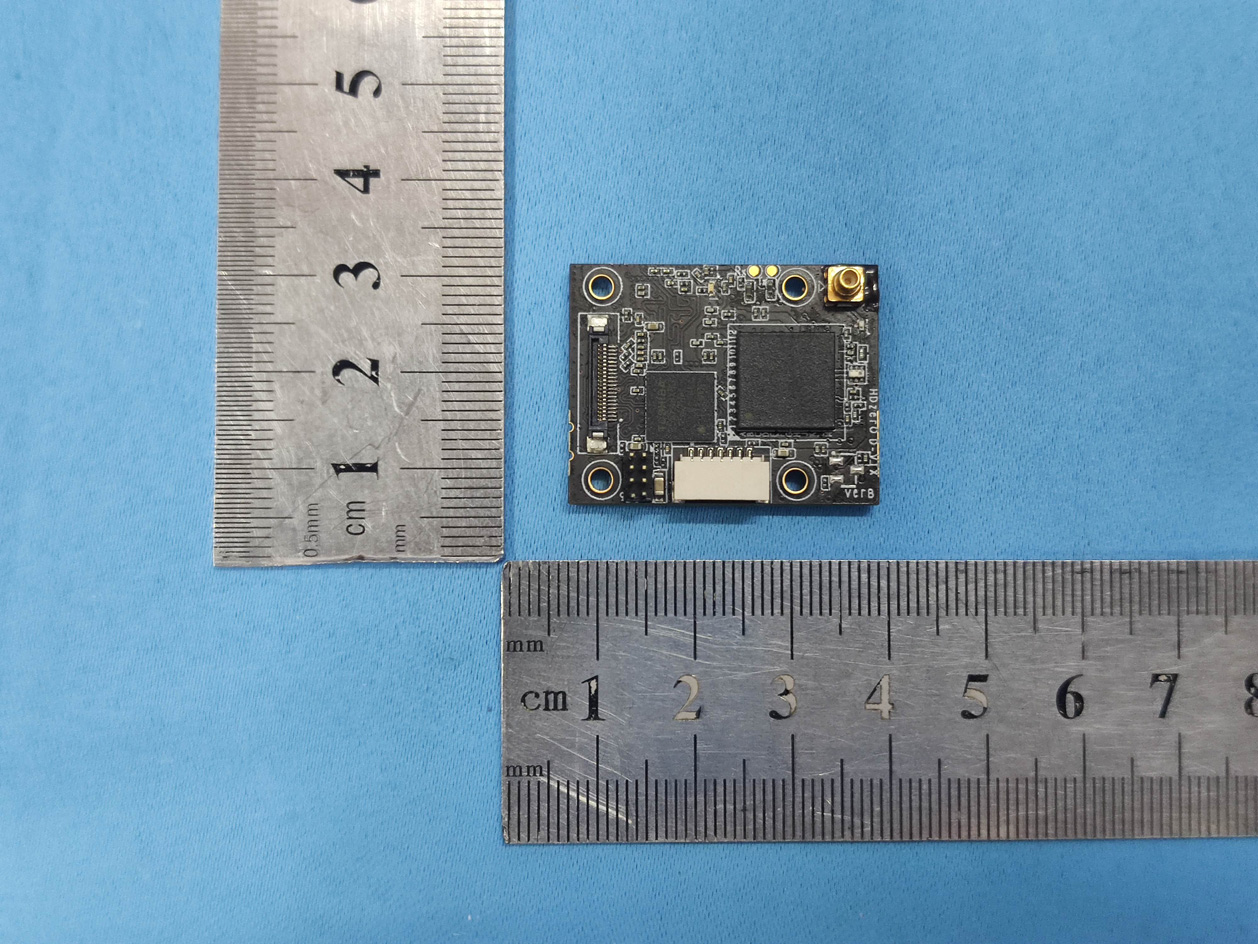

Shark Byte Contents Shark Byte Video Transmitter TX5M.1 ....................................................................................................3 Assembling the two circuit boards ..........................................................................................................3 dis-assembling the two circuit boards ...................................................................................................3 TX5M.1 Connection Diagram .....................................................................................................................4 Installation ......................................................................................................................................................4 Shark Byte Shark Byte Video Transmitter TX5M.1 The Shark Byte TX5M.1 is a digital HD 720p 60fps medium range video transmitter capable of delivering up to 500mw on 5.8GHz. The TX5M.1 works with the Shark Byte RX5.1 goggle module to transmit video, and a remote controller to control the parameters for transmitter and camera wirelessly. The Shark Byte TX5M.1 consists of a Runcam Nano HD camera and a video transmitter (VTX) made up of two PCBs. Runcam Nano HD GND TX RX 7–26V 5 5 9 8 8 1 2 2 4 6 6 7 7 3 10 12 11 1Power/UART cable 2FW Update Connector 3UART (3.3V) 4MIPI Connector 5Power IN (7-26V) 6Power LED (red) 1MIPI Camera 2MIPI cable 7MMCX Antenna Connector 8Key Pad Connector 9Status LED (blue) 10Key Pad Cable 11Key Pad 12330 μF Capacitor 1 2 WARNING: DO NOT apply power to the RF board until the boards are fully assembled and ready to operate. If you apply power to the RF board without the BB board attached it may result in permanent damage. DO NOT power ON the VTX without an appropriate 5.8GHz antenna connected to the MMCX connector. If you power ON the VTX without an antenna connected, it may result in permanent damage. DO NOT touch the video transmitter during or immediately after operation, wait for it to cool down. It is normal for the VTX to become hot during or after operation. DO NOT use the VTX for an extended period when the temperature is high or if there is poor ventilation. If the VTX does not get adequate airflow for cooling during operation, it may overheat and enter overheat protection mode, which will reduce range performance. WARNING: Use extreme caution when separating the boards with a knife. Power input range is 7V – 26V (2S – 6S). A large capacitor (220+μF) is required to be mounted in parallel with the power input connector to avoid voltage spikes (and subsequent damage) to the VTX. DO NOT power the VTX without a capacitor on the power input. Always press and pull on the actual connectors during assembly or disassembly, never pull on the wires to remove a connector. Solder all of your connections to the boards before assembly. ASSEMBLING THE TWO CIRCUIT BOARDS 1. Align the 8 pin connector between the two boards and begin to make the connection, but only insert the pins far enough to establish alignment, don’t press them together yet. 2. Align the coaxial connector between the two boards, and press the boards together with a thumb and fore-finger directly above and below the coaxial connector. The coaxial connector will snap together when it connects. At the same time, use your other hand to press the 8 pin connector together. DIS-ASSEMBLING THE TWO CIRCUIT BOARDS 1. Hold the assembly on it’s side to present the coaxial connector between the two boards to the side. Hold the boards from above. 2. Align a knife blade at the separation between the top and bottom of the connector. 3. Press down with the knife, away from your hand holding the boards, and twist the knife blade to separate the top of the connector from the bottom. The connector will pop apart when it releases. 4. Once the connector pops apart, gently separate the 8 pin connector between the boards, Shark Byte RC Transmitter RC Receiver Camera Flight Controller Video Transmitter VTX Antenna (MMCX) SBUS/IBUS/UART MIPI RX TX RX TX GND 7–26V Battery Connector Capacitor 50v 330 μF 10mm Recommended TX5M.1 CONNECTION DIAGRAM Refer to the diagram below to mount and connect the air unit to your chosen airframe. INSTALLATION The VTX consists of two boards: • RF board, which has the MMCX socket and power input pads • BB board, which has the MIPI interface and UART pads The Shark Byte video transmitter boards generate a considerable amount of heat that must be managed for proper operation. Most of the heat comes from the RF board (where the RF power amplifier is located). Where a heat sink is commonly utilized for stationary devices, this VTX is designed for use in racing drones and does not use a heat sink in an effort to maintain minimal weight and form factor. It is expected proper cooling airflow will be provided to the VTX board during operation. NOTE: Any time the VTX is powered ON in a stationary application or for bench testing, we recommend the use of a small fan to force air over the VTX. We recommend the VTX be installed as suggested below in your drone for proper ventilation and heat dissipation: • Orientation of VTX boards; BB board on bottom, and RF board on top • The VTX should be installed above the FC stack • The distance between RF boards and the closest carbon frame plate should be at least 10mm RF Board BB Board Note: We recommend the RF board (the board with the MMCX antenna connector) is installed in a way that maintains at least 10mm separation from carbon frame plates or other parts of the aircraft. Adequate airflow is required for proper operation of the Shark Byte VTX. Shark Byte CHF CC (MHz)CE (MHz) 156605735 256955770 357355805 457705839 55805NA 65839NA 75878NA 85914NA TX5M.1 SPECIFICATIONS Weight: 15.4g including camera and cable (without antenna), 10.0g for VTX only Dimensions: Camera: 14 x 14mm with 19 x 19mm adaptor VTX: 25 x 32 x 12 mm Coaxial cable: 85mm Mounting Pattern: VTX: 20 x 20mm, M2 Operating Frequencies: Transmitting Power/ Power Consumption…
