Wireless Charging Bluetooth Speaker with RGB Instruction Manual 966-M6064Q Functions: 1. Type-C Input 2. Speaker ON/OFF 3. LED Indicator 4. Touch area 5. Wireless Charging Pad 6. Lamp What’s included: 1 x Bluetooth Speaker 1 x USB to Type-C Charging Cable 1 x Instruction Manual Tech Specifications: • Material: ABS • Product Size: 112*122*127mm • Pairing Name: 966-M6064Q • Bluetooth Version: 5.0 • Type-C Input: DC 5V 2A / 9V 2A • Wireless Power: 5W/7.5W/10W/15W • Lamp Power: 1.5W Instructions: (Be sure is always connected to a power source using the provided cable.) 1. Charging the Speaker: • Connect the provided charging cable to a power source and to the Type-C port ① on the speaker. Once connected that Power LED Indicator ③ will flash blue twice. 2. Bluetooth Setup: • Press and hold Speaker ON/OFF Button ② to turn ON the speaker. • turn on the Bluetooth function on mobile device, Select “ 966-M6064Q ” pairing name. ** Speaker will automatically pair if the mobile device has been paired before. • Press and hold Speaker ON/OFF Button ② to turn off the device. 3. Using the Speaker: • When receiving a phone call, press ON/OFF button to answer and again to hang up. • Press ON/OFF button to play or pause the music. 4. Using the Wireless Charging: Place wireless charging enable device on Wireless Charging Pad ⑤. The device will begin to charge, LED indicator ⑤ will turn solid blue when charging. You can place your device on the Wireless Charging Pad both horizontally and vertically. ** Note: If the LED Indicator is flashing RED, an unknown object is being detected between the wireless charging pad and the phone by FOD(Foreign Object Detection). (The device will not begin to charge until object is removed.) 5. Using the Lamp: When the device is on, you can see colorful LED on the Lamp area ⑥. Hold the Touch area ④ to turn off the colorful lamp. Tap the Touch area ④ once to turn on the white lamp (warm tones). There are three kinds of brightness for your choice. Tap to choose the brightness you prefer. SAFETY PRECAUTIONS: Read all the instructions before using the product. 1. To reduce the risk of injury, close supervision is necessary when the product is used near children. 2. Do not expose the device to any moisture. 3. Do not use the device in excess of its output rating. Overloaded outputs above rating may result in a risk of fire or injury. 4. Do not use the device if damaged or modified. Damaged or modified device may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 5. Do not disassemble the device. Take it to a qualified service person when service or repair is required. lncorrect reassembly may result in a risk of fire or injury. 6. Do not expose the device to fire or excessive temperature. Exposure to extreme heat may cause explosion. 7. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 8. This device is not a toy. 9. Do not overcharge Phone. Unit may get hot with excessive use. Remove Phone when it is fully charged. Never charge for more than 7 hours at a time. FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. * Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 10. Attachments on the back of your phone can impede the effectiveness of the wireless charger, and lead to overheating. Please remove attachments from the phone before charging on this device. MADE IN CHINA ⑤ ① ③ ② ⑥ ④ FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody.

ShenZhen Mossloo Industrial Co.,Ltd 2022.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless charging Bluetooth speaker with RGB MODEL : 966-M6064Q FCC ID: 2AN8F966-M6064Q To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Orders Cheng /Manager Contact information / address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China

ShenZhen Mossloo Industrial Co.,Ltd 2022.07.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Orders Cheng /Manager Contact information / address: Road One No.4, Science Industrial Park, Shangxue Village, Bantian Street, Longgang District, Shenzhen, China

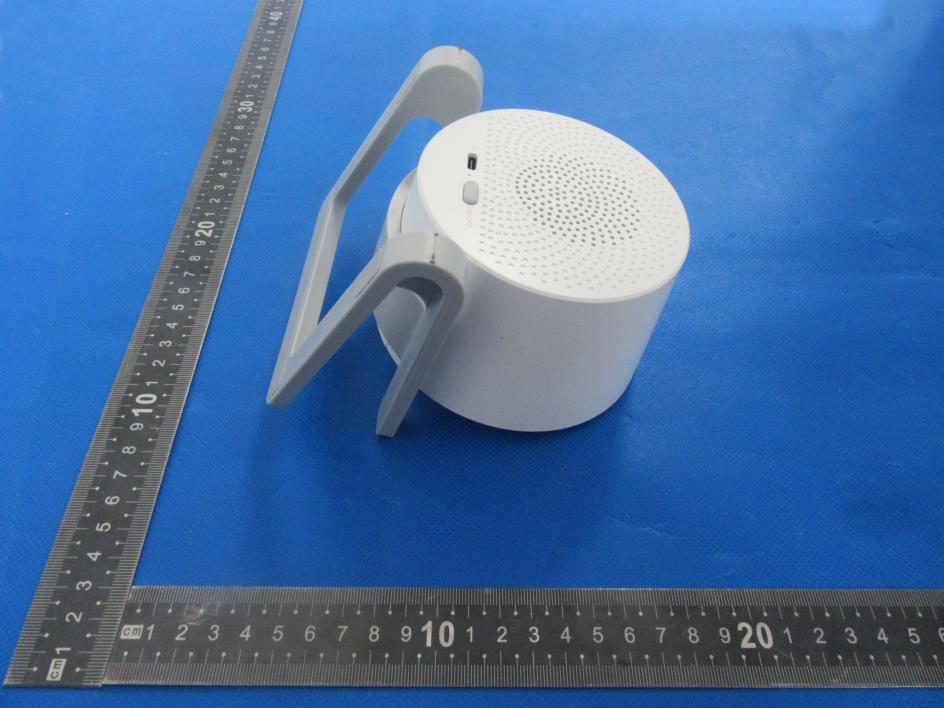

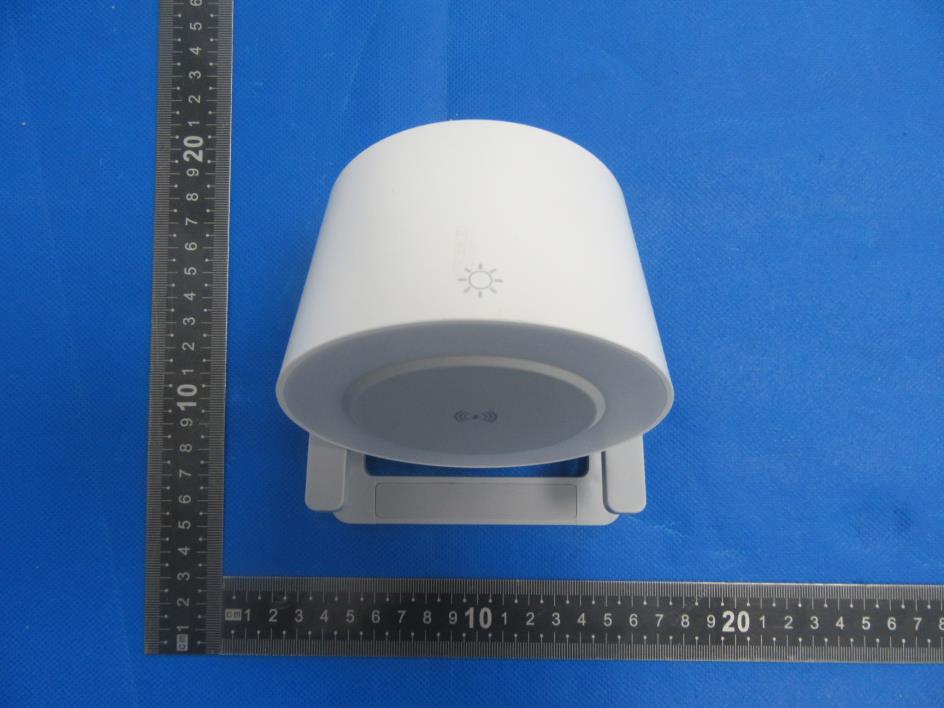

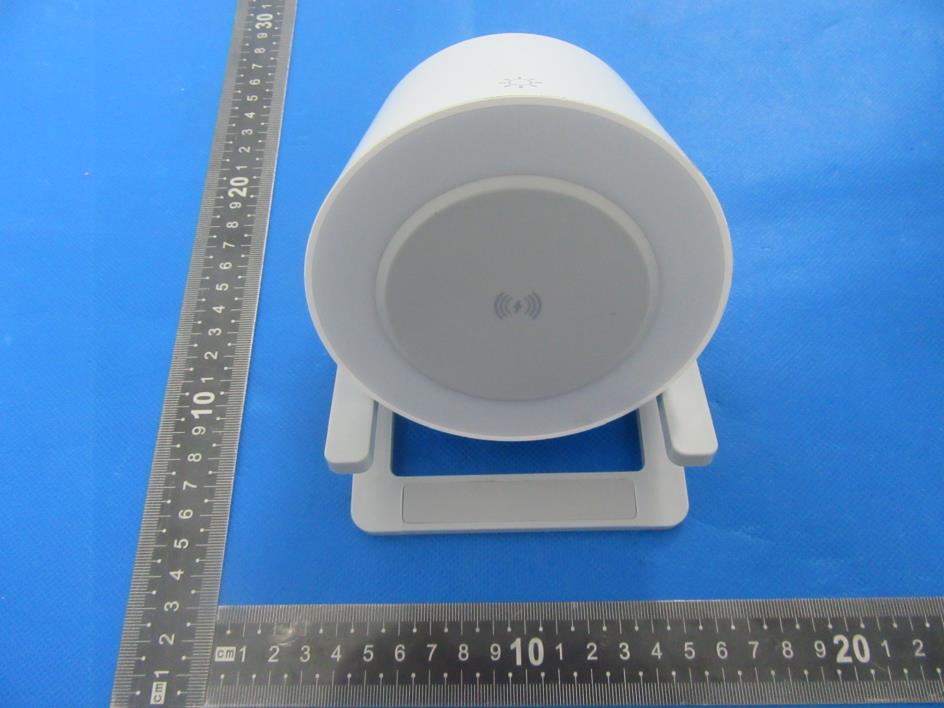

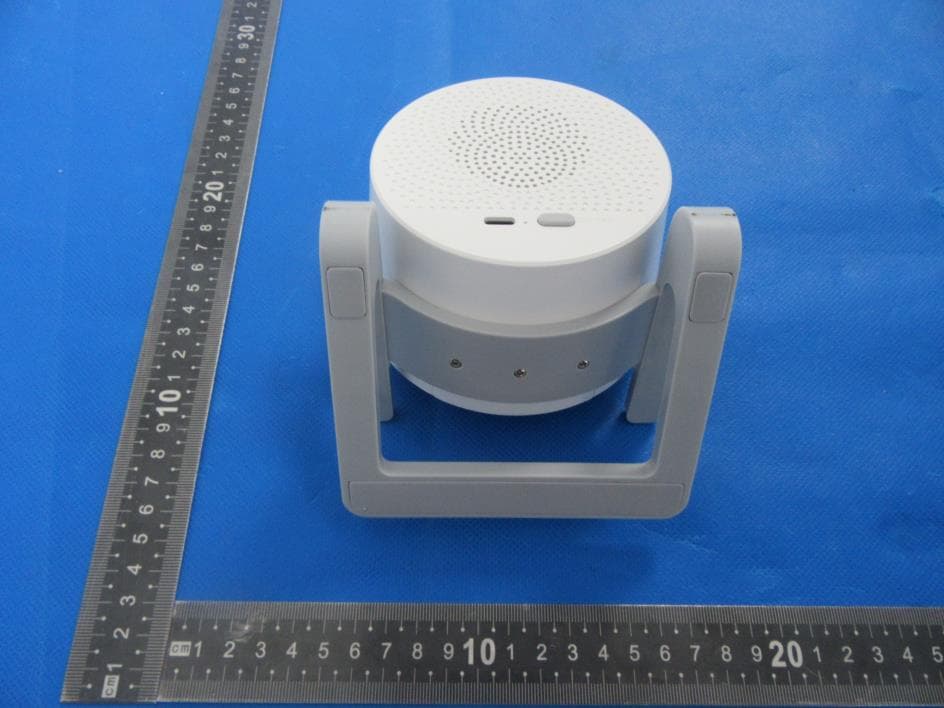

External Photos

Size:10*5m FCC ID: 2AN8F966-M6064Q Label Location

Internal Photos Wireless charger Antenna BT Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AN8F966-M6064Q Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conducte d power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.480-10.460.09-10±1-9.000.13<50.039653.00YES Pi/4 DQPSK 2.480-9.600.11-9±1-8.000.16<50.049923.00YES 8DPSK2.480-9.050.12-9±1-8.000.16<50.049923.00YES Conclusion: For the max result : 0.04992＜3.0, the SAR testing is not required.
