2ANBK-BCKL900WiFi baby monitor (Camera)

Rev_ 1.0 花CE:RoHS三MADE IN CHINA WiFi baby monitor BCKL900 • 720P/1080P HD Baby Monitor with 1000 ft Range • 1080P HD Baby Monitor with 1800 ft Range — EN/ D E/ FR/ ES/ IT/ DA / C S/ P L / NL / S V/ E L / HU / RU USER GUIDE 5.5 11 /S 11 HD LCD Note: With Tuya APP (Optional) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. -This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Dayun Links Co., Ltd. Covered Equipment Certification Attestation Letter 1/20/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2ANBK-BCKL900 Shenzhen Dayun Links Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Dayun Links Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Shenzhen Dayun Links Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Chen Dong Title: Manager Company: Shenzhen Dayun Links Co., Ltd. Date: 1/20/2026

Shenzhen Dayun Links Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 1/20/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2ANBK-BCKL900 FRN of applicant: 0026747659 Per section 2.911(d)(7) of the FCC rules, [Shenzhen Dayun Links Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Chen Dong Title: Manager Company Name: Shenzhen Dayun Links Co., Ltd. Date: 1/20/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 1/20/2026

Shenzhen Dayun Links Co., Ltd. 2026-01-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Dayun Links Co., Ltd.（Room 501, No.B Building 1, Bestda Medical Device Building, No.28, Nantong Avenue, Baolong Street, Longgang, Shenzhen, Guangdong） <Signature>: Name: Chen Dong Title: Manager Company: Shenzhen Dayun Links Co., Ltd.

Shenzhen Dayun Links Co., Ltd. 2026-01-20 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Chen Dong Title: Manager Company: Shenzhen Dayun Links Co., Ltd.

Shenzhen Dayun Links Co., Ltd. 2026-01-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANBK-BCKL900 Product Name: WiFi baby monitor Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Chen Dong Title: Manager Company: Shenzhen Dayun Links Co., Ltd.

Shenzhen Dayun Links Co., Ltd. FCC ID: 2ANBK-BCKL900 Product Similarity Declaration Applicant: Shenzhen Dayun Links Co., Ltd. Address: Room 501, No.B Building 1, Bestda Medical Device Building, No.28, Nantong Avenue, Baolong Street, Longgang, Shenzhen, Guangdong Manufacturer: Shenzhen Dayun Links Co., Ltd. Address: Room 501, No.B Building 1, Bestda Medical Device Building, No.28, Nantong Avenue, Baolong Street, Longgang, Shenzhen, Guangdong Product Name: WiFi baby monitor Trade Mark: N/A Model Number: BCKL900, BC5W, BM5R11W, BM5R12W, BM5R13W, BM5R3W, BM5R10W, BM5K13W, BM5G11W, BM5G12W, BM5G13W, BM5G3W, BM5G10W We (Shenzhen Dayun Links Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name, appearance color. <Signature>: Name: Chen Dong Title: Manager Company: Shenzhen Dayun Links Co., Ltd.

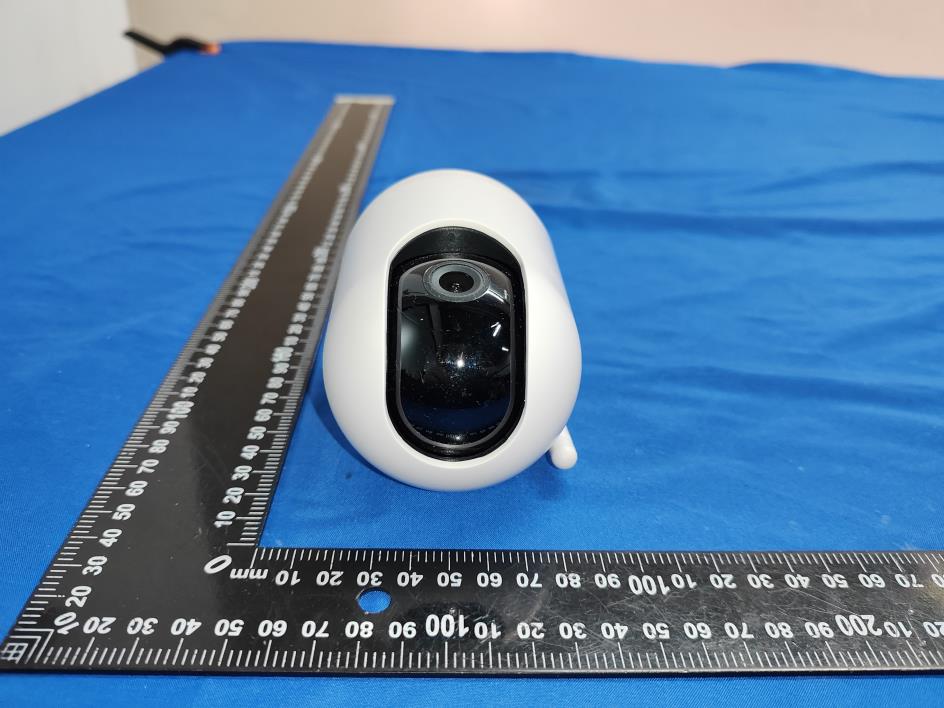

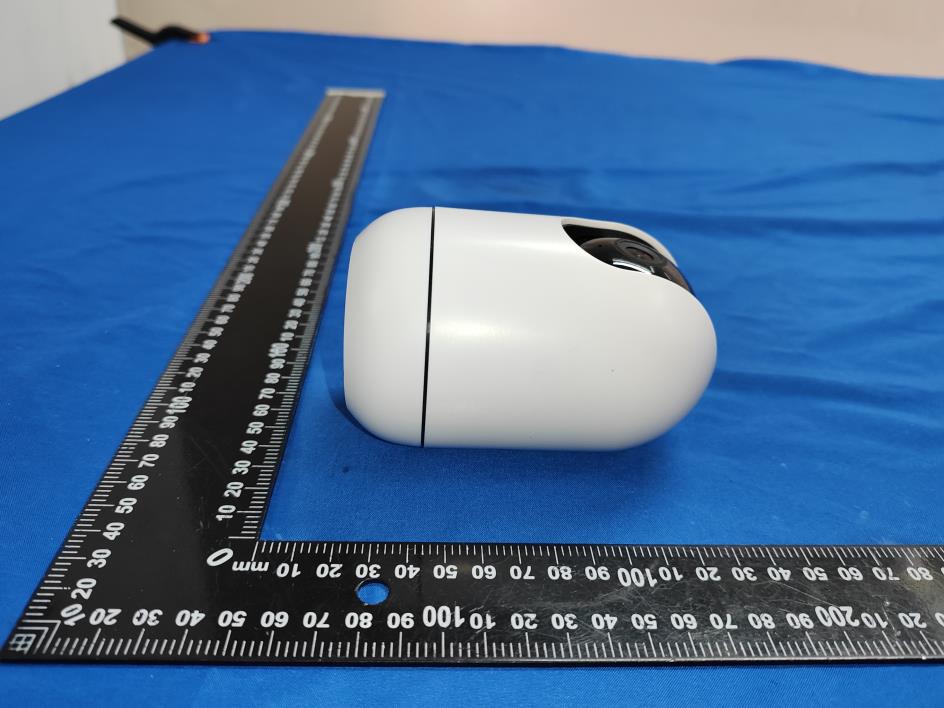

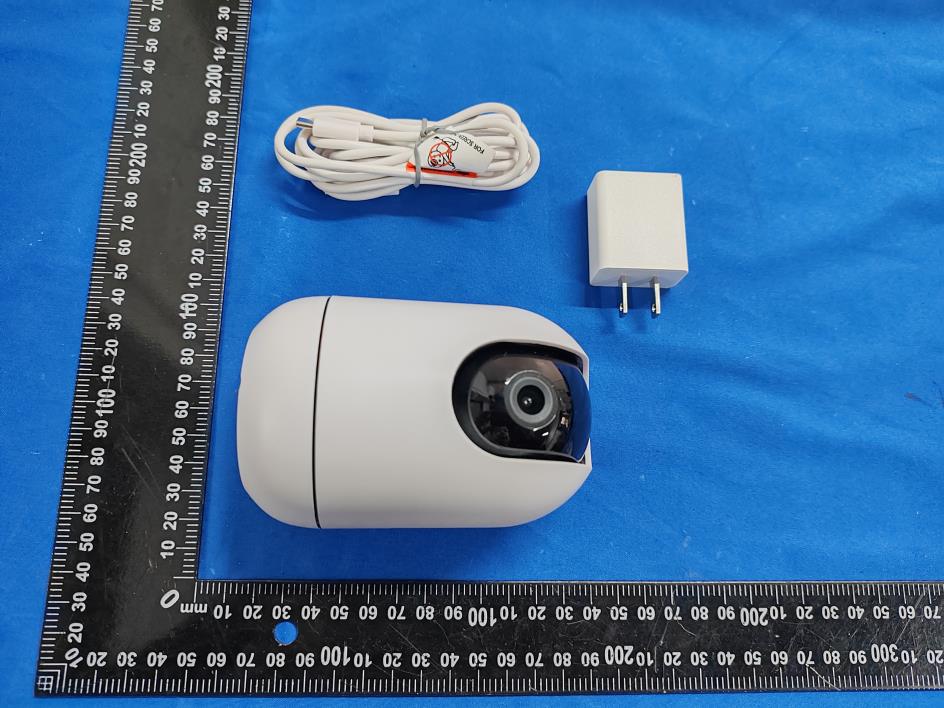

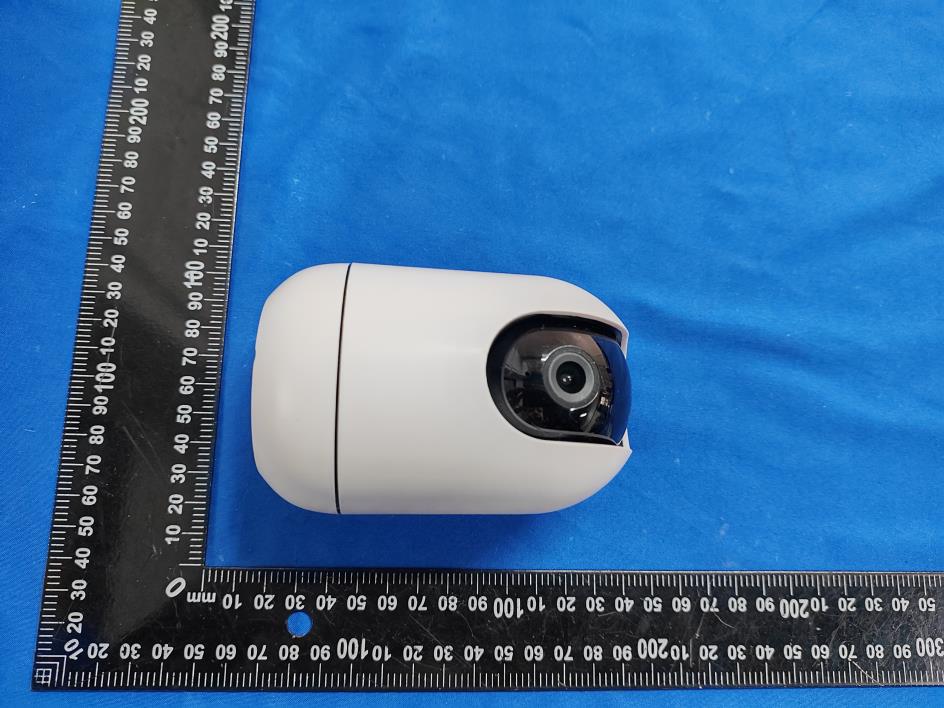

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 22*18mm Model.: BCKL900 FCC ID: 2ANBK-BCKL900 Label location

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2ANBK-BCKL900 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=EMeas+20log(dMeas)-104.7 EIRP is the equivalent isotropically radiated power, in dBm EMeas is the field strength of the emission at the measurement distance, in dBμV/m dMeas is the measurement distance, in m Test Result of RF Exposure Evaluation wifi 2.4G mode Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 16.05 40.2717 0.0137 1.0 PASS 802.11g 16.76 47.4242 0.0162 1.0 PASS 802.11n HT20 16.72 46.9894 0.0160 1.0 PASS 802.11n HT40 16.59 45.6037 0.0155 1.0 PASS Remark: antenna gain=2.34dBi

专业天线服务商 深圳市飞敏科技有限公司 S H E N Z H E NF E I M I NT E C H N O L O G YCO., L T D. 项目型号BM5RW 天线型号 测试许高富 审核陈泽雄 日期2025-12-13 天线测试报告 Antenna test report SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn 测试设备和测试环境 Test equipment and test environment SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn 测试设备 Test equipment 无源指标 增益 效率 3D方向图 有源指标 TRP总辐射功率 TIS总接收灵敏度 探头微波暗室 频率：0.4GHz至6GHz 主要测试指标 SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn 测试设备 Test equipment Agilent E5071C矢量网络分析仪 频率：300 kHz至8.5GHz R&S CMW500 宽带无线通信测试仪 GSM/3G/4G WIFI/ Bluetooth NB-IoT SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn 天线安装位置 Passive antenna data SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn Antenna assembly position and method Camera 天线驻波比 Antenna SWR SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn 天线回波损耗 Antenna Return loss Camera 天线增益与效率 Antenna gain and efficiency SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn Freq(MHz) Efficiency (％) Gian(dBi) 2400 48.28 1.72 2410 49.40 1.96 2420 49.97 2.06 2430 51.61 2.23 2440 52.65 2.31 2450 52.65 2.34 2460 52.23 2.23 2470 49.50 2.18 2480 48.30 2.03 2490 48.43 1.83 2500 48.83 1.93 Camera 插入图片1插入图片2 插入图片3插入图片4 天线辐射方向图 Antenna Radiation Pattern SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn Camera OTA 有源数据（TIS，TRP) OTA Active data SHENZHEN FEIMIN TECHNOLOGY CO.,LTD. TEL:0755-23035723 Mail:[email protected] URL:www.fmant.cn Camera OTA测试数据 模式(mode) 信道 (channel) TRPTIS 802.11b 2.4G 11MBps CH 114.99-83.21 CH 615.46-83.47 CH 1115.33-82.92 Thanks for your support！ 感谢您的支持！ 深圳市宝安区西乡街道固兴社区盛辉路4号科运达电商基地8楼801室 TEL:(86)755-23035723. FAX:0755-23036702 E-mail:[email protected] Room 801, 8th Floor,KeyunndaE-commerce Base,No. 4 ShenghuiRoad, GuxingCommunity,XixiangStreet,Bao‘an,District,Shenzhen

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260114031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 48 FCC Part 15C Test Report FCC ID: 2ANBK-BCKL900 Applicant: Shenzhen Dayun Links Co., Ltd. Address: Room 501, No.B Building 1, Bestda Medical Device Building, No.28, Nantong Avenue, Baolong Street, Longgang, Shenzhen, Guangdong Manufacturer: Shenzhen Dayun Links Co., Ltd. Address: Room 501, No.B Building 1, Bestda Medical Device Building, No.28, Nantong Avenue, Baolong Street, Longgang, Shenzhen, Guangdong Product Name: WiFi baby monitor Trade Mark: N/A Model Number: BCKL900, BC5W, BM5R11W, BM5R12W, BM5R13W, BM5R3W, BM5R10W, BM5K13W, BM5G11W, BM5G12W, BM5G13W, BM5G3W, BM5G10W Date of Receipt: Jan. 14, 2026 Test Date: Jan. 14, 2026 - Jan. 20, 2026 Date of Report: Jan. 20, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-260114031R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260114031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 48 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260114031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 48 Table of Contents Page 3.4.4 TEST SETUP 29 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 34 4.1 APPLIED PROCEDURES / LIMIT 34 4.1.1 TEST PROCEDURE 34 4.1.2 DEVIATION FROM STANDARD 34 4.1.3 TEST SETUP 34 4.1.4 EUT OPERATION CONDITIONS 34 4.1.5 TEST RESULTS 35 5 . POWER SPECTRAL DENSITY TEST 38 5.1 APPLIED PROCEDURES / LIMIT 38 5.1.1 TEST PROCEDURE 38 5.1.2 DEVIATION FROM STANDARD 38 5.1.3 TEST SETUP 38 5.1.4 EUT OPERATION CONDITIONS 38 5.1.5 TEST RESULTS 39 6 . 6DB BANDWIDTH TEST 42 6.1 APPLIED PROCEDURES / LIMIT 42 6.1.1 TEST PROCEDURE 42 6.1.2 DEVIATION FROM STANDARD 42 6.1.3 TEST SETUP 42 6.1.4 EUT OPERATION CONDITIONS 42 6.1.5 TEST RESULTS 43 7 . ANTENNA REQUIREMENT 48 7.1 STANDARD REQUIREMENT 48 7.2 EUT ANTENNA 48 8 . TEST SEUUP PHOTO 48 9 . EUT PHOTO 48 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260114031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 48 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(d) Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2% 9 Power Spectral Density ±2.45dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260114031R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 48 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: WiFi baby monitor Trade Mark: N/A Model Number: BCKL900, BC5W, BM5R11W, BM5R12W, BM5R13W, BM5R3W, BM5R10W, BM5K13W, BM5G11W, BM5G12W, BM5G13W, BM5G3W, BM5G10W Test Model: BCKL900 Model Difference All models are same as the samples except model name and appearance color, they have the same structure and circuit. Operat…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
